Model Electrolux WRS22PRBW1 REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR
03 - REFRIGERATOR DOOR

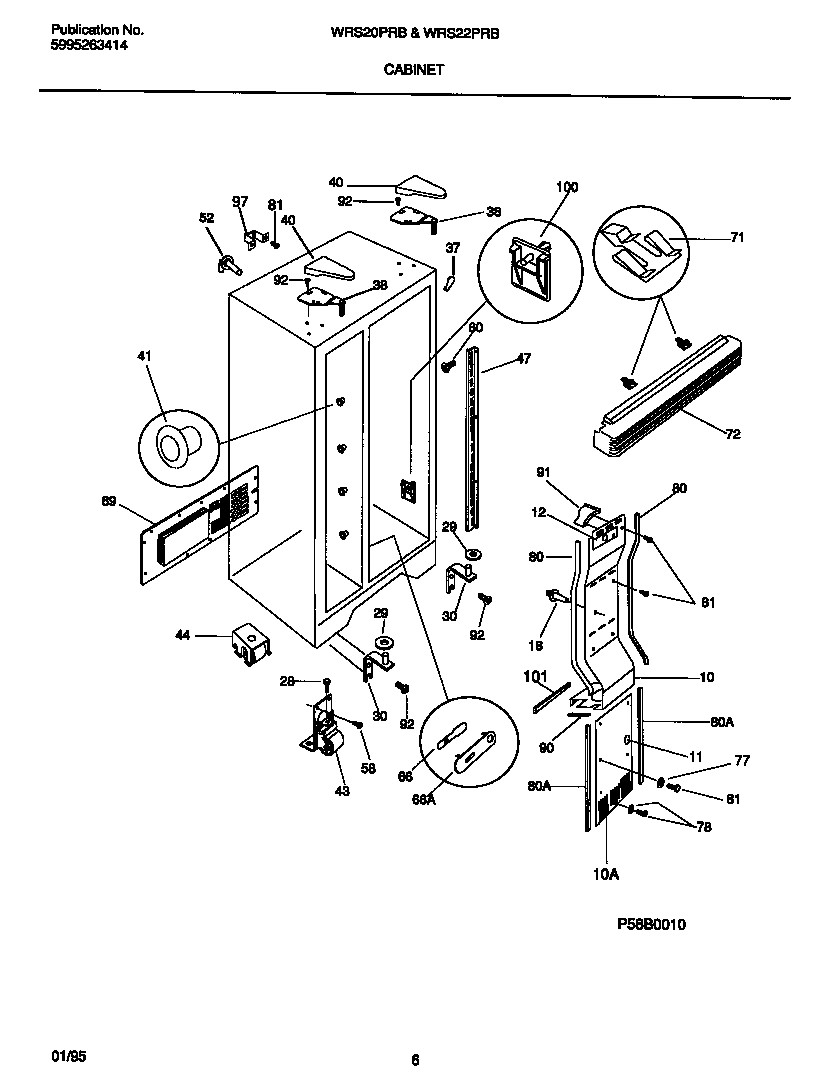

04 - CABINET

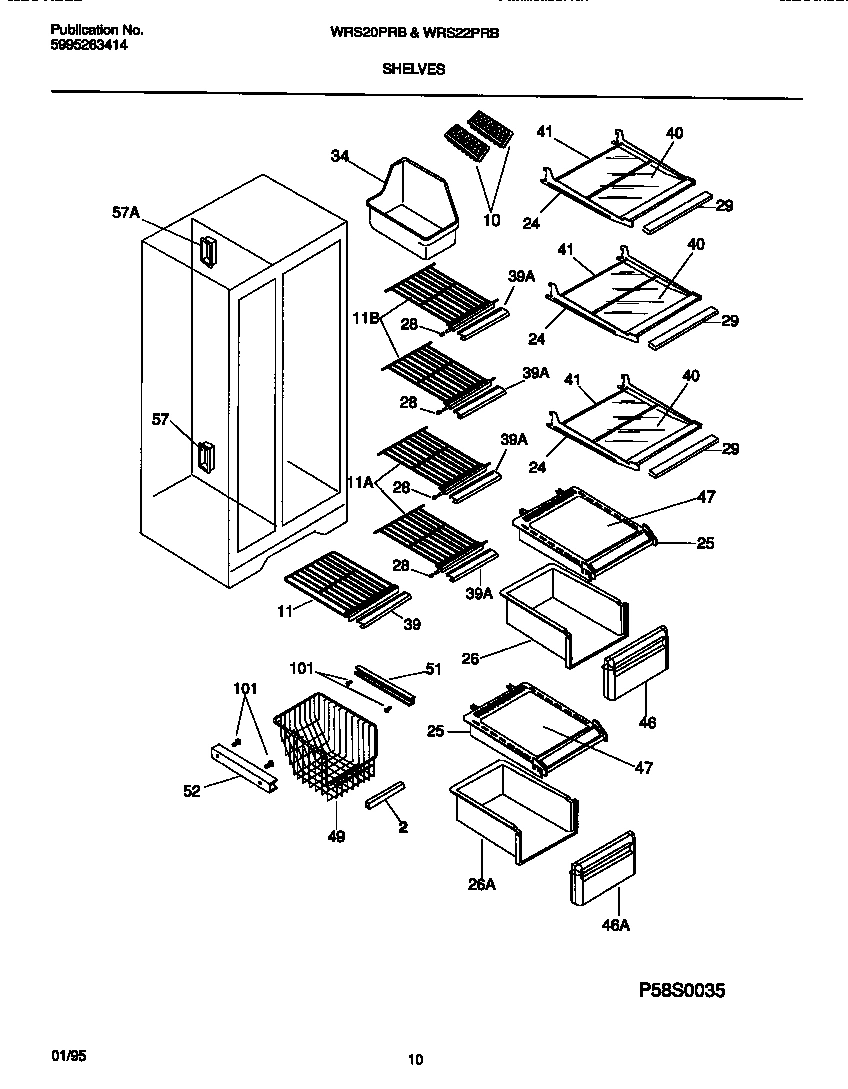

05 - SHELVES

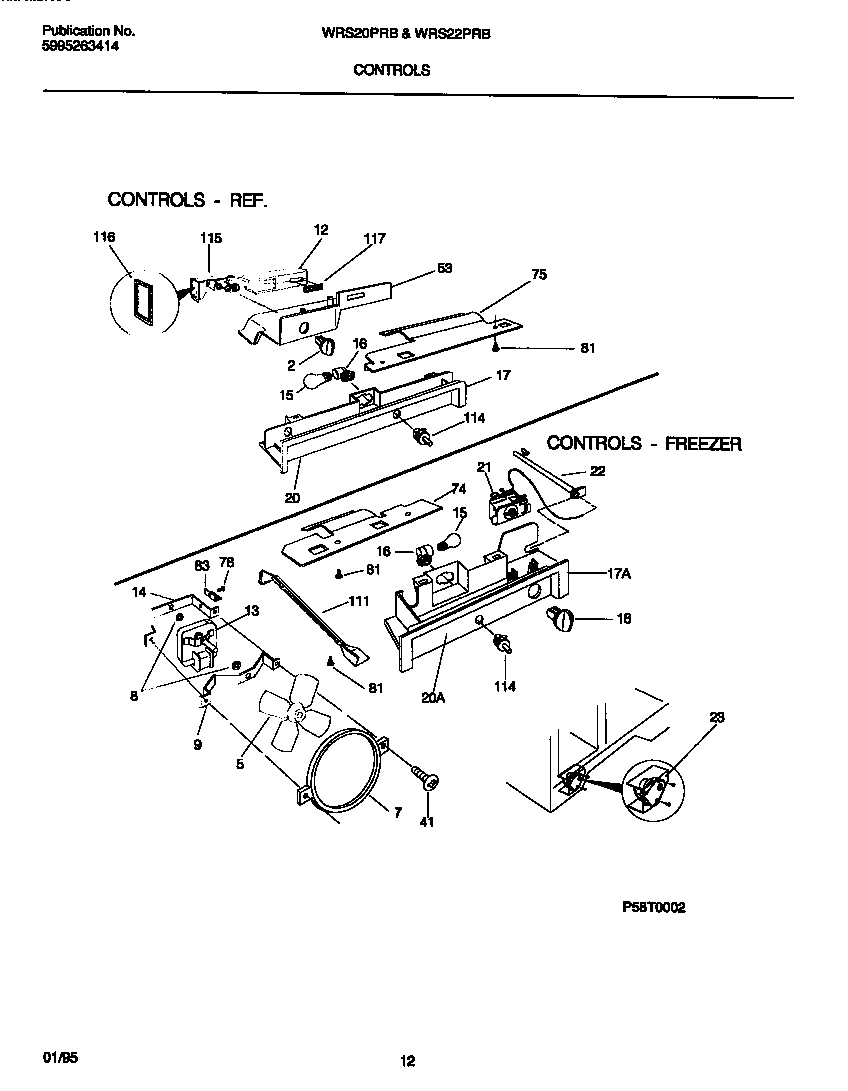

06 - CONTROLS

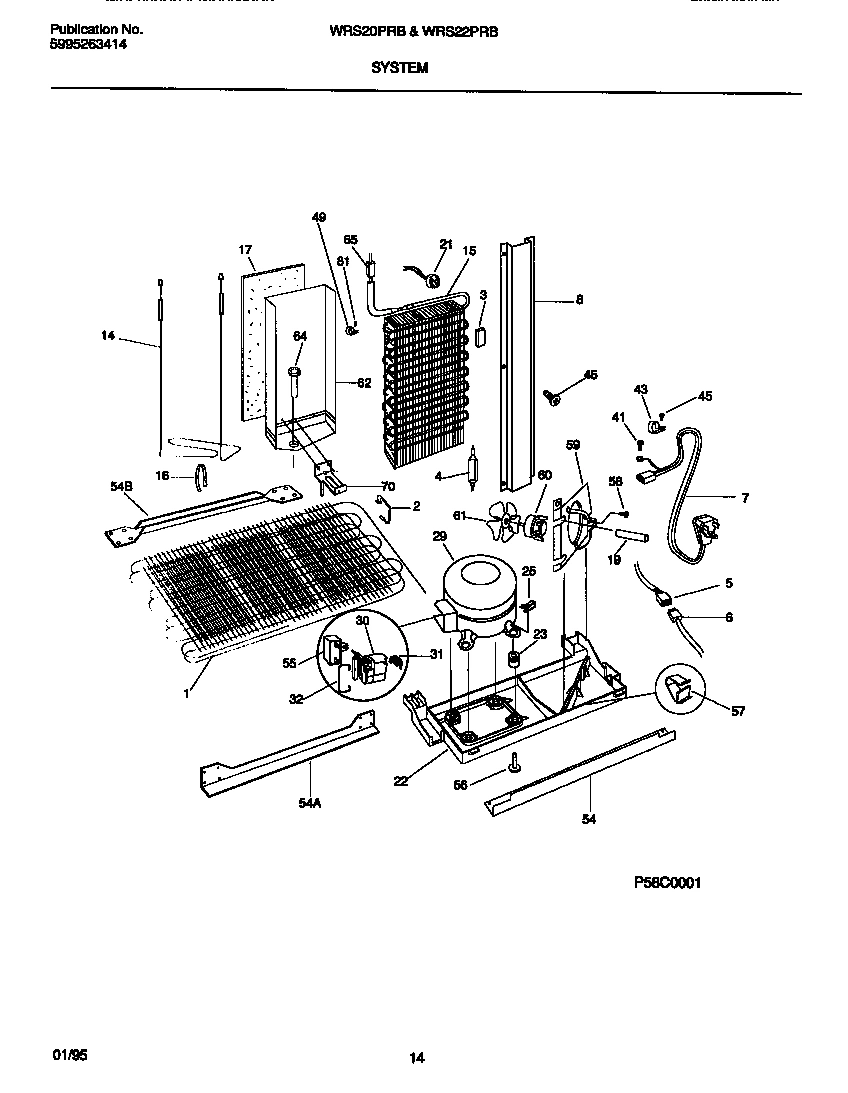

07 - SYSTEM
Common parts from model Electrolux WRS22PRBW1 REFRIGERATOR
*90280
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*90286
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*90288
WCI 215339900 WCI 215339900 Contact Us For Availability
*90289
WCI 215188300 WCI 215188300 Contact Us For Availability
*90290
WCI 5303917166 WCI 5303917166 Contact Us For Availability
1
SPACER-TUBE (NOT ILLUSTRATED) WCI 5303208866 Contact Us For Availability
1
SPACER, TUBE (NOT ILLUSTRATED) WCI 5303289026 Contact Us For Availability
1
WCI 5303289487 WCI 5303289487 Contact Us For Availability
2
WCI 215734314 WCI 215734314 Contact Us For Availability
2
WCI 5303298147 WCI 5303298147 Contact Us For Availability
2
WCI 215028602 WCI 215028602 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
3
WCI 215226501 WCI 215226501 Contact Us For Availability
3
BLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILL WCI 215305900 Contact Us For Availability
5
HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATE WCI 215013800 Contact Us For Availability
5
HARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATE WCI 215226000 Contact Us For Availability
5
WCI 215458801 WCI 215458801 Contact Us For Availability
6
WCI 215501601 WCI 215501601 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
8
WCI 5303289033 WCI 5303289033 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
11
WCI 218298001 WCI 218298001 Contact Us For Availability
11A
WCI 5303289504 WCI 5303289504 Contact Us For Availability
11B
SHELF, FREEZER, FIXED, WIRE, (2) WCI 218390202 Contact Us For Availability
12
WCI 215901100 WCI 215901100 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
WCI 215348100 WCI 215348100 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 215752000 WCI 215752000 Contact Us For Availability
15
EVAPORATOR, W/HEAT EXCHANGR WCI 215289604 Contact Us For Availability
15
TUBE-INLET (NOT ILLUSTRATED) WCI 3206414 Contact Us For Availability
17
BOX-CONTROL,REFR WCI 5303296805 Contact Us For Availability
17
WCI 5303289496 WCI 5303289496 Contact Us For Availability
17A
WCI 5303289515 WCI 5303289515 Contact Us For Availability
18
WCI 215051002 WCI 215051002 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
20
WCI 5303304844 WCI 5303304844 Contact Us For Availability
20A
WCI 5303304843 WCI 5303304843 Contact Us For Availability
21
WCI 5303001260 WCI 5303001260 Contact Us For Availability
21
WCI 5303294323 WCI 5303294323 Contact Us For Availability
22
WCI 5303289320 WCI 5303289320 Contact Us For Availability
22
HOUSING-TEMP SENSOR, PLASTIC WCI 3018891 Contact Us For Availability
22
WCI 5303289030 WCI 5303289030 Contact Us For Availability
23
COVER, DEFROST TIMER, TOP (NOT ILLUSTRATED) WCI 215277000 Contact Us For Availability
23
SHIELD, DEFROST TIMR, BTM (NOT ILLUSTRATED) WCI 5303289058 Contact Us For Availability
24
FRAME-REFR SHELF, CANTILEVER WCI 215919139 Contact Us For Availability
25
WCI 218147701 WCI 218147701 Contact Us For Availability
25
TRIM-STORAGE PAN CVR (NOT ILLUSTRATED) WCI 5303289586 Contact Us For Availability
25
WCI 215014200 WCI 215014200 Contact Us For Availability
28
WCI 08013638 WCI 08013638 Contact Us For Availability
29
WCI 215003200 WCI 215003200 Contact Us For Availability
29
WCI 215919715 WCI 215919715 Contact Us For Availability
29
WCI 5303917328 WCI 5303917328 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/HINGE PIN WCI 5303289060 Contact Us For Availability
30
TAPPING PLATE, LH (NOT ILLUSTRATED) WCI 5303289290 Contact Us For Availability
30
TAPPING PLATE, RH (NOT ILLUSTRATED) WCI 5303289291 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
WCI 5303274700 WCI 5303274700 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
37
TRIM-CABINET CORNER, WHITE WCI 5303202336 Contact Us For Availability
38
BRACKET, UPPER HINGE, W/CLOSER, WHITE WCI 218215201 Contact Us For Availability
39
WCI 5303300739 WCI 5303300739 Contact Us For Availability
39A
TRIM-FRZR SHELF WCI 5303304687 Contact Us For Availability
40
WCI 5303288945 WCI 5303288945 Contact Us For Availability
40
GLASS-REFR SHELF, CLEAR WCI 5303300033 Contact Us For Availability
41
WCI 215919815 WCI 215919815 Contact Us For Availability
42
NUT, ``U`` TYPE, NO. 8-15(A) (NOT ILLUSTRATED WCI 5303209814 Contact Us For Availability
43
WCI 5303289059 WCI 5303289059 Contact Us For Availability
43
SCREW-ROLLER MTG, SPCL IND HEX HD, 5/16-18(23 WCI 5308017044 Contact Us For Availability
44
WCI 215163900 WCI 215163900 Contact Us For Availability
46
WCI 215042026 WCI 215042026 Contact Us For Availability
46A
WCI 215042025 WCI 215042025 Contact Us For Availability
47
WCI 5303288974 WCI 5303288974 Contact Us For Availability
47
WCI 215530500 WCI 215530500 Contact Us For Availability
47
WCI 5303289387 WCI 5303289387 Contact Us For Availability
49
WCI 5303289521 WCI 5303289521 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
51
WCI 5303288960 WCI 5303288960 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
52
WCI 215162501 WCI 215162501 Contact Us For Availability
52
PLUG-WTR INLET TUBE (NOT ILLUSTRATED) WCI 215058000 Contact Us For Availability
53
WCI 215553300 WCI 215553300 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54A
WCI 5303289311 WCI 5303289311 Contact Us For Availability
54B
WCI 5303289292 WCI 5303289292 Contact Us For Availability
56
WCI 215014100 WCI 215014100 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
57A
WCI 5303289064 WCI 5303289064 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
60
WCI 215501800 WCI 215501800 Contact Us For Availability
61
NUT, SPEED (NOT ILLUSTRATED) WCI 215004700 Contact Us For Availability
61
GROMMET, SILENCER (NOT ILLUSTRATED) WCI 215223700 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
62
WCI 215048700 WCI 215048700 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
66
WCI 215050201 WCI 215050201 Contact Us For Availability
66A
WCI 218171301 WCI 218171301 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
71
WCI 215003300 WCI 215003300 Contact Us For Availability
71
SCREW-CLIP/GRILLE, PAN HEAD, 6-AB X 1/4 C R ( WCI 215608400 Contact Us For Availability
72
WCI 5303289507 WCI 5303289507 Contact Us For Availability
74
WCI 5303289516 WCI 5303289516 Contact Us For Availability
75
WCI 5303289052 WCI 5303289052 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
80
GASKET-AIR DUCT CVR WRS20PRBW1 REQUIRES QTY-4 WCI 218154003 Contact Us For Availability
80A
WCI 218249801 WCI 218249801 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
89
WCI 215176300 WCI 215176300 Contact Us For Availability
90
WCI 215022602 WCI 215022602 Contact Us For Availability
91
WCI 215177600 WCI 215177600 Contact Us For Availability
97
WCI 5303289299 WCI 5303289299 Contact Us For Availability
100
SUPPORT-CRSPR COVER WCI 5303288973 No Longer Available
101
WCI 215305702 WCI 215305702 Contact Us For Availability
111
WCI 5303289024 WCI 5303289024 Contact Us For Availability
115
WCI 215011501 WCI 215011501 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
117
WCI 215011700 WCI 215011700 Contact Us For Availability
× ![]()
