Model Whirlpool WRFF3736SW00 – Common Parts & Diagrams

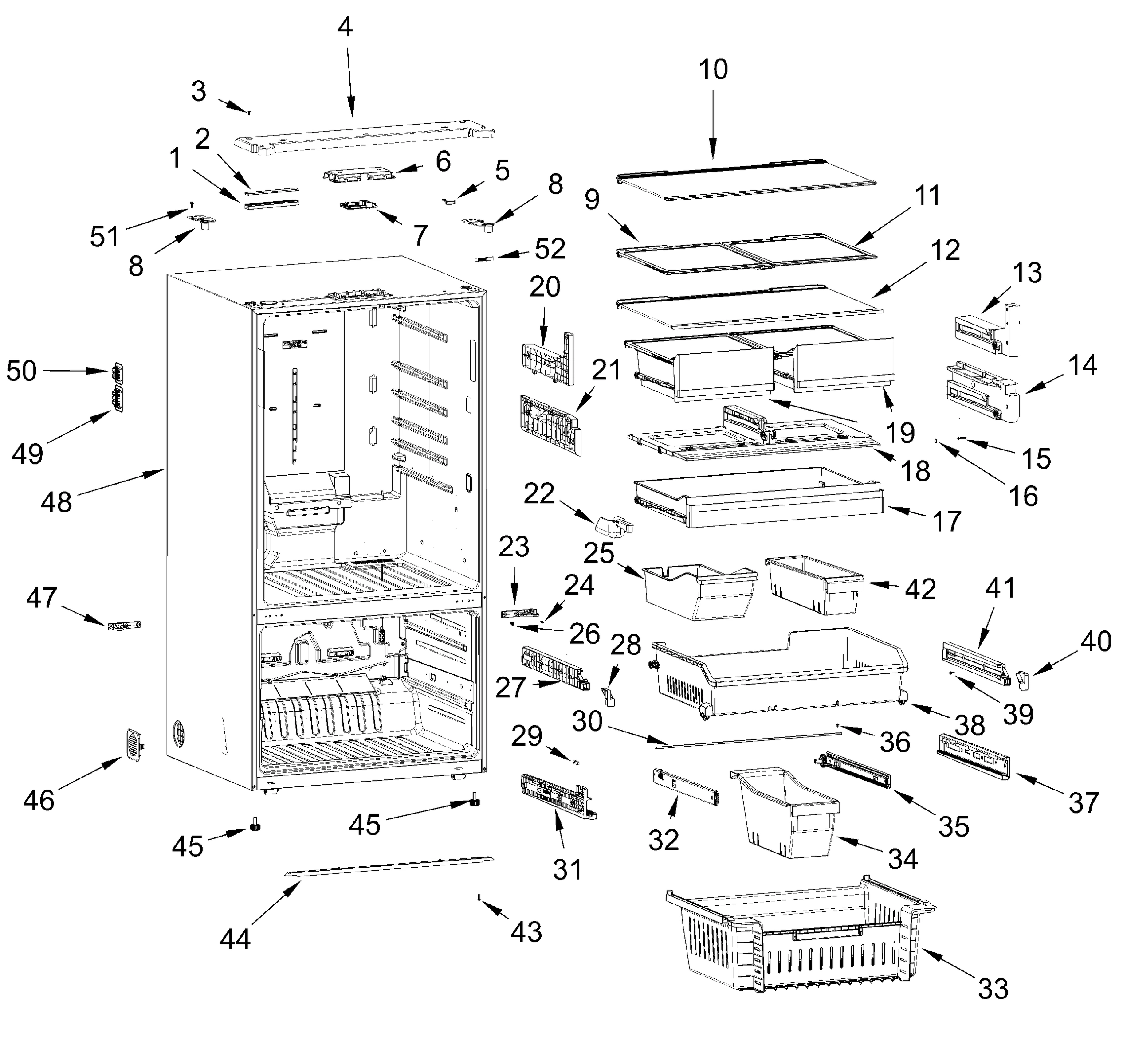

CABINET AND SHELF PARTS

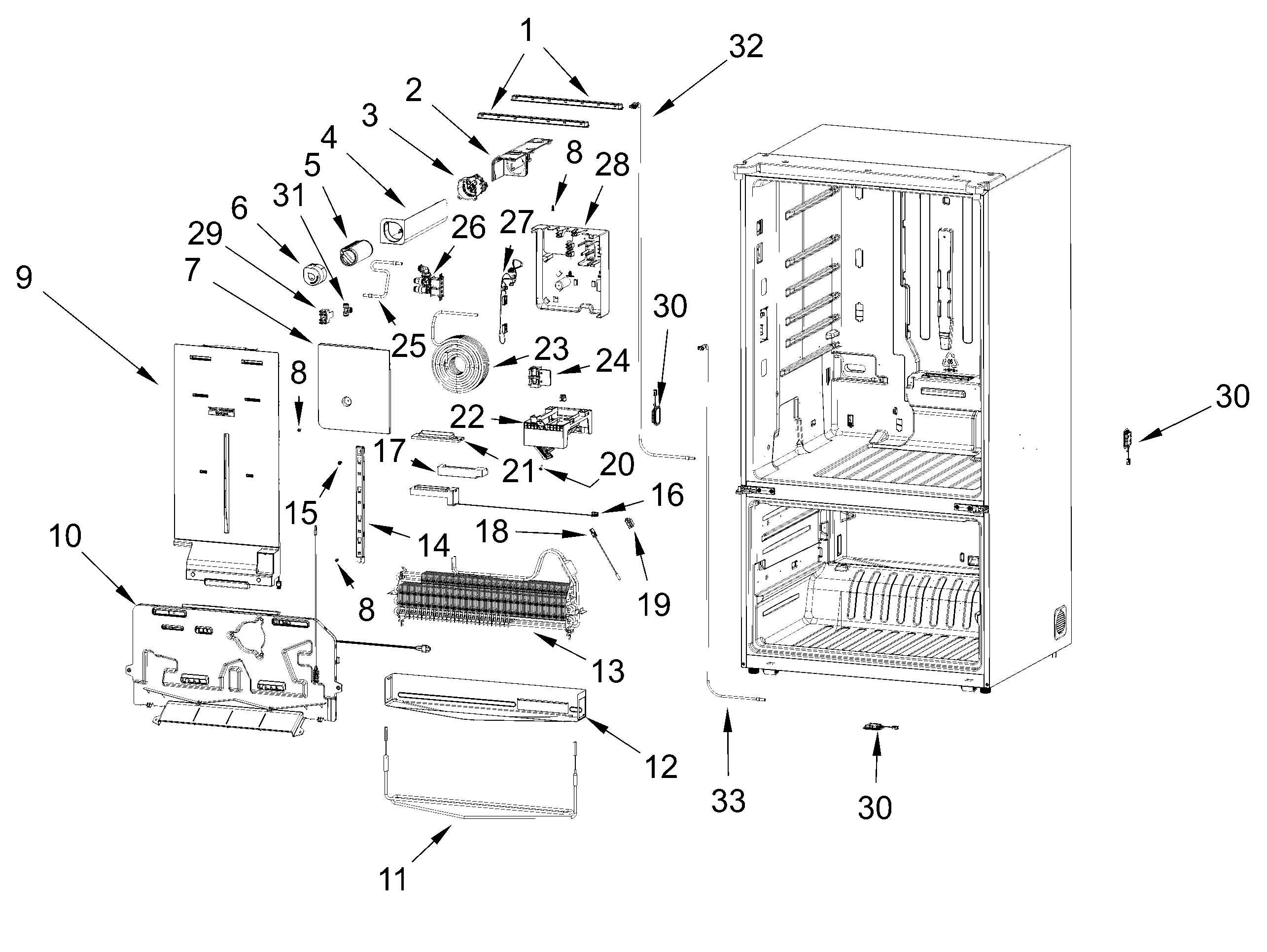

WATER AND FILTER PARTS

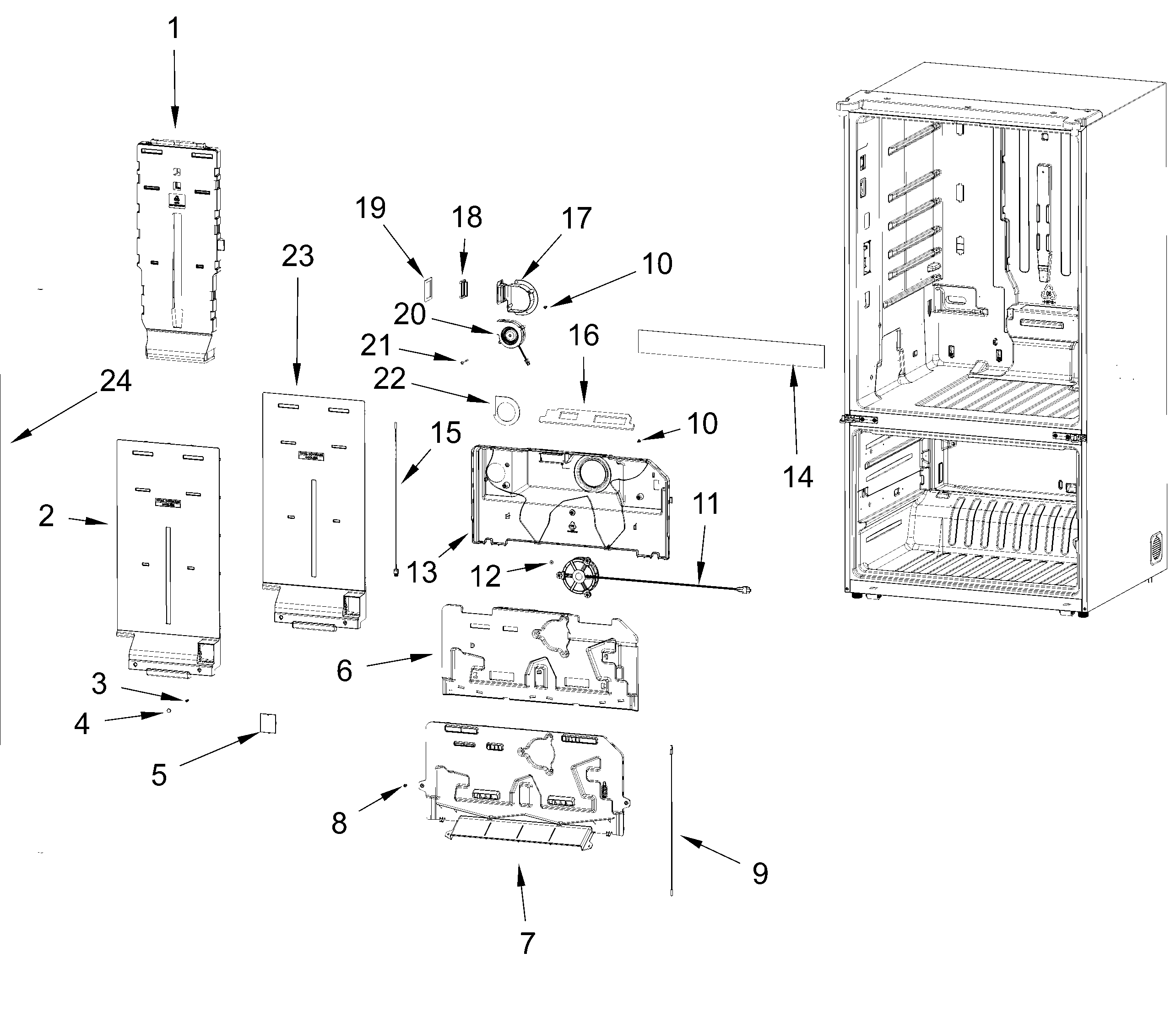

DUCT PARTS

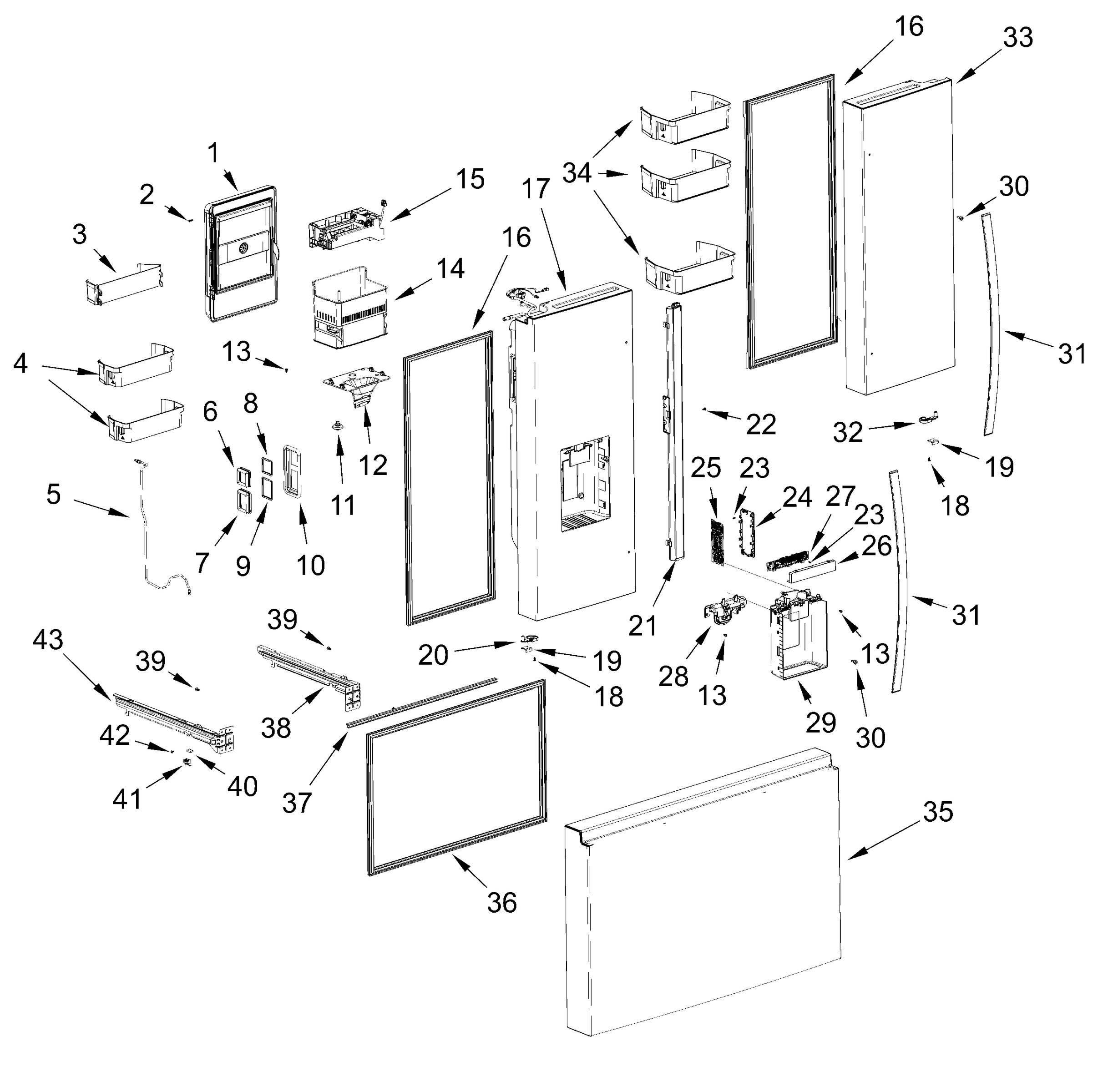

DOOR PARTS

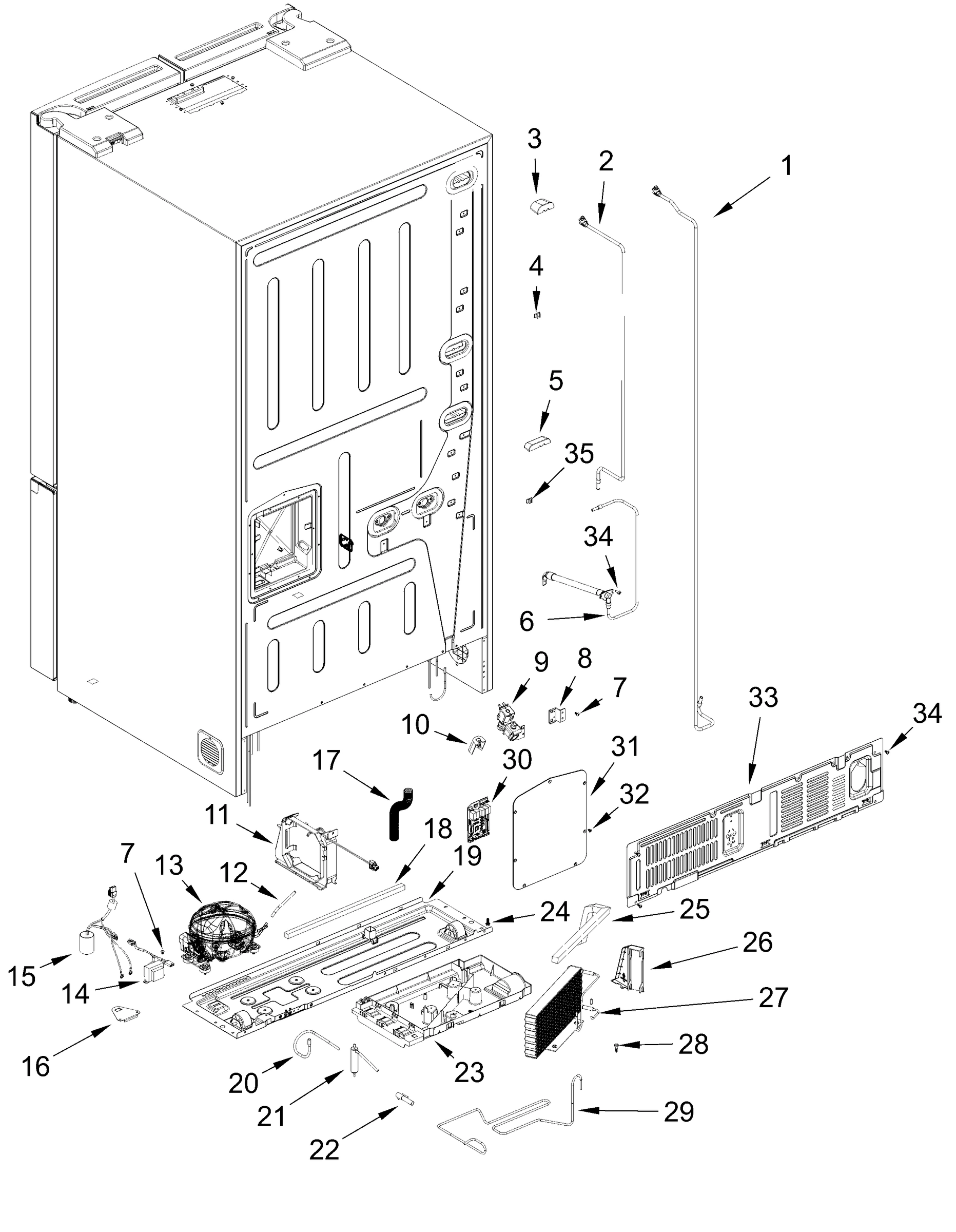

UNIT PARTS
Common parts from model Whirlpool WRFF3736SW00
Grille, Outer (Black) WPL W11764798 Contact Us For Availability
Cover, Hinge (Black) WPL W11767091 Contact Us For Availability
Cover, Hinge (Grey) WPL W11767096 Contact Us For Availability
Gasket, Refrigerator (Grey) WPL W11758046 Contact Us For Availability
Assembly, Flip WPL W11758051 Contact Us For Availability
Handle Assembly (Stainless) WPL W11758052 Contact Us For Availability
Freezer Door Gasket (Grey) WPL W11758056 Contact Us For Availability
Refrigerator Door Assembly (Stainless, Right WPL W11758098 Contact Us For Availability
Freezer Door Assembly (Stainless) WPL W11758099 Contact Us For Availability
Gasket, Refrigerator (Black) WPL W11764800 Contact Us For Availability
Freezer Door Gasket (Black) WPL W11764945 Contact Us For Availability
Mullion Assembly (Black) WPL W11764801 Contact Us For Availability
Refrigerator Door Assembly (Stainless, Left H WPL W11767649 Contact Us For Availability
Freezer Door Assembly (Black Stainless) WPL W11767714 Contact Us For Availability
Refrigerator Door Assembly (Black Stainless, WPL W11767713 Contact Us For Availability
Refrigerator Door Assembly (Black Stainless, WPL W11767803 Contact Us For Availability
Handle Assembly (Black Stainless) WPL W11772916 Contact Us For Availability
Fascia, UI (Grey) WPL W11773067 Contact Us For Availability
REFRIGERANT CHARGE WPL ARIA203FEA88A0C0545C484B4E1C20B771B Contact Us For Availability
85 grams (R600a) WPL ARI92244146F79E040ACE58246B10FAF7A8 Contact Us For Availability
1
Cover, Cable WPL W11767016 Contact Us For Availability
1
Assembly, Top Lighting WPL W11757820 Contact Us For Availability
1
Assembly, Air Duct WPL W11757901 Contact Us For Availability
1
Assembly, Ice Door WPL W11767412 Contact Us For Availability
1
Assembly, Filter Pipe WPL W11758063 Contact Us For Availability
2
Cable, Harness WPL W11767025 Contact Us For Availability
2
Bracket, Filter WPL W11757828 Contact Us For Availability
2
Assembly, Air Duct Cover WPL W11767392 Contact Us For Availability
2
Screw WPL W11772714 Contact Us For Availability
2
Filter, Water Tank WPL W11758064 Contact Us For Availability
3
Seat, Water Filter WPL W11757829 Contact Us For Availability
3
Screw WPL W11764750 Contact Us For Availability
3
Trivet, Ice Compartment Door WPL W11767419 Contact Us For Availability
3
Seal, Filler WPL W11758065 Contact Us For Availability
4
Cover, Hinge (White) WPL W11767102 Contact Us For Availability
4
Cover, Screw (White) WPL W11764733 Contact Us For Availability
4
Cover, Filter Trim WPL W11757834 Contact Us For Availability
4
Bin, Stadium Door WPL W11767420 Contact Us For Availability
4
Clamp, Pipe WPL W11758066 Contact Us For Availability
5
Filter, Water WPL W11757838 Contact Us For Availability
5
Cover, Wire Harness WPL W11757903 Contact Us For Availability
5
Tube, Water Dispenser WPL W11767421 Contact Us For Availability
5
Seal, Inlet/Outlet Water WPL W11758068 Contact Us For Availability
6
Cover, Ice Box WPL W11772365 Contact Us For Availability
6
Cover, Filter WPL W11757840 Contact Us For Availability
6
Foam, Air Duct WPL W11757905 Contact Us For Availability
6
Gasket, Supply Duct WPL W11292786 Contact Us For Availability
6
Pipe, Ice Maker Water WPL W11758072 Contact Us For Availability
7
PCBA, Icemaker WPL W11767103 Contact Us For Availability
7
Screw WPL W11764747 Contact Us For Availability
7
Cover, Tank WPL W11757842 Contact Us For Availability
7
Cover, Air Duct Front WPL W11757909 Contact Us For Availability
7
Gasket, Return Duct WPL W11297729 Contact Us For Availability
8
Top Hinge (Left / Right Hand) WPL W11097769 Contact Us For Availability
8
Screw WPL W11764748 Contact Us For Availability
8
Clip, Supply Duct Gasket WPL W11292783 Contact Us For Availability
8
Bracket, Water Valve WPL W11758073 Contact Us For Availability
9
Assembly, Air Duct WPL W11767279 Contact Us For Availability
9
Sensor, Freezer Temperature WPL W11757916 Contact Us For Availability
9
Clip, Return Duct Gasket WPL W11292789 Contact Us For Availability
10
Assembly, Full Glass Shelf WPL W11757746 Contact Us For Availability
10
Assembly, Evaporator Cover WPL W11767298 Contact Us For Availability
10
Gasket, Supply Duct WPL W11767424 Contact Us For Availability
10
Guide, Pipe WPL W11764755 Contact Us For Availability
11
Assembly, Half Glass Shelf (Right Hand) WPL W11758988 Contact Us For Availability
11
Heater, Defrost WPL W11757860 Contact Us For Availability
11
Fan, Evaporator WPL W11186092 Contact Us For Availability
11
Frame, Condenser Fan WPL W11758076 Contact Us For Availability
12
Assembly, Crisper Cover Glass WPL W11757751 Contact Us For Availability
12
Shield, Heat WPL W11767305 Contact Us For Availability
12
Spacer, Evaporator WPL W11764753 Contact Us For Availability
12
Assembly, Ice Chute WPL W11767425 Contact Us For Availability
13
Assembly, Crisper Support (Right Hand) WPL W11757754 Contact Us For Availability
13
Evaporator WPL W11757865 Contact Us For Availability
13
Screw WPL W11764751 Contact Us For Availability
13
Cover, Rear Air Duct WPL W11757917 Contact Us For Availability
13
Compressor WPL W11758078 Contact Us For Availability
14
Assembly, Pantry Support (Right Hand) WPL W11757756 Contact Us For Availability
14
Ladder, Half Glass Shelf WPL W11767306 Contact Us For Availability
14
Insulation, Evaporator WPL W11757918 Contact Us For Availability
14
Ice Bin Assembly WPL W11316215 Contact Us For Availability
14
Reactor, Electric WPL W11758079 Contact Us For Availability
15
Sensor, Temperature WPL W11757925 Contact Us For Availability
15
Filter, EMI WPL W11764756 Contact Us For Availability
16
Fixed, Damper WPL W11757868 Contact Us For Availability
16
Insulation, Sealing WPL W11757927 Contact Us For Availability
16
Gasket, Refrigerator (White) WPL W11764979 Contact Us For Availability
16
Coil, Mounting Plate WPL W11764757 Contact Us For Availability
17
Assembly, Pantry Support (Right Hand) WPL W11757757 Contact Us For Availability
17
Bracket, Ice Box Fan WPL W11091630 Contact Us For Availability
17
Refrigerator Door Assembly (White, Left Hand) WPL W11767808 Contact Us For Availability
17
Tube, Drain WPL W11758082 Contact Us For Availability
18
Screw WPL W11764732 Contact Us For Availability
18
Assembly, Pantry Cover WPL W11757759 Contact Us For Availability
18
Sensor, Defrost WPL W11757869 Contact Us For Availability
18
Seal, Ice Box Fan WPL W11251035 Contact Us For Availability
18
Gasket, Foam WPL W11764758 Contact Us For Availability
19
Assembly, Crisper WPL W11757763 Contact Us For Availability
19
Buckle, Fixed WPL W11757870 Contact Us For Availability
19
Gasket WPL W11767394 Contact Us For Availability
19
Mounting Plate, Compressor WPL W11758084 Contact Us For Availability
20
Assembly, Crisper Support (Left Hand) WPL W11757761 Contact Us For Availability
20
Screw WPL W11764752 Contact Us For Availability
20
Fan, Ice Box WPL W11767395 Contact Us For Availability
20
Latch, Door Closer (Left Hand) WPL W11306401 Contact Us For Availability
20
Suction Tube WPL W11728019 Contact Us For Availability
21
Assembly, Pantry Support (Left Hand) WPL W11757764 Contact Us For Availability
21
Cover, Damper WPL W11757873 Contact Us For Availability
21
Screw WPL W11727955 Contact Us For Availability
21
Mullion Assembly (White) WPL W11764980 Contact Us For Availability
22
Scoop, Ice WPL W11764734 Contact Us For Availability
22
Gasket, Fan WPL W11767401 Contact Us For Availability
22
Cord, Power WPL W11758086 Contact Us For Availability
23
Assembly, Central Hinge (Right Hand) WPL W11757765 Contact Us For Availability
23
Assembly, Tank Coil WPL W11757881 Contact Us For Availability
23
Assembly, Air Duct Cover WPL W11757902 Contact Us For Availability
23
Screw WPL W11764754 Contact Us For Availability
23
Tray. Drain WPL W11758088 Contact Us For Availability
24
Screw WPL W11764745 Contact Us For Availability
24
Screw WPL W11764746 Contact Us For Availability
24
Valve, Separation WPL W11767308 Contact Us For Availability
24
Assembly, Duct Gasket WPL W11767407 Contact Us For Availability
24
UI, Fascia WPL W11767429 Contact Us For Availability
25
Tray, Ice WPL W11757766 Contact Us For Availability
25
Valve, Connection Pipe WPL W11767309 Contact Us For Availability
25
UI, PCB WPL W11767572 Contact Us For Availability
25
Foam. Gasket WPL W11764759 Contact Us For Availability
26
Valve, Splitter WPL W11757885 Contact Us For Availability
26
Fascia, UI (Black) WPL W11773069 Contact Us For Availability
26
Bracket, Condenser Coil WPL W11758089 Contact Us For Availability
27
Rail, Tray (Left Hand) WPL W11757769 Contact Us For Availability
27
Cable, Distributer Adapter WPL W11767387 Contact Us For Availability
27
UI, Ice PCB WPL W11767575 Contact Us For Availability
27
Condenser WPL W11758090 Contact Us For Availability
28
Stop, Drawer (Left Hand) WPL W11757770 Contact Us For Availability
28
Bracket, Water Tank WPL W11757888 Contact Us For Availability
28
Assembly, Bracket WPL W11767579 Contact Us For Availability
28
Screw WPL W11764767 Contact Us For Availability
29
Switch, Reed WPL W11757771 Contact Us For Availability
29
Support, Water Pipe WPL W11767388 Contact Us For Availability
29
Assembly, Dispenser Well WPL W11767603 Contact Us For Availability
29
Condenser, Pre WPL W11758091 Contact Us For Availability
30
Bar, Synchronization WPL W11757772 Contact Us For Availability
30
LED module WPL W11764792 Contact Us For Availability
30
Stud, Handle Mounting WPL W11755083 Contact Us For Availability
30
Main Board WPL W11767615 Contact Us For Availability
31
Rail, Bracket (Left Hand) WPL W11757775 Contact Us For Availability
31
Connector, Tube WPL W11772545 Contact Us For Availability
31
Handle Assembly (White) WPL W11764981 Contact Us For Availability
32
Guide, Rail (Left Hand) WPL W11757776 Contact Us For Availability
32
Water, Tube WPL W11767389 Contact Us For Availability
32
Latch, Door Closer (Right Hand) WPL W11306079 Contact Us For Availability
32
Screw WPL W11764768 Contact Us For Availability
33
Drawer, Lower WPL W11757777 Contact Us For Availability
33
Tube, Water Dispenser WPL W11767390 Contact Us For Availability
33
Refrigerator Door Assembly (White, Right Hand WPL W11764986 Contact Us For Availability
33
Cover, Compressor WPL W11758093 Contact Us For Availability
34
Screw WPL W11764731 Contact Us For Availability
34
Bottom, Storage Box WPL W11757778 Contact Us For Availability
34
Door, Bin WPL W11758044 Contact Us For Availability
35
Guide, Rail (Right Hand) WPL W11757782 Contact Us For Availability
35
Freezer Door Assembly (White) WPL W11765002 Contact Us For Availability
35
Clamp, Pipe WPL W11758094 Contact Us For Availability
36
Freezer Door Gasket (White) WPL W11764982 Contact Us For Availability
37
Rail, Bracket Guide (Right Hand) WPL W11757785 Contact Us For Availability
37
Gasket, Inner Door WPL W11758059 Contact Us For Availability
38
Assembly, Drawer Tray WPL W11757786 Contact Us For Availability
38
Bracket, Guild Rail (Right Hand) WPL W11758060 Contact Us For Availability
40
Stop, Tray Drawer WPL W11757787 Contact Us For Availability
41
Tray, Rail (Right Hand) WPL W11757788 Contact Us For Availability
41
Bracket, Magnet WPL W11758062 Contact Us For Availability
42
Box, Top Storage WPL W11757793 Contact Us For Availability
43
Screw WPL W11764749 Contact Us For Availability
43
Bracket, Guild Rail (Left Hand) WPL W11758061 Contact Us For Availability
44
Lock, Strip Air WPL W11757795 Contact Us For Availability
45
Leg, Leveling WPL W11757796 Contact Us For Availability
46
Grille, Outer (White) WPL W11764977 Contact Us For Availability
47
Assembly, Central Hinge (Left Hand) WPL W11757802 Contact Us For Availability
48
Cabinet (Not a Serviceable Part) WPL ARIA1BE6BF358E039F0039560B85D40D2C4 Contact Us For Availability
49
Cover, Duct WPL W11772431 Contact Us For Availability
50
Grille, Duct WPL W11767278 Contact Us For Availability
51
Screw WPL W11764730 Contact Us For Availability
× ![]()
