Model Whirlpool WRB551WNBS00 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams
02 - CABINET PARTS
09 - UNIT PARTS

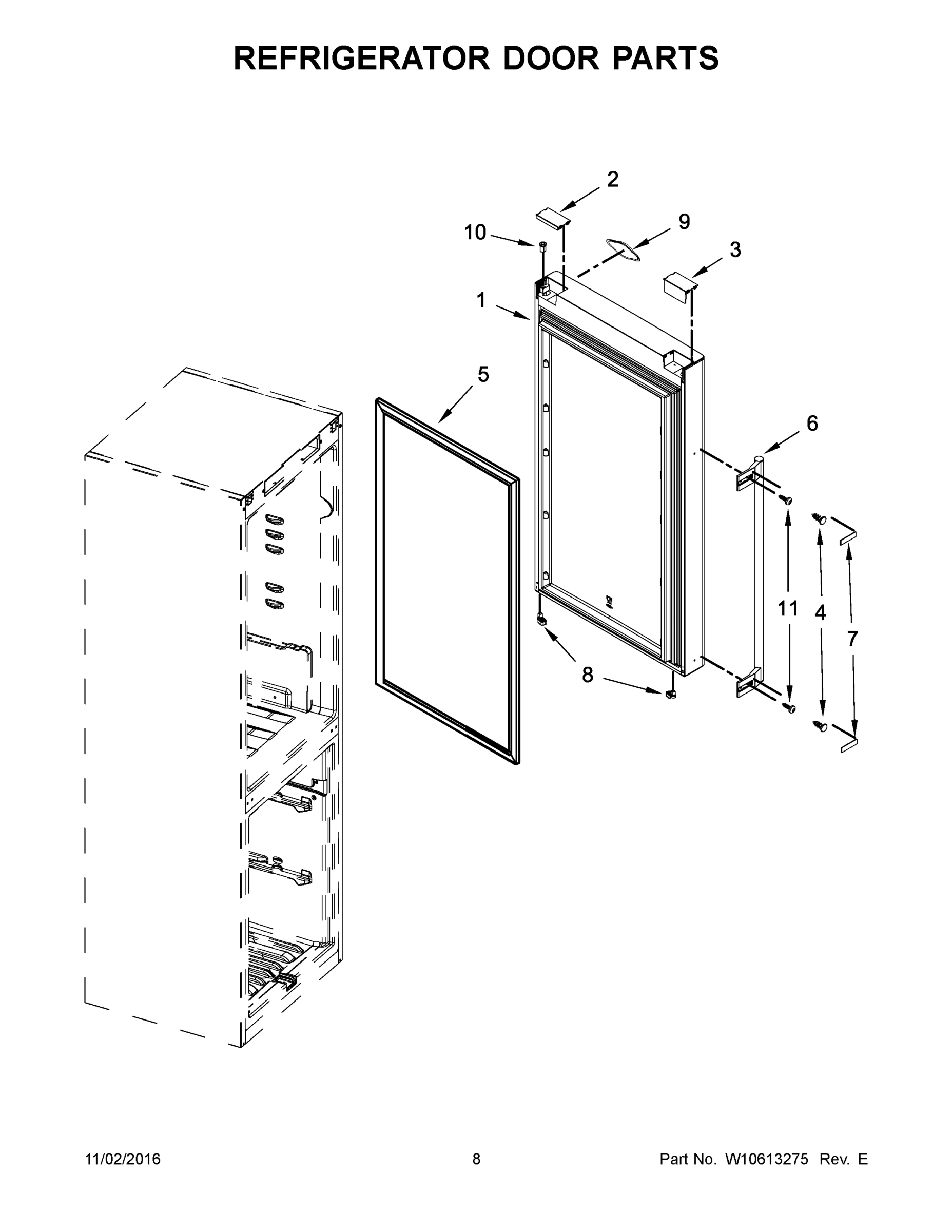

05 - REFRIGERATOR DOOR PARTS

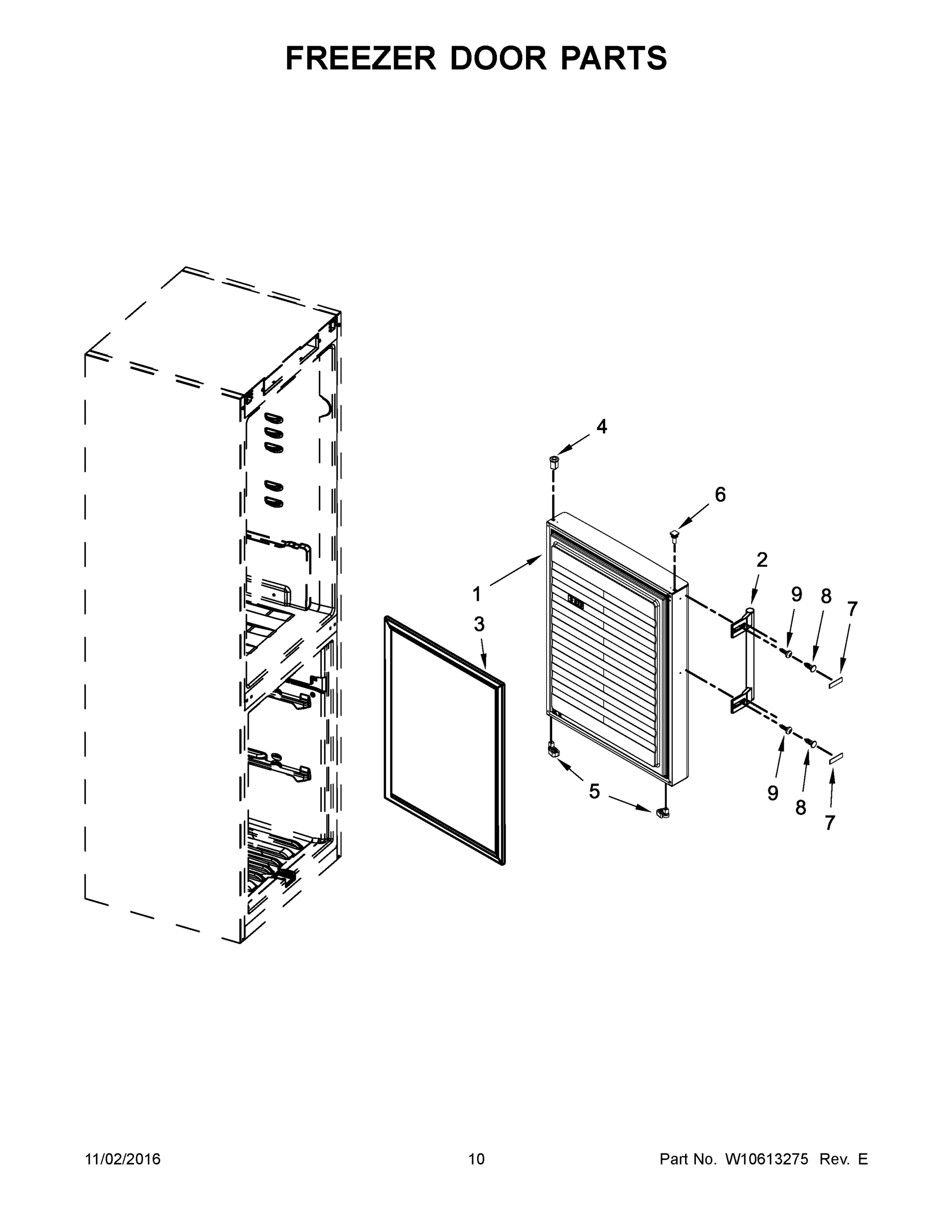

06 - FREEZER DOOR PARTS

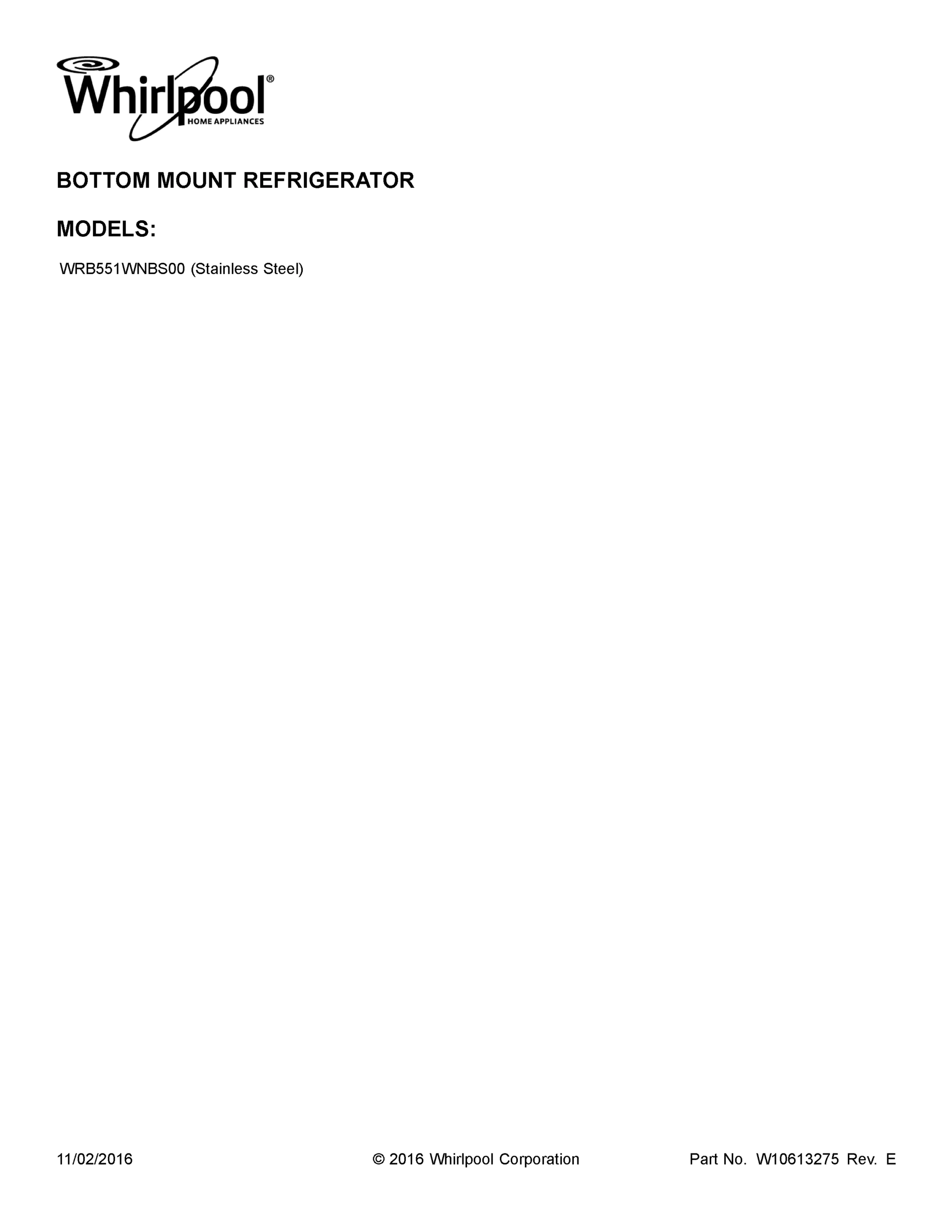

01 - COVER SHEET

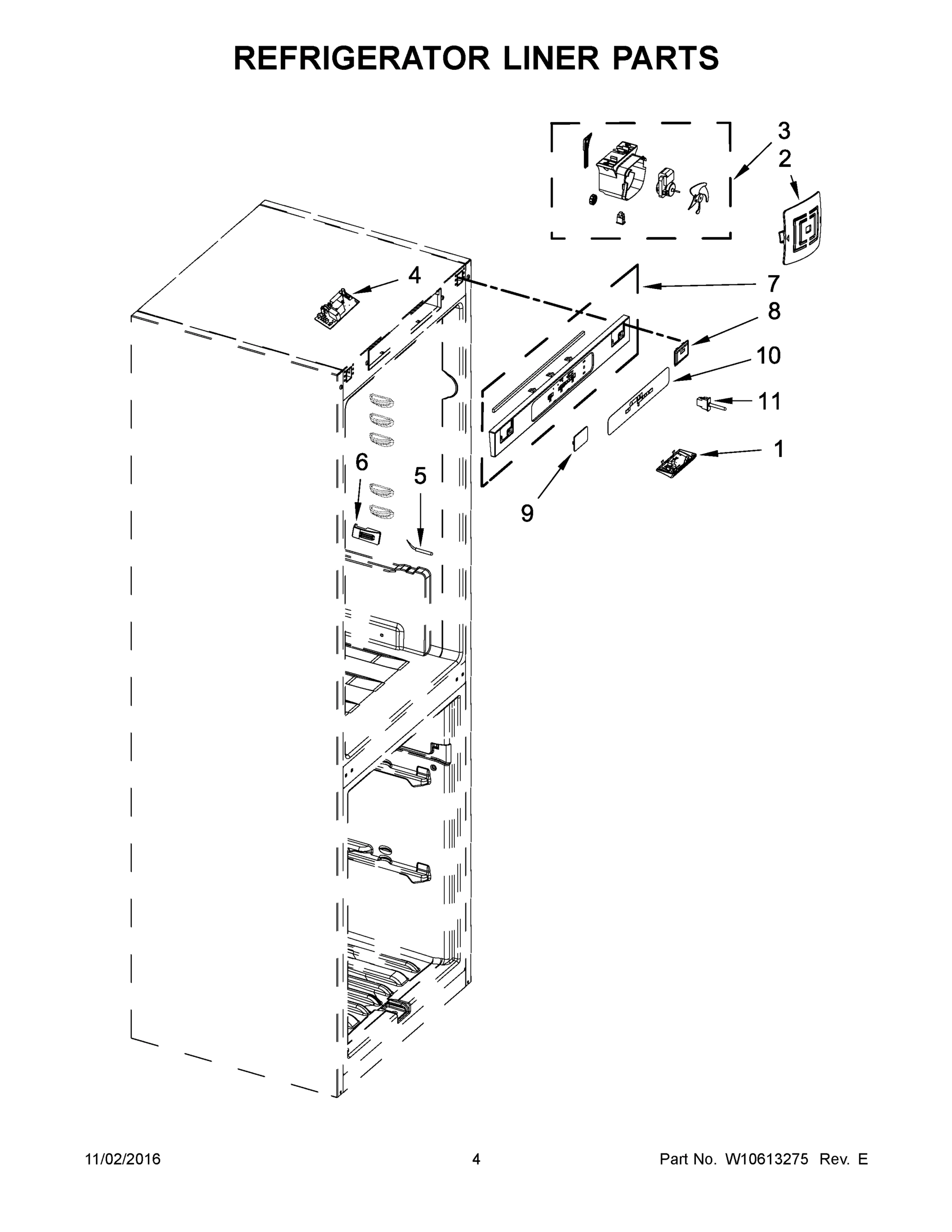

03 - REFRIGERATOR LINER PARTS

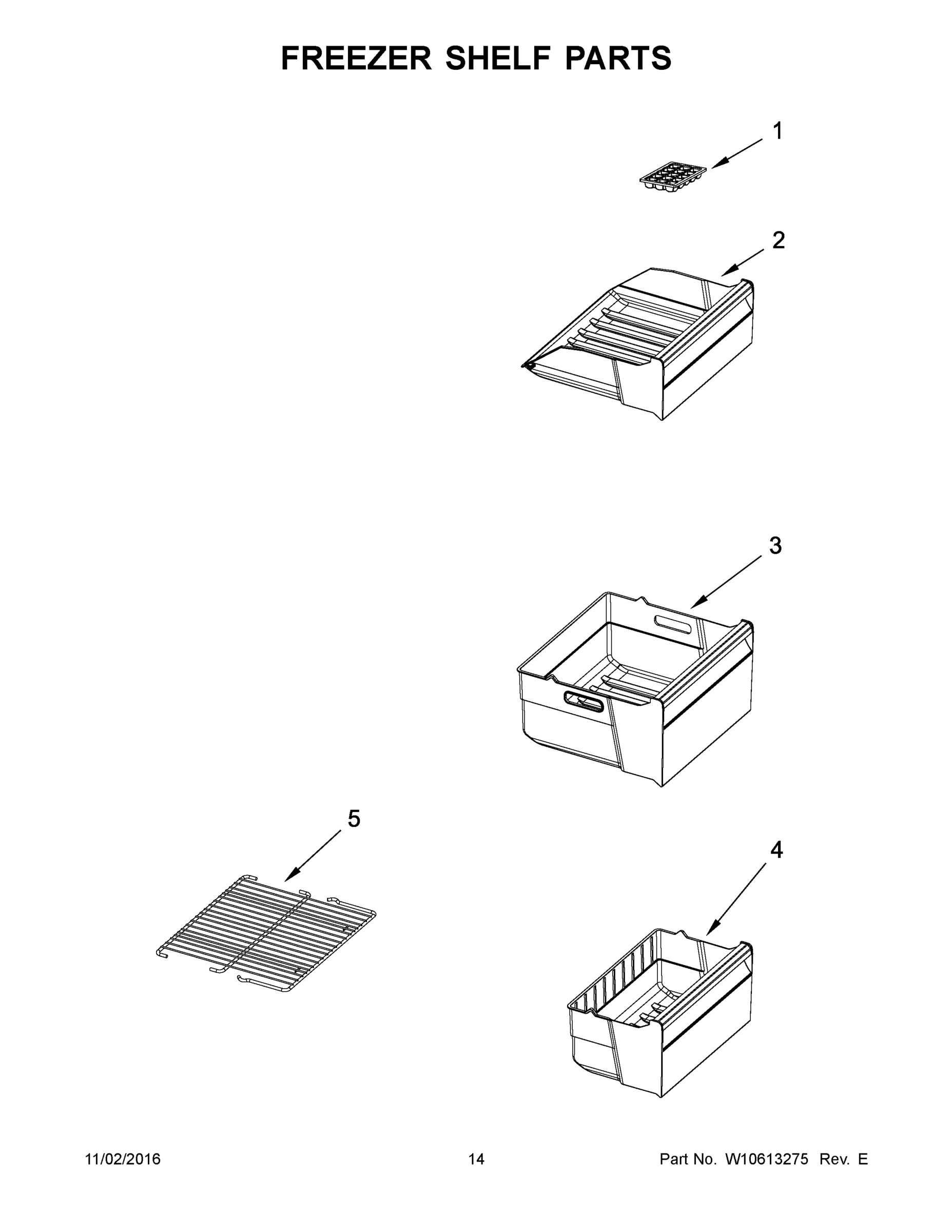

08 - FREEZER SHELF PARTS

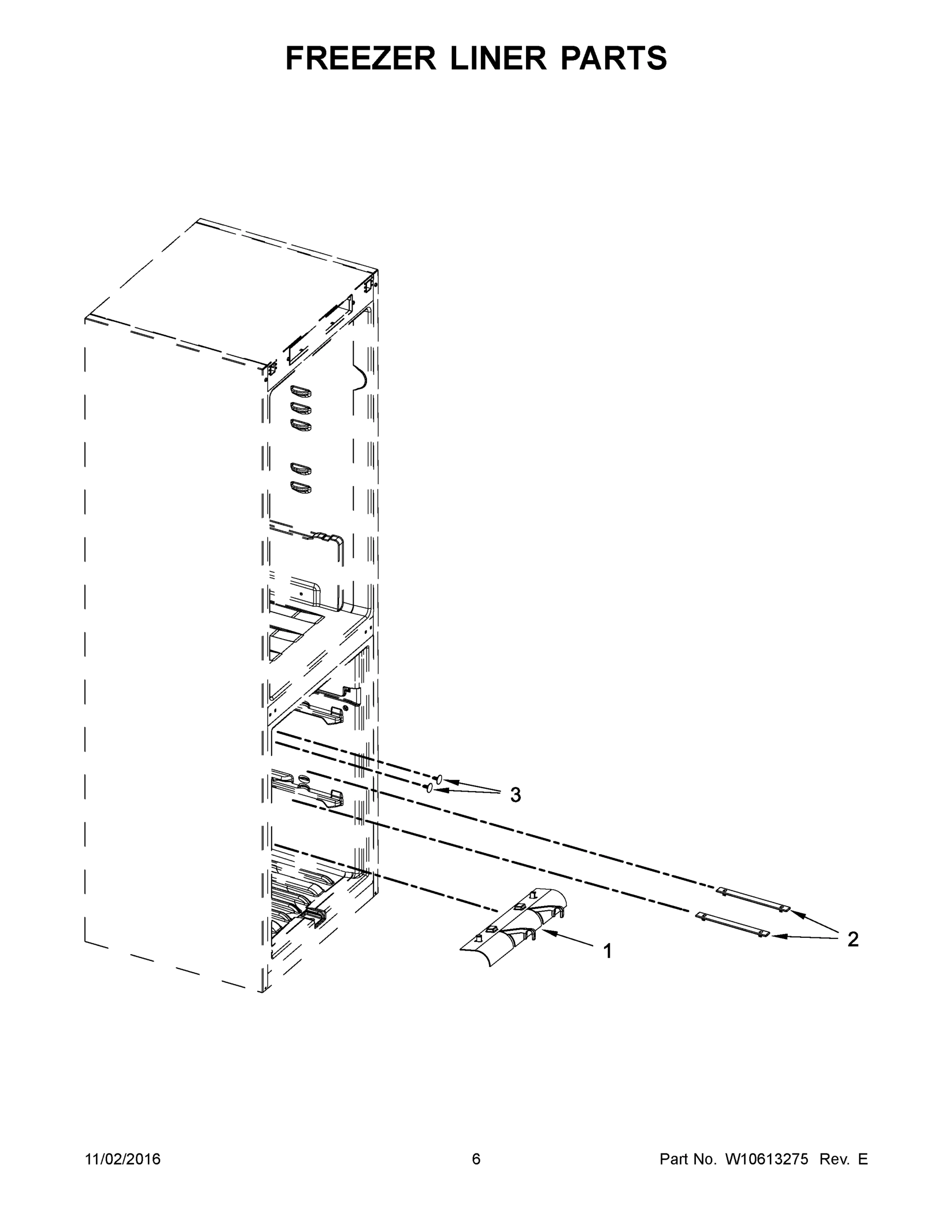

04 - FREEZER LINER PARTS

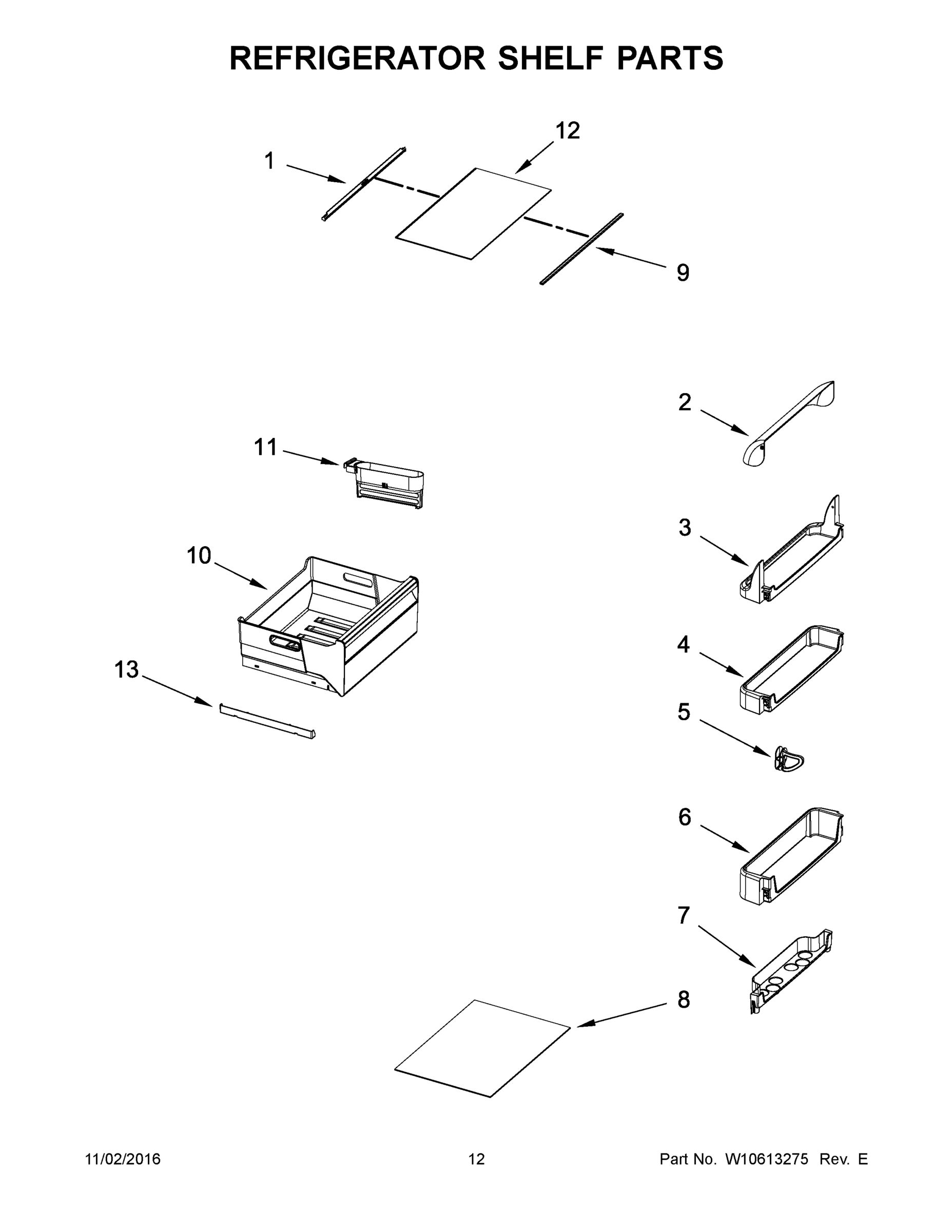

07 - REFRIGERATOR SHELF PARTS
Common parts from model Whirlpool WRB551WNBS00 REFRIGERATOR, BOTTOM MOUNT
1
CROSSBAR, COMPRESSOR WPL W10515903 Contact Us For Availability
1
DOOR, REFRIGERATOR (STAINLESS) WPL W10530515 Contact Us For Availability
1
DOOR, FREEZER (STAINLESS) WPL W10531287 Contact Us For Availability
1
ASSEMBLY, LED WPL W10398001 Contact Us For Availability
1
ICE TRAY WPL W10363341 Contact Us For Availability
1
AIR LEAD, FREEZER WPL W10585799 Contact Us For Availability
1
TRIM, REAR WPL W10585776 Contact Us For Availability
2
DOOR HINGE PLUG, SHORT WPL W10476946 Contact Us For Availability
2
HANDLE, DOOR (UNIVERSAL SILVER) WPL W10509160 Contact Us For Availability
2
COVER, FAN WPL W10506654 Contact Us For Availability
2
TOP FREEZER BASKET WPL W10467644 Contact Us For Availability
2
RAIL, EVAPORATOR WPL W10585757 Contact Us For Availability
2
LID, DAIRY COMPARTMENT WPL W10522574 Contact Us For Availability
3
HINGE, UPPER WPL W10585760 Contact Us For Availability
3
WIRE, GROUND WPL W10513341 Contact Us For Availability
3
DOOR HINGE PLUG, LONG WPL W10476949 Contact Us For Availability
3
GASKET, DOOR WPL W10585768 Contact Us For Availability
3
ASSEMBLY, EVAPORATOR MOTOR WPL W10518444 Contact Us For Availability
3
MIDDLE FREEZER BASKET WPL W10467637 Contact Us For Availability
3
PLUG WPL W10585782 Contact Us For Availability
3
DAIRY COMPARTMENT WPL W10522389 Contact Us For Availability
4
HINGE, CENTER WPL W10585710 Contact Us For Availability
4
BOARD, TERMINAL WPL W10540525 Contact Us For Availability
4
SLEEVE, HINGE WPL W10585708 Contact Us For Availability
4
CONTROL, ELECTRONIC WPL W10544502 Contact Us For Availability
4
LOWER FREEZER BASKET WPL W10467641 Contact Us For Availability
4
DOOR BIN WPL W10467687 Contact Us For Availability
5
HINGE, BOTTOM WPL W10372678 Contact Us For Availability
5
COVER, TERMINAL BOARD WPL W10540495 Contact Us For Availability
5
GASKET, DOOR WPL W10585767 Contact Us For Availability
5
WIRE SHELF WPL W10520927 Contact Us For Availability
5
BOTTLE SEPARATOR WPL W10585769 Contact Us For Availability
6
HINGE COVER, BOTTOM WPL W10429047 Contact Us For Availability
6
RELAY WPL W10540543 Contact Us For Availability
6
HANDLE, DOOR (UNIVERSAL SILVER) WPL W10509115 Contact Us For Availability
6
PLUG, ENDCAP (GREY) WPL W10477057 Contact Us For Availability
6
COVER, SENSOR WPL W10506496 Contact Us For Availability
6
BOTTLE BIN WPL W10467690 Contact Us For Availability
7
COVER, FOOT SUPPORT WPL W10429057 Contact Us For Availability
7
PROTECTOR, MOTOR WPL W10540536 Contact Us For Availability
7
COVER, HANDLE SCREW (GREY) WPL W10438420 Contact Us For Availability
7
HOUSING, CONTROL WPL W10529907 Contact Us For Availability
7
BIN, EGG WPL W10467694 Contact Us For Availability
8
SUPPORT, FOOT WPL W10372681 Contact Us For Availability
8
PLUG, DOOR HANDLE (GREY) WPL W10529834 Contact Us For Availability
8
UPPER HINGE COVER, RIGHT WPL W10585770 Contact Us For Availability
8
CRISPER COVER WPL W10585784 Contact Us For Availability
9
FOOT WPL W10451034 Contact Us For Availability
9
COMPRESSOR WPL W10540349 Contact Us For Availability
9
SCREW WPL W10675296 Contact Us For Availability
9
UPPER HINGE COVER, LEFT WPL W10585761 Contact Us For Availability
9
TRIM, FRONT WPL W10585786 Contact Us For Availability
10
COVER, UNIT WPL W10585790 Contact Us For Availability
10
CAPACITOR WPL W10538494 Contact Us For Availability
10
OVERLAY WPL W10521573 Contact Us For Availability
10
CRISPER WPL W10467628 Contact Us For Availability
11
SCREW WPL W10493638 Contact Us For Availability
11
SWITCH, LIGHT WPL W10534330 Contact Us For Availability
11
DIVIDER WPL W10585771 Contact Us For Availability
12
GLASS SHELF WPL W10585773 Contact Us For Availability
13
VALVE, DRAIN WPL W10585788 Contact Us For Availability
13
RAIL, SIDE (LEFT HAND) WPL W10585794 Contact Us For Availability
13A
RAIL, SIDE (RIGHT HAND) WPL W10585795 Contact Us For Availability
14
CONDENSATE PIPE WPL W10585797 Contact Us For Availability
15
CONDENSER WPL W10515625 Contact Us For Availability
NI
BIMETAL & THERMOFUSE (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability
NI
KIT, DOOR REVERSAL WPL W10874241 Contact Us For Availability
× ![]()
