Model Whirlpool WOS52EM4AS3 RANGE/OVEN, ELECTRIC, BUILT-IN, SINGLE, 24 INCH – Common Parts & Diagrams

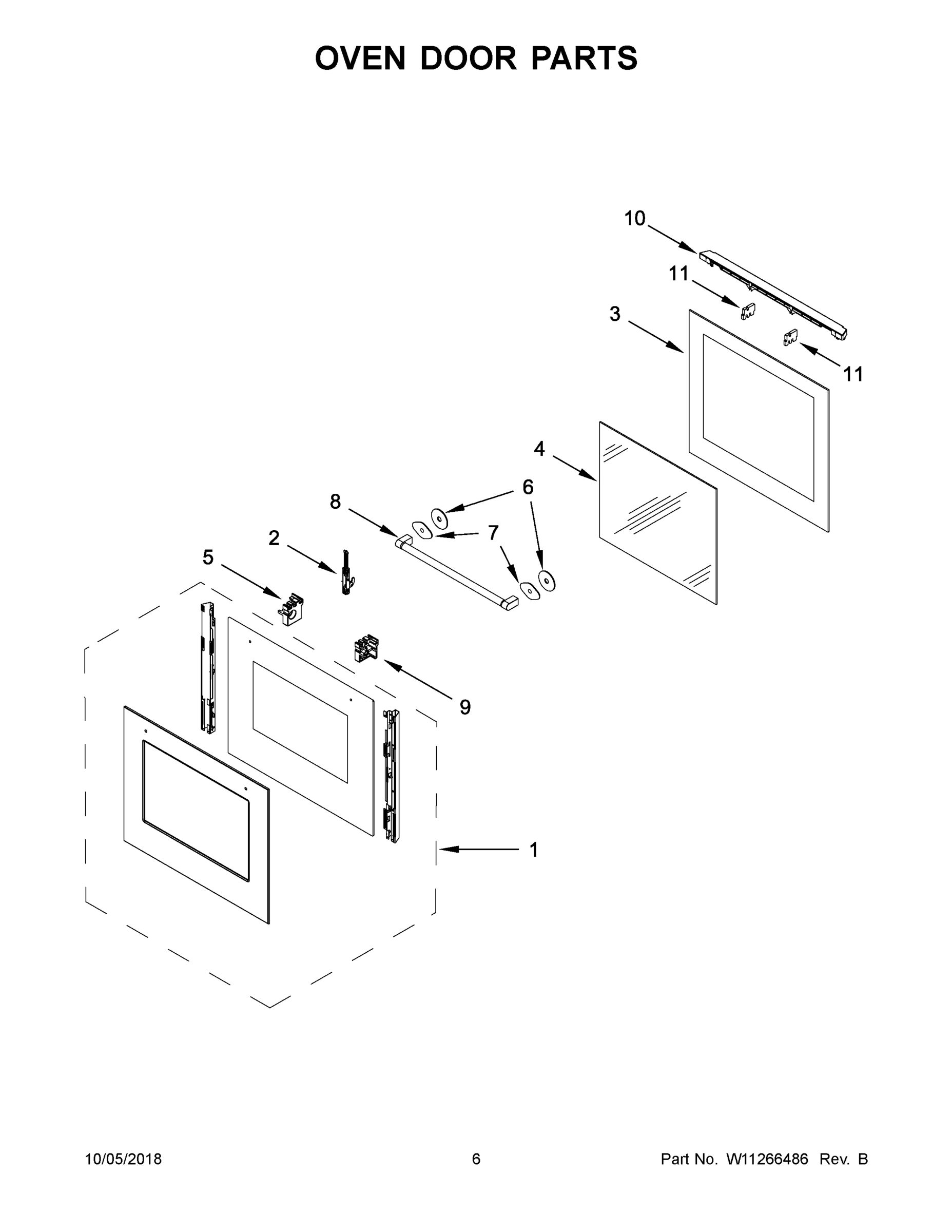

04 - OVEN DOOR PARTS

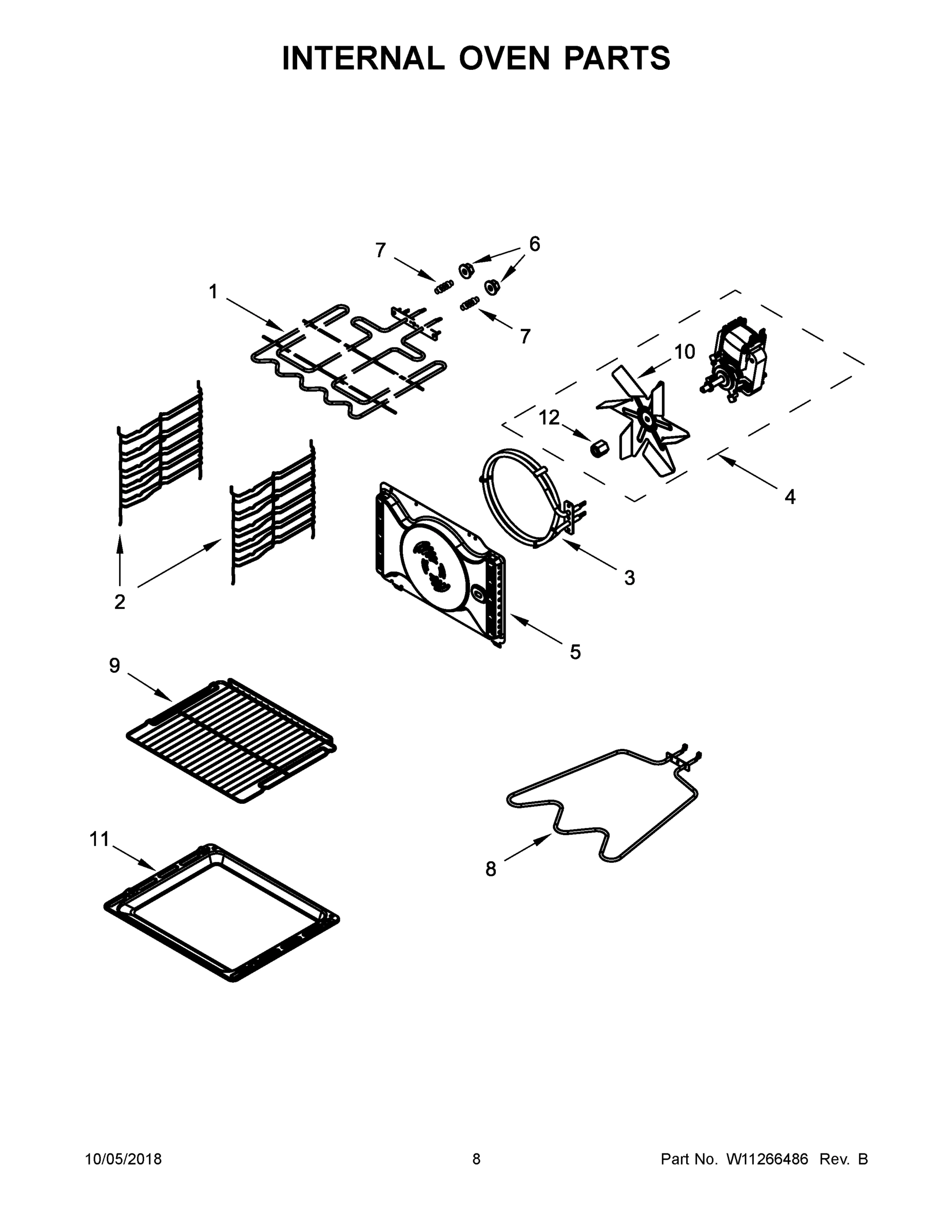

05 - INTERNAL OVEN PARTS

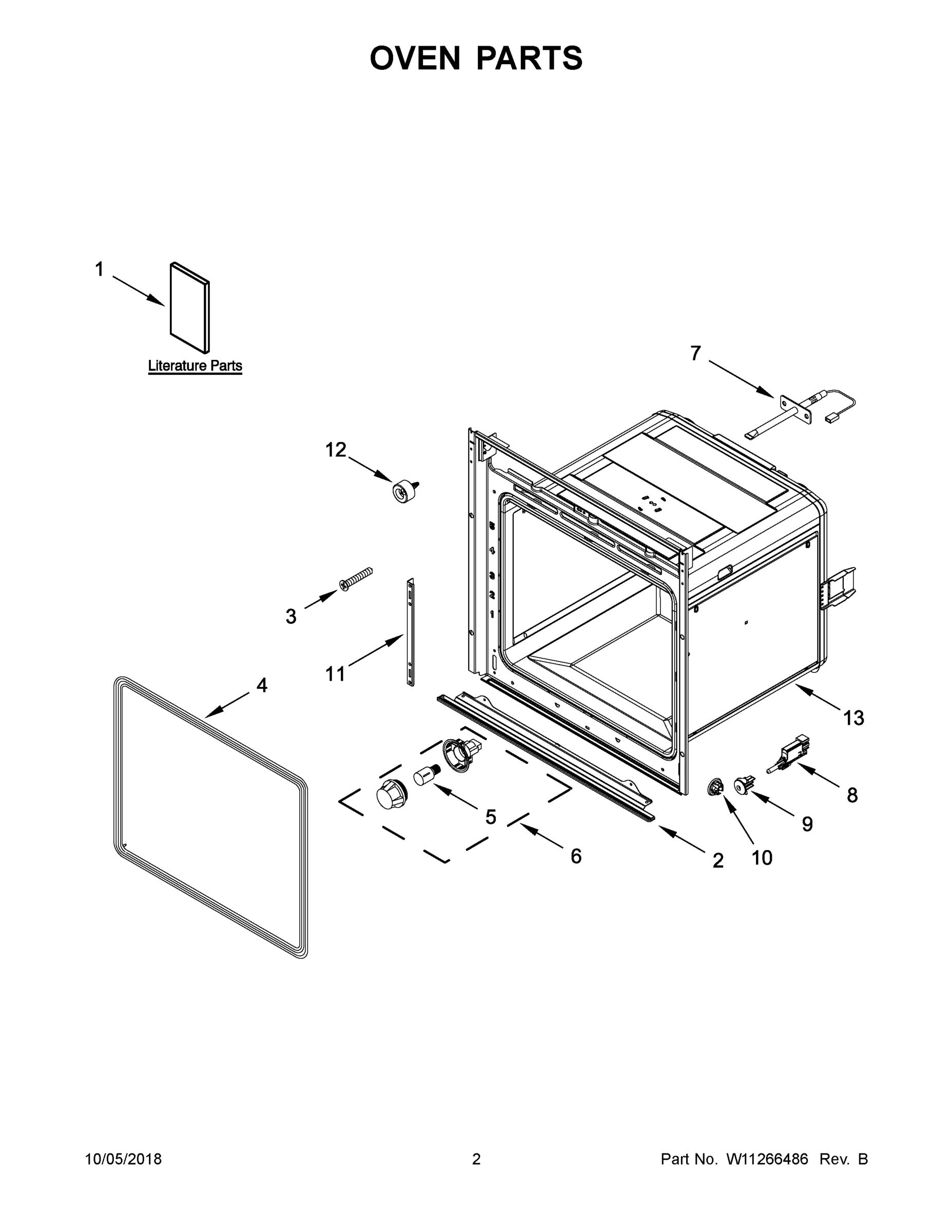

02 - OVEN PARTS

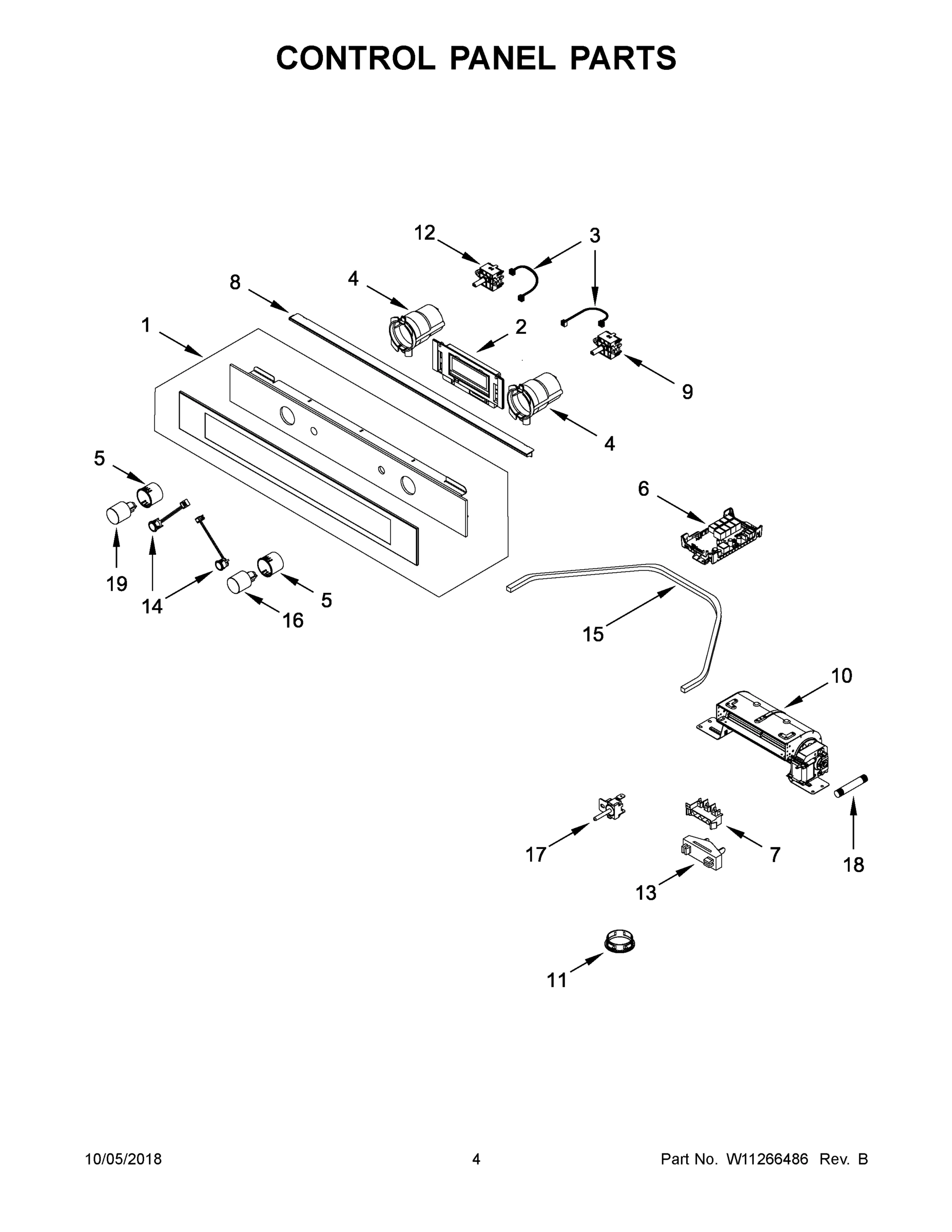

03 - CONTROL PANEL PARTS

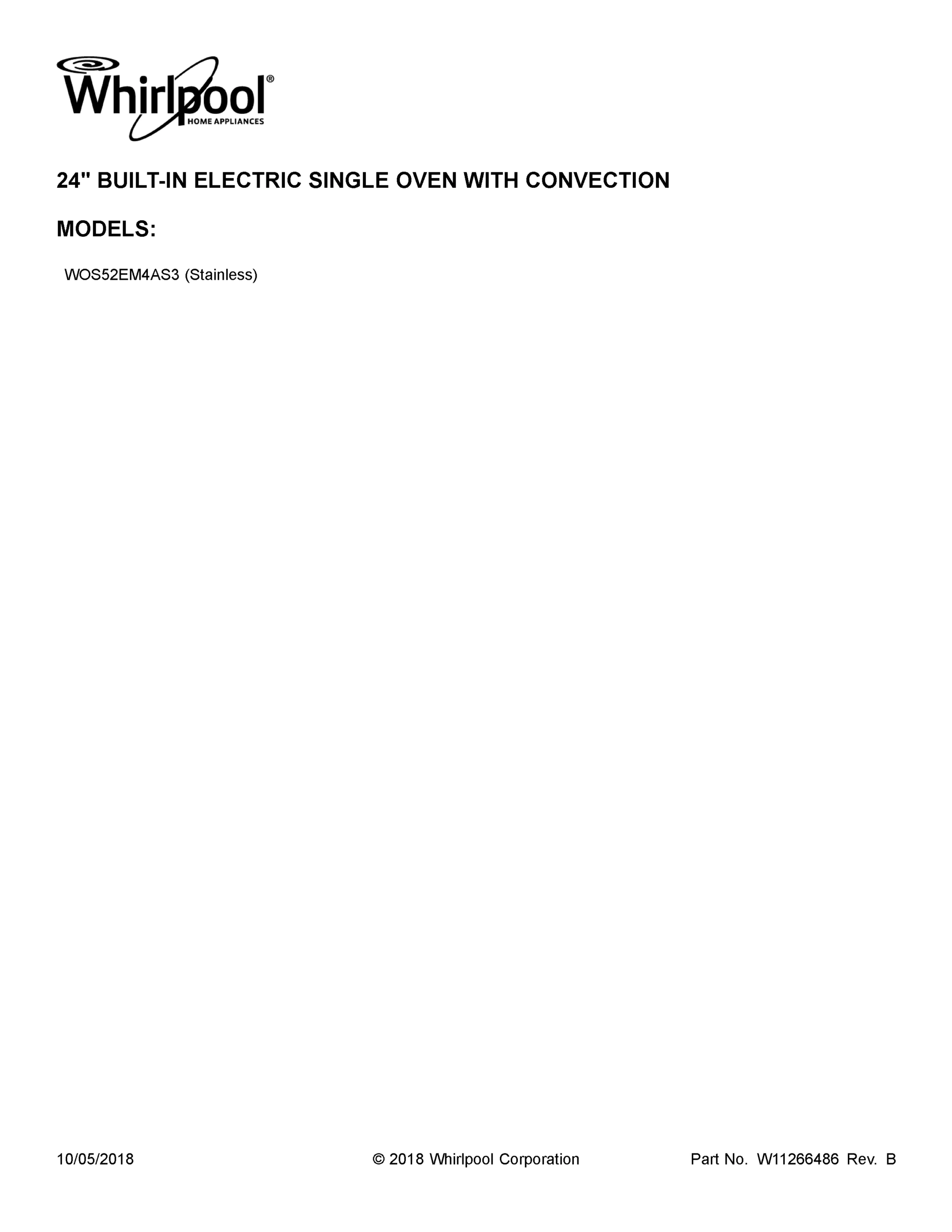

01 - COVER SHEET
Common parts from model Whirlpool WOS52EM4AS3 RANGE/OVEN, ELECTRIC, BUILT-IN, SINGLE, 24 INCH
1
DOOR, OVEN OUTER ASSEMBLY WPL W10683366 Contact Us For Availability
1
ELEMENT, UPPER GRILL (2450 WATTS) WPL W10568824 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 501931002022 Contact Us For Availability
1
PANEL, CONTROL GLASS AND FRAME WPL W10519058 Contact Us For Availability
1A
USE AND CARE GUIDE WPL 501931001359 Contact Us For Availability
1B
TECH SHEET WPL 501931002023 Contact Us For Availability
2
HINGE, DOOR WPL W10648945 Contact Us For Availability
2
BOARD, DISPLAY G2 EVO ANALOGUE WPL W10836476 Contact Us For Availability
3
GLASS, INNER DOOR WPL W10513684 Contact Us For Availability
3
ELEMENT, CONVECTION 2000 WATTS WPL W10519049 Contact Us For Availability
3
HARNESS, DISPLAY SELECTOR SWITCH WPL W10519030 Contact Us For Availability
4
GLASS, DOOR WPL W10582564 Contact Us For Availability
4
MOTOR, FAN CONVECTION WPL W10781691 Contact Us For Availability
4
GASKET, DOOR WPL W10519051 Contact Us For Availability
4
SUPPORT, PUSH BUTTON WPL W10519812 Contact Us For Availability
5
SUPPORT, DOOR GLASS (LEFT) WPL W10589909 Contact Us For Availability
5
BAFFLE, CONVECTION FAN WPL W10696902 Contact Us For Availability
5
BULB, HALOGEN 40 WATT WPL W10518971 Contact Us For Availability
5
RING, PUSH TURN KNOB WPL W10519068 Contact Us For Availability
6
WASHER, DOOR HANDLE WPL W10519080 Contact Us For Availability
6
NUT, UPPER ELEMENT M4 WPL W11266647 Contact Us For Availability
6
ASSEMBLY, BULB INCLUDES SOCKET AND LENS COVER WPL W10638530 Contact Us For Availability
7
SPRING, UPPER ELEMENT WPL W10519809 Contact Us For Availability
7
PROBE, OVEN TEMPERATURE WPL W10519097 Contact Us For Availability
7
BLOCK, TERMINAL WPL W10518946 Contact Us For Availability
8
HANDLE, DOOR WPL W10519027 Contact Us For Availability
8
ASSEMBLY, DOOR SWITCH WPL W10519088 Contact Us For Availability
8
VENT, TRIM CONTROL PANEL WPL W10878608 Contact Us For Availability
9
SUPPORT, DOOR GLASS (RIGHT) WPL W10593001 Contact Us For Availability
9
JOINT, DOOR SWITCH WPL W10519094 Contact Us For Availability
9
SWITCH, SELECTOR +/- INCREMENTAL WPL W10519035 Contact Us For Availability
10
VENT, DOOR TRIM TOP WPL W10632458 Contact Us For Availability
10
BLADE, FAN WPL W10781712 Contact Us For Availability
10
PLUG, OVEN WPL W10519101 Contact Us For Availability
10
BLOWER, COOLING FAN WPL W10517958 Contact Us For Availability
11
SPACER, DOOR TRIM TOP WPL W10633369 Contact Us For Availability
11
PAN, DEEP WPL W10674817 Contact Us For Availability
11
HINGE, RUNNING MECHANISM WPL W10517968 Contact Us For Availability
11
GROMMET, CABLE WPL W10518942 Contact Us For Availability
12
NUT WPL W10781713 Contact Us For Availability
12
SWITCH, OVEN 11 POSITION WPL W10519034 Contact Us For Availability
13
LINER, OVEN (NOT SERVICEABLE) WPL NP Contact Us For Availability
13
CLAMP, CABLE WPL W10516534 Contact Us For Availability
14
BUTTON, PUSH WPL W10519071 Contact Us For Availability
15
GASKET, BLOWER MOTOR WPL W10519009 Contact Us For Availability
16
KNOB, PUSH BUTTON WPL W10567301 Contact Us For Availability
18
FUSE, 315MA WPL W10518970 Contact Us For Availability
19
KNOB, OVEN WPL W10519074 Contact Us For Availability
× ![]()
