Model Whirlpool WOS51ES4EW01 WALL OVEN, ELECTRIC, SINGLE, 24 INCH – Common Parts & Diagrams

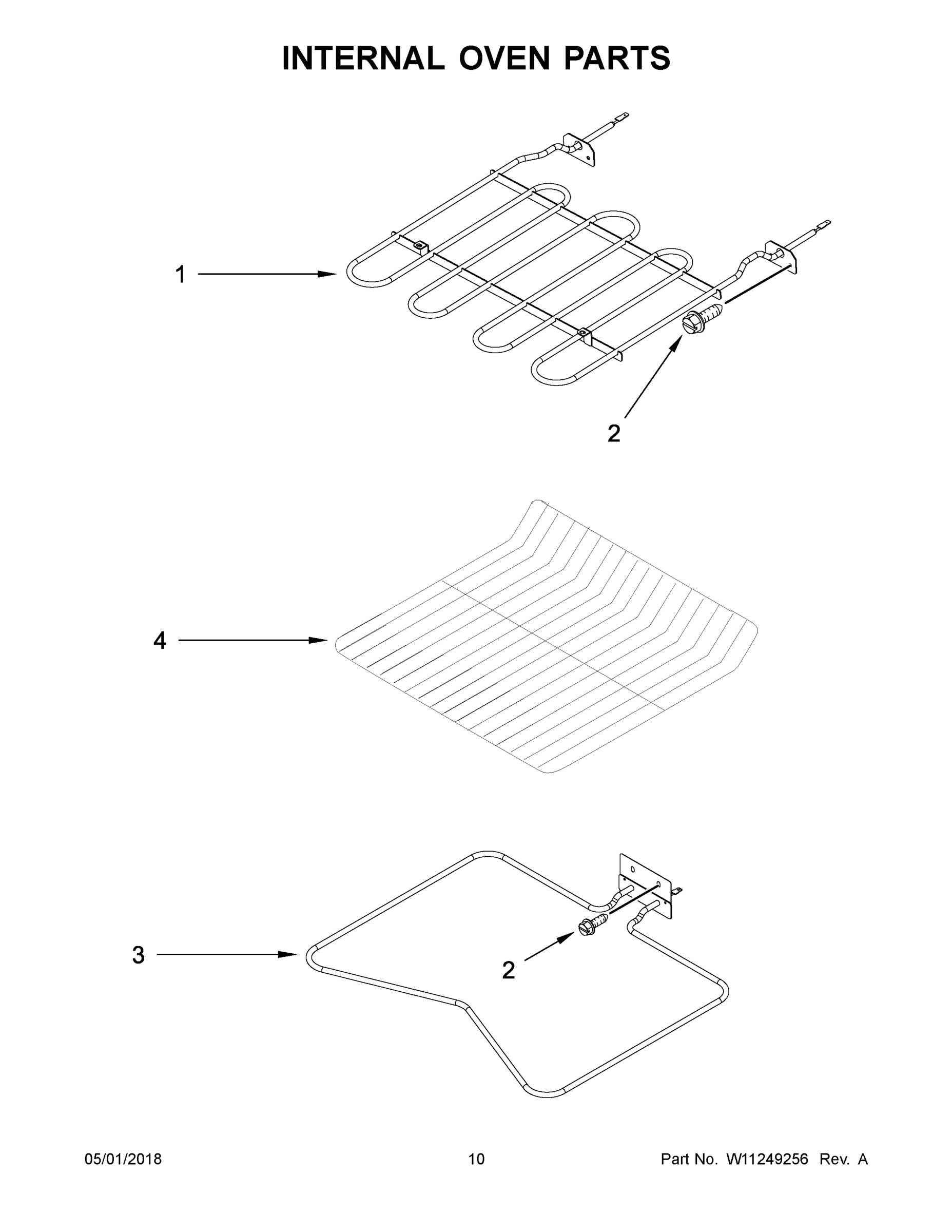

1
ELEMENT, BROIL
ELEMENT, BROIL WPL W10685631 Contact Us For Availability
View on Model

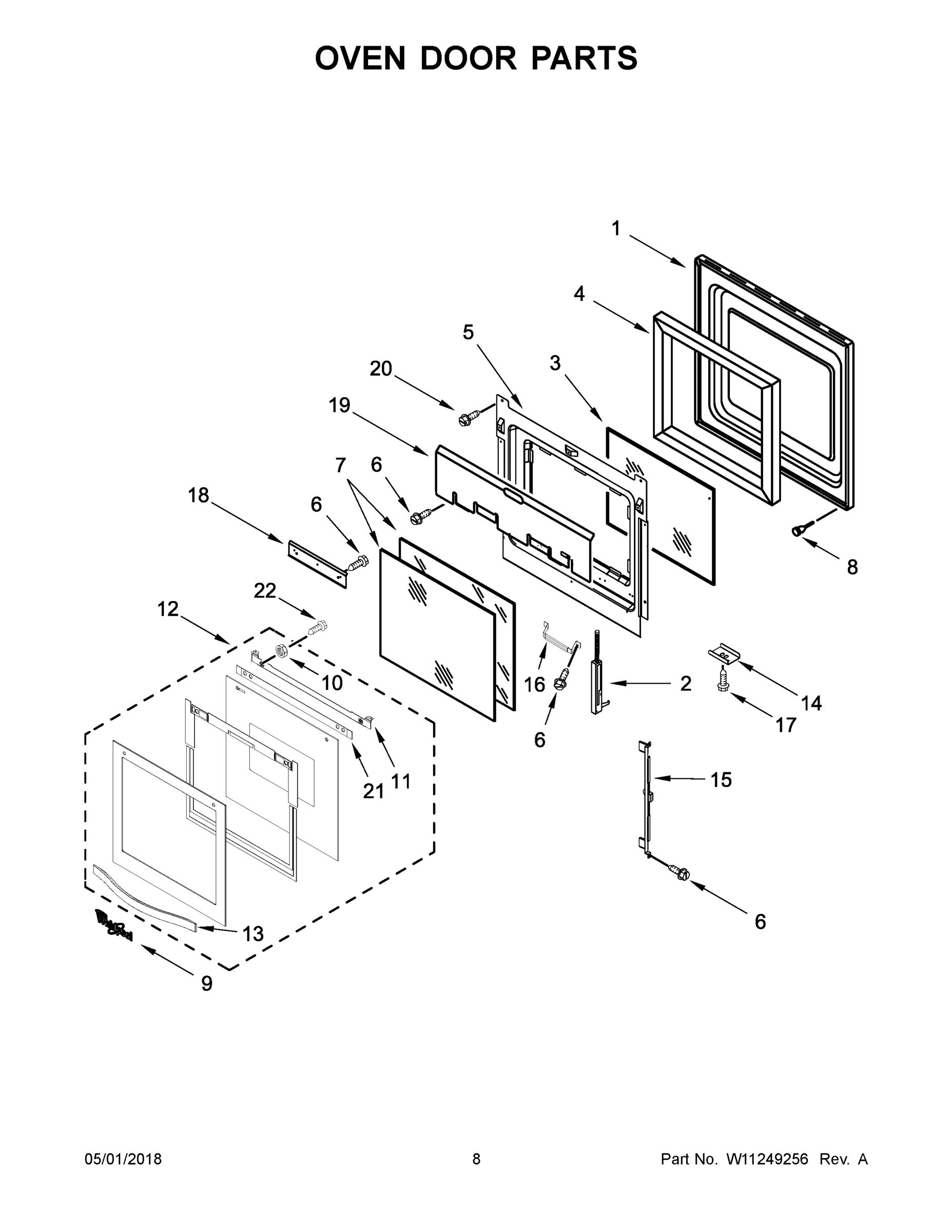

2
HINGE, DOOR (LEFT)
HINGE, DOOR (LEFT) WPL 9760570 Contact Us For Availability
View on Model
2
TRIM, SIDE (BLACK (LEFT))
TRIM, SIDE (BLACK (LEFT)) WPL W10756499 Contact Us For Availability
View on Model
2
VENT, EXHAUST
VENT, EXHAUST WPL 4451759 Contact Us For Availability
View on Model
2A
HINGE, DOOR (RIGHT) (BLACK & WHITE MODELS)
HINGE, DOOR (RIGHT) (BLACK & WHITE MODELS) WPL 9760569 Contact Us For Availability
View on Model
2A
TRIM, SIDE (BLACK (RIGHT))
TRIM, SIDE (BLACK (RIGHT)) WPL W10756500 Contact Us For Availability
View on Model

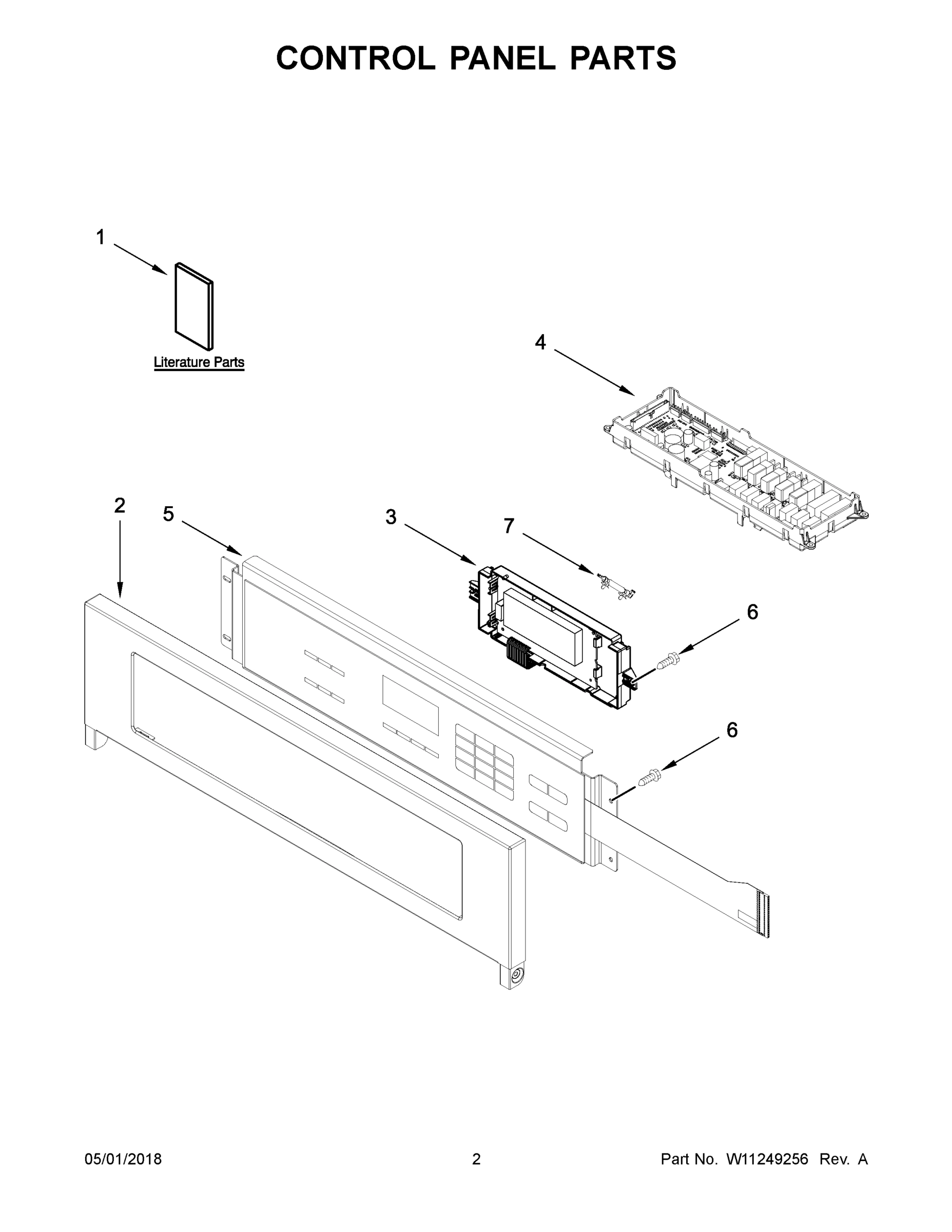

2A
ASSEMBLY, CONTROL PANEL SKIN (WHITE)
ASSEMBLY, CONTROL PANEL SKIN (WHITE) WPL W10704698 Contact Us For Availability
View on Model
2B

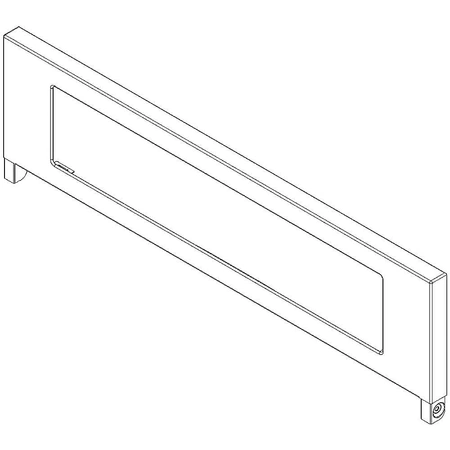

ASSEMBLY, CONTROL PANEL SKIN (STAINLESS)
ASSEMBLY, CONTROL PANEL SKIN (STAINLESS) WPL W10704699 Contact Us For Availability
View on Model
2B
TRIM, SIDE (WHITE (LEFT))
TRIM, SIDE (WHITE (LEFT)) WPL W10756495 Contact Us For Availability
View on Model
2C
TRIM, SIDE (WHITE (RIGHT))
TRIM, SIDE (WHITE (RIGHT)) WPL W10756496 Contact Us For Availability
View on Model
2D
TRIM, SIDE (STAINLESS (LEFT))
TRIM, SIDE (STAINLESS (LEFT)) WPL W10144984 Contact Us For Availability
View on Model
4
RACK, OVEN
RACK, OVEN WPL 4448716 Contact Us For Availability
View on Model
4
BUMPER & SCREW
BUMPER & SCREW WPL W10105790 Contact Us For Availability
View on Model
5
RETAINER, GLASS
RETAINER, GLASS WPL 4457130 Contact Us For Availability
View on Model
5
ASSEMBLY, MEMBRANE (BLACK)
ASSEMBLY, MEMBRANE (BLACK) WPL W10695000 Contact Us For Availability
View on Model
5A
ASSEMBLY, MEMBRANE (WHITE)
ASSEMBLY, MEMBRANE (WHITE) WPL W10695001 Contact Us For Availability
View on Model
5B
ASSEMBLY, MEMBRANE (STAINLESS)
ASSEMBLY, MEMBRANE (STAINLESS) WPL W10695002 Contact Us For Availability
View on Model
6
VENT, CONTROL PANEL
VENT, CONTROL PANEL WPL 4448547 Contact Us For Availability
View on Model
8
BUMPER, DOOR
BUMPER, DOOR WPL 4448520 Contact Us For Availability
View on Model
8
ELBOW, TOP VENT
ELBOW, TOP VENT WPL 4455178 Contact Us For Availability
View on Model
9
ELBOW, BOTTOM VENT
ELBOW, BOTTOM VENT WPL 4455177 Contact Us For Availability
View on Model
10
COVER, TOP REAR
COVER, TOP REAR WPL 4450549 Contact Us For Availability
View on Model
13B

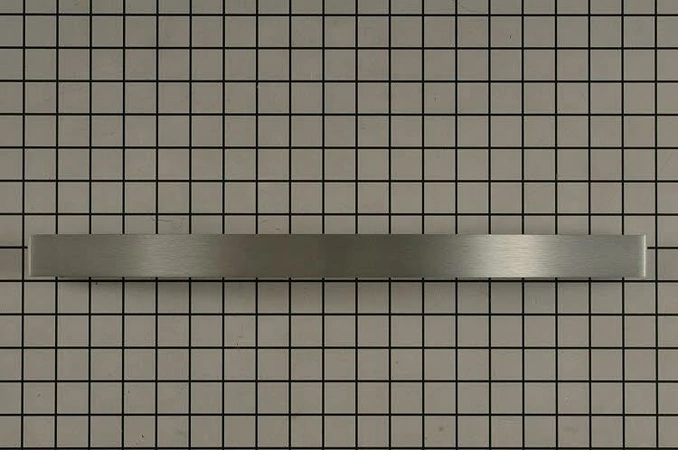

ASSEMBLY, DOOR HANDLE (STAINLESS)
ASSEMBLY, DOOR HANDLE (STAINLESS) WPL W10684318 Contact Us For Availability
View on Model
14
FRAME, FRONT
FRAME, FRONT WPL 9760754 Contact Us For Availability
View on Model
14A
CLIP, RETAINER (WHITE)
CLIP, RETAINER (WHITE) WPL W10789030 Contact Us For Availability
View on Model
14B
CLIP, RETAINER (STAINLESS)
CLIP, RETAINER (STAINLESS) WPL W10789032 Contact Us For Availability
View on Model
16
BRACKET, CENTRAL
BRACKET, CENTRAL WPL 9759230 Contact Us For Availability
View on Model
18
ASSEMBLY, BOTTOM VENT TRIM (BLACK)
ASSEMBLY, BOTTOM VENT TRIM (BLACK) WPL W10339572 Contact Us For Availability
View on Model
18
SHIELD, HEAT BOTTOM
SHIELD, HEAT BOTTOM WPL 4457112 Contact Us For Availability
View on Model
18A
ASSEMBLY, BOTTOM VENT TRIM (WHITE)
ASSEMBLY, BOTTOM VENT TRIM (WHITE) WPL W10339573 Contact Us For Availability
View on Model
19
SHIELD, HEAT
SHIELD, HEAT WPL 4457101 Contact Us For Availability
View on Model
21
SEAL, DOOR TOP
SEAL, DOOR TOP WPL 8300853 Contact Us For Availability
View on Model
23
SCREW
SCREW WPL 4449040 Contact Us For Availability
View on Model
28
BRACKET, BOTTOM VENT
BRACKET, BOTTOM VENT WPL 4452152 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, STAINLESS STEEL
ACCESSORIES, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (CITRINE WHITE)
PAINT, SPRAY (CITRINE WHITE) WPL 261900 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, GRANITE
ACCESSORIES, CLEANER, GRANITE WPL W10275756 Contact Us For Availability
View on Model
NI
HARNESS, EOL (MRC)
HARNESS, EOL (MRC) WPL W11157775 Contact Us For Availability
View on Model
