Model Whirlpool WML75011HZ7 MICROWAVE HOOD, COMPACT, 1.1 CUBIC FOOT – Common Parts & Diagrams

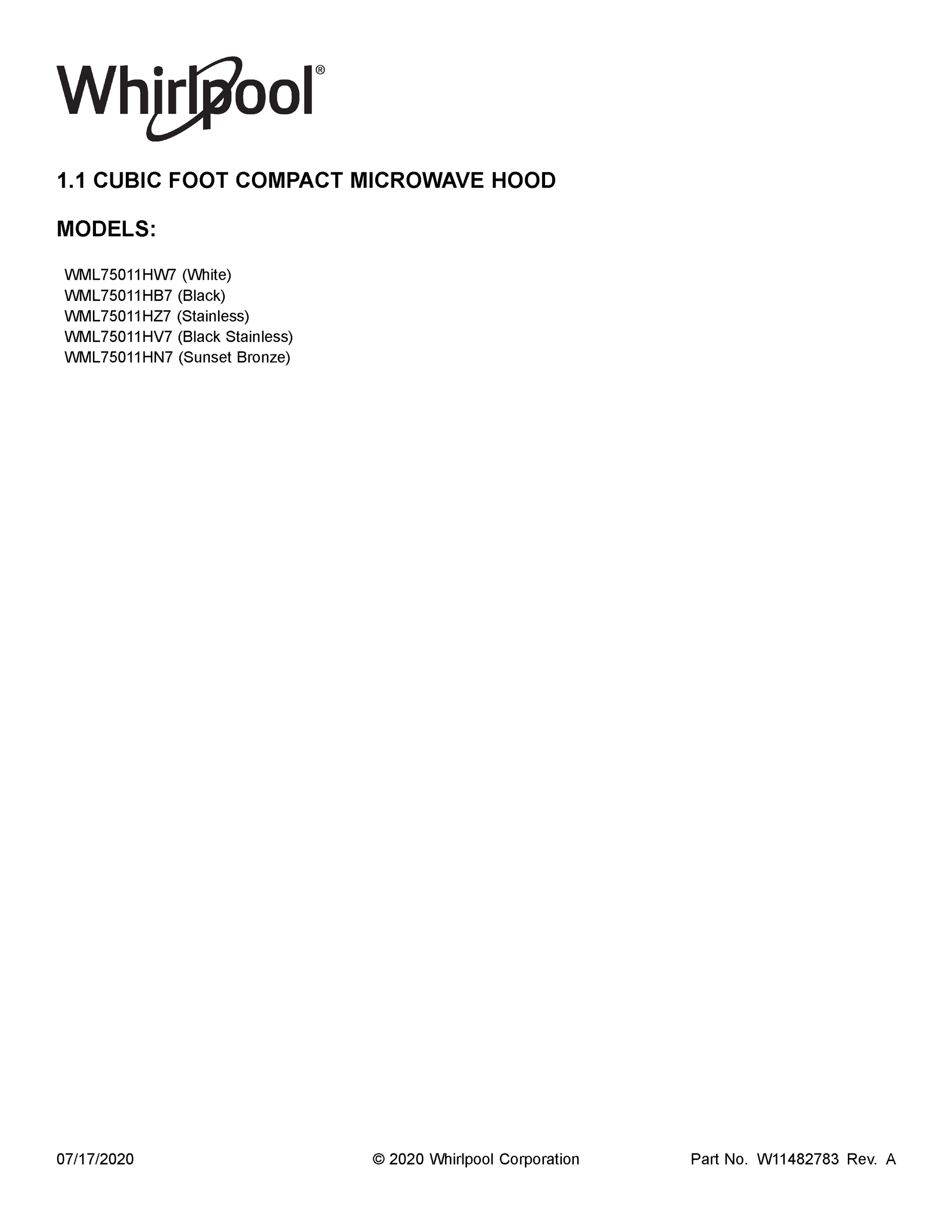

01 - COVER SHEET

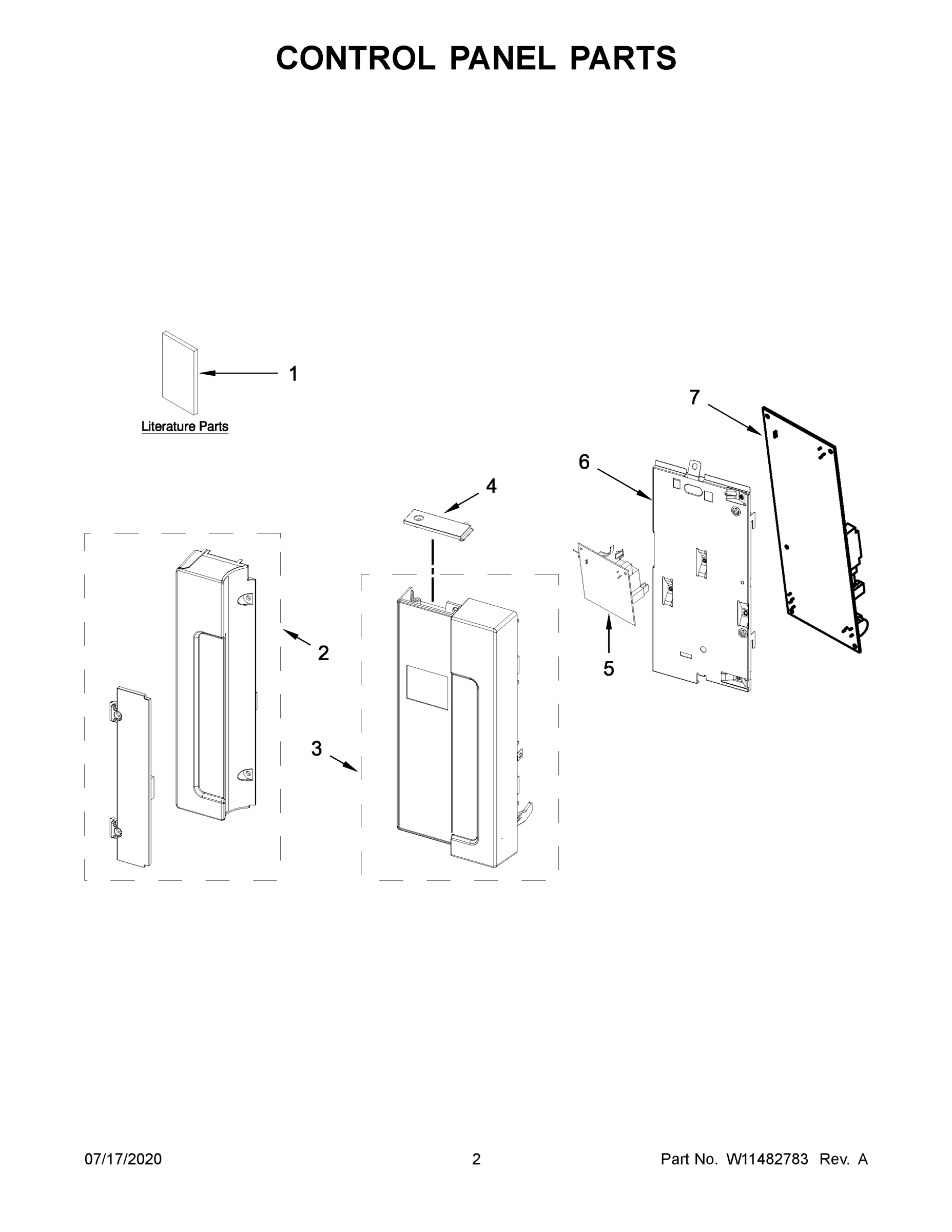

02 - CONTROL PANEL PARTS
03 - DOOR PARTS
04 - INTERIOR AND VENTILATION PARTS
05 - AIR FLOW PARTS
06 - TURNTABLE PARTS
07 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool WML75011HZ7 MICROWAVE HOOD, COMPACT, 1.1 CUBIC FOOT
1
CORD, POWER WPL W11187358 Contact Us For Availability
1
DOOR, COMPLETE (WHITE) WPL W11206886 Contact Us For Availability
1A
DOOR, COMPLETE (BLACK) WPL W11206887 Contact Us For Availability
1B
DOOR, COMPLETE (STAINLESS) WPL W11206888 Contact Us For Availability
1C
DOOR, COMPLETE (BLACK STAINLESS) WPL W11206889 Contact Us For Availability
2
CONTROL PANEL, LEFT (WHITE) WPL W11219784 Contact Us For Availability
2
SEAL, WAVEGUIDE WPL W11126541 Contact Us For Availability
2A
CONTROL PANEL, LEFT (BLACK) WPL W11220414 Contact Us For Availability
2B
CONTROL PANEL, LEFT (STAINLESS) WPL W11220415 Contact Us For Availability
2C
CONTROL PANEL, LEFT (BLACK STAINLESS) WPL W11220416 Contact Us For Availability
3
PCBA, HOOD CONTROL WPL W11133802 Contact Us For Availability
3
COVER, WAVEGUIDE WPL W11193296 Contact Us For Availability
3
CONTROL PANEL, RIGHT (WHITE) WPL W11206892 Contact Us For Availability
3A
CONTROL PANEL, RIGHT (BLACK) WPL W11206894 Contact Us For Availability
3B
CONTROL PANEL, RIGHT (STAINLESS) WPL W11206891 Contact Us For Availability
3C
CONTROL PANEL, RIGHT (BLACK STAINLESS) WPL W11206895 Contact Us For Availability
4
COVER, EXHAUST (WHITE) WPL W11165209 Contact Us For Availability
4
COVER, TOP (WHITE) WPL W11109987 Contact Us For Availability
4A
COVER, TOP (BLACK) WPL W11083285 Contact Us For Availability
4A
COVER, EXHAUST (BLACK) WPL W11127064 Contact Us For Availability
4B
COVER, EXHAUST (STAINLESS) WPL W11165564 Contact Us For Availability
5
DRIVER, TURNTABLE WPL W11096343 Contact Us For Availability
5
COVER, COOLING FAN WPL W11088345 Contact Us For Availability
5D
CASE, OUTER (SUNSET BRONZE) WPL W11165448 Contact Us For Availability
6
ASSEMBLY, MOUNTING NUT WPL W11122643 Contact Us For Availability
6
WHEEL, COOLING FAN WPL W11088354 Contact Us For Availability
6
SEAL, WATERPROOF WPL W11096347 Contact Us For Availability
6
BACKER, CONTROL WPL W11083284 Contact Us For Availability
8B
GRILLE, VENT (LONG) (STAINLESS) WPL W11086309 Contact Us For Availability
9
SENSOR, HUMIDITY WPL W10557536 Contact Us For Availability
9
GRILLE, VENT (LIGHT ACCESS) (WHITE) WPL W11164786 Contact Us For Availability
9B
GRILLE, VENT (LIGHT ACCESS) (STAINLESS) WPL W11095781 Contact Us For Availability
10
GRILLE, VENT (SHORT) (WHITE) WPL W11164816 Contact Us For Availability
10B
GRILLE, VENT (SHORT) (STAINLESS) WPL W11086310 Contact Us For Availability
12
BRACKET, NOISE FILTER WPL W10313274 Contact Us For Availability
15
THERMISTOR, PCBA WPL W10536989 Contact Us For Availability
16
HOUSING, CAVITY LIGHTING WPL W11086300 Contact Us For Availability
18
PLATE, BOTTOM WPL W11159942 Contact Us For Availability
23
REFLECTOR, LAMP WPL W11086295 Contact Us For Availability
23
SEAL, RUBBER WPL W11126543 Contact Us For Availability
24
THERMOSTAT, MAGNETRON WPL W11125676 Contact Us For Availability
NI
HARDWARE, INSTALLATION WPL W10821385 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, TURNTABLE AND H WPL W11101699 Contact Us For Availability
× ![]()
