Model Maytag WME3020B ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams
01 - BASE (RCM47JW-14T/RCM47J-14T)
02 - BODY

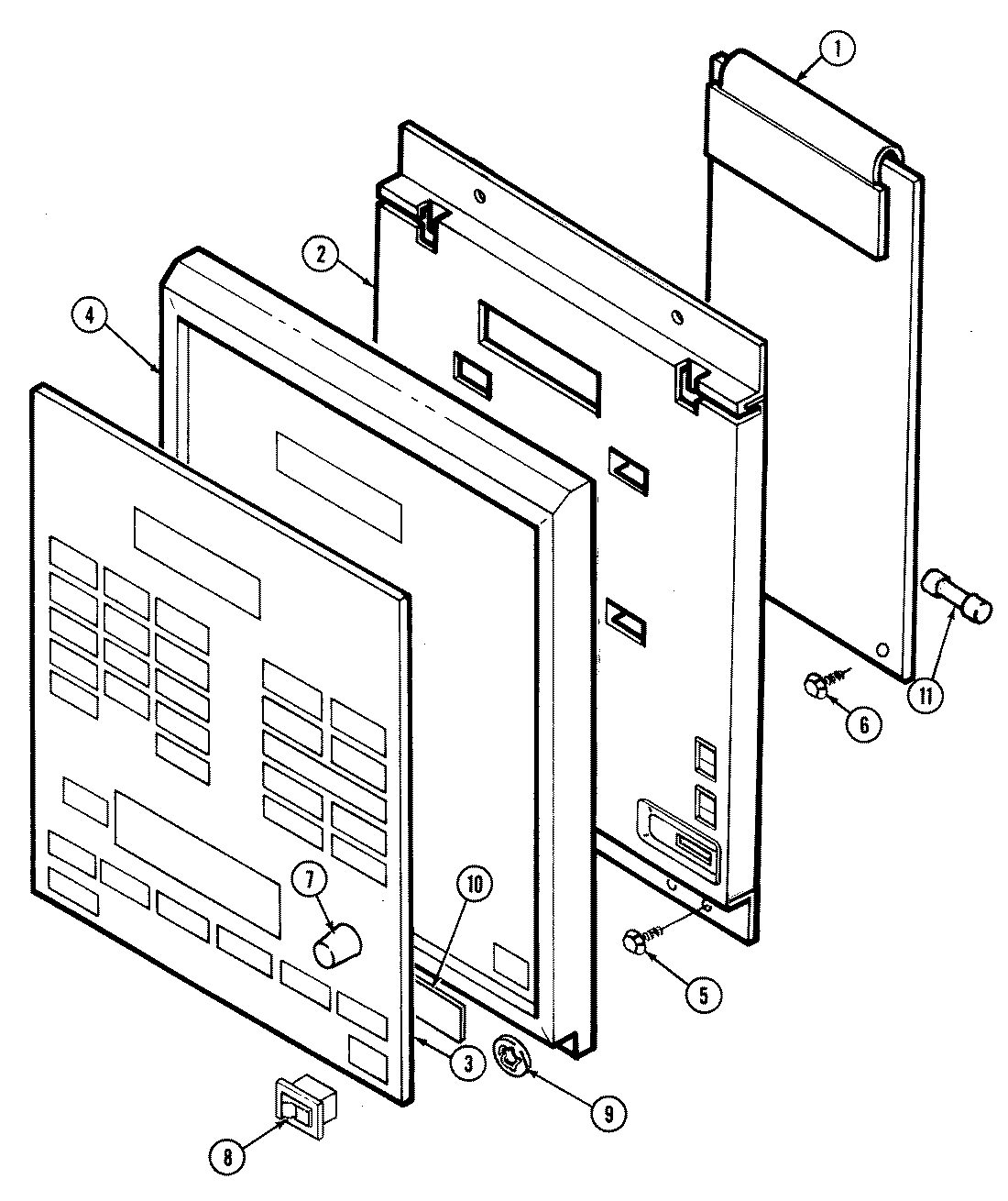

03 - CONTROL PANEL (RCM47JW-14T/RCM47J-14T)

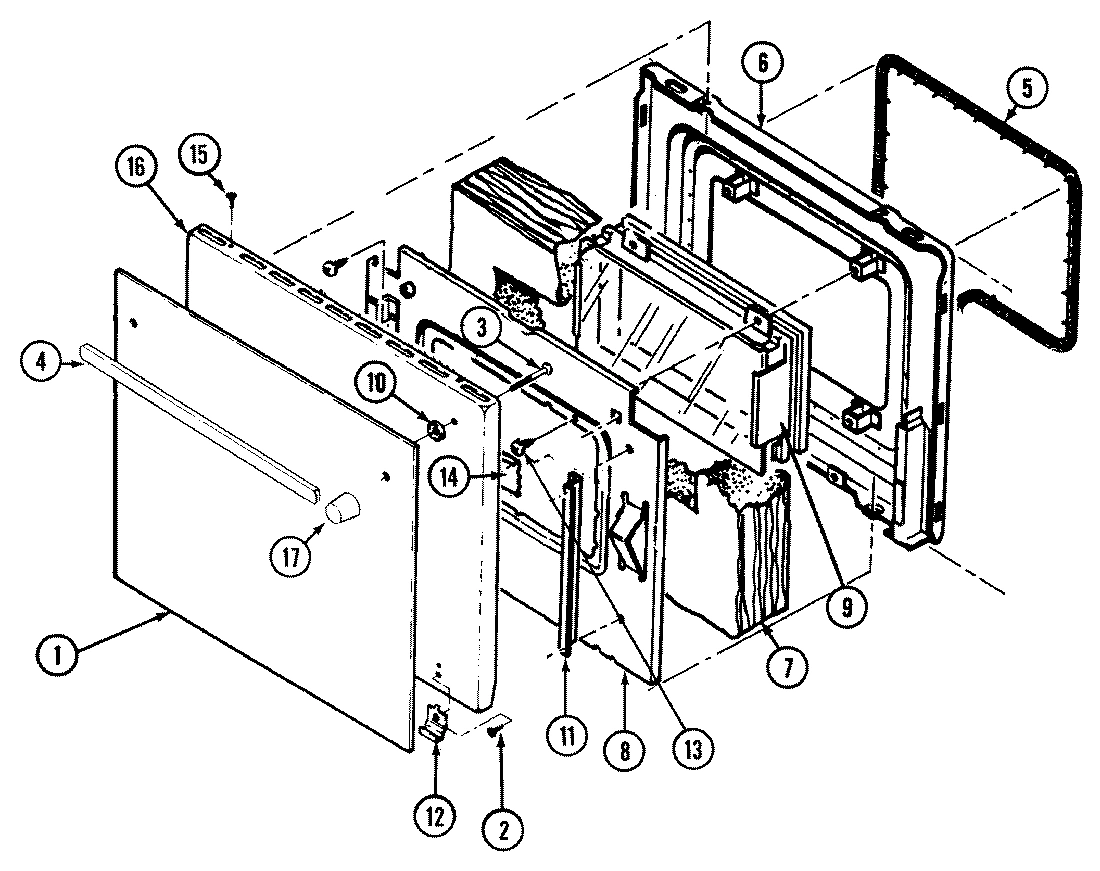

04 - DOOR

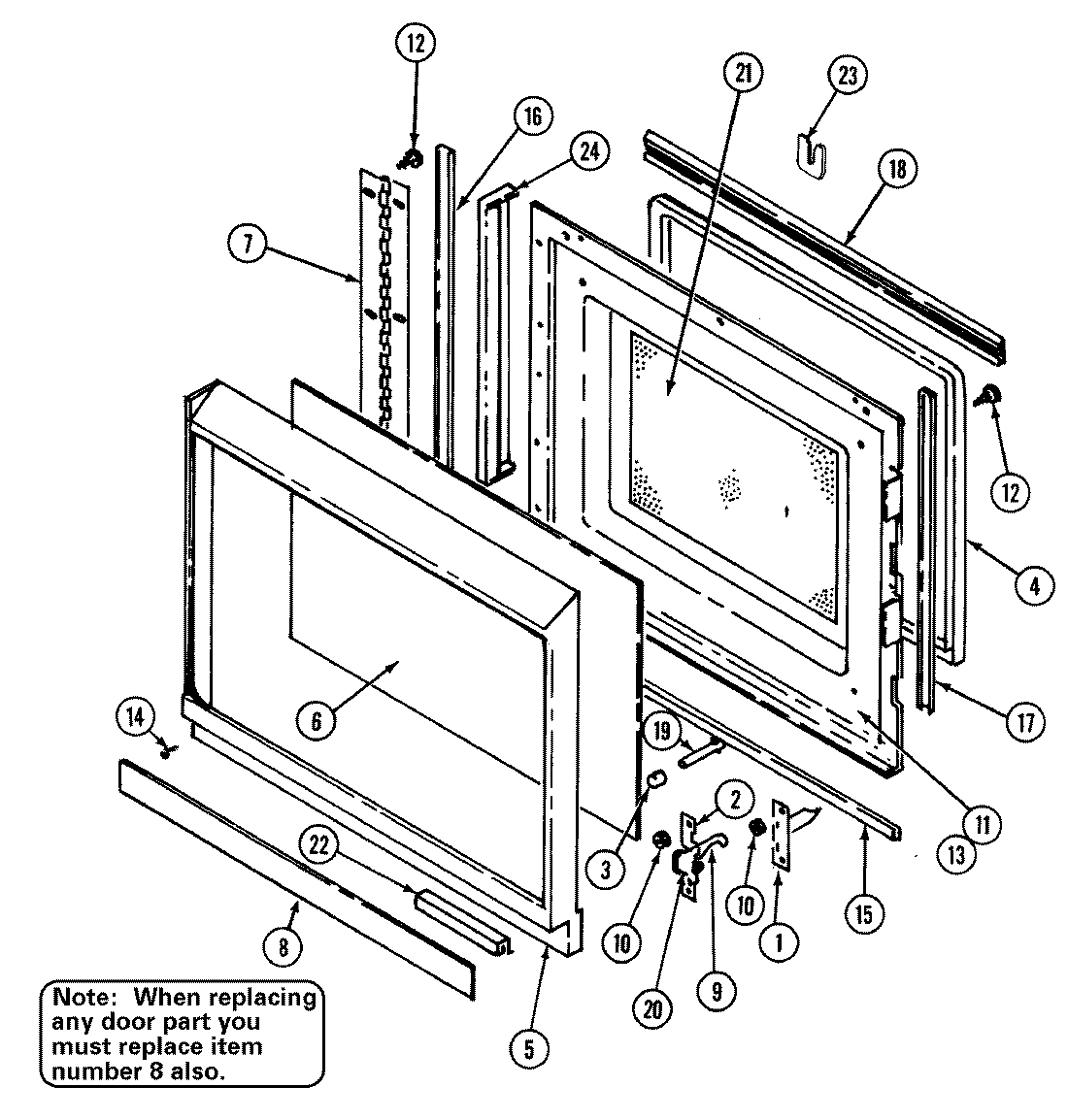

05 - DOOR (RCM47JW-14T/RCM47J-14T)

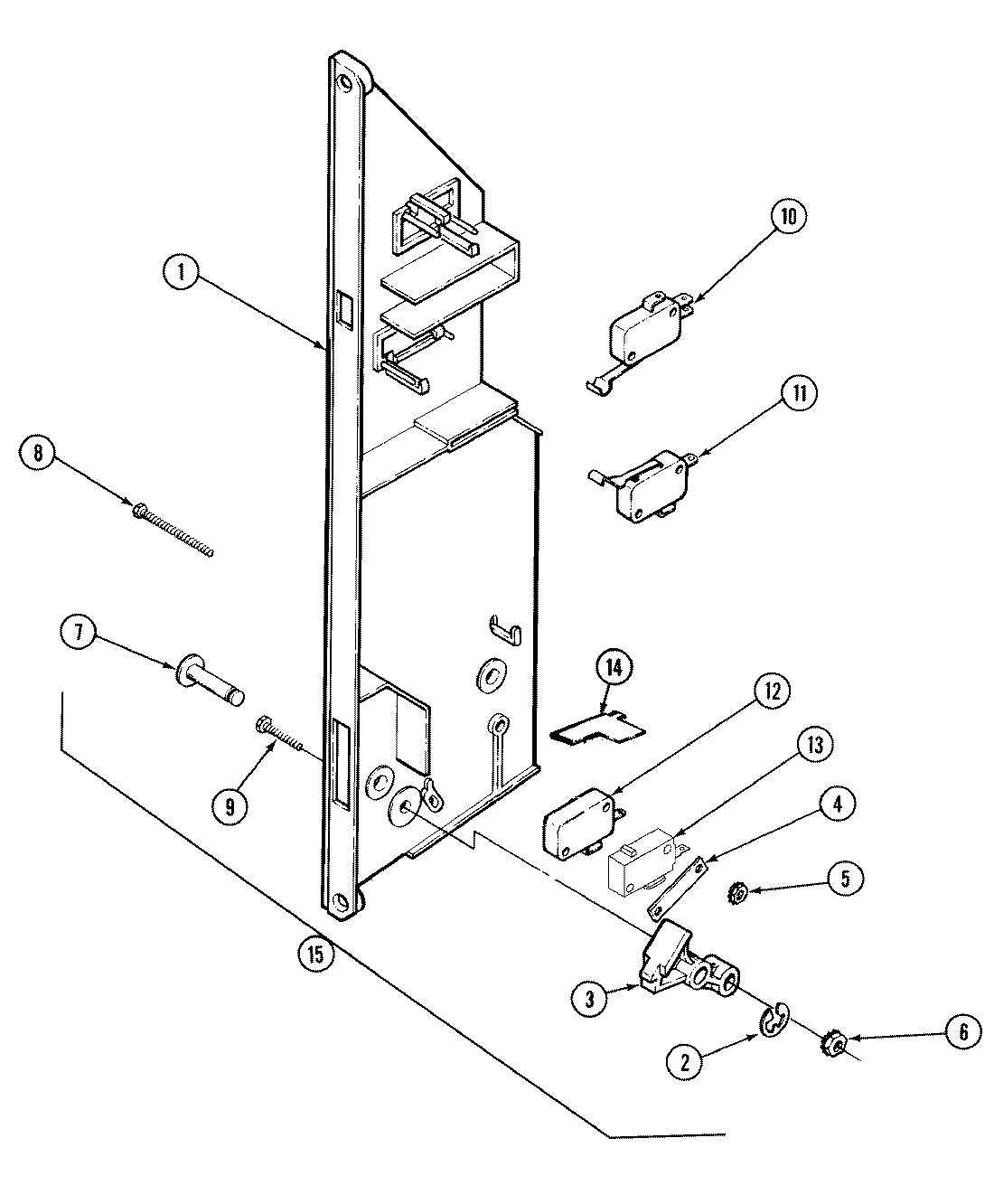

06 - INTERLOCK SWITCHES (RCM47Jx-14T)

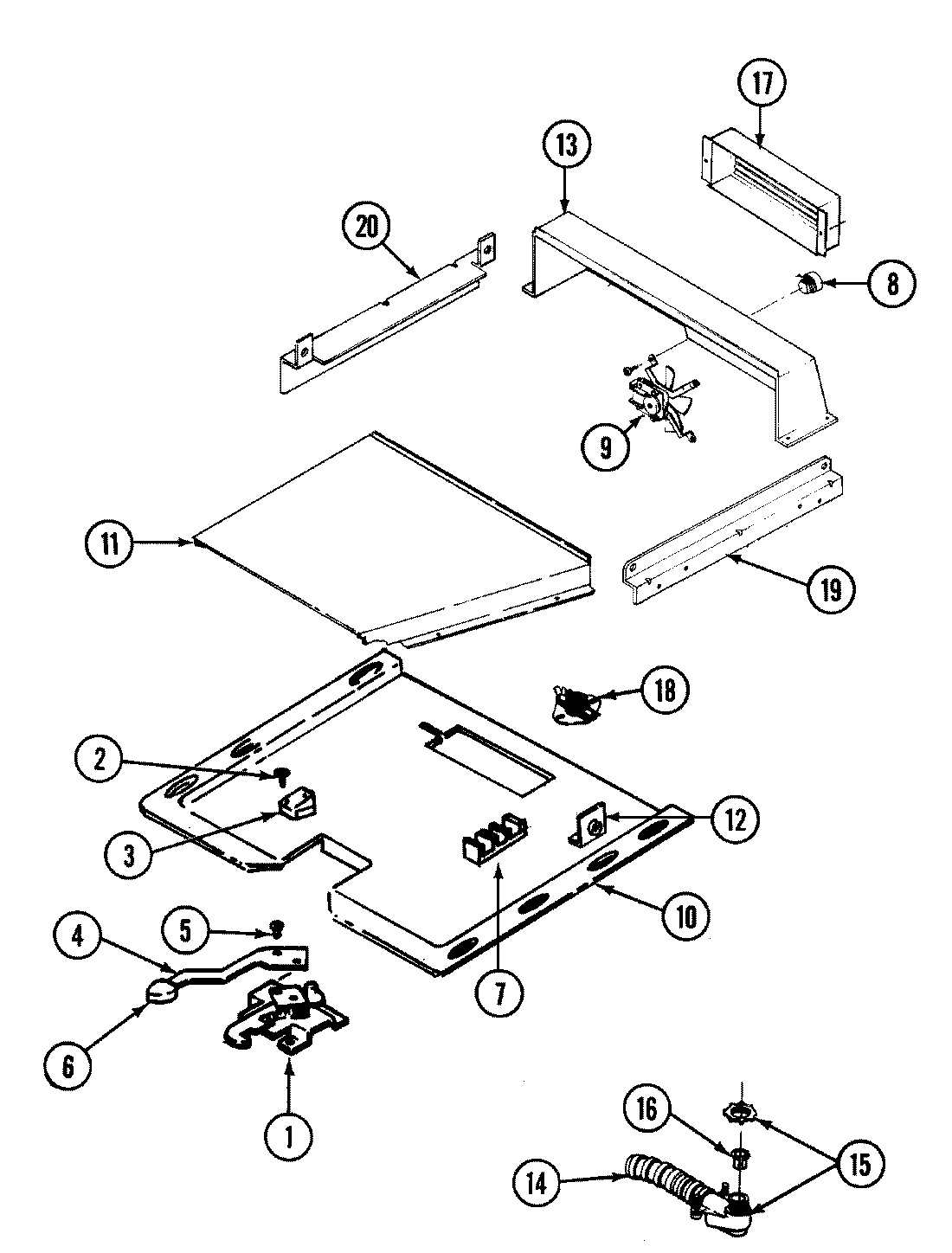

07 - INTERNAL CONTROLS

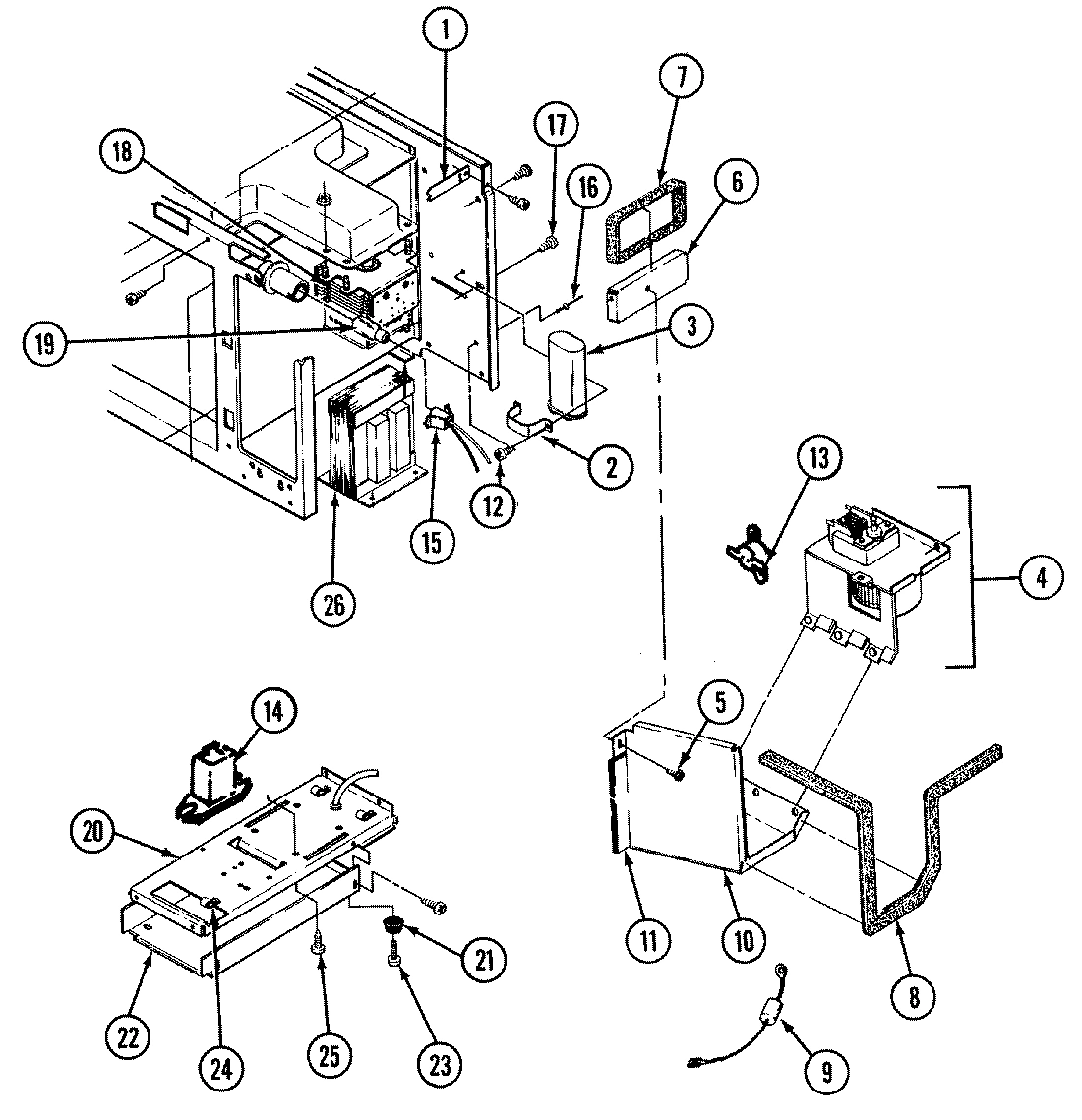

08 - INTERNAL CONTROLS(RCM47JW-14T/RCM47J-14T

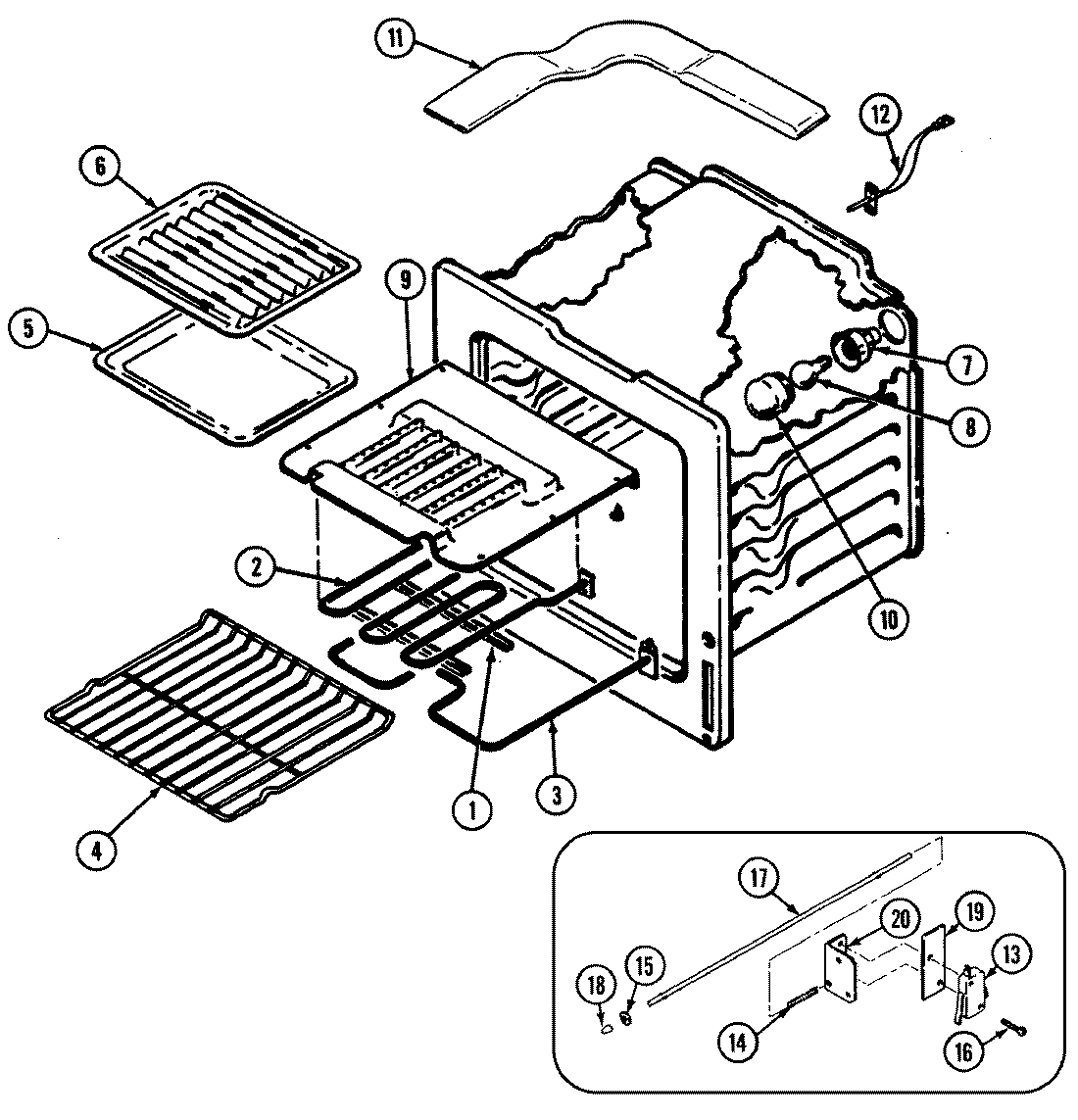

09 - OVEN

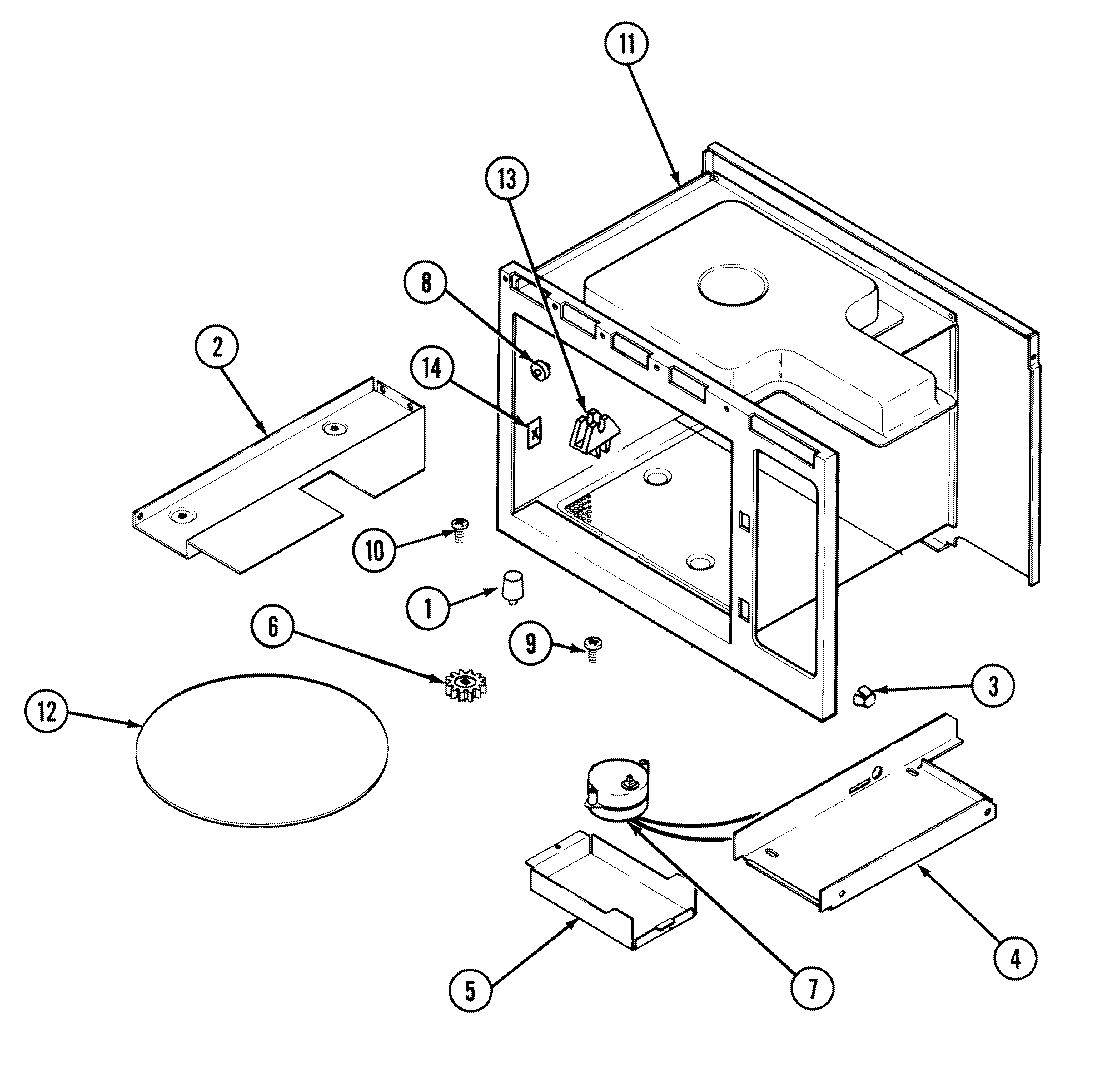

10 - TURNTABLE (RCM47JW-14T/RCM47J-14T)

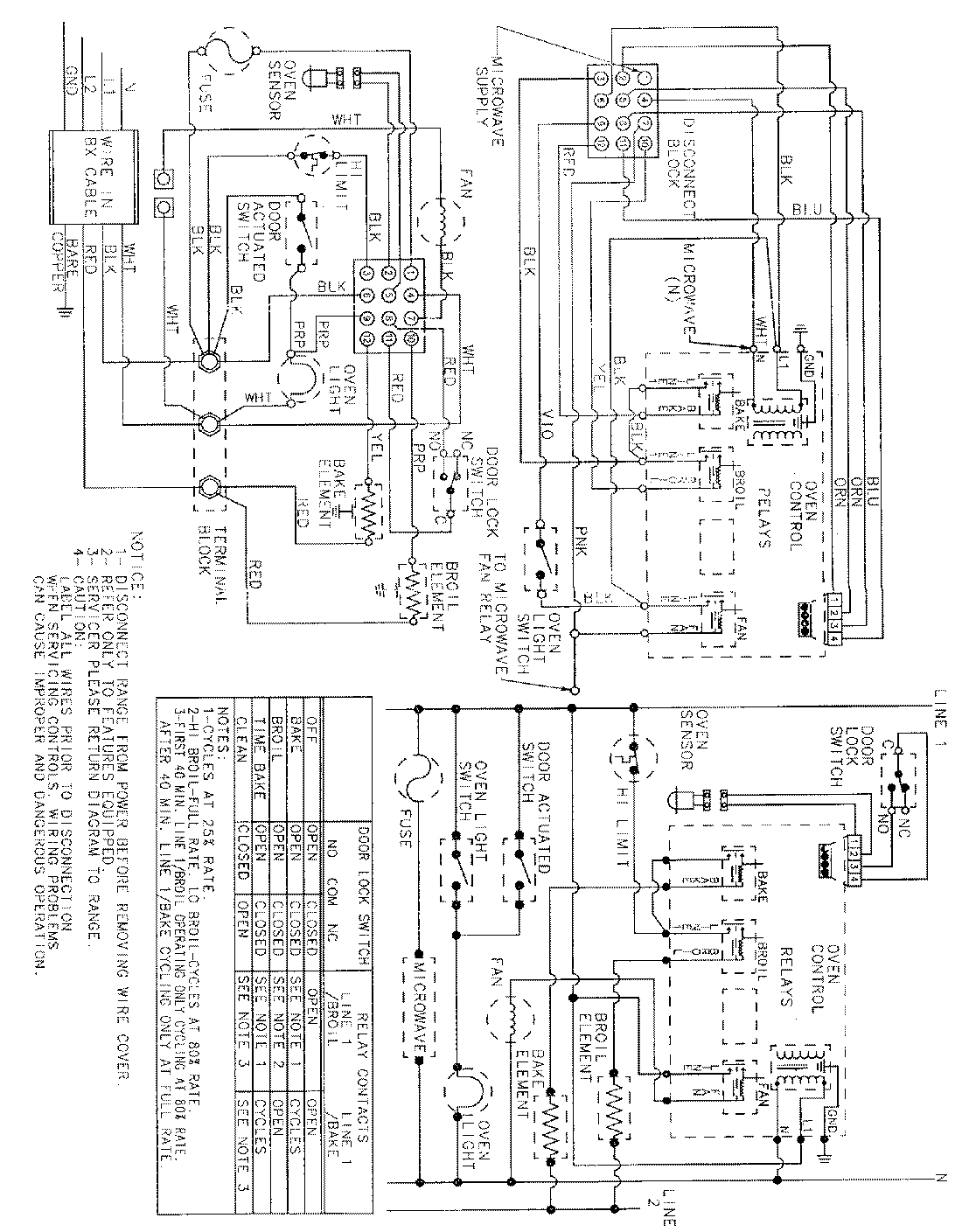

11 - WIRING INFORMATION
Common parts from model Maytag WME3020B ELECTRIC WALL OVEN/MICROWAVE COMBO
1
MAY 4002F169-51 MAY 4002F169-51 Contact Us For Availability
1
MAY 01210105 MAY 01210105 Contact Us For Availability
1
MAY Y01210108 MAY Y01210108 Contact Us For Availability
1
MAY 7902P402-60 MAY 7902P402-60 Contact Us For Availability
1
MAY Y02030117 MAY Y02030117 Contact Us For Availability
1
MAY Y02030133 MAY Y02030133 Contact Us For Availability
1
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
1
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
1
MAY 02020020 MAY 02020020 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY Y03070041 MAY Y03070041 Contact Us For Availability
2
MAY 02360058 MAY 02360058 Contact Us For Availability
2
MAY 2618F082-51 MAY 2618F082-51 Contact Us For Availability
2
MAY 51001006 MAY 51001006 Contact Us For Availability
2
MAY 7101P276-60 MAY 7101P276-60 Contact Us For Availability
2
MAY Y02030116 MAY Y02030116 Contact Us For Availability
2
MAY 03110040 MAY 03110040 Contact Us For Availability
2
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
2
MAY 02030123 MAY 02030123 Contact Us For Availability
2
MAY 7406P079-60 MAY 7406P079-60 Contact Us For Availability
2
MAY 04021484 MAY 04021484 Contact Us For Availability
3
MAY 03110066 MAY 03110066 Contact Us For Availability
3
SUPPORT,OVEN REAR MAY 3807F400-51 Contact Us For Availability
3
MAY 51001012 MAY 51001012 Contact Us For Availability
3
MAY 7101P325-60 MAY 7101P325-60 Contact Us For Availability
3
MAY Y02100135 MAY Y02100135 Contact Us For Availability
3
MAY 02190049 MAY 02190049 Contact Us For Availability
3
MAY 7003P051-60 MAY 7003P051-60 Contact Us For Availability
3
MAY 7403P363-60 MAY 7403P363-60 Contact Us For Availability
3
MAY Y01020023 MAY Y01020023 Contact Us For Availability
3
MAY 7406P078-60 MAY 7406P078-60 Contact Us For Availability
3
MAY Y03140008 MAY Y03140008 Contact Us For Availability
4
MAY Y02300045 MAY Y02300045 Contact Us For Availability
4
MAY 4005F434-51 MAY 4005F434-51 Contact Us For Availability
4
MAY 02100268 MAY 02100268 Contact Us For Availability
4
MAY 7701P073-60 MAY 7701P073-60 Contact Us For Availability
4
MAY Y02100166 MAY Y02100166 Contact Us For Availability
4
MAY Y01100043 MAY Y01100043 Contact Us For Availability
4
MAY 8009P024-60 MAY 8009P024-60 Contact Us For Availability
4
MAY 01110029 MAY 01110029 Contact Us For Availability
4
MAY 04021191 MAY 04021191 Contact Us For Availability
4
MAY 51001015 MAY 51001015 Contact Us For Availability
4
MAY Y01110016 MAY Y01110016 Contact Us For Availability
4
MAY Y02030144 MAY Y02030144 Contact Us For Availability
4
MAY Y02170119 MAY Y02170119 Contact Us For Availability
4
MAY 02300039 MAY 02300039 Contact Us For Availability
4
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
5
MAY Y02410004 MAY Y02410004 Contact Us For Availability
5
MAY 3826F015-45 MAY 3826F015-45 Contact Us For Availability
5
MAY 03020061 MAY 03020061 Contact Us For Availability
5
MAY Y03020099 MAY Y03020099 Contact Us For Availability
5
MAY 04021498 MAY 04021498 Contact Us For Availability
5
MAY Y03050001 MAY Y03050001 Contact Us For Availability
5
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
5
MAY 3401F014-19 MAY 3401F014-19 Contact Us For Availability
5
MAY Y02300050 MAY Y02300050 Contact Us For Availability
6
MAY 02010031 MAY 02010031 Contact Us For Availability
6
MAY 7756P087-60 MAY 7756P087-60 Contact Us For Availability
6
MAY 2402W202-19 MAY 2402W202-19 Contact Us For Availability
6
MAY 02220113 MAY 02220113 Contact Us For Availability
6
MAY 03050003 MAY 03050003 Contact Us For Availability
6
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
6
MAY 7701P132-60 MAY 7701P132-60 Contact Us For Availability
6
MAY Y02170111 MAY Y02170111 Contact Us For Availability
6
MAY 8312P002-60 MAY 8312P002-60 Contact Us For Availability
6
MAY Y02450002 MAY Y02450002 Contact Us For Availability
7
MAY 7106P057-60 MAY 7106P057-60 Contact Us For Availability
7
MAY 7002P155-60 MAY 7002P155-60 Contact Us For Availability
7
MAY 02200021 MAY 02200021 Contact Us For Availability
7
MAY Y03070031 MAY Y03070031 Contact Us For Availability
7
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
7
MAY 01110022 MAY 01110022 Contact Us For Availability
8
MAY 03050007 MAY 03050007 Contact Us For Availability
8
MAY Y01140066 MAY Y01140066 Contact Us For Availability
8
MAY 3601F236-47 MAY 3601F236-47 Contact Us For Availability
8
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
8
MAY 02100226 MAY 02100226 Contact Us For Availability
8
MAY 03010117 MAY 03010117 Contact Us For Availability
8
MAY 7416P002-60 MAY 7416P002-60 Contact Us For Availability
8
MAY 02310070 MAY 02310070 Contact Us For Availability
8
MAY 02210011 MAY 02210011 Contact Us For Availability
9
MAY 02140097 MAY 02140097 Contact Us For Availability
9
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
9
MAY 4804F038-60 MAY 4804F038-60 Contact Us For Availability
9
MAY 03110069 MAY 03110069 Contact Us For Availability
9
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
9
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
9
MAY 02190056 MAY 02190056 Contact Us For Availability
9
MAY 03010114 MAY 03010114 Contact Us For Availability
9
MAY 7427P010-60 MAY 7427P010-60 Contact Us For Availability
9
MAY Y04010206 MAY Y04010206 Contact Us For Availability
9
MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability
9
MAY 03010151 MAY 03010151 Contact Us For Availability
10
MAY 03110027 MAY 03110027 Contact Us For Availability
10
MAY 03110046 MAY 03110046 Contact Us For Availability
10
MAY 4005F354-70 MAY 4005F354-70 Contact Us For Availability
10
MAY 7728P091-60 MAY 7728P091-60 Contact Us For Availability
10
MAY 8010P016-60 MAY 8010P016-60 Contact Us For Availability
10
MAY Y03050041 MAY Y03050041 Contact Us For Availability
10
MAY Y01140085 MAY Y01140085 Contact Us For Availability
10
MAY 3807F117-51 MAY 3807F117-51 Contact Us For Availability
10
MAY Y04020842 MAY Y04020842 Contact Us For Availability
10
MAY 03020102 MAY 03020102 Contact Us For Availability
11
MAY 04021615 MAY 04021615 Contact Us For Availability
11
MAY 3804F108-51 MAY 3804F108-51 Contact Us For Availability
11
MAY 04010273 MAY 04010273 Contact Us For Availability
11
MAY 16000326 MAY 16000326 Contact Us For Availability
11
MAY 74001755 MAY 74001755 Contact Us For Availability
11
MAY 8111P038-60 MAY 8111P038-60 Contact Us For Availability
11
MAY Y01050005 MAY Y01050005 Contact Us For Availability
11
MAY 3818F052-80 MAY 3818F052-80 Contact Us For Availability
11
MAY 04021377 MAY 04021377 Contact Us For Availability
11
MAY Y01140084 MAY Y01140084 Contact Us For Availability
11
MAY 3604F206-45 MAY 3604F206-45 Contact Us For Availability
11
MAY 05140007 MAY 05140007 Contact Us For Availability
11
MAY 4005F403-51 MAY 4005F403-51 Contact Us For Availability
11
MAY 7101P084-60 MAY 7101P084-60 Contact Us For Availability
11
MAY 7506P125-60 MAY 7506P125-60 Contact Us For Availability
12
MAY Y02400007 MAY Y02400007 Contact Us For Availability
12
MAY Y03010157 MAY Y03010157 Contact Us For Availability
12
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
12
MAY 01140083 MAY 01140083 Contact Us For Availability
12
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
12
MAY Y03020076 MAY Y03020076 Contact Us For Availability
12
MAY Y02460009 MAY Y02460009 Contact Us For Availability
13
MAY Y02100186 MAY Y02100186 Contact Us For Availability
13
MAY 4011F217-51 MAY 4011F217-51 Contact Us For Availability
13
MAY Y03010118 MAY Y03010118 Contact Us For Availability
13
MAY Y01140086 MAY Y01140086 Contact Us For Availability
13
MAY 4001F090-51 MAY 4001F090-51 Contact Us For Availability
13
MAY 01180010 MAY 01180010 Contact Us For Availability
13
MAY 7403P357-60 MAY 7403P357-60 Contact Us For Availability
14
MAY Y03110050 MAY Y03110050 Contact Us For Availability
14
MAY 7750P089-60 MAY 7750P089-60 Contact Us For Availability
14
MAY 7750P090-60 MAY 7750P090-60 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
14
MAY 03020004 MAY 03020004 Contact Us For Availability
14
MAY Y02180016 MAY Y02180016 Contact Us For Availability
14
MAY 3414F098-44 MAY 3414F098-44 Contact Us For Availability
14
MAY 5140A032-60 MAY 5140A032-60 Contact Us For Availability
14
MAY 01120033 MAY 01120033 Contact Us For Availability
14
MAY 7803P067-60 MAY 7803P067-60 Contact Us For Availability
14
MAY Y03110070 MAY Y03110070 Contact Us For Availability
15
MAY 02240781 MAY 02240781 Contact Us For Availability
15
MAY 7756P097-60 MAY 7756P097-60 Contact Us For Availability
15
MAY 02120114 MAY 02120114 Contact Us For Availability
15
MAY Y04021550 MAY Y04021550 Contact Us For Availability
15
MAY 7109P002-60 MAY 7109P002-60 Contact Us For Availability
15
MAY 7417P005-60 MAY 7417P005-60 Contact Us For Availability
15
MAY 01100045 MAY 01100045 Contact Us For Availability
15
MAY 7109P020-60 MAY 7109P020-60 Contact Us For Availability
16
MAY 02300057 MAY 02300057 Contact Us For Availability
16
MAY 2401F123-70 MAY 2401F123-70 Contact Us For Availability
16
MAY Y02120121 MAY Y02120121 Contact Us For Availability
16
MAY 8008P017-60 MAY 8008P017-60 Contact Us For Availability
16
MAY Y03060002 MAY Y03060002 Contact Us For Availability
16
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
17
MAY Y03010144 MAY Y03010144 Contact Us For Availability
17
MAY 51001010 MAY 51001010 Contact Us For Availability
17
MAY 7744P007-60 MAY 7744P007-60 Contact Us For Availability
17
MAY Y02120122 MAY Y02120122 Contact Us For Availability
17
MAY 4005F374-51 MAY 4005F374-51 Contact Us For Availability
17
MAY 7809P023-60 MAY 7809P023-60 Contact Us For Availability
18
MAY 02120153 MAY 02120153 Contact Us For Availability
18
MAY 7101P148-60 MAY 7101P148-60 Contact Us For Availability
18
MAY 7403P313-60 MAY 7403P313-60 Contact Us For Availability
18
MAY 01040004 MAY 01040004 Contact Us For Availability
18
MAY 02320015 MAY 02320015 Contact Us For Availability
18
MAY 8003P012-60 MAY 8003P012-60 Contact Us For Availability
19
MAY Y03120069 MAY Y03120069 Contact Us For Availability
19
MAY 3801F287-51 MAY 3801F287-51 Contact Us For Availability
19
MAY 7003P062-60 MAY 7003P062-60 Contact Us For Availability
20
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
20
MAY Y03180023 MAY Y03180023 Contact Us For Availability
20
MAY 3801F286-51 MAY 3801F286-51 Contact Us For Availability
20
MAY 3830F008-51 MAY 3830F008-51 Contact Us For Availability
20
MAY 5170P098-60 MAY 5170P098-60 Contact Us For Availability
20
MAY 5185D283-60 MAY 5185D283-60 Contact Us For Availability
20
MAY 02040110 MAY 02040110 Contact Us For Availability
20
MAY 3801F354-51 MAY 3801F354-51 Contact Us For Availability
21
MAY Y02220073 MAY Y02220073 Contact Us For Availability
21
MAY 02230012 MAY 02230012 Contact Us For Availability
22
MAY 02120151 MAY 02120151 Contact Us For Availability
23
MAY Y03120064 MAY Y03120064 Contact Us For Availability
23
MAY Y03020104 MAY Y03020104 Contact Us For Availability
24
MAY 02100230 MAY 02100230 Contact Us For Availability
24
MAY Y03110059 MAY Y03110059 Contact Us For Availability
25
MAY 03010094 MAY 03010094 Contact Us For Availability
26
MAY 01130028 MAY 01130028 Contact Us For Availability
26
MAY 51001014 MAY 51001014 Contact Us For Availability
26
MAY Y03110021 MAY Y03110021 Contact Us For Availability
NI
MAY 01050008 MAY 01050008 Contact Us For Availability
NI
MAY 51001008 MAY 51001008 Contact Us For Availability
NI
MAY Y03110078 MAY Y03110078 Contact Us For Availability
NI
MAY Y04060532 MAY Y04060532 Contact Us For Availability
NI
MAY Y04060535 MAY Y04060535 Contact Us For Availability
NI
MAY 15001547 MAY 15001547 Contact Us For Availability
× ![]()
