Model Whirlpool WMBT7030SV00 – Common Parts & Diagrams

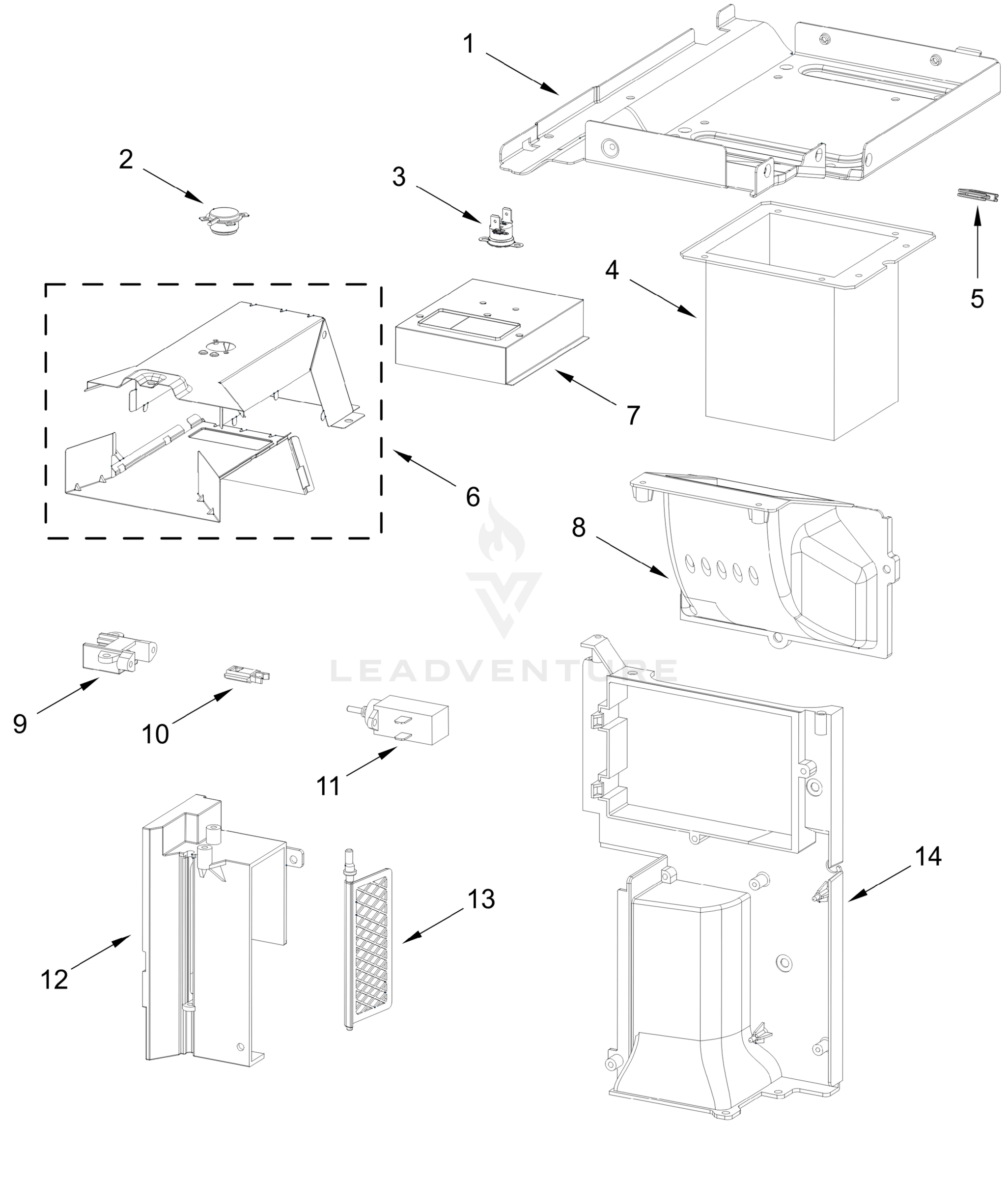

AIR FLOW PARTS

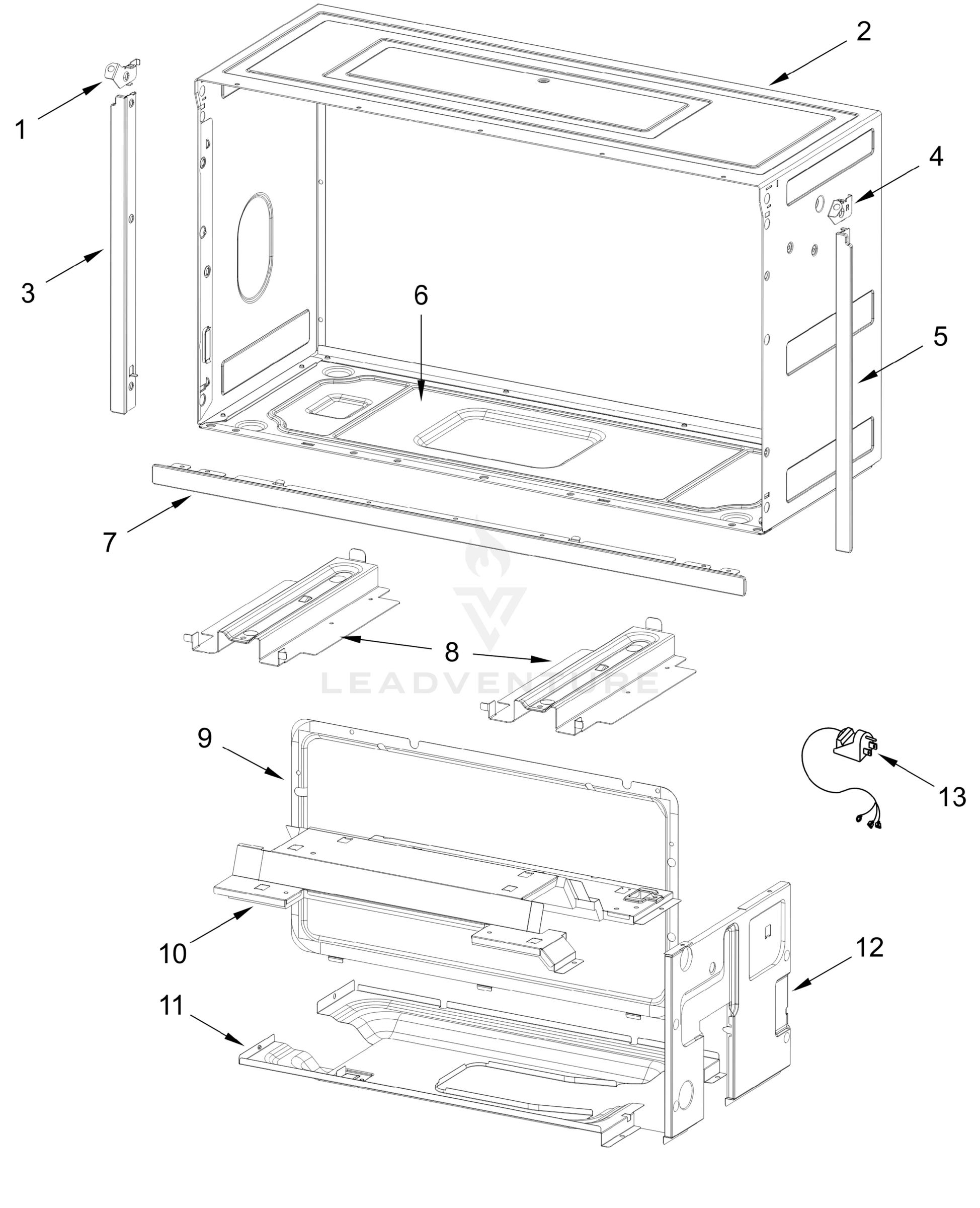

CABINET AND INSTALLATION PARTS

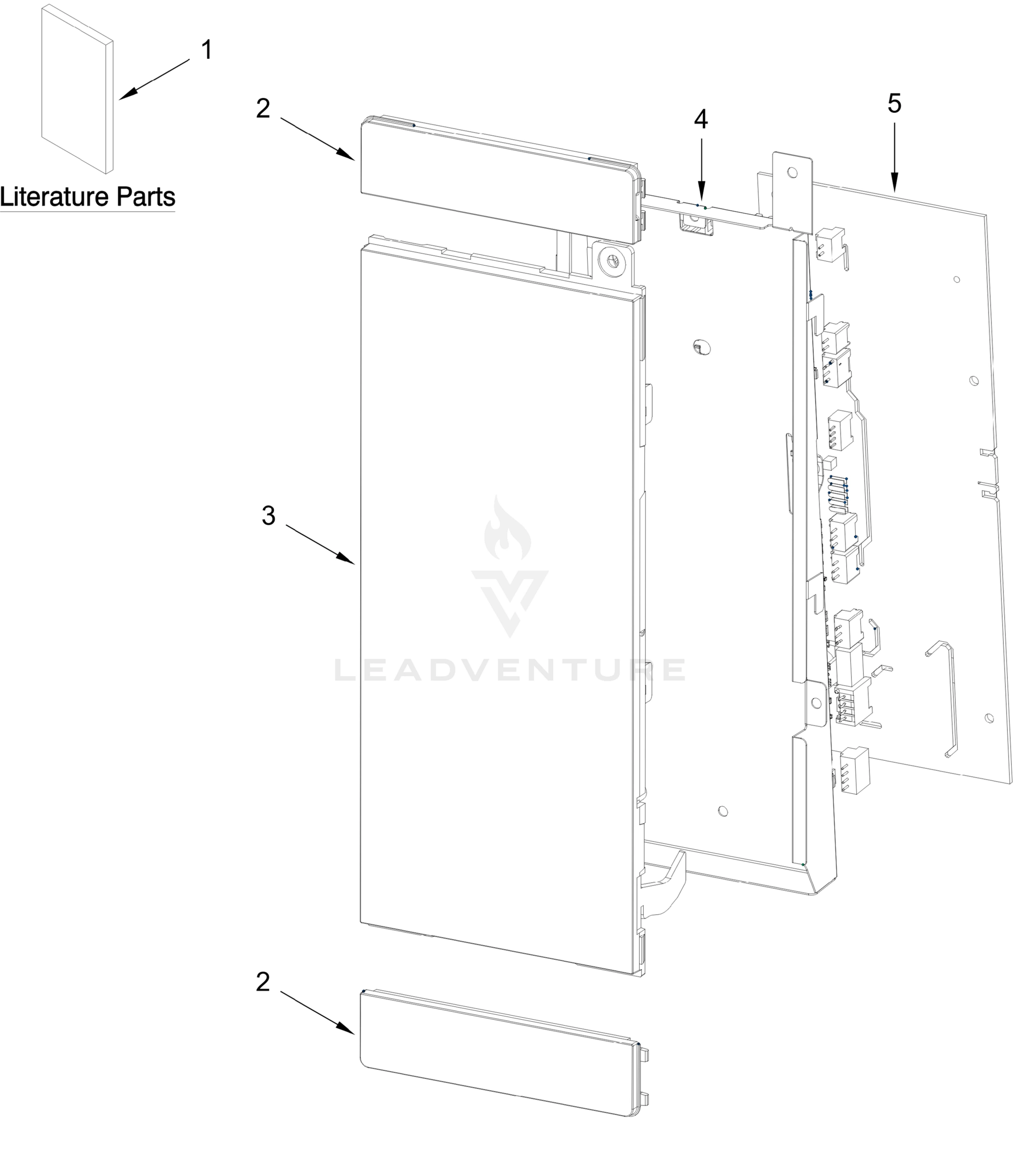

CONTROL PANEL PARTS

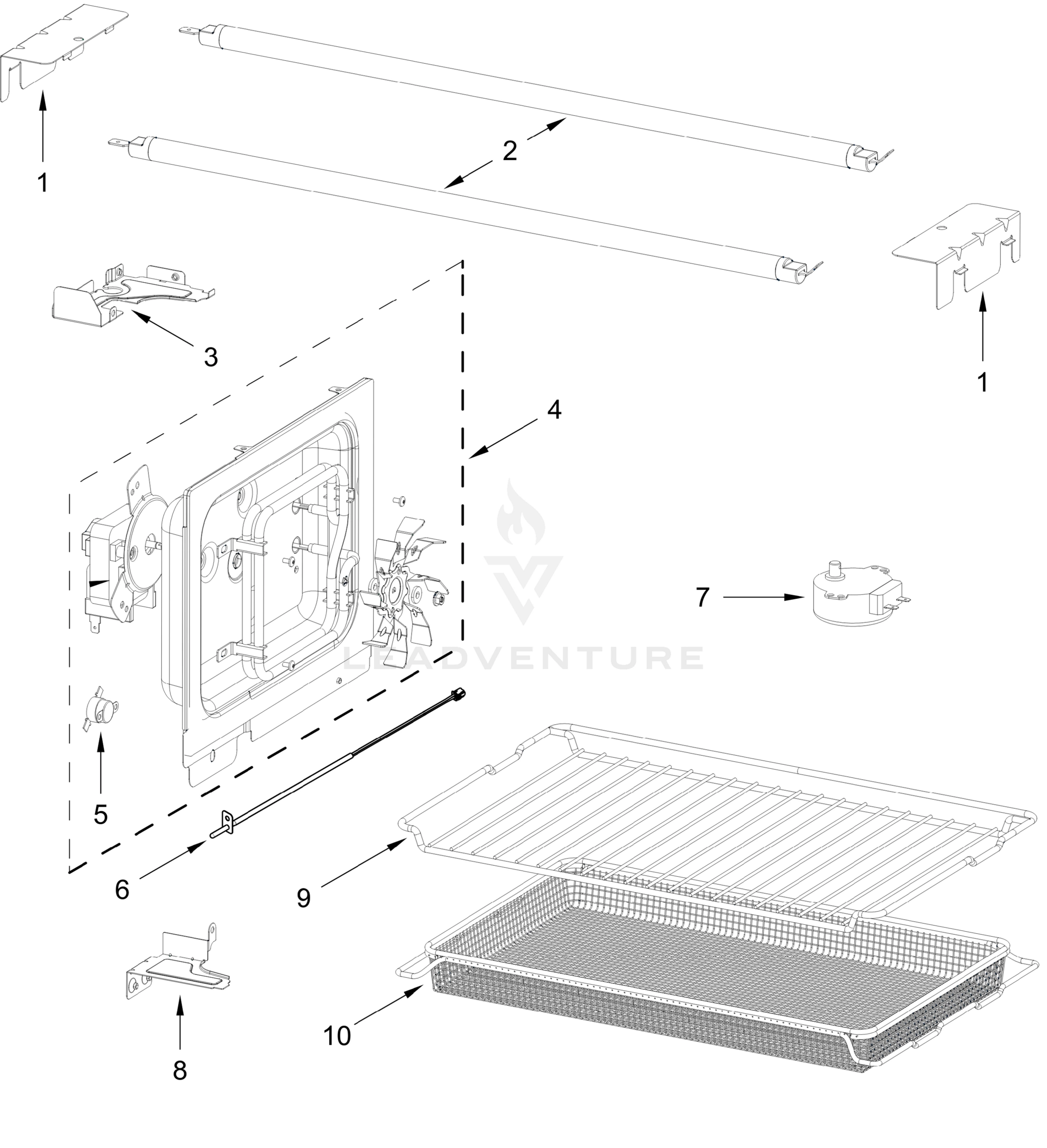

COOKING PARTS

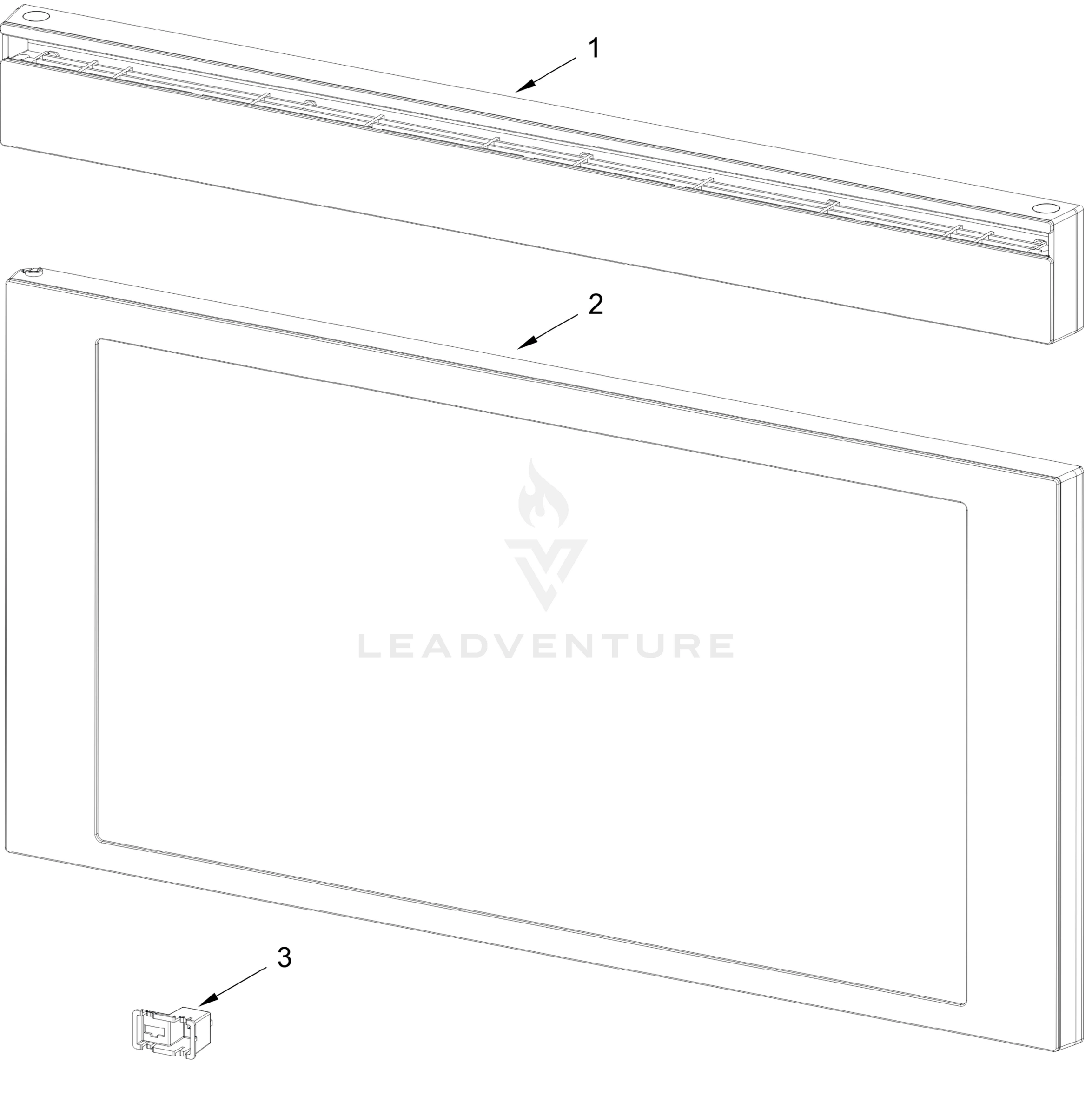

DOOR AND VENT PARTS

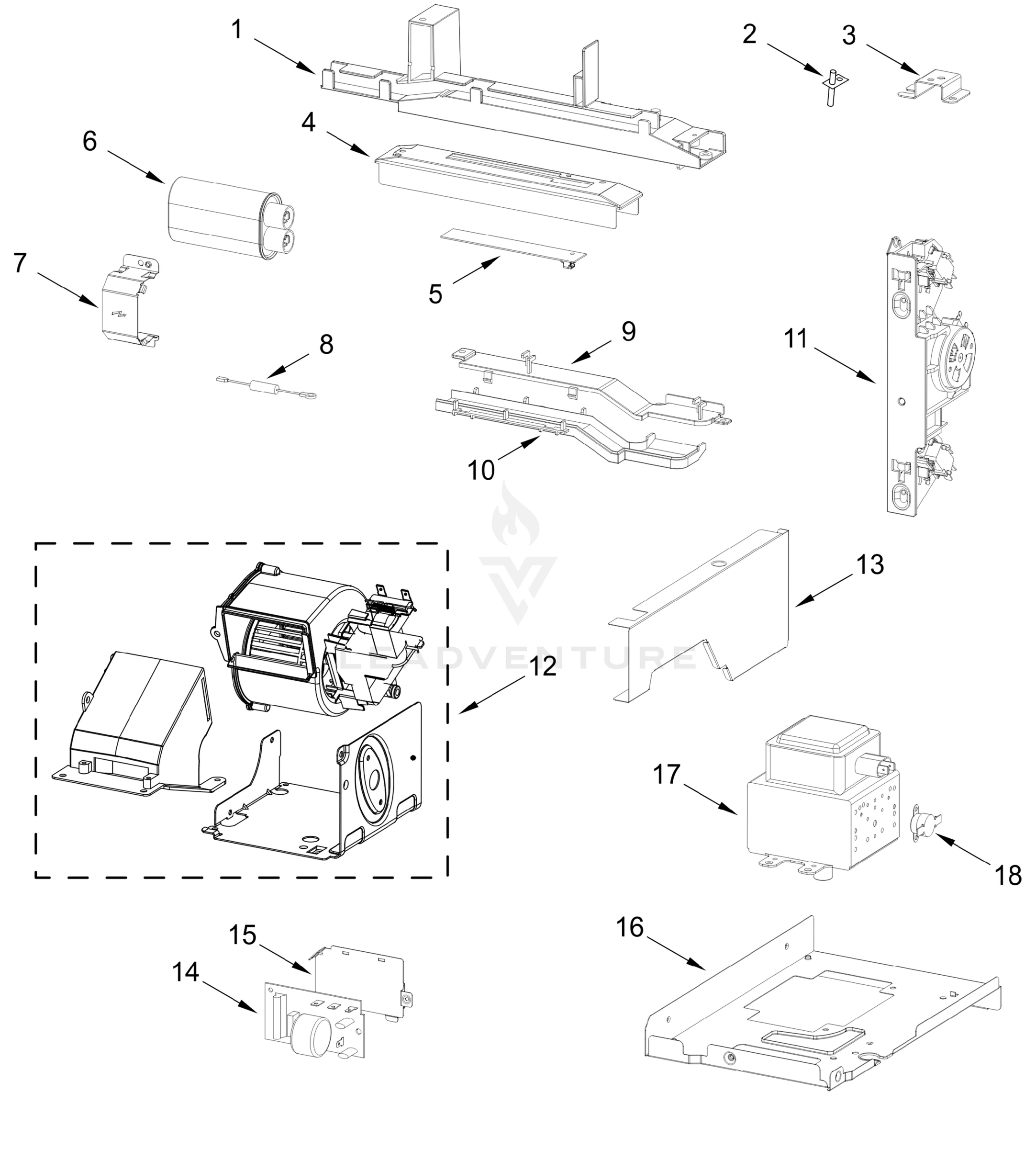

INTERIOR AND VENTILATION PARTS
Common parts from model Whirlpool WMBT7030SV00
Hardware, Installation WPL W11777295 Contact Us For Availability
Harness, Main WPL W11457596 Contact Us For Availability
Harness, Cavity LED to ACU WPL W11353979 Contact Us For Availability
Signal Harness, Door & ODM to ACU WPL W11577230 Contact Us For Availability
Signal Harness, HMI to Door Hinge WPL W11581994 Contact Us For Availability
Manual, Owner's WPL W11739860 Contact Us For Availability
Guide, Quick Reference WPL W11739862 Contact Us For Availability
Sheet, Tech WPL W11739868 Contact Us For Availability
1
Bracket, Vent Lock (Left) WPL W11735135 Contact Us For Availability
1
Stopper, Grill Element WPL W11590330 Contact Us For Availability
1
Grille, Vent (Black Stainless) WPL W11777256 Contact Us For Availability
1
Support, Cavity Lamp WPL W11727300 Contact Us For Availability
2
Case, Outer (Black) WPL W11727298 Contact Us For Availability
2
Heater, Quartz Grill WPL W11601429 Contact Us For Availability
2
Door Assembly (Black) WPL W11777263 Contact Us For Availability
3
Trim, Left Side WPL W11755313 Contact Us For Availability
3
Panel, Console WPL W11604277 Contact Us For Availability
3
Air Guide, Convection (Left) WPL W11712267 Contact Us For Availability
3
Bracket, Door Cable WPL W11585784 Contact Us For Availability
3
Clip, NTC WPL W11736846 Contact Us For Availability
4
Bracket, Vent Lock (Right) WPL W11735136 Contact Us For Availability
4
Backer, Control WPL W11604278 Contact Us For Availability
4
Module, Convection WPL W11735164 Contact Us For Availability
4
Reflector, LED WPL W11586576 Contact Us For Availability
5
Trim, Right Side WPL W11755288 Contact Us For Availability
5
Appliance Control Unit WPL W11724850 Contact Us For Availability
6
Channel, Cavity Outlet WPL W11777280 Contact Us For Availability
6
Plate, Bottom WPL W11727296 Contact Us For Availability
6
Sensor, Temperature WPL W11605973 Contact Us For Availability
7
Channel, Cavity Outlet WPL W11666343 Contact Us For Availability
7
Trim, Bottom WPL W11739667 Contact Us For Availability
8
Air Channel, Transformer WPL W11712265 Contact Us For Availability
8
Bracket, Feet WPL W11782459 Contact Us For Availability
8
Air Guide, Convection (Right) WPL W11712268 Contact Us For Availability
9
Support, Valve Door Driver WPL W11634513 Contact Us For Availability
9
Insulation, Back Plate WPL W11777281 Contact Us For Availability
9
Rack, Wire WPL W11600706 Contact Us For Availability
9
Air Duct, Cavity Lamp (Upper) WPL W11727301 Contact Us For Availability
10
Driver, Valve Door WPL W11634512 Contact Us For Availability
10
Insulation, Top Plate WPL W11777282 Contact Us For Availability
10
Basket, Air Fry WPL W11600707 Contact Us For Availability
10
Air Duct, Cavity Lamp (Lower) WPL W11727302 Contact Us For Availability
11
Actuator WPL W11711852 Contact Us For Availability
11
Insulation, Bottom Plate WPL W11777279 Contact Us For Availability
12
Cover, Valve WPL W11634510 Contact Us For Availability
12
Insulation, Right Plate WPL W11777285 Contact Us For Availability
12
Fan, Cooling WPL W11745702 Contact Us For Availability
13
Door, Valve WPL W11634511 Contact Us For Availability
13
Deflector, Air WPL W11727299 Contact Us For Availability
14
Plate, Transformer Support WPL W11712263 Contact Us For Availability
16
Plate, Magnetron Support WPL W11712262 Contact Us For Availability
17
Magnetron WPL W11770726 Contact Us For Availability
× ![]()
