Model Electrolux WISCL6 WASHER – Common Parts & Diagrams
03 - CONSOLE AND CONTROL PARTS
04 - CABINET PARTS

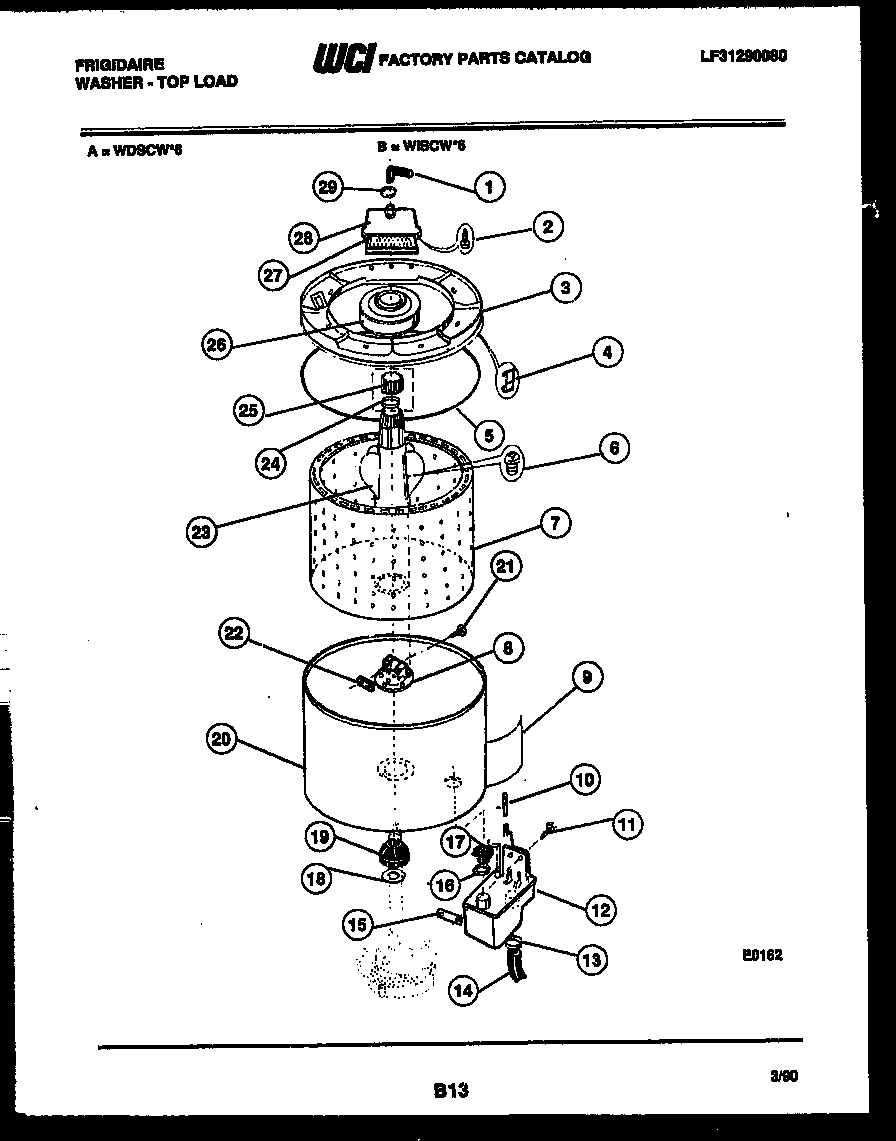

05 - TUB DETAIL

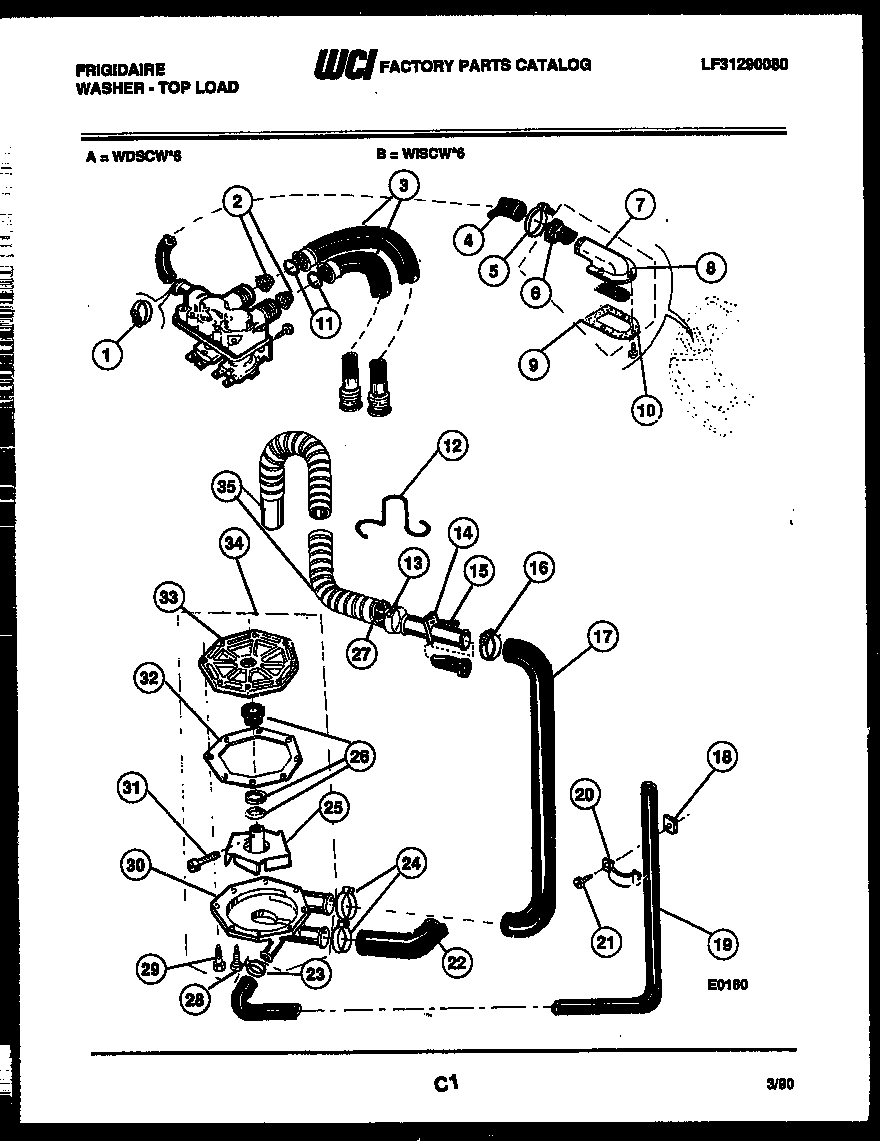

06 - PUMP, WATER VALVE AND WATER INLET

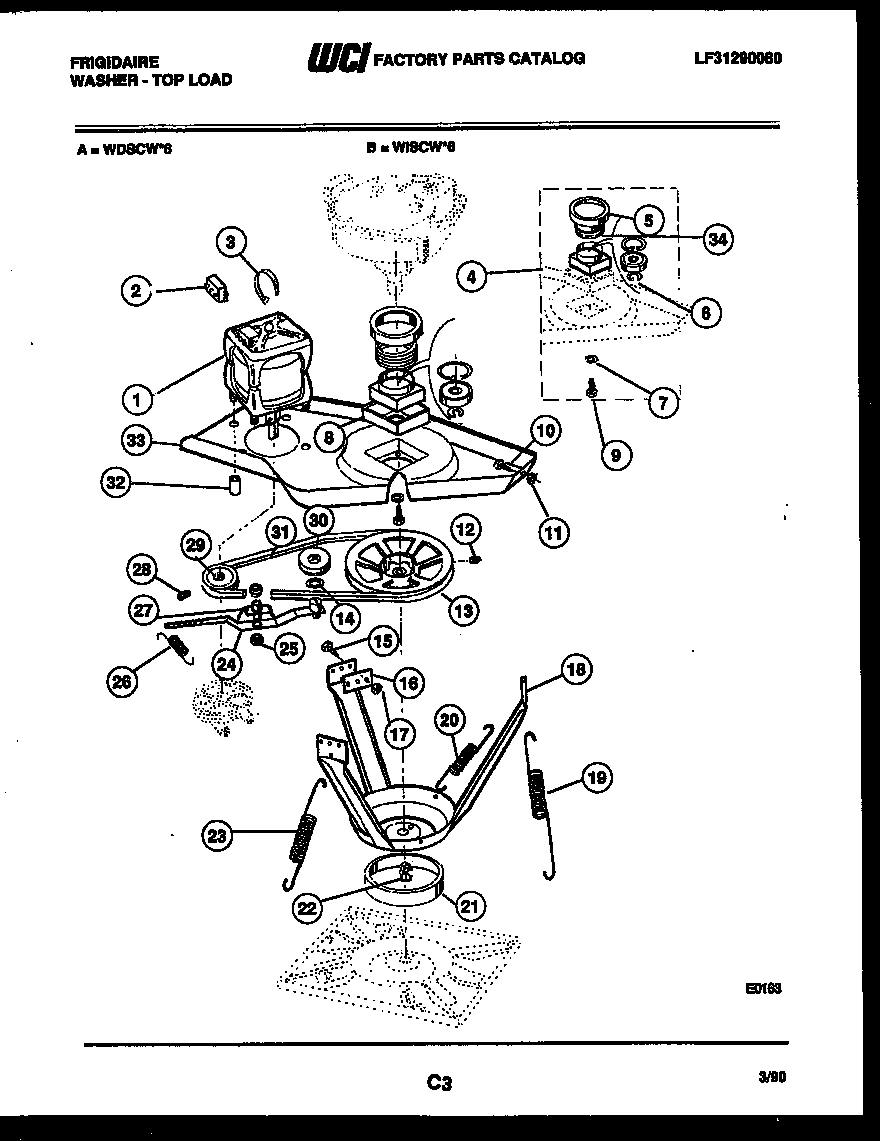

07 - MOTOR AND IDLER ARM CLUTCH

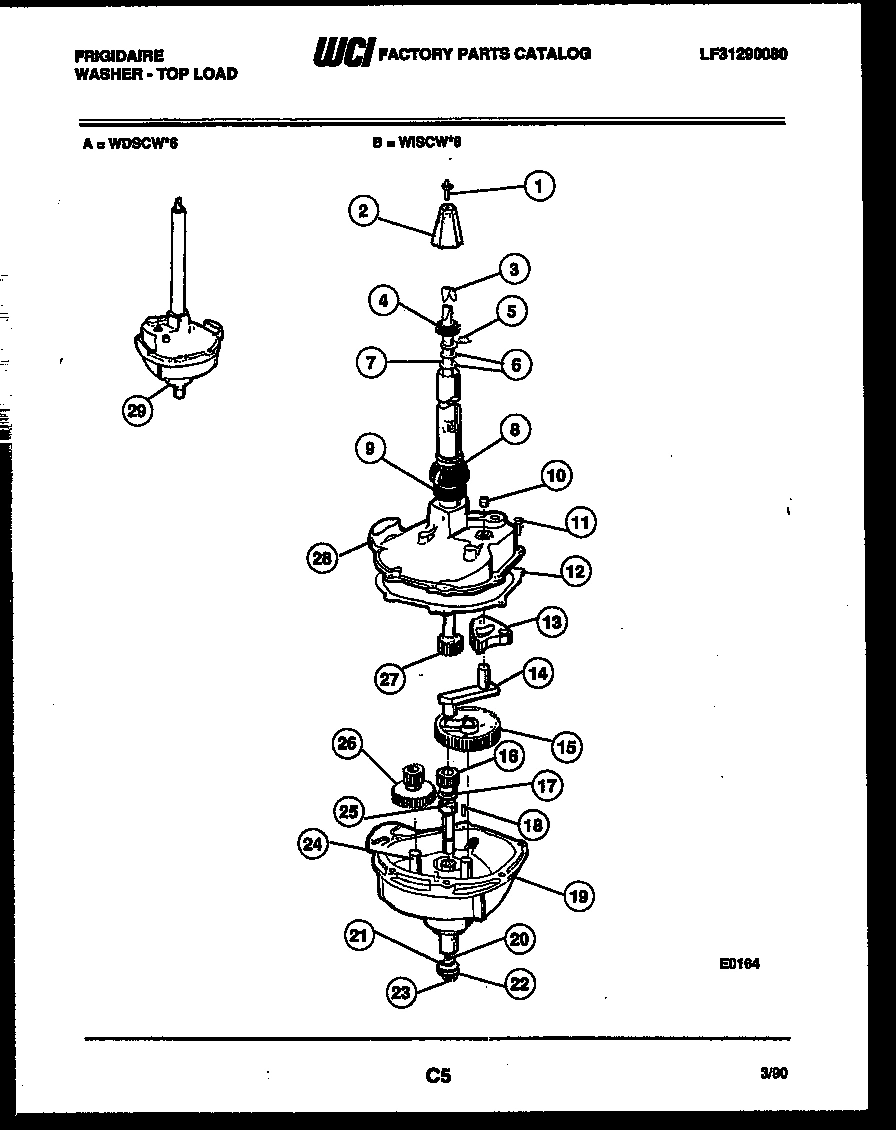

08 - TRANSMISSION PARTS
Common parts from model Electrolux WISCL6 WASHER
*18173
DISPENSER-FABRIC SOFTENER WCI 08950170 Contact Us For Availability
*18173
WCI 08001609 WCI 08001609 Contact Us For Availability
*18174
REDUCER (ADAPTOR) STANDPIPE DRAIN REDUCES O.D WCI 08002501 Contact Us For Availability
*18174
WCI 08950052 WCI 08950052 Contact Us For Availability
1
PANEL-CONSOLE REAR WCI 08010781 Contact Us For Availability
1
CLAMP WCI 08006572 Contact Us For Availability
1
SCREW WCI 08002491 Contact Us For Availability
1A
MOTOR-WSHER DRIVE, TWO SPEED GE WCI 08014901 Contact Us For Availability
2
SWITCH-WATER TEMP. SELECTOR WCI 08008463 Contact Us For Availability
2
WCI 08002432 WCI 08002432 Contact Us For Availability
2
SCREEN-INLET (2) WCI 08002439 Contact Us For Availability
2
SWITCH-MOTOR START WCI 08014888 Contact Us For Availability
2
HUB-DRIVE WCI 08014904 Contact Us For Availability
3
WCI 08014351 WCI 08014351 Contact Us For Availability
3
BRACKET-LID WCI 08015519 Contact Us For Availability
3
SUB-TOP WCI 08011314 Contact Us For Availability
3
HOSE-WATER FILL (HOT & COLD) WCI 6561384 Contact Us For Availability
3
WCI 08002488 WCI 08002488 Contact Us For Availability
4
SWITCH-WATER LEVEL WCI 08010860 Contact Us For Availability
4
CLIPS (10) WCI 08002429 Contact Us For Availability
4
WCI 08008471 WCI 08008471 Contact Us For Availability
4
BEARING KIT WCI 08950058 Contact Us For Availability
5
TIMER, WASHER WCI 3015648 Contact Us For Availability
5
WCI 08015526 WCI 08015526 Contact Us For Availability
5
SEAL WCI 08002430 Contact Us For Availability
5
WCI 08007731 WCI 08007731 Contact Us For Availability
5
SLEEVE WCI 08011269 Contact Us For Availability
6
STRAP-GROUND WCI 08014349 Contact Us For Availability
6
WCI 08015509 WCI 08015509 Contact Us For Availability
6
VALVE-ANTISYPHON WCI 08027515 Contact Us For Availability
6
RING-SNAP WCI 08015536 Contact Us For Availability
6
SPACERS WCI 08002485 Contact Us For Availability
7
CLIPS (8) WCI 08014350 Contact Us For Availability
7
WCI 08002408 WCI 08002408 Contact Us For Availability
7
BASKET-INNER WASH WCI 08015495 Contact Us For Availability
7
NOZZLE-ASSEMBLY WCI 08006569 Contact Us For Availability
7
SPACERS (2) WCI 5303207426 Contact Us For Availability
7
WCI 08002481 WCI 08002481 Contact Us For Availability
8
WCI 08010787 WCI 08010787 Contact Us For Availability
8
BUMPERS-LID (2) WCI 08015520 Contact Us For Availability
8
SUPPORT-TUB WCI 08014908 Contact Us For Availability
8
WCI 08006682 WCI 08006682 Contact Us For Availability
8
WCI 08002473 WCI 08002473 Contact Us For Availability
8
SEAL KIT WCI 08950197 Contact Us For Availability
9
WCI 08014337 WCI 08014337 Contact Us For Availability
9
STRIKE WCI 3018962 Contact Us For Availability
9
SHIELD WCI 08011275 Contact Us For Availability
9
WCI 08006683 WCI 08006683 Contact Us For Availability
9
SCREWS (2) WCI 08027582 Contact Us For Availability
9
WCI 08002479 WCI 08002479 Contact Us For Availability
10
SCREWS (2) WCI 08010789 Contact Us For Availability
10
GROMMET SCREWS (4) WCI 08010830 Contact Us For Availability
10
SCREWS (3) WCI 08002471 Contact Us For Availability
10
PLUG WCI 08002803 Contact Us For Availability
11
SCREWS (2) WCI 08006636 Contact Us For Availability
11
SCREWS (4) WCI 08027483 Contact Us For Availability
11
WCI 08011280 WCI 08011280 Contact Us For Availability
11
NUTS (3) WCI 08002470 Contact Us For Availability
11
SCREWS (6) WCI 08011267 Contact Us For Availability
12
HINGES (2) WCI 08002412 Contact Us For Availability
12
TRAP-BUTTON/DRAIN WCI 5303206795 Contact Us For Availability
12
RETAINER WCI 08002362 Contact Us For Availability
12
WCI 08002805 WCI 08002805 Contact Us For Availability
13
WCI 08014913 WCI 08014913 Contact Us For Availability
13
WCI 5364154013 WCI 5364154013 Contact Us For Availability
13
PULLEY WCI 08014923 Contact Us For Availability
13
GEAR WCI 08011268 Contact Us For Availability
14
SCREWS (2) WCI 08002284 Contact Us For Availability
14
PANEL-BACK WCI 08011286 Contact Us For Availability
14
WCI 08015078 WCI 08015078 Contact Us For Availability
14
ROD WCI 08002809 Contact Us For Availability
15
RIVETS (2) WCI 08002420 Contact Us For Availability
15
NUT WCI 08011303 Contact Us For Availability
15
WCI 08002359 WCI 08002359 Contact Us For Availability
15
SCREWS (6) WCI 08002378 Contact Us For Availability
15
GEAR WCI 08015496 Contact Us For Availability
16
END-CAP LH WCI 08010783 Contact Us For Availability
16
WCI 08002367 WCI 08002367 Contact Us For Availability
16
WCI 08004057 WCI 08004057 Contact Us For Availability
16
PLATE (3) WCI 08002379 Contact Us For Availability
16
SHAFT WCI 08014905 Contact Us For Availability
17
BRACKET-CONTROL MTG. WCI 08014339 Contact Us For Availability
17
CORD-ELECTRICAL SERVICE WCI 08015515 Contact Us For Availability
17
WCI 08006674 WCI 08006674 Contact Us For Availability
17
WCI 08015531 WCI 08015531 Contact Us For Availability
17
NUTS (6) WCI 08002377 Contact Us For Availability
18
WCI 08014342 WCI 08014342 Contact Us For Availability
18
WCI 08014902 WCI 08014902 Contact Us For Availability
18
NUT WCI 08002355 Contact Us For Availability
18
SUPPORT WCI 08011310 Contact Us For Availability
18
PINS (2) WCI 08002813 Contact Us For Availability
19
WCI 08014903 WCI 08014903 Contact Us For Availability
19
HOSE-PUMP TO LINT WCI 08002353 Contact Us For Availability
19
WCI 08011284 WCI 08011284 Contact Us For Availability
19
SPRING-VERTICAL (2) (LONG) WCI 08011317 Contact Us For Availability
19
WCI 08002815 WCI 08002815 Contact Us For Availability
19A
WCI 08950057 WCI 08950057 Contact Us For Availability
20
SHELL-CABINET (ALMOND) WCI 08015514 Contact Us For Availability
20
WCI 08002371 WCI 08002371 Contact Us For Availability
20
WCI 08002356 WCI 08002356 Contact Us For Availability
20
SPRING HORIZONTAL (3) WCI 08011311 Contact Us For Availability
21
WCI 08002341 WCI 08002341 Contact Us For Availability
21
WCI 08015500 WCI 08015500 Contact Us For Availability
21
WCI 08002385 WCI 08002385 Contact Us For Availability
21
WASHER-THRUST WCI 08002476 Contact Us For Availability
22
WIRING HARNESS WCI 3200308 Contact Us For Availability
22
BASE-WASHER WCI 08011290 Contact Us For Availability
22
HOSE-TRAP TO PUMP WCI 08002364 Contact Us For Availability
22
NUT WCI 08002382 Contact Us For Availability
22
WASHER WCI 08002475 Contact Us For Availability
23
SCREWS (3) WCI 08010782 Contact Us For Availability
23
FOOT (4) WCI 08950088 Contact Us For Availability
23
WCI 08002424 WCI 08002424 Contact Us For Availability
23
WCI 08015517 WCI 08015517 Contact Us For Availability
23
WCI 08011261 WCI 08011261 Contact Us For Availability
23
RING-SNAP WCI 08002474 Contact Us For Availability
24
SCREWS (2) WCI 08011318 Contact Us For Availability
24
BLOCK-SHIPPING & SCREW WCI 08004066 Contact Us For Availability
24
WCI 08002427 WCI 08002427 Contact Us For Availability
24
CLAMPS (2) WCI 08014914 Contact Us For Availability
24
ARM-IDLER WCI 08004078 Contact Us For Availability
24
1 QT. OIL WCI 5303208460 Contact Us For Availability
25
WCI 08014343 WCI 08014343 Contact Us For Availability
25
WCI 08011263 WCI 08011263 Contact Us For Availability
25
CAP INCLUDES WASHER WCI 08006677 Contact Us For Availability
25
IMPELLER ASSY. WCI 08950055 Contact Us For Availability
25
WASHERS (2) WCI 08002457 Contact Us For Availability
25
SPRING WCI 08002817 Contact Us For Availability
26
WCI 08006545 WCI 08006545 Contact Us For Availability
26
WCI 08950093 WCI 08950093 Contact Us For Availability
26
SPRING-IDLER WCI 08002456 Contact Us For Availability
26
GEAR WCI 08002816 Contact Us For Availability
27
KNOB-WATER LEVEL SWITCH WCI 08014340 Contact Us For Availability
27
CLIP, LONG WCI 08011305 Contact Us For Availability
27
FILTER-LINT WCI 08002435 Contact Us For Availability
27
BUSHING WCI 08011277 Contact Us For Availability
27
SHAFT-AGITATE WCI 08015507 Contact Us For Availability
28
SPACER WCI 08015493 Contact Us For Availability
28
CLIP, SHORT WCI 08011304 Contact Us For Availability
28
WCI 08011313 WCI 08011313 Contact Us For Availability
28
SCREW (SET) WCI 08002453 Contact Us For Availability
28
WCI 08015535 WCI 08015535 Contact Us For Availability
29
WCI 08015498 WCI 08015498 Contact Us For Availability
29
WCI 08004099 WCI 08004099 Contact Us For Availability
29
SCREWS (4) WCI 08002390 Contact Us For Availability
29
WCI 08006686 WCI 08006686 Contact Us For Availability
30
WCI 08001622 WCI 08001622 Contact Us For Availability
30
HOUSING-PUMP LOWER WCI 08002391 Contact Us For Availability
31
CLIP-SPRING (2) WCI 08001597 Contact Us For Availability
31
WCI 08002392 WCI 08002392 Contact Us For Availability
32
BUMPERS (4) WCI 08001596 Contact Us For Availability
32
WCI 08002396 WCI 08002396 Contact Us For Availability
32
SPACERS (3) WCI 08014925 Contact Us For Availability
33
HINGES-TOP WCI 08002384 Contact Us For Availability
33
COVER - PUMP WCI 08002397 Contact Us For Availability
33
WCI 08002472 WCI 08002472 Contact Us For Availability
34
LOCK-LID WCI 3017110 Contact Us For Availability
34
WCI 08015497 WCI 08015497 Contact Us For Availability
34
WCI 08057430 WCI 08057430 Contact Us For Availability
35
WCI 3018963 WCI 3018963 Contact Us For Availability
35
HOSE-DRAIN INCLUDES BUSHING WCI 3205936 Contact Us For Availability
36
SCREWS (2) WCI 3018964 Contact Us For Availability
36
SCREWS (2) WCI 08015533 Contact Us For Availability
37
WCI 3019082 WCI 3019082 Contact Us For Availability
× ![]()
