Model Fisher & Paykel WH2424F1-96235-A Frontload Washing Machine – Common Parts & Diagrams

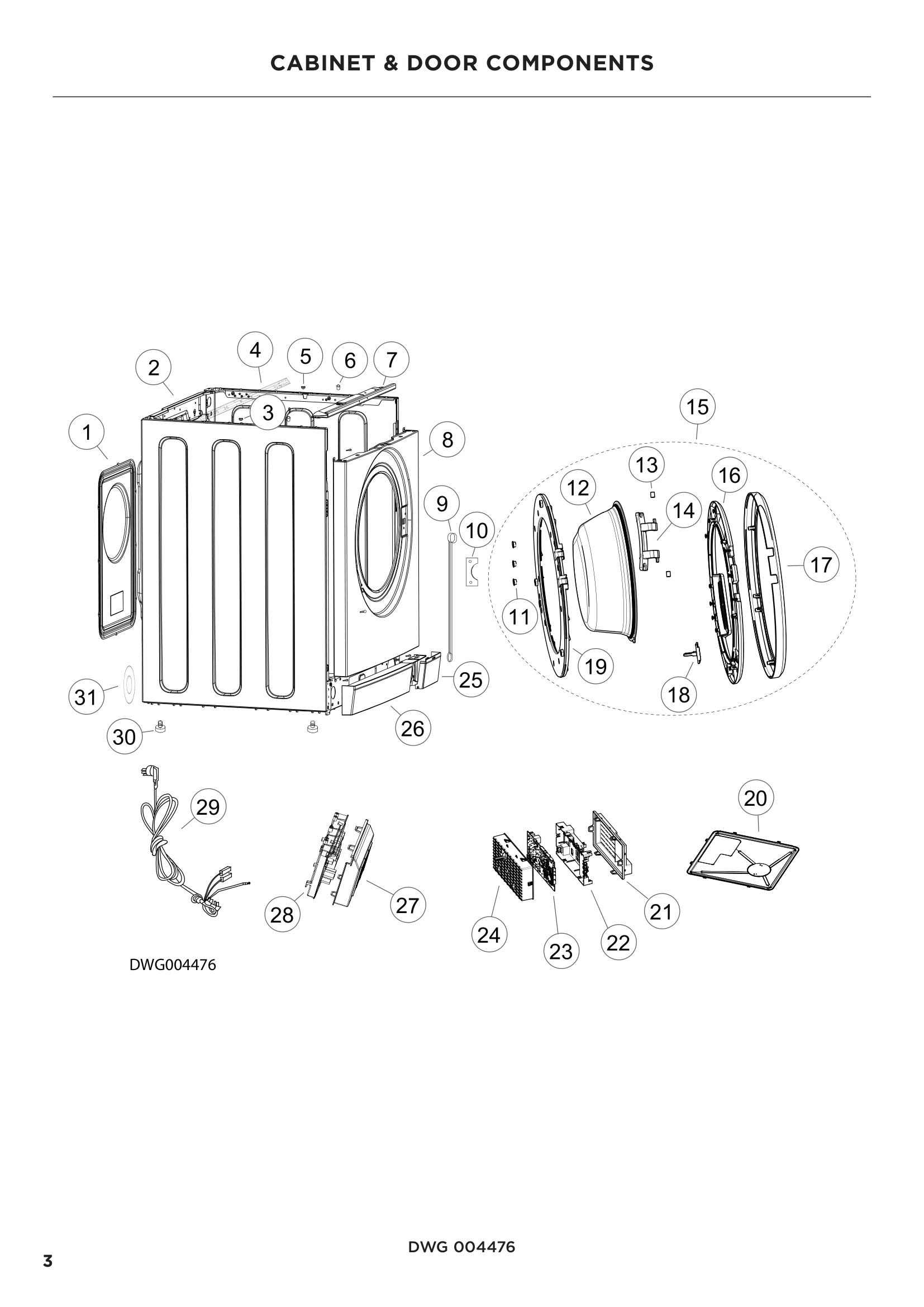

CABINET & DOOR COMPONENTS

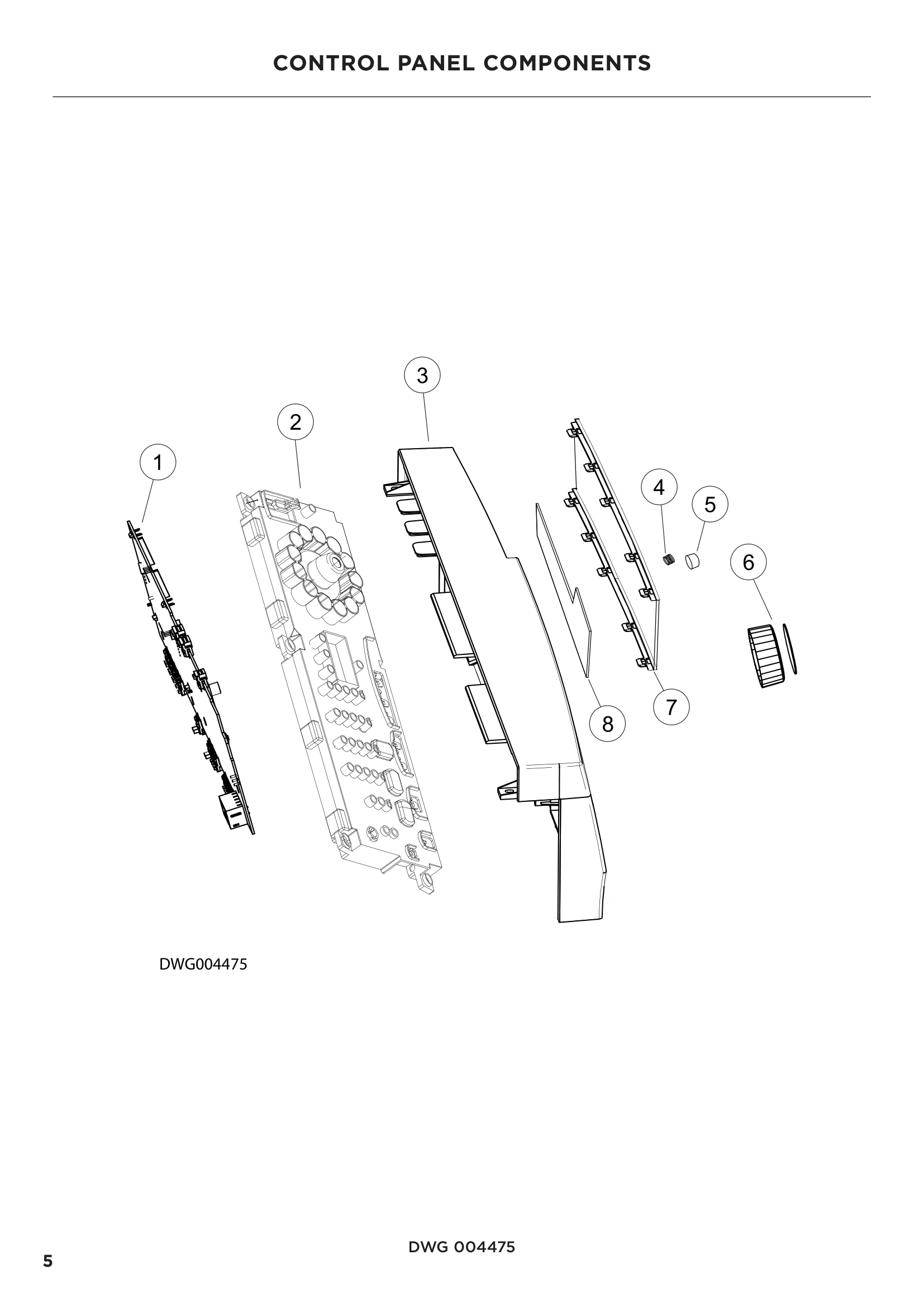

CONTROL PANEL COMPONENTS
DISPENSER & WIRING COMPONENTS
DRUM COMPONENTS
DRUM COMPONENTS
Common parts from model Fisher & Paykel WH2424F1-96235-A Frontload Washing Machine
1
GUIDE HARNESS LONG FPA H0020204469 Contact Us For Availability
2
WIRING HARNESS FPA H0020400345FB Contact Us For Availability
3
GUIDE HARNESS SHORT FPA H0020204470 Contact Us For Availability
3
CLAMP HOSE VALVE FPA H0020600050A Contact Us For Availability
4
FILTER RFI FPA H0024000491A Contact Us For Availability
5
CLAMP HOSE DRAIN PUMP FPA H00221120363014 Contact Us For Availability
6
SPONGE PROTECTOR PRESSURE TUBE FPA H00212500011100 Contact Us For Availability
7
PANEL TOUCH FPA H0020507259L Contact Us For Availability
7
INLET HOSE (HOT) FPA H0020300159A Contact Us For Availability
8
HOSE INLET AW COLD FPA H0020300158A Contact Us For Availability
8
CLIP PRESSURE TUBE FPA H00215200004402 Contact Us For Availability
9
WASH BOOST TRAY FPA H0020205509 Contact Us For Availability
10
WASH BOOST SYPHON COVER FPA H0020205510 Contact Us For Availability
10
DRUM VANE FPA H0020203152A Contact Us For Availability
11
SYPHON DISPENSER FPA H0020205097 Contact Us For Availability
11
SPRING SUSPENSION FPA H0020600214 Contact Us For Availability
12
DISPENSER BOX FPA H0020205095 Contact Us For Availability
12
COUNTER WEIGHT REAR FPA H0020300793 Contact Us For Availability
13
COVER FPA H0020205096 Contact Us For Availability
14
DISPENSER FPA H0020205098 Contact Us For Availability
15
BOLT ROTOR FPA H0020600404 Contact Us For Availability
16
SCREW STATOR FPA H0020600405 Contact Us For Availability
17
ROTOR FPA H0024000329 Contact Us For Availability
18
COLD VALVE ASSY FPA H0024000405E Contact Us For Availability
19
HARNESS MOTOR FPA H0020400087E Contact Us For Availability
20
CLAMP INLET HOSE FPA H00218870330611A Contact Us For Availability
20
HEATSHIELD FPA H0020809325L Contact Us For Availability
21
POWER BOARD LID FPA H0020204664 Contact Us For Availability
21
HOSE BREATHER FPA H0020300872 Contact Us For Availability
21
CLIP HARNESS FPA H00214800909100 Contact Us For Availability
22
POWER BOARD PLATE FPA H0020204665 Contact Us For Availability
23
WASHER RFI FILTER FPA H00217440540612 Contact Us For Availability
24
POWER BOARD BASE FPA H0020204663 Contact Us For Availability
24
NUT FPA H00215000000001A Contact Us For Availability
25
DOOR PUMP FILTER FPA H0020204110 Contact Us For Availability
25
SHOCK ABSORBER FPA H0020600213 Contact Us For Availability
26
PANEL KICK STRIP FPA H0020204109 Contact Us For Availability
26
SHOCK ABSORBER 80N FPA H0020600247 Contact Us For Availability
27
HOUSING B MOTOR CONTROLLER FPA H0020205106 Contact Us For Availability
27
BRACKET HEATER FPA H0020100432 Contact Us For Availability
28
ELEMENT HEATER FPA H0024000279A Contact Us For Availability
29
MAINS CABLE FPA H0020400196T Contact Us For Availability
29
BOLT SHOCK ABSORBER FPA H0020600403 Contact Us For Availability
30
FOOT FPA H0020300170G Contact Us For Availability
31
DRAIN HOSE HOLDER FPA H0020204516 Contact Us For Availability
32
COUNTERWEIGHT R FPA H0020300792A Contact Us For Availability
33
WASHER COUNTER WEIGHT FPA H0020600147A Contact Us For Availability
34
BOLT COUNTERWEIGHT FPA H0020600285 Contact Us For Availability
35
BARREL LAMP FPA H0024000327 Contact Us For Availability
36
CLAMP TUB BELLOWS FPA H0020600211 Contact Us For Availability
39
CLIP VALVE ASSY FPA H00218230700611A Contact Us For Availability
40
HOSE FPA H0020300860 Contact Us For Availability
41
SPRAYER FPA H0020204182 Contact Us For Availability
42
SPRAYER FPA H0020203333 Contact Us For Availability
43
HOSE CLAMP FPA H0020600086A Contact Us For Availability
44
HOSE FPA H0020300861 Contact Us For Availability
NI
DOOR CLAMP NUT NYLON FPA H00214800021100 Contact Us For Availability
× ![]()
