Bosch WGB24600UC Parts List

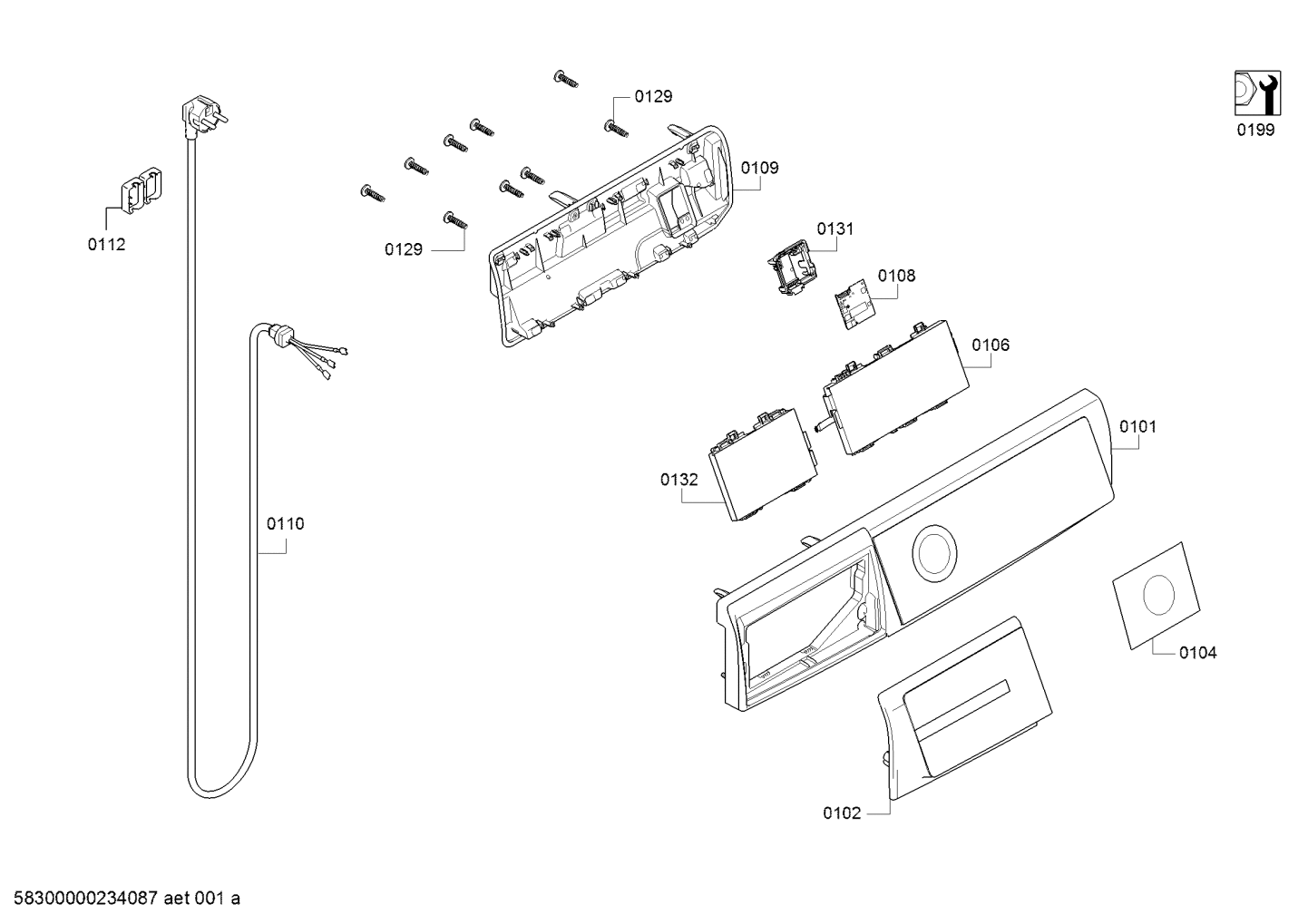

0101

PANEL-FACIA Backorder BOS 11056305 $120.32

View on Model

0102

TRAY HANDLE-DISPENSER Backorder BOS 12052533 $186.59

View on Model

0104

Part not included in this appliance BOS 00552829 Contact Us For Availability

View on Model

0106

Option selector BOS 11060009 Contact Us For Availability

View on Model

0108

SMM PROGRAMMED Backorder BOS 10032596 $203.21

View on Model

0108

SMM not programmed BOS 10026509 Contact Us For Availability

View on Model

0109

Frame BOS 11054092 Contact Us For Availability

View on Model

0110

12007660 Bosch Laundry Power Cord Backorder BOS 12007660 $52.11

View on Model

0112

00174409 Bosch Laundry Clamping Piece In Stock BOS 00174409 $27.99

View on Model

0129

Screw BOS 10023024 Contact Us For Availability

View on Model

0131

Frame BOS 10026821 Contact Us For Availability

View on Model

0132

Display-programme BOS 11060008 Contact Us For Availability

View on Model

0199

Outlet hose BOS 11057910 Contact Us For Availability

View on Model

0202

10003708 Bosch Laundry Holder Backorder BOS 10003708 $17.85

View on Model

0203

20003967 Bosch Laundry Worktop Backorder BOS 20003967 $158.39

View on Model

0204

Back panel BOS 20000894 Contact Us For Availability

View on Model

0205

23003021 Bosch Laundry Housing Backorder BOS 23003021 $409.67

View on Model

0206

00637399 Bosch Laundry Foot Backorder BOS 00637399 $13.03

View on Model

0207

00416875 Bosch Auxiliary Tool Backorder BOS 00416875 $2.90

View on Model

0208

00705651 Bosch Laundry Band In Stock BOS 00705651 $16.41

View on Model

0209

00655850 Bosch Laundry Flap Backorder BOS 00655850 $19.78

View on Model

0210

00605837 Bosch Laundry Fixture Backorder BOS 00605837 $12.55

View on Model

0211

10037787 Bosch Electric Lock In Stock BOS 10037787 $44.39

View on Model

0212

00493529 Bosch Laundry Fixing Kit Backorder BOS 00493529 $55.97

View on Model

0213

10022990 Bosch Laundry Holder Backorder BOS 10022990 $33.29

View on Model

0214

FRONT PANEL Backorder BOS 20007667 $115.15

View on Model

0215

Cable clip BOS 11052464 Contact Us For Availability

View on Model

0216

Duct BOS 11055680 Contact Us For Availability

View on Model

0219

00627057 Bosch Laundry Hook Backorder BOS 00627057 $4.83

View on Model

0220

Frame-window BOS 11054081 Contact Us For Availability

View on Model

0221

Window BOS 11028699 Contact Us For Availability

View on Model

0222

Hinge BOS 10026818 Contact Us For Availability

View on Model

0229

Bushing BOS 10026819 Contact Us For Availability

View on Model

0230

12051420 Bosch Cover Backorder BOS 12051420 $6.27

View on Model

0232

Screw BOS 10034463 Contact Us For Availability

View on Model

0237

Front rail BOS 11048772 Contact Us For Availability

View on Model

0243

10012244 Bosch Laundry Fixing Kit Backorder BOS 10012244 $22.20

View on Model

0245

Bushing BOS 10026820 Contact Us For Availability

View on Model

0246

Spacer BOS 11054082 Contact Us For Availability

View on Model

0247

11063877 Bosch Frame-Window Backorder BOS 11063877 $109.35

View on Model

0248

Lining BOS 11054084 Contact Us For Availability

View on Model

0251

Holder BOS 10028749 Contact Us For Availability

View on Model

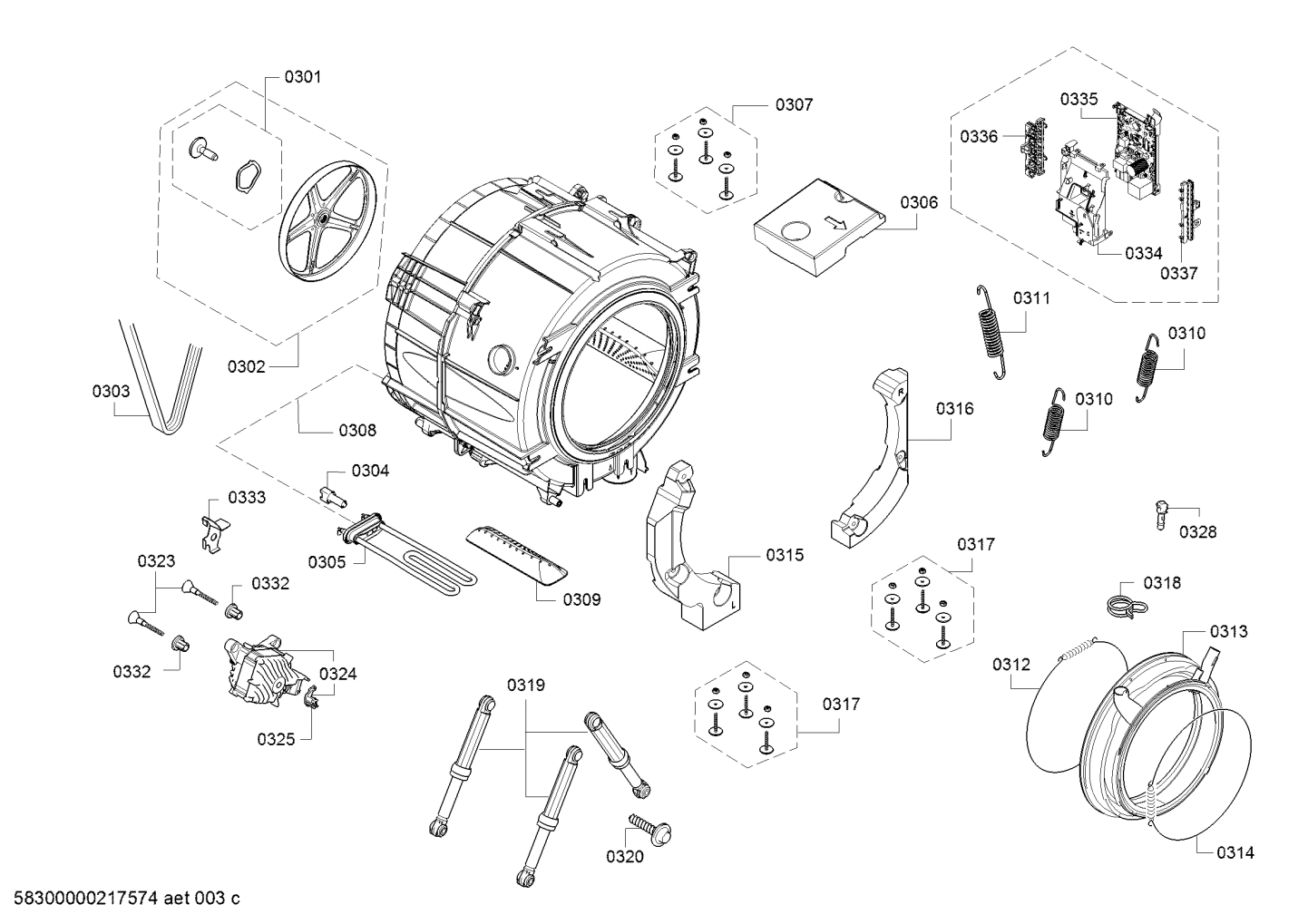

0301

NUT Backorder BOS 00634069 $58.26

View on Model

0302

Pulley BOS 11055953 Contact Us For Availability

View on Model

0303

Belt-drive BOS 11020707 Contact Us For Availability

View on Model

0304

Sensor-NTC BOS 00609240 No Longer Available

View on Model

0305

12050796 Bosch Heating Element Backorder BOS 12050796 $91.20

View on Model

0306

00688727 Bosch Laundry Weight Backorder BOS 00688727 $26.54

View on Model

0307

00627132 Bosch Laundry Screw Backorder BOS 00627132 $8.69

View on Model

0308

OSCILLATING SYSTEM COMPLETE Backorder BOS 23003294 $626.36

View on Model

0309

Agitator paddle laundry BOS 11022788 Contact Us For Availability

View on Model

0310

Spring-tank BOS 10004345 Contact Us For Availability

View on Model

0311

Spring-tank BOS 10004344 Contact Us For Availability

View on Model

0312

00660868 Bosch Laundry Fastening Ring Backorder BOS 00660868 $20.27

View on Model

0312

11042475 Bosch Laundry Fastening Ring Backorder BOS 11042475 $6.76

View on Model

0313

20002774 Bosch Boot Gasket Backorder BOS 20002774 $120.32

View on Model

0313

BOOT GASKET GREASE RESISTANT Backorder BOS 20002777 $219.95

View on Model

0314

00670743 Bosch Laundry Fastening Ring Backorder BOS 00670743 $24.61

View on Model

0315

Weight BOS 00776691 Contact Us For Availability

View on Model

0316

Weight BOS 00776692 Contact Us For Availability

View on Model

0317

Screw BOS 10007151 Contact Us For Availability

View on Model

0318

00621484 Bosch Hose Clamp Backorder BOS 00621484 $3.86

View on Model

0319

11051551 Bosch Laundry Shock Absorber In Stock BOS 11051551 $51.15

View on Model

0320

00621467 Bosch Laundry Screw Backorder BOS 00621467 $3.86

View on Model

0323

10007126 Bosch Laundry Screw Backorder BOS 10007126 $3.86

View on Model

0324

00146375 Bosch Motor Backorder BOS 00146375 $198.56

View on Model

0325

10000839 Bosch Laundry Sensor Backorder BOS 10000839 $23.64

View on Model

0328

00617720 Bosch Laundry Lamp Backorder BOS 00617720 $19.78

View on Model

0332

10011854 Bosch Laundry Bushing Backorder BOS 10011854 $19.78

View on Model

0333

10009109 Bosch Laundry Motor Protection Backorder BOS 10009109 $21.23

View on Model

0334

Electronic housing BOS 12040267 Contact Us For Availability

View on Model

0335

POWER/INVERTER MODULE Backorder BOS 12053361 $346.89

View on Model

0336

Cover BOS 10030408 Contact Us For Availability

View on Model

0337

Cover BOS 10030409 Contact Us For Availability

View on Model

0401

00742721 Bosch Laundry Dispenser Tray Backorder BOS 00742721 $41.50

View on Model

0401

11051387 Bosch Washer Dispenser Tray Backorder BOS 11051387 $149.93

View on Model

0402

00627086 Bosch Laundry Device Siphon Backorder BOS 00627086 $11.58

View on Model

0403

00605740 Bosch Laundry Insert Backorder BOS 00605740 $9.65

View on Model

0404

11024465 Bosch Laundry Lower Dispenser Tray Backorder BOS 11024465 $60.17

View on Model

0405

11024464 Bosch Laundry Upper Dispenser Tray Backorder BOS 11024464 $39.08

View on Model

0406

00661785 Bosch Laundry Hose Backorder BOS 00661785 $14.48

View on Model

0406

00743515 Bosch Laundry Inlet Hose Backorder BOS 00743515 $3.86

View on Model

0407

11002973 Bosch Drain Gutter Groove AQ, Right Backorder BOS 11002973 $8.69

View on Model

0408

11022563 Bosch Laundry Drain Gutter Backorder BOS 11022563 $40.05

View on Model

0409

00187337 Bosch Hose Clamp Backorder BOS 00187337 $3.86

View on Model

0412

10012218 Bosch Pressure Sensor Analog Backorder BOS 10012218 $38.60

View on Model

0413

Hose-pressure chamber BOS 00634603 Contact Us For Availability

View on Model

0414

11023391 Bosch Laundry Hose Outlet In Stock BOS 11023391 $55.97

View on Model

0415

00633964 Bosch Laundry Hose Backorder BOS 00633964 $10.13

View on Model

0416

00655300 Bosch Laundry Holder Backorder BOS 00655300 $14.96

View on Model

0418

00603523 Bosch Fastening Ring Backorder BOS 00603523 $13.51

View on Model

0419

Outlet hose BOS 10003370 Contact Us For Availability

View on Model

0420

00707751 Bosch Laundry Latch Backorder BOS 00707751 $17.85

View on Model

0421

Filter-fluff BOS 00146223 Contact Us For Availability

View on Model

0422

00146222 Bosch Drain And Circulation Pump Backorder BOS 00146222 $290.63

View on Model

0423

00425075 Bosch Laundry Set Backorder BOS 00425075 $18.82

View on Model

0424

Clamp BOS 00636301 Contact Us For Availability

View on Model

0425

00166671 Bosch Dishwasher Seal Backorder BOS 00166671 $24.13

View on Model

0426

00618654 Bosch Laundry Adapter Backorder BOS 00618654 $11.10

View on Model

0429

11047430 Bosch Laundry Outlet Backorder BOS 11047430 $13.99

View on Model

0430

00629766 Bosch Laundry Cover Backorder BOS 00629766 $19.30

View on Model

0442

Hose-fill BOS 12042721 Contact Us For Availability

View on Model

0443

Hose clamp BOS 00422207 Contact Us For Availability

View on Model

0445

00634599 Bosch Laundry Holder Backorder BOS 00634599 $17.85

View on Model

0451

00635399 Bosch Washer Valve Magnet In Stock BOS 00635399 $93.45

View on Model

0453

Aquastop Hose (Cold Water) BOS 00646221 Contact Us For Availability

View on Model

0454

00646220 Bosch Laundry Inlet Hose Backorder BOS 00646220 $88.82

View on Model

0455

Hose BOS 11044742 Contact Us For Availability

View on Model

0456

Hose clamp BOS 10012364 Contact Us For Availability

View on Model

0457

Hose clamp BOS 10012365 Contact Us For Availability

View on Model

0500

Cable harness BOS 10026789 Contact Us For Availability

View on Model

0501

Cable harness BOS 10026784 Contact Us For Availability

View on Model

0502

Cable harness BOS 10026780 Contact Us For Availability

View on Model

0503

Cable harness BOS 10026783 Contact Us For Availability

View on Model

0504

Cable harness BOS 10026788 Contact Us For Availability

View on Model

0505

CABLE HARNESS Backorder BOS 10026778 $61.12

View on Model

0507

Cable harness BOS 10026779 Contact Us For Availability

View on Model

0508

Cable harness BOS 10026785 Contact Us For Availability

View on Model

0509

Cable harness BOS 10026782 Contact Us For Availability

View on Model

0510

Cable harness BOS 10026787 Contact Us For Availability

View on Model

0511

Cable harness BOS 11056283 Contact Us For Availability

View on Model

0522

Cable harness BOS 10028930 Contact Us For Availability

View on Model

0528

Cable harness BOS 10028936 Contact Us For Availability

View on Model

0529

Cable harness BOS 10028937 Contact Us For Availability

View on Model

0530

Cable harness BOS 10026781 Contact Us For Availability

View on Model

0531

Cable harness BOS 10026790 Contact Us For Availability

View on Model
