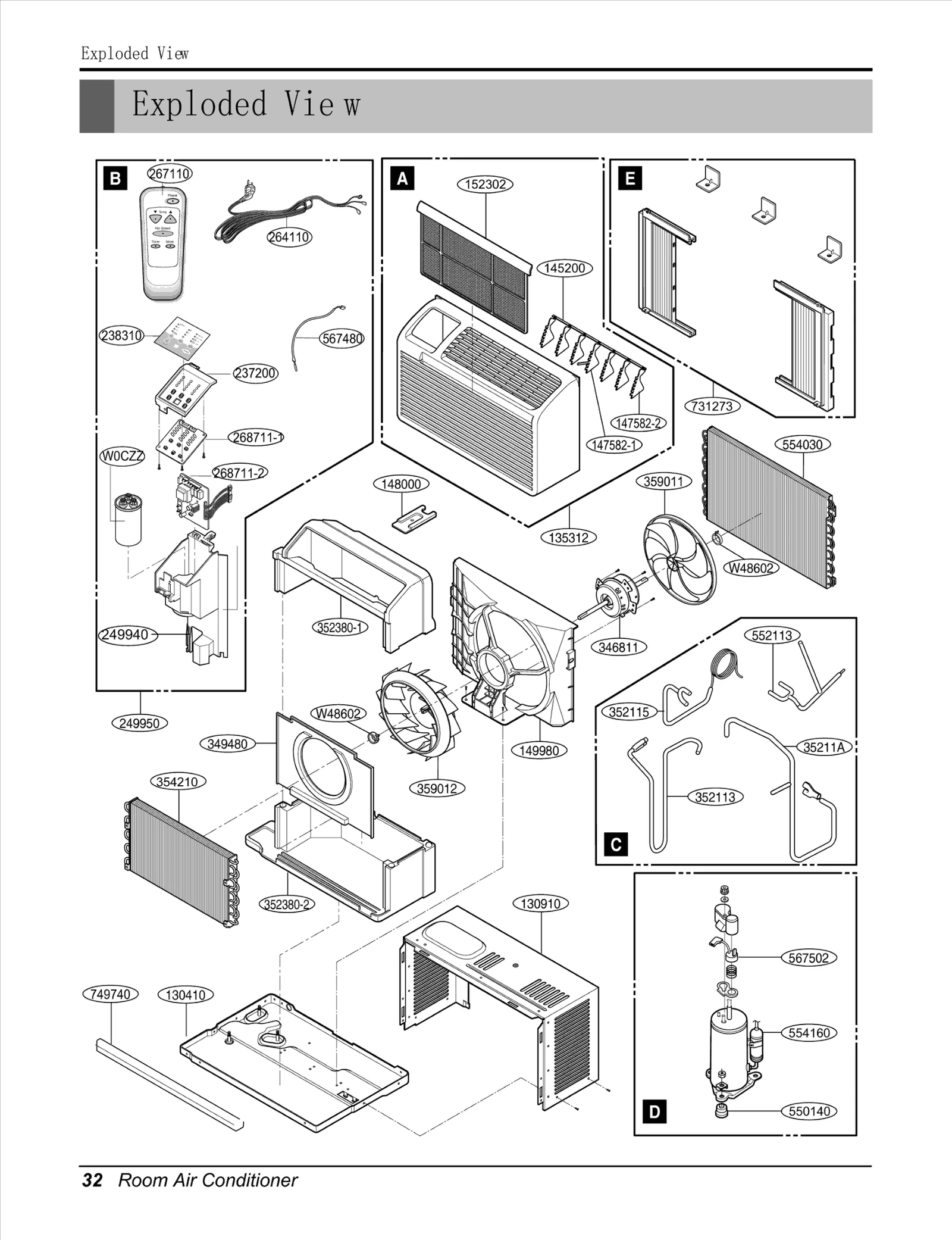

Model LG WG5005R – Common Parts & Diagrams

130910
Cabinet
Cabinet LGE 3090A00002M Contact Us For Availability
View on Model
135312
Grille Assembly,Front
Grille Assembly,Front LGE 3531A10243G Contact Us For Availability
View on Model
147582-1
LOUVER,VERTICAL
LOUVER,VERTICAL LGE 4758A30041A Contact Us For Availability
View on Model
149980
SHROUD
SHROUD LGE 4998A10028B Contact Us For Availability
View on Model
152302
FILTER ASSEMBLY,AIR CLEANER
FILTER ASSEMBLY,AIR CLEANER LGE 5231A20029A Contact Us For Availability
View on Model
152302
FILTER ASSY,AIR CLEANER
FILTER ASSY,AIR CLEANER LGE 5231AR9001B Contact Us For Availability
View on Model
237200
PANEL,CONTROL
PANEL,CONTROL LGE 3720A30076A Contact Us For Availability
View on Model
238310
ESCUTCHEON
ESCUTCHEON LGE 3831A10038D Contact Us For Availability
View on Model
249950
Case Assembly,Control
Case Assembly,Control LGE 4995A20378F Contact Us For Availability
View on Model
267110
REMOTE CONTROLLER ASSEMBLY
REMOTE CONTROLLER ASSEMBLY LGE 6711A20034C Contact Us For Availability
View on Model
268711-1
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20449A Contact Us For Availability
View on Model
268711-2
PCB Assembly,Main
PCB Assembly,Main LGE EBR39260304 Contact Us For Availability
View on Model
346811
MOTOR ASSEMBLY,SINGLE
MOTOR ASSEMBLY,SINGLE LGE 4681A20116E Contact Us For Availability
View on Model
352113
TUBE ASSEMBLY,DISCHARGE SINGLE
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A21305A Contact Us For Availability
View on Model
352115
TUBE ASSEMBLY,EVAPORATOR IN
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A25019B Contact Us For Availability
View on Model
352380-1
AIR GUIDE
AIR GUIDE LGE 5238A10025A Contact Us For Availability
View on Model
352380-2
AIR GUIDE
AIR GUIDE LGE 5238A10026A Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20176E Contact Us For Availability
View on Model
552113
TUBE ASSEMBLY,CONDENSER OUT
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A21145A Contact Us For Availability
View on Model
554030
CONDENSER ASSEMBLY,FIRST
CONDENSER ASSEMBLY,FIRST LGE 5403A20174A Contact Us For Availability
View on Model
554160
COMPRESSOR SET,CHINA
COMPRESSOR SET,CHINA LGE 2520UCAA011 Contact Us For Availability
View on Model
567480
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20004R Contact Us For Availability
View on Model
567502
O.L.P
O.L.P LGE 6750U-L050A Contact Us For Availability
View on Model
731273
INSTALL PART ASSEMBLY,SINGLE
INSTALL PART ASSEMBLY,SINGLE LGE 3127A20098A Contact Us For Availability
View on Model
749740
Guide
Guide LGE 4974A30066K Contact Us For Availability
View on Model
W6631
CONDUCTOR ASSY
CONDUCTOR ASSY LGE 6631AR3843R Contact Us For Availability
View on Model
