Model Maytag WG200 GAS WALL OVEN – Common Parts & Diagrams

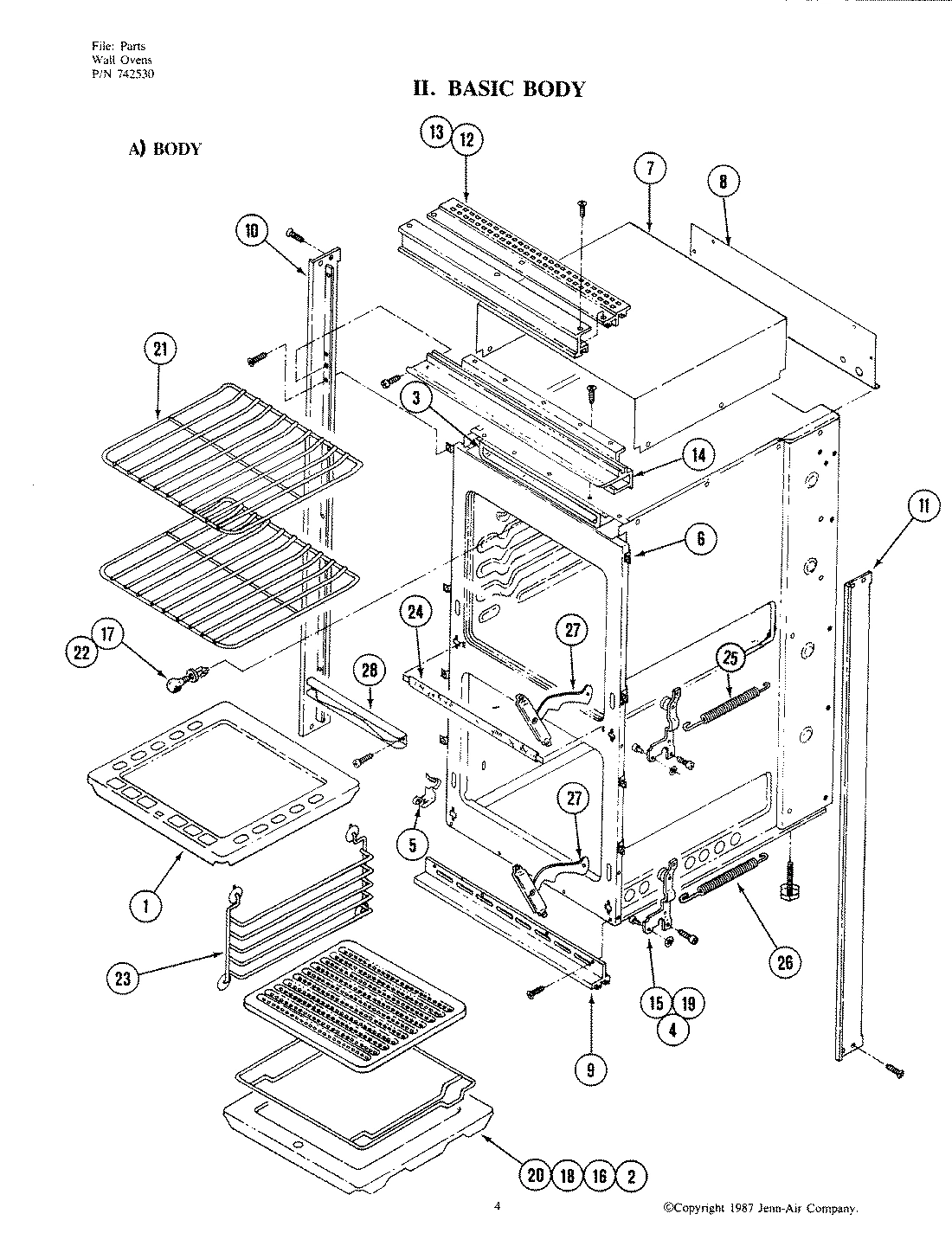

01 - BODY

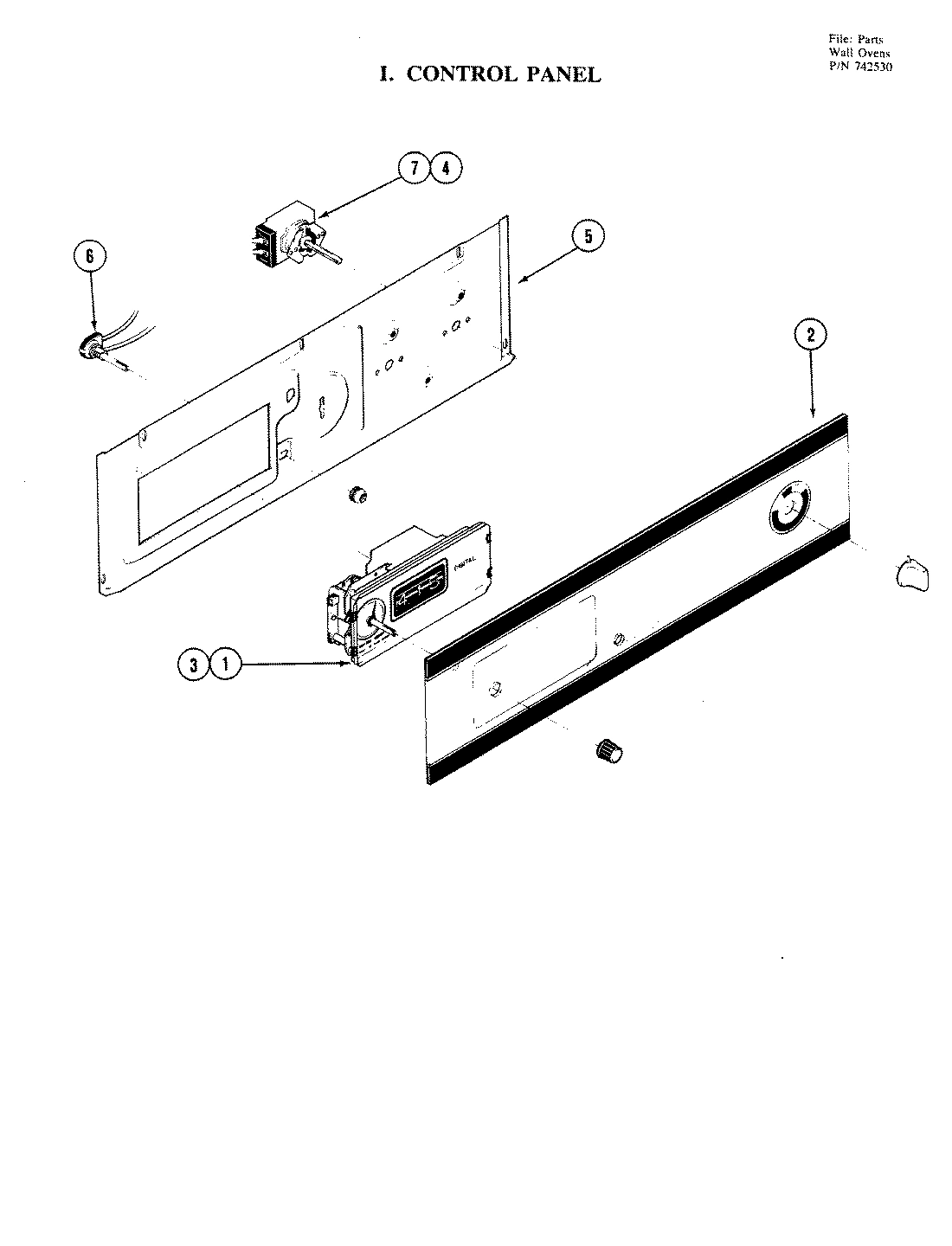

02 - CONTROL PANEL

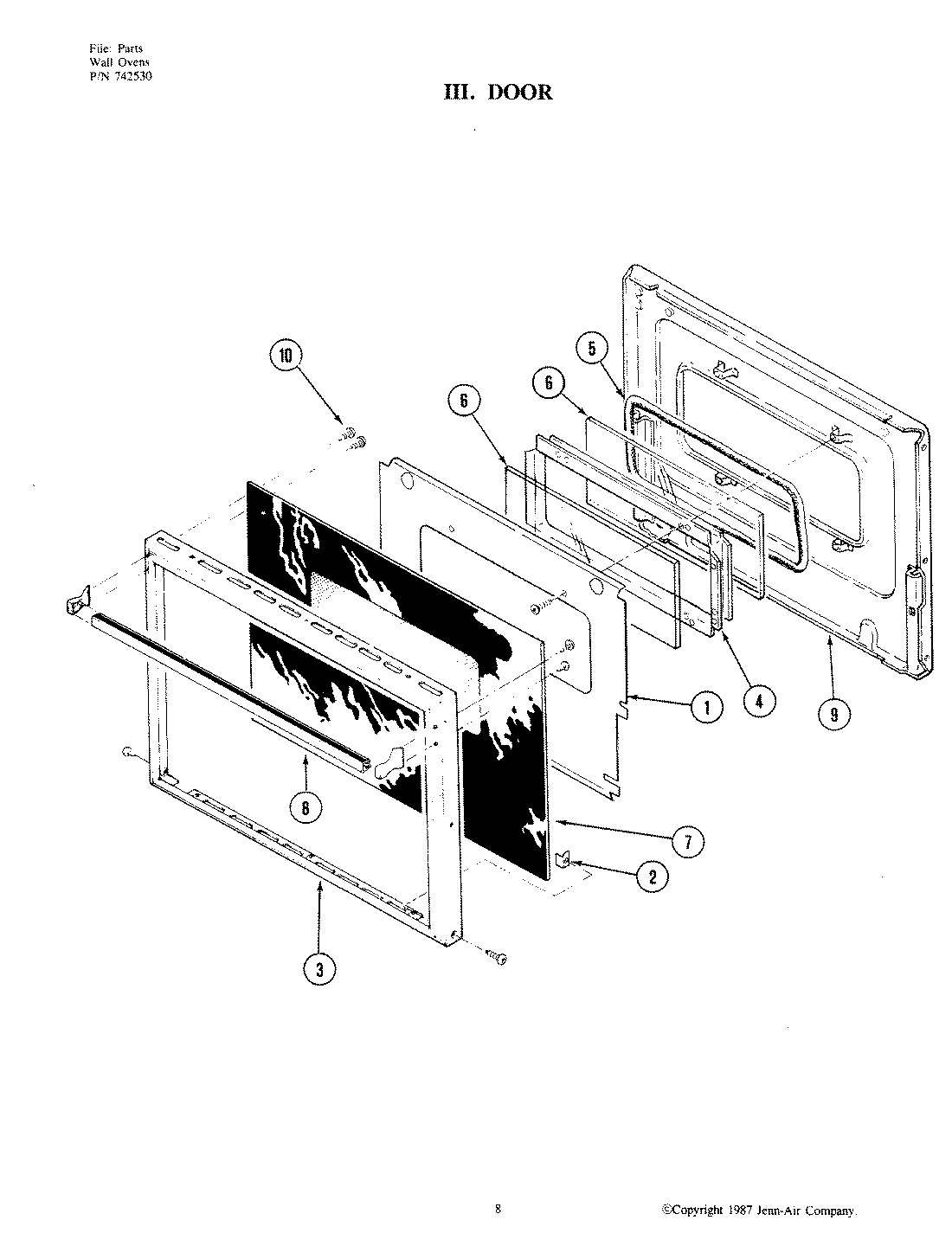

03 - DOOR (LOWER)
04 - DOOR (UPPER)

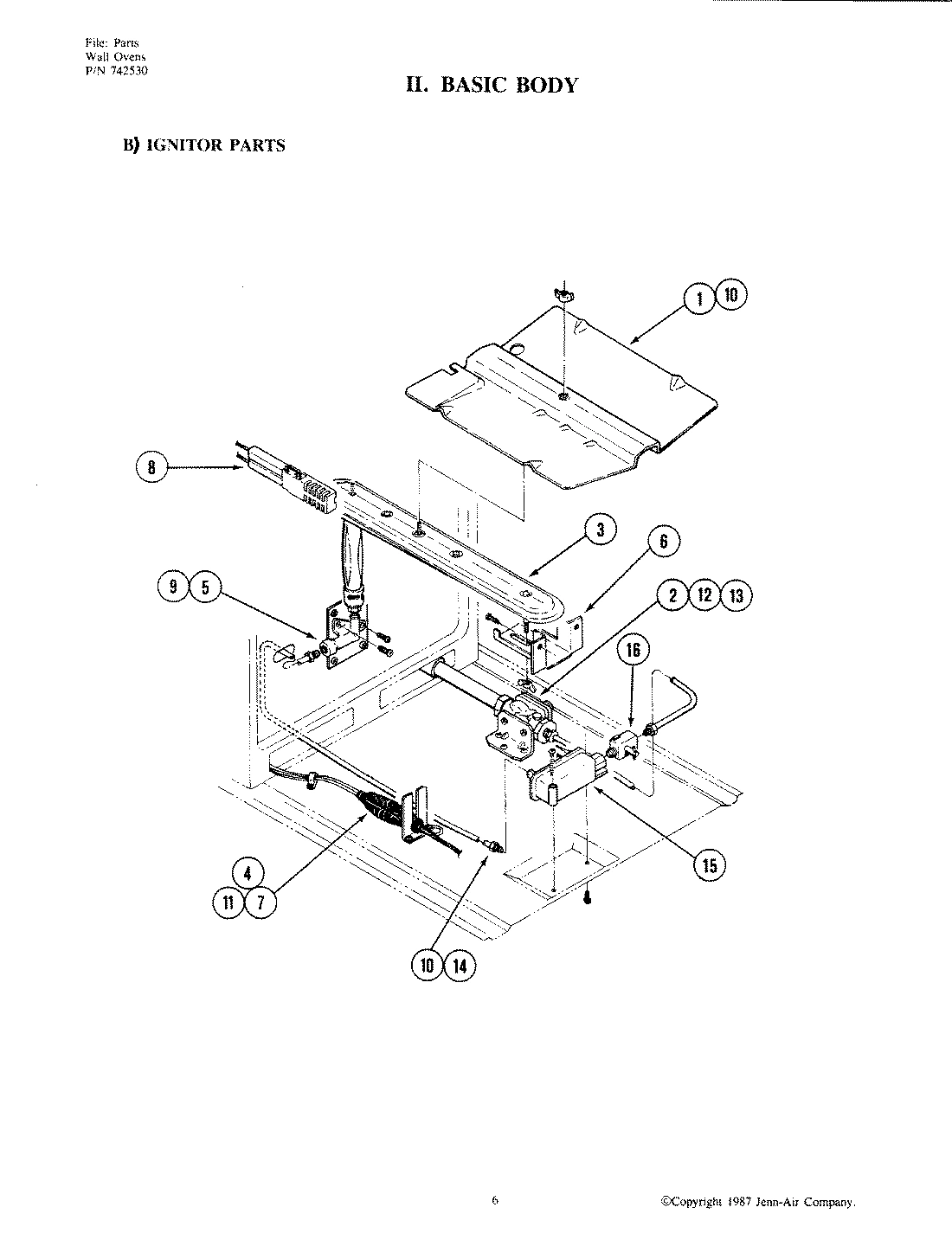

05 - OVEN CONTROLS
Common parts from model Maytag WG200 GAS WALL OVEN
1
BAFFLE, OVEN FRONT MAY 790050 Contact Us For Availability
1
BOTTOM, OVEN UPPER MAY 790421 Contact Us For Availability
1
CLOCK MAY 790068 Contact Us For Availability
1
BAFFLE, DOOR MAY 790049 Contact Us For Availability
1
BAFFLE, UPPER DOOR MAY 790048 Contact Us For Availability
1
BAFFLE, BAKE BURNER MAY 790047 Contact Us For Availability
2
BOTTOM, OVEN LOWER MAY 790422 Contact Us For Availability
2
GLASS, CONTROL PANEL MAY 790086 Contact Us For Availability
2
CLIP, DOOR GLASS MAY 790004 Contact Us For Availability
2
BRACKET, REGULATOR MAY 790052 Contact Us For Availability
3
BOX-FLUE ASSEMBLY MAY 790054 Contact Us For Availability
3
BUMPER, DOOR MAY 790087 Contact Us For Availability
3
KNOB, CLOCK MAY 790078 Contact Us For Availability
3
FRAME, DOOR MAY 790071 Contact Us For Availability
3
FRAME, DOOR MAY 790070 Contact Us For Availability
3
BURNER-OVEN MAY 790066 Contact Us For Availability
4
CLIP, DOOR HINGE MAY 790057 Contact Us For Availability
4
KNOB, SELECTOR & THERMOSTAT MAY 790079 Contact Us For Availability
4
FRAME, WINDOW MAY 790051 Contact Us For Availability
4
CLIP-WIRE MAY 790036 Contact Us For Availability
5
CLIP, THERMOSTAT BULB MAY 790055 Contact Us For Availability
5
PLATE, CLOCK SUP. MAY 790010 Contact Us For Availability
5
GASKET, WINDOW MAY 790058 Contact Us For Availability
5
SUPPORT, FLAME CONTROL MAY 790015 Contact Us For Availability
5
FITTING, BAKE BURNER MAY 790022 Contact Us For Availability
6
CLIP, OVEN FRONT MAY 790018 Contact Us For Availability
6
SWITCH-LIGHT MAY 790063 Contact Us For Availability
6
GLASS, INNER MAY 790083 Contact Us For Availability
6
HANGER, BURNER MAY 790007 Contact Us For Availability
7
COVER-WIRE MAY 790006 Contact Us For Availability
7
MAY Y790038 MAY Y790038 Contact Us For Availability
7
GLASS, OUTER DOOR MAY 790085 Contact Us For Availability
7
GLASS, OUTER DOOR MAY 790084 Contact Us For Availability
7
HARNESS-SET MAY 790062 Contact Us For Availability
8
COVER, WIRE, REAR MAY 790005 Contact Us For Availability
8
NUT-SNAP MAY 790024 Contact Us For Availability
8
CLIP, DOOR HANDLE MAY 790056 Contact Us For Availability
8
HANDLE-DOOR MAY 790069 Contact Us For Availability
8
IGNITER, BAKE BURNER MAY 790023 Contact Us For Availability
9
EXTRUSION, BOTTOM MAY 790076 Contact Us For Availability
9
MAY 2402W087-15 MAY 2402W087-15 Contact Us For Availability
9
MAY 2402W017-15 MAY 2402W017-15 Contact Us For Availability
9
NUT & FERRULE MAY 790026 Contact Us For Availability
9
NUT & FERRULE MAY 790027 Contact Us For Availability
10
EXTRUSION, SIDE-L MAY 790072 Contact Us For Availability
10
PANEL L.H. MAY 790241 Contact Us For Availability
10
SEAL, HORIZONTAL MAY 790059 Contact Us For Availability
10
RETAINERS MAY 790009 Contact Us For Availability
10
SEAL, VERTICAL MAY 790032 Contact Us For Availability
10
SEAL, VERTICAL MAY 790031 Contact Us For Availability
10
NUT-WING MAY 790025 Contact Us For Availability
11
EXTRUSION, SIDE-R MAY 790073 Contact Us For Availability
11
PANEL R.H. MAY 790242 Contact Us For Availability
11
PLUG, CORD MAY 790061 Contact Us For Availability
12
EXTRUSION, TOP MAY 790074 Contact Us For Availability
12
REGULATOR, PRESSURE MAY 790067 Contact Us For Availability
13
EXTRUSION, TOP MAY 790077 Contact Us For Availability
13
TUBING, REGULATOR MAY 790016 Contact Us For Availability
14
EXTRUSION, VENT MAY 790428 Contact Us For Availability
14
TUBING-MAIN MAY 790017 Contact Us For Availability
15
GLASS, CONTROL PANEL MAY 790220 Contact Us For Availability
15
HINGE, LOWER MAY 790228 Contact Us For Availability
15
VALVE-BAKE MAY 790065 Contact Us For Availability
16
INSERT, BROIL PAN MAY 790044 Contact Us For Availability
16
VALVE, SHUT OFF MAY 790039 Contact Us For Availability
17
LIGHT-OVEN MAY 790064 Contact Us For Availability
18
PAN-BROILER MAY 790043 Contact Us For Availability
19
PIN, DOOR HINGE MAY 790028 Contact Us For Availability
20
RACK-BROIL MAY 790080 Contact Us For Availability
21
RACK-OVEN MAY 790029 Contact Us For Availability
22
RECEPTACLE, OVEN LIGHT MAY 790030 Contact Us For Availability
23
RUNNER ASSEMBLY MAY 790082 Contact Us For Availability
25
SPRING, DOOR UPPER MAY 790035 Contact Us For Availability
26
SPRING, DOOR LOWER MAY 790081 Contact Us For Availability
27
STOP ASSEMBLY MAY 790046 Contact Us For Availability
28
SUPPORT, OVEN BOTTOM UPPER MAY 790011 Contact Us For Availability
28
SUPPORT, OVEN BOTTOM LOWER MAY 790012 Contact Us For Availability
28
SUPPORT, OVEN MAY 790013 Contact Us For Availability
× ![]()
