Model Electrolux WFU16F5AW1 FREEZER – Common Parts & Diagrams

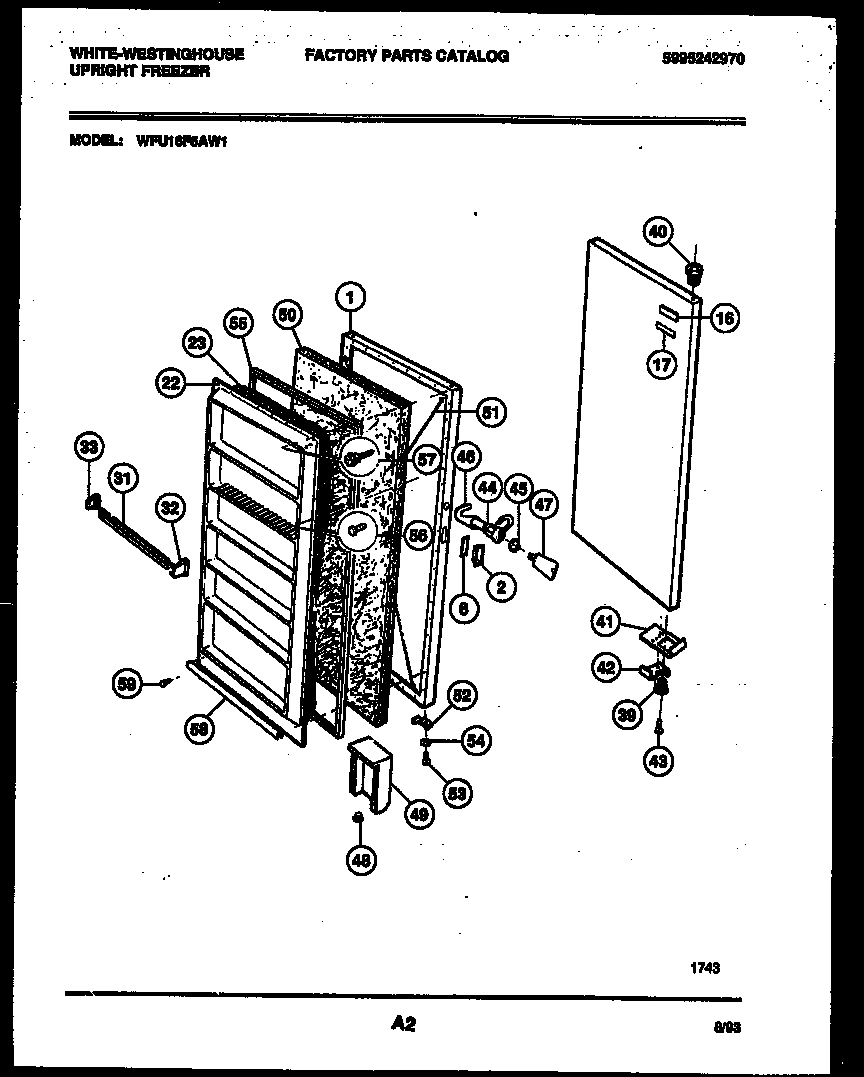

02 - DOOR PARTS

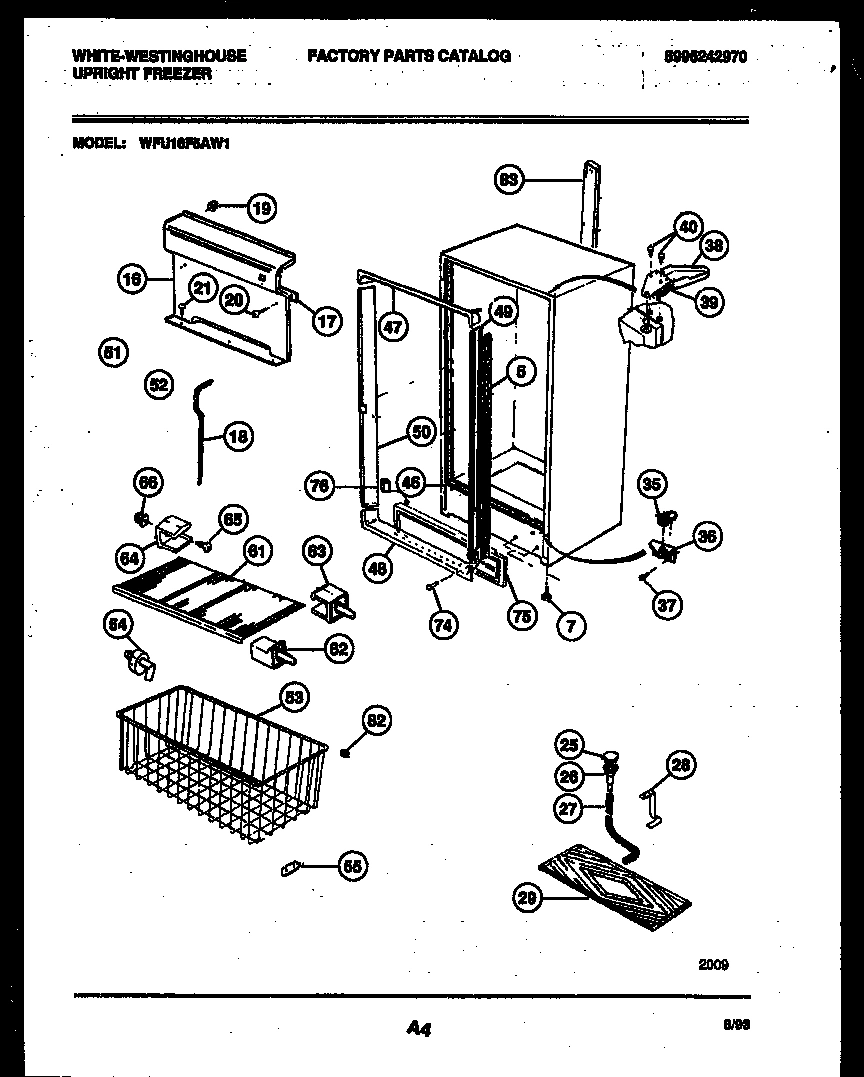

03 - CABINET PARTS

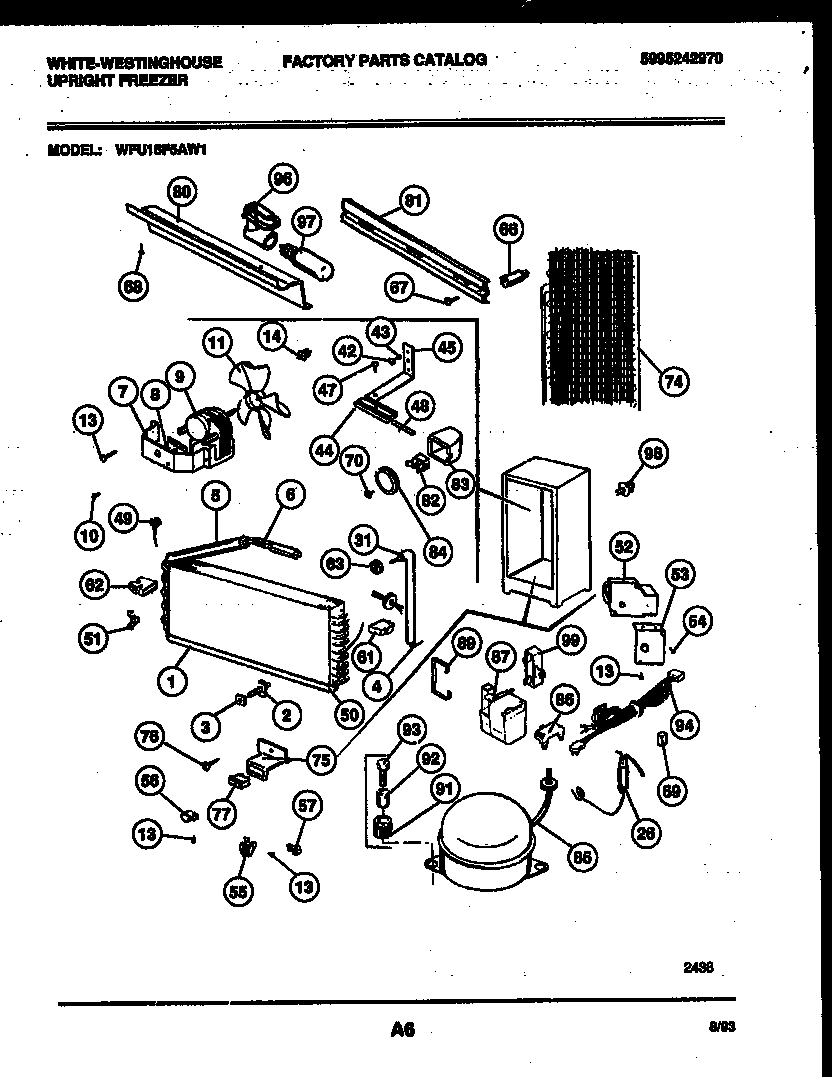

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux WFU16F5AW1 FREEZER
*78911
CLIP-POWER CORD TO OUTLET WCI 08016777 Contact Us For Availability
1
WCI 216195900 WCI 216195900 Contact Us For Availability
2
WCI 06599544 WCI 06599544 Contact Us For Availability
3
WCI 06599546 WCI 06599546 Contact Us For Availability
4
HEAT EXCHANGER WCI 5303272332 Contact Us For Availability
5
WCI 09950831 WCI 09950831 Contact Us For Availability
5
SLEEVE WCI 5303207297 Contact Us For Availability
6
SLEEVE (2) WCI 5303208489 Contact Us For Availability
7
LEVELER (4) WCI 216218100 Contact Us For Availability
7
BRACKET WCI 08013207 Contact Us For Availability
8
WCI 5300164002 WCI 5300164002 Contact Us For Availability
10
WCI 06594542 WCI 06594542 Contact Us For Availability
11
FAN BLADE WCI 3205520 Contact Us For Availability
14
NUT (2) WCI 09948978 Contact Us For Availability
16
COVER WCI 216084100 Contact Us For Availability
17
WCI 06599547 WCI 06599547 Contact Us For Availability
18
WCI 06599551 WCI 06599551 Contact Us For Availability
28
WCI 06594637 WCI 06594637 Contact Us For Availability
29
PAN WCI 5308016387 Contact Us For Availability
31
INSULATION WCI 09948773 Contact Us For Availability
35
WCI 5303210424 WCI 5303210424 Contact Us For Availability
36
WCI 5303210383 WCI 5303210383 Contact Us For Availability
38
WCI 5303212912 WCI 5303212912 Contact Us For Availability
39
HINGE, TOP WCI 5303925086 Contact Us For Availability
40
SCREW-HINGE WCI 5303212937 Contact Us For Availability
42
WCI 08016354 WCI 08016354 Contact Us For Availability
43
WCI 5300095480 WCI 5300095480 Contact Us For Availability
44
WCI 05878562 WCI 05878562 Contact Us For Availability
45
WCI 06594601 WCI 06594601 Contact Us For Availability
46
WCI 06594680 WCI 06594680 Contact Us For Availability
47
WCI 216085900 WCI 216085900 Contact Us For Availability
47
SCREW WCI 5300052943 Contact Us For Availability
48
VENT (2) WCI 5309950074 Contact Us For Availability
48
WCI 216085800 WCI 216085800 Contact Us For Availability
49
DUCT WCI 5303212700 Contact Us For Availability
49
BREAKER-HINGE WCI 216108801 Contact Us For Availability
50
INSULATION WCI 3007739 Contact Us For Availability
50
WCI 216108901 WCI 216108901 Contact Us For Availability
50
HEATER WCI 5306599535 Contact Us For Availability
51
WIRE WCI 08037415 Contact Us For Availability
51
WCI 216013600 WCI 216013600 Contact Us For Availability
52
WCI 05879859 WCI 05879859 Contact Us For Availability
52
CLIP LOCK WCI 216013700 Contact Us For Availability
53
SCREW (2) WCI 5300057906 Contact Us For Availability
53
WCI 08016580 WCI 08016580 Contact Us For Availability
54
WCI 09948791 No Longer Available
54
WASHER WCI 09950839 Contact Us For Availability
54
SCREW (2) WCI 08037849 Contact Us For Availability
55
GASKET-GRAY WCI 3206254 Contact Us For Availability
56
WCI 06599553 WCI 06599553 Contact Us For Availability
57
SCREW (24) WCI 216022800 Contact Us For Availability
57
CLIP, COMPRESSOR WIRE WCI 05878556 Contact Us For Availability
58
GASKET WCI 5308016356 Contact Us For Availability
61
SHELF-UPPER (1) WCI 08037964 Contact Us For Availability
61
AIR SEAL, RH WCI 06599531 Contact Us For Availability
61A
SHELF-LOWER (3) WCI 216077100 Contact Us For Availability
62
PEG-FRONT RH (5) WCI 5306594706 Contact Us For Availability
62
AIR SEAL, LH WCI 3017674 Contact Us For Availability
62A
PEG-FRONT LH (5) WCI 5306594707 Contact Us For Availability
63
WCI 06594584 WCI 06594584 Contact Us For Availability
63
WCI 06594629 WCI 06594629 Contact Us For Availability
64
WCI 5306594585 WCI 5306594585 Contact Us For Availability
65
WCI 08005520 WCI 08005520 Contact Us For Availability
66
WCI 06594537 WCI 06594537 Contact Us For Availability
66
WCI 08000456 WCI 08000456 Contact Us For Availability
68
WCI 5303283893 WCI 5303283893 Contact Us For Availability
69
WCI 09950610 WCI 09950610 Contact Us For Availability
70
WCI 09950853 WCI 09950853 Contact Us For Availability
74
PIN (2) WCI 5309950066 Contact Us For Availability
75
WCI 3200983 WCI 3200983 Contact Us For Availability
75
WCI 216009101 WCI 216009101 Contact Us For Availability
76
WCI 5300118003 WCI 5300118003 Contact Us For Availability
76
WCI 08037851 WCI 08037851 Contact Us For Availability
77
WCI 06594648 WCI 06594648 Contact Us For Availability
80
WCI 216241601 WCI 216241601 Contact Us For Availability
81
BAFFLE WCI 5303288233 Contact Us For Availability
82
WCI 216215900 WCI 216215900 Contact Us For Availability
83
COVER-WIRE WCI 216009000 Contact Us For Availability
83
COVER WCI 216230300 Contact Us For Availability
84
KNOB WCI 216008801 Contact Us For Availability
85
COMPRESSOR WCI 5303917190 Contact Us For Availability
86
WCI 5308037789 WCI 5308037789 Contact Us For Availability
87
RELAY WCI 216008900 Contact Us For Availability
89
CLAMP WCI 215012000 Contact Us For Availability
92
SLEEVE (3) WCI 5306594529 Contact Us For Availability
93
SCREW (3) WCI 5303272328 Contact Us For Availability
94
WCI 216234800 WCI 216234800 Contact Us For Availability
96
SOCKET WCI 5300136117 Contact Us For Availability
× ![]()
