Model Whirlpool WFG114SWT0 30`` GAS FREESTANDING STANDARD CLEAN RANGE ELECTRO – Common Parts & Diagrams

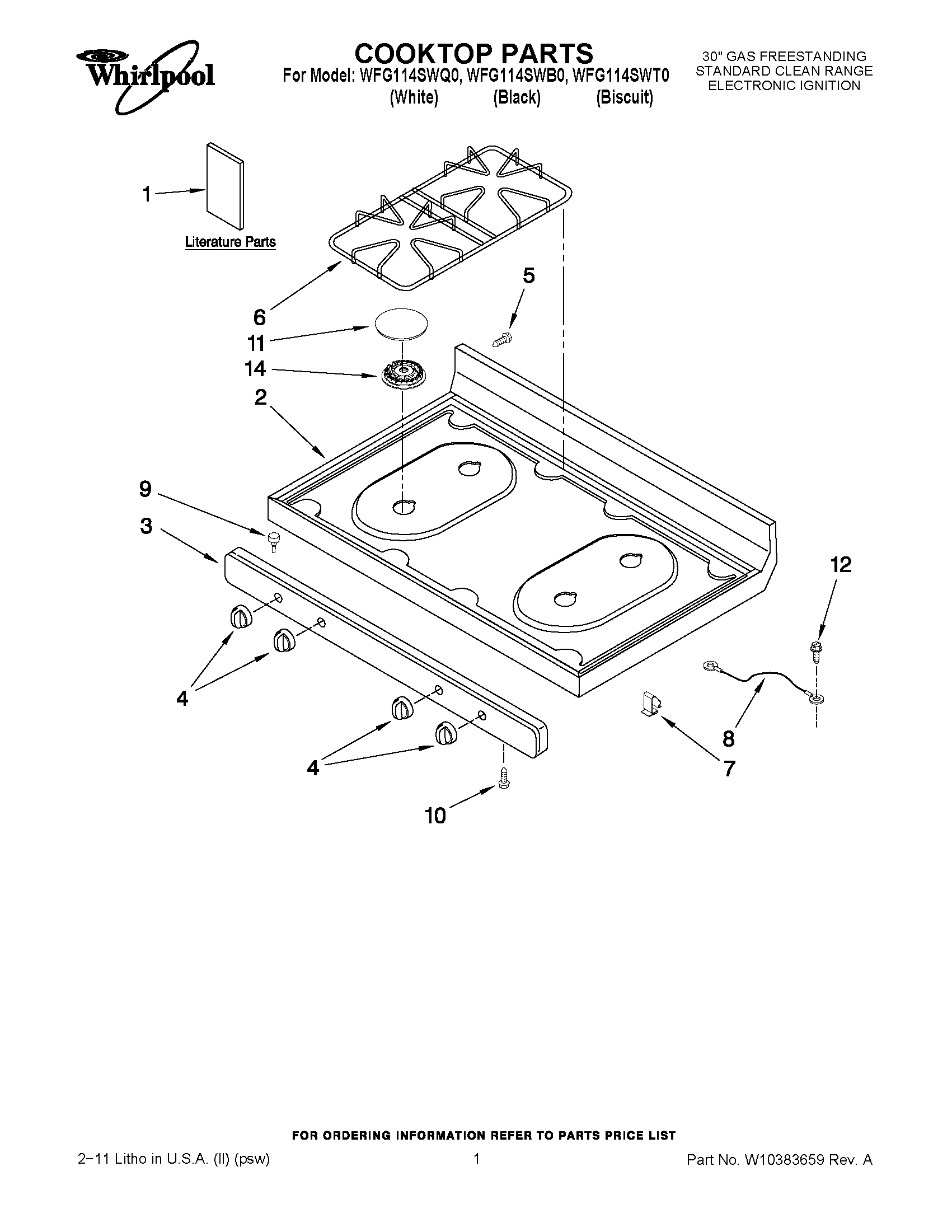

01 - COOKTOP PARTS

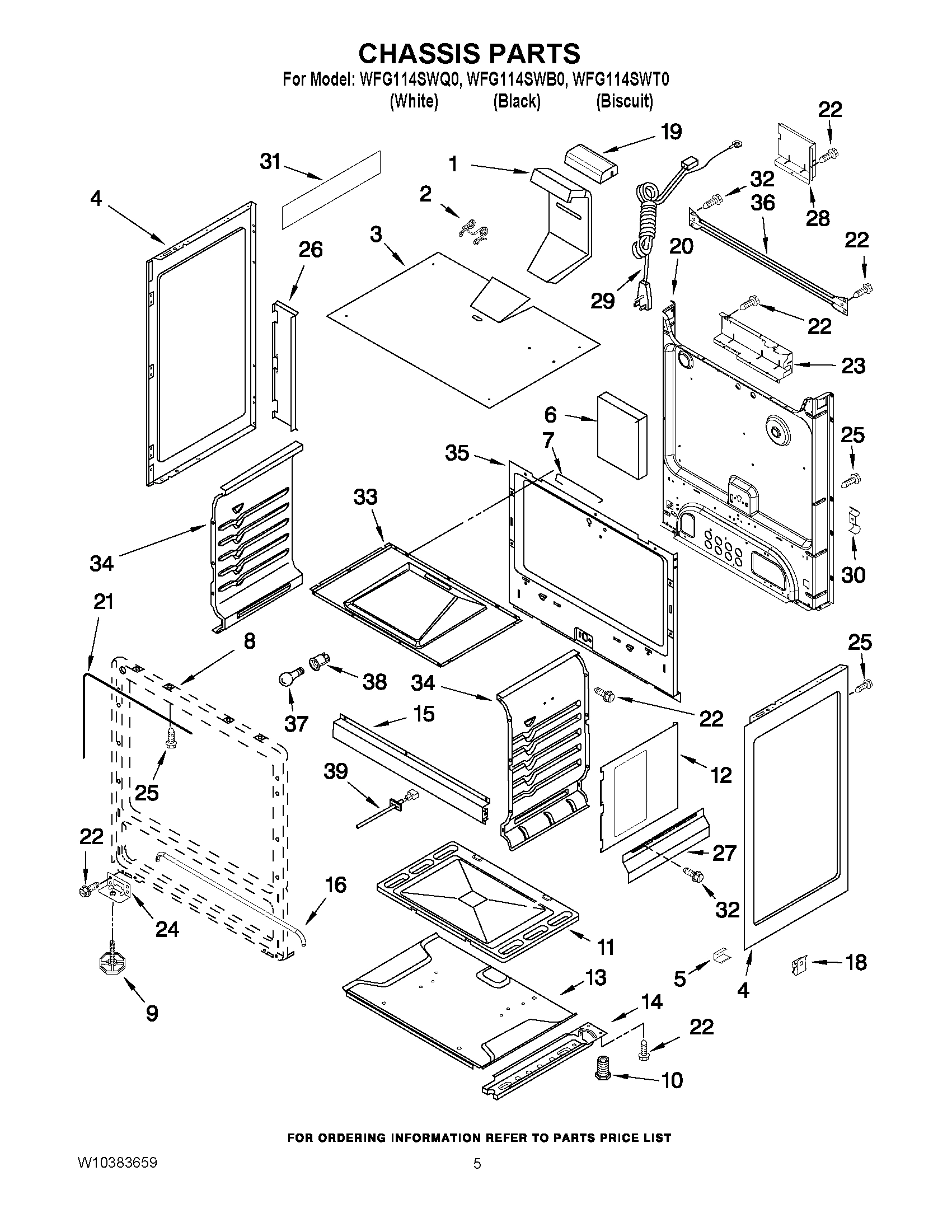

04 - CHASSIS PARTS

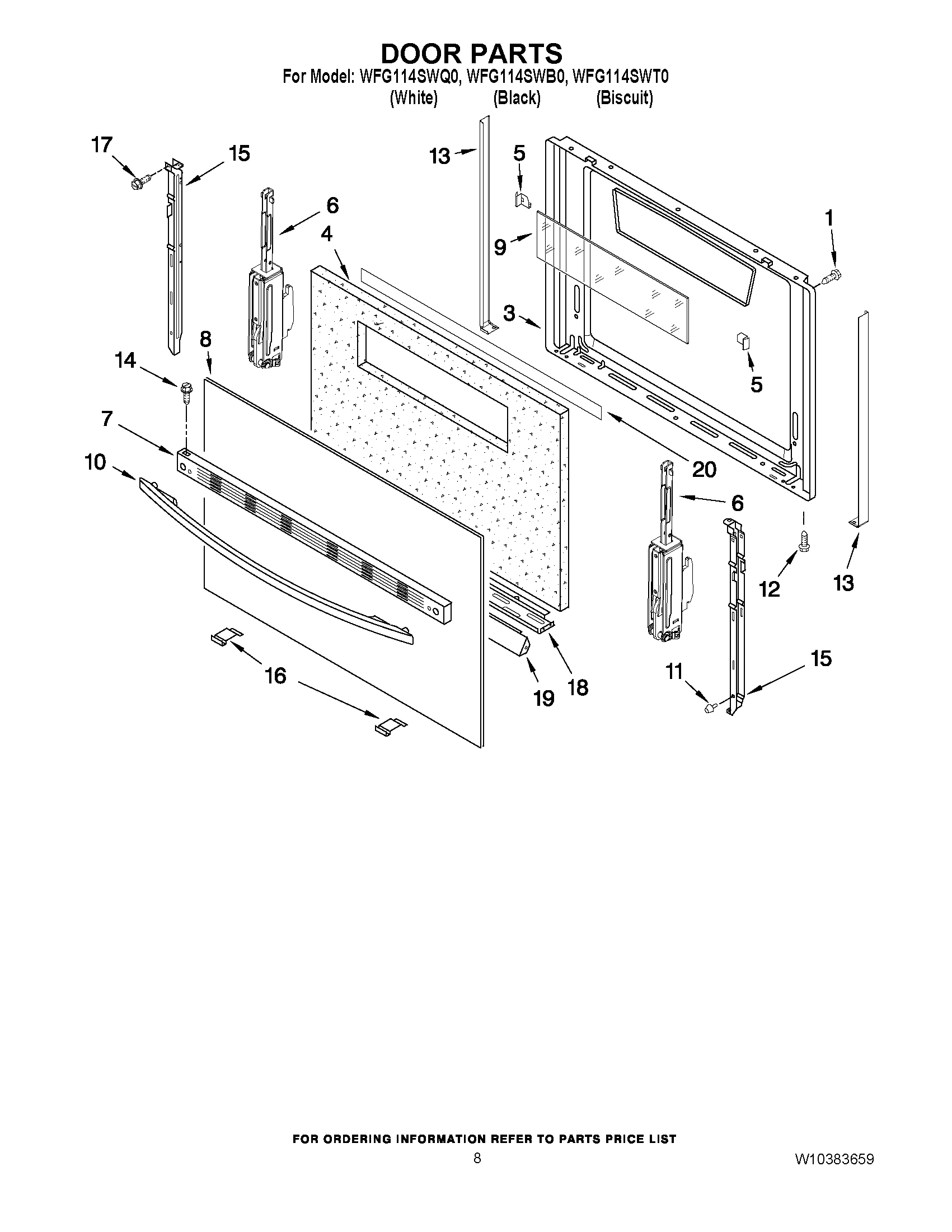

06 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)

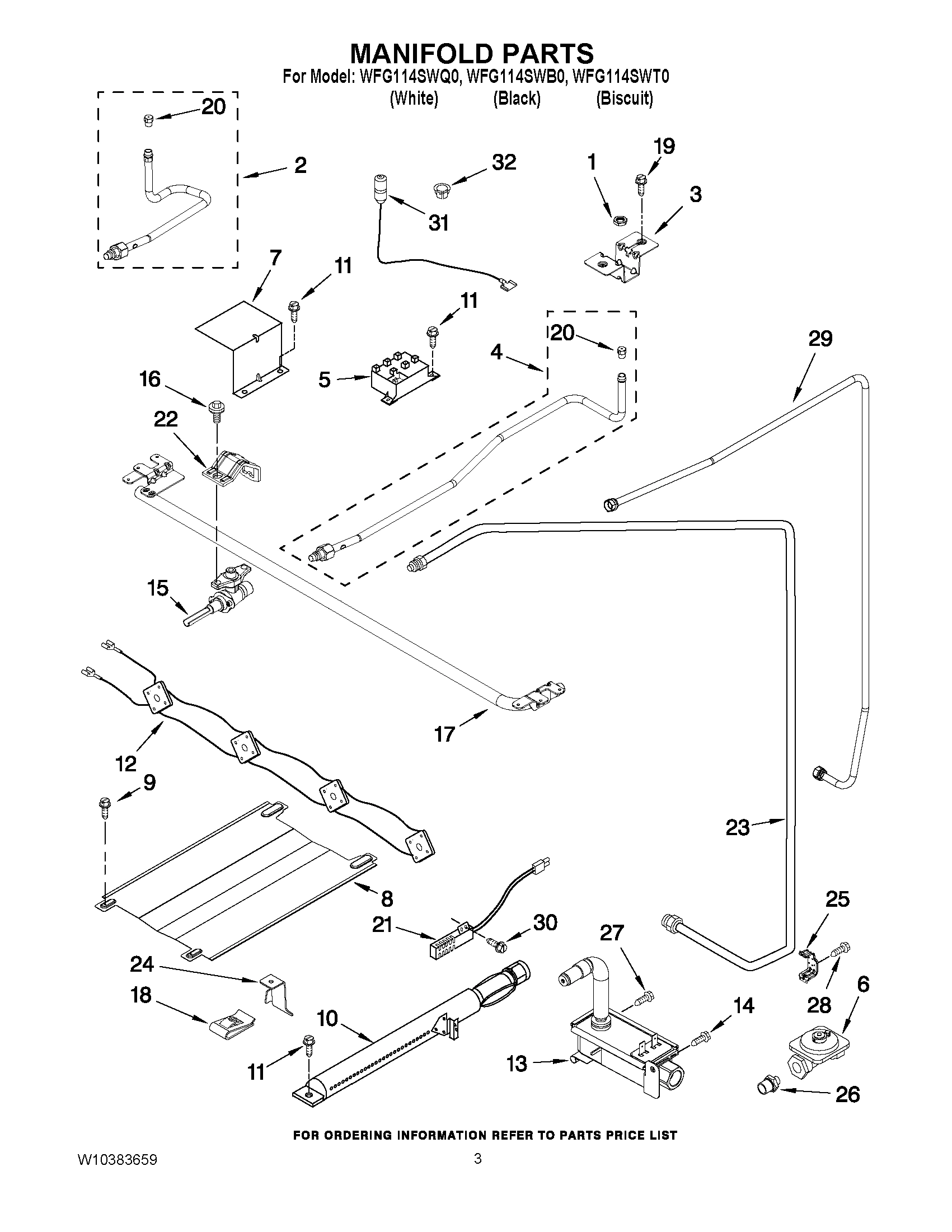

03 - MANIFOLD PARTS

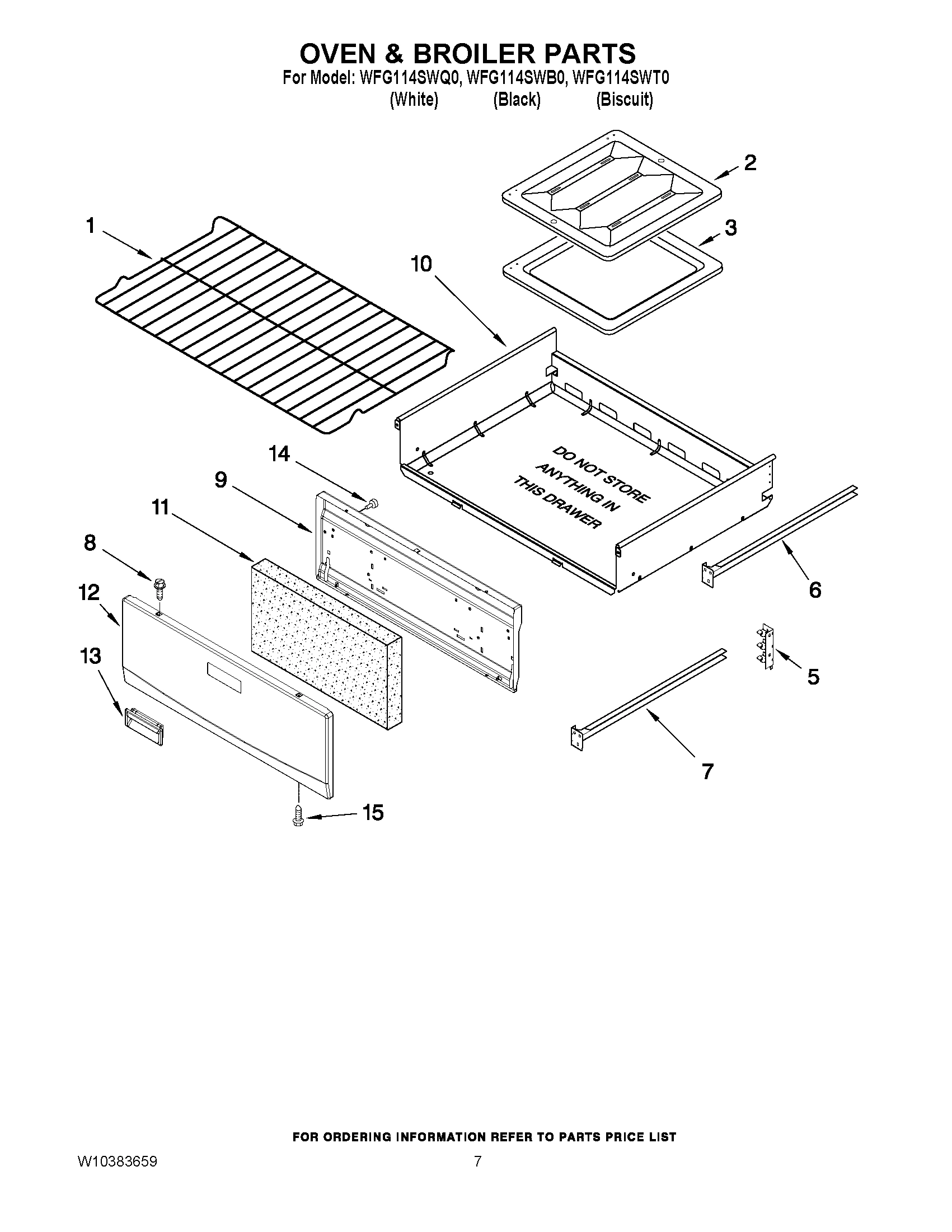

05 - OVEN & BROILER PARTS

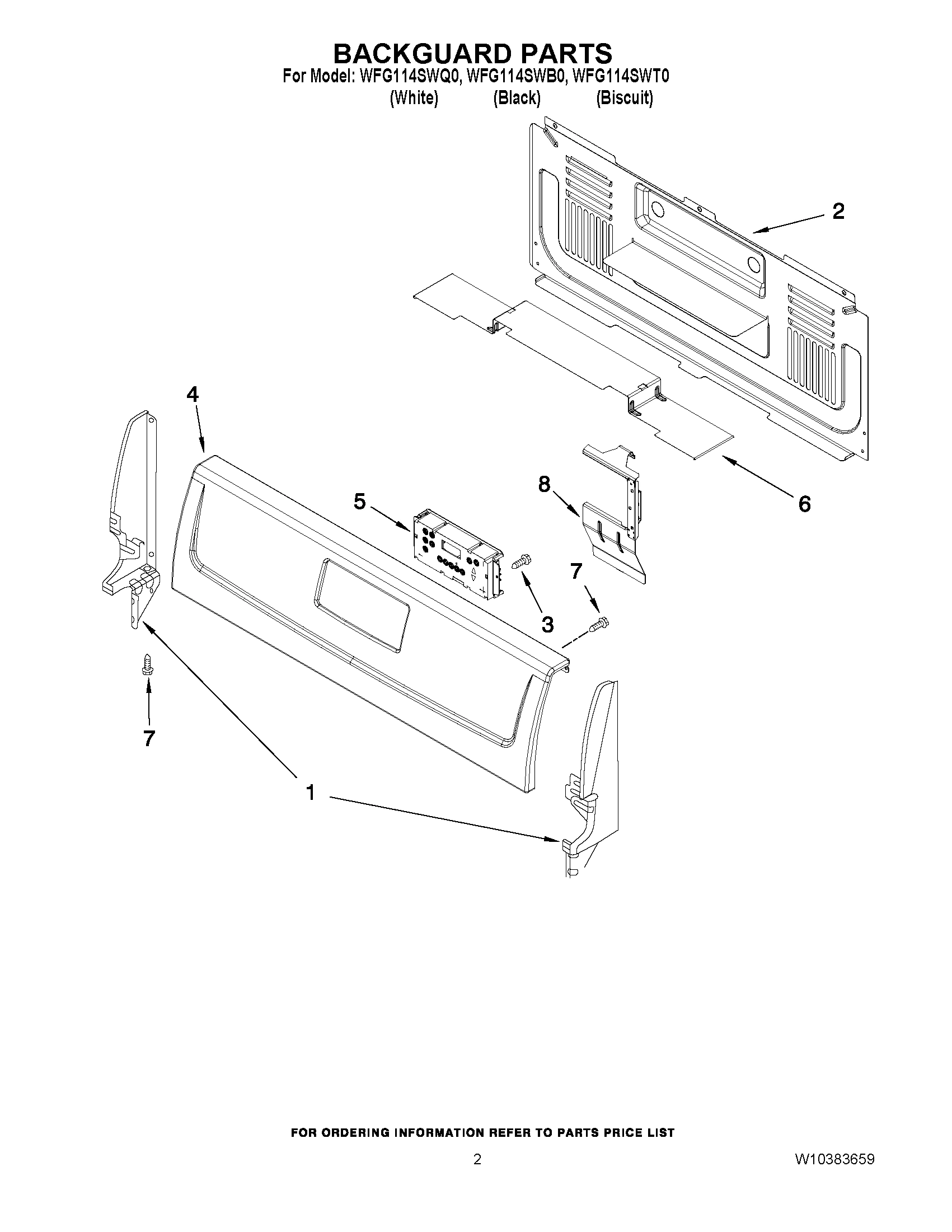

02 - BACKGUARD PARTS
Common parts from model Whirlpool WFG114SWT0 30`` GAS FREESTANDING STANDARD CLEAN RANGE ELECTRO
1
SCREW WPL 8533842 Contact Us For Availability
1
RACK, OVEN WPL 98014136 Contact Us For Availability
1
Endcap (Biscuit Left) WPL 98008274 Contact Us For Availability
1
Endcap (Biscuit Right) WPL 98008275 Contact Us For Availability
2
Cooktop (Black) WPL 98017619B Contact Us For Availability
2
Rear, Backguard WPL 98006083 Contact Us For Availability
3
Liner, Door WPL 98010182 Contact Us For Availability
4
PANEL, CONTROL (BLACK) WPL W10181006 Contact Us For Availability
4

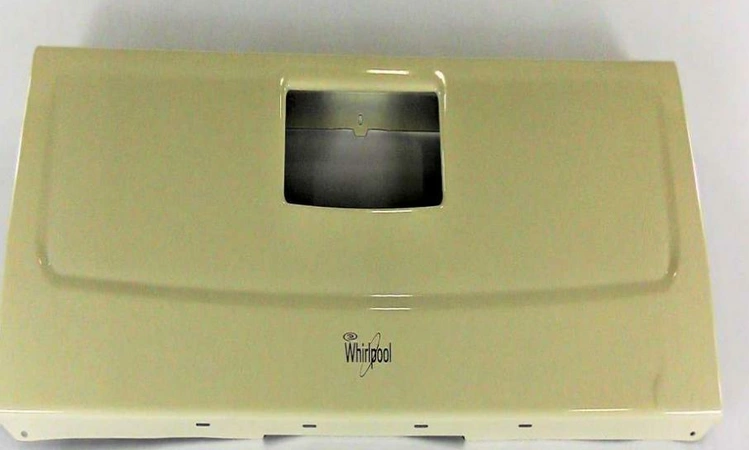

PANEL, CONTROL (BISCUIT) WPL W10181007 Contact Us For Availability
5
SUPPORT, TRAY (LEFT) WPL 98016664 Contact Us For Availability
5
SUPPORT, TRAY (RIGHT) WPL 98016666 Contact Us For Availability
6
HINGE, DOOR WPL 98017875 Contact Us For Availability
6
Deflctor, Rear Cvr WPL W10120794 Contact Us For Availability
7
Trim, Top Door (Black) WPL 98017767B Contact Us For Availability
7
Guide, Mobile(2) (Right) WPL W10206642 Contact Us For Availability
7
Trim, Top Door (White) WPL 98017767W Contact Us For Availability
7
Clip, Cooktop WPL 98004722 Contact Us For Availability
7
Trim, Top Door (Biscuit) WPL 98017767T Contact Us For Availability
8
Panel, Door (Black) WPL 98017961B Contact Us For Availability
8
Panel, Door (White) WPL 98017961W Contact Us For Availability
8
Screw (Biscuit) WPL 98008169 Contact Us For Availability
8
Bracket, Timer (Right) WPL 98018143 Contact Us For Availability
8
Bracket, Timer (Left) WPL 98018144 Contact Us For Availability
9
LINER, DOOR WPL W10162118 Contact Us For Availability
10
Handle, Oven Door (Black) WPL 98017790B Contact Us For Availability
10
Handle, Oven Door (Biscuit) WPL 98017790T Contact Us For Availability
10
Storage, Drawer WPL 98017784 Contact Us For Availability
11
Insulation, Door WPL W10137230 Contact Us For Availability
12
Panel, Door (Biscuit) WPL 98009341 Contact Us For Availability
12
Panel, Door (White) WPL 98009342 Contact Us For Availability
13
SIDE TRIM, DOOR (WHITE LEFT) WPL 98016787W Contact Us For Availability
13
SIDE TRIM, DOOR (WHITE RIGHT) WPL 98016795W Contact Us For Availability
13
SIDE TRIM, DOOR (BLACK RIGHT) WPL 98016795B Contact Us For Availability
13
Baffle, Base WPL 98003847 Contact Us For Availability
13
SIDE TRIM, DOOR (BLACK LEFT) WPL 98016787B Contact Us For Availability
13
SIDE TRIM, DOOR (BISCUIT LEFT) WPL 98016787T Contact Us For Availability
14
BUMPER, DOOR WPL 98004052 Contact Us For Availability
17
Pipe, Manifold WPL 98017556 Contact Us For Availability
18
Insulation, Retainer-Top WPL 98004938 Contact Us For Availability
19
Insulation, Retainer-Bottom WPL 98012904 Contact Us For Availability
22
BRACKET, VALVE WPL 98017516 Contact Us For Availability
26
Fitting 3/8to9/16 WPL 98007431 Contact Us For Availability
27
Screw WPL 98013634 Contact Us For Availability
28
Screw WPL 1180823 Contact Us For Availability
30
Clip, Tubing WPL 98005026 Contact Us For Availability
36
Support, Rear WPL 98015363 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Biscuit) WPL 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ WPL 511873 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
Pin Kit-Dr Removal WPL 98012220 Contact Us For Availability
NI
Harness, Control WPL W10141515 Contact Us For Availability
× ![]()
