Model Maytag WFE525S0HZ0 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET

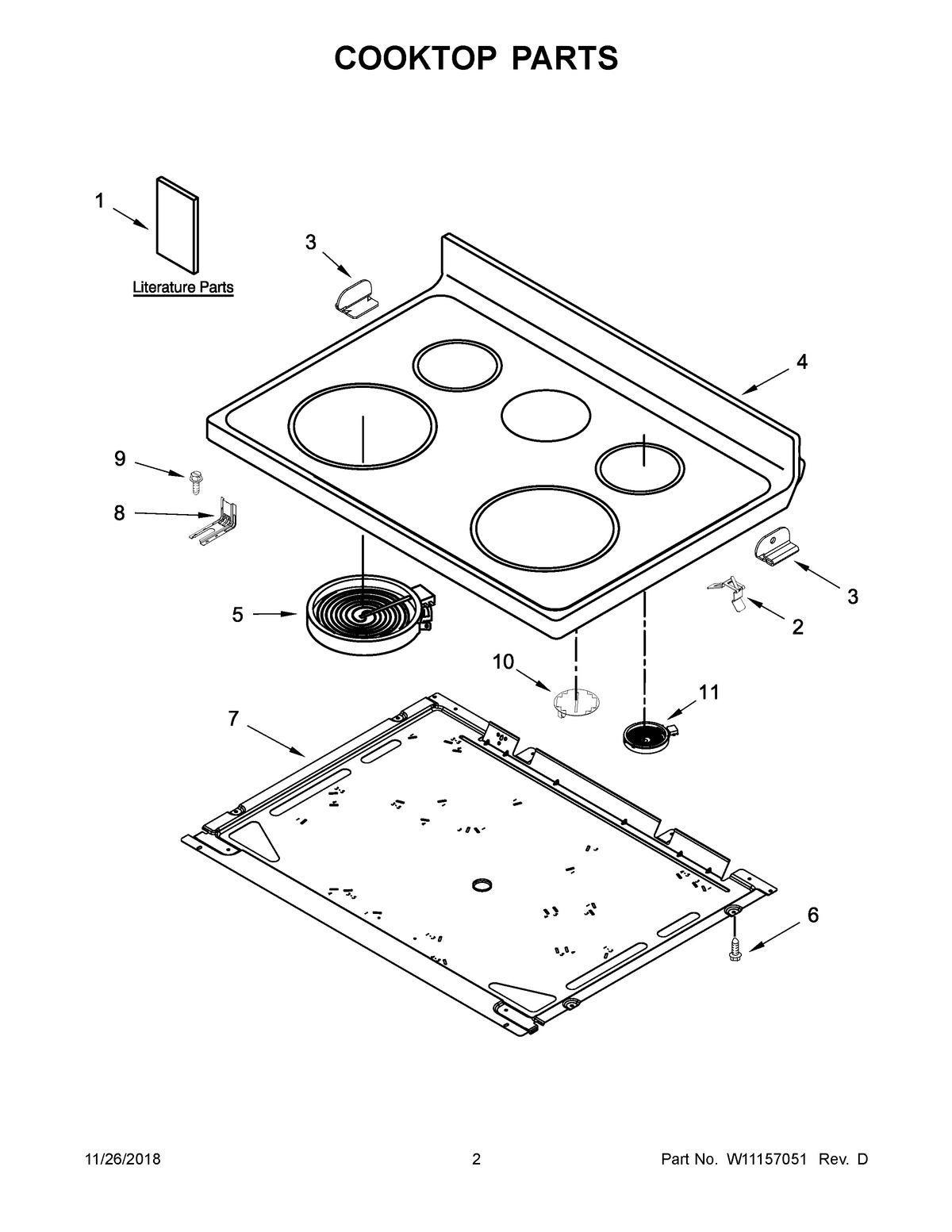

02 - COOKTOP PARTS
03 - CONTROL PANEL PARTS
04 - CHASSIS PARTS
05 - DOOR PARTS
06 - DRAWER PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag WFE525S0HZ0 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
USE AND CARE GUIDE MAY W11102909 Contact Us For Availability
1
ENDCAP (BLACK (LEFT)) MAY W11130372 Contact Us For Availability
1
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
1
TRIM, TOP (BLACK) MAY W10310922 Contact Us For Availability
1
PANEL, DRAWER FRONT (STAINLESS) MAY W10861542 Contact Us For Availability
1A
INSTRUCTIONS, INSTALLATION MAY W11157404 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W11130379 Contact Us For Availability
1A
PANEL, DRAWER FRONT (BLACK STAINLESS) MAY W11045573 Contact Us For Availability
1B
WIRING DIAGRAM MAY W11109898 Contact Us For Availability
1C
SHEET, TECH MAY W11102747 Contact Us For Availability
2
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
2
BRACKET, CONTROL MAY W10695491 Contact Us For Availability
2
SCREW MAY 3196154 Contact Us For Availability
2
SCREW MAY W10480830 Contact Us For Availability
2
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
3
BRACKET, COOKTOP (LEFT) MAY W10607641 Contact Us For Availability
3
CONSOLE, ASSEMBLY (STAINLESS) MAY W11027376 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
3
HANDLE, DOOR (INCLUDES STANDOFF) (STAINLESS) MAY W11039070 Contact Us For Availability
3
BRACKET, MOUNTING DRAWER MAY W10462910 Contact Us For Availability
3A
BRACKET, COOKTOP (RIGHT) MAY W10607642 Contact Us For Availability
3A
CONSOLE, ASSEMBLY (BLACK STAINLESS) MAY W11027381 Contact Us For Availability
3A
HANDLE, DOOR (INCLUDES STANDOFF) (BLACK STAIN MAY W11039071 Contact Us For Availability
4
COOKTOP (BLACK) MAY W11034833 Contact Us For Availability
4
SWITCH, INFINITE (DUAL) (LEFT FRONT, RIGHT FR MAY W10434452 Contact Us For Availability
4
NUT MAY 3400029 Contact Us For Availability
4
LINER, DOOR MAY 9761344 Contact Us For Availability
4
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
4A
SWITCH, INFINITE (RIGHT REAR AND LEFT REAR) MAY 3148951 Contact Us For Availability
5
ELEMENT (3000/1400W) (LEFT FRONT, RIGHT FRONT MAY W10275048 Contact Us For Availability
5
SEAL, DOOR MAY W10658354 Contact Us For Availability
5
SCREW MAY W10031790 Contact Us For Availability
5
SCREW MAY 3196165 Contact Us For Availability
6
CONTROL, ELECTRONIC (LCX) (BLACK) MAY W11204519 Contact Us For Availability
6
ELEMENT, BROIL MAY 9757340 Contact Us For Availability
6
GLASS, INNER MAY 9758162 Contact Us For Availability
7
PAN, RADIANT ELEMENT MAY W10691223 Contact Us For Availability
7
KNOB (STAINLESS) MAY W11022717 Contact Us For Availability
7
ELEMENT, BAKE MAY W11111743 Contact Us For Availability
7
RETAINER, INSULATION MAY 9761357 Contact Us For Availability
7A
KNOB (BLACK STAINLESS) MAY W11027166 Contact Us For Availability
8
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
8
SHIELD, HEAT MAY W10134247 Contact Us For Availability
8
SCREW MAY 3196174 Contact Us For Availability
8
HINGE, ACTIVE (WITH SPRING) MAY W10299224 Contact Us For Availability
9
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
9
SCREW MAY 3400882 Contact Us For Availability
9
TUBE, VENT MAY W10134285 Contact Us For Availability
9
GLASS ASSEMBLY, OUTER DOOR (STAINLESS) MAY W11167877 Contact Us For Availability
9A
GLASS ASSEMBLY, OUTER DOOR (BLACK STAINLESS) MAY W11169660 Contact Us For Availability
10
ELEMENT, WARM ZONE (CENTER) MAY W10799048 Contact Us For Availability
10
COVER, UPPER REAR MAY 8272473 Contact Us For Availability
10
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
10
TRIM, SIDE (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
10A
TRIM, SIDE (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
11
ELEMENT (1200W) (LEFT REAR, RIGHT REAR) MAY W10248261 Contact Us For Availability
11
BRACKET, CONSOLE MOUNTING MAY W10525121 Contact Us For Availability
11
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
11
SCREW MAY W10327235 Contact Us For Availability
12
SCREW MAY W10067840 Contact Us For Availability
12
INSULATION, DOOR STRIP MAY W10278991 Contact Us For Availability
13
RETAINER, INSULATION MAY 8054068 Contact Us For Availability
13
SCREW MAY W10031780 Contact Us For Availability
14
CLIP, PANEL MAY W10137382 Contact Us For Availability
14
STRAP, DOOR MAY W10544179 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15
SCREW MAY W10200660 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
16
FOOT, LEVELING MAY W10058460 Contact Us For Availability
16
NAMEPLATE MAY W10884775 Contact Us For Availability
17
FUSE, THERMAL MAY 3196548 Contact Us For Availability
17
FRAME, GLASS MAY W10316950 Contact Us For Availability
18
SCREW MAY 3196172 Contact Us For Availability
18
HINGE, DOOR (PASSIVE) MAY W10299227 Contact Us For Availability
19
CLIP, OVEN SUPPORT MAY W10404688 Contact Us For Availability
20
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
21
BLOCK, TERMINAL MAY W10245259 Contact Us For Availability
23
SCREW MAY 3196178 Contact Us For Availability
24
ASSEMBLY, LIGHT MAY W11175594 Contact Us For Availability
25
BULB, HALOGEN 40 WATTS MAY W10571723 Contact Us For Availability
26
SCREW MAY 3400016 Contact Us For Availability
27
SENSOR, OVEN MAY W10181986 Contact Us For Availability
28
SCREW MAY 3196169 Contact Us For Availability
29
COVER, TERMINAL BLOCK MAY W10326122 Contact Us For Availability
31
ROD, DOOR SWITCH MAY 9757239 Contact Us For Availability
32
COUNTERWEIGHT MAY W10910404 Contact Us For Availability
33
SCREW MAY W11034869 Contact Us For Availability
34
SWITCH, DOOR MAY W10627802 Contact Us For Availability
35
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
36
SCREEN, VENT MAY W11092984 Contact Us For Availability
37
ASSEMBLY, DOOR LATCH (FRONT) MAY 9761013 Contact Us For Availability
38
SCREW MAY 3196560 Contact Us For Availability
39
ROD, LATCH MAY W10078380 Contact Us For Availability
40
ASSEMBLY, DOOR LATCH (REAR) MAY W10107820 Contact Us For Availability
41
RACK, OVEN MAY W10268578 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, WARM ZONE MAY W10174460 Contact Us For Availability
NI
HARNESS, COOKTOP (LEFT) MAY W10848523 Contact Us For Availability
NI
HARNESS, COOKTOP (RIGHT) MAY W11028537 Contact Us For Availability
NI
HARNESS, MAIN MAY W11028538 Contact Us For Availability
NI
INSULATION, FLUE MAY W10333344 Contact Us For Availability
NI
INSULATION, WRAP MAY W10774939 Contact Us For Availability
NI
INSULATION, BACK MAY W11127325 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORY PARTS, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
× ![]()
