Model LG WF4A300C30B Fan Coil Unit_Cassette – Common Parts & Diagrams

Common parts from model LG WF4A300C30B Fan Coil Unit_Cassette

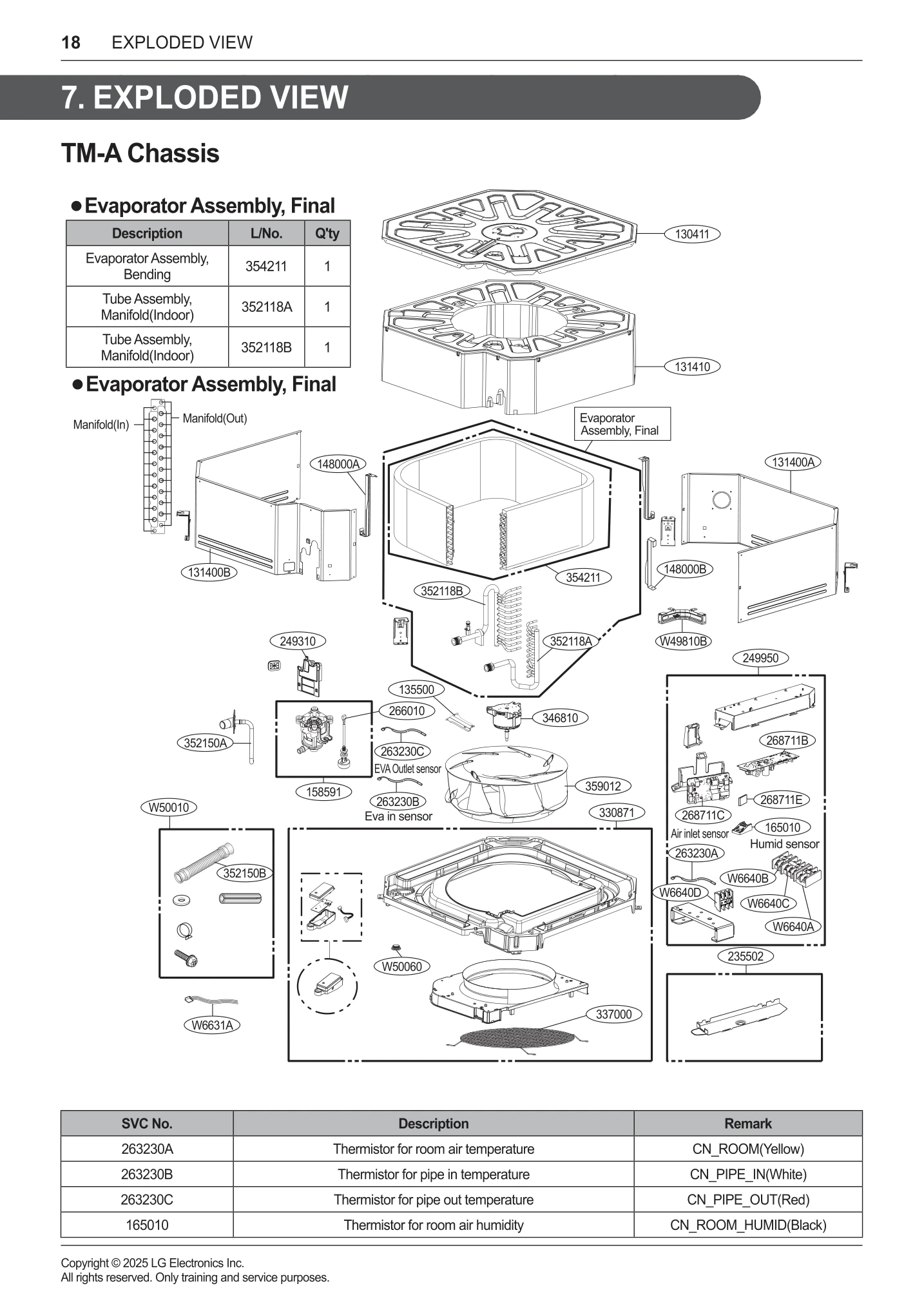

Diagram 0

Print

• This Diagram
• All Diagrams

130411

Base Assembly,Indoor LGE AAN31579010 Contact Us For Availability

View on Model

131400A

Cabinet LGE MBH65042405 Contact Us For Availability

View on Model

131400B

Cabinet LGE MBH65062105 Contact Us For Availability

View on Model

131410

Cabinet Assembly Backorder LGE ABJ76087401 View Details $112.21

View on Model

135500

Cover Backorder LGE MCK64966503 View Details $45.29

View on Model

148000A

Supporter LGE MJH66300102 Contact Us For Availability

View on Model

148000B

Supporter LGE MJH66303903 Contact Us For Availability

View on Model

158591

PUMP ASSEMBLY,WATER(DC) Backorder LGE AHA75113322 View Details $160.72

View on Model

165010

Sensor Assembly LGE EBD62905702 Contact Us For Availability

View on Model

235502

Cover LGE MCK71515201 Contact Us For Availability

View on Model

249310

Holder Assembly LGE AEJ75620004 Contact Us For Availability

View on Model

249950

Case Assembly,Control(Onboarding) LGE ABQ30391303 Contact Us For Availability

View on Model

263230A

EBG61106804 LG Thermistor Temperature Sensor Backorder LGE EBG61106804 View Details $13.52

View on Model

263230B

EBG61287706 LG Temperature Sensor Thermistor Backorder LGE EBG61287706 View Details $23.97

View on Model

263230C

EBG61325805 LG Thermistor Temperature Sensor Backorder LGE EBG61325805 View Details $23.97

View on Model

266010

6601A20013M LG Switch Assembly Backorder LGE 6601A20013M View Details $66.50

View on Model

268711B

PCB Assembly,Main LGE EBR41548310 Contact Us For Availability

View on Model

268711C

PCB Assembly,Sub LGE EBR41435501 Contact Us For Availability

View on Model

268711E

SVC PCB Assembly,Onboarding LGE CSP30273976 Contact Us For Availability

View on Model

330871

Pan Assembly,Drain Backorder LGE AGK74230509 View Details $282.55

View on Model

337000

Mesh,Metal LGE MFN55272305 Contact Us For Availability

View on Model

346810

Motor Assembly,DC,Indoor Backorder LGE 4681A20172X View Details $398.24

View on Model

352118A

Tube Assembly,Manifold(Indoor) LGE AJR30091303 Contact Us For Availability

View on Model

352118B

Tube Assembly,Manifold(Indoor) LGE AJR74962907 Contact Us For Availability

View on Model

352150A

Hose Assembly,Drain LGE AEM32883715 Contact Us For Availability

View on Model

352150B

5251AP2984C LG Drain Hose Assembly Backorder LGE 5251AP2984C View Details $19.42

View on Model

354211

Evaporator Assembly,Bending Backorder LGE ADL32881101 View Details $519.27

View on Model

359012

Fan Assembly,Turbo LGE ADP75273404 Contact Us For Availability

View on Model

W6631A

Harness,Multi LGE EAD43354424 Contact Us For Availability

View on Model

W6640A

Connector,Terminal Block Backorder LGE EAG38884444 View Details $18.59

View on Model

W6640B

Connector,Terminal Block LGE 6640A90001T Contact Us For Availability

View on Model

W6640C

Connector,Terminal Block LGE 6640A90001V Contact Us For Availability

View on Model

W6640D

Connector,Terminal Block LGE EAG63452304 Contact Us For Availability

View on Model

W49810B

Supporter Assembly LGE AJJ76438402 Contact Us For Availability

View on Model

W50010

Accessory Assembly LGE AAA30041501 Contact Us For Availability

View on Model

W50060

MBL36236701 LG Cap Backorder LGE MBL36236701 View Details $3.00

View on Model

×
