Model Whirlpool WED7500VW2 DRYER, ELECTRIC, COMPACT – Common Parts & Diagrams
04 - DRUM AND MOTOR PARTS
01 - COVER SHEET
05 - OPTIONAL PARTS (NOT INCLUDED)

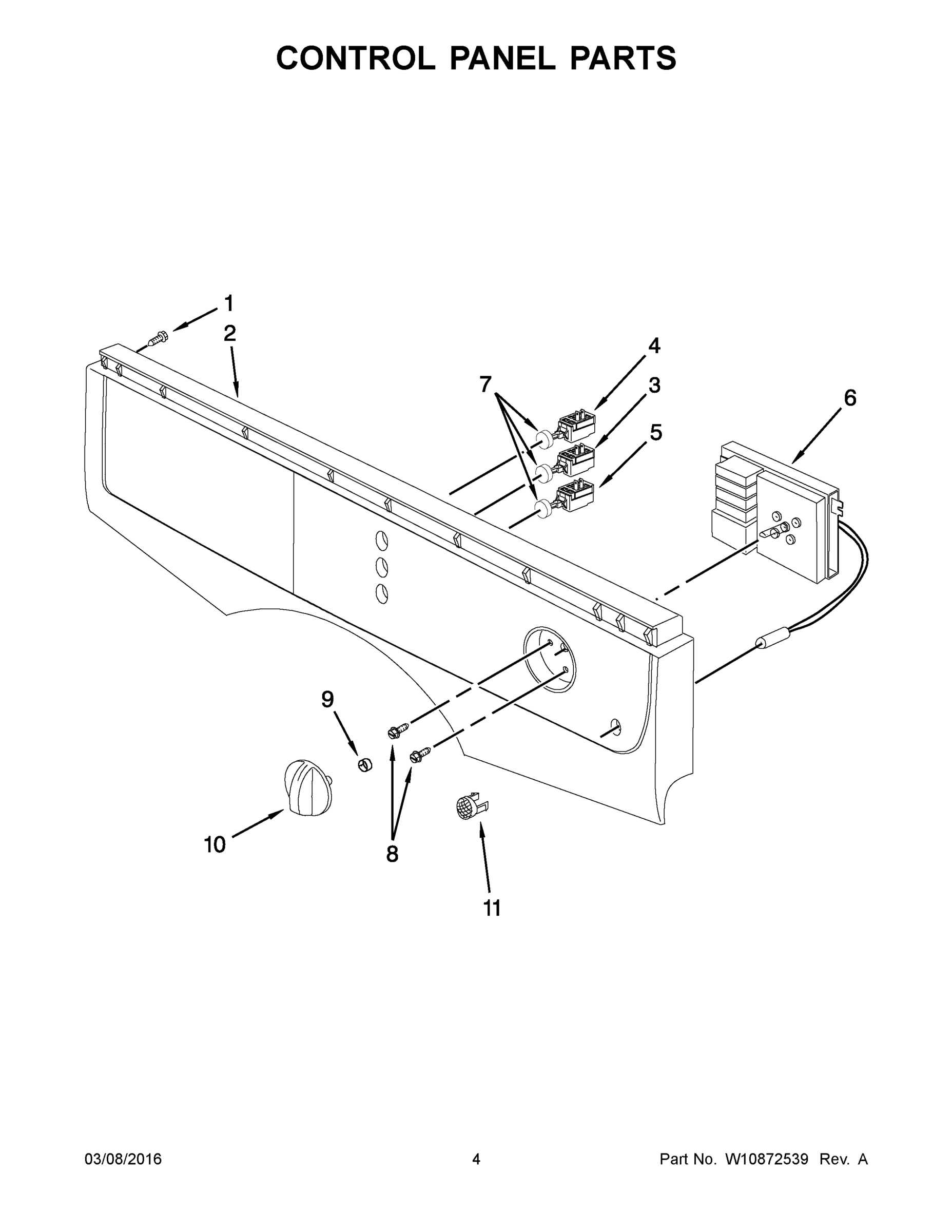

03 - CONTROL PANEL PARTS

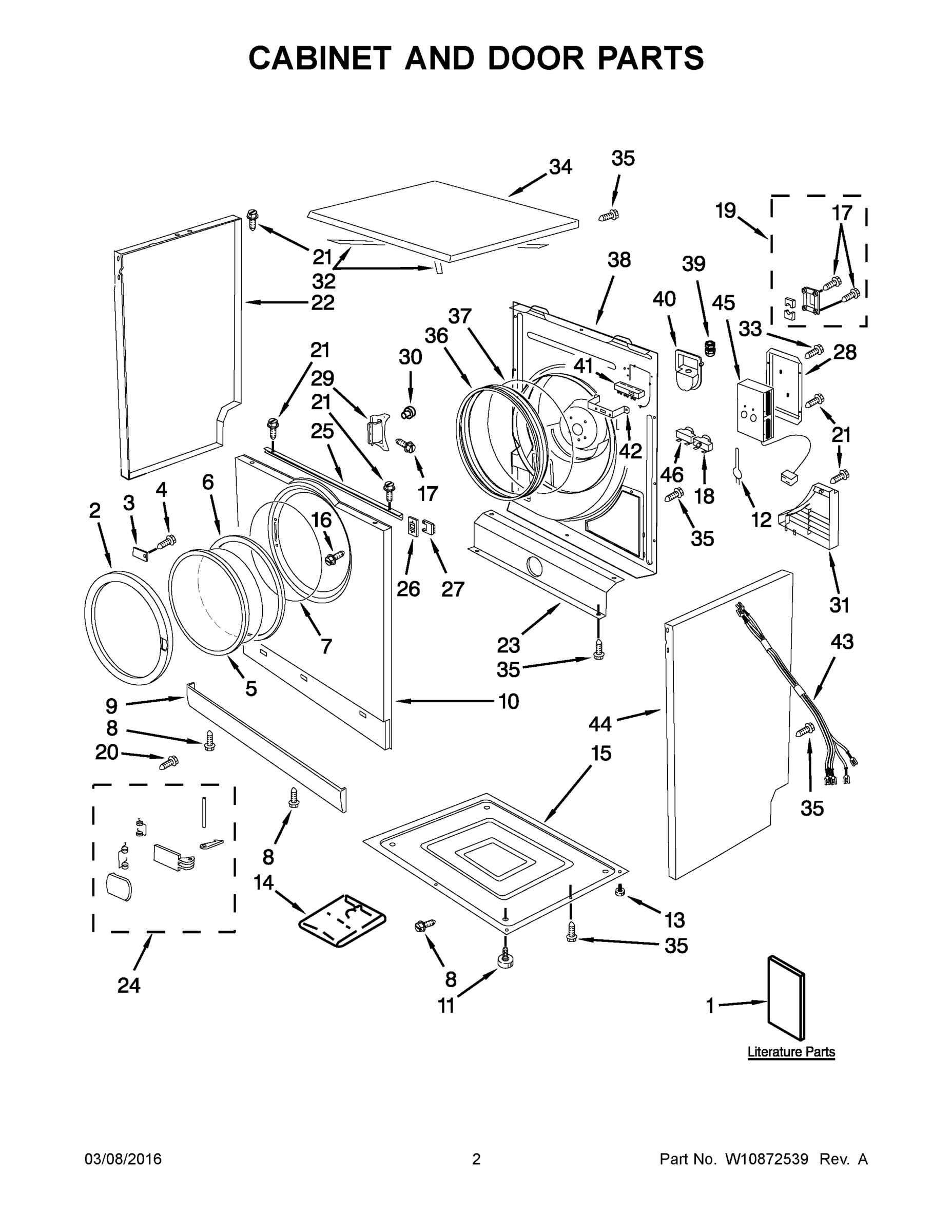

02 - CABINET AND DOOR PARTS
Common parts from model Whirlpool WED7500VW2 DRYER, ELECTRIC, COMPACT
3
SWITCH & BUTTON ASSEMBLY (TEMPERATURE) WPL W10119105 Contact Us For Availability
3
RETAINER INSERT (GLASS DOOR) WPL 8183106 Contact Us For Availability
6
TIMER & INDICATOR LIGHT ASSEMBLY (INDICATOR L WPL 8182522 Contact Us For Availability
6
EXTENSION, HOUSING WPL 8182478 Contact Us For Availability
7
GASKET, DOOR WPL 8182515 Contact Us For Availability
7
BUTTON, PUSH WPL 8182575 Contact Us For Availability
8
SCREW WPL 8182518 Contact Us For Availability
9
SEAL, FRONT DRUM WPL 8182692 Contact Us For Availability
9
TOE PANEL WPL 8182503 Contact Us For Availability
10
DRIVE MOTOR WPL 8182471 Contact Us For Availability
15
ARM, BRUSH HOLDER WPL 8182498 Contact Us For Availability
16
BRUSH, DETECTOR WPL 8182500 Contact Us For Availability
18
THERMOSTAT, (TCO) (150C) WPL W10625430 Contact Us For Availability
19
SUPPORT, DRUM SHAFT WPL 8182533 Contact Us For Availability
24
KIT, DOOR HANDLE WPL 8182574 Contact Us For Availability
26
PLATE, DOOR SWITCH WPL 8182531 Contact Us For Availability
28
COVER, ELEMENT WPL 8183110 Contact Us For Availability
31
BAND, INSULATION WPL 8182497 Contact Us For Availability
32
BAND, STEEL WPL 8182496 Contact Us For Availability
33
BELT, DRIVE WPL 8182481 Contact Us For Availability
37
SHIELD, EXHAUST WPL W10296394 Contact Us For Availability
41
TERMINAL BLOCK WPL 8182525 Contact Us For Availability
× ![]()
