Model Electrolux WDSDL3 WASHER – Common Parts & Diagrams

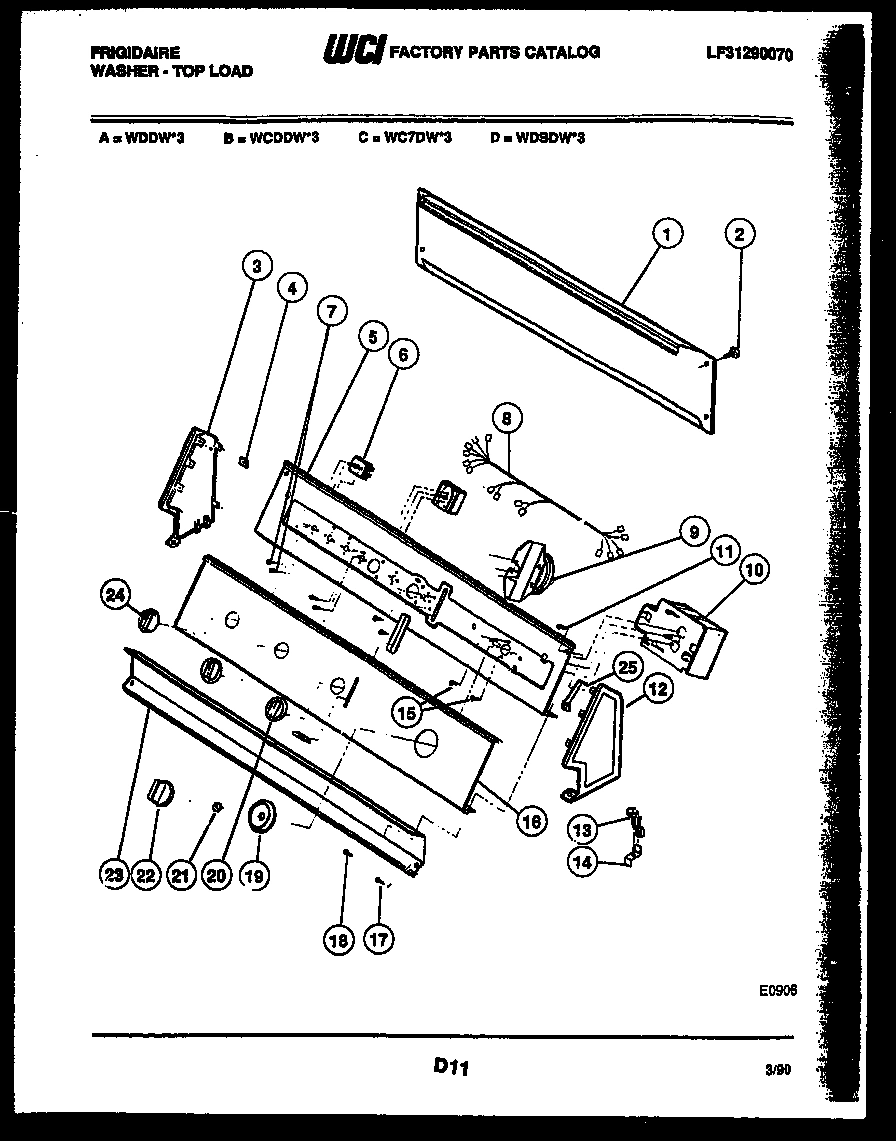

02 - CONSOLE AND CONTROL PARTS

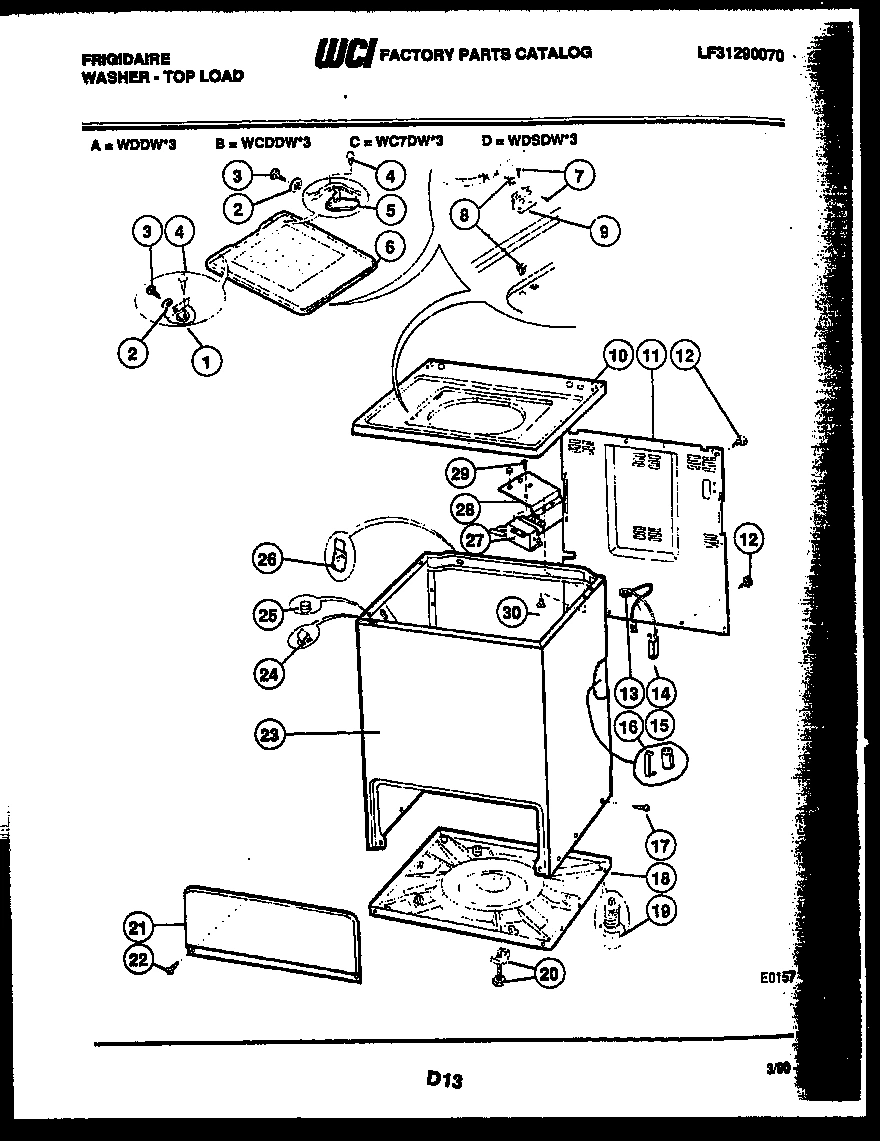

03 - CABINET PARTS
04 - TUB DETAIL
05 - PUMP, WATER VALVE AND WATER INLET
06 - MOTOR AND IDLER ARM CLUTCH
07 - TRANSMISSION PARTS
Common parts from model Electrolux WDSDL3 WASHER
*18352
PAINT-6 OZ. SPRAY-ALMOND WCI 08001666 Contact Us For Availability
*18352
CLIP-PRESSURE TUBE-SHORT WCI 08011304 Contact Us For Availability
*18352
CLIP-PRESSURE TUBE-LONG WCI 08011305 Contact Us For Availability
*18356
WCI 08002501 WCI 08002501 Contact Us For Availability
*18356
TIE-DRAIN HOSE/STANDPIPE WCI 08027666 Contact Us For Availability
*18357
WCI 08950052 WCI 08950052 Contact Us For Availability
*18358
WCI 08001609 WCI 08001609 Contact Us For Availability
1
WCI 08010781 WCI 08010781 Contact Us For Availability
1
BRACKET-LID WCI 08015519 Contact Us For Availability
1
SEAL WCI 08002430 Contact Us For Availability
1
BEARING KIT WCI 08950058 Contact Us For Availability
1
SCREW WCI 08002491 Contact Us For Availability
2
WASHER WCI 08002408 Contact Us For Availability
2
FILTER-LINT WCI 08002435 Contact Us For Availability
2
CLAMP WCI 08006572 Contact Us For Availability
2
SLEEVE WCI 08011269 Contact Us For Availability
3
END-CAP LH WCI 08010783 Contact Us For Availability
3
SCREEN (2) WCI 08002439 Contact Us For Availability
3
WCI 08057430 WCI 08057430 Contact Us For Availability
3
HUB-DRIVE WCI 08014904 Contact Us For Availability
4
NUTS (8) WCI 08014350 Contact Us For Availability
4
BUMPERS (2) WCI 08015520 Contact Us For Availability
4
RING WCI 08015536 Contact Us For Availability
5
WCI 08015865 WCI 08015865 Contact Us For Availability
5
STRIKE WCI 3018962 Contact Us For Availability
5
WCI 08015911 WCI 08015911 Contact Us For Availability
5
HOSE-INLET, COLD WCI 6561384 Contact Us For Availability
5
SPACER (2) WCI 5303207426 Contact Us For Availability
6
SWITCH-TEMPERATURE SELECTOR WCI 08014346 Contact Us For Availability
6
WCI 08950205 WCI 08950205 Contact Us For Availability
6
WCI 08002432 WCI 08002432 Contact Us For Availability
6
HOSE-INLET WCI 08008471 Contact Us For Availability
6
SCREW (2) WCI 08027582 Contact Us For Availability
6
SPACER WCI 08002485 Contact Us For Availability
7
SCREWS (2) WCI 08002284 Contact Us For Availability
7
WCI 08027483 WCI 08027483 Contact Us For Availability
7
TOP-SUB WCI 08011314 Contact Us For Availability
7
WCI 08007731 WCI 08007731 Contact Us For Availability
7
WCI 08002473 WCI 08002473 Contact Us For Availability
7
WCI 08002481 WCI 08002481 Contact Us For Availability
8
HARNESS-WIRING WCI 3018965 Contact Us For Availability
8
GROMMET (8) WCI 08010830 Contact Us For Availability
8
CLIPS (10) WCI 08002429 Contact Us For Availability
8
WCI 08006569 WCI 08006569 Contact Us For Availability
8
SCREW (3) WCI 08002471 Contact Us For Availability
8
SEAL KIT WCI 08950197 Contact Us For Availability
9
SWITCH-WATER LEVEL WCI 5303209659 Contact Us For Availability
9
WCI 08002412 WCI 08002412 Contact Us For Availability
9
WCI 08015509 WCI 08015509 Contact Us For Availability
9
WCI 08006682 WCI 08006682 Contact Us For Availability
9
NUT (3) WCI 08002470 Contact Us For Availability
9
WCI 08002479 WCI 08002479 Contact Us For Availability
10
TIMER WCI 3015659 Contact Us For Availability
10
WCI 3019082 WCI 3019082 Contact Us For Availability
10
WCI 08006683 WCI 08006683 Contact Us For Availability
10
WCI 08002472 WCI 08002472 Contact Us For Availability
10
PLUG WCI 08002803 Contact Us For Availability
11
SCREWS (2) WCI 08010789 Contact Us For Availability
11
PANEL-REAR WCI 08011286 Contact Us For Availability
11
WCI 08011267 WCI 08011267 Contact Us For Availability
12
WCI 08010787 WCI 08010787 Contact Us For Availability
12
WCI 08016753 WCI 08016753 Contact Us For Availability
12
PULLEY WCI 08014923 Contact Us For Availability
12
WCI 08015778 WCI 08015778 Contact Us For Availability
13
WCI 08011275 WCI 08011275 Contact Us For Availability
13
GEAR WCI 08011268 Contact Us For Availability
14
WCI 08002341 WCI 08002341 Contact Us For Availability
14
WCI 08027683 WCI 08027683 Contact Us For Availability
14
WCI 08002457 WCI 08002457 Contact Us For Availability
14
ROD WCI 08002809 Contact Us For Availability
14A
WCI 08016754 WCI 08016754 Contact Us For Availability
15
SCREWS (2) WCI 08006636 Contact Us For Availability
15
WCI 08014903 WCI 08014903 Contact Us For Availability
15
WCI 08011280 WCI 08011280 Contact Us For Availability
15
SCREWS (6) WCI 08002378 Contact Us For Availability
15
GEAR WCI 08015496 Contact Us For Availability
16
WCI 08015889 WCI 08015889 Contact Us For Availability
16
BRACKET WCI 08014902 Contact Us For Availability
16
TRAP-DRAIN WCI 5303206795 Contact Us For Availability
16
PLATE (3) WCI 08002379 Contact Us For Availability
16
SHAFT WCI 08014905 Contact Us For Availability
17
SCREWS (2) WCI 08011318 Contact Us For Availability
17
WCI 08014913 WCI 08014913 Contact Us For Availability
17
NUT (6) WCI 08002377 Contact Us For Availability
18
SCREWS (3) WCI 08010782 Contact Us For Availability
18
BASE-CABINET WCI 08011290 Contact Us For Availability
18
WCI 5364154013 WCI 5364154013 Contact Us For Availability
18
SPRING HORIZONTAL (3) WCI 08011311 Contact Us For Availability
18
PIN (2) WCI 08002813 Contact Us For Availability
19
WCI 08015498 WCI 08015498 Contact Us For Availability
19
WCI 08950088 WCI 08950088 Contact Us For Availability
19
NUT WCI 08011303 Contact Us For Availability
19
WCI 08015078 WCI 08015078 Contact Us For Availability
19
SPRING-VERTICAL LONG (2) WCI 08011317 Contact Us For Availability
19
HOUSING WCI 08015870 Contact Us For Availability
20
WCI 08004066 WCI 08004066 Contact Us For Availability
20
WCI 08002367 WCI 08002367 Contact Us For Availability
20
NUT WCI 08002382 Contact Us For Availability
20A
WCI 08027577 WCI 08027577 Contact Us For Availability
21
SPACER WCI 08015493 Contact Us For Availability
21
WCI 08011263 WCI 08011263 Contact Us For Availability
21
WCI 08006567 WCI 08006567 Contact Us For Availability
21
WCI 08004057 WCI 08004057 Contact Us For Availability
21
SNUBBER WCI 08002385 Contact Us For Availability
21
WASHER-THRUST WCI 08002476 Contact Us For Availability
22
WCI 08014337 WCI 08014337 Contact Us For Availability
22
SCREW (2) WCI 08001578 Contact Us For Availability
22
WCI 08015531 WCI 08015531 Contact Us For Availability
22
SUPPORT-OUTER TUB WCI 08011310 Contact Us For Availability
22
WASHER WCI 08002475 Contact Us For Availability
23
WCI 08015897 WCI 08015897 Contact Us For Availability
23
WCI 08015514 WCI 08015514 Contact Us For Availability
23
WCI 08011284 WCI 08011284 Contact Us For Availability
23
WCI 08015500 WCI 08015500 Contact Us For Availability
23
WCI 08011261 WCI 08011261 Contact Us For Availability
23
RING-SNAP WCI 08002474 Contact Us For Availability
23A
WCI 08950057 WCI 08950057 Contact Us For Availability
24
KNOB-WATER TEMPERATURE SWITCH WCI 08014340 Contact Us For Availability
24
CLIP (2) WCI 08001597 Contact Us For Availability
24
WCI 08002371 WCI 08002371 Contact Us For Availability
24
WCI 08002356 WCI 08002356 Contact Us For Availability
24
1 QUART OIL WCI 5303208460 Contact Us For Availability
25
STRAP-GROUND WCI 08014349 Contact Us For Availability
25
WCI 08001596 WCI 08001596 Contact Us For Availability
25
NUT WCI 08002355 Contact Us For Availability
25
WCI 08002456 WCI 08002456 Contact Us For Availability
25
SPRING WCI 08002817 Contact Us For Availability
26
WCI 08002384 WCI 08002384 Contact Us For Availability
26
WCI 08002353 WCI 08002353 Contact Us For Availability
26
SUPPORT-TRUNNION WCI 08014908 Contact Us For Availability
26
WCI 08004078 WCI 08004078 Contact Us For Availability
26
GEAR WCI 08002816 Contact Us For Availability
26A
WCI 08011276 WCI 08011276 Contact Us For Availability
27
LOCK-LID WCI 3017110 Contact Us For Availability
27
HOSE-TRAP TO PUMP WCI 08002364 Contact Us For Availability
27
SCREW WCI 08002453 Contact Us For Availability
27
WCI 08015507 WCI 08015507 Contact Us For Availability
28
WCI 3018963 WCI 3018963 Contact Us For Availability
28
WCI 08015517 WCI 08015517 Contact Us For Availability
28
TUB-INNER WCI 08015495 Contact Us For Availability
28
PULLEY WCI 08006686 Contact Us For Availability
28
WCI 08015535 WCI 08015535 Contact Us For Availability
29
WCI 3018964 WCI 3018964 Contact Us For Availability
29
CLAMP (2) WCI 08014914 Contact Us For Availability
30
RIVETS (2) WCI 08002420 Contact Us For Availability
30
WCI 08015885 WCI 08015885 Contact Us For Availability
30
WCI 08950055 WCI 08950055 Contact Us For Availability
30
SPACER (3) WCI 08014925 Contact Us For Availability
31
WCI 08002427 WCI 08002427 Contact Us For Availability
31
WCI 08950093 WCI 08950093 Contact Us For Availability
32
WCI 08015868 WCI 08015868 Contact Us For Availability
32
WCI 08015497 WCI 08015497 Contact Us For Availability
32
MOTOR-MAIN WCI 08014901 Contact Us For Availability
32
MOTOR-MAIN WCI 08015502 Contact Us For Availability
33
SWITCH-START WCI 08014888 Contact Us For Availability
34
SCREW (4) WCI 08002390 Contact Us For Availability
35
WCI 08002391 WCI 08002391 Contact Us For Availability
36
SCREW SET WCI 08002392 Contact Us For Availability
37
WCI 08002396 WCI 08002396 Contact Us For Availability
38
HOUSING PUMP COVER WCI 08002397 Contact Us For Availability
39
BUSHING WCI 08011277 Contact Us For Availability
40
WCI 3205936 WCI 3205936 Contact Us For Availability
41
SCREW WCI 08001638 Contact Us For Availability
× ![]()
