Model Whirlpool WDPS5118PM0 DISHWASHER – Common Parts & Diagrams

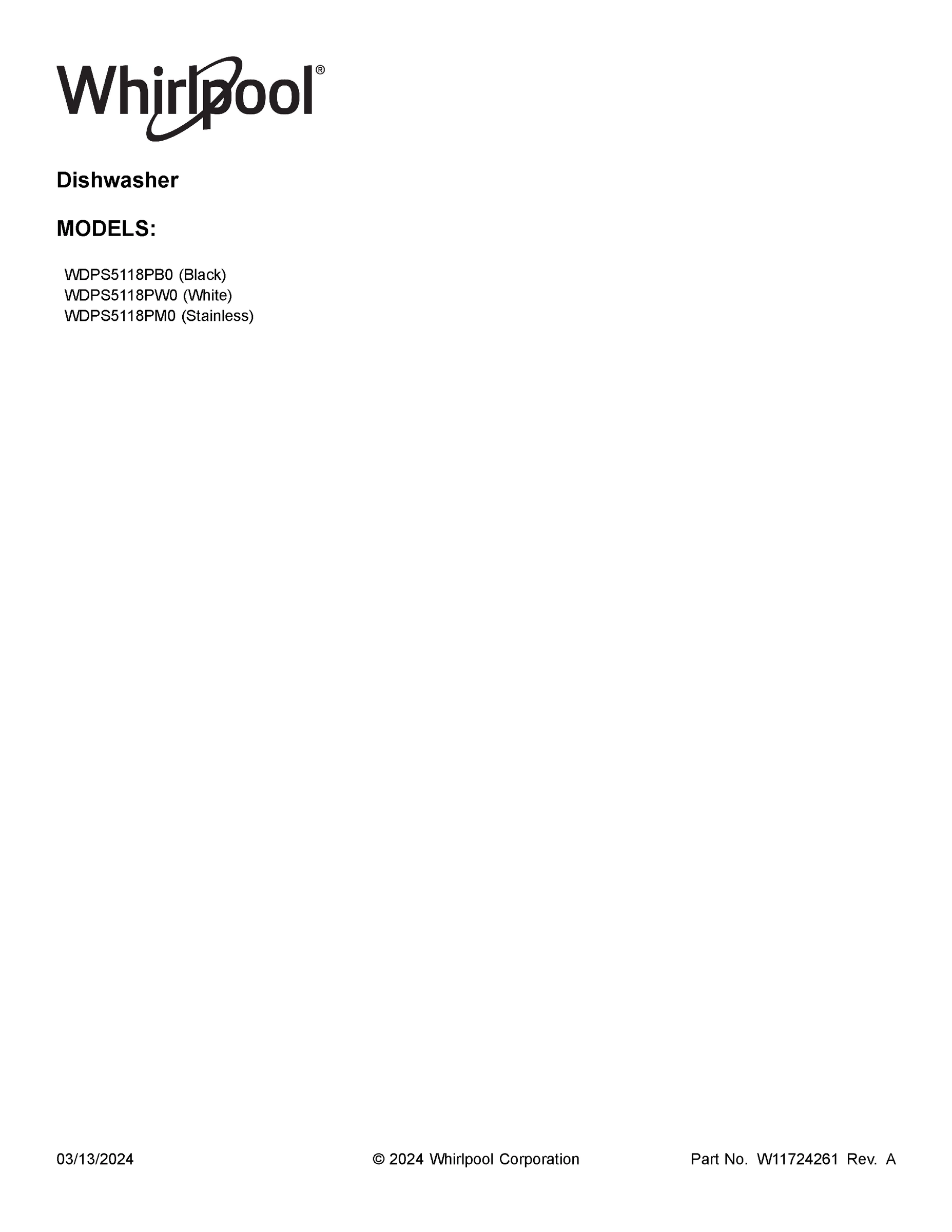

01 - COVER SHEET

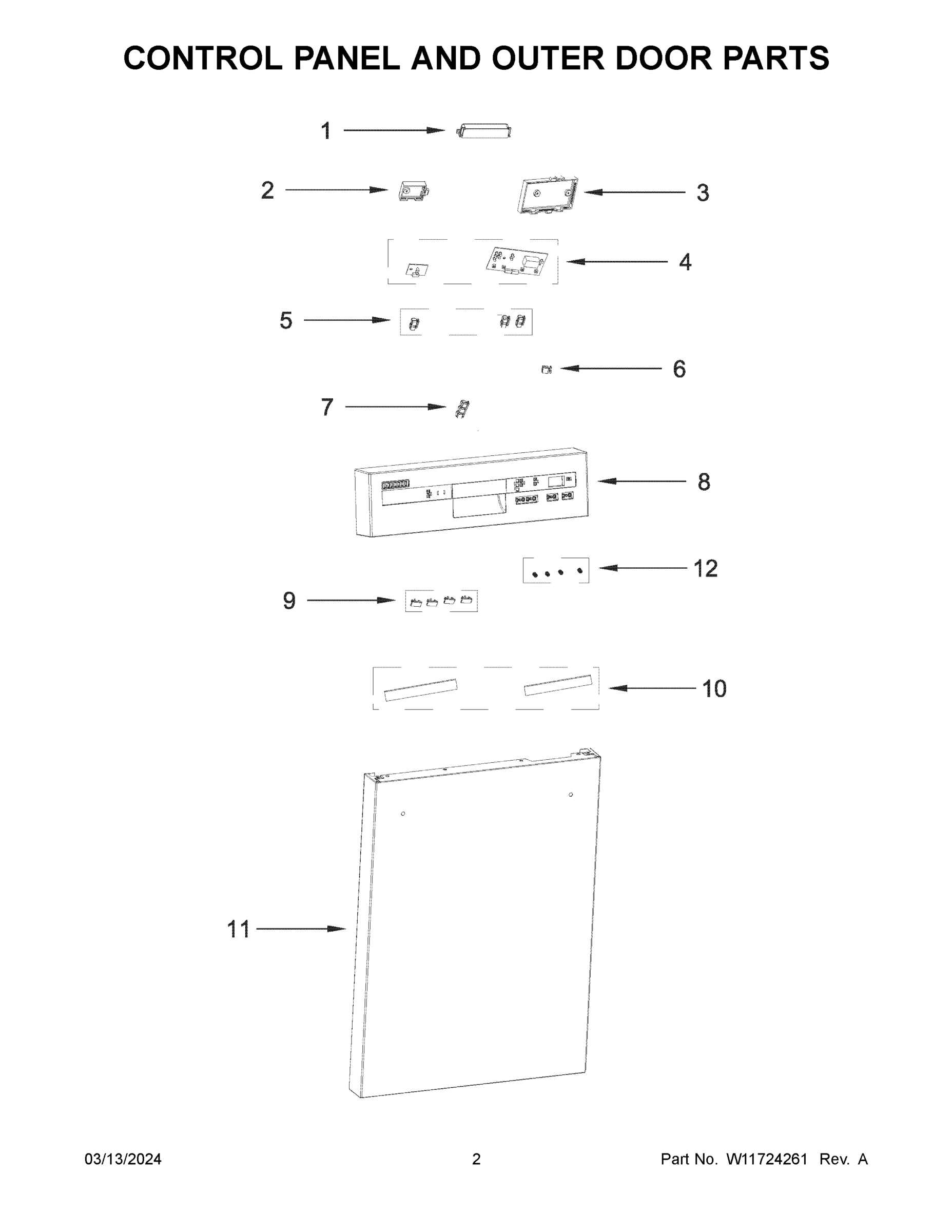

02 - CONTROL PANEL AND OUTER DOOR PARTS

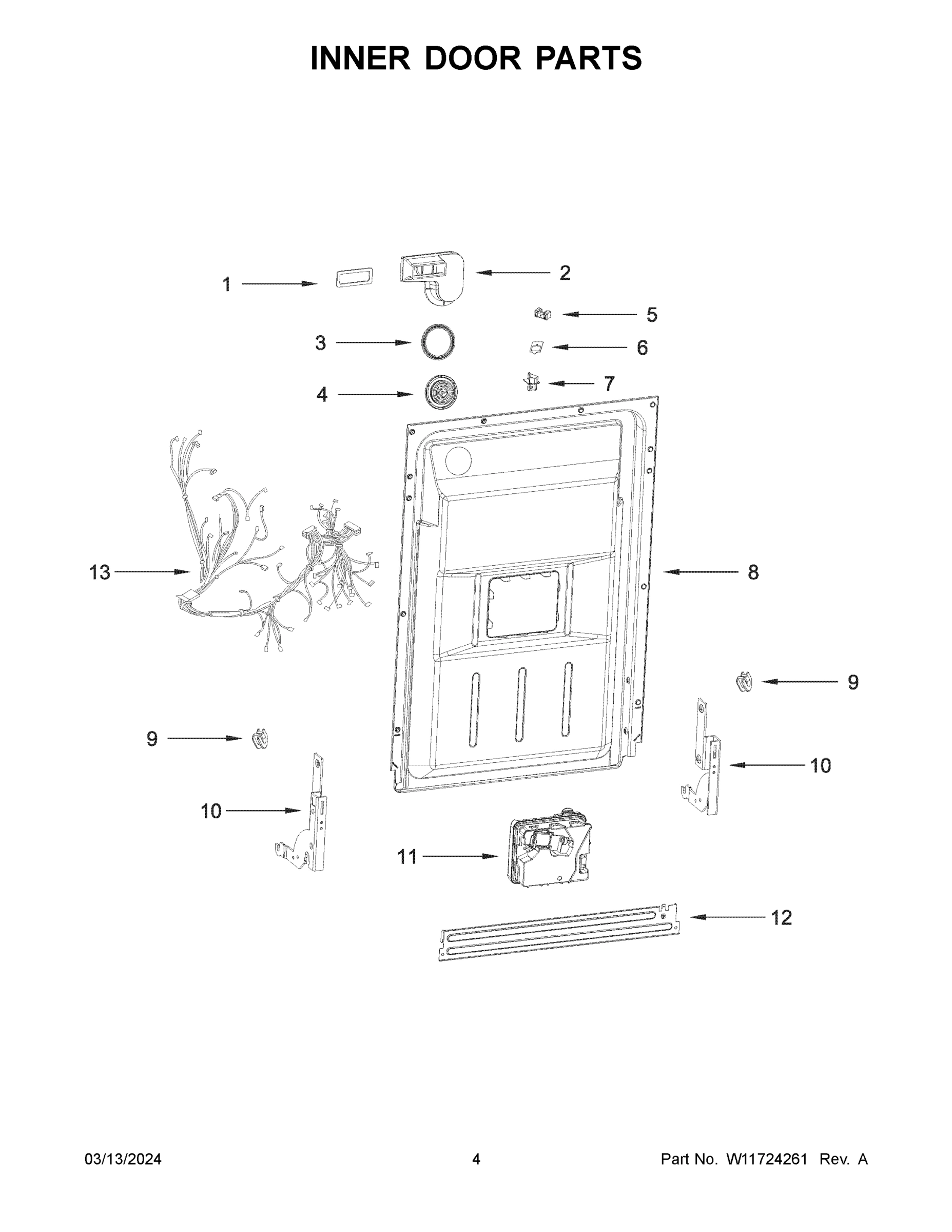

03 - INNER DOOR PARTS

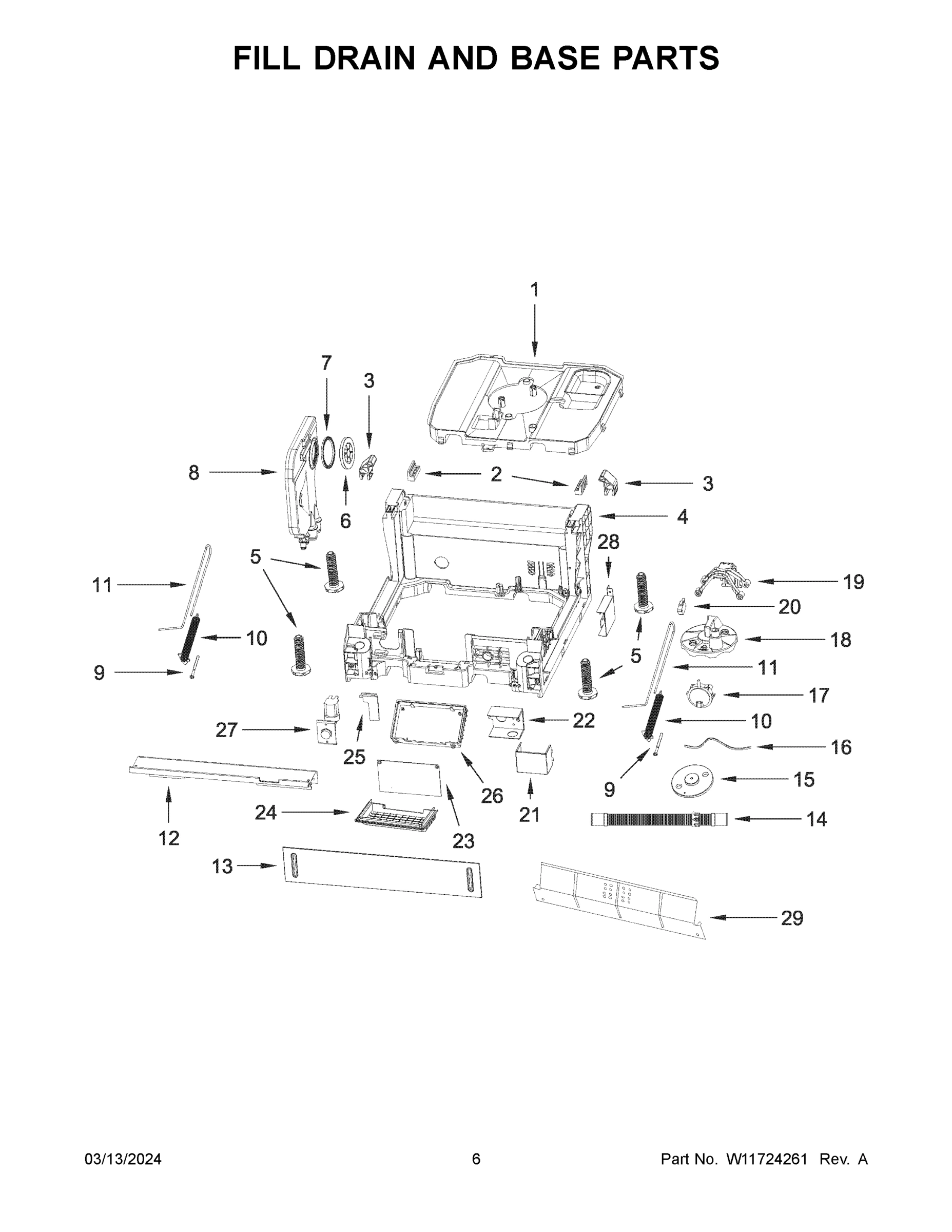

04 - FILL DRAIN AND BASE PARTS

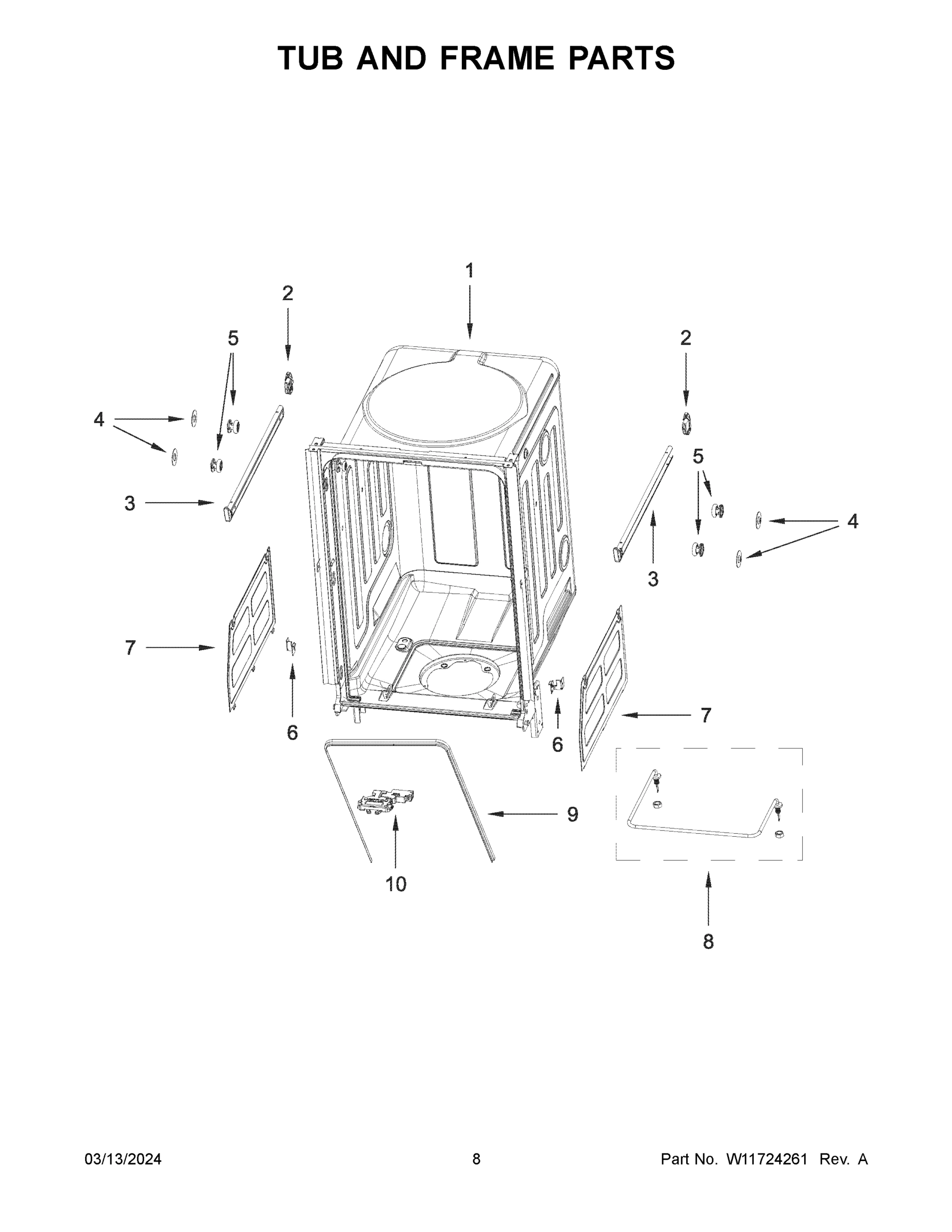

05 - TUB AND FRAME PARTS

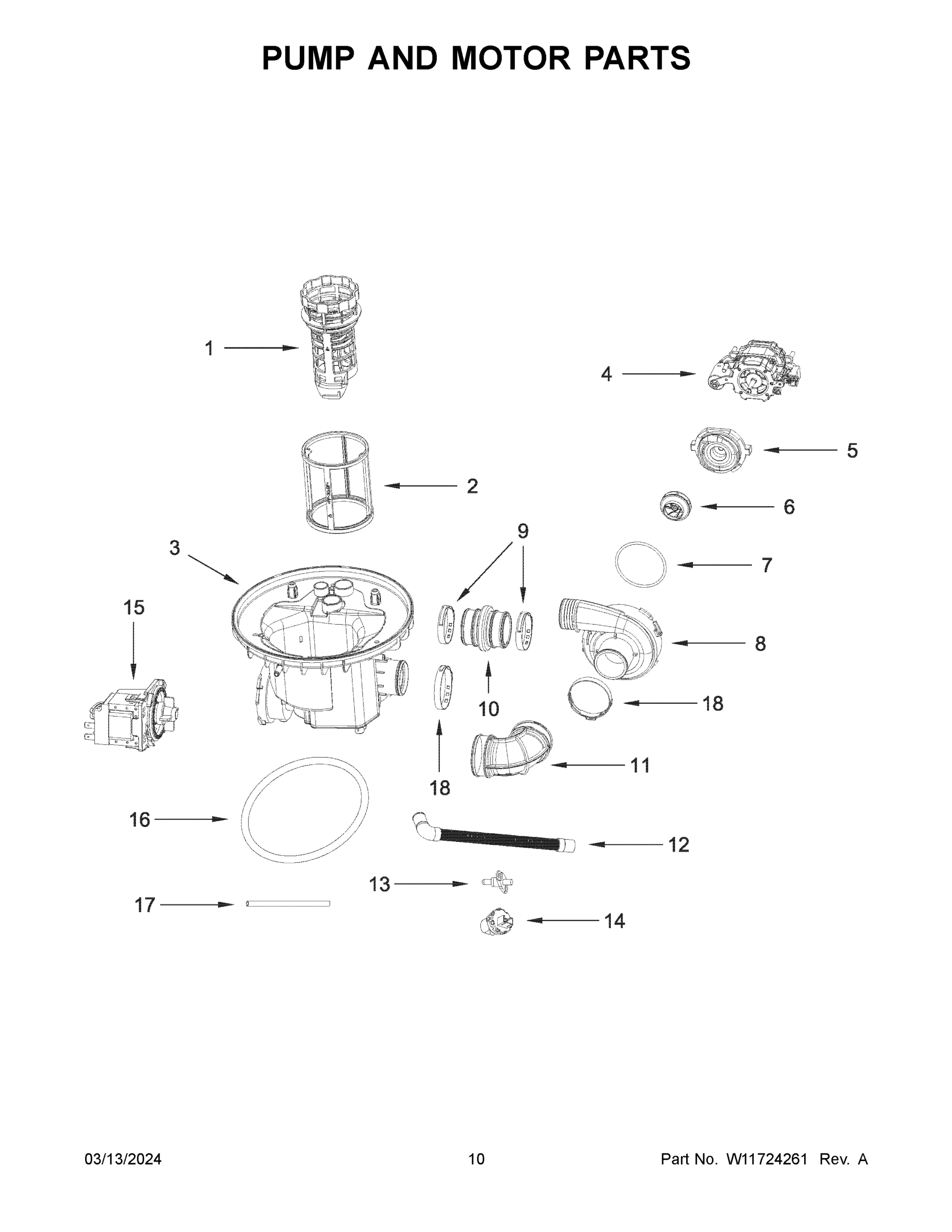

06 - PUMP AND MOTOR PARTS

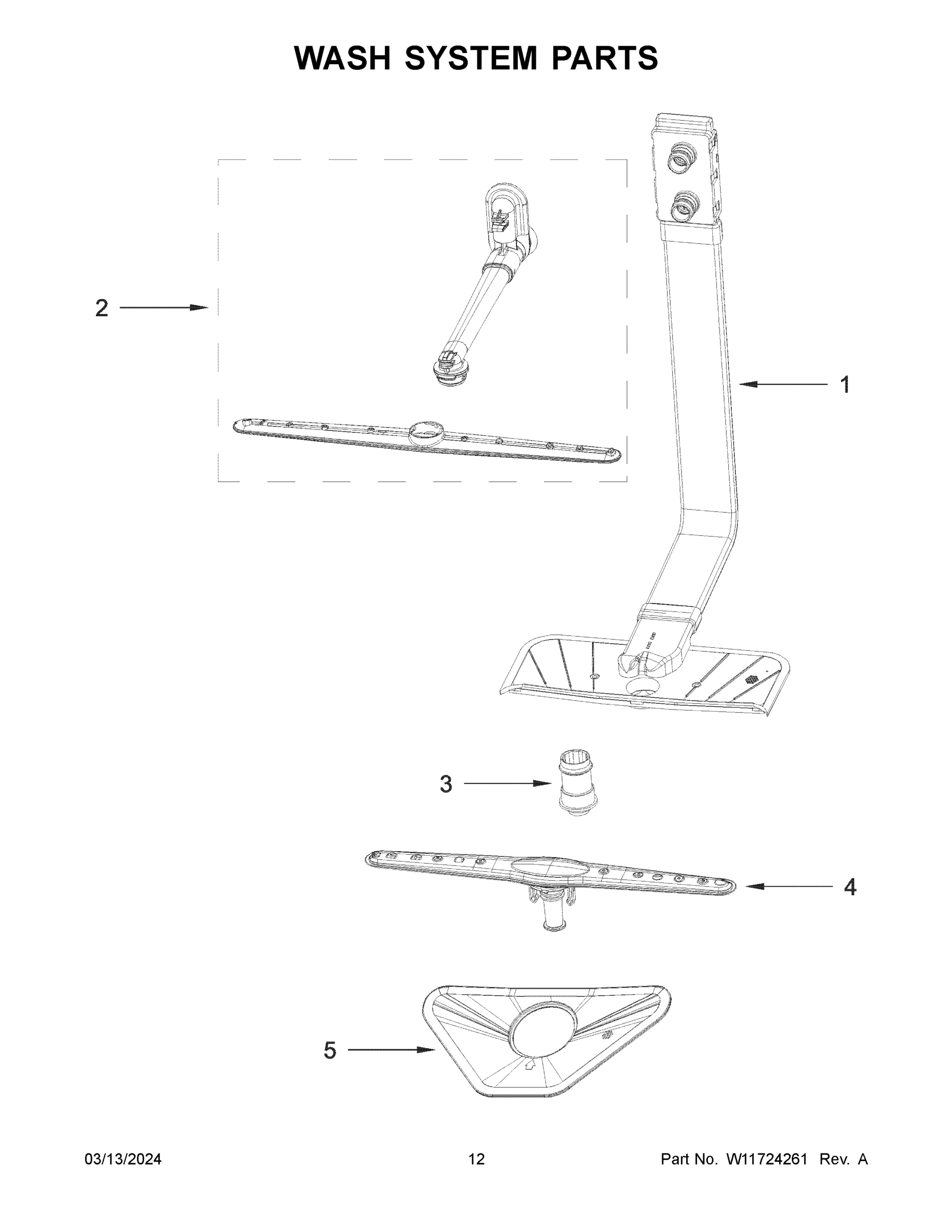

07 - WASH SYSTEM PARTS

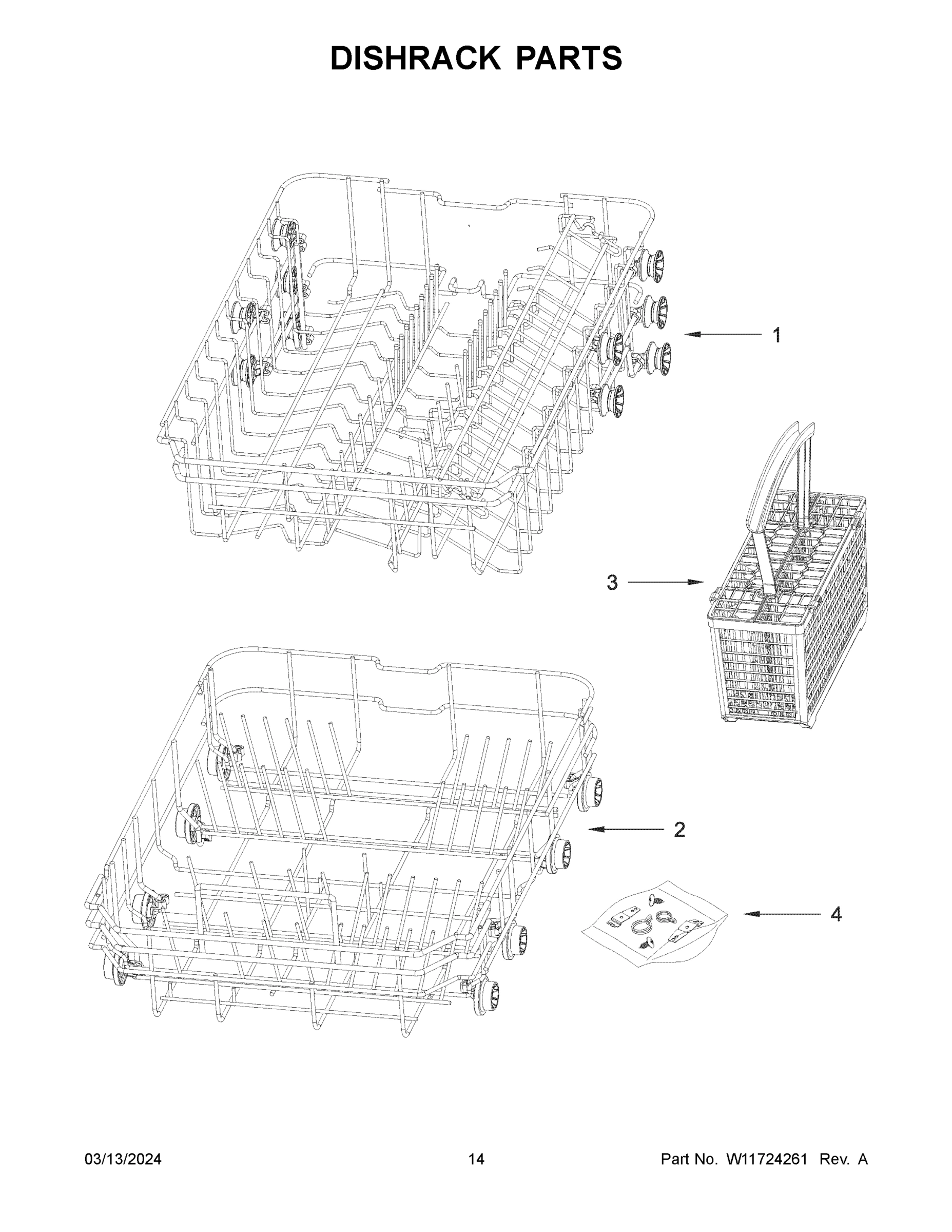

08 - DISHRACK PARTS
Common parts from model Whirlpool WDPS5118PM0 DISHWASHER
1
GASKET, VENT WPL W11225863 Contact Us For Availability
1
COVER, BASE WPL W11230142 Contact Us For Availability
1
TUB ASSEMBLY (NOT SERVICED) WPL ARI50E76A76B5CE3B16D944CF4FD5BFB863 Contact Us For Availability
1
FILTER HANDLE WPL W11226875 Contact Us For Availability
1
FEED TUBE ASSEMBLY WPL W11226868 Contact Us For Availability
1
UPPER RACK ASSEMBLY WPL W11230167 Contact Us For Availability
2
VENT ASSEMBLY WPL W11723970 Contact Us For Availability
2
TUB SUPPORT WPL W11226333 Contact Us For Availability
2
STOP, TRACK WPL W11226273 Contact Us For Availability
2
FILTER WPL W11226876 Contact Us For Availability
2
UPPER SPRAYARM ASSEMBLY WPL W11230161 Contact Us For Availability
2
LOWER RACK ASSEMBLY WPL W11689835 Contact Us For Availability
3
SUMP WPL W11226878 Contact Us For Availability
3
CONNECTING BLOCK, TUB WPL W11226329 Contact Us For Availability
3
TRACK ASSEMBLY (LEFT HAND) WPL W11226276 Contact Us For Availability
3
EXTENSION, LOWER SPRAYARM WPL W11226870 Contact Us For Availability
3
SILVERWARE BASKET WPL W11230169 Contact Us For Availability
3A
TRACK ASSEMBLY (RIGHT HAND) WPL W11226277 Contact Us For Availability
4
MISCELLANEOUS PARTS BAG WPL W11230170 Contact Us For Availability
4
MOTOR WPL W11230164 Contact Us For Availability
4
BASE ASSEMBLY WPL W11230143 Contact Us For Availability
4
SUPPORTING HOLDER, BASKET GUIDER WPL W11226286 Contact Us For Availability
4
LOWER SPRAYARM WPL W11230162 Contact Us For Availability
5
HOUSING, LOWER PUMP WPL W11226885 Contact Us For Availability
5
BASE, DOOR LATCH WPL W11230138 Contact Us For Availability
5
WHEEL WPL W11226280 Contact Us For Availability
5
FILTER SCREEN WPL W11230163 Contact Us For Availability
6
IMPELLER WPL W11226886 Contact Us For Availability
6
GASKET WPL W11226261 Contact Us For Availability
7
CONNECTING PANEL (LEFT HAND) WPL W11226289 Contact Us For Availability
7
HOOK, DOOR LATCH WPL W11689794 Contact Us For Availability
7A
CONNECTING PANEL (RIGHT HAND) WPL W11226291 Contact Us For Availability
8
AIR BREATHER WPL W11226325 Contact Us For Availability
8
HEATING ELEMENT ASSEMBLY WPL W11230139 Contact Us For Availability
8
CONSOLE ASSEMBLY (BLACK) WPL W11230107 Contact Us For Availability
8
INNER DOOR ASSEMBLY WPL W11230130 Contact Us For Availability
8
HOUSING, UPPER PUMP WPL W11226889 Contact Us For Availability
9
GASKET, TUB WPL W11689825 Contact Us For Availability
9F
BUTTON (DELAY (BLACK)) WPL W11230111 Contact Us For Availability
9G
BUTTON (DELAY (WHITE)) WPL W11230187 Contact Us For Availability
9H
BUTTON (DELAY (STAINLESS)) WPL W11230179 Contact Us For Availability
9I
BUTTON (START (BLACK)) WPL W11230113 Contact Us For Availability
9J
BUTTON (START (WHITE)) WPL W11230188 Contact Us For Availability
9K
BUTTON (START (STAINLESS)) WPL W11230180 Contact Us For Availability
10
HOSE WPL W11226893 Contact Us For Availability
10
CONSOLE OVERLAY (LEFT HAND (BLACK)) WPL W11230124 Contact Us For Availability
10
HINGE ASSEMBLY (LEFT HAND) WPL W11226198 Contact Us For Availability
10
SPRING, DOOR WPL W11230160 Contact Us For Availability
10
DOOR SWITCH ASSEMBLY WPL W11689797 Contact Us For Availability
10A
CONSOLE OVERLAY (RIGHT HAND (BLACK)) WPL W11230127 Contact Us For Availability
10A
HINGE ASSEMBLY (RIGHT HAND) WPL W11226199 Contact Us For Availability
10B
CONSOLE OVERLAY (LEFT HAND (WHITE)) WPL W11230189 Contact Us For Availability
10C
CONSOLE OVERLAY (RIGHT HAND (WHITE)) WPL W11230190 Contact Us For Availability
11
INLET HOSE WPL W11226894 Contact Us For Availability
11
PANEL, FRONT (BLACK) WPL W11230128 Contact Us For Availability
11
DISPENSER WPL W11689795 Contact Us For Availability
11
DOOR ROPE WPL W11230159 Contact Us For Availability
11A
PANEL, FRONT (WHITE) WPL W11230191 Contact Us For Availability
12
SPRING WPL W11689791 Contact Us For Availability
12
STIFFENER, DOOR WPL W11689796 Contact Us For Availability
12
DRAIN HOSE WPL W11689830 Contact Us For Availability
13
WIRING HARNESS WPL W11334683 Contact Us For Availability
13
THERMISTOR WPL W11689831 Contact Us For Availability
13A
ACCESS PANEL (WHITE) WPL W11230192 Contact Us For Availability
14
TRUBIDITY SENSOR WPL W11226898 Contact Us For Availability
14
DRAIN HOSE WPL W11689829 Contact Us For Availability
15
FLOAT WPL W11226858 Contact Us For Availability
16
PIPE, PRESSURE SWITCH WPL W11230158 Contact Us For Availability
16
SEALING GASKET WPL W11226899 Contact Us For Availability
17
PRESSURE SWITCH WPL W11689827 Contact Us For Availability
17
INLET HOSE WPL W11226900 Contact Us For Availability
18
SEAT, FLOAT WPL W11226494 Contact Us For Availability
19
ASSEMBLY, PUMP SUPPORT WPL W11226339 Contact Us For Availability
21
COVER, JUNCTION BOX WPL W11226540 Contact Us For Availability
22
BASE, JUNCTION BOX WPL W11226537 Contact Us For Availability
24
COVER, PCB BOX WPL W11226535 Contact Us For Availability
25
BLOCK WPL W11226514 Contact Us For Availability
26
PCB BOX WPL W11226520 Contact Us For Availability
27
INLET VALVE WPL W11689828 Contact Us For Availability
28
BRACKET WPL W11230152 Contact Us For Availability
× ![]()
