Model Whirlpool WDE350LVS01 30`` DROP-IN ELECTRIC RANGE – Common Parts & Diagrams

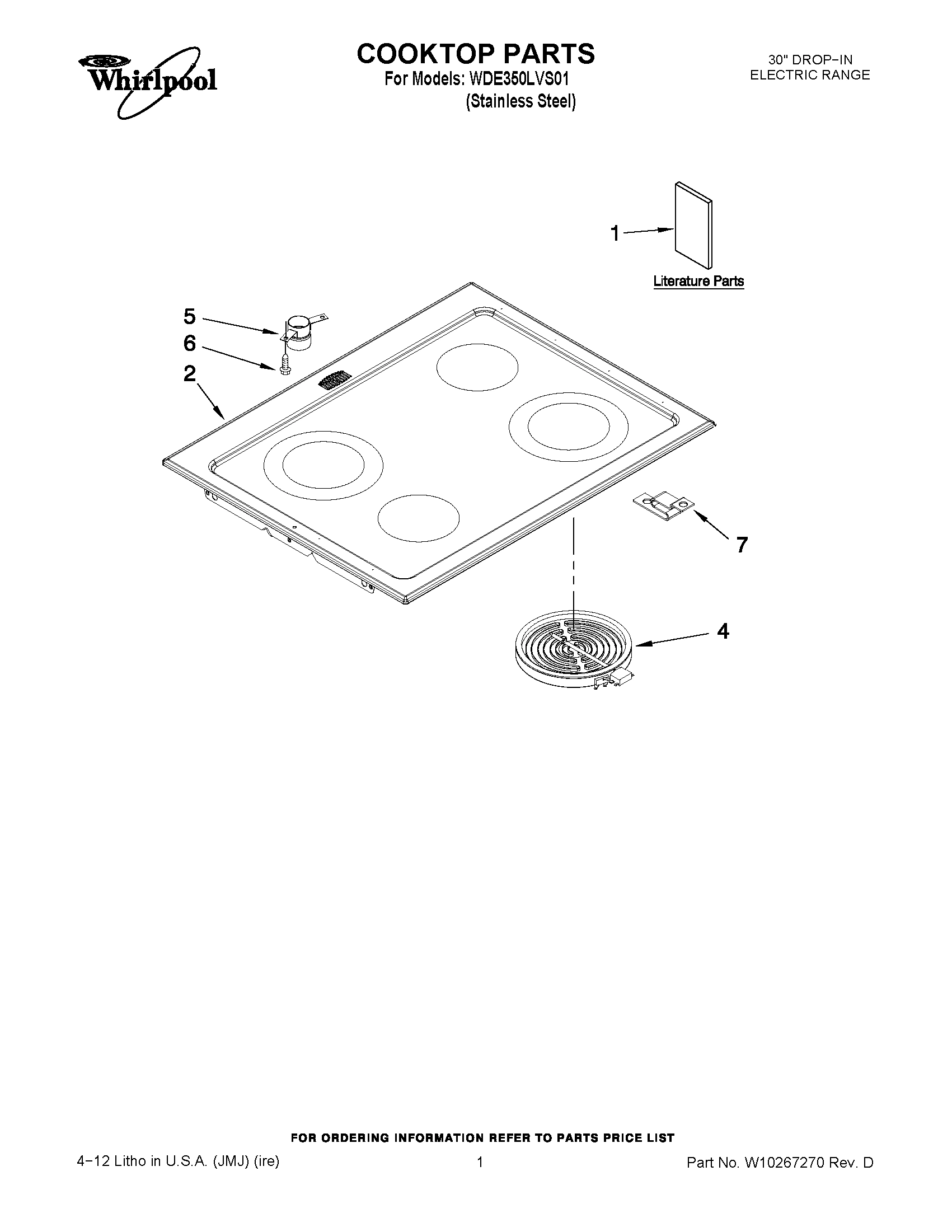

01 - COOKTOP PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)

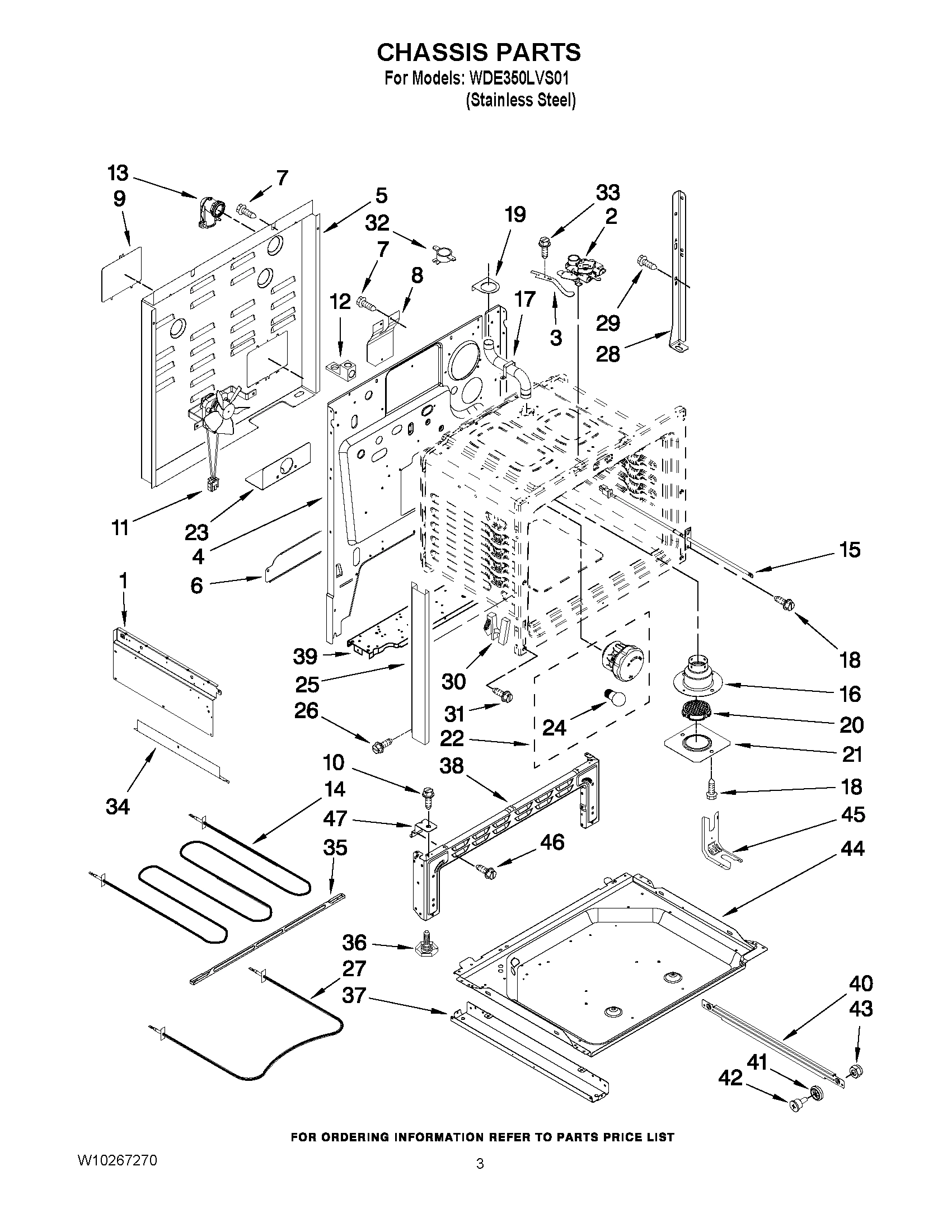

03 - CHASSIS PARTS

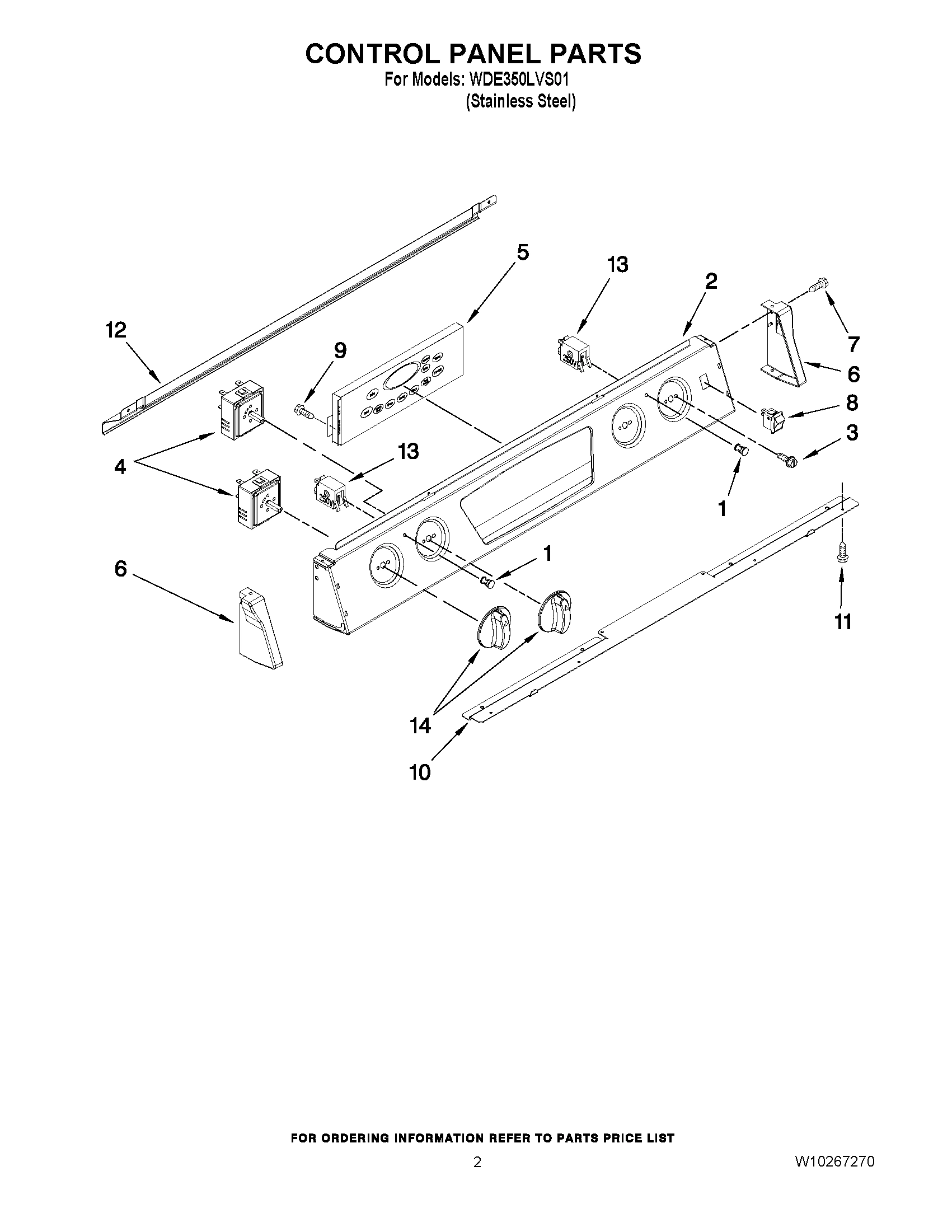

02 - CONTROL PANEL PARTS

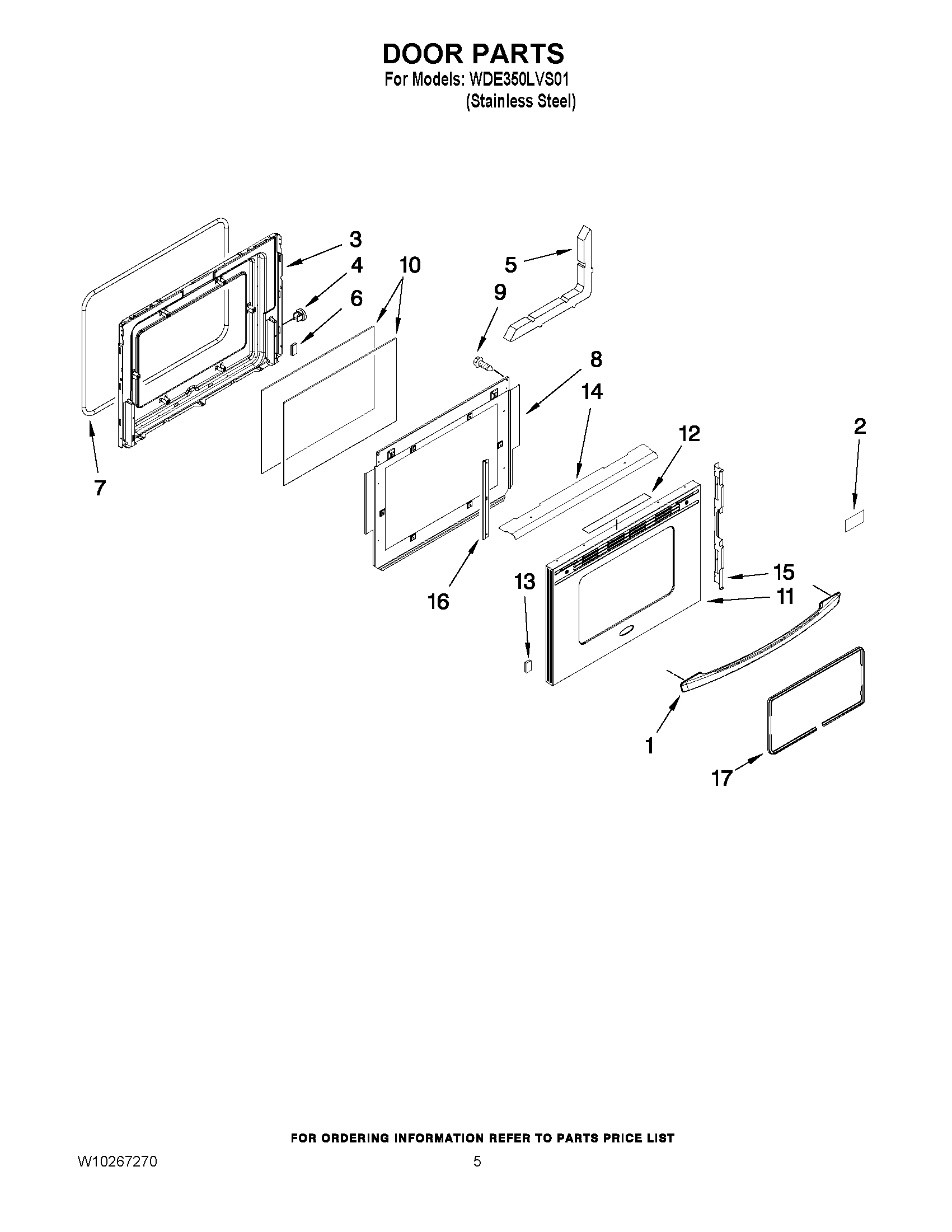

04 - DOOR PARTS
Common parts from model Whirlpool WDE350LVS01 30`` DROP-IN ELECTRIC RANGE
1
Panel, Shield (Left) WPL 2618F20151 Contact Us For Availability
1
Panel, Shield (Right) WPL 2618F20651 Contact Us For Availability
1
LENS WPL 7730P03160 Contact Us For Availability
1
HANDLE, DOOR WPL W1011843361 Contact Us For Availability
2
PANEL, CONTROL (BLACK) WPL W10176434 Contact Us For Availability
2
Latch Assembly WPL 8002P09360 Contact Us For Availability
2
Name Plate WPL 8303810 Contact Us For Availability
3
LEVER, LATCH WPL 8009P03160 Contact Us For Availability
3
Screw WPL 7101P30960 Contact Us For Availability
3
Liner, Door WPL 2402W31219 Contact Us For Availability
4
Main Back WPL 3804F31351 Contact Us For Availability
4
SWITCH, INFINTE (6`` (LF,RR)) WPL 7403P23860 Contact Us For Availability
4
SWITCH, INFINTE (9`` (RF,LR)) WPL 7403P23960 Contact Us For Availability
4
NUT, SNAP WPL 7103P14160 Contact Us For Availability
5
CONTROL W/ OVERLAY WPL W10197045 Contact Us For Availability
5
Cover, Main Wire WPL 4005F81051 Contact Us For Availability
5
Insulation, Door WPL 7002P24760 Contact Us For Availability
6
Extension, Back WPL 3826F06651 Contact Us For Availability
6
ENDCAP (R.HAND) WPL 7726P40060 Contact Us For Availability
6
ENDCAP (L.HAND) WPL 7726P40160 Contact Us For Availability
6
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
7
SCREW WPL 7101P63360 Contact Us For Availability
7
Seal, Door WPL 7201P14360 Contact Us For Availability
8
Insulator, Cord WPL 7003P10160 Contact Us For Availability
8
Switch, Rocker WPL 7403P79860 Contact Us For Availability
8
Baffle, Retainer WPL 3601F37360 Contact Us For Availability
9
Panel, Access WPL 4005F31251 Contact Us For Availability
9
Screw, Control WPL 7101P07760 Contact Us For Availability
9
Screw WPL 7101P38860 Contact Us For Availability
10
Support, Control Panel WPL 3807F60151 Contact Us For Availability
10
GLASS, INNER CLEAR WPL 7902P43660 Contact Us For Availability
10
GLASS, INNER (COATED) WPL 7902P76860 Contact Us For Availability
11
Fan, Cooling WPL 7427P09460 Contact Us For Availability
11
Screw WPL 7101P33860 Contact Us For Availability
11
PANEL, OVEN DR WPL 7760O24260 Contact Us For Availability
12
Block, Bare Wire WPL 7401P15760 Contact Us For Availability
12
SHIELD, VENT WPL 3604W15670 Contact Us For Availability
12
Insulation, Foil WPL 7002P46360 Contact Us For Availability
13
CONNECTOR, CABLE WPL 7401P03360 Contact Us For Availability
13
LIGHT, INDICATOR WPL 7407P08260 Contact Us For Availability
13
Clip, Glass WPL 7112P03460 Contact Us For Availability
14
Element, Broil WPL 7406P21860 Contact Us For Availability
14
Knob (4) WPL 7737P08260 Contact Us For Availability
14
Shield, Door WPL 3604F41851 Contact Us For Availability
15
Sensor, Oven WPL 7430P04260 Contact Us For Availability
15
Retainer, Glass WPL 3804F29345 Contact Us For Availability
16
Tube, Vent Lower WPL W10165722 Contact Us For Availability
16
Bracket, Glass WPL 3801F88651 Contact Us For Availability
17
Tube, Vent Upper WPL 8026P08560 Contact Us For Availability
17
Gasket, Window WPL 7201P14160 Contact Us For Availability
18
SCREW WPL 7107P43460 Contact Us For Availability
19
Holder, Vent Tube WPL 3605F34551 Contact Us For Availability
20
SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
21
Plate, Smoke Elm. WPL W10165724 Contact Us For Availability
22
Light Assembly WPL 7407P18260 Contact Us For Availability
23
BRKT., PWR SUPPLY WPL 3801F57451 Contact Us For Availability
24
BULB-OVEN WPL 7407P10360 Contact Us For Availability
25
TRIM, SIDE (2) WPL 3608F13870 Contact Us For Availability
26
Screw WPL 7101P50060 Contact Us For Availability
27
Element, Bake WPL 7406P43960 Contact Us For Availability
28
SUPPORT, OVEN WPL 3807F73251 Contact Us For Availability
29
Screw WPL 7101P43460 Contact Us For Availability
30
Hinge (2) WPL 7106P14160 Contact Us For Availability
31
SCREW, HINGE WPL 7101P28260 Contact Us For Availability
32
Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability
33
SCREW, LEVER WPL 7101P37560 Contact Us For Availability
34
Extension, Shield WPL 3826F06451 Contact Us For Availability
35
Support, Element WPL 3807F49445 Contact Us For Availability
36
Leg, Leveling WPL 7101P66060 Contact Us For Availability
37
Pedestal, Bottom WPL 4020W03580 Contact Us For Availability
38
PEDESTAL, FRONT WPL 4020W03680 Contact Us For Availability
39
Support WPL 3807F64051 Contact Us For Availability
40
RUNNER, DRAWER WPL 3406F03251 Contact Us For Availability
41
Roller, Drawer WPL 8014P02260 Contact Us For Availability
42
Shaft, Roller WPL 7118P03260 Contact Us For Availability
43
NUT, LOCK WPL 3804F23151 Contact Us For Availability
44
RETAINER, BOTTOM WPL 3801F23151 Contact Us For Availability
45
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
46
Screw WPL 7101P12460 Contact Us For Availability
47
SUPPORT WPL 3807F72745 Contact Us For Availability
NI
Cleaner, Glass WPL W10355051 No Longer Available
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
Harness, Sensor WPL 5171P54060 Contact Us For Availability
NI
U3, Harness (RT) WPL 5171P55660 Contact Us For Availability
NI
Coil, Harness (Lt) WPL 5171P56560 Contact Us For Availability
NI
Harness, Top WPL 5171P57460 Contact Us For Availability
NI
Conduit (Flx Cbl) WPL 5700P82260 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
NI
Insulation, Back WPL 7002P45660 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P47160 Contact Us For Availability
× ![]()
