Model Whirlpool WDE350LVQ0 30`` DROP-IN ELECTRIC RANGE – Common Parts & Diagrams

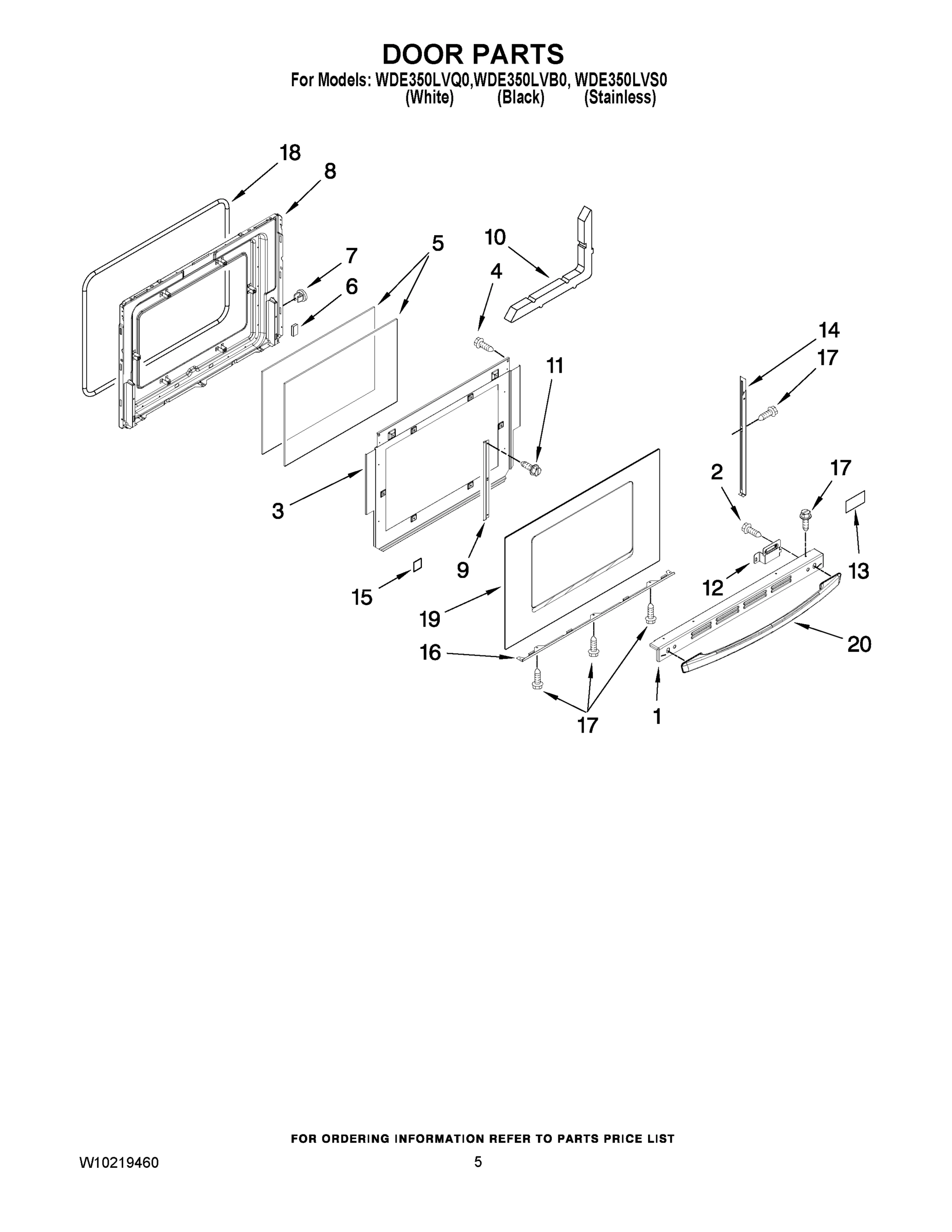

04 - DOOR PARTS
01 - COOKTOP PARTS
03 - CHASSIS PARTS
02 - CONTROL PANEL PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool WDE350LVQ0 30`` DROP-IN ELECTRIC RANGE
1
Installation Instructions WPL 8101P74760 Contact Us For Availability
1
Use & Care Guide WPL W10175572 Contact Us For Availability
1
Panel, Shield (Left) WPL 2618F20151 Contact Us For Availability
1
Panel, Shield (Right) WPL 2618F20651 Contact Us For Availability
1
LENS WPL 7730P03160 Contact Us For Availability
2
Panel, Control (White) WPL W10159606 Contact Us For Availability
2
Panel, Control (Stainless) WPL W10176434 Contact Us For Availability
2
Panel, Control (Black) WPL W10190181 Contact Us For Availability
2
COOKTOP (BLACK) WPL W10170215 Contact Us For Availability
2
Latch Assembly WPL 8002P09360 Contact Us For Availability
3
SUPPORT,ELEMENT WPL 8004P09360 Contact Us For Availability
3
Rack, Oven (2) WPL 7801P05460 Contact Us For Availability
3
ENDCAP (R.HAND WHITE) WPL 7726P33260 Contact Us For Availability
3
ENDCAP (L.HAND WHITE) WPL 7726P33360 Contact Us For Availability
3
ENDCAP R.HAND BLACK WPL 7726P40060 Contact Us For Availability
3
ENDCAP L.HAND (BLACK) WPL 7726P40160 Contact Us For Availability
4
ELEMENT (RF,LR) (SMALL (2)) WPL 7406P36560 Contact Us For Availability
4
ELEMENT (RF,LR) (LARGE (2)) WPL 7406P40360 Contact Us For Availability
4
BACK, MAIN WPL 3804F31451 Contact Us For Availability
4
SWITCH, INFINTE 6`` (LF,RR) WPL 7403P37360 Contact Us For Availability
4
SWITCH, INFINTE (8`` (RF,LR)) WPL 7450P01160 Contact Us For Availability
5
Tube, Vent Upper WPL 8026P07460 Contact Us For Availability
5
SCREW WPL 7101P42660 Contact Us For Availability
5
Cover, Main Wire WPL 4005F81051 Contact Us For Availability
6
CONTROL W/OVERLAY (WHITE) WPL W10197044 Contact Us For Availability
6
CONTROL W/OVERLAY (BLACK) WPL W10197045 Contact Us For Availability
6
Extension, Back WPL 3826F06651 Contact Us For Availability
7
SCREW WPL 7101P63360 Contact Us For Availability
7
KNOB, SINGLE (BLACK) WPL 7737P41460 Contact Us For Availability
7
KNOB, SINGLE (WHITE) WPL 7737P41560 Contact Us For Availability
8
Insulator, Cord WPL 7003P10160 Contact Us For Availability
8
Light, Indicator WPL 7407P13660 Contact Us For Availability
9
Shield, Vent (Black) WPL 3604W15670 Contact Us For Availability
9
SHIELD, VENT WHITE WPL 3604W15671 Contact Us For Availability
9
Switch, Rocker (Black) WPL 7403P79860 Contact Us For Availability
9
Switch, Rocker (White) WPL 7403P79960 Contact Us For Availability
10
Element, Broil WPL 7406P21860 Contact Us For Availability
10
Support, Control Panel WPL 3807F60151 Contact Us For Availability
11
Sensor, Oven WPL 7430P04260 Contact Us For Availability
11
KNOB, DUAL (BLACK) WPL 7737P41760 Contact Us For Availability
11
KNOB, DUAL (WHITE) WPL 7737P41860 Contact Us For Availability
13
Nameplate WPL 8303811 Contact Us For Availability
13
TUBE, VENT UPPER BLACK, LEFT WPL 8026P08560 Contact Us For Availability
14
Trim, Door Side (White, Left) WPL 3608F11771 Contact Us For Availability
14
Screw WPL 7101P43460 Contact Us For Availability
15
Spacer, Rubber WPL 8010P15260 Contact Us For Availability
15
Holder, Vent Tube WPL 3605F34551 Contact Us For Availability
16
Trim, Door Bottom (Black) WPL 3807F70870 Contact Us For Availability
16
TRIM, DOOR BOTTOM (WHITE) WPL 3807F70871 Contact Us For Availability
16
Light Assembly WPL 7407P18260 Contact Us For Availability
17
Screw, Trim (White) WPL 7101P63660 Contact Us For Availability
17
Bracket, Pwr Supply WPL 3801F57451 Contact Us For Availability
18
BULB-OVEN WPL 7407P10360 Contact Us For Availability
19
GLASS, DOOR (WHITE) WPL 7902P81460 Contact Us For Availability
19
GLASS, DOOR (BLACK) WPL 7902P81560 Contact Us For Availability
19
TRIM, SIDE (BLACK, RIGHT) WPL 3608F12870 Contact Us For Availability
19
TRIM, SIDE (WHITE, RIGHT) WPL 3608F12871 Contact Us For Availability
19
TRIM, SIDE (BLACK, LEFT) WPL 3608F13070 Contact Us For Availability
19
TRIM, SIDE (WHITE, LEFT) WPL 3608F13071 Contact Us For Availability
20
Fan, Cooling WPL 7427P09460 Contact Us For Availability
21
Element, Bake WPL 7406P43960 Contact Us For Availability
22
SUPPORT, OVEN (REAR) WPL 3807F73251 Contact Us For Availability
23
PLATE, SMOKE ELIM. WPL 3605F34445 Contact Us For Availability
24
Hinge (2) WPL 7106P14160 Contact Us For Availability
25
Screw WPL 7101P28260 Contact Us For Availability
26
SWITCH, HI-LIMIT (165 F/215 F) WPL 7450P03460 Contact Us For Availability
27
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
28
Extention, Shield WPL 3826F06451 Contact Us For Availability
29
Support, Element WPL 3807F49445 Contact Us For Availability
30
Leg, Leveling WPL 7101P50760 Contact Us For Availability
31
Retainer, Bottom WPL 4003F06751 Contact Us For Availability
32
SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
NI
Cleaner, Glass WPL W10355051 No Longer Available
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
Insulation, Oven Bottom WPL 7002P45660 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P47160 Contact Us For Availability
NI
Harness, Sensor WPL 5171P54060 Contact Us For Availability
NI
U3, HARNESS (RT) WPL 5171P55060 Contact Us For Availability
NI
COIL,HARNESS (LT) WPL 5171P55760 Contact Us For Availability
NI
Harness, Top WPL 5171P97460 Contact Us For Availability
NI
Conduit (Flx Cbl) WPL 5700P82260 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
× ![]()
