Model Whirlpool WDE150LVT01 30`` DROP-IN ELECTRIC RANGE – Common Parts & Diagrams

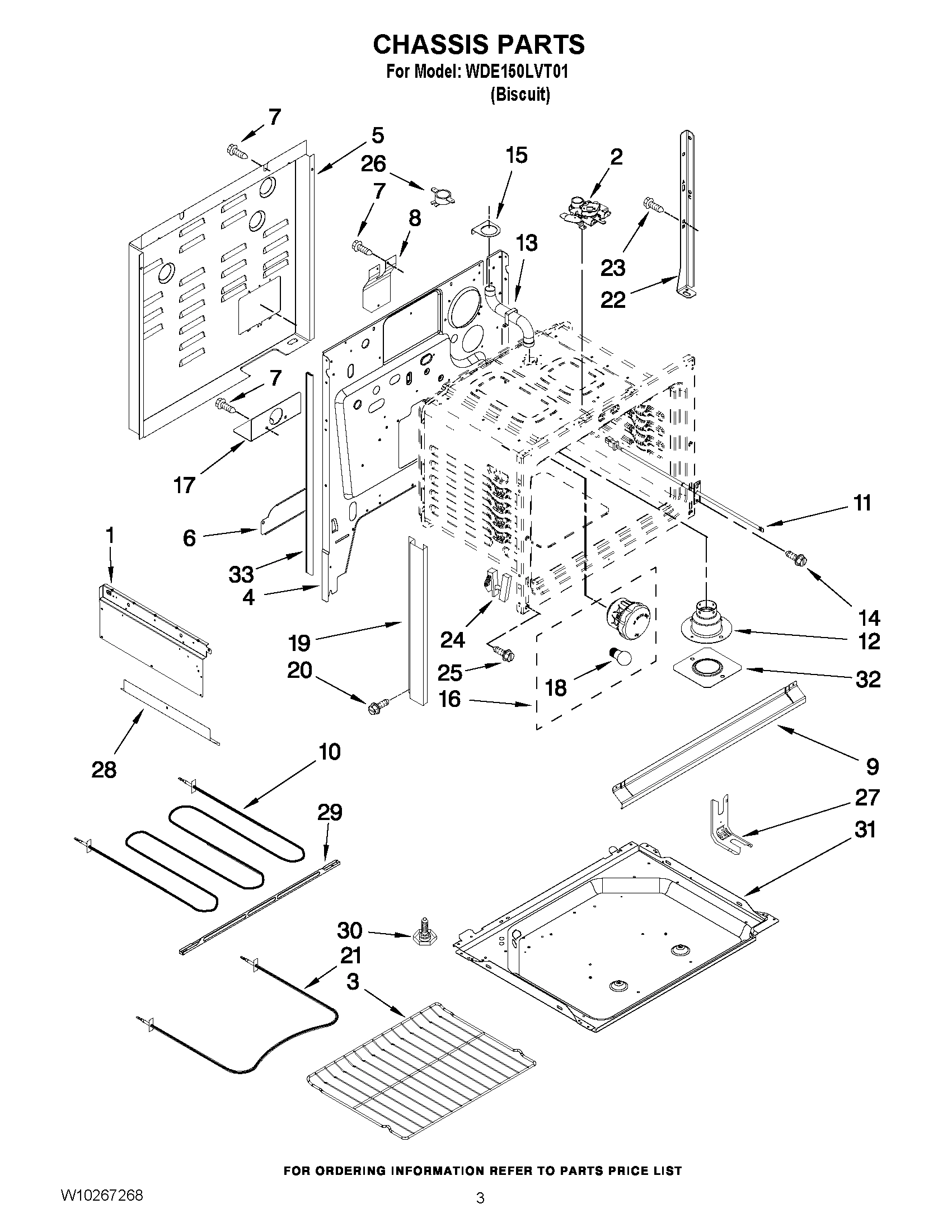

03 - CHASSIS PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)

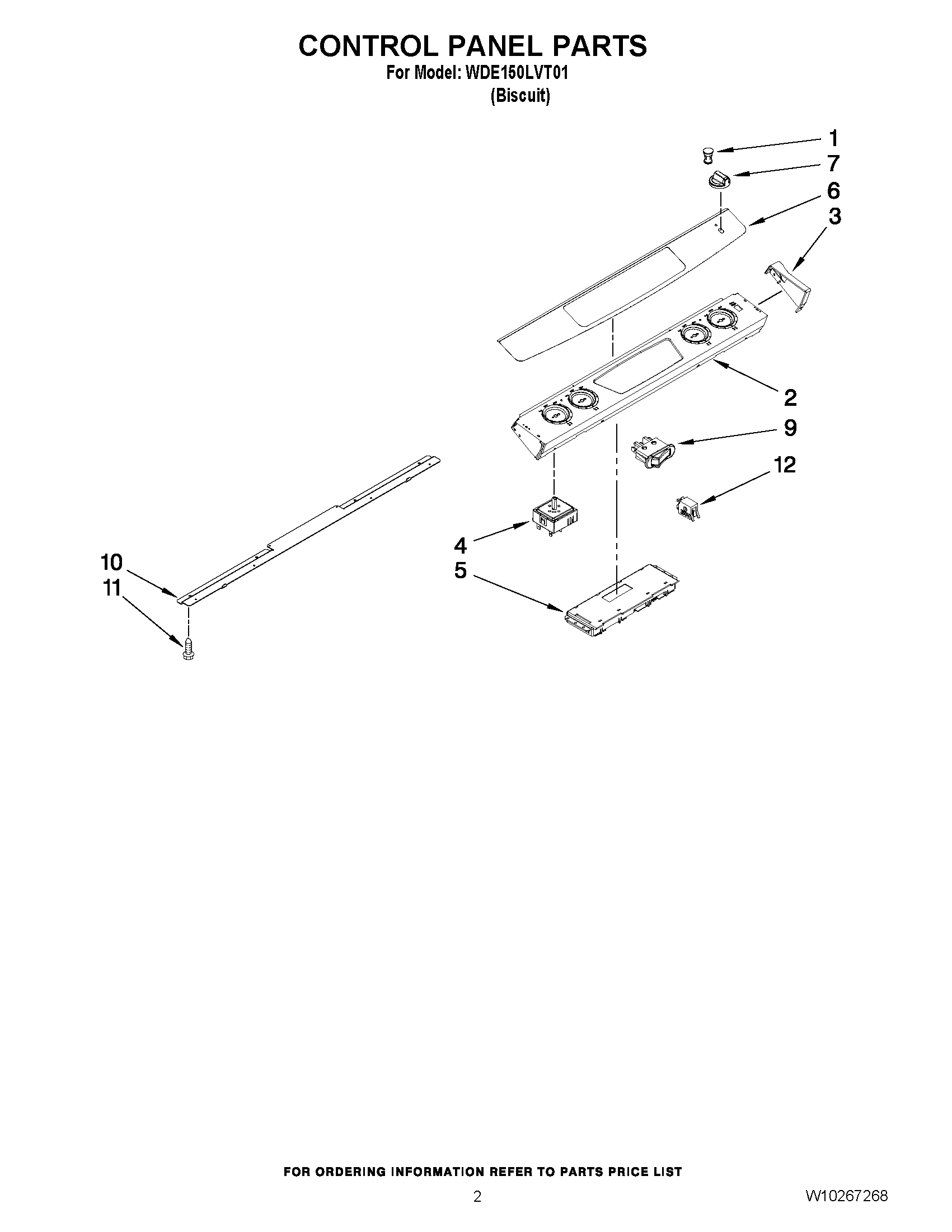

02 - CONTROL PANEL PARTS

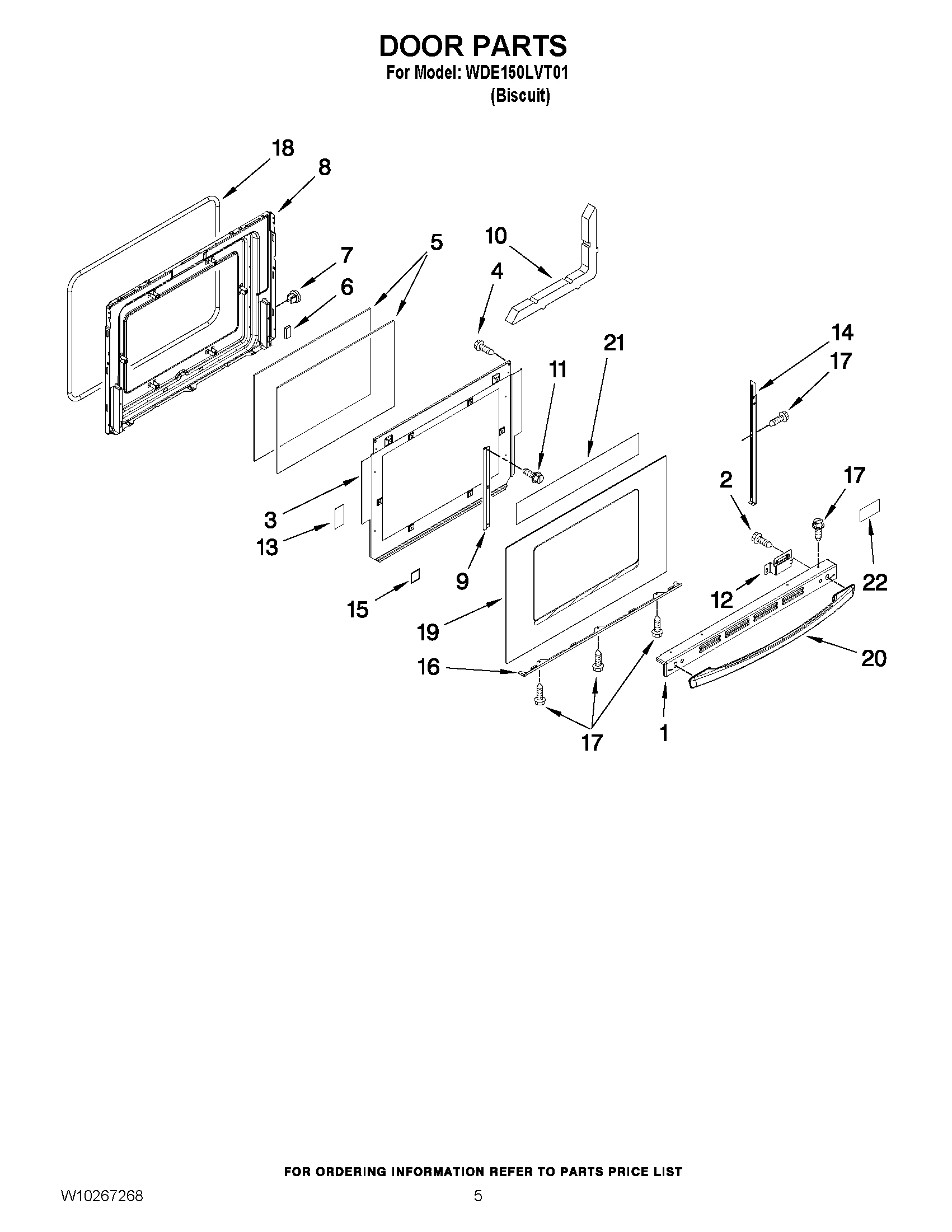

04 - DOOR PARTS

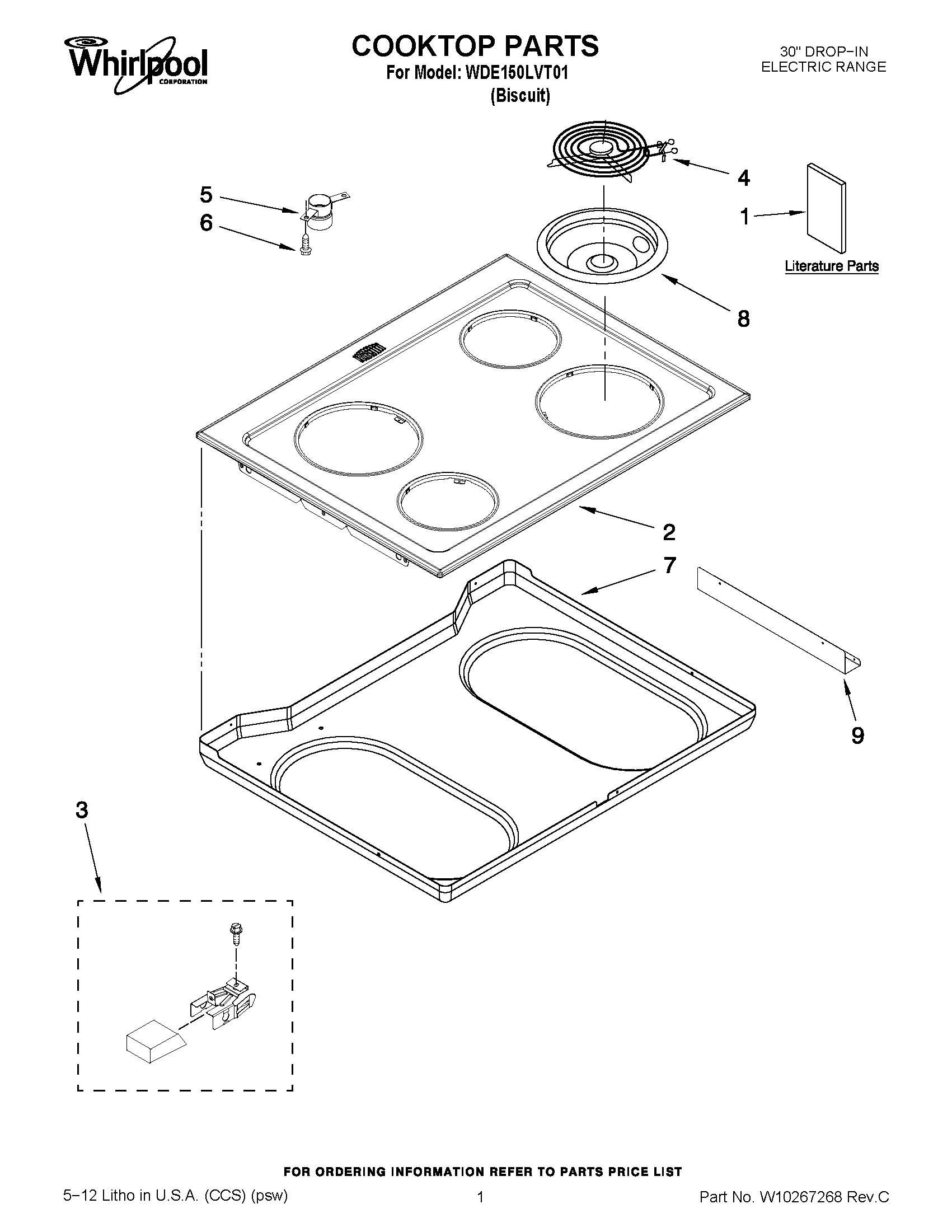

01 - COOKTOP PARTS
Common parts from model Whirlpool WDE150LVT01 30`` DROP-IN ELECTRIC RANGE
1
Lens WPL 7730P01160 Contact Us For Availability
1
Trim, Door Top WPL 3608F14161 Contact Us For Availability
1
Installation Instructions WPL 8101P33660 Contact Us For Availability
1
Use & Care Guide WPL W10175572 Contact Us For Availability
2
PANEL, CONTROL (BISCUIT) WPL W10190182 Contact Us For Availability
2
SCREW, HANDLE WPL 7101P20860 Contact Us For Availability
2
COOKTOP (BISCUIT) WPL W10206557 Contact Us For Availability
3
ENDCAP (R.HAND) WPL 7726P33660 Contact Us For Availability
3
ENDCAP (L.HAND) WPL 7726P33760 Contact Us For Availability
3
Baffle, Retainer WPL 3601F37351 Contact Us For Availability
3
KIT, HARDWARE WPL 8255P41260 Contact Us For Availability
4
SWITCH, INFINATE (8`` (RF,LR)) WPL 7403P37260 Contact Us For Availability
4
SWITCH, INFINATE (6`` (LF,RR)) WPL 7403P37360 Contact Us For Availability
4
Screw 8AB 1/2 WPL 7101P37660 Contact Us For Availability
4
ELEMENT (RF,LR) (SMALL) WPL 7406P47560 Contact Us For Availability
4
ELEMENT (RF,LR) (LARGE) WPL 7406P47660 Contact Us For Availability
5
Control WPL 8507P24060 Contact Us For Availability
5
GLASS, INNER WPL 7902P43660 Contact Us For Availability
5
Tube, Vent Upper WPL W10233479 Contact Us For Availability
6
OVERLAY WPL W10178995 Contact Us For Availability
6
SCREW WPL 7101P42660 Contact Us For Availability
6
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
7
KNOB WPL 7737P41660 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
7
Bottom, Burner Box WPL 4011F37180 Contact Us For Availability
8
Lining, Door WPL 2402W31219 Contact Us For Availability
8
BOWL, DRIP (SMALL) WPL 7725P05360 Contact Us For Availability
8
BOWL, DRIP (LARGE) WPL 7725P05460 Contact Us For Availability
9
SWITCH, ROCKER WPL 7403P80060 Contact Us For Availability
9
Bracket, Glass WPL 3801F88651 Contact Us For Availability
9
BRACKET, BOX WPL 3801F88151 Contact Us For Availability
10
Support, Control Panel WPL 3807F60151 Contact Us For Availability
10
Insulation, Door WPL 7002P24660 Contact Us For Availability
12
Light, Indicator WPL 7407P13660 Contact Us For Availability
12
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
12
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
13
Tube, Vent Upper WPL 8026P08560 Contact Us For Availability
13
Tape, White WPL W10250536 Contact Us For Availability
14
Trim, Door Side (Biscuit, Right) WPL 3608F11678 Contact Us For Availability
14
Trim, Door Side (Biscuit, Left) WPL 3608F11778 Contact Us For Availability
15
Holder, Vent Tube WPL 3605F34551 Contact Us For Availability
15
Spacer, Rubber WPL 8010P15260 Contact Us For Availability
16
Light Assembly WPL 7407P18260 Contact Us For Availability
16
TRIM, DOOR BOTTOM WPL 3807F70878 Contact Us For Availability
17
SCREW, TRIM WPL 7101P63360 Contact Us For Availability
18
BULB-OVEN WPL 7407P10360 Contact Us For Availability
19
TRIM, SIDE (R.SIDE) WPL 3608F12861 Contact Us For Availability
19
TRIM, SIDE (L.SIDE) WPL 3608F13061 Contact Us For Availability
19
GLASS, DOOR (ORDER ITEMS 13 & 21 WHEN REPLACI WPL 7902P81660 Contact Us For Availability
20
HANDLE, DOOR WPL W10118432 Contact Us For Availability
21
Element, Bake WPL 7406P43960 Contact Us For Availability
21
Tape, Foil WPL W10250534 Contact Us For Availability
22
Nameplate, Logo WPL 8303811 Contact Us For Availability
22
SUPPORT, OVEN (REAR) WPL 3807F73251 Contact Us For Availability
23
Screw WPL 7101P43460 Contact Us For Availability
24
HINGE WPL 7106P14160 Contact Us For Availability
25
SCREW, HINGE WPL 7101P28260 Contact Us For Availability
26
Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability
27
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
28
Extention, Shield WPL 3826F06451 Contact Us For Availability
29
Support, Element WPL 3807F49445 Contact Us For Availability
30
Leg, Leveling WPL 7101P50760 Contact Us For Availability
31
Retainer, Bottom WPL 4003F06751 Contact Us For Availability
32
PLATE, SMOKE ELIM. WPL 3605F34445 Contact Us For Availability
33
GUARD, EDGE WPL W10183566 Contact Us For Availability
NI
FOIL, ALUMINUM (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
Insulation, Oven Bottom WPL 7002P45660 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P47160 Contact Us For Availability
NI
Harness, Sensor WPL 5171P54060 Contact Us For Availability
NI
U3, Harness (RT) WPL 5171P55660 Contact Us For Availability
NI
Coil, Harness (Lt) WPL 5171P56560 Contact Us For Availability
NI
Harness, Top WPL 5171P57460 Contact Us For Availability
NI
Conduit (Flx Cbl) WPL 5700P82260 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
× ![]()
