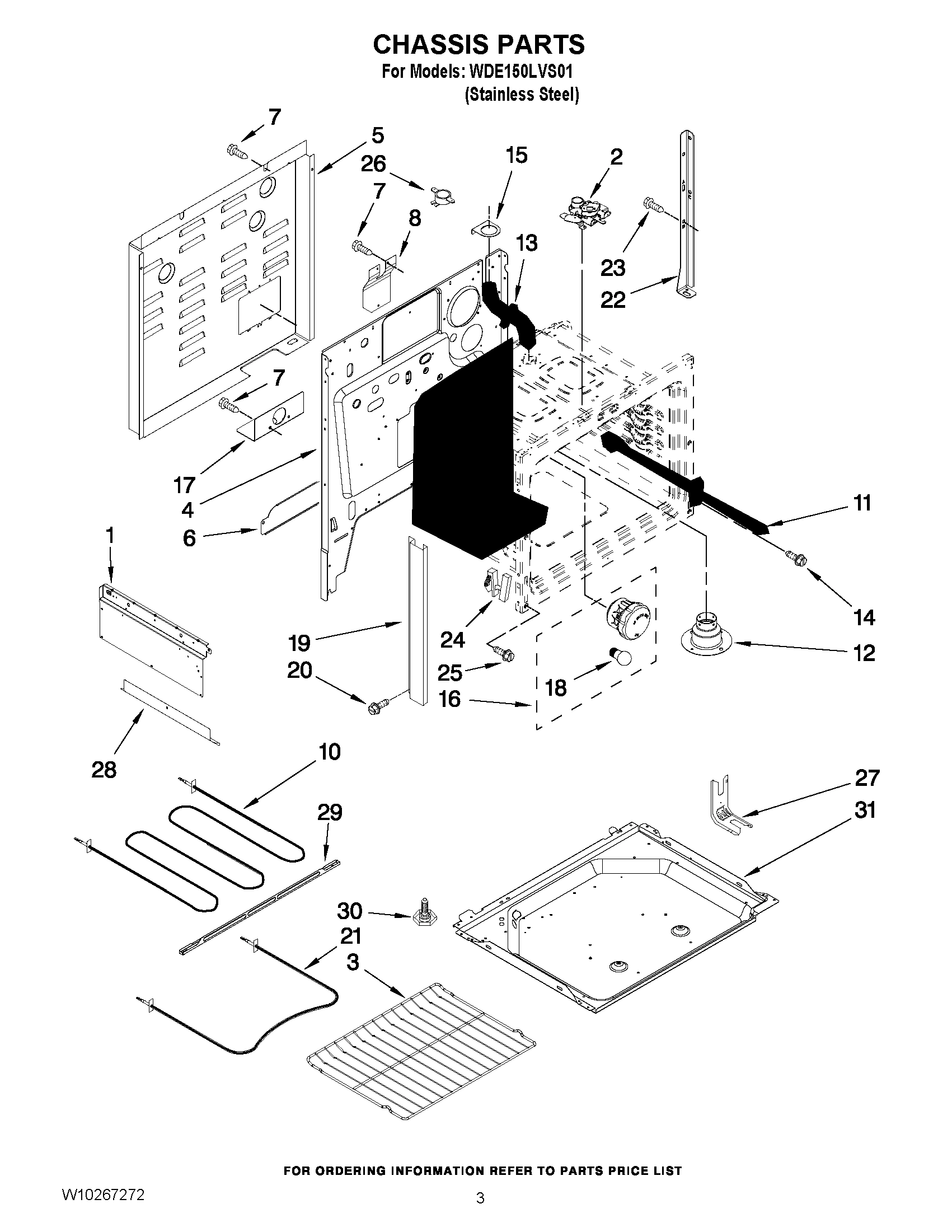

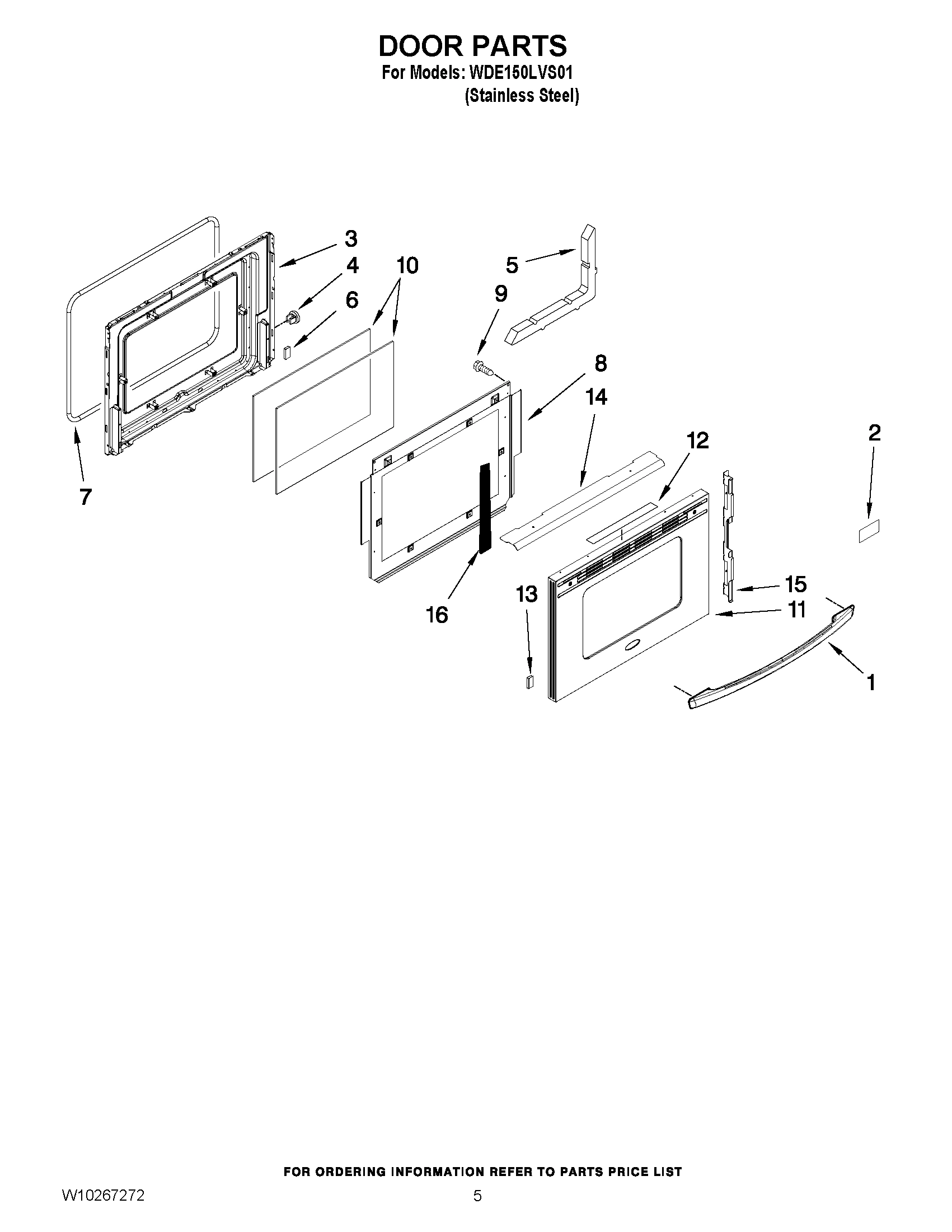

Model Whirlpool WDE150LVS01 30`` DROP-IN ELECTRIC RANGE – Common Parts &amp; Diagrams

1

Panel, Shield (Left) WPL 2618F20151 Contact Us For Availability

1

Panel, Shield (Right) WPL 2618F20651 Contact Us For Availability

1

Installation Instructions WPL 8101P33660 Contact Us For Availability

1

Use & Care Guide WPL W10175572 Contact Us For Availability

2

2002M200-09 Whirlpool Cooktop Backorder WPL 2002M200-09 $548.26

2

Latch Assembly WPL 74010897 Contact Us For Availability

2

PANEL, CONTROL (BLACK) WPL W10176434 Contact Us For Availability

2

NAMEPLATE WPL 3400981 Contact Us For Availability

3

Rack, Oven (2) WPL 7801P05460 Contact Us For Availability

3

Liner, Door WPL 2402W31219 Contact Us For Availability

3

KIT, HARDWARE WPL 8225P41260 Contact Us For Availability

4

Main Back WPL 3804F31351 Contact Us For Availability

4

Nut, Snap (4) WPL 7103P14160 Contact Us For Availability

4

Element (RF,LR) (Small) (2) WPL 7406P47560 Contact Us For Availability

4

Element (RF,LR) (Large) (2) WPL 7406P47660 Contact Us For Availability

5

Cover, Main Wire WPL 4005F81051 Contact Us For Availability

5

Insulation, Door WPL 7002P24760 Contact Us For Availability

5

Tube, Vent Upper WPL W10233479 Contact Us For Availability

6

Extension, Back WPL 3826F06651 Contact Us For Availability

6

Spacer, Rubber WPL 8010P13060 Contact Us For Availability

6

SCREW WPL 7101P42660 Contact Us For Availability

7

Seal, Door WPL 7201P14360 Contact Us For Availability

7

Bottom, Burner Box WPL 4011F37180 Contact Us For Availability

8

Insulator, Cord WPL 7003P10160 Contact Us For Availability

8

Baffle, Retainer WPL 3601F37360 Contact Us For Availability

8

Bowl, Drip (Small) (2) WPL 7725P05360 Contact Us For Availability

8

Bowl, Drip (Large) (2) WPL 7725P05460 Contact Us For Availability

9

Screw WPL 7101P38860 Contact Us For Availability

10

Element, Broil WPL 7406P21860 Contact Us For Availability

10

GLASS, INNER CLEAR WPL 7902P43660 Contact Us For Availability

10

GLASS, INNER (COATED) WPL 7902P76860 Contact Us For Availability

11

Sensor, Oven WPL 7430P04260 Contact Us For Availability

11

Panel, Oven Dr WPL 7760P24260 Contact Us For Availability

Light, Indicator WPL 7407P13660 Contact Us For Availability

Tube, Vent Lower WPL 8026P09660 Contact Us For Availability

INSULATION, FOIL (RIGHT) WPL 3801F83145 Contact Us For Availability

INSULATION, FOIL (LEFT) WPL 3801F83245 Contact Us For Availability

Insulation, Foil WPL 7002P46360 Contact Us For Availability

13

Tube, Vent Upper WPL 8026P08560 Contact Us For Availability

13

Clip, Glass WPL 7112P03460 Contact Us For Availability

14

Shield, Door WPL 3604F41851 Contact Us For Availability

14

SHIELD, DOOR (BLACK, RIGHT) WPL 3608F11670 Contact Us For Availability

14

SHIELD, DOOR (BLACK, LEFT) WPL 3608F11770 Contact Us For Availability

15

Holder, Vent Tube WPL 3605F34551 Contact Us For Availability

15

Retainer, Glass WPL 3804F29345 Contact Us For Availability

16

Light Assembly WPL 7407P18260 Contact Us For Availability

16

Bracket, Glass WPL 3801F88651 Contact Us For Availability

17

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.71

18

BULB-OVEN WPL 7407P10360 Contact Us For Availability

19

TRIM, SIDE (R.SIDE) WPL 74011199 Contact Us For Availability

19

TRIM, SIDE (L.SIDE) WPL 74011201 Contact Us For Availability

21

Element, Bake WPL 7406P43960 Contact Us For Availability

22

SUPPORT, OVEN (REAR) WPL 3807F73251 Contact Us For Availability

23

Screw WPL 7101P43460 Contact Us For Availability

24

Hinge (2) WPL 7106P14160 Contact Us For Availability

25

Screw, Hinge (4) WPL 7101P28260 Contact Us For Availability

26

Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability

27

BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability

28

Extention, Shield WPL 3826F06451 Contact Us For Availability

29

Support, Element WPL 3807F49445 Contact Us For Availability

30

Leg, Leveling WPL 7101P50760 Contact Us For Availability

31

Retainer, Bottom WPL 4003F06751 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W10183559 Whirlpool Wire Harness Backorder WPL W10183559 $110.56

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

Harness, Sensor WPL 5171P54060 Contact Us For Availability

U3, Harness (RT) WPL 5171P55660 Contact Us For Availability

Coil, Harness (Lt) WPL 5171P56560 Contact Us For Availability

Harness, Top WPL 5171P57460 Contact Us For Availability

Conduit (Flx Cbl) WPL 5700P82260 Contact Us For Availability

REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability

Clip, Wire WPL 8019P01360 Contact Us For Availability

Insulation, Back WPL 7002P45660 Contact Us For Availability

Insulation, Wrap WPL 7002P47160 Contact Us For Availability
