Model Whirlpool WDE150LVQ01 30`` DROP-IN ELECTRIC RANGE – Common Parts & Diagrams

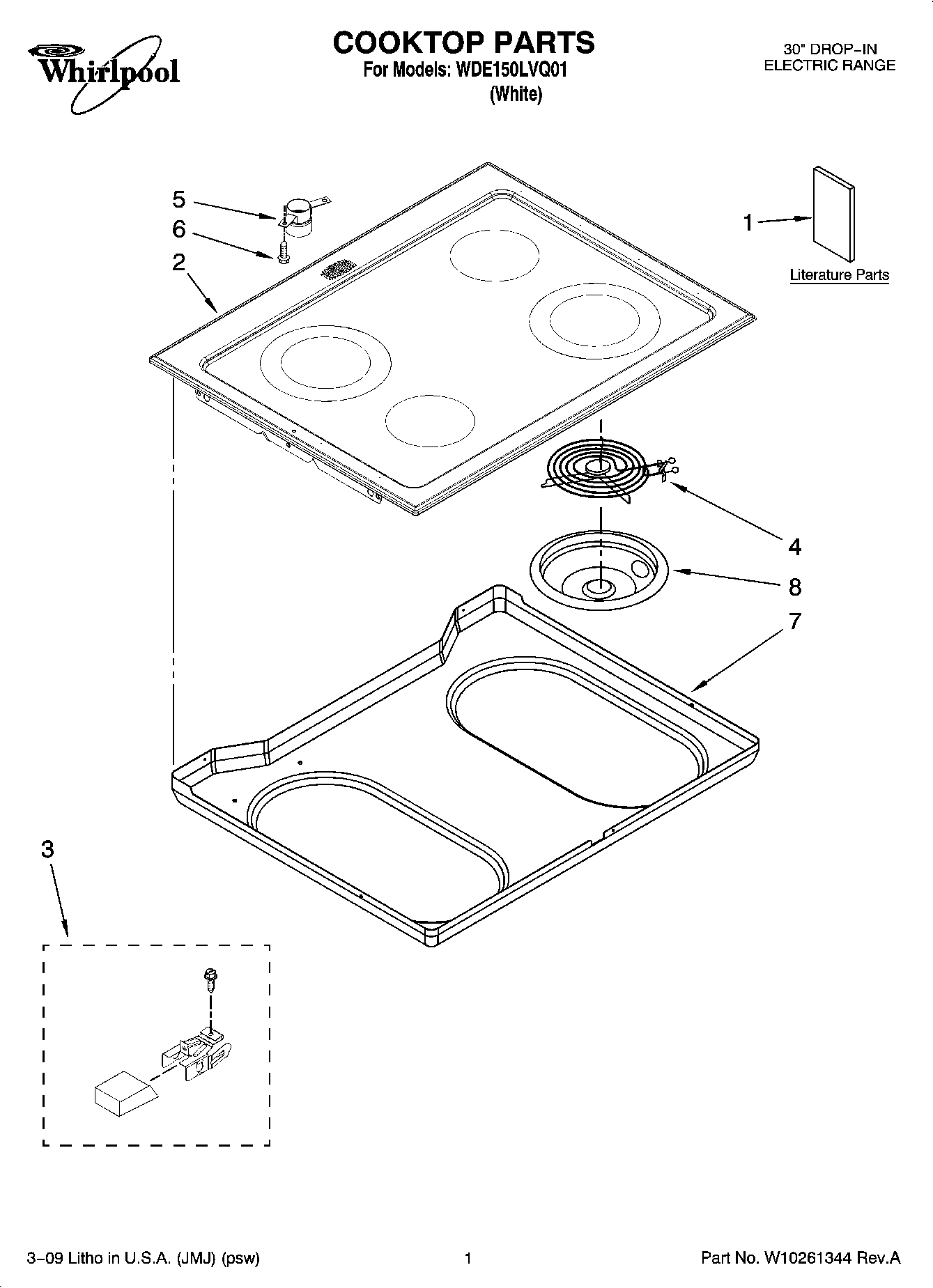

01 - COOKTOP PARTS

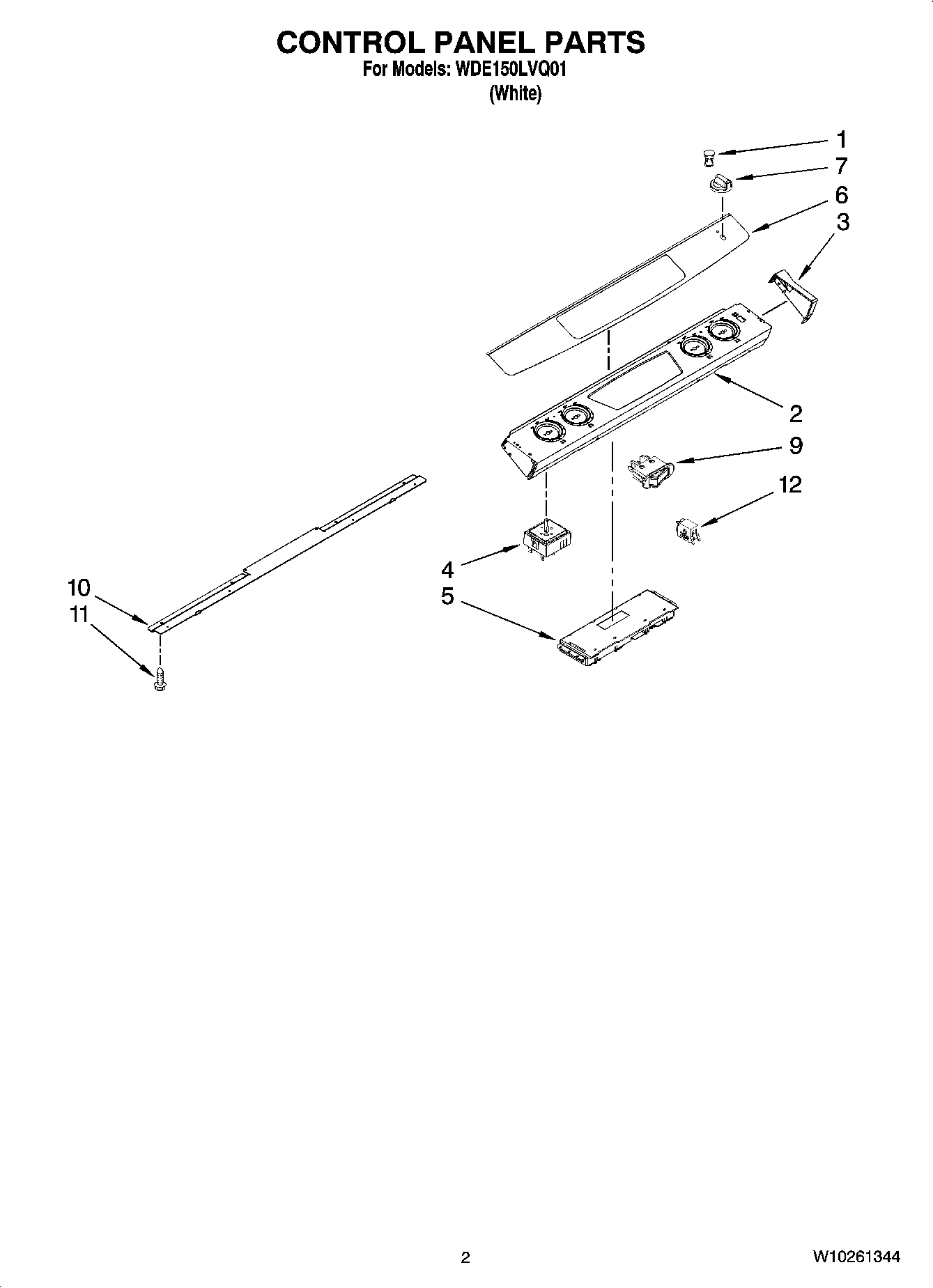

02 - CONTROL PANEL PARTS

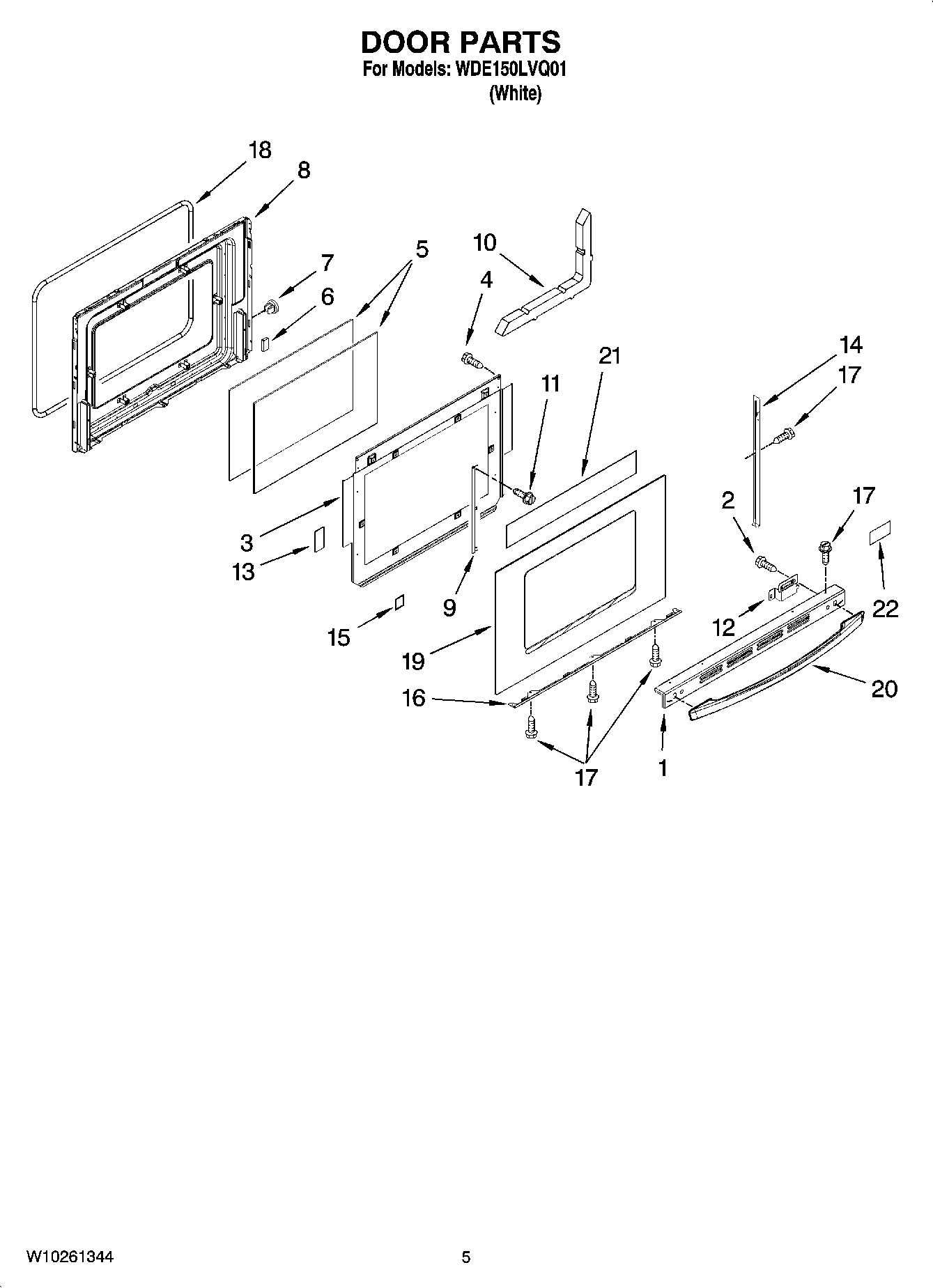

04 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)

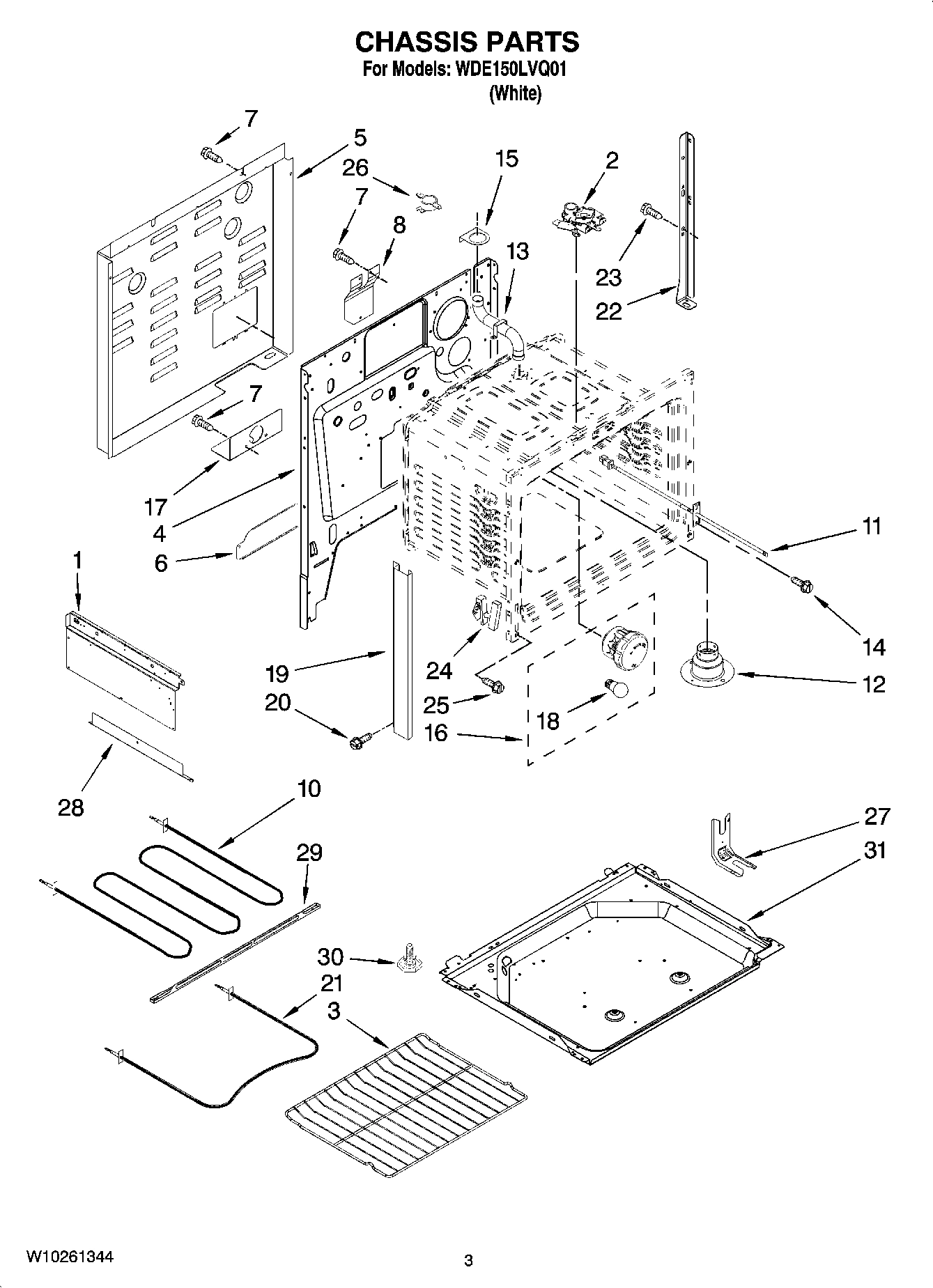

03 - CHASSIS PARTS
Common parts from model Whirlpool WDE150LVQ01 30`` DROP-IN ELECTRIC RANGE
Cleaner, Glass WPL W10355051 No Longer Available
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Grease WPL 261582 Contact Us For Availability
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
Harness, Sensor WPL 5171P54060 Contact Us For Availability
U3, Harness (RT) WPL 5171P55660 Contact Us For Availability
Coil, Harness (Lt) WPL 5171P56560 Contact Us For Availability
Harness, Top WPL 5171P57460 Contact Us For Availability
Conduit (Flx Cbl) WPL 5700P82260 Contact Us For Availability
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
Clip, Wire WPL 8019P01360 Contact Us For Availability
Parts Not Illustrated and Optional Parts (Not WPL ARI134750A Contact Us For Availability
REFINISHING MATERIAL WPL ARI134751A Contact Us For Availability
Insulation WPL ARI134752A Contact Us For Availability
ACCESSORY PARTS WPL ARI134753A Contact Us For Availability
WIRING HARNESS PARTS WPL ARI134754A Contact Us For Availability
Insulation, Oven Bottom WPL 7002P45660 Contact Us For Availability
Insulation, Wrap WPL 7002P47160 Contact Us For Availability
Insulation WPL ARI134749A Contact Us For Availability
1
Trim, Door Top WPL 3608F14161 Contact Us For Availability
1
Panel, Shield (Left) WPL 2618F20151 Contact Us For Availability
1
Panel, Shield (Right) WPL 2618F20651 Contact Us For Availability
2
Panel, Control (White) WPL W10159606 Contact Us For Availability
2
Screw, Handle (2) WPL 7101P20860 Contact Us For Availability
2
Latch Assembly WPL 8002P09360 Contact Us For Availability
3
Endcap (L.Hand) WPL 7726P33360 Contact Us For Availability
3
Baffle, Retainer WPL 3601F37351 Contact Us For Availability
3
Rack, Oven (2) WPL 7801P05460 Contact Us For Availability
4
Switch, Infinte (8`` (RF,LR)) WPL 7403P37260 Contact Us For Availability
4
SWITCH, INFINTE 6`` (LF,RR) WPL 7403P37360 Contact Us For Availability
4
Screw 8AB 1/2 WPL 7101P37660 Contact Us For Availability
4
Main Back WPL 3804F31351 Contact Us For Availability
5
Control WPL 8507P24060 Contact Us For Availability
5
Glass, Inner (2) WPL 7902P43660 Contact Us For Availability
5
Cover, Main Wire WPL 4005F81051 Contact Us For Availability
6
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
6
Extension, Back WPL 3826F06651 Contact Us For Availability
7
Knob (4) WPL 7737P41560 Contact Us For Availability
7
Nut, Snap (4) WPL 7103P14160 Contact Us For Availability
8
Lining, Door WPL 2402W31219 Contact Us For Availability
8
Insulator, Cord WPL 7003P10160 Contact Us For Availability
9
Switch, Rocker WPL 7403P79960 Contact Us For Availability
9
Bracket, Glass (2) WPL 3801F88651 Contact Us For Availability
10
Support, Control Panel WPL 3807F60151 Contact Us For Availability
10
Insulation, Door WPL 7002P24660 Contact Us For Availability
10
Element, Broil WPL 7406P21860 Contact Us For Availability
11
SCREW WPL 7101P42660 Contact Us For Availability
11
Sensor, Oven WPL 7430P04260 Contact Us For Availability
12
Light, Indicator WPL 7407P13660 Contact Us For Availability
12
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
12
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
12
Tube, Vent Lower WPL 8026P09660 Contact Us For Availability
13
Tape, White WPL W10250536 Contact Us For Availability
13
Tube, Vent Upper WPL 8026P08560 Contact Us For Availability
14
Trim, Door Side (White, Right) WPL 3608F11671 Contact Us For Availability
14
Trim, Door Side (White, Left) WPL 3608F11771 Contact Us For Availability
15
Spacer, Rubber WPL 8010P15260 Contact Us For Availability
15
Holder, Vent Tube WPL 3605F34551 Contact Us For Availability
16
Trim, Door Bottom WPL 3807F70871 Contact Us For Availability
16
Light Assembly WPL 7407P18260 Contact Us For Availability
17
Screw, Trim WPL 7101P63660 Contact Us For Availability
17
Bracket, Power Supply WPL 3801F57451 Contact Us For Availability
18
BULB-OVEN WPL 7407P10360 Contact Us For Availability
19
Glass, Door (Order Items 13 & 21 When Replaci WPL 7902P81460 Contact Us For Availability
19
Trim, Side (R.Side) WPL 3608F12871 Contact Us For Availability
19
Trim, Side (L.Side) WPL 3608F13071 Contact Us For Availability
21
Tape, Foil WPL W10250534 Contact Us For Availability
21
Element, Bake WPL 7101P43960 Contact Us For Availability
22
Nameplate, Logo WPL 8303811 Contact Us For Availability
22
SUPPORT, OVEN (REAR) WPL 3807F73251 Contact Us For Availability
23
Screw WPL 7101P43460 Contact Us For Availability
24
Hinge (2) WPL 7106P14160 Contact Us For Availability
25
Screw, Hinge (4) WPL 7101P28260 Contact Us For Availability
26
Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability
27
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
28
Extension, Shield WPL 3826F06451 Contact Us For Availability
29
Support, Element WPL 3807F49445 Contact Us For Availability
30
Leg, Leveling WPL 7101P50760 Contact Us For Availability
31
Retainer, Bottom WPL 4003F06751 Contact Us For Availability
× ![]()
