Model Whirlpool WDE101LVQ01 30`` DROP-IN ELECTRIC RANGE – Common Parts & Diagrams

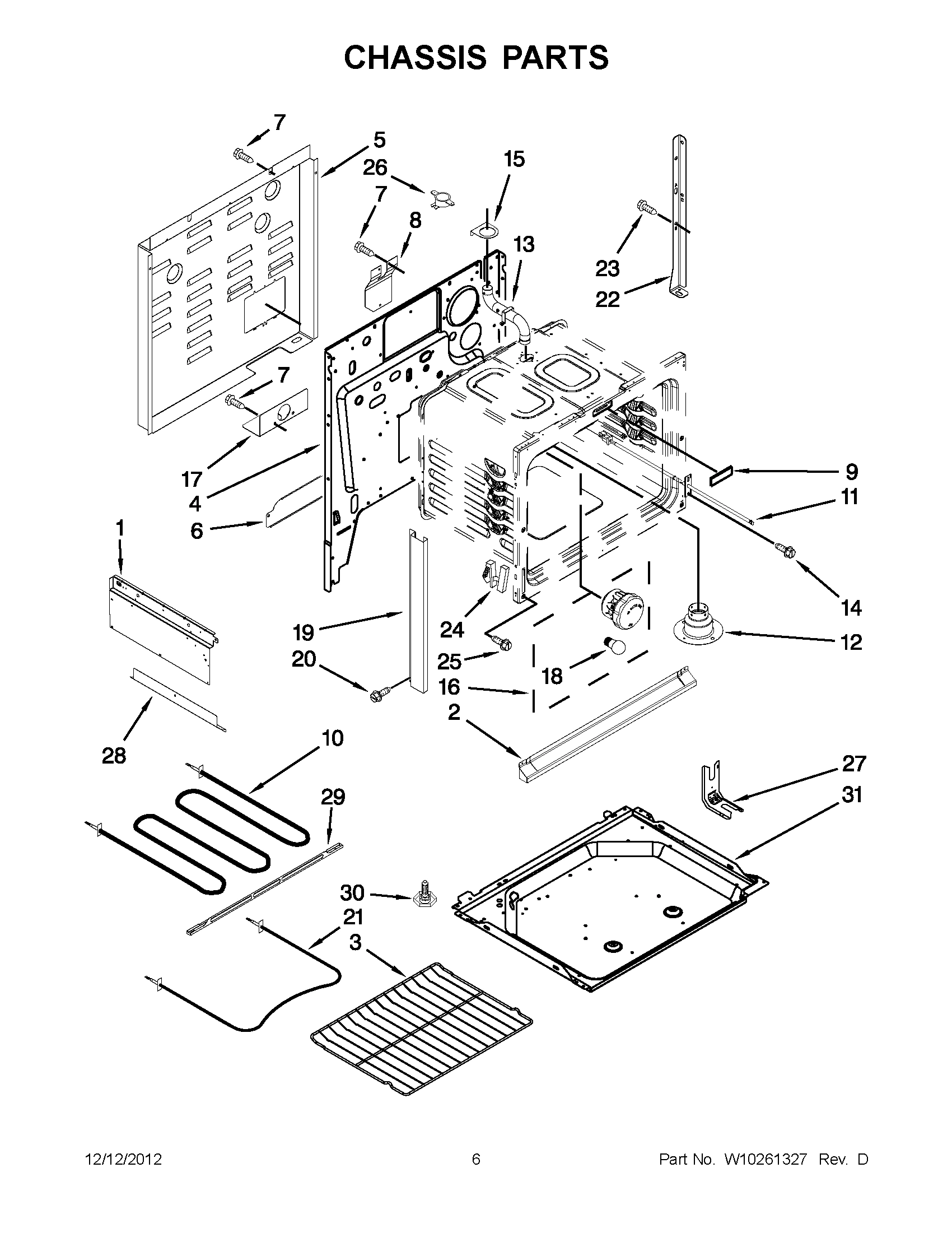

03 - CHASSIS PARTS

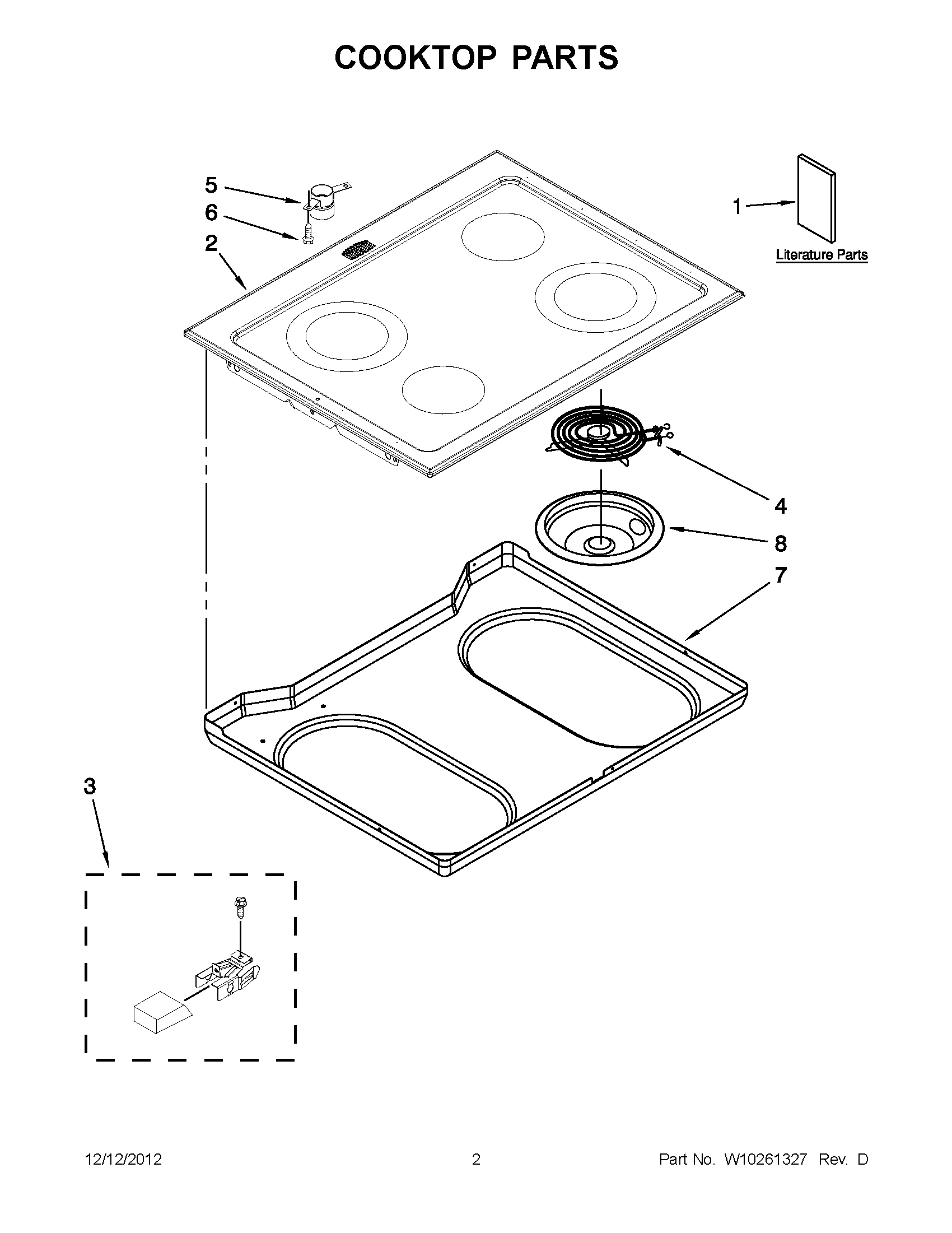

01 - COOKTOP PARTS

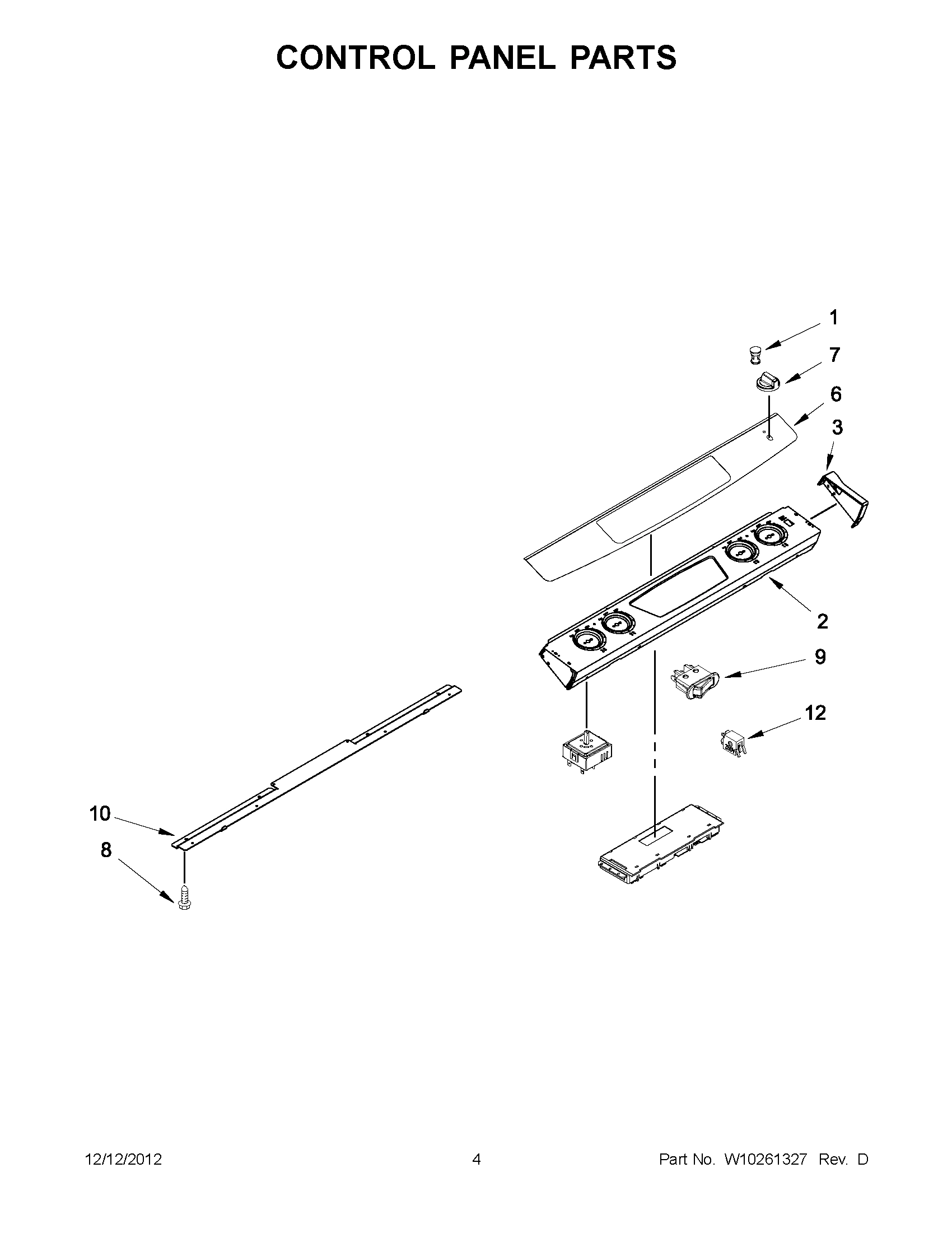

02 - CONTROL PANEL PARTS
05 - OPTIONAL PARTS

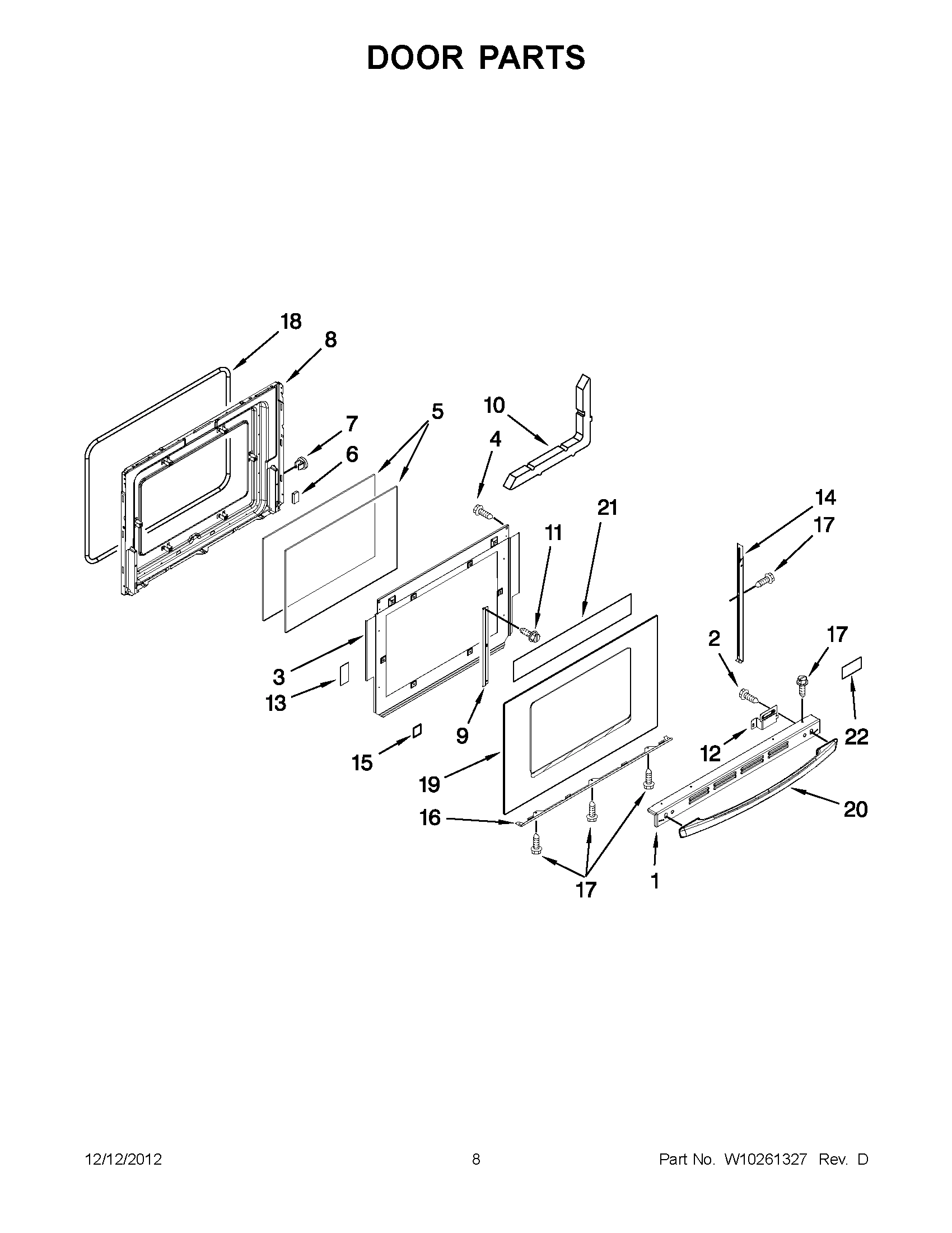

04 - DOOR PARTS
Common parts from model Whirlpool WDE101LVQ01 30`` DROP-IN ELECTRIC RANGE
1
Installation Instructions WPL 8101P33660 Contact Us For Availability
1
Use & Care Guide WPL W10175572 Contact Us For Availability
1
LENS, INDICATOR WPL 7730P01160 Contact Us For Availability
1
Trim, Door Top WPL 3608F14161 Contact Us For Availability
2
Panel, Control (White) WPL W10159606 Contact Us For Availability
2
Cooktop (White) WPL 2002W20081 Contact Us For Availability
2
SCREW WPL 7101P20860 Contact Us For Availability
3
Kit, Hardware WPL 5701A24360 Contact Us For Availability
3
ENDCAP, RIGHT WPL 7726P33260 Contact Us For Availability
3
ENDCAP, LEFT WPL 7726P33360 Contact Us For Availability
3
BAFFLE, OVEN DOOR WINDOW WPL 3601F37351 Contact Us For Availability
4
ELEMENT, SMALL 1250W WPL 7406P47560 Contact Us For Availability
4
ELEMENT, LARGE 2100W WPL 7406P47660 Contact Us For Availability
4
SWITCH, INFINITE (LEFT REAR & RIGHT FRONT) WPL 7403P37260 Contact Us For Availability
4
SWITCH, INFINITE (LEFT FRONT & RIGHT REAR) WPL 7403P37360 Contact Us For Availability
4
Screw WPL 7101P37660 Contact Us For Availability
5
VENT TUBE WPL 8026P08560 Contact Us For Availability
5
GLASS, INNER WPL 7902P43660 Contact Us For Availability
6
Overlay WPL W10178992 Contact Us For Availability
6
RUBBER SPACER WPL 8010P13060 Contact Us For Availability
7
Bottom, Burner Box WPL 4011F37180 Contact Us For Availability
7
KNOBS (WHITE) WPL 7737P41560 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
8
BOWL, DRIP (SMALL) WPL 7725P05360 Contact Us For Availability
8
BOWL, DRIP (LARGE) WPL 7725P05460 Contact Us For Availability
8
Lining, Door WPL 2402W31319 Contact Us For Availability
9
WHITE WPL 7403P79960 Contact Us For Availability
9
Bracket, Glass WPL 3801F88651 Contact Us For Availability
10
Support, Control Panel WPL 3807F60151 Contact Us For Availability
10
INSULATION, OVEN DOOR WPL 7002P24660 Contact Us For Availability
11
SCREW WPL 7101P42660 Contact Us For Availability
12
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
12
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
13
Tape, White WPL W10250536 Contact Us For Availability
14
Trim, Door Side (Right) WPL 3608F11671 Contact Us For Availability
14
Trim, Door Side (Left) WPL 3608F11771 Contact Us For Availability
15
SPACER, RUBBER (1/8 X 1/2 X 1/2) WPL 8010P15260 Contact Us For Availability
16
Trim, Door Bottom WPL 3807F70871 Contact Us For Availability
17
SCREW WPL 7101P63660 Contact Us For Availability
18
SEAL, OVEN DOOR WPL 7212P04360 Contact Us For Availability
19
GLASS, DOOR WPL 7902P81460 Contact Us For Availability
21
Element, Bake WPL 7406P43960 Contact Us For Availability
21
Tape, Foil WPL W10250534 Contact Us For Availability
22
BADGE WPL 8303811 Contact Us For Availability
22
SUPPORT, OVEN (REAR) WPL 3807F73251 Contact Us For Availability
23
Screw WPL 7101P43460 Contact Us For Availability
24
HINGE WPL 7106P13160 Contact Us For Availability
25
Screw WPL 7101P28260 Contact Us For Availability
26
Switch, Hi-Limit WPL 7450P03460 Contact Us For Availability
27
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
28
EXTENSION, HEAT SHIELD WPL 3826F06451 Contact Us For Availability
29
SUPPORT, BROIL ELEMENT WPL 3807F49445 Contact Us For Availability
30
FOOT, LEVELER WPL 7101P50760 Contact Us For Availability
31
Retainer, Bottom WPL 4003F06751 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER WPL W10355016 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER WPL W10355010 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL (18`` X 25`) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability
NI
Insulation, Back WPL 7002P45660 Contact Us For Availability
NI
INSULATION, OVEN WRAP WPL 7002P47160 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) WPL 4392900 Contact Us For Availability
NI

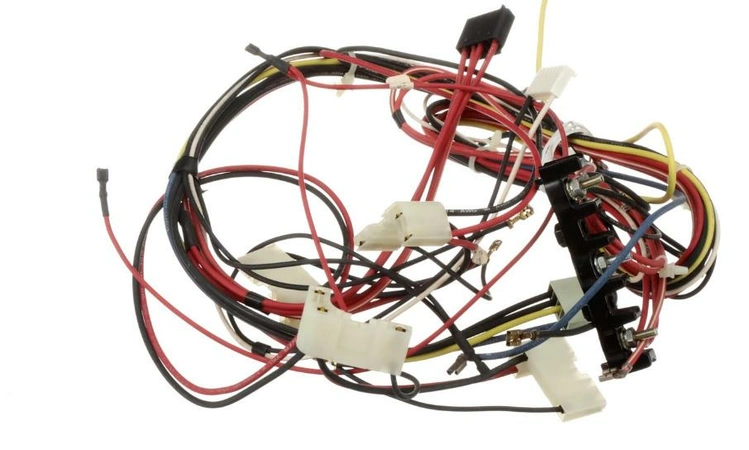

WIRING HARNESS PARTS, HARNESS, SENSOR WPL 5171P54060 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, TOP RIGHT WPL 5171P55660 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, TOP LEFT WPL 5171P56560 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, TOP WPL 5171P57460 Contact Us For Availability
NI
WIRING HARNESS PARTS, CABLE ASSEMBLY, FLEX WPL 5700P82260 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE LOCK WPL 8019P01360 Contact Us For Availability
× ![]()
