Model Whirlpool WCZ1050W WASHER – Common Parts & Diagrams

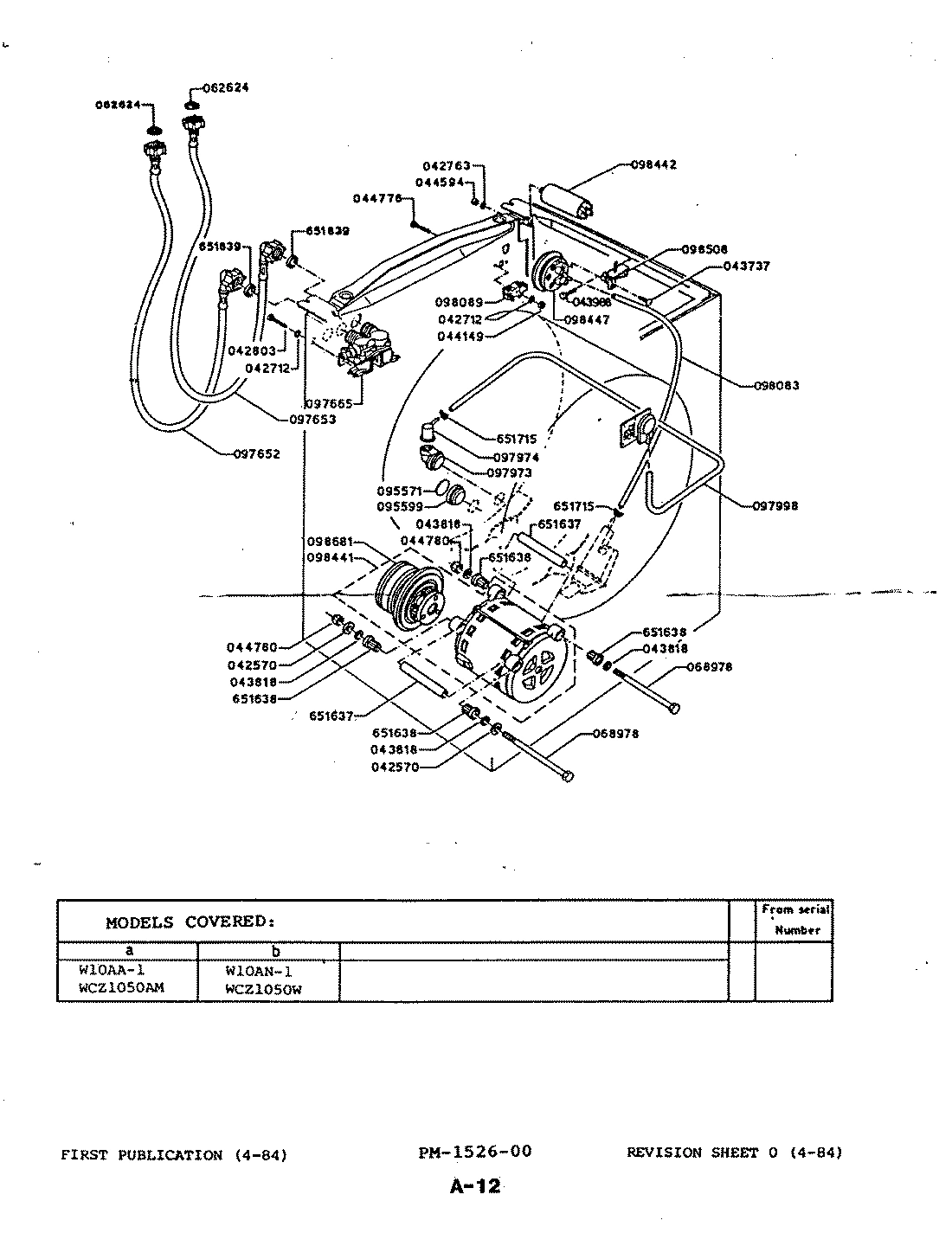

05 - MOTOR & WATER VALVE

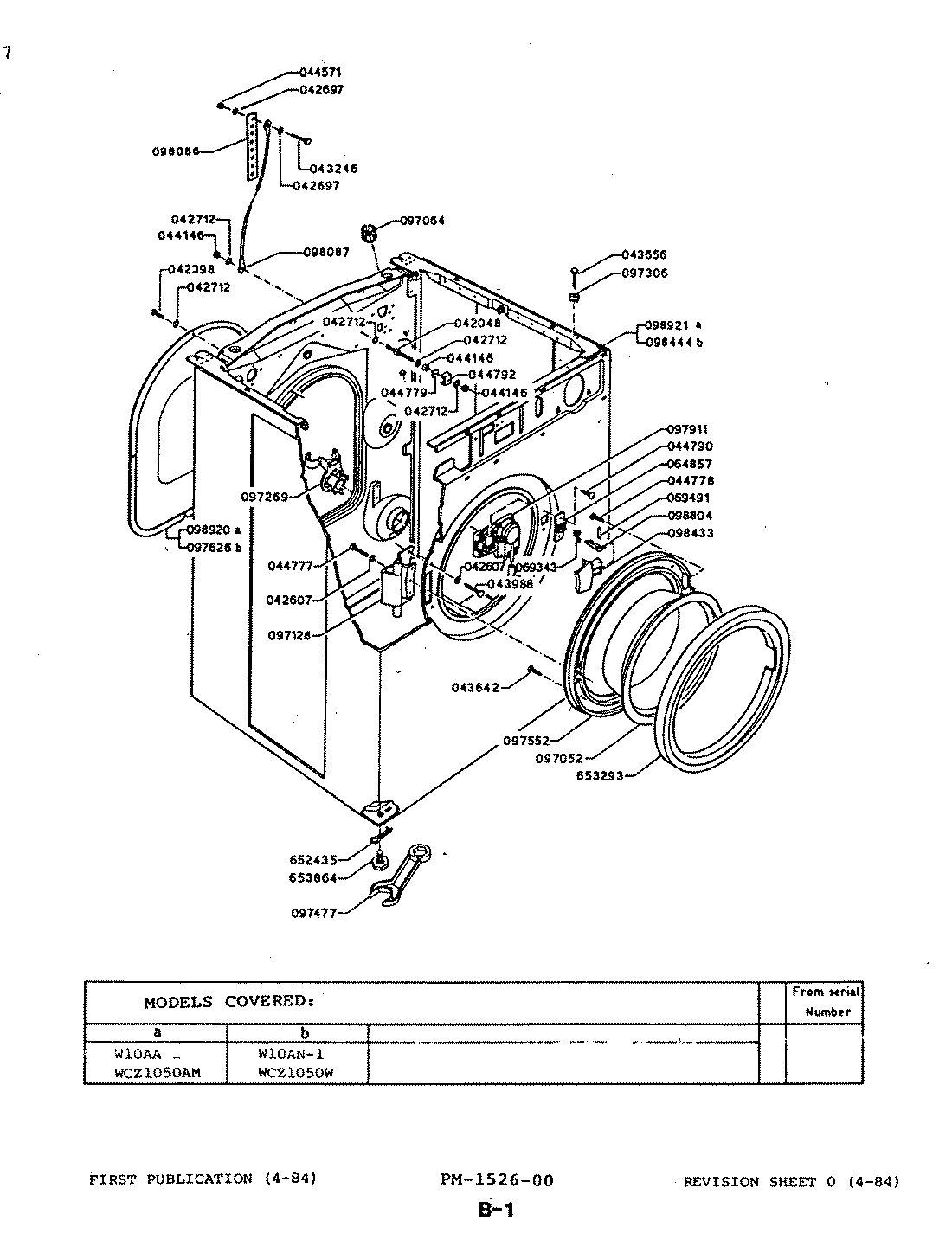

01 - CABINET & DOOR

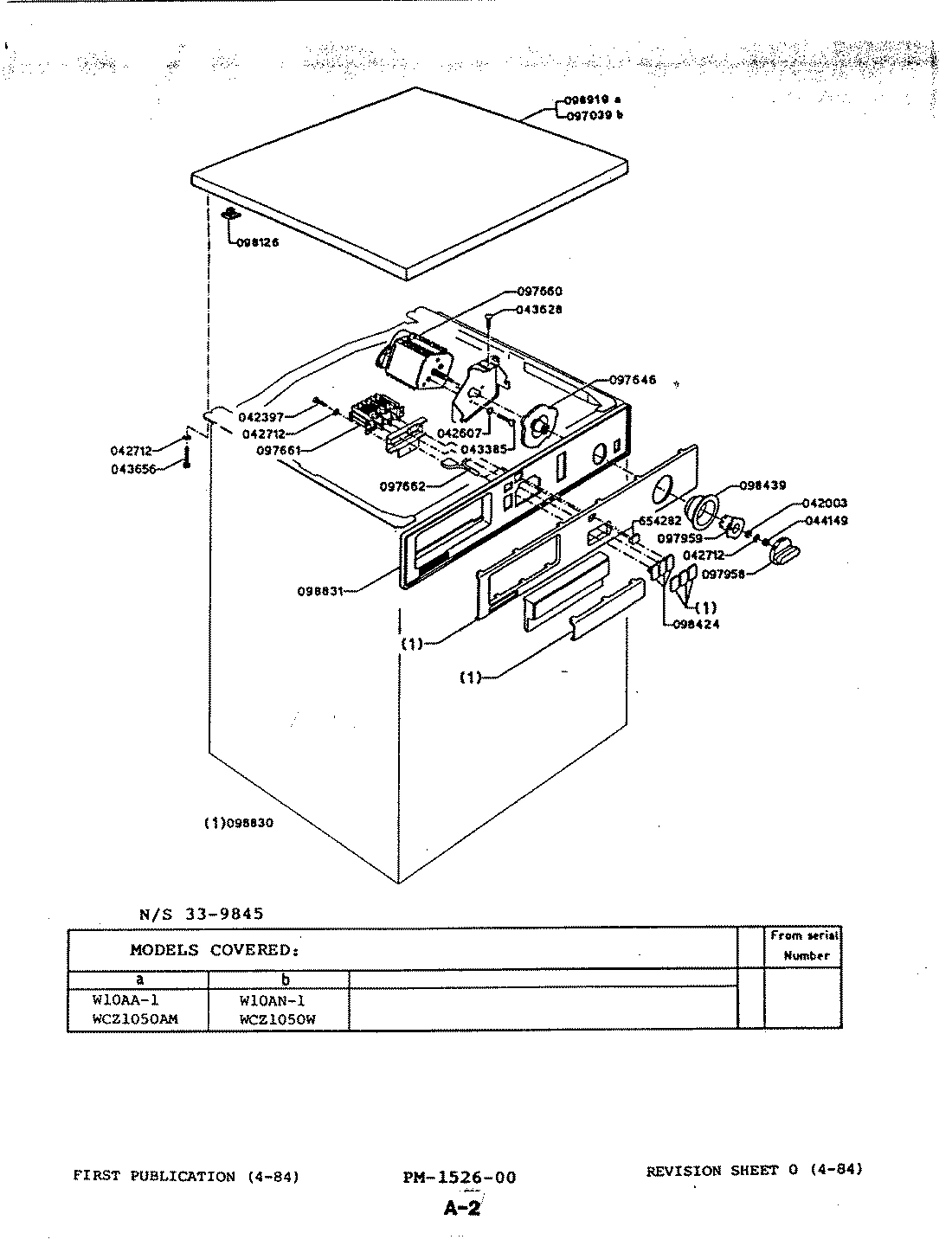

02 - CONTROL PANEL

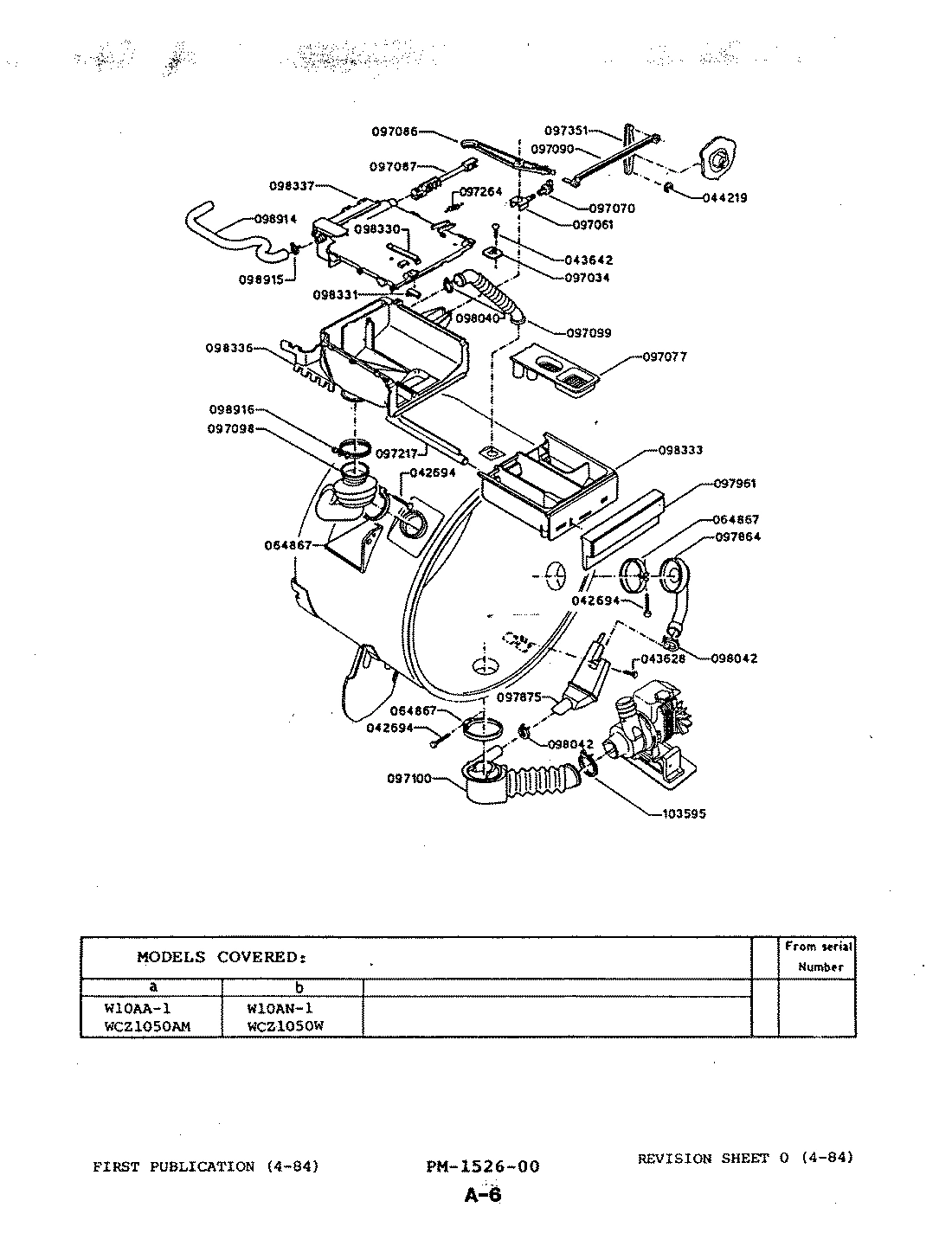

04 - DISPENSER

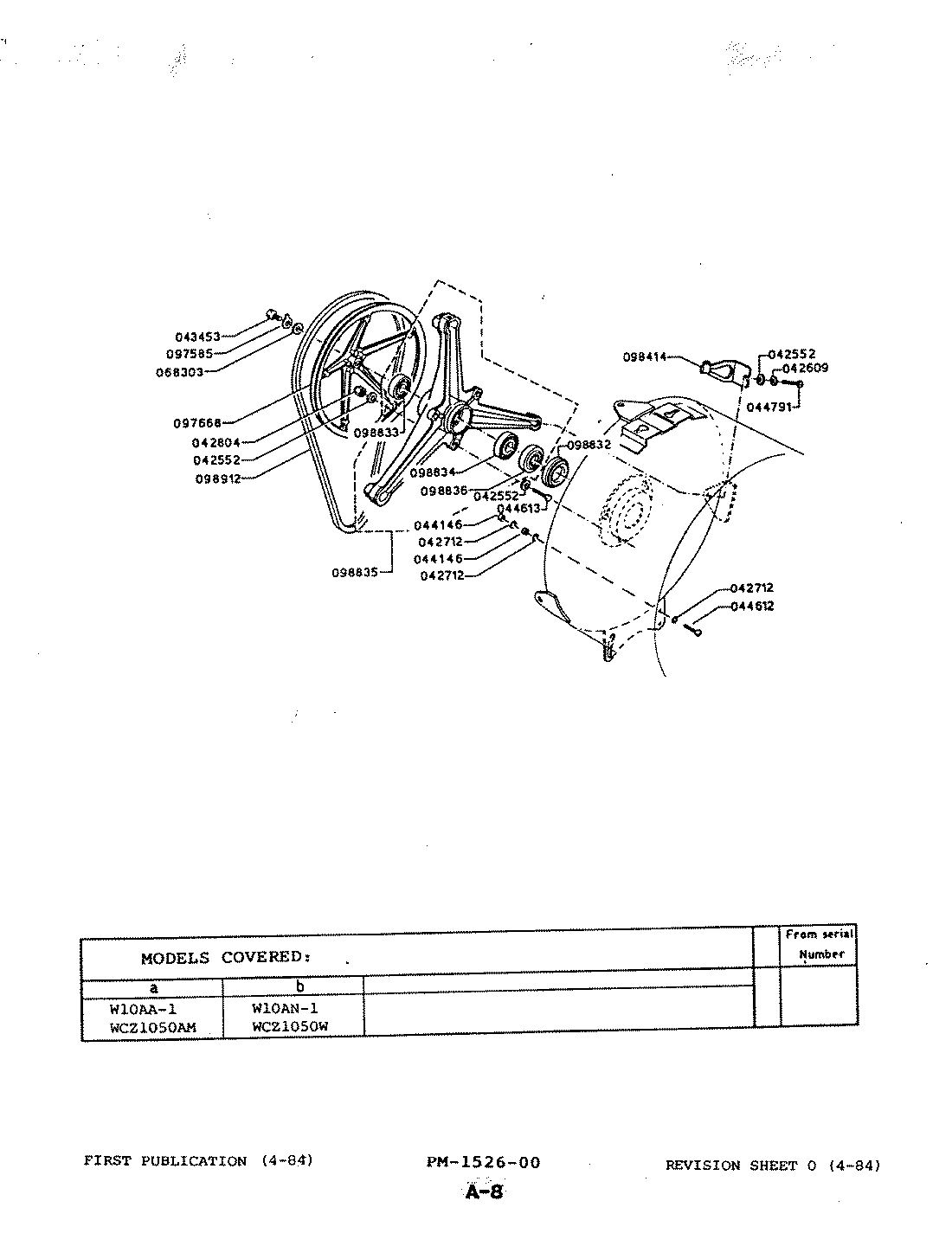

06 - PULLEY

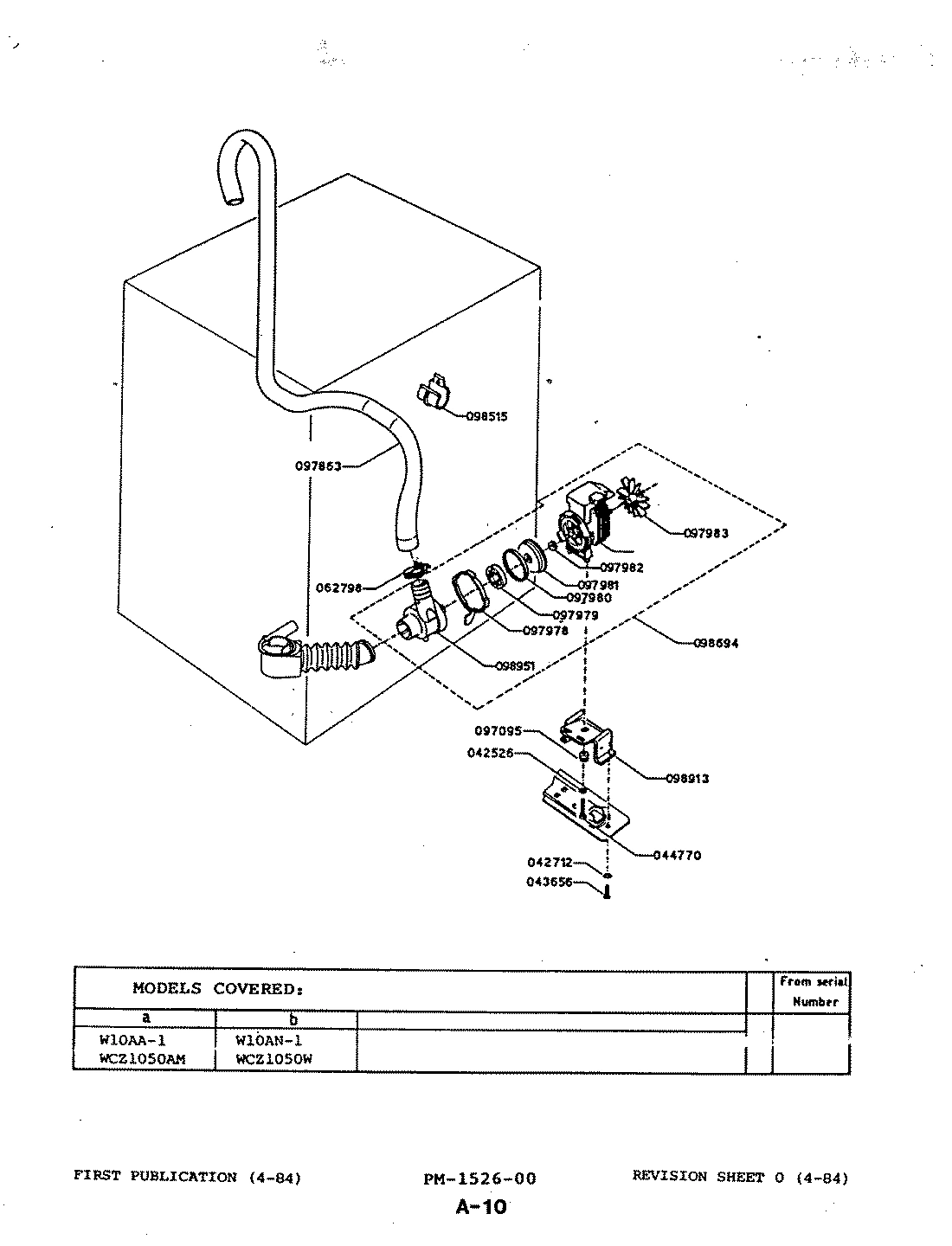

07 - PUMP ASSY.

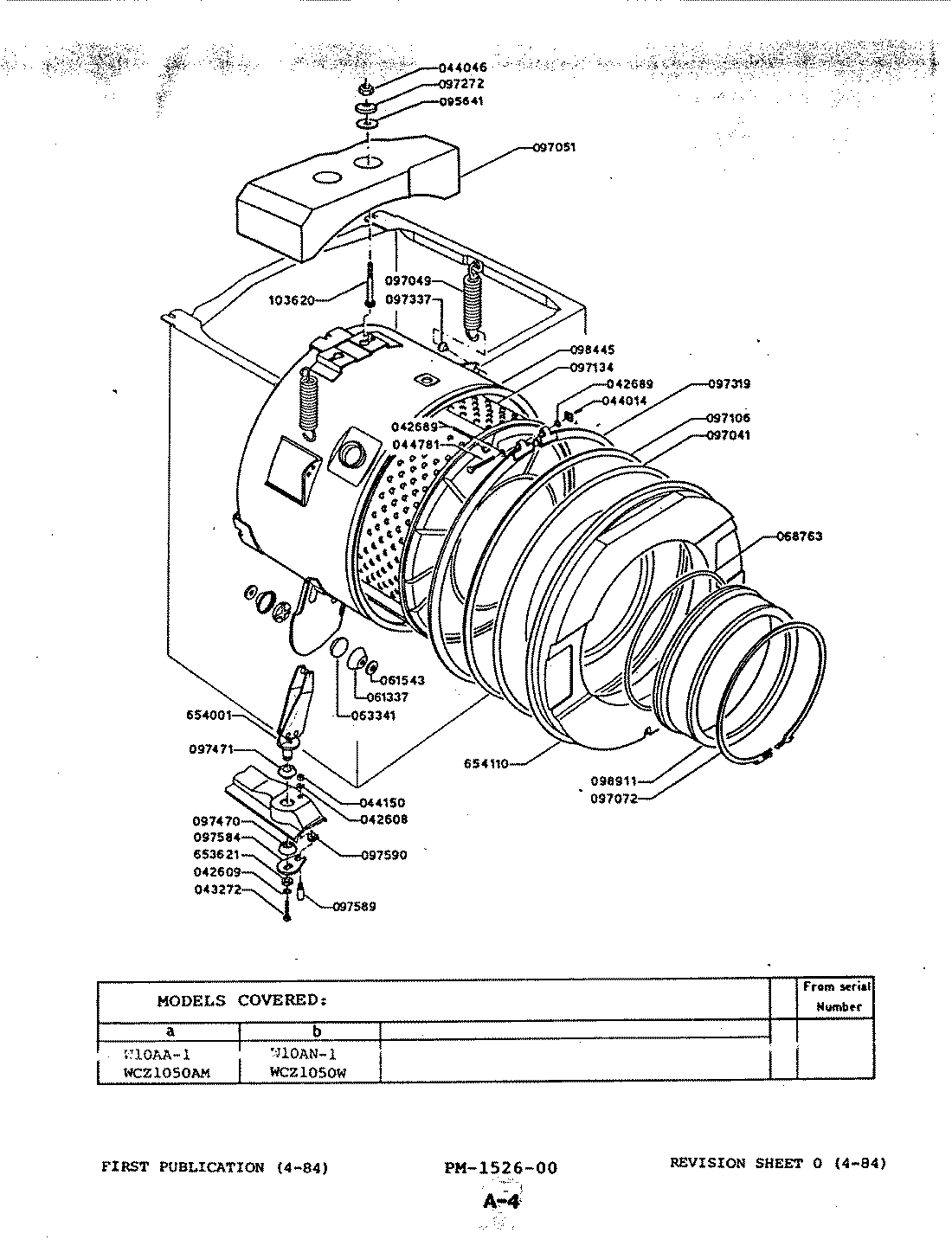

03 - CYLINDER
Common parts from model Whirlpool WCZ1050W WASHER
1
FLAT WASHER WPL Y042570 Contact Us For Availability
1
SCREW WPL 042048 Contact Us For Availability
1
FLAT WASHER WPL 042003 Contact Us For Availability
1
SCREW WPL 042694 Contact Us For Availability
1
FLAT WASHER WPL 042552 Contact Us For Availability
1
FLAT WASHER WPL 042526 Contact Us For Availability
1
WASHER WPL 042608 Contact Us For Availability
2
LOCKWASHER WPL 042712 Contact Us For Availability
2
SCREW WPL 042398 Contact Us For Availability
2
SCREW WPL 042397 Contact Us For Availability
2
SCREW WPL 043628 Contact Us For Availability
2
WASHER WPL 042609 Contact Us For Availability
3
LOCKWASHER WPL 042763 Contact Us For Availability
3
WASHER WPL 042607 Contact Us For Availability
3
SCREW WPL Y043642 Contact Us For Availability
3
SCREW WPL 043656 Contact Us For Availability
3
FLAT WASHER WPL 042689 Contact Us For Availability
4
SCREW WPL 042803 Contact Us For Availability
4
LOCKWASHER WPL 042697 Contact Us For Availability
4
RING WPL 044219 Contact Us For Availability
4
NUT WPL 042804 Contact Us For Availability
4
SCREW WPL 044770 Contact Us For Availability
4
HEX HD BOLT WPL 043272 Contact Us For Availability
5
SCREW WPL 043737 Contact Us For Availability
5
SCREW WPL 043385 Contact Us For Availability
5
HOSE CLAMP WPL 064867 Contact Us For Availability
5
SET SCREW WPL 043453 Contact Us For Availability
5
CLAMP WPL 062798 Contact Us For Availability
5
NUT WPL 044014 Contact Us For Availability
6
FLAT WASHER WPL 043818 Contact Us For Availability
6
BOLT WPL 043246 Contact Us For Availability
6
NUT WPL 044146 Contact Us For Availability
6
MTG CLIP WPL 097034 Contact Us For Availability
6
PUMP MTG GROMET WPL 097095 Contact Us For Availability
6
NUT WPL 044046 Contact Us For Availability
7
MTG BRKT WPL 097061 Contact Us For Availability
7
SCREW WPL 044612 Contact Us For Availability
7
MAIN OUTLT HOSE WPL 097863 Contact Us For Availability
7
NUT WPL 044150 Contact Us For Availability
8
NUT WPL 044149 Contact Us For Availability
8
AD KNOB WPL 097070 Contact Us For Availability
8
SCREW WPL 044613 Contact Us For Availability
8
PUMP LOCK RING WPL 097978 Contact Us For Availability
8
SCREW WPL 044781 Contact Us For Availability
9
SCREW WPL 043988 Contact Us For Availability
9
NUT WPL 044594 Contact Us For Availability
9
TOP WPL 097039 Contact Us For Availability
9
RINSE FILTER WPL 097077 Contact Us For Availability
9
SCREW WPL 044791 Contact Us For Availability
9
PUMP IMPELLER WPL 097979 Contact Us For Availability
9
SUPPORT PAD WPL 061337 Contact Us For Availability
10
BOLT WPL 044776 Contact Us For Availability
10
CAM WPL 097646 Contact Us For Availability
10
PISTON LEVER WPL 097086 Contact Us For Availability
10
END WPL 068303 Contact Us For Availability
10
PUMP GASKET WPL 097980 Contact Us For Availability
10
SPACER WASHER WPL 061543 Contact Us For Availability
11
NUT WPL 044780 Contact Us For Availability
11
NUT WPL 044571 Contact Us For Availability
11
TIMER WPL 097660 Contact Us For Availability
11
PISTON WPL 097087 Contact Us For Availability
11
SAFETY RING WPL 097585 Contact Us For Availability
11
BASE & GASKET WPL 097981 Contact Us For Availability
11
PAD WPL 063341 Contact Us For Availability
12
FILTER WPL 062624 Contact Us For Availability
12
SCREW WPL 044777 Contact Us For Availability
12
KEYBOARD WPL 097661 Contact Us For Availability
12
LEVER EXT WPL 097090 Contact Us For Availability
12
PULLEY WPL 097668 Contact Us For Availability
12
GASKET WPL 097982 Contact Us For Availability
12
GASKET SPRING WPL 068763 Contact Us For Availability
13
MOTOR MTG SCREW WPL 068978 Contact Us For Availability
13
WARNING LIGHT WPL 097662 Contact Us For Availability
13
DETERGENT HOSE WPL 097098 Contact Us For Availability
13
HOSE SUPPORT WPL 098414 Contact Us For Availability
13
FAN BLADE WPL 097983 Contact Us For Availability
13
WASHER WPL 095641 Contact Us For Availability
14
PLUG WPL 095571 Contact Us For Availability
14
NUT WPL 044779 Contact Us For Availability
14
TIMR KNOB COVER WPL 097958 Contact Us For Availability
14
EXHAUST HOSE WPL 097099 Contact Us For Availability
14
GASKET TRIM WPL 098832 Contact Us For Availability
14
HOSE CLAMP WPL 098515 Contact Us For Availability
14
FRNT TUB FLANGE WPL 097041 Contact Us For Availability
15
GASKET WPL 095599 Contact Us For Availability
15
SCREW WPL Y044790 Contact Us For Availability
15
TIMER KNOB WPL Y097959 Contact Us For Availability
15
CONNECTION PIPE WPL 097100 Contact Us For Availability
15
BEARING WPL 098833 Contact Us For Availability
15
DISCHARGE PUMP WPL 098694 Contact Us For Availability
15
TUB SUSP SPRING WPL 097049 Contact Us For Availability
16
CLAMP WPL 044792 Contact Us For Availability
16
LID BACK PIECE WPL 098126 Contact Us For Availability
16
SLIDE RAIL WPL 097217 Contact Us For Availability
16
BEARING WPL 098834 Contact Us For Availability
16
PUMP BRACKET WPL Y098913 Contact Us For Availability
16
UPR COUNTRWGT WPL 097051 Contact Us For Availability
17
HOT WATER PIPE WPL 097653 Contact Us For Availability
17
FLANGE WPL 064857 Contact Us For Availability
17
PUSHBUTTON WPL 098424 Contact Us For Availability
17
SPRING WPL 097264 Contact Us For Availability
17
TUB CROSSPIECE WPL 098835 Contact Us For Availability
17
PUMP HOUSING WPL 098951 Contact Us For Availability
17
GASKET RING WPL 097072 Contact Us For Availability
18
SOLENOID VALVE WPL 097665 Contact Us For Availability
18
SPRING WPL 069343 Contact Us For Availability
18
PROGRAM INDEX WPL 098439 Contact Us For Availability
18
FEELER WPL 097351 Contact Us For Availability
18
GASKET WPL 098836 Contact Us For Availability
18
TUB GASKET WPL 097106 Contact Us For Availability
19
AIR CONNECTION WPL Y097973 Contact Us For Availability
19
CATCH PIN WPL 069491 Contact Us For Availability
19
NORGE TRIM KIT WPL 098830 Contact Us For Availability
19
DTRG RECIR HOSE WPL 097864 Contact Us For Availability
19
BELT WPL 098912 Contact Us For Availability
19
DRUM ASM WPL 097134 Contact Us For Availability
20
AIR INTAKE WPL 097974 Contact Us For Availability
20
DOOR GLASS WPL 097052 Contact Us For Availability
20
CONTROL PANEL WPL 098831 Contact Us For Availability
20
AIR INTK CHMBR WPL 097875 Contact Us For Availability
20
WASHER WPL 097272 Contact Us For Availability
21
HOSE WPL 097998 Contact Us For Availability
21
0UTLT HOSE SUPT WPL 097064 Contact Us For Availability
21
DTRG CONT HANDL WPL 097961 Contact Us For Availability
21
RING WPL 097319 Contact Us For Availability
22
HOSE WPL 098083 Contact Us For Availability
22
DOOR HINGE ASM WPL 097128 Contact Us For Availability
22
NAMEPLATE WPL 339845 Contact Us For Availability
22
GLASS WPL 654282 Contact Us For Availability
22
CLAMP WPL 098040 Contact Us For Availability
22
SPRING BUSHING WPL 097337 Contact Us For Availability
23
TERMINAL BLOCK WPL 098089 Contact Us For Availability
23
HOSE CLAMP WPL 097269 Contact Us For Availability
23
CLAMP WPL 098042 Contact Us For Availability
23
BOTTOM GROMMET WPL 097470 Contact Us For Availability
24
MOTOR W/TRANSM WPL Y098441 Contact Us For Availability
24
LID FRONT PIECE WPL 097306 Contact Us For Availability
24
SPRING WPL 098330 Contact Us For Availability
24
TOP GROMMET WPL 097471 Contact Us For Availability
25
MOTOR CAPACITOR WPL 098442 Contact Us For Availability
25
LEVELER WRENCH WPL 097477 Contact Us For Availability
25
CONTAINER STOP WPL 098331 Contact Us For Availability
25
SUPPORT WPL 097584 Contact Us For Availability
26
PRESSURE SWITCH WPL 098447 Contact Us For Availability
26
DOOR FLANGE WPL 097552 Contact Us For Availability
26
DETERGNT DRAWER WPL 098333 Contact Us For Availability
26
PIN WPL 097589 Contact Us For Availability
27
SWITCH SUPPORT WPL 098508 Contact Us For Availability
27
BACK PANEL WPL 097626 Contact Us For Availability
27
DISP HOUSING WPL 098336 Contact Us For Availability
27
PLATE WPL 097590 Contact Us For Availability
28
TRANSMISSION WPL 098681 Contact Us For Availability
28
MICROSWITCH WPL Y097911 Contact Us For Availability
28
DISPENSER COVER WPL 098337 Contact Us For Availability
28
TUB ASM WPL 098445 Contact Us For Availability
29
SPACER TUBE WPL 651637 Contact Us For Availability
29
PLATE WPL 098086 Contact Us For Availability
29
VALVE HOSE WPL 098914 Contact Us For Availability
29
GASKET WPL 098911 Contact Us For Availability
30
MOTOR BUSHING WPL 651638 Contact Us For Availability
30
GROUND WIRE WPL 098087 Contact Us For Availability
30
CLAMP WPL 098915 Contact Us For Availability
30
SCREW WPL 103620 Contact Us For Availability
31
CLAMP WPL 651715 Contact Us For Availability
31
DOOR HANDLE WPL 098433 Contact Us For Availability
31
CLAMP WPL 098916 Contact Us For Availability
31
BUSHING WPL 653621 Contact Us For Availability
32
GASKET TRIM WPL 651839 Contact Us For Availability
32
CABINET ASM WPL 098444 Contact Us For Availability
32
CLAMP WPL 103595 Contact Us For Availability
32
SNUBR SPRNG ASM WPL 654001 Contact Us For Availability
33
DOOR CATCH WPL 098804 Contact Us For Availability
33
COUNTERWEIGHT WPL 654110 Contact Us For Availability
36
LEVELER CLIP WPL 652435 Contact Us For Availability
37
DOOR FRAME WPL 653293 Contact Us For Availability
38
LEVELER WPL 653864 Contact Us For Availability
× ![]()
