Model Whirlpool WCIT7536SS00 – Common Parts & Diagrams

Common parts from model Whirlpool WCIT7536SS00

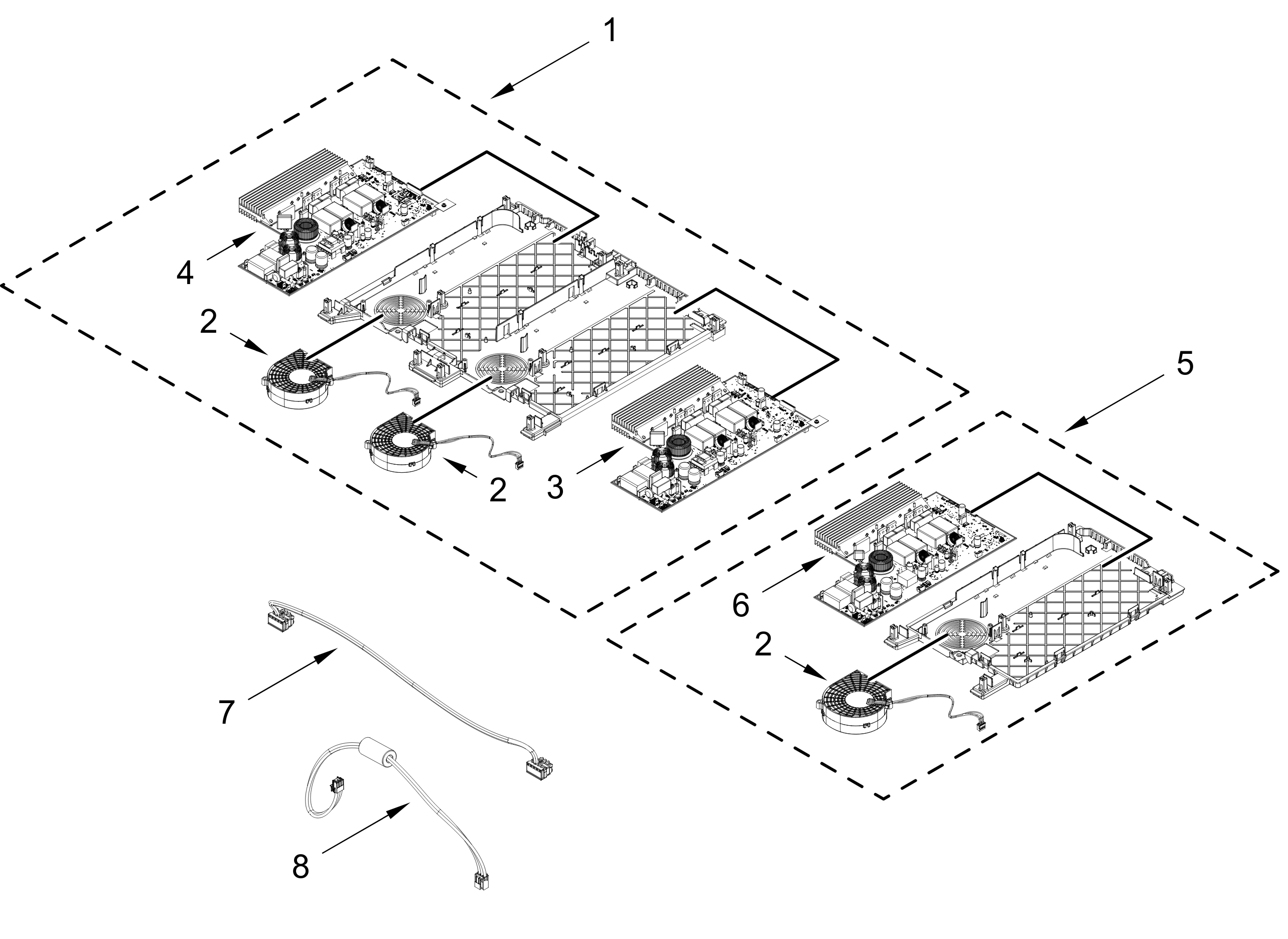

COOKTOP PARTS

Print

• This Diagram
• All Diagrams

W10310006A Whirlpool Cooktop Adhesive for Mar Backorder WPL W10310006A View Details $92.85

View on Model

W10328499 Whirlpool Bracket Mounting Backorder WPL W10328499 View Details $156.11

View on Model

Cleaner, Cooktop WPL W10355051 No Longer Available

View on Model

W11042470 Whirlpool Cooktop Cleaner In Stock WPL W11042470 View Details $11.88

View on Model

WP8286642 Whirlpool Tape Backorder WPL WP8286642 View Details $57.05

View on Model

ACCESSORIES WPL ARI0B79C54BE7B3B29B3F337973815F9356 Contact Us For Availability

View on Model

Pan, Frying WPL W11463466 Contact Us For Availability

View on Model

Pot, Boiling WPL W11463464 Contact Us For Availability

View on Model

1

Literature Parts WPL ARI4741983F61CAC445F12C0C1FD1B613C1 Contact Us For Availability

View on Model

1

Control Module Assembly WPL W11669016 Contact Us For Availability

View on Model

2

Glass Cooktop Assembly WPL W11700088 Contact Us For Availability

View on Model

2

Blower Assembly WPL W11683445 Contact Us For Availability

View on Model

3

W11495019 Whirlpool Spring Backorder WPL W11495019 View Details $14.59

View on Model

3

Power Board IPC1 (Not Serviced) WPL ARI5B5064809539005526D80F14DB20D722 Contact Us For Availability

View on Model

4

W11495626 Whirlpool Bracket Support In Stock WPL W11495626 View Details $46.87

View on Model

4

Power Board IPC2 (Not Serviced) WPL ARIC2DC2FA8EDC3F3B751E861C2D8BEB2C0 Contact Us For Availability

View on Model

5

Screw WPL 7101P41560 Contact Us For Availability

View on Model

5

Control Module Assembly WPL W11669017 Contact Us For Availability

View on Model

6

Induction Element Assembly WPL W11669266 Contact Us For Availability

View on Model

6

Power Board IPC (Not Serviced) WPL ARIE9DD3B694D67E7F817305421DB400886 Contact Us For Availability

View on Model

7

Induction Element Assembly WPL W11669278 Contact Us For Availability

View on Model

7

Communication Harness (IPC to IPC) WPL W11643438 Contact Us For Availability

View on Model

8

Induction Element Assembly WPL W11669271 Contact Us For Availability

View on Model

8

Communication Harness (HMI to IPC) WPL W11753759 Contact Us For Availability

View on Model

9

Sensor Assembly WPL W11739256 Contact Us For Availability

View on Model

10

Sensor Assembly WPL W11739258 Contact Us For Availability

View on Model

11

Sensor Assembly WPL W11739257 Contact Us For Availability

View on Model

12

User Interface Assembly (HMI) WPL W11642029 Contact Us For Availability

View on Model

×
