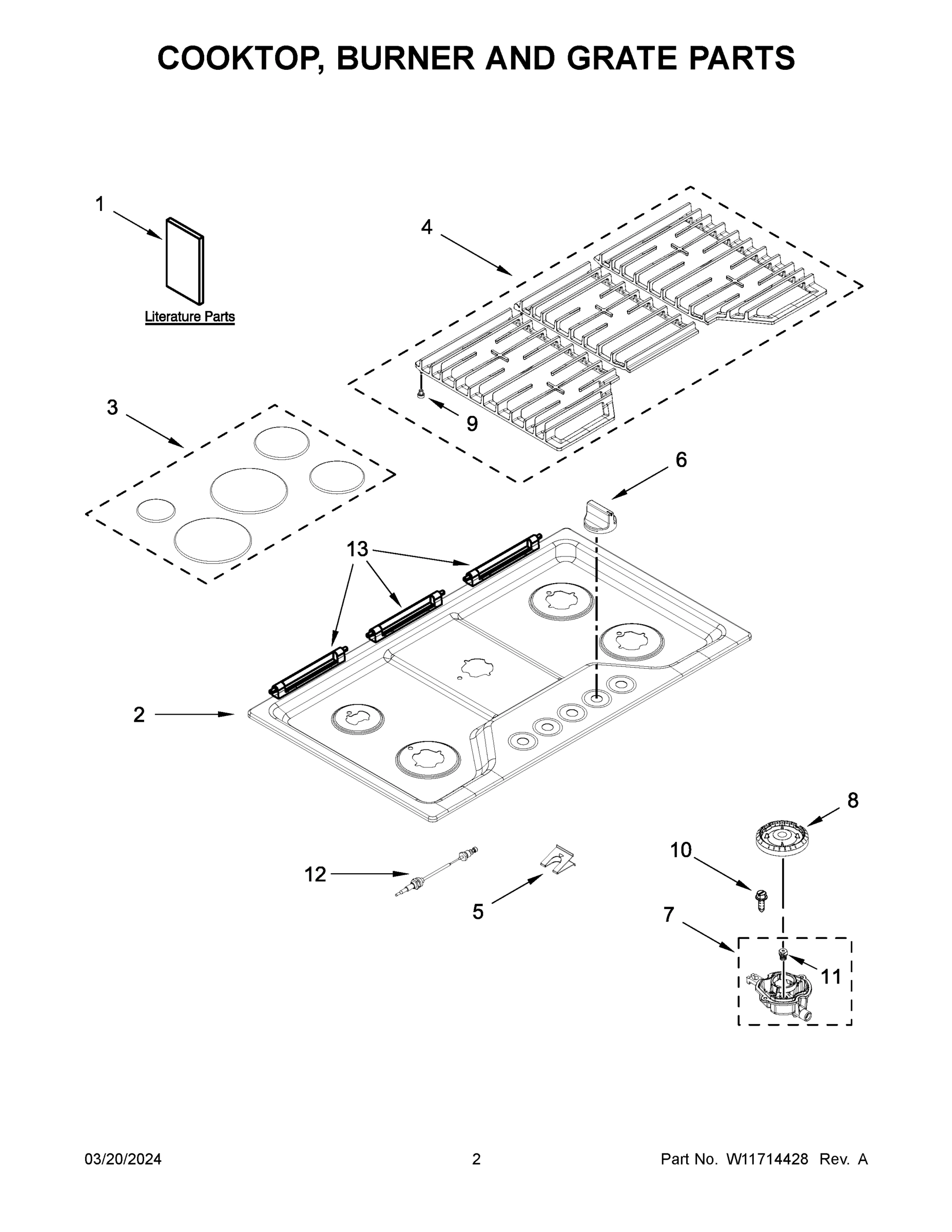

Model Whirlpool WCGK5036PV00 COOKTOP, GAS – Common Parts & Diagrams

2
MANIFOLD ASSEMBLY
MANIFOLD ASSEMBLY WPL W11576641 Contact Us For Availability
View on Model
5
SEAL, SWITCH SHAFT
SEAL, SWITCH SHAFT WPL W11507167 Contact Us For Availability
View on Model
6
KNOB
KNOB WPL W11566381 Contact Us For Availability
View on Model
6
PANEL, FRONT
PANEL, FRONT WPL W11620861 Contact Us For Availability
View on Model
7
HOLDER, ORIFICE (12K) (LEFT FRONT)
HOLDER, ORIFICE (12K) (LEFT FRONT) WPL W11567145 Contact Us For Availability
View on Model
7A
HOLDER, ORIFICE (5K) (LEFT REAR)
HOLDER, ORIFICE (5K) (LEFT REAR) WPL W11567151 Contact Us For Availability
View on Model
7B
HOLDER, ORIFICE (18K) (RIGHT REAR)
HOLDER, ORIFICE (18K) (RIGHT REAR) WPL W11567144 Contact Us For Availability
View on Model
7C
HOLDER, ORIFICE (9.1K) (RIGHT FRONT)
HOLDER, ORIFICE (9.1K) (RIGHT FRONT) WPL W11567146 Contact Us For Availability
View on Model
8
BRACKET, ORIFICE HOLDER
BRACKET, ORIFICE HOLDER WPL W11566469 Contact Us For Availability
View on Model
9
FOOT PAD, GRATE (OUTER)
FOOT PAD, GRATE (OUTER) WPL W10598131 Contact Us For Availability
View on Model
10
BOX, BURNER (NOT SERVICED)
BOX, BURNER (NOT SERVICED) WPL ARI55514D8BCAB29AE100450EFDED77D6CF Contact Us For Availability
View on Model
11
ORIFICE (LEFT FRONT)
ORIFICE (LEFT FRONT) WPL W10723360 Contact Us For Availability
View on Model
11
TUBE, GAS (LEFT FRONT)
TUBE, GAS (LEFT FRONT) WPL W11573975 Contact Us For Availability
View on Model
11A
ORIFICE (LEFT REAR)
ORIFICE (LEFT REAR) WPL W11364991 Contact Us For Availability
View on Model
11B
ORIFICE (RIGHT REAR)
ORIFICE (RIGHT REAR) WPL W11610057 Contact Us For Availability
View on Model
11C
ORIFICE (RIGHT FRONT)
ORIFICE (RIGHT FRONT) WPL W11631338 Contact Us For Availability
View on Model
12
TUBE, GAS (LEFT REAR)
TUBE, GAS (LEFT REAR) WPL W11573977 Contact Us For Availability
View on Model
12A
WIRING, ELECTRODE (636MM)
WIRING, ELECTRODE (636MM) WPL W11642338 Contact Us For Availability
View on Model
13
REAR, HINGE-GRATE (STAINLESS MODEL ONLY)
REAR, HINGE-GRATE (STAINLESS MODEL ONLY) WPL ARID878218BE5E87DAA2517C056D335968B Contact Us For Availability
View on Model
13
TUBE, GAS (RIGHT FRONT)
TUBE, GAS (RIGHT FRONT) WPL W11573979 Contact Us For Availability
View on Model
14
TUBE, GAS (RIGHT REAR)
TUBE, GAS (RIGHT REAR) WPL W11573978 Contact Us For Availability
View on Model
15
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
19
TUBE, GAS (CENTER)
TUBE, GAS (CENTER) WPL W11573983 Contact Us For Availability
View on Model
20
BRACKET, ORIFICE HOLDER CENTER BURNER
BRACKET, ORIFICE HOLDER CENTER BURNER WPL W11704153 Contact Us For Availability
View on Model
NI
BRACKET, TIE DOWN
BRACKET, TIE DOWN WPL 3801F93551 Contact Us For Availability
View on Model
NI
SCREW (FOR TIE DOWN BRACKET)
SCREW (FOR TIE DOWN BRACKET) WPL 7101P06260 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability
View on Model
NI
HARNESS (SWITCH), MAIN
HARNESS (SWITCH), MAIN WPL W11632719 Contact Us For Availability
View on Model
NI
INSULATION, BURNER BOX HIGH TEMP
INSULATION, BURNER BOX HIGH TEMP WPL W11631590 Contact Us For Availability
View on Model
