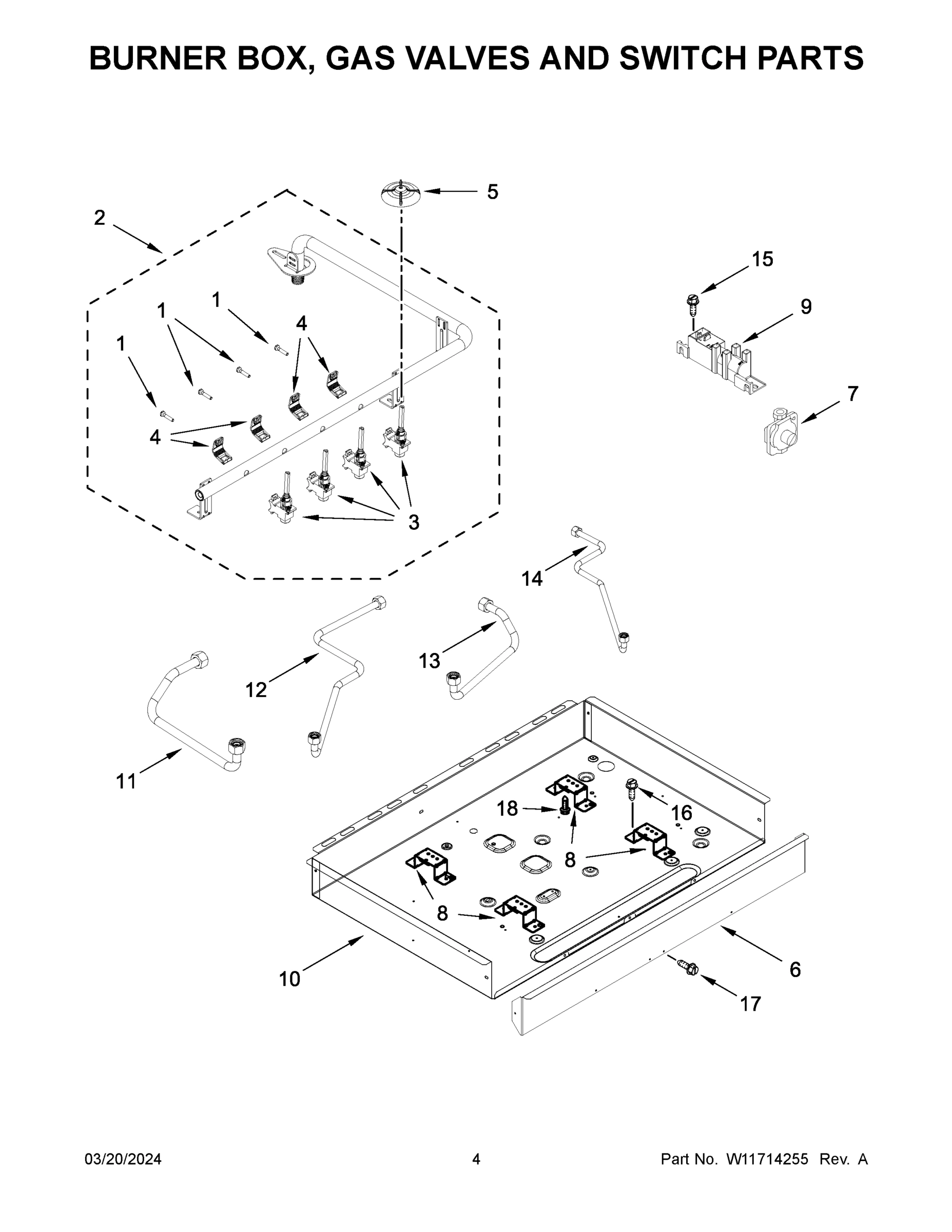

Model Whirlpool WCGK5030PV00 COOKTOP, GAS – Common Parts & Diagrams

2
MANIFOLD ASSEMBLY
MANIFOLD ASSEMBLY WPL W11573986 Contact Us For Availability
View on Model
6
KNOB
KNOB WPL W11566381 Contact Us For Availability
View on Model
6
PANEL, FRONT
PANEL, FRONT WPL W11620860 Contact Us For Availability
View on Model
7
HOLDER, ORIFICE (12K) (LEFT FRONT)
HOLDER, ORIFICE (12K) (LEFT FRONT) WPL W11567145 Contact Us For Availability
View on Model
7A
HOLDER, ORIFICE (5K) (LEFT REAR)
HOLDER, ORIFICE (5K) (LEFT REAR) WPL W11567151 Contact Us For Availability
View on Model
7B
HOLDER, ORIFICE (9.1K) (RIGHT FRONT)
HOLDER, ORIFICE (9.1K) (RIGHT FRONT) WPL W11567146 Contact Us For Availability
View on Model
7C
HOLDER, ORIFICE (18K) (RIGHT REAR)
HOLDER, ORIFICE (18K) (RIGHT REAR) WPL W11567144 Contact Us For Availability
View on Model
8
BRACKET, ORIFICE HOLDER
BRACKET, ORIFICE HOLDER WPL W11566469 Contact Us For Availability
View on Model
9
HINGE, GRATE (NOT SERVICED)
HINGE, GRATE (NOT SERVICED) WPL ARI563D9D6089659C637E568300AAF28844 Contact Us For Availability
View on Model
10
BOX, BURNER (NOT SERVICED)
BOX, BURNER (NOT SERVICED) WPL ARI55514D8BCAB29AE100450EFDED77D6CF Contact Us For Availability
View on Model
11
ORIFICE (LEFT FRONT)
ORIFICE (LEFT FRONT) WPL W10723360 Contact Us For Availability
View on Model
11
TUBE, GAS (LEFT FRONT)
TUBE, GAS (LEFT FRONT) WPL W11573969 Contact Us For Availability
View on Model
11A
ORIFICE (LEFT REAR)
ORIFICE (LEFT REAR) WPL W11364991 Contact Us For Availability
View on Model
11B
ORIFICE (RIGHT FRONT)
ORIFICE (RIGHT FRONT) WPL W11631338 Contact Us For Availability
View on Model
11C
ORIFICE (RIGHT REAR)
ORIFICE (RIGHT REAR) WPL W11610057 Contact Us For Availability
View on Model
12
TUBE, GAS (LEFT REAR)
TUBE, GAS (LEFT REAR) WPL W11573970 Contact Us For Availability
View on Model
13
TUBE, GAS (RIGHT FRONT)
TUBE, GAS (RIGHT FRONT) WPL W11573974 Contact Us For Availability
View on Model
14
TUBE, GAS (RIGHT REAR)
TUBE, GAS (RIGHT REAR) WPL W11573971 Contact Us For Availability
View on Model
15
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
NI
BRACKET, TIE DOWN
BRACKET, TIE DOWN WPL 3801F93551 Contact Us For Availability
View on Model
NI
SCREW (FOR TIE DOWN BRACKET)
SCREW (FOR TIE DOWN BRACKET) WPL 7101P06260 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability
View on Model
NI
HARNESS (SWITCH), MAIN
HARNESS (SWITCH), MAIN WPL W11632720 Contact Us For Availability
View on Model
