Model GE WCCH404V0WW – Common Parts & Diagrams

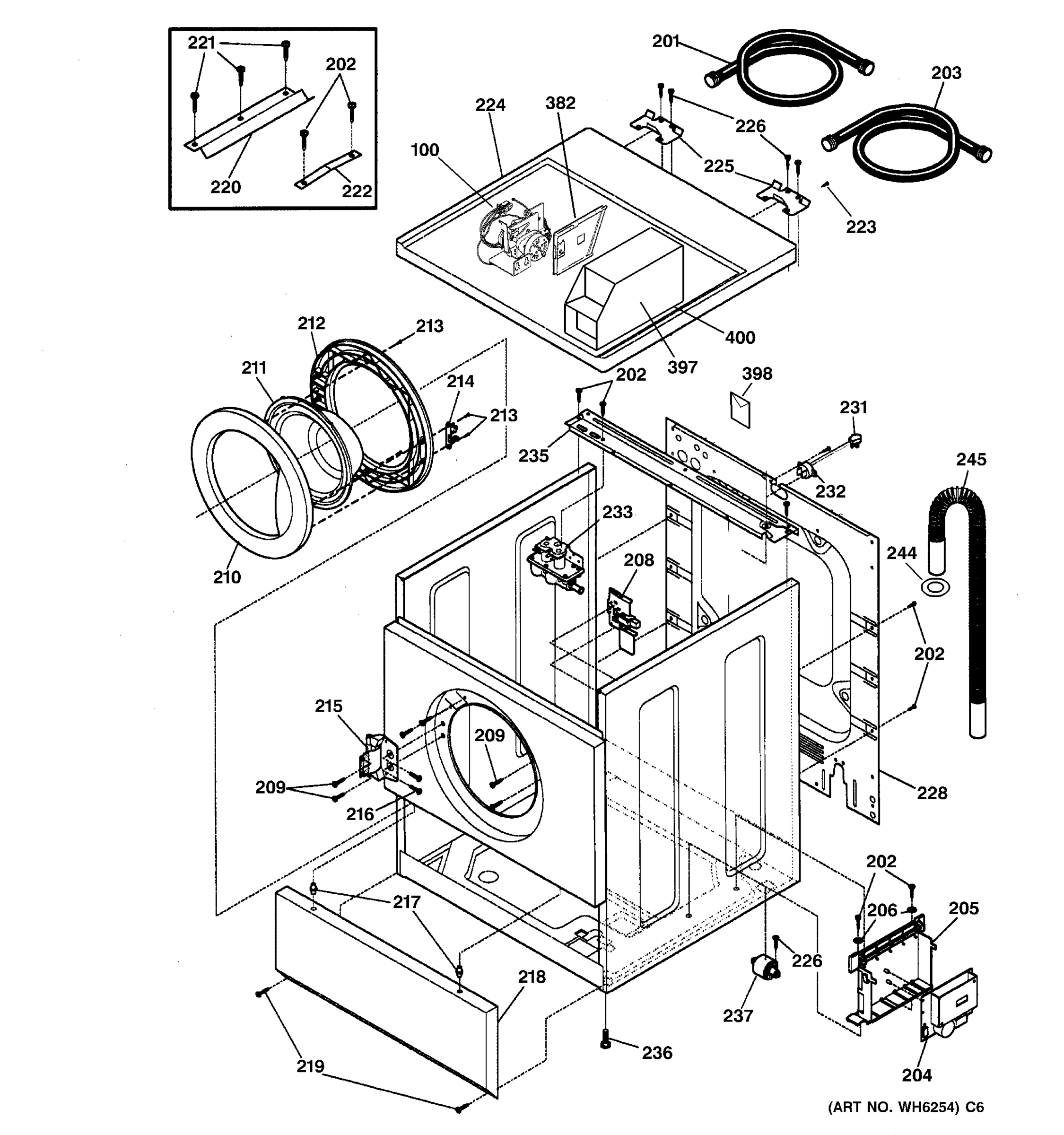

CABINET, DOOR & TOP

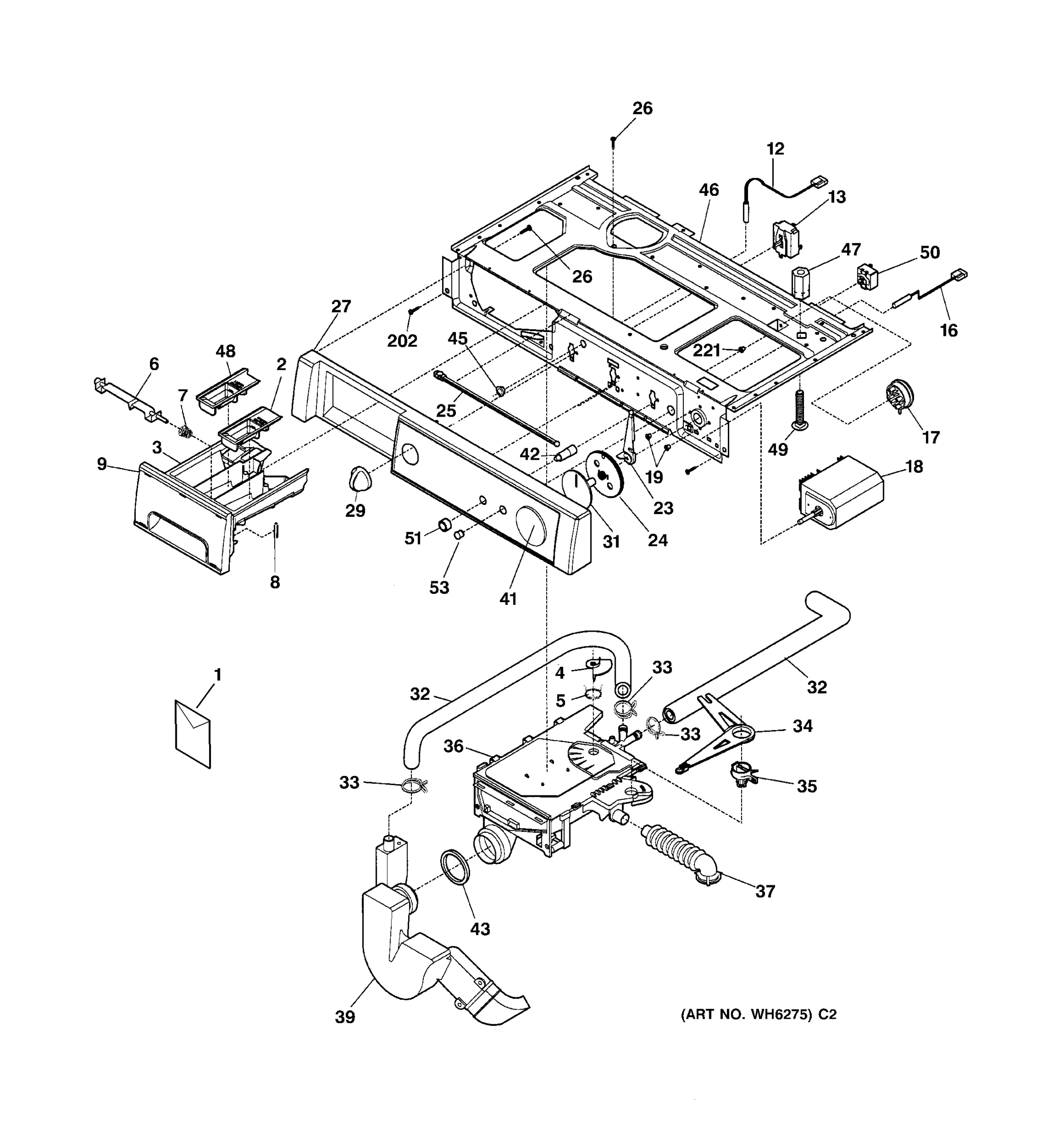

CONTROL PANEL
TUB & MOTOR
Common parts from model GE WCCH404V0WW
2
COVER-SOFTENER GEN WH41X10001 Contact Us For Availability
3
GEN WH41X10003 GEN WH41X10003 Contact Us For Availability
6
GEN WH01X10039 GEN WH01X10039 Contact Us For Availability
7
GEN WH01X10005 GEN WH01X10005 Contact Us For Availability
9
GEN WH47X10001 GEN WH47X10001 Contact Us For Availability
13
GEN WH12X10166 GEN WH12X10166 Contact Us For Availability
16
GEN WH12X10004 GEN WH12X10004 Contact Us For Availability
17
GEN WH12X10003 GEN WH12X10003 Contact Us For Availability
18
GEN WH12X10170 GEN WH12X10170 Contact Us For Availability
19
SCREW 10-32 X 0.245 GEN WH02X10057 Contact Us For Availability
23
GEN WH11X10002 GEN WH11X10002 Contact Us For Availability
24
GEN WH11X10020 GEN WH11X10020 Contact Us For Availability
25
GEN WH16X10001 GEN WH16X10001 Contact Us For Availability
26
SCREW #8 10-10B X 0.50 GEN WH02X10007 Contact Us For Availability
27
GEN WH42X10292 GEN WH42X10292 Contact Us For Availability
29
GEN WH01X10129 GEN WH01X10129 Contact Us For Availability
31
GEN WH11X10021 GEN WH11X10021 Contact Us For Availability
32
GEN WH41X10007 GEN WH41X10007 Contact Us For Availability
33
GEN WH01X10011 GEN WH01X10011 Contact Us For Availability
34
GEN WH01X10010 GEN WH01X10010 Contact Us For Availability
35
DISPENSER-ECCENTRIC GEN WH43X10001 Contact Us For Availability
36
ASSY-DETERGENT DISPENSER GEN WH41X10006 Contact Us For Availability
37
GEN WH41X10013 GEN WH41X10013 Contact Us For Availability
39
DUCT-FILL GEN WH41X10060 Contact Us For Availability
41
GEN WH01X10130 GEN WH01X10130 Contact Us For Availability
42
GEN WH01X10132 GEN WH01X10132 Contact Us For Availability
43
GEN WH41X10051 GEN WH41X10051 Contact Us For Availability
45
GEN WH01X10037 GEN WH01X10037 Contact Us For Availability
46
BRACKET-CONTROL GEN WH46X10039 Contact Us For Availability
47
GEN WH01X10131 GEN WH01X10131 Contact Us For Availability
48
COVER-BLEACH GEN WH41X10002 Contact Us For Availability
49
GEN WH02X10092 GEN WH02X10092 Contact Us For Availability
50
GEN WH12X10167 GEN WH12X10167 Contact Us For Availability
51
GEN WE01X10002 GEN WE01X10002 Contact Us For Availability
53
GEN WH01X10133 GEN WH01X10133 Contact Us For Availability
100
GEN WH12X10214 GEN WH12X10214 Contact Us For Availability
202
SCREW 8-18 X 0.31 GEN WR02X9494 Contact Us For Availability
206
WASHER .21 X .71 X .06 GEN WH02X10008 Contact Us For Availability
208
GEN WH10X10003 GEN WH10X10003 Contact Us For Availability
209
SCREW 10-16X.50 GEN WH02X10009 Contact Us For Availability
209
SCREW 10-16 X .75 GEN WE02X10017 Contact Us For Availability
210
GEN WH46X10002 GEN WH46X10002 Contact Us For Availability
212
GEN WH46X10004 GEN WH46X10004 Contact Us For Availability
213
SCREW, 10-16 X .75 GEN WH02X10010 Contact Us For Availability
214
GEN WH10X10004 GEN WH10X10004 Contact Us For Availability
215
HINGE-DOOR GEN WH01X10092 Contact Us For Availability
220
BRACKET-TOP FRONT GEN WH16X10003 Contact Us For Availability
221
SCREW 8-18AB X .375 GEN WH01X10004 Contact Us For Availability
303
BOLT-CARRIAGE 1/4-20 X 4 GEN WH02X10087 Contact Us For Availability
306
GEN WH45X10041 GEN WH45X10041 Contact Us For Availability
307
GEN WH08X10001 GEN WH08X10001 Contact Us For Availability
308
BELLOWS GEN WH45X10003 Contact Us For Availability
310
GEN WH02X10019 GEN WH02X10019 Contact Us For Availability
311
GEN WH02X10020 GEN WH02X10020 Contact Us For Availability
312
GEN WH16X10039 GEN WH16X10039 Contact Us For Availability
313
GEN WH45X10005 GEN WH45X10005 Contact Us For Availability
314
GEN WH01X10022 GEN WH01X10022 Contact Us For Availability
315
SCREW 1/4-10 X 2.165 GEN WH02X10021 Contact Us For Availability
317
GEN WH16X10008 GEN WH16X10008 Contact Us For Availability
318
SCREW-VANE 10-16 X .375 GEN WH02X10023 Contact Us For Availability
319
MOTOR-MAIN, 850 GEN WH02X10022 Contact Us For Availability
320
SCREW 12-14 X 1.50 GEN WH02X10024 Contact Us For Availability
321
GEN WH08X10002 GEN WH08X10002 Contact Us For Availability
323
WEIGHT-UPPER BACK GEN WH01X10095 Contact Us For Availability
325
GEN WH08X10003 GEN WH08X10003 Contact Us For Availability
326
GEN WH07X10001 GEN WH07X10001 Contact Us For Availability
327
WASHER.41 X 1.500 X .120 GEN WH02X10025 Contact Us For Availability
328
WASHER-LOCK, 3/8 GEN WH02X10026 Contact Us For Availability
329
SCREW-PULLEY, M10 X .92 GEN WH02X10027 Contact Us For Availability
330
GEN WH17X10001 GEN WH17X10001 Contact Us For Availability
331
GEN WH01X10024 GEN WH01X10024 Contact Us For Availability
332
GEN WH16X10009 GEN WH16X10009 Contact Us For Availability
333
SCREW 10-16 X .625 GEN WH02X10028 Contact Us For Availability
335
GEN WH23X10012 GEN WH23X10012 Contact Us For Availability
341
HOSE-TRAP-TUB TO PUMP GEN WH41X10052 Contact Us For Availability
342
GEN WH02X10029 GEN WH02X10029 Contact Us For Availability
343
GEN WH41X10011 GEN WH41X10011 Contact Us For Availability
344
GEN WH41X10012 GEN WH41X10012 Contact Us For Availability
345
GEN WH02X10030 GEN WH02X10030 Contact Us For Availability
348
GEN WH02X10031 GEN WH02X10031 Contact Us For Availability
365
SHIELD-MOTOR GEN WH41X10023 Contact Us For Availability
398
GEN WH44X10080 GEN WH44X10080 Contact Us For Availability
× ![]()
