Model Electrolux WC8DL3 WASHER – Common Parts & Diagrams

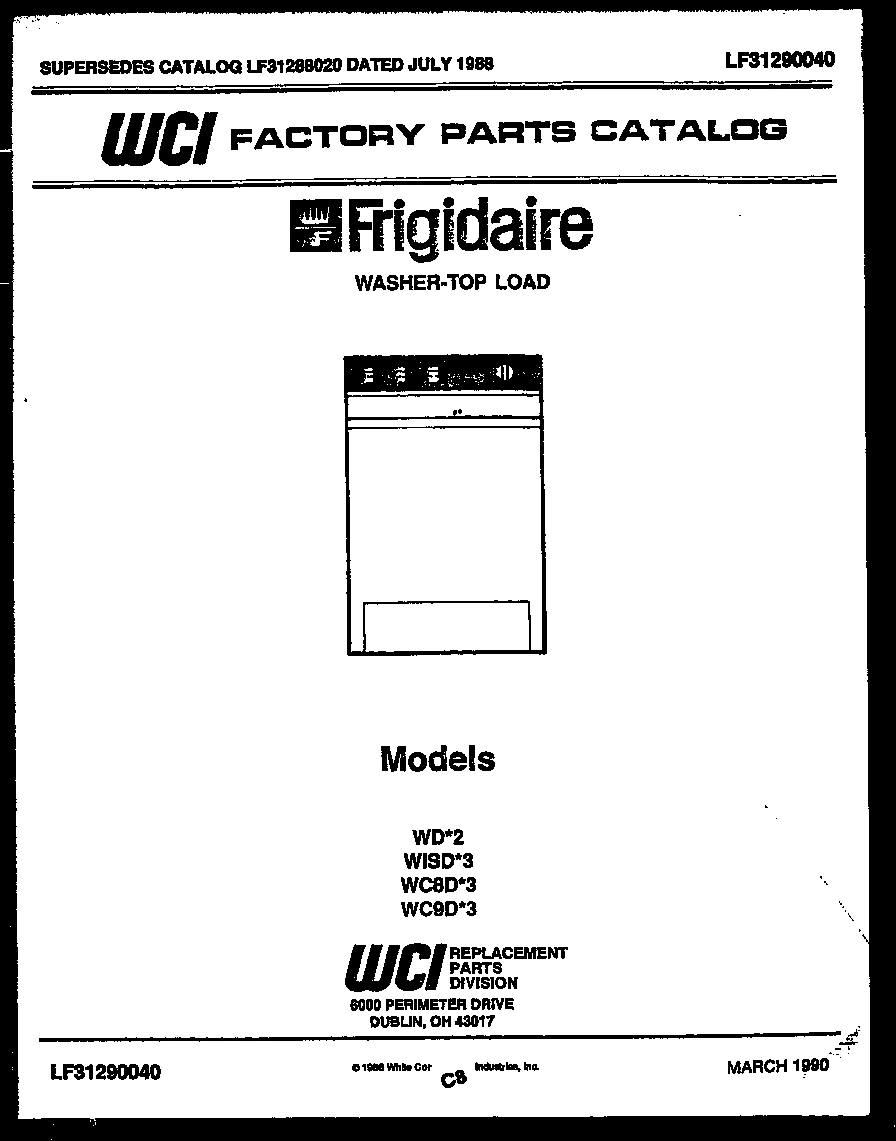

01 - COVER

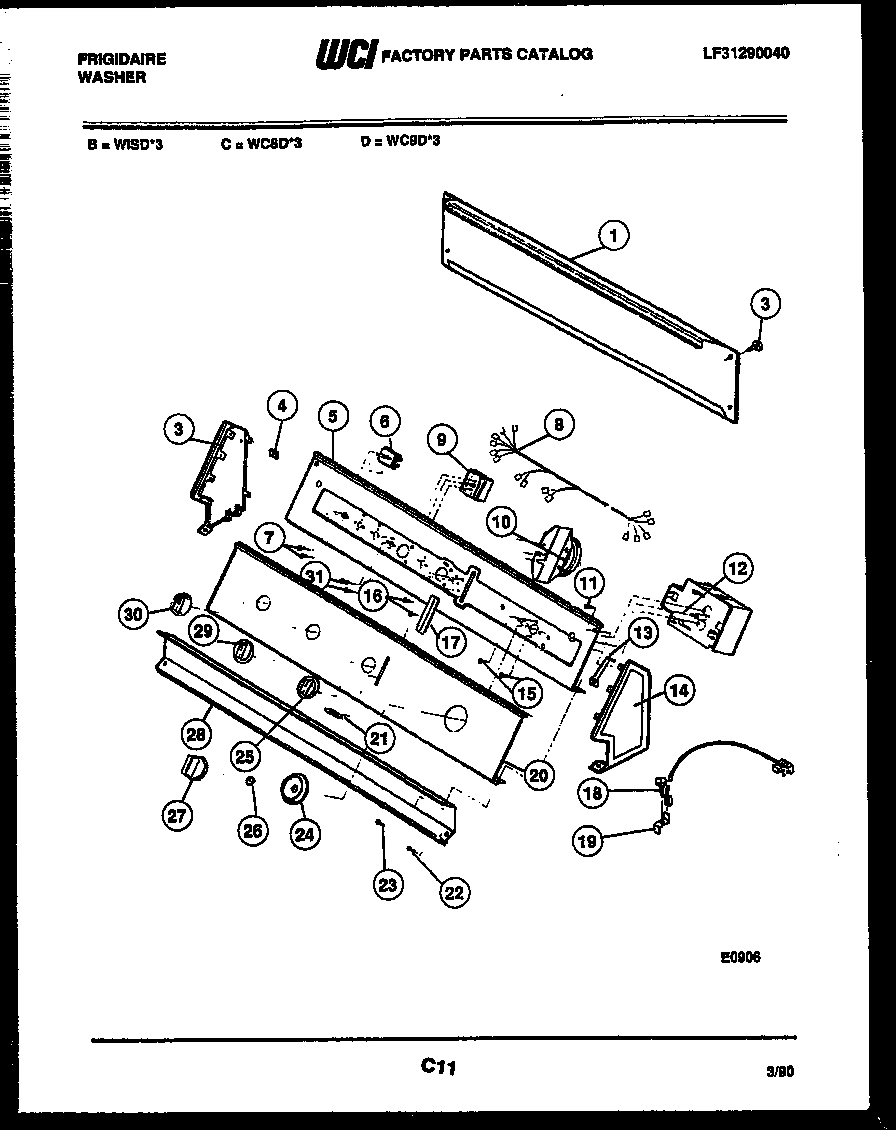

03 - CONSOLE AND CONTROL PARTS

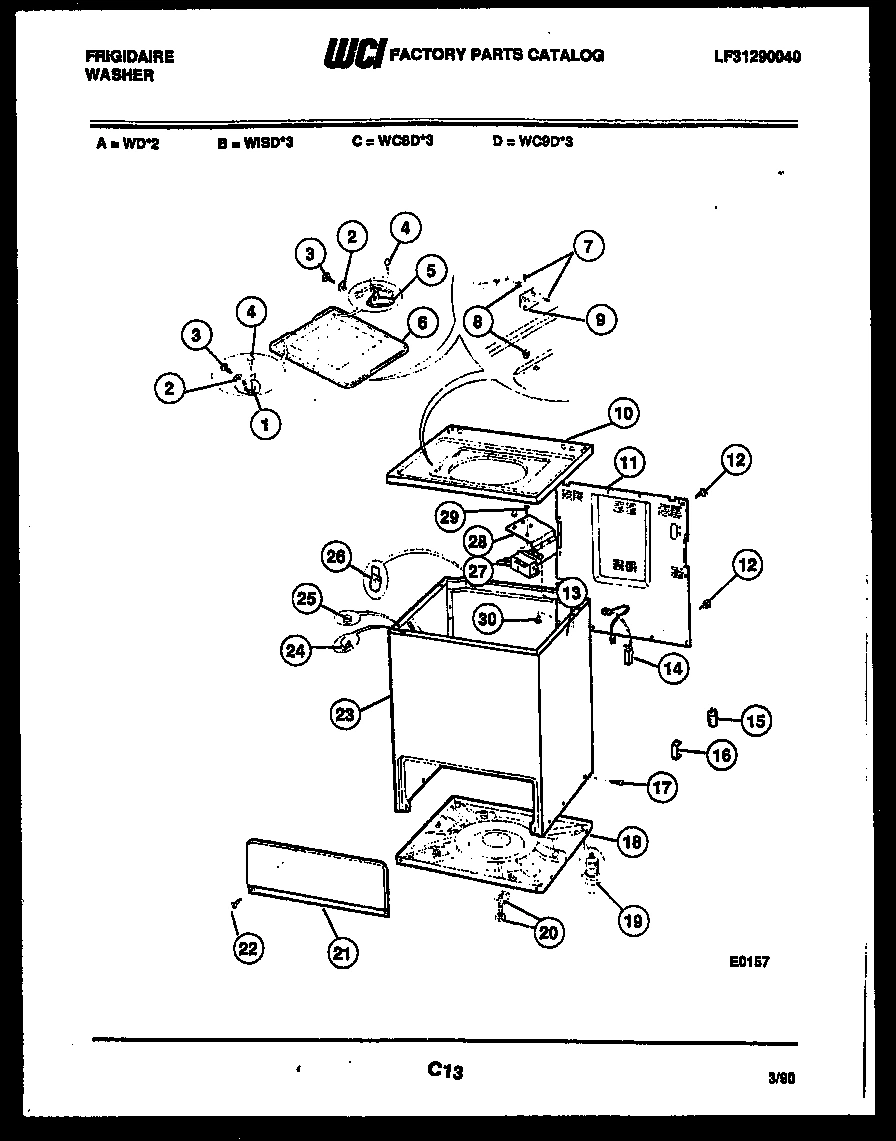

04 - CABINET PARTS

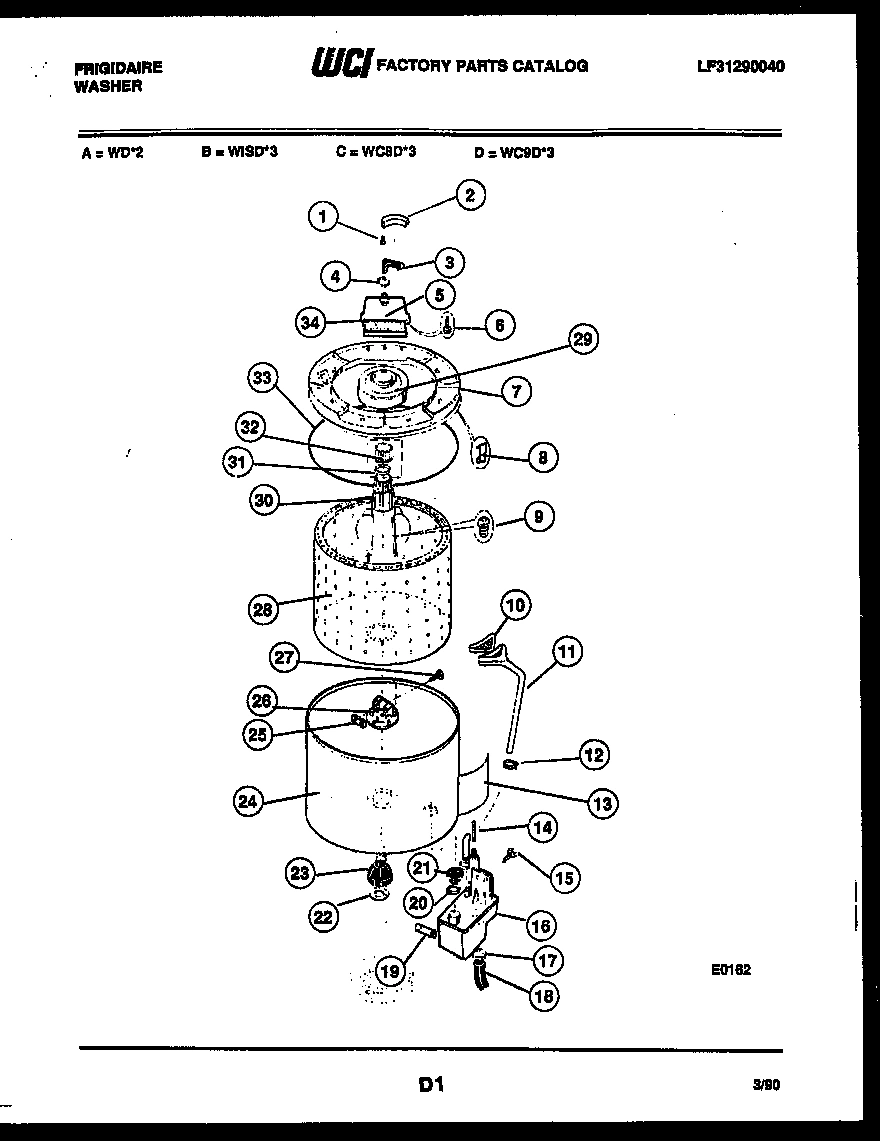

05 - TUB DETAIL

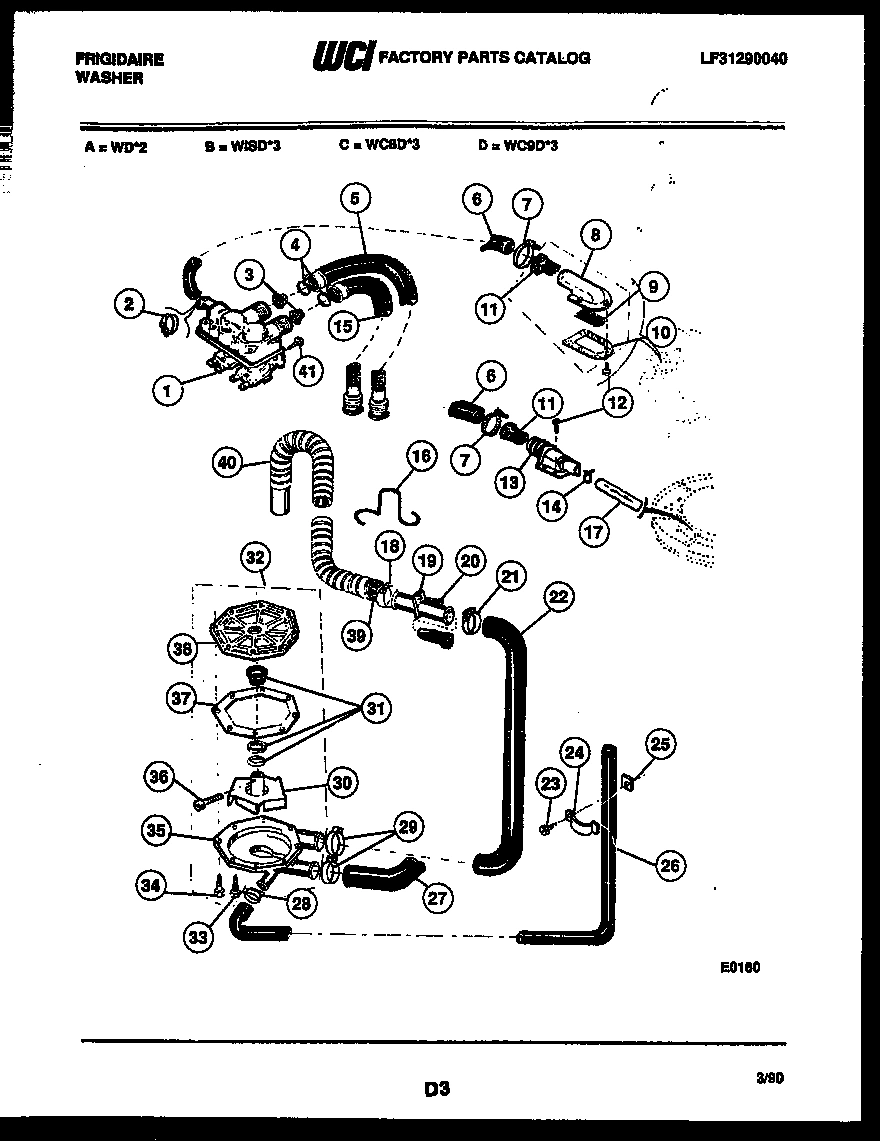

06 - PUMP, WATER VALVE AND WATER INLET

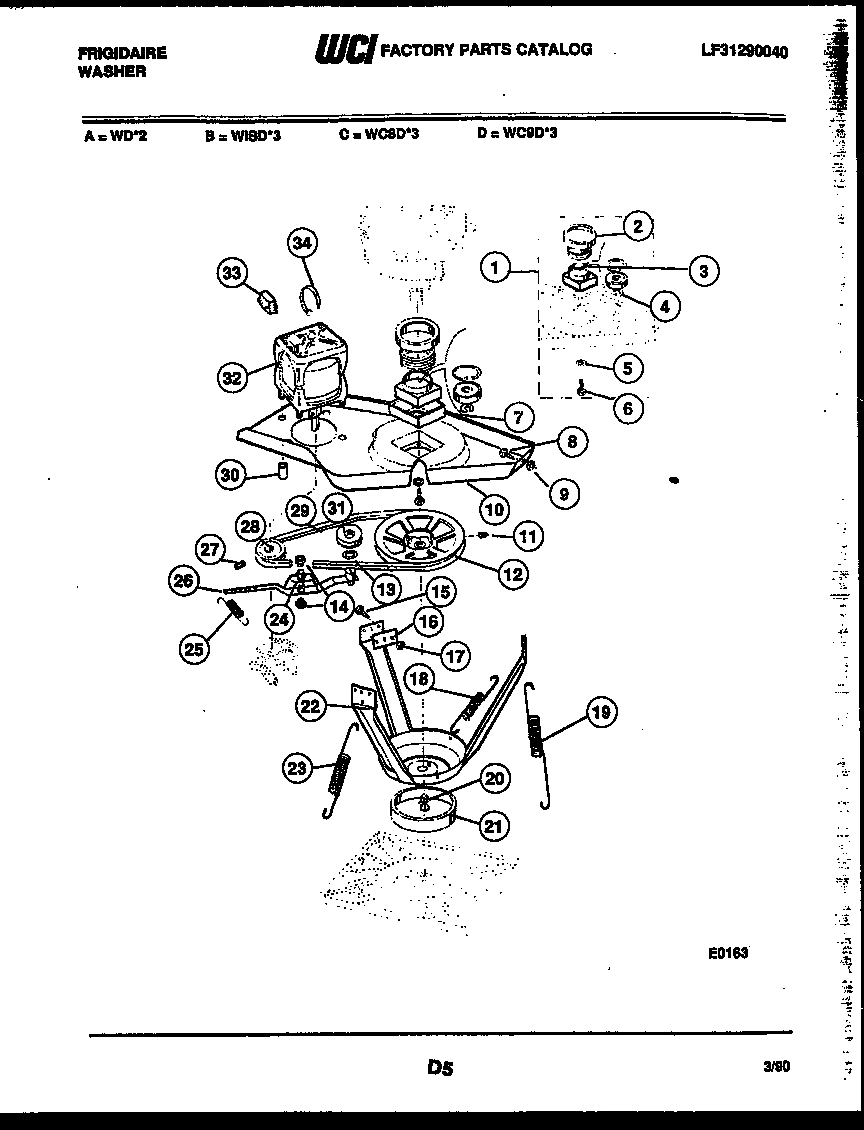

07 - MOTOR AND IDLER ARM CLUTCH

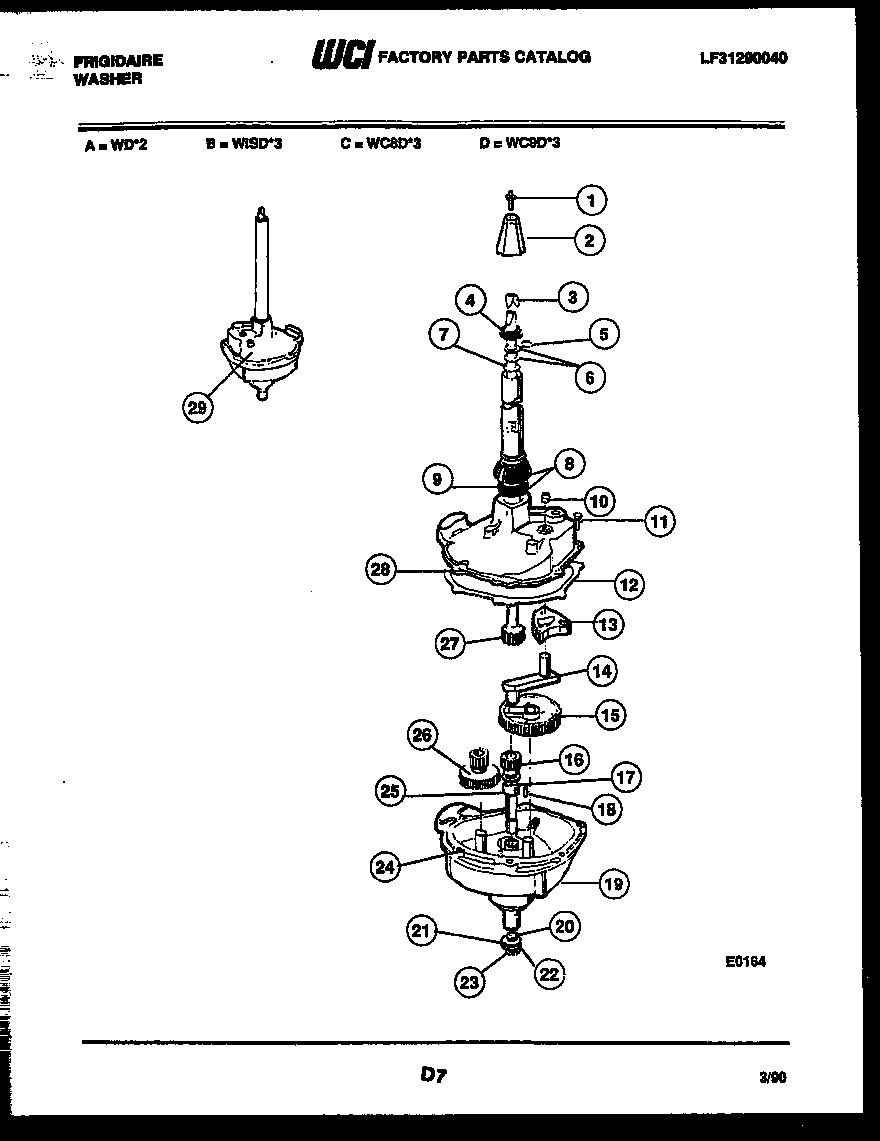

08 - TRANSMISSION PARTS
Common parts from model Electrolux WC8DL3 WASHER
*18265
REDUCER (ADAPTOR) STAND PIPE DRAIN REDUCES O. WCI 08002501 Contact Us For Availability
*18265
TIE-HOSE TO STAND PIPE WCI 08027666 Contact Us For Availability
*18265
WCI 08950052 WCI 08950052 Contact Us For Availability
*18267
WCI 08001609 WCI 08001609 Contact Us For Availability
1
PANEL-CONSOLE WCI 08010781 Contact Us For Availability
1
BRACKET-LID WCI 08015519 Contact Us For Availability
1
WCI 0895005 WCI 0895005 Contact Us For Availability
1
SCREW WCI 08002491 Contact Us For Availability
2
WASHER WCI 08002408 Contact Us For Availability
2
CLAMP WCI 08006572 Contact Us For Availability
2
SLEEVE WCI 08011269 Contact Us For Availability
2
HUB-DRIVE WCI 08014904 Contact Us For Availability
3
END-CAP LH WCI 08010783 Contact Us For Availability
3
SCREEN (2) WCI 08002439 Contact Us For Availability
3
WCI 08057430 WCI 08057430 Contact Us For Availability
3
WCI 08002488 WCI 08002488 Contact Us For Availability
4
NUTS (8) WCI 08014350 Contact Us For Availability
4
BUMPERS (2) WCI 08015520 Contact Us For Availability
4
RING WCI 08015536 Contact Us For Availability
5
STRIKE WCI 3018962 Contact Us For Availability
5
WCI 08015911 WCI 08015911 Contact Us For Availability
5
SPACER (2) WCI 5303207426 Contact Us For Availability
6
SWITCH-TEMPERATURE WCI 08015886 Contact Us For Availability
6
WCI 08950205 WCI 08950205 Contact Us For Availability
6
WCI 08002432 WCI 08002432 Contact Us For Availability
6
HOSE-INLET WCI 08008471 Contact Us For Availability
6
SCREW (2) WCI 08027582 Contact Us For Availability
6
SPACER WCI 08002485 Contact Us For Availability
7
WCI 08027483 WCI 08027483 Contact Us For Availability
7
WCI 08015906 WCI 08015906 Contact Us For Availability
7
WCI 08007731 WCI 08007731 Contact Us For Availability
7
WCI 08002473 WCI 08002473 Contact Us For Availability
7
WCI 08002481 WCI 08002481 Contact Us For Availability
8
HARNESS-WIRING WCI 3200269 Contact Us For Availability
8
GROMMET (8) WCI 08010830 Contact Us For Availability
8
CLIPS (10) WCI 08002429 Contact Us For Availability
8
SCREW (3) WCI 08002471 Contact Us For Availability
8
SEAL KIT WCI 08950197 Contact Us For Availability
9
WCI 08015879 WCI 08015879 Contact Us For Availability
9
WCI 08002412 WCI 08002412 Contact Us For Availability
9
WCI 08015509 WCI 08015509 Contact Us For Availability
9
NUT (3) WCI 08002470 Contact Us For Availability
9
WCI 08002479 WCI 08002479 Contact Us For Availability
10
WCI 08015878 WCI 08015878 Contact Us For Availability
10
PANEL TOP (ALMOND) WCI 3018969 Contact Us For Availability
10
WCI 08011246 WCI 08011246 Contact Us For Availability
10
WCI 08002472 WCI 08002472 Contact Us For Availability
10
PLUG WCI 08002803 Contact Us For Availability
11
SCREW (2) WCI 08010789 Contact Us For Availability
11
PANEL-REAR WCI 08011286 Contact Us For Availability
11
WCI 08027530 WCI 08027530 Contact Us For Availability
11
WCI 08011267 WCI 08011267 Contact Us For Availability
12
WCI 3015655 WCI 3015655 Contact Us For Availability
12
WCI 08011243 WCI 08011243 Contact Us For Availability
12
SCREW (3) WCI 08016753 Contact Us For Availability
12
PULLEY WCI 08014923 Contact Us For Availability
12
WCI 08015778 WCI 08015778 Contact Us For Availability
13
STRAP-GROUND WCI 08014349 Contact Us For Availability
13
WCI 08011275 WCI 08011275 Contact Us For Availability
13
WCI 08015905 WCI 08015905 Contact Us For Availability
13
GEAR WCI 08011268 Contact Us For Availability
14
WCI 08010787 WCI 08010787 Contact Us For Availability
14
CORD-SERVICE WCI 08015515 Contact Us For Availability
14
WASHER (2) WCI 08002457 Contact Us For Availability
14
ROD WCI 08002809 Contact Us For Availability
15
WCI 08006636 WCI 08006636 Contact Us For Availability
15
WCI 08014903 WCI 08014903 Contact Us For Availability
15
WCI 08011280 WCI 08011280 Contact Us For Availability
15
HOSE, INLET (HOT) WCI 6561384 Contact Us For Availability
15
SCREWS (6) WCI 08002378 Contact Us For Availability
15
GEAR WCI 08015496 Contact Us For Availability
16
BRACKET WCI 08014902 Contact Us For Availability
16
TRAP-DRAIN WCI 5303206795 Contact Us For Availability
16
RETAINER WCI 08002362 Contact Us For Availability
16
PLATE (3) WCI 08002379 Contact Us For Availability
16
SHAFT WCI 08014905 Contact Us For Availability
17
WCI 08014913 WCI 08014913 Contact Us For Availability
17
WCI 08015912 WCI 08015912 Contact Us For Availability
17
NUT (6) WCI 08002377 Contact Us For Availability
18
BASE-CABINET WCI 08011290 Contact Us For Availability
18
WCI 5364154013 WCI 5364154013 Contact Us For Availability
18
SPRING HORIZONTAL (3) WCI 08011311 Contact Us For Availability
18
PIN (2) WCI 08002813 Contact Us For Availability
19
WCI 08002341 WCI 08002341 Contact Us For Availability
19
WCI 08950088 WCI 08950088 Contact Us For Availability
19
NUT WCI 08011303 Contact Us For Availability
19
WCI 08015078 WCI 08015078 Contact Us For Availability
19
SPRING-VERTICAL LONG (2) WCI 08011317 Contact Us For Availability
19
HOUSING WCI 08015870 Contact Us For Availability
19A
WCI 08016754 WCI 08016754 Contact Us For Availability
20
WCI 08015891 WCI 08015891 Contact Us For Availability
20
BLOCK & SCREW-SHIPPING WCI 08004066 Contact Us For Availability
20
WCI 08002367 WCI 08002367 Contact Us For Availability
20
NUT WCI 08002382 Contact Us For Availability
21
WCI 08011263 WCI 08011263 Contact Us For Availability
21
WCI 08006567 WCI 08006567 Contact Us For Availability
21
WCI 08004057 WCI 08004057 Contact Us For Availability
21
SNUBBER WCI 08002385 Contact Us For Availability
21
WASHER-THRUST WCI 08002476 Contact Us For Availability
22
SCREW (2) WCI 08011318 Contact Us For Availability
22
SCREW (2) WCI 08001578 Contact Us For Availability
22
WCI 08015531 WCI 08015531 Contact Us For Availability
22
SUPPORT-OUTER TUB WCI 08011310 Contact Us For Availability
22
WASHER WCI 08002475 Contact Us For Availability
23
WCI 08010782 WCI 08010782 Contact Us For Availability
23
WCI 08015514 WCI 08015514 Contact Us For Availability
23
WCI 08011284 WCI 08011284 Contact Us For Availability
23
WCI 08015500 WCI 08015500 Contact Us For Availability
23
WCI 08011261 WCI 08011261 Contact Us For Availability
23
RING-SNAP WCI 08002474 Contact Us For Availability
23A
WCI 08950057 WCI 08950057 Contact Us For Availability
24
INDICATOR-TIMER WCI 08015498 Contact Us For Availability
24
CLIP (2) WCI 08001597 Contact Us For Availability
24
WCI 08002371 WCI 08002371 Contact Us For Availability
24
WCI 08002356 WCI 08002356 Contact Us For Availability
24
1 QUART OIL WCI 5303208460 Contact Us For Availability
25
WCI 08001596 WCI 08001596 Contact Us For Availability
25
NUT WCI 08002355 Contact Us For Availability
25
WCI 08002456 WCI 08002456 Contact Us For Availability
25
SPRING WCI 08002817 Contact Us For Availability
26
SPACER WCI 08015493 Contact Us For Availability
26
WCI 08002384 WCI 08002384 Contact Us For Availability
26
WCI 08002353 WCI 08002353 Contact Us For Availability
26
SUPPORT-TRUNNION WCI 08014908 Contact Us For Availability
26
WCI 08004078 WCI 08004078 Contact Us For Availability
26
GEAR WCI 08002816 Contact Us For Availability
26A
WCI 08011276 WCI 08011276 Contact Us For Availability
27
WCI 08014337 WCI 08014337 Contact Us For Availability
27
LOCK-LID WCI 3017110 Contact Us For Availability
27
HOSE-TRAP WCI 08002364 Contact Us For Availability
27
SCREW WCI 08002453 Contact Us For Availability
27
WCI 08015507 WCI 08015507 Contact Us For Availability
28
WCI 08015897 WCI 08015897 Contact Us For Availability
28
WCI 3018963 WCI 3018963 Contact Us For Availability
28
WCI 08015517 WCI 08015517 Contact Us For Availability
28
TUB-INNER WCI 08015495 Contact Us For Availability
28
PULLEY WCI 08006686 Contact Us For Availability
28
WCI 08015535 WCI 08015535 Contact Us For Availability
29
WCI 3018964 WCI 3018964 Contact Us For Availability
29
WCI 08950170 WCI 08950170 Contact Us For Availability
29
CLAMP (2) WCI 08014914 Contact Us For Availability
30
KNOB-WATER TEMP WCI 08014340 Contact Us For Availability
30
RIVETS (2) WCI 08002420 Contact Us For Availability
30
WCI 08015885 WCI 08015885 Contact Us For Availability
30
IMPELLER KIT WCI 08950055 Contact Us For Availability
30
SPACER (3) WCI 08014925 Contact Us For Availability
31
SCREW (2) WCI 08002284 Contact Us For Availability
31
WCI 08002427 WCI 08002427 Contact Us For Availability
31
SEAL WCI 08950093 Contact Us For Availability
32
WCI 08015868 WCI 08015868 Contact Us For Availability
32
WCI 08015497 WCI 08015497 Contact Us For Availability
32
MOTOR-MAIN WCI 08014901 Contact Us For Availability
33
SEAL WCI 08002430 Contact Us For Availability
33
SWITCH-START WCI 08014888 Contact Us For Availability
34
FILTER-LINT WCI 08002435 Contact Us For Availability
34
SCREW (4) WCI 08002390 Contact Us For Availability
35
WCI 08002391 WCI 08002391 Contact Us For Availability
36
SCREW SET WCI 08002392 Contact Us For Availability
37
WCI 08002396 WCI 08002396 Contact Us For Availability
38
HOUSING PUMP COVER WCI 08002397 Contact Us For Availability
39
BUSHING WCI 08011277 Contact Us For Availability
40
HOSE-DRAIN & BUSHING WCI 3205936 Contact Us For Availability
41
SCREW WCI 08001638 Contact Us For Availability
× ![]()
