Model Whirlpool WC15001Q00 FREEZER – Common Parts & Diagrams

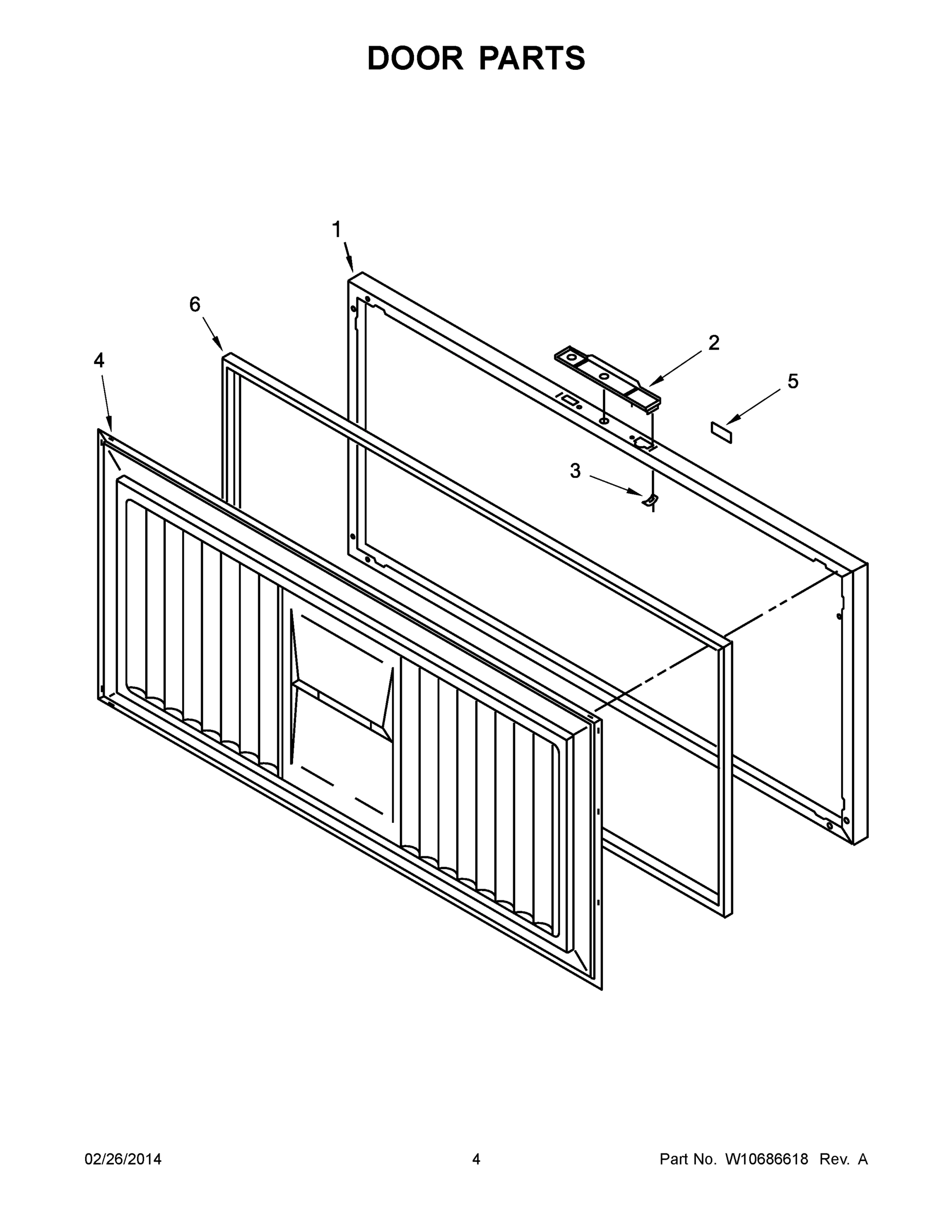

03 - DOOR PARTS

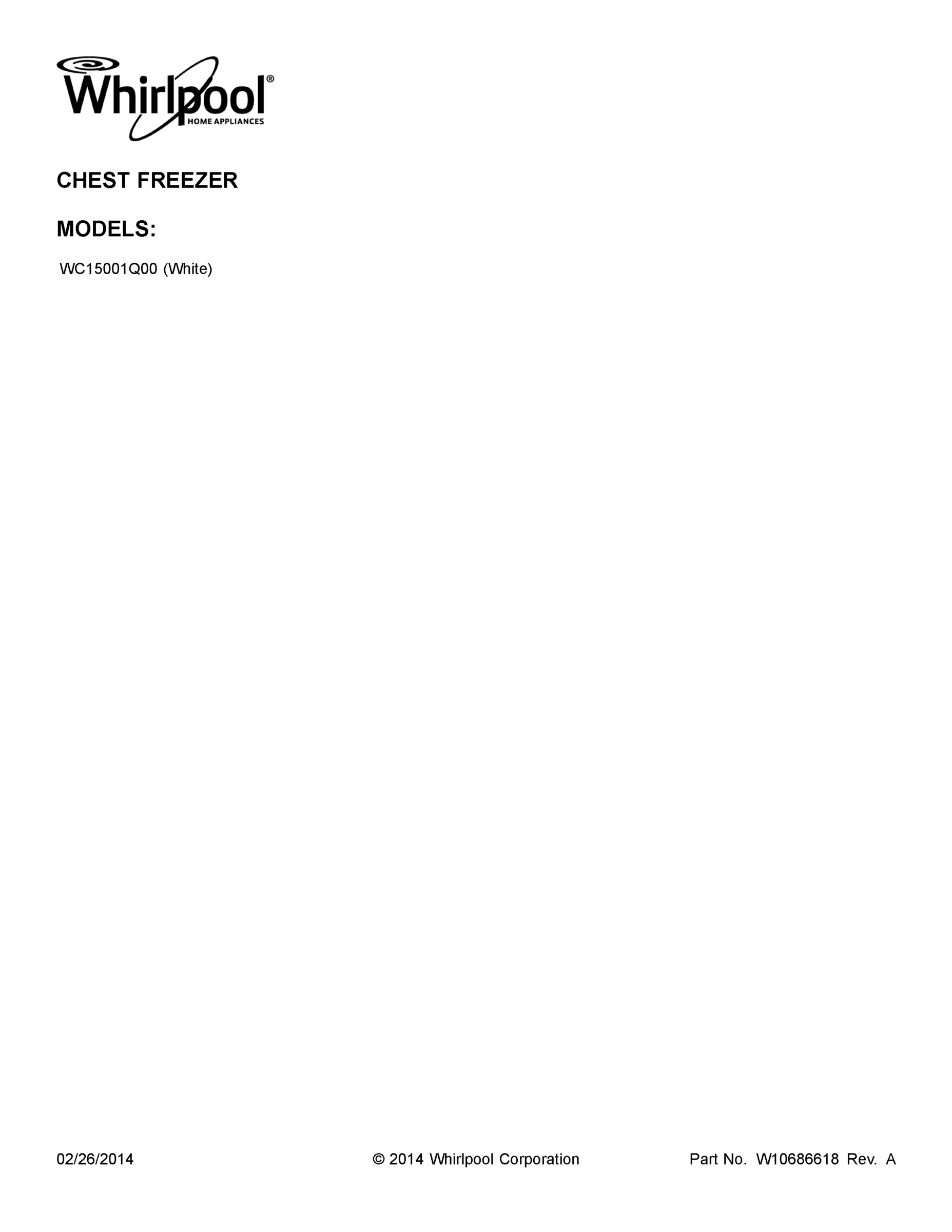

01 - COVER SHEET
02 - CABINET PARTS
04 - UNIT PARTS
Common parts from model Whirlpool WC15001Q00 FREEZER
1
USE & CARE GUIDE WPL W10649227 Contact Us For Availability
1
COMPRESSOR WPL 432972141 Contact Us For Availability
2
HANDLE WPL 435663032 Contact Us For Availability
2
ASSEMBLY, HINGE WPL 434582008 Contact Us For Availability
2
RELAY WPL 235154010 Contact Us For Availability
3
CLIP, OBLONG WPL 324059024 Contact Us For Availability
3
ADAPTER, DRAIN WPL 133178 Contact Us For Availability
3
BRACE WPL 381556001 Contact Us For Availability
4
PANEL, INTERIOR DOOR WPL 425774028 Contact Us For Availability
4
PLASTIC, GROMMET WPL 323995014 Contact Us For Availability
5
BASKET WPL 436033002 Contact Us For Availability
6
GASKET, DOOR (WHITE) WPL 435260005 Contact Us For Availability
6
THERMOSTAT WPL 435940001 Contact Us For Availability
7
KNOB, THERMOSTAT WPL 436019001 Contact Us For Availability
7
BASE, COMPRESSOR WPL 435083001 Contact Us For Availability
8
BOX, CONTROL WPL 435976003 Contact Us For Availability
8
OVERLOAD WPL 234286039 Contact Us For Availability
9
HARNESS, WIRING WPL 435130004 Contact Us For Availability
9
COVER WPL 335171003 Contact Us For Availability
10
PLUG, DRAIN WPL 333211001 Contact Us For Availability
11
PANEL, ACCESS WPL 435099001 Contact Us For Availability
12
SCREW WPL 324004049 Contact Us For Availability
13
SCREW WPL 324004005 Contact Us For Availability
14
KEY WPL 126356 Contact Us For Availability
15
ASSEMBLY, LOCK WPL 335284001 Contact Us For Availability
16
CLIP, SPRING WPL 126359 Contact Us For Availability
18
LOCK, HOOK BOLT WPL 235195006 Contact Us For Availability
19
SCREW WPL 324004100 Contact Us For Availability
NI
REFRIGERANT CHARGE 4.75 OZ. (R-134A) WPL NP Contact Us For Availability
× ![]()
