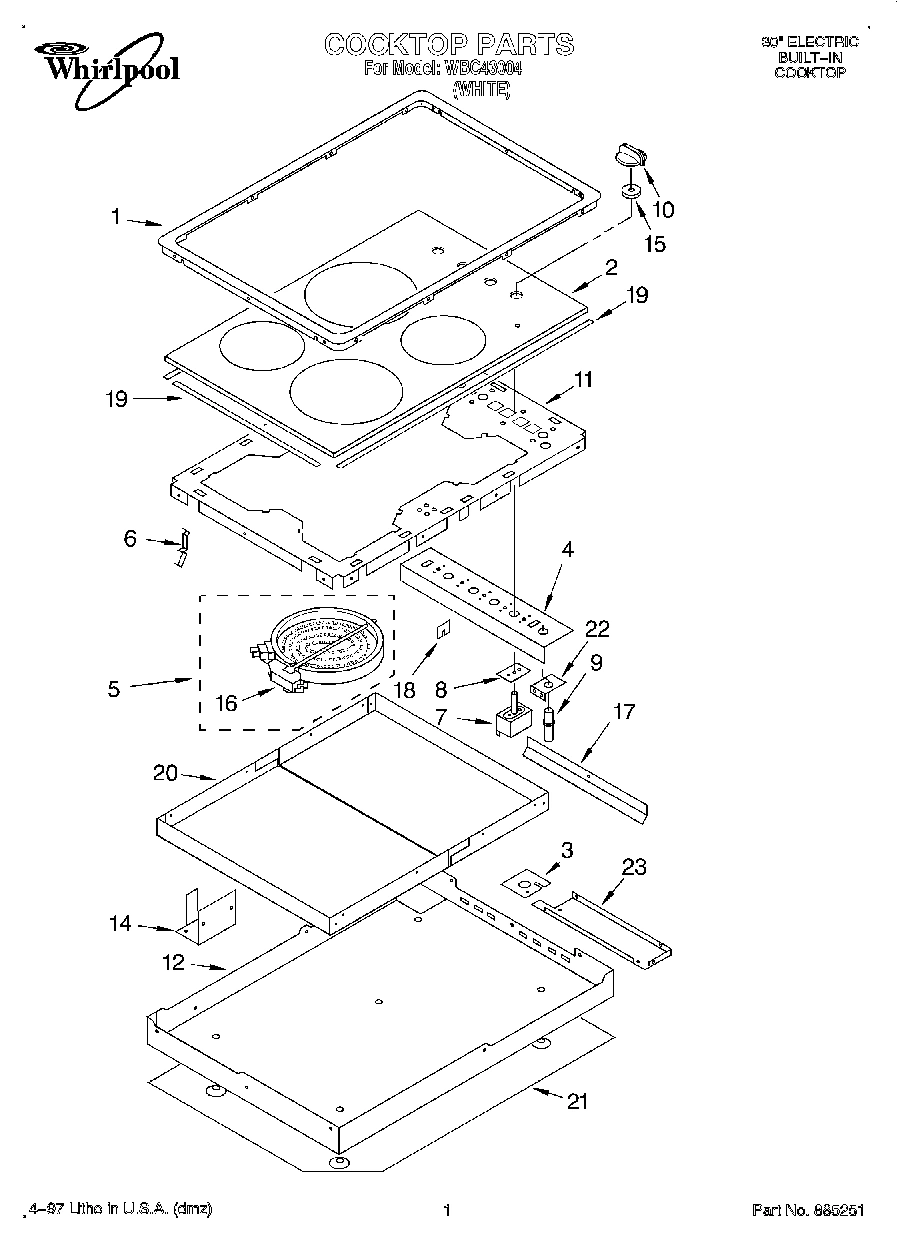

Model Whirlpool WBC43004 ELECTRIC BUILT-IN COOKTOP – Common Parts & Diagrams
01 - SECTION
Common parts from model Whirlpool WBC43004 ELECTRIC BUILT-IN COOKTOP
WPL W10355051 No Longer Available
WPL 4159456 WPL 4159456 Contact Us For Availability
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wir WPL 242822 Contact Us For Availability
WPL 242823 WPL 242823 Contact Us For Availability
WPL 242824 WPL 242824 Contact Us For Availability
WPL 242825 WPL 242825 Contact Us For Availability
WPL 242826 WPL 242826 Contact Us For Availability
WPL 242827 WPL 242827 Contact Us For Availability
WPL 242828 WPL 242828 Contact Us For Availability
WPL 242829 WPL 242829 Contact Us For Availability
WPL 242830 WPL 242830 Contact Us For Availability
WPL 242832 WPL 242832 Contact Us For Availability
WPL 3172515 WPL 3172515 Contact Us For Availability
WPL 3179589 WPL 3179589 Contact Us For Availability
WPL 3188525 WPL 3188525 Contact Us For Availability
WPL 4454657 WPL 4454657 Contact Us For Availability
WPL LIT3189792 WPL LIT3189792 Contact Us For Availability
WPL LIT3190333 WPL LIT3190333 Contact Us For Availability
WPL LIT4454653 WPL LIT4454653 Contact Us For Availability
1
Trim Ring, Cooktop WPL 3190941 Contact Us For Availability
2
Cooktop, Glass WPL 3188839 Contact Us For Availability
4
Bracket, Switch Mounting WPL 3189342 Contact Us For Availability
5
Element, Surface (1400W Left Rear) WPL 3189894 Contact Us For Availability
5
Element, Surface (1700W Right Front) WPL 3189895 Contact Us For Availability
5
Element, Surface (2100W Right Rear) WPL 3189896 Contact Us For Availability
5
Element, Surface (2400W Left Front) WPL 3189897 Contact Us For Availability
6
Spring, Locator (8) WPL 3189165 Contact Us For Availability
7
Switch, Infinite (Use W/2400W Left Front Burn WPL 4454537 No Longer Available
7
Switch, Infinite (Use W/1400W Left Rear Burne WPL 4454535 Contact Us For Availability
7
Switch, Infinite (Use W/1700W Right Front & 2 WPL 4454536 Contact Us For Availability
9
Light, Indicator WPL 4454437 Contact Us For Availability
11
Backer, Plate WPL 3189962 Contact Us For Availability
12
Cover, Bottom WPL 3189778 Contact Us For Availability
14
Bracket, Wiring WPL 3189546 Contact Us For Availability
15
Seal, Switch Shaft (4) WPL 3182435 Contact Us For Availability
16
Switch, Limiter (Use W/3189895 Element) WPL 3190250 Contact Us For Availability
16
Switch, Limiter (Use W/3189897 Element) WPL 3190251 Contact Us For Availability
16
Switch, Limiter (Use W/3189896 Element) WPL 3190252 Contact Us For Availability
16
Switch, Limiter (Use W/3189894 Element) WPL 3190253 Contact Us For Availability
17
Screw, WPL 254225 Contact Us For Availability
17
Plate, Louver WPL 3189502 Contact Us For Availability
18
Grommet, Wire Way WPL 3188533 Contact Us For Availability
18
Grommet, Wire Way WPL 4454692 Contact Us For Availability
19
Seal, Silicone (Small (4)) WPL 3185589 Contact Us For Availability
19
Seal, Silicone (Large (2)) WPL 3185590 Contact Us For Availability
20
Shield, Heat (2) WPL 3189336 Contact Us For Availability
21
Shield, Heat (Exterior) WPL 3189340 Contact Us For Availability
22
Bracket, Ind. Lite WPL 3189779 Contact Us For Availability
23
Screw (3) WPL 4168863 Contact Us For Availability
23
Bottom, Switch WPL 3189501 Contact Us For Availability
× ![]()
