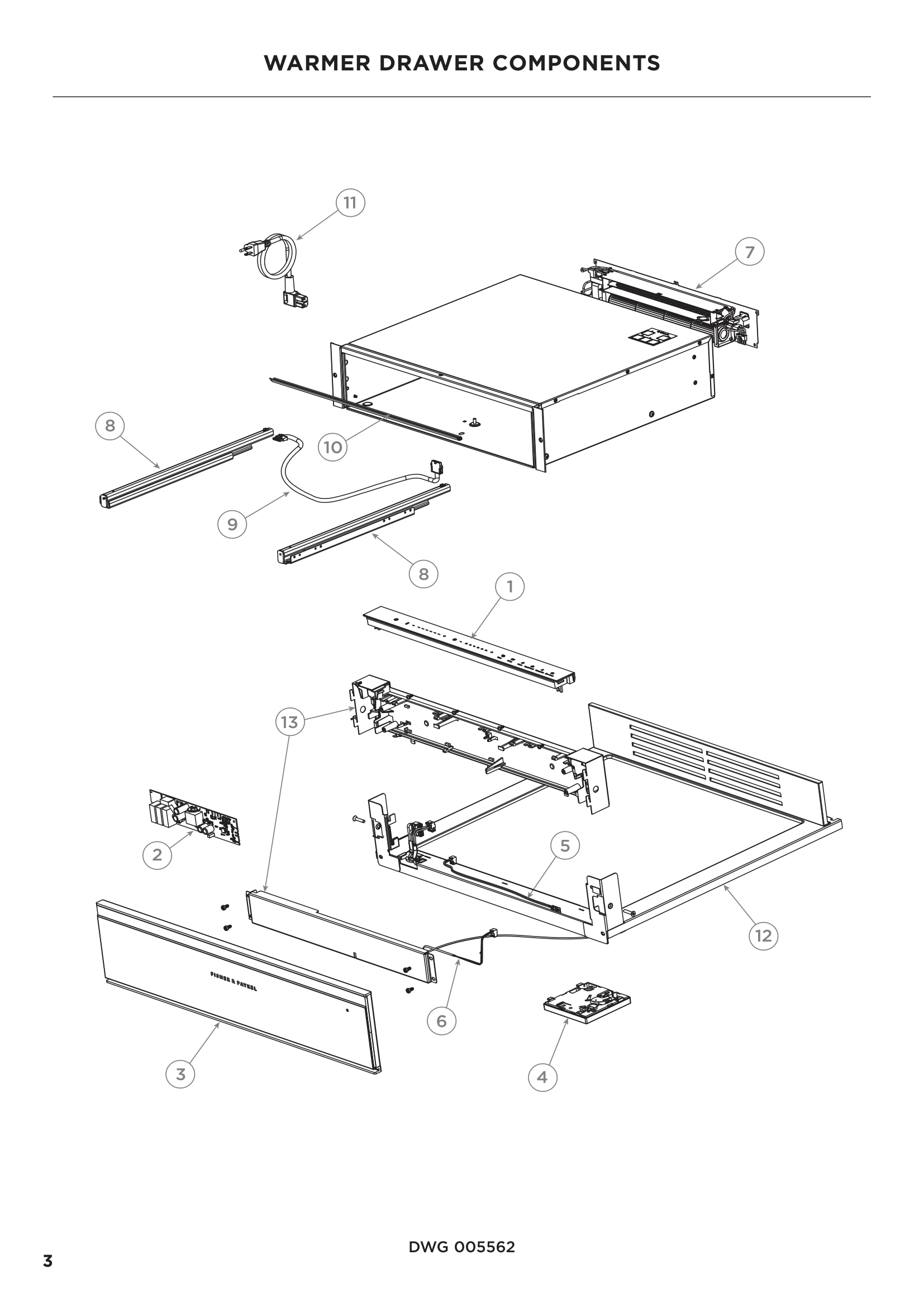

Model Fisher & Paykel WB24SDEX2-82110-A Warming Drawer – Common Parts & Diagrams

1
CONTROL TOUCH PANEL
CONTROL TOUCH PANEL FPA 793072 Contact Us For Availability
View on Model
2
POWER BOARD 24/60
POWER BOARD 24/60 FPA 793074 Contact Us For Availability
View on Model
3
PANEL FRONT 24/60 140 FP SS
PANEL FRONT 24/60 140 FP SS FPA 793055 Contact Us For Availability
View on Model
4
MECHANISM PUSH/PULL
MECHANISM PUSH/PULL FPA 793049 Contact Us For Availability
View on Model
5
CABLE LED
CABLE LED FPA 793061 Contact Us For Availability
View on Model
6
TEMPERATURE SENSOR SHORT
TEMPERATURE SENSOR SHORT FPA 793070 Contact Us For Availability
View on Model
7
HEATING UNIT C14 120V US
HEATING UNIT C14 120V US FPA 793050 Contact Us For Availability
View on Model
8
KIT SLIDERS
KIT SLIDERS FPA 793052 Contact Us For Availability
View on Model
9
HARNESS CABLE 760MM
HARNESS CABLE 760MM FPA 793069 Contact Us For Availability
View on Model
10
SEAL DRAWER P&P
SEAL DRAWER P&P FPA 793054 Contact Us For Availability
View on Model
11
POWER CORD US
POWER CORD US FPA 793062 Contact Us For Availability
View on Model
12
DRAWER 140 FPA 120V
DRAWER 140 FPA 120V FPA 793151 Contact Us For Availability
View on Model
13
FRAME CONTROL PANEL 140
FRAME CONTROL PANEL 140 FPA 793152 Contact Us For Availability
View on Model
NI
BK UG WB24 WB30 EN FR
BK UG WB24 WB30 EN FR FPA 591997 Contact Us For Availability
View on Model
NI
BK INSTL WB24S/30S EN FR
BK INSTL WB24S/30S EN FR FPA 592133 Contact Us For Availability
View on Model
