Model Fisher & Paykel WB24SDEX1-81578-A Warmer Drawer – Common Parts & Diagrams

Common parts from model Fisher & Paykel WB24SDEX1-81578-A Warmer Drawer

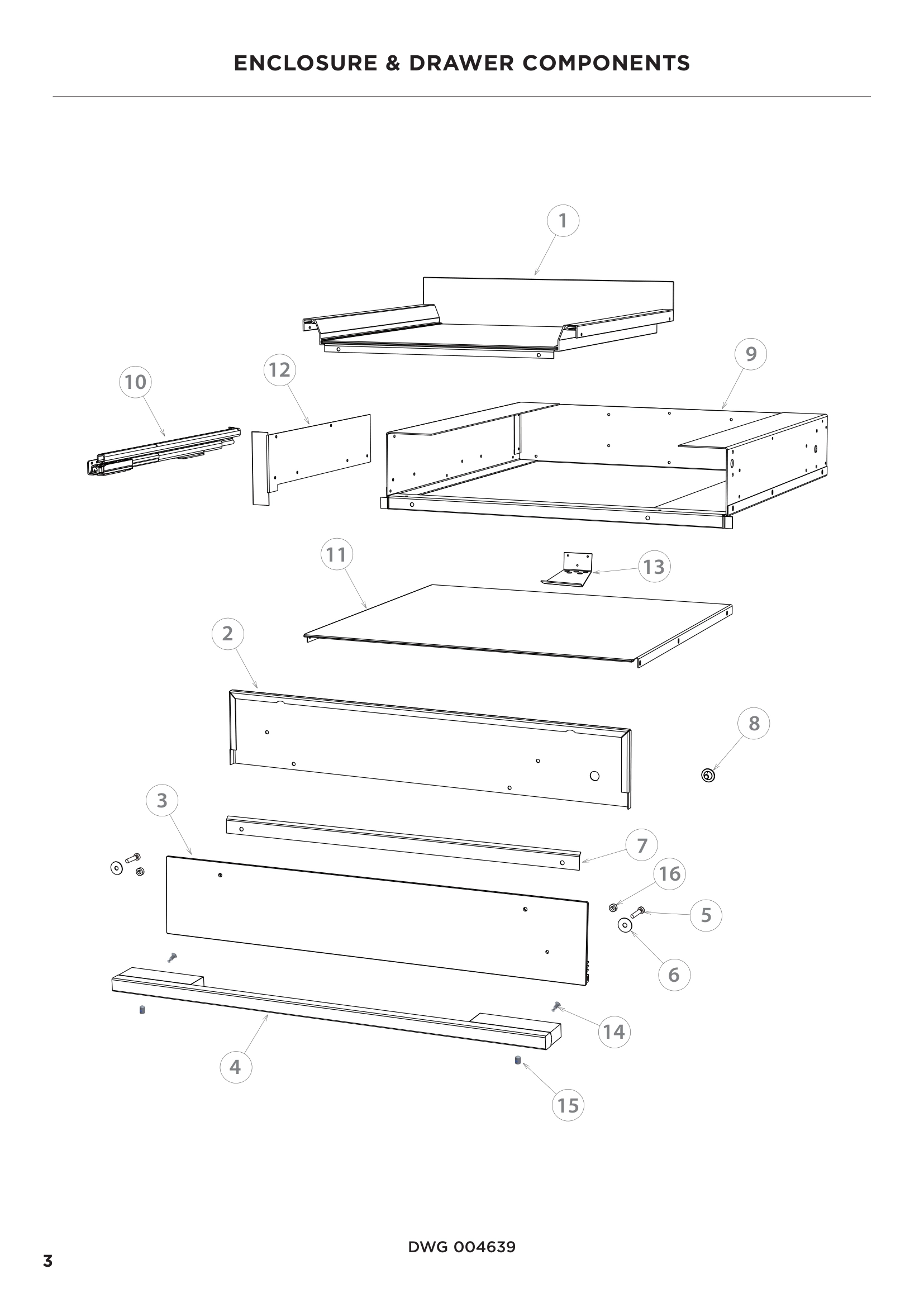

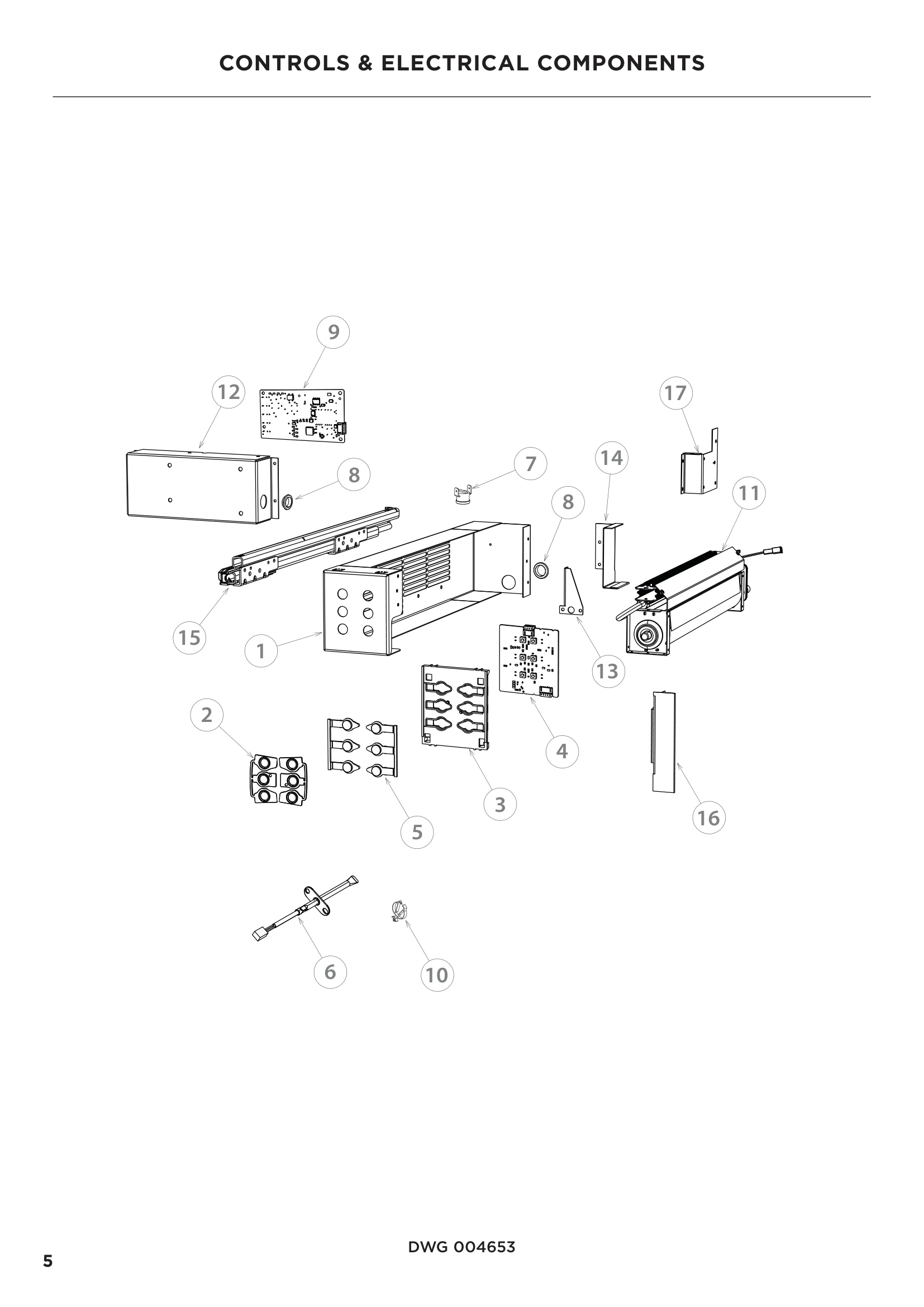

ENCLOSURE & DRAWER COMPONENTS

Print

• This Diagram
• All Diagrams

1

HOUSING CONTROLS WD FPA 570091 Contact Us For Availability

View on Model

2

KIT BUTTONS/TAPE DISPLAY FPA 860539P Contact Us For Availability

View on Model

3

HOUSING CONTROL MODULE WD FPA 570007 Contact Us For Availability

View on Model

4

563302 Fisher & Paykel Cooking Handle D3 565 Backorder FPA 563302 View Details $84.83

View on Model

4

570270P Fisher & Paykel Cooking Module Dispen Backorder FPA 570270P View Details $108.15

View on Model

5

BUTTONS DISPLAY ASSY FPA 860778 Contact Us For Availability

View on Model

6

545259 Fisher & Paykel Oven Cooking Sensor Te In Stock FPA 545259 View Details $44.47

View on Model

7

THERMAL LIMITER FPA 570255 Contact Us For Availability

View on Model

8

EDGE PROTECTOR 19MM FPA 570062 Contact Us For Availability

View on Model

9

570306P Fisher & Paykel Cooking Power Board M Backorder FPA 570306P View Details $153.61

View on Model

10

SLIDE LEFT WD120 HETTICH FPA 570021 Contact Us For Availability

View on Model

10

CLIP CABLE TWIST HOLDER (PKT 5) FPA 545811P Contact Us For Availability

View on Model

11

TOP FRONT FACIA WD FPA 570030 Contact Us For Availability

View on Model

11

WARMING DRAWER FAN AND HARNESS FPA 570196 Contact Us For Availability

View on Model

12

TRIM FRONT LEFT SS WD FPA 570049 Contact Us For Availability

View on Model

12

COVER POWER ELECTRONICS FPA 570067 Contact Us For Availability

View on Model

13

KIT ANTI TIP FPA 570108 Contact Us For Availability

View on Model

13

BRACKET THERMOSTAT WD24 FPA 570276 Contact Us For Availability

View on Model

14

563100 Fisher & Paykel Cooking Front Handle P Backorder FPA 563100 View Details $6.20

View on Model

14

SHIELD FLEX TERMINALS FPA 570080 Contact Us For Availability

View on Model

15

563081 Fisher & Paykel Cooking Hex Screw M4X6 In Stock FPA 563081 View Details $5.86

View on Model

15

SLIDE RIGHT WD120 HETTICH FPA 570022 Contact Us For Availability

View on Model

16

GROMMET DOOR GLASS WD FPA 570074 Contact Us For Availability

View on Model

16

TRIM FRONT RIGHT WD24 FPA 570277 Contact Us For Availability

View on Model

17

TRIM REAR RIGHT SS WD FPA 570073 Contact Us For Availability

View on Model

NI

546692P Fisher & Paykel Dishwasher Screw St. Backorder FPA 546692P View Details $9.41

View on Model

NI

556003P Fisher & Paykel Cooking Screw 6X3/8 T Backorder FPA 556003P View Details $27.60

View on Model

NI

817825P Fisher & Paykel Refrigerator 8x22 Waf Backorder FPA 817825P View Details $11.84

View on Model

NI

KIT RAILS OB2 FPA 570107 Contact Us For Availability

View on Model

NI

SCREW M4X10 TAPTITE PH PN PKT10 FPA 570064P Contact Us For Availability

View on Model

NI

SCREW M4X9 TAPT WAFER PH PKT10 FPA 570116P Contact Us For Availability

View on Model

NI

HARNESS SENSOR TEMP FPA 574572 Contact Us For Availability

View on Model

NI

PCB STANDOFF 10MM FPA 570061 Contact Us For Availability

View on Model

NI

TRML BLOCK-FLEX ASSY US FPA 534901 Contact Us For Availability

View on Model

NI

BOOKSET WB24SD FP FPA 591543 Contact Us For Availability

View on Model

NI

WASHER M4 304SS ADHSV (PKT10) FPA 570111P Contact Us For Availability

View on Model

×
