Model Electrolux WAS256P2K2 ROOM AIR CONDITIONER – Common Parts & Diagrams

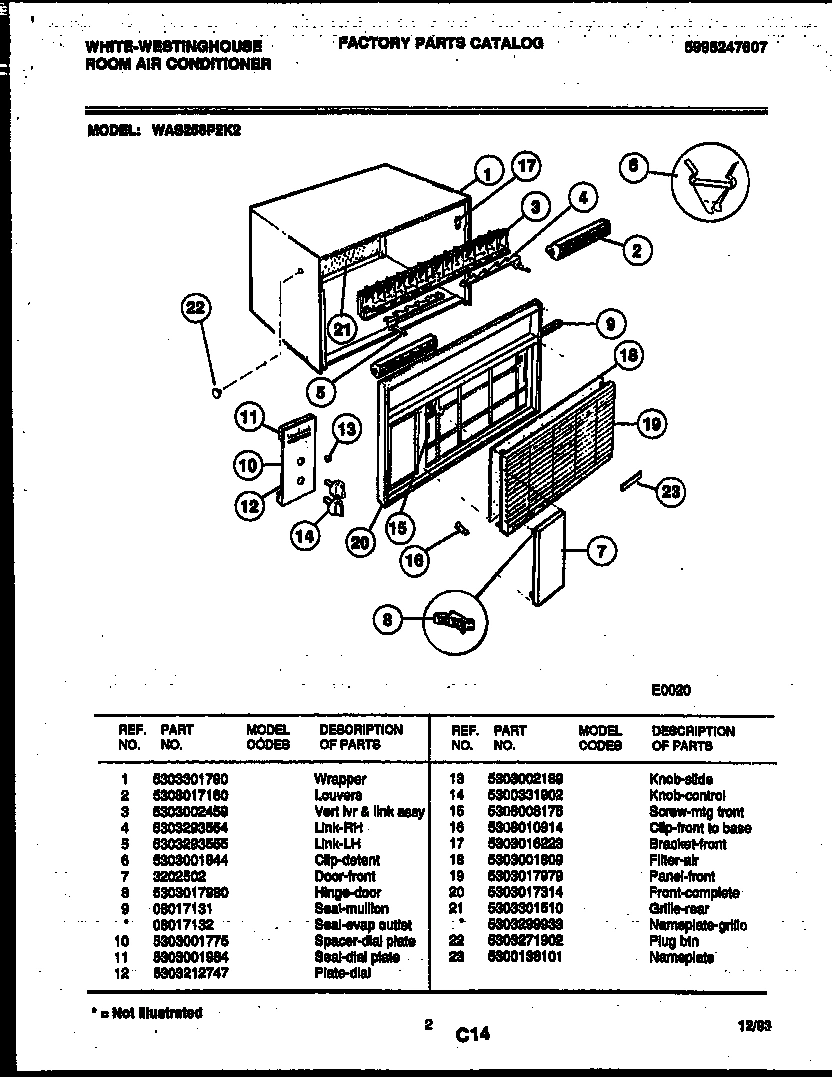

02 - CABINET PARTS

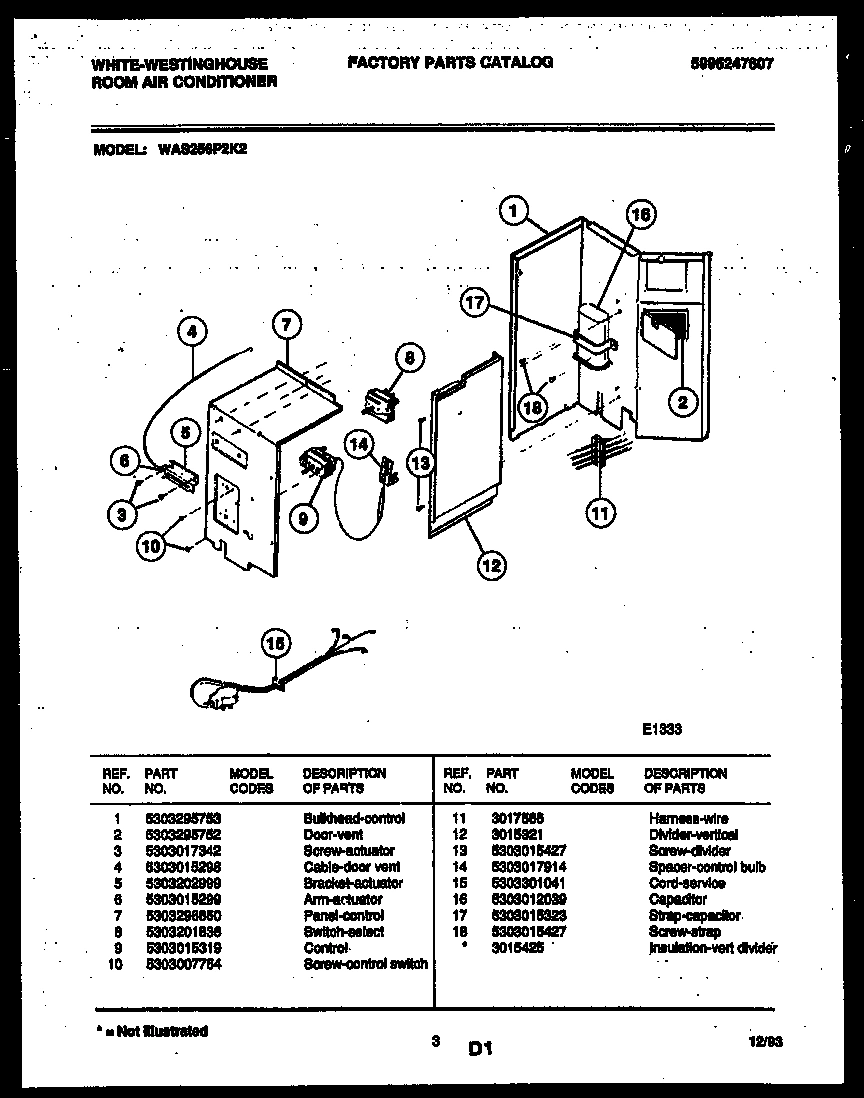

03 - ELECTRICAL PARTS

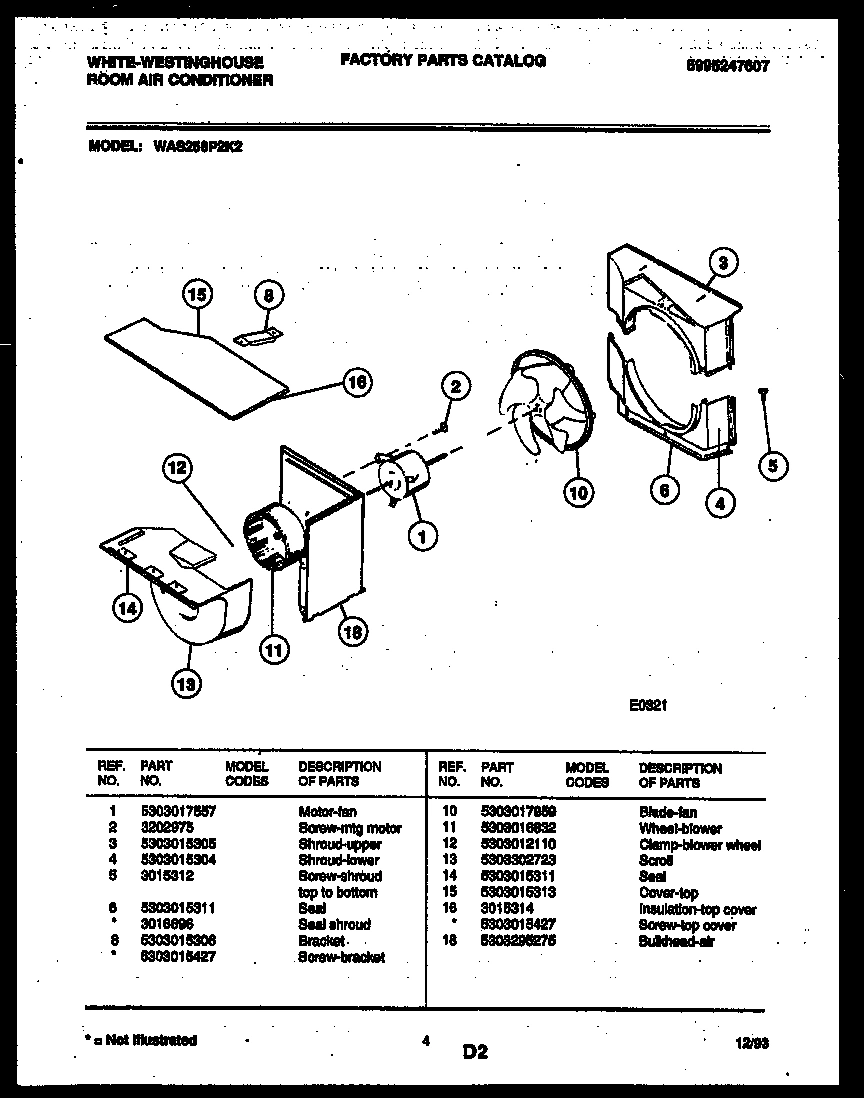

04 - AIR HANDLING PARTS

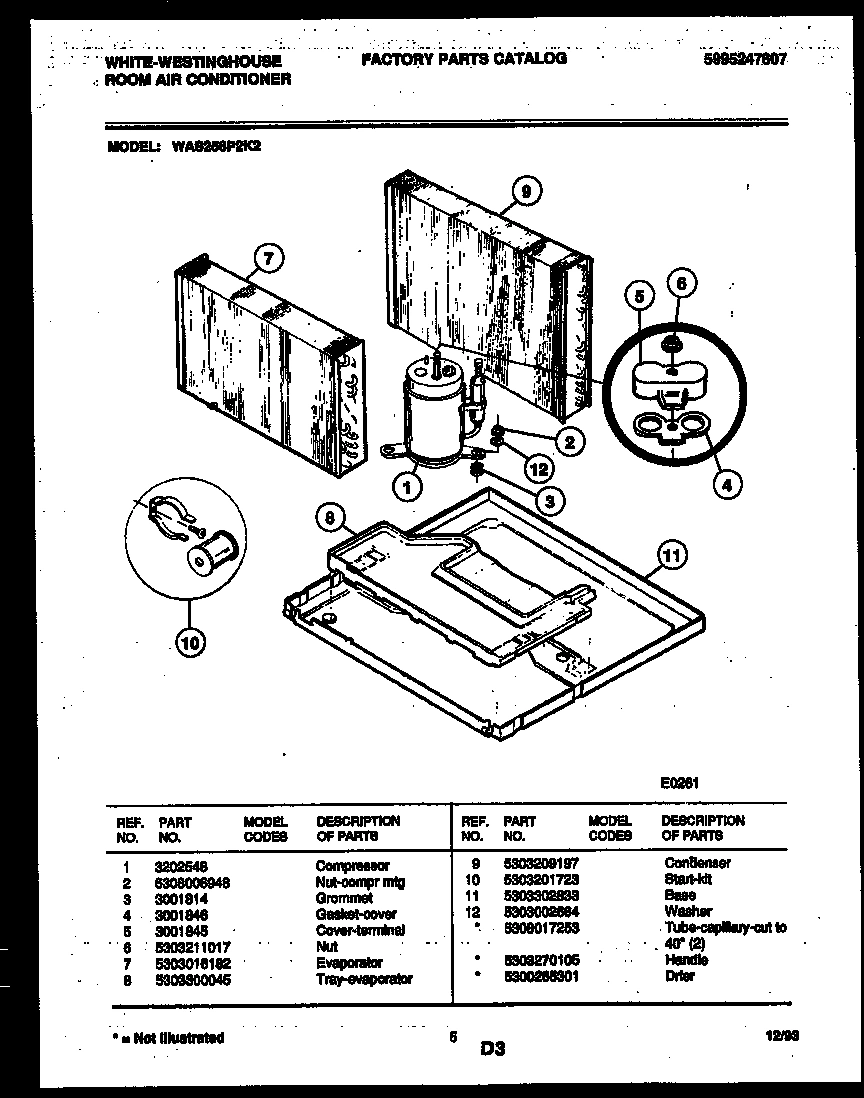

05 - SYSTEM PARTS

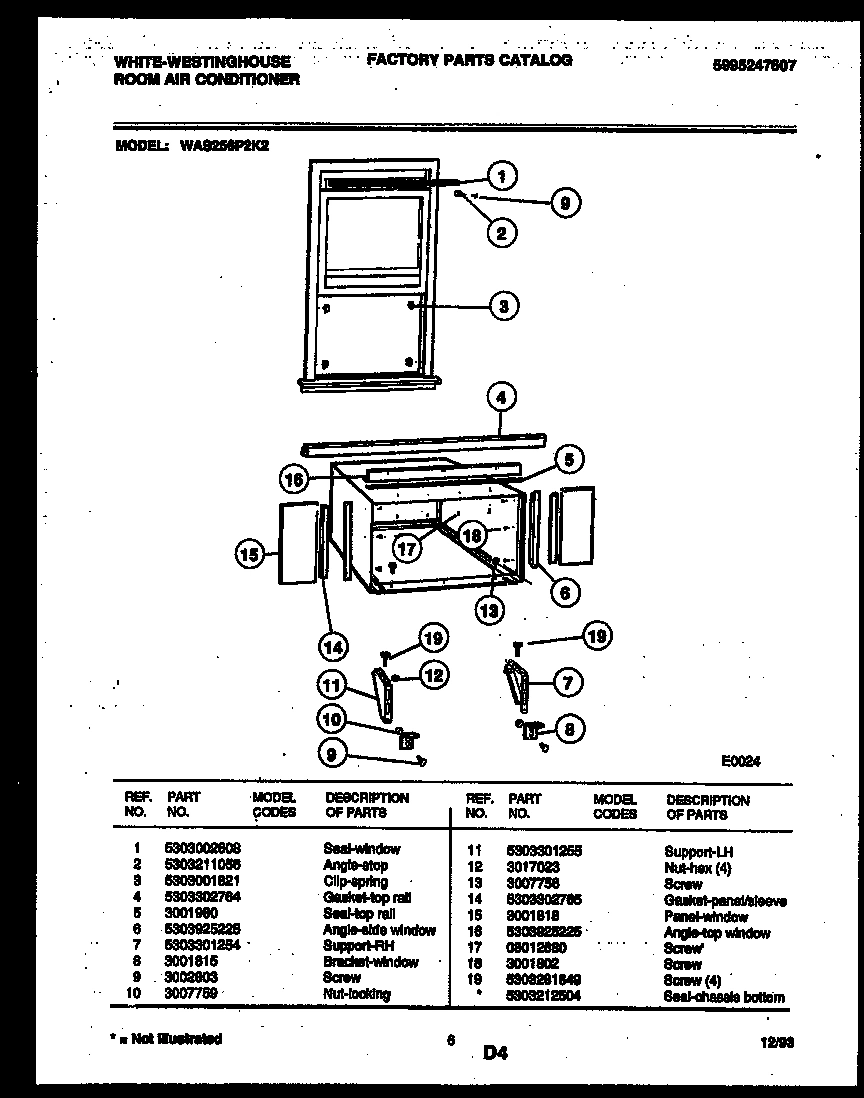

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux WAS256P2K2 ROOM AIR CONDITIONER
*84595
INSULATION-VERT. DIVIDER WCI 3015425 Contact Us For Availability
*84597
WCI 5303270105 WCI 5303270105 Contact Us For Availability
*84597
TUBE-CAPILLARY-CUT TO 40`` (2) WCI 5308017253 Contact Us For Availability
*84599
SEAL - CHASSIS, BOTTOM WCI 5303212504 Contact Us For Availability
1
BULKHEAD-CONTROL WCI 5303295753 Contact Us For Availability
1
WCI 5303017557 WCI 5303017557 Contact Us For Availability
1
WCI 3202548 WCI 3202548 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
2
WCI 5303211056 WCI 5303211056 Contact Us For Availability
2
DOOR-VENT WCI 5303295752 Contact Us For Availability
2
NUT-COMPR MTG WCI 5308006948 Contact Us For Availability
3
VERT LVR & LINK ASSY WCI 5303002459 Contact Us For Availability
3
SCREW-ACTUATOR WCI 5303017342 Contact Us For Availability
3
WCI 5303015305 WCI 5303015305 Contact Us For Availability
3
WCI 3001814 WCI 3001814 Contact Us For Availability
3
CLIP-SPRING WCI 5303001821 Contact Us For Availability
4
WCI 5303293554 WCI 5303293554 Contact Us For Availability
4
CABLE-DOOR VENT WCI 5303015298 Contact Us For Availability
4
WCI 5303015304 WCI 5303015304 Contact Us For Availability
4
WCI 3001846 WCI 3001846 Contact Us For Availability
4
WCI 5303302764 WCI 5303302764 Contact Us For Availability
5
WCI 5303293555 WCI 5303293555 Contact Us For Availability
5
BRACKET-ACTUATOR WCI 5303202999 Contact Us For Availability
5
COVER-TERMINAL WCI 3001845 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
CLIP-DETENT WCI 5303001844 Contact Us For Availability
6
WCI 5303015299 WCI 5303015299 Contact Us For Availability
6
NUT WCI 5303211017 Contact Us For Availability
6A
SEAL SHROUD (NON-ILLUSTRATED) WCI 3016696 Contact Us For Availability
7
WCI 3202502 WCI 3202502 Contact Us For Availability
7
WCI 5303296650 WCI 5303296650 Contact Us For Availability
7
WCI 5303016182 WCI 5303016182 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
8
WCI 5303201836 WCI 5303201836 Contact Us For Availability
8
HINGE - DOOR WCI 5303017980 Contact Us For Availability
8
BRACKET WCI 5303015306 Contact Us For Availability
8
WCI 5303300045 WCI 5303300045 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
WCI 08017131 WCI 08017131 Contact Us For Availability
9
CONTROL WCI 5303015319 Contact Us For Availability
9
WCI 5303209197 WCI 5303209197 Contact Us For Availability
9
WCI 3002803 WCI 3002803 Contact Us For Availability
9A
SEAL-EVAP OUTLET (NON-ILLUSTRATED) WCI 08017132 Contact Us For Availability
10
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
10
SCREW-CONTROL SWITCH WCI 5303007754 Contact Us For Availability
10
WCI 5303017959 WCI 5303017959 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
10
NUT LOCKING WCI 3007759 Contact Us For Availability
11
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
11
HARNESS-WIRE WCI 3017565 Contact Us For Availability
11
WCI 5303016832 WCI 5303016832 Contact Us For Availability
11
WCI 5303302833 WCI 5303302833 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
WCI 5303212747 WCI 5303212747 Contact Us For Availability
12
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
12
WCI 5303012110 WCI 5303012110 Contact Us For Availability
12
WCI 5303002664 WCI 5303002664 Contact Us For Availability
13
WCI 5303002189 WCI 5303002189 Contact Us For Availability
13
WCI 5303302723 WCI 5303302723 Contact Us For Availability
13
WCI 3007756 WCI 3007756 Contact Us For Availability
14
WCI 5300331902 WCI 5300331902 Contact Us For Availability
14
SPACER-CONTROL BULB WCI 5303017914 Contact Us For Availability
14
SEAL WCI 5303015311 Contact Us For Availability
14
GASKET-PANEL/SLEEVE WCI 5303302765 Contact Us For Availability
15
SCREW-MTG FRONT WCI 5308008175 Contact Us For Availability
15
WCI 5303301041 WCI 5303301041 Contact Us For Availability
15
WCI 5303015313 WCI 5303015313 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
16
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
16
WCI 5303012039 WCI 5303012039 Contact Us For Availability
16
INSULATION - TOP COVER WCI 3015314 Contact Us For Availability
16
ANGLE-TOP WINDOW WCI 5303925225 Contact Us For Availability
17
BRACKET-FRONT WCI 5303016223 Contact Us For Availability
17
WCI 5303015323 WCI 5303015323 Contact Us For Availability
17
WCI 08012680 WCI 08012680 Contact Us For Availability
18
FILTER-AIR WCI 5303001809 Contact Us For Availability
18
BULKHEAD-AIR WCI 5303295275 Contact Us For Availability
18
SCREW WCI 3001802 Contact Us For Availability
19
WCI 5303017979 WCI 5303017979 Contact Us For Availability
19
SCREW (4) WCI 5303281649 Contact Us For Availability
20
FRONT-COMPLETE WCI 5303017314 Contact Us For Availability
21
GRILLE-REAR WCI 5303301510 Contact Us For Availability
21A
NAMEPLATE-GRILLE (NON-ILLUSTRATED) WCI 5303299933 Contact Us For Availability
22
PLUG BTN WCI 5303271902 Contact Us For Availability
23
WCI 5300138101 WCI 5300138101 Contact Us For Availability
× ![]()
