Model Electrolux WAS256P2K1 ROOM AIR CONDITIONER – Common Parts & Diagrams

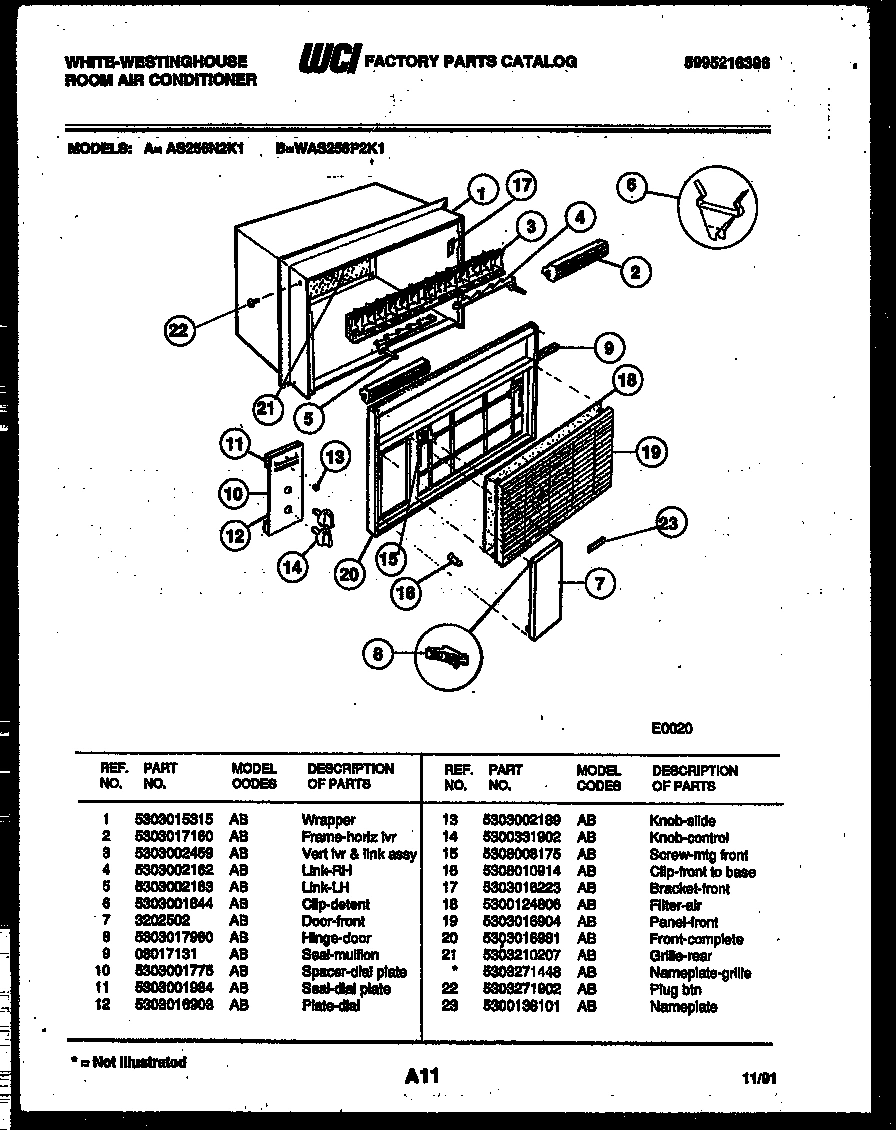

02 - CABINET PARTS

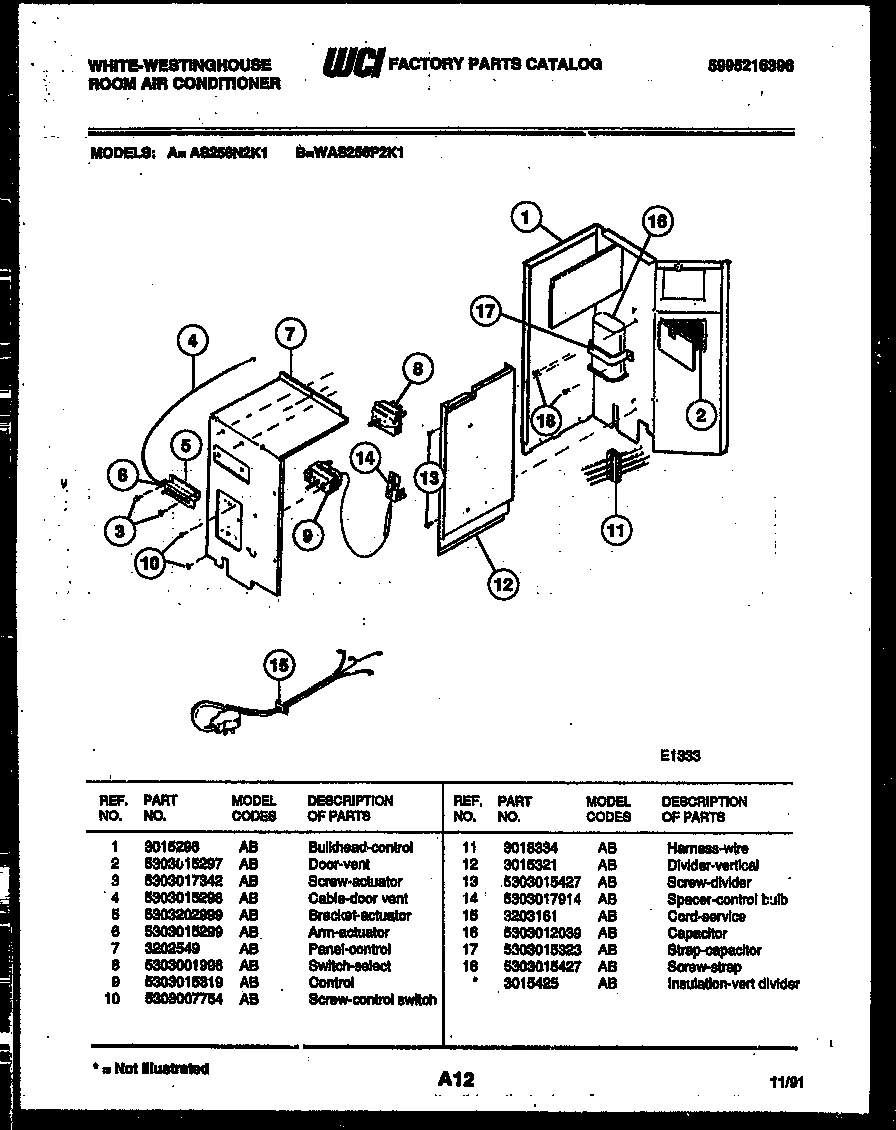

03 - ELECTRICAL PARTS

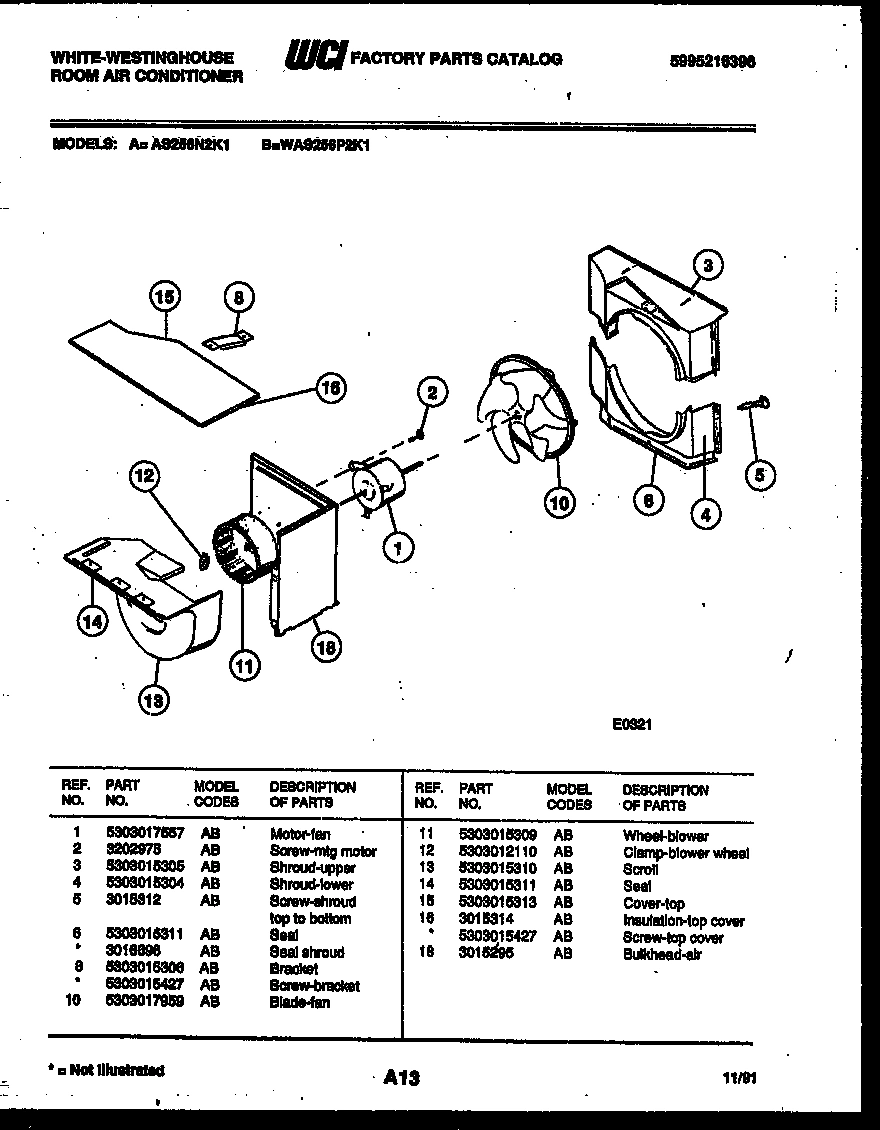

04 - AIR HANDLING PARTS

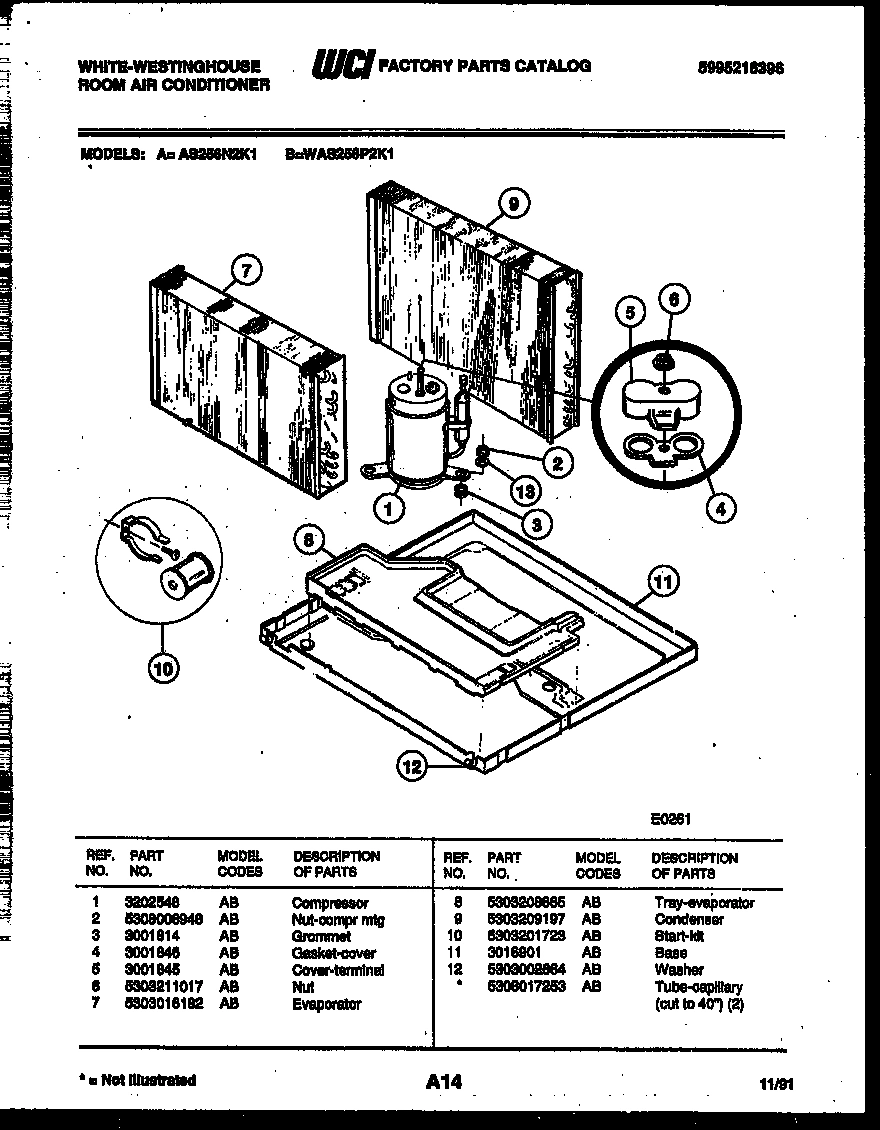

05 - SYSTEM PARTS

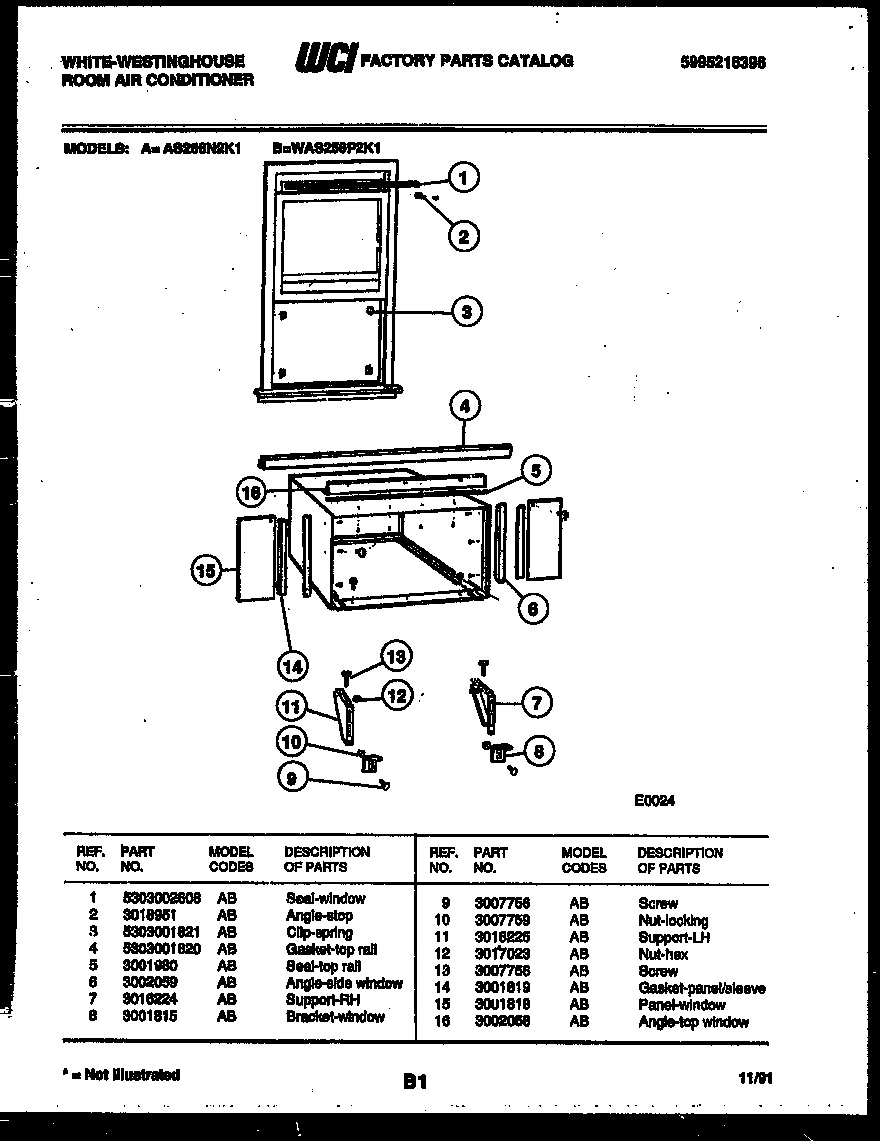

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux WAS256P2K1 ROOM AIR CONDITIONER
*57052
INSULATION-VERT. DIVIDER WCI 3015425 Contact Us For Availability
*57056
TUBE-CAPILLARY-CUT TO 40`` (2) WCI 5308017253 Contact Us For Availability
1
WCI 5303015315 WCI 5303015315 Contact Us For Availability
1
BULKHEAD - CONTROL WCI 3015296 Contact Us For Availability
1
WCI 5303017557 WCI 5303017557 Contact Us For Availability
1
WCI 3202548 WCI 3202548 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
2
WCI 5303017160 WCI 5303017160 Contact Us For Availability
2
WCI 5303015297 WCI 5303015297 Contact Us For Availability
2
NUT-COMPR MTG WCI 5308006948 Contact Us For Availability
2
ANGLE-STOP WCI 3018951 Contact Us For Availability
3
VERT LVR & LINK ASSY WCI 5303002459 Contact Us For Availability
3
SCREW-ACTUATOR WCI 5303017342 Contact Us For Availability
3
WCI 5303015305 WCI 5303015305 Contact Us For Availability
3
WCI 3001814 WCI 3001814 Contact Us For Availability
3
CLIP-SPRING WCI 5303001821 Contact Us For Availability
4
WCI 5303002162 WCI 5303002162 Contact Us For Availability
4
CABLE-DOOR VENT WCI 5303015298 Contact Us For Availability
4
WCI 5303015304 WCI 5303015304 Contact Us For Availability
4
WCI 3001846 WCI 3001846 Contact Us For Availability
4
WCI 5303001820 WCI 5303001820 Contact Us For Availability
5
WCI 5303002163 WCI 5303002163 Contact Us For Availability
5
BRACKET-ACTUATOR WCI 5303202999 Contact Us For Availability
5
COVER-TERMINAL WCI 3001845 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
CLIP-DETENT WCI 5303001844 Contact Us For Availability
6
WCI 5303015299 WCI 5303015299 Contact Us For Availability
6
NUT WCI 5303211017 Contact Us For Availability
6
ANGLE-SIDE WINDOW WCI 3002059 Contact Us For Availability
6A
SEAL SHROUD (NON-ILLUSTRATED) WCI 3016696 Contact Us For Availability
7
WCI 3202502 WCI 3202502 Contact Us For Availability
7
WCI 3202549 WCI 3202549 Contact Us For Availability
7
WCI 5303016182 WCI 5303016182 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
HINGE - DOOR WCI 5303017980 Contact Us For Availability
8
WCI 5303001996 WCI 5303001996 Contact Us For Availability
8
BRACKET WCI 5303015306 Contact Us For Availability
8
WCI 5303208665 WCI 5303208665 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
WCI 08017131 WCI 08017131 Contact Us For Availability
9
CONTROL WCI 5303015319 Contact Us For Availability
9
WCI 5303209197 WCI 5303209197 Contact Us For Availability
10
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
10
SCREW-CONTROL SWITCH WCI 5303007754 Contact Us For Availability
10
WCI 5303017959 WCI 5303017959 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
10
NUT LOCKING WCI 3007759 Contact Us For Availability
11
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
11
WCI 3018334 WCI 3018334 Contact Us For Availability
11
WCI 5303015309 WCI 5303015309 Contact Us For Availability
11
WCI 3016901 WCI 3016901 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
WCI 5303016903 WCI 5303016903 Contact Us For Availability
12
DIVIDER - VERTICAL WCI 3015321 Contact Us For Availability
12
WCI 5303012110 WCI 5303012110 Contact Us For Availability
12
WCI 5303002664 WCI 5303002664 Contact Us For Availability
13
WCI 5303002189 WCI 5303002189 Contact Us For Availability
13
WCI 5303015310 WCI 5303015310 Contact Us For Availability
13
WCI 3007756 WCI 3007756 Contact Us For Availability
14
WCI 5300331902 WCI 5300331902 Contact Us For Availability
14
SPACER-CONTROL BULB WCI 5303017914 Contact Us For Availability
14
SEAL WCI 5303015311 Contact Us For Availability
14
GASKET-PANEL/SLEEVE WCI 3001819 Contact Us For Availability
15
SCREW-MTG FRONT WCI 5308008175 Contact Us For Availability
15
WCI 3203161 WCI 3203161 Contact Us For Availability
15
WCI 5303015313 WCI 5303015313 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
16
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
16
WCI 5303012039 WCI 5303012039 Contact Us For Availability
16
INSULATION - TOP COVER WCI 3015314 Contact Us For Availability
16
ANGLE-TOP WINDOW WCI 3002058 Contact Us For Availability
17
BRACKET-FRONT WCI 5303016223 Contact Us For Availability
17
WCI 5303015323 WCI 5303015323 Contact Us For Availability
18
WCI 5300124806 WCI 5300124806 Contact Us For Availability
18
BULKHEAD - AIR WCI 3015295 Contact Us For Availability
19
WCI 5303016904 WCI 5303016904 Contact Us For Availability
20
FRONT-COMPLETE WCI 5303016981 Contact Us For Availability
21
GRILLE-REAR WCI 5303210207 Contact Us For Availability
21A
NAMEPLATE-GRILLE (NON-ILLUSTRATED) WCI 5303271448 Contact Us For Availability
22
PLUG BTN WCI 5303271902 Contact Us For Availability
23
WCI 5300138101 WCI 5300138101 Contact Us For Availability
× ![]()
