Model Electrolux WAS250K2A2 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER

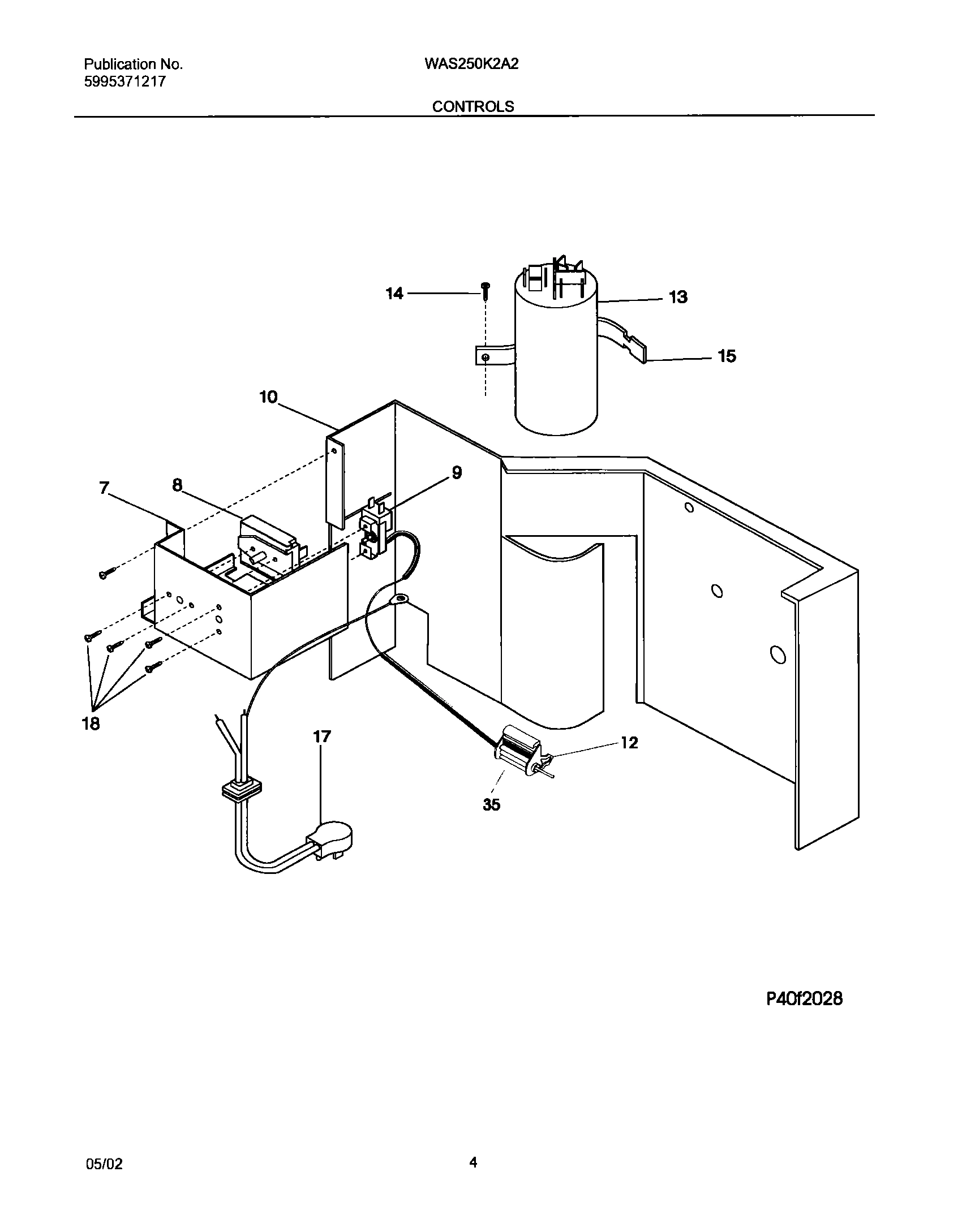

05 - CONTROLS

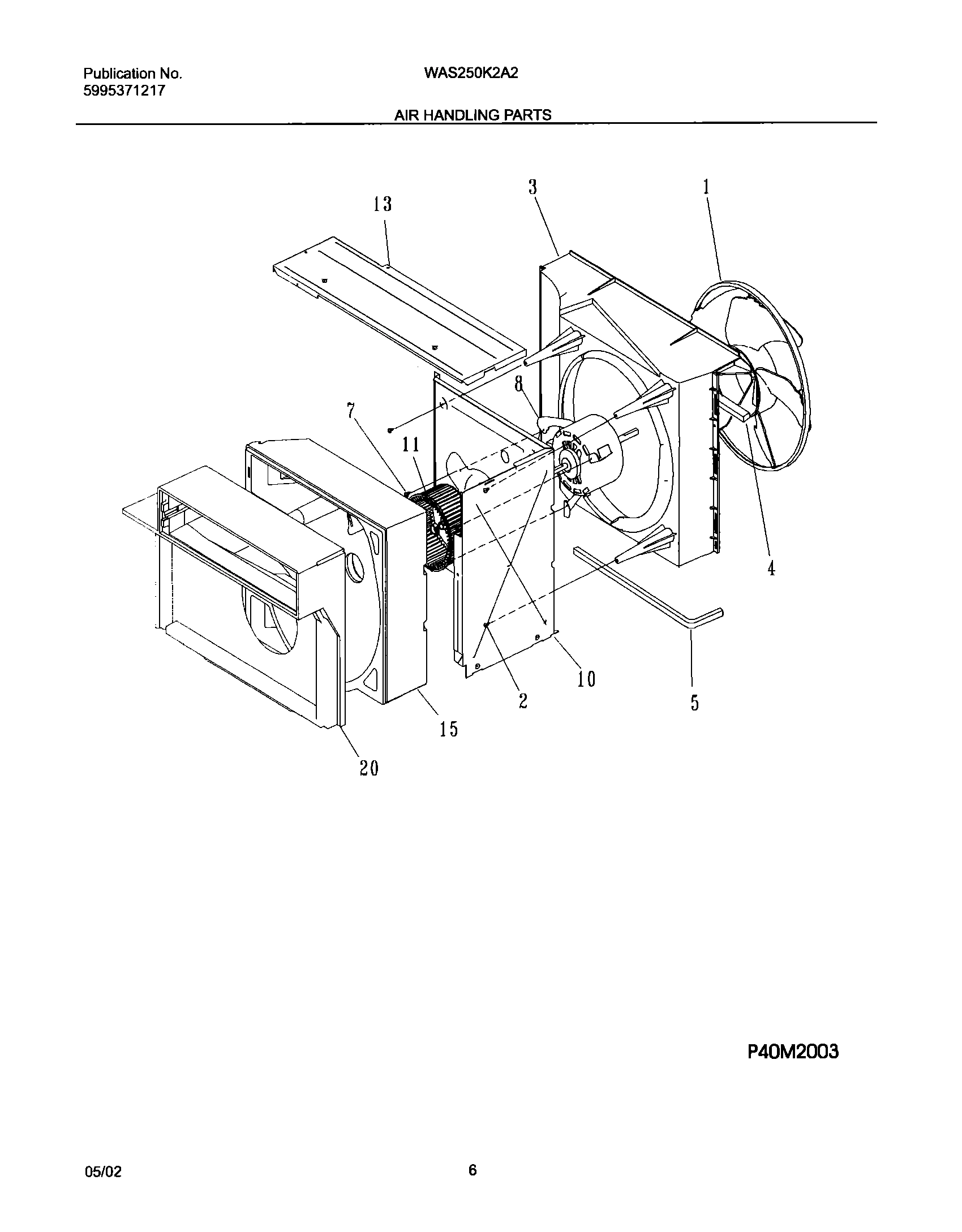

07 - AIR HANDLING PARTS

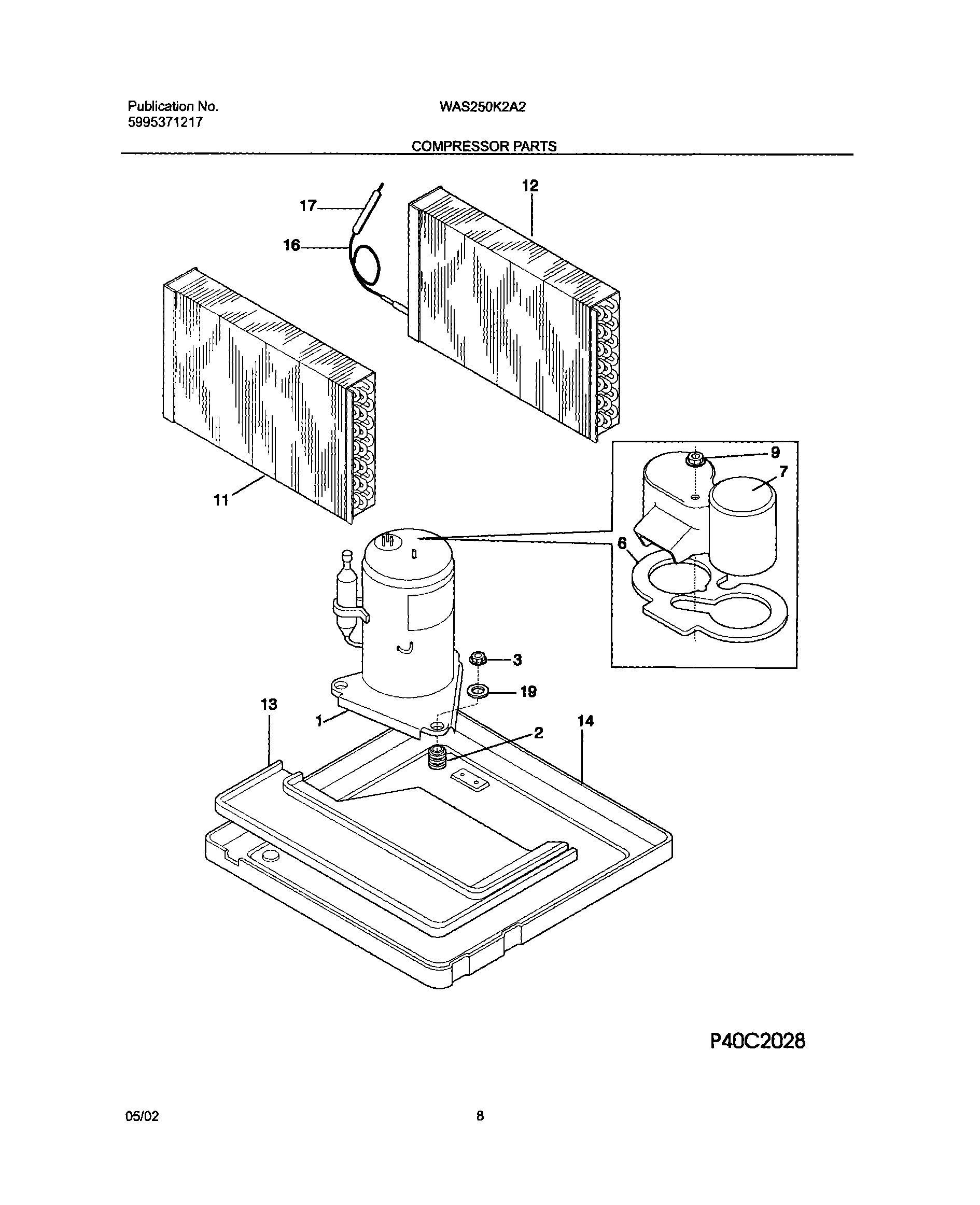

09 - COMPRESSOR

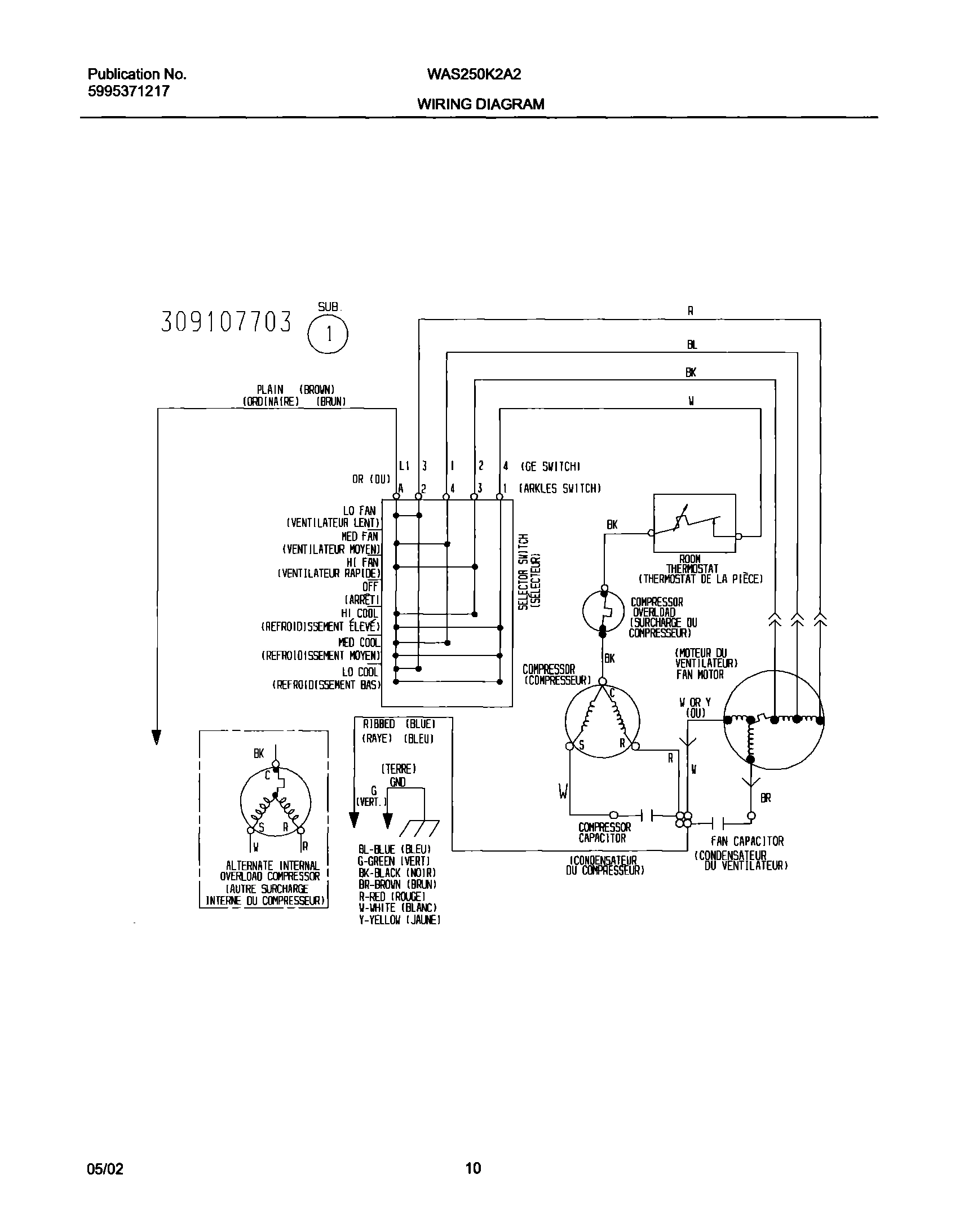

10 - WIRING
Common parts from model Electrolux WAS250K2A2 ROOM AIR CONDITIONER
1
Fan Blade assy,Tecolon WCI 5304422465 Contact Us For Availability
1
WCI 309646901 WCI 309646901 Contact Us For Availability
2
WCI 5304415693 WCI 5304415693 Contact Us For Availability
2
WCI 5303283877 WCI 5303283877 Contact Us For Availability
3
No.CONDENSER SHROUD-ONE PC. WCI 309623201 Contact Us For Availability
3
WCI 5308006948 WCI 5308006948 Contact Us For Availability
4
WCI 5303212504 WCI 5303212504 Contact Us For Availability
5
SEAL WCI 5303015311 Contact Us For Availability
6
WCI 309364305 WCI 309364305 Contact Us For Availability
7
Link-handle,vertical louver WCI 309631104 Contact Us For Availability
7
No.BOX-CONTROL HDTA/TC WCI 309630401 Contact Us For Availability
7
WCI 309364301 WCI 309364301 Contact Us For Availability
8
WCI 309630608 WCI 309630608 Contact Us For Availability
8
WCI 309630804 WCI 309630804 Contact Us For Availability
8
WCI 309633305 WCI 309633305 Contact Us For Availability
8
Switch-selector,7 position WCI 5304410883 Contact Us For Availability
9
Louver,vertical WCI 309631004 Contact Us For Availability
9
WCI 5304410884 WCI 5304410884 Contact Us For Availability
9
WCI 309364302 WCI 309364302 Contact Us For Availability
10
WCI 309111201 WCI 309111201 Contact Us For Availability
10
WCI 309623602 WCI 309623602 Contact Us For Availability
10
No.BULKHEAD-AIR SIDE HD T/A, T/C WCI 309623401 Contact Us For Availability
11
WCI 309633001 WCI 309633001 Contact Us For Availability
11
WCI 309634203 WCI 309634203 Contact Us For Availability
12
No.FILTER-MOLDED WCI 309631404 Contact Us For Availability
12
No.RETAINING CLIP-SENS BULB 1``CL WCI 309331801 Contact Us For Availability
12
WCI 5303306719 WCI 5303306719 Contact Us For Availability
13
WCI 5304426869 WCI 5304426869 Contact Us For Availability
13
Cover,blower wheel ,top WCI 309630302 Contact Us For Availability
13
Tray,evap drip WCI 309623501 Contact Us For Availability
14
WCI 5303285199 WCI 5303285199 Contact Us For Availability
14
WCI 309632912 WCI 309632912 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
Housing,blower scroll WCI 309630101 Contact Us For Availability
16
WCI 5304426870 WCI 5304426870 Contact Us For Availability
17
No.FRONT ASSY-FAC 1403 WCI 309633205 Contact Us For Availability
17
Cord-electric power,Type-D ,12 AWG ,230 V WCI 309343114 Contact Us For Availability
17
WCI 5303290357 WCI 5303290357 Contact Us For Availability
18
SCREW WCI 5303007754 Contact Us For Availability
19
WCI 309633508 WCI 309633508 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
19
WCI 5303002664 WCI 5303002664 Contact Us For Availability
20
CONTROL KNOB WCI 309307013 Contact Us For Availability
20
Plate,scroll cover WCI 309630201 Contact Us For Availability
22
WCI 5303001775 WCI 5303001775 Contact Us For Availability
25
Door,vent ,with actuator WCI 309321401 Contact Us For Availability
26
No.HANDLE-VENT BARCLNA (1403) WCI 309330404 Contact Us For Availability
26A
WCI 309330202 WCI 309330202 Contact Us For Availability
35
SPACER WCI 3200761 Contact Us For Availability
43
No.FRAME-FRNT HDTC BRCLN WCI 309630904 Contact Us For Availability
× ![]()
