Model Electrolux WAS18EG2A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
02 - CABINET FRONT AND WRAPPER

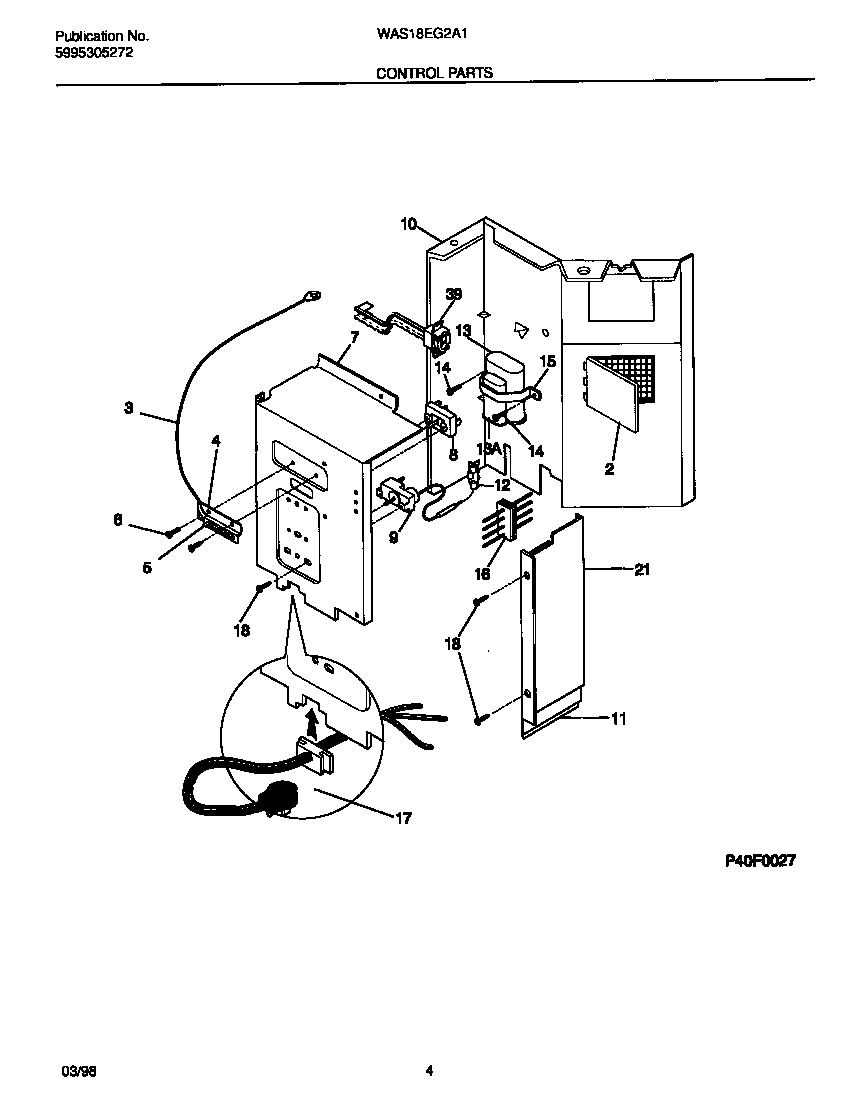

03 - CONTROL PARTS

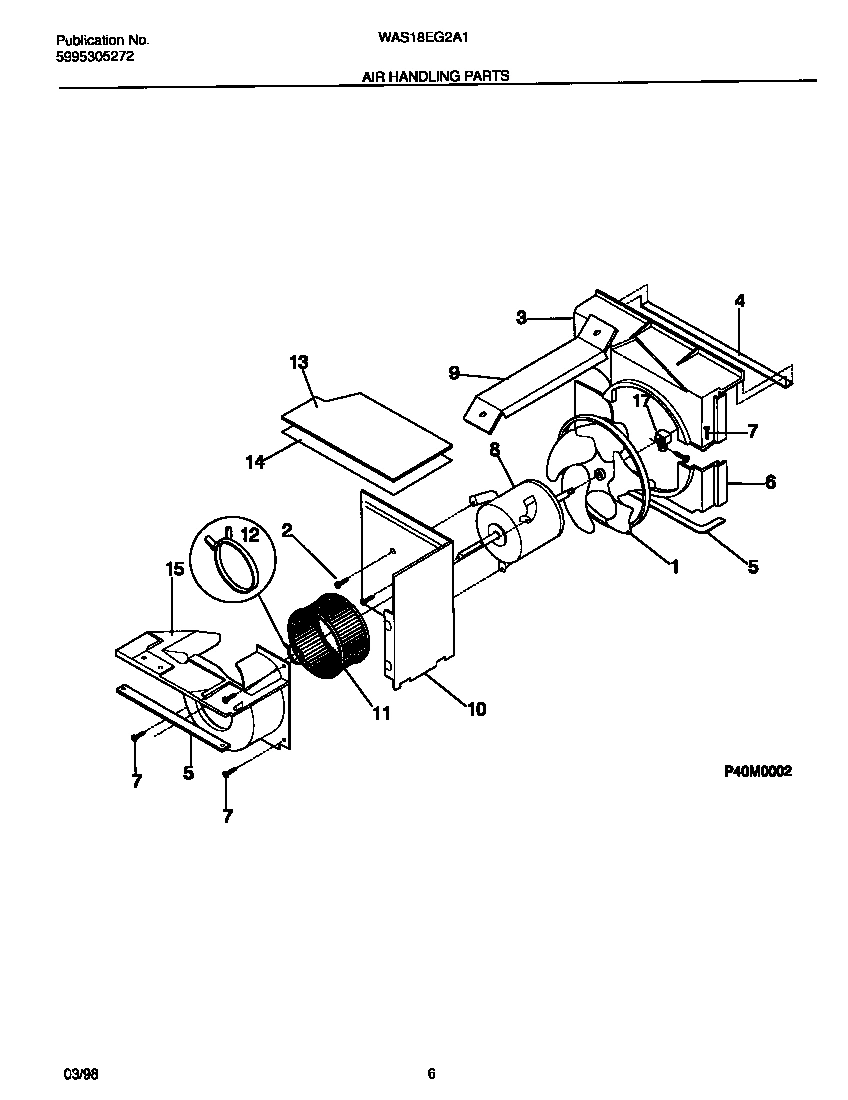

04 - AIR HANDLING PARTS

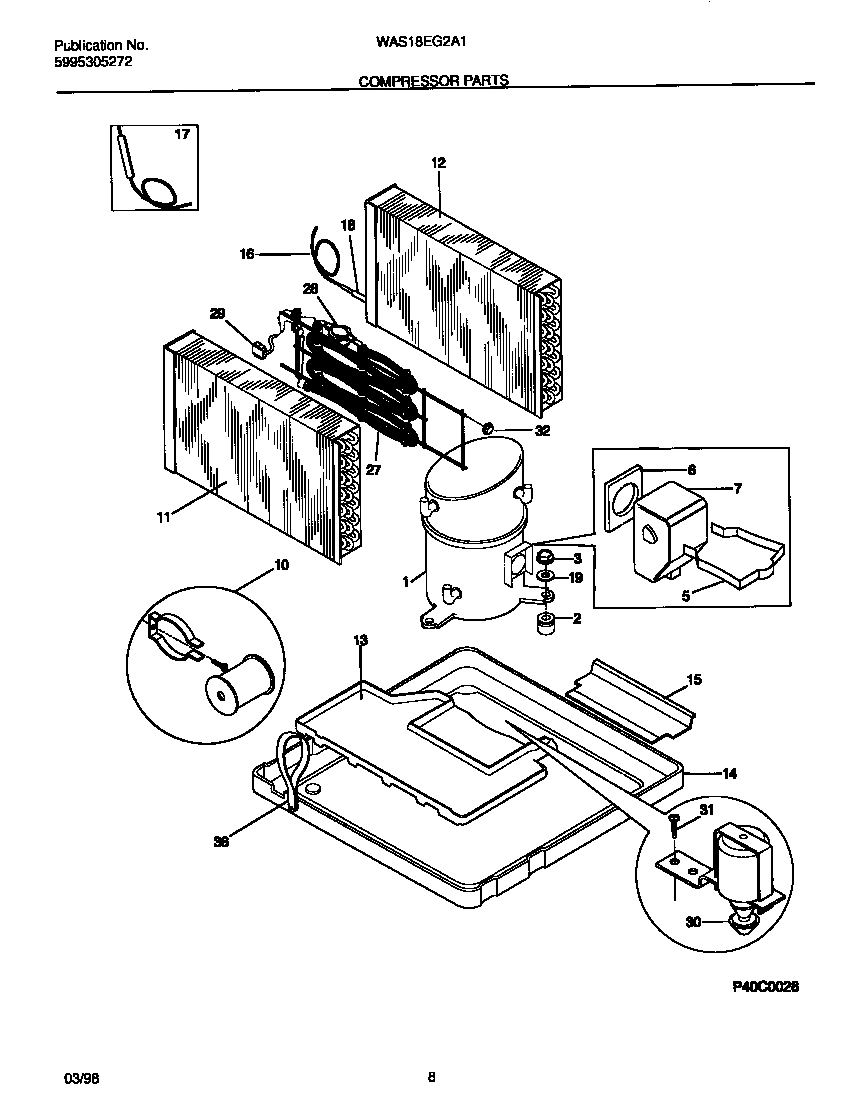

05 - COMPRESSOR PARTS

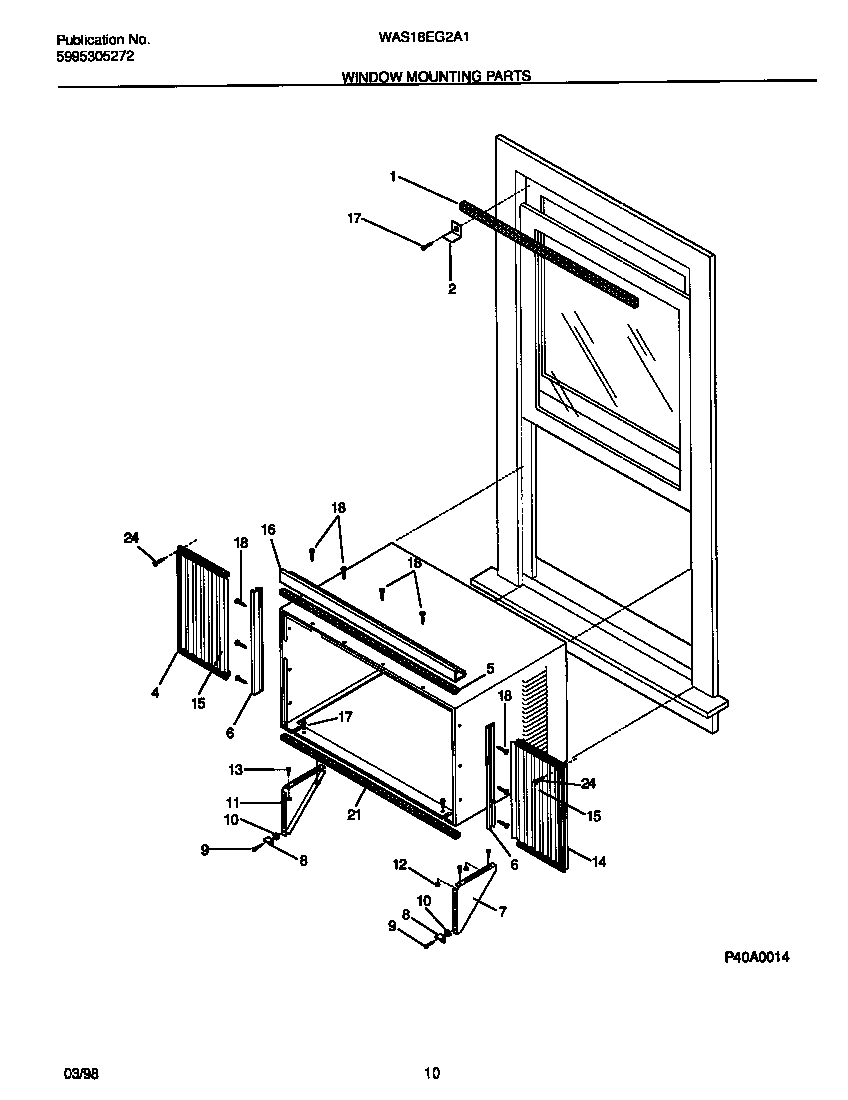

06 - WINDOW MOUNTING PARTS

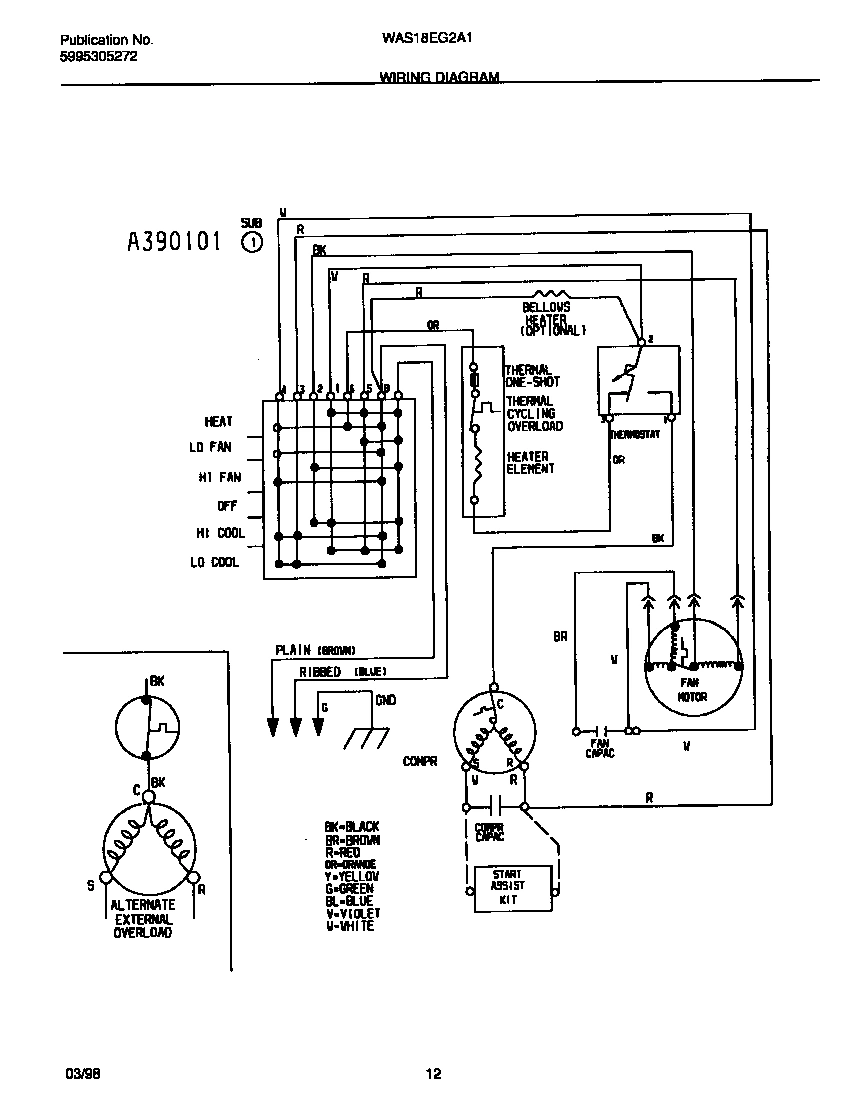

07 - WIRING DIAGRAM
Common parts from model Electrolux WAS18EG2A1 ROOM AIR CONDITIONER
*77081
INSTRUCTIONS, INSTALLATION WCI 5303284744 Contact Us For Availability
*77082
WCI 5303301888 WCI 5303301888 Contact Us For Availability
1
WCI 5303311048 WCI 5303311048 Contact Us For Availability
1
WCI 5303306716 WCI 5303306716 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
DOOR-VENTILATOR WCI 5303295752 Contact Us For Availability
2
GROMMET - COMPRESSOR, 3 WCI 5303286606 Contact Us For Availability
3
CABLE-VENT CONTROL WCI 5303015298 Contact Us For Availability
3
HOUSING-FAN, UPPER WCI 5303015305 Contact Us For Availability
3
NUT, COMPRESSOR, (3) WCI 5308006948 Contact Us For Availability
4
RETAINER WCI 5303202999 Contact Us For Availability
4
SEAL,HOUSING-FAN ,UPPER WCI 3016696 Contact Us For Availability
4
WCI 5303302304 WCI 5303302304 Contact Us For Availability
5
ACTUATOR ARM WCI 5303015299 Contact Us For Availability
5
SEAL,HOUSING-FAN ,LOWER WCI 5303015311 Contact Us For Availability
5
CLAMP - COVER WCI 5303002069 Contact Us For Availability
5
SEAL,RAIL ,TOP WCI 3001980 Contact Us For Availability
6
HOUSING-FAN,LOWER WCI 5303015304 Contact Us For Availability
6
WCI 5303002068 WCI 5303002068 Contact Us For Availability
6
WCI 5303301765 WCI 5303301765 Contact Us For Availability
7
WCI 5303296650 WCI 5303296650 Contact Us For Availability
7
COVER, TERMINAL WCI 5303002067 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5308017262 Contact Us For Availability
8
WCI 5303015293 WCI 5303015293 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
CONTROL-TEMPERATURE WCI 5303002176 Contact Us For Availability
9
BRACKET WCI 5303015306 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
PARTITION - CONTROL AREA WCI 5303295753 Contact Us For Availability
10
WCI 5303295275 WCI 5303295275 Contact Us For Availability
10
START ASSIST KIT,COMPRESSOR WCI 5303201723 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
WCI 5304404774 WCI 5304404774 Contact Us For Availability
11
DIVIDER - VERTICAL WCI 5303017807 Contact Us For Availability
11
BLOWER WHEEL WCI 5303016832 Contact Us For Availability
11
WCI 5303306711 WCI 5303306711 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
WCI 5303309920 WCI 5303309920 Contact Us For Availability
12
CLIP-CONTROL BULB WCI 5303211009 Contact Us For Availability
12
WCI 5303306719 WCI 5303306719 Contact Us For Availability
13
WCI 08017131 WCI 08017131 Contact Us For Availability
13
CAPACITOR, 370 V, 6 MFD WCI 5303012032 Contact Us For Availability
13
WCI 5303316906 WCI 5303316906 Contact Us For Availability
13
WCI 5303015313 WCI 5303015313 Contact Us For Availability
13
WCI 5303300045 WCI 5303300045 Contact Us For Availability
13
SCREW,SUPPORT WCI 5303281649 Contact Us For Availability
14
INSULATION - TOP COVER WCI 3015314 Contact Us For Availability
14
WCI 5303302305 WCI 5303302305 Contact Us For Availability
15
WCI 5303306600 WCI 5303306600 Contact Us For Availability
15
WCI 5303302723 WCI 5303302723 Contact Us For Availability
15
WCI 3016836 WCI 3016836 Contact Us For Availability
15
WCI 5303302306 WCI 5303302306 Contact Us For Availability
16
CAPILLARY TUBE WCI 5303209547 Contact Us For Availability
16
SEAL WCI 08017132 Contact Us For Availability
16
WCI 5303015320 WCI 5303015320 Contact Us For Availability
16
WCI 5303301777 WCI 5303301777 Contact Us For Availability
17
WCI 309611008 WCI 309611008 Contact Us For Availability
17
WCI 5303302880 WCI 5303302880 Contact Us For Availability
17
SCREW-WOOD WCI 3002803 Contact Us For Availability
18
WCI 5304404775 WCI 5304404775 Contact Us For Availability
18
SCREW, .138-32 X .188 WCI 5303007754 Contact Us For Availability
18
WCI 5303290357 WCI 5303290357 Contact Us For Availability
18
WCI 08012680 WCI 08012680 Contact Us For Availability
19
WCI 309618005 WCI 309618005 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 5304404767 WCI 5304404767 Contact Us For Availability
21
WCI 5304404766 WCI 5304404766 Contact Us For Availability
21
WCI 5303303011 WCI 5303303011 Contact Us For Availability
21
SEAL-BOTTOM WCI 5303212504 Contact Us For Availability
22
SPACER, PLATE WCI 5303001775 Contact Us For Availability
23
SEAL, PLATE WCI 5303001984 Contact Us For Availability
24
WCI 5300138101 WCI 5300138101 Contact Us For Availability
24
WCI 3002801 WCI 3002801 Contact Us For Availability
27
WCI 309100804 WCI 309100804 Contact Us For Availability
27
WCI 5303018573 WCI 5303018573 Contact Us For Availability
28
THERMOSTAT-HEATER WCI 5303016865 Contact Us For Availability
28
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
29
HARNESS-HEATER, UNIT WCI 3203548 Contact Us For Availability
30
WCI 08016091 WCI 08016091 Contact Us For Availability
30
WCI 3017804 WCI 3017804 Contact Us For Availability
31
WCI 5303209503 WCI 5303209503 Contact Us For Availability
32
CLIP-LINK, (2) WCI 5303001844 Contact Us For Availability
32
NUT-HEATER WCI 3018695 Contact Us For Availability
36
WCI 5303303558 WCI 5303303558 Contact Us For Availability
38
WCI 5304404769 WCI 5304404769 Contact Us For Availability
39
WCI 3017076 WCI 3017076 Contact Us For Availability
40
WCI 309321803 WCI 309321803 Contact Us For Availability
41
WCI 309321804 WCI 309321804 Contact Us For Availability
42
LOUVERS W/ LINK WCI 5303002459 Contact Us For Availability
58
WCI 5303306190 WCI 5303306190 Contact Us For Availability
61
BRACKET-FRONT WCI 5303016223 Contact Us For Availability
63
TRACK-FILTER,2 WCI 5300345801 Contact Us For Availability
× ![]()
