Model Electrolux WAS186W2A2 ROOM AIR CONDITIONER – Common Parts & Diagrams

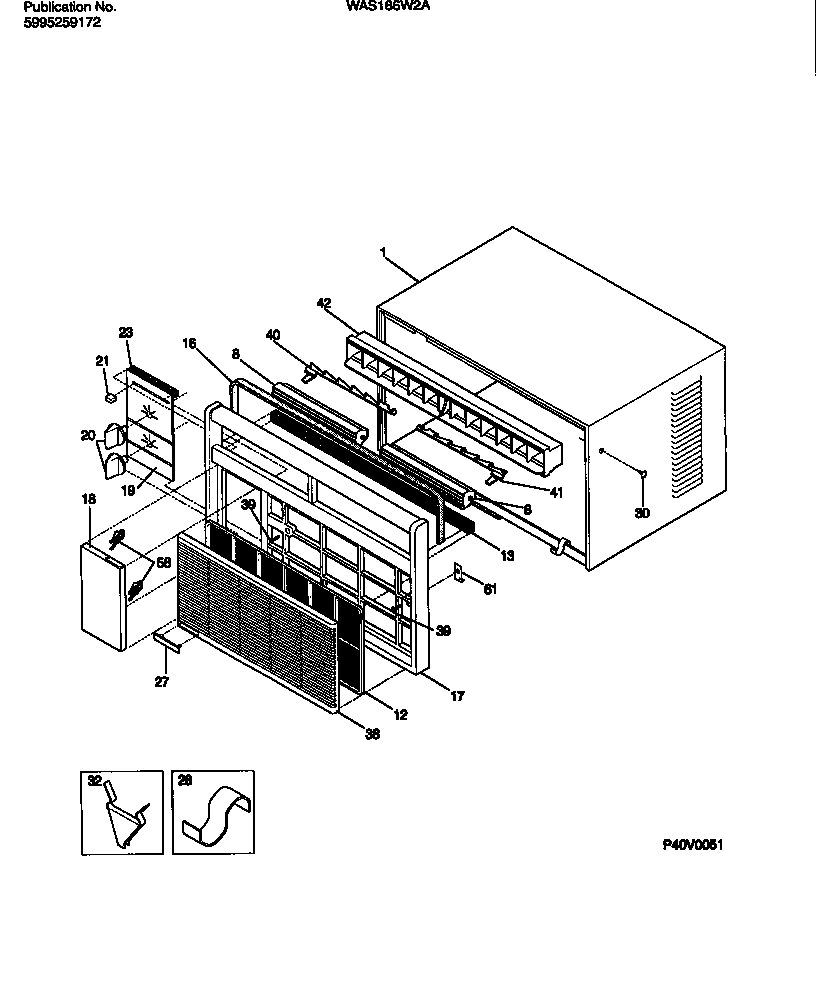

02 - CABINET FRONT AND WRAPPER

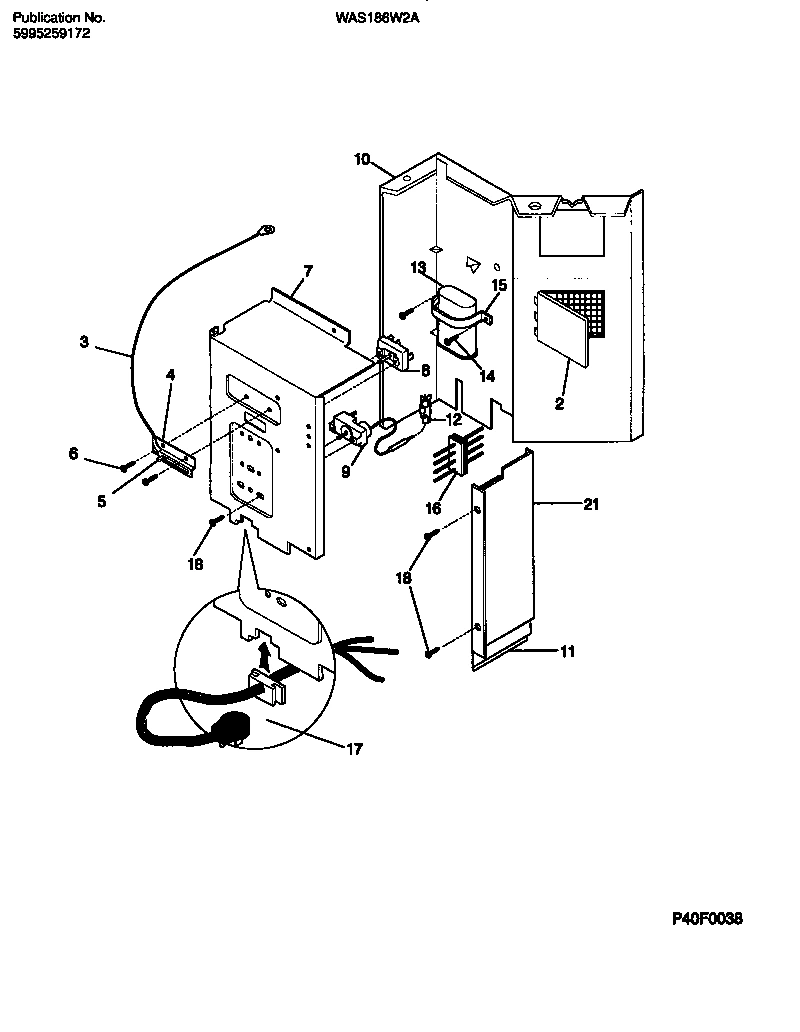

03 - CONTROL PARTS
04 - AIR HANDLING PARTS
05 - COMPRESSOR
06 - WINDOW MOUNTING PARTS
07 - WIRING DIAGRAM
Common parts from model Electrolux WAS186W2A2 ROOM AIR CONDITIONER
*98400
INSTRUCTION FOR INSTALLATION WCI 5303284744 Contact Us For Availability
*98401
WCI 5303301888 WCI 5303301888 Contact Us For Availability
1
FAN BLADE & CLAMP WCI 5303017959 Contact Us For Availability
1
WCI 5303306716 WCI 5303306716 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
WCI 5303295752 WCI 5303295752 Contact Us For Availability
2
GROMMET - COMPRESSOR, 3 WCI 5303286606 Contact Us For Availability
3
CABLE - VENT DOOR WCI 5303015298 Contact Us For Availability
3
WCI 5303015305 WCI 5303015305 Contact Us For Availability
3
NUT - COMPRESSOR WCI 5308006948 Contact Us For Availability
4
RETAINER - ACTUATOR WCI 5303202999 Contact Us For Availability
4
SEAL - SHROUD UPPER WCI 3016696 Contact Us For Availability
4
WCI 5303302304 WCI 5303302304 Contact Us For Availability
5
WCI 5303015299 WCI 5303015299 Contact Us For Availability
5
SEAL - SCROLL, SHROUD WCI 5303015311 Contact Us For Availability
5
CLAMP - COVER WCI 5303002069 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
WCI 5303017342 WCI 5303017342 Contact Us For Availability
6
WCI 5303015304 WCI 5303015304 Contact Us For Availability
6
WCI 5303002068 WCI 5303002068 Contact Us For Availability
6
WCI 5303301765 WCI 5303301765 Contact Us For Availability
7
WCI 5303296650 WCI 5303296650 Contact Us For Availability
7
COVER, TERMINAL WCI 5303002067 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
8
WCI 5308017160 WCI 5308017160 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303208666 Contact Us For Availability
8
WCI 5303015293 WCI 5303015293 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
WCI 5303015319 WCI 5303015319 Contact Us For Availability
9
WCI 5303015306 WCI 5303015306 Contact Us For Availability
9
SCREW - SILL SUPT WCI 3007756 Contact Us For Availability
10
PARTITION - CONTROL AREA WCI 5303295753 Contact Us For Availability
10
WCI 5303295275 WCI 5303295275 Contact Us For Availability
10
WCI 5303201723 WCI 5303201723 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
DIVIDER - VERTICAL WCI 5303017807 Contact Us For Availability
11
BLOWER WHEEL WCI 5303016832 Contact Us For Availability
11
WCI 5303306711 WCI 5303306711 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
WCI 5303001809 WCI 5303001809 Contact Us For Availability
12
CLIP-CONTROL BULB WCI 5303211009 Contact Us For Availability
12
WCI 5303012110 WCI 5303012110 Contact Us For Availability
12
WCI 5303306719 WCI 5303306719 Contact Us For Availability
13
WCI 08017131 WCI 08017131 Contact Us For Availability
13
WCI 5303306706 WCI 5303306706 Contact Us For Availability
13
WCI 5303015313 WCI 5303015313 Contact Us For Availability
13
WCI 5303300045 WCI 5303300045 Contact Us For Availability
13
SCREW - SUPPORT, 4 WCI 5303281649 Contact Us For Availability
14
INSULATION - TOP COVER WCI 3015314 Contact Us For Availability
14
WCI 5303302822 WCI 5303302822 Contact Us For Availability
14
WCI 5303302305 WCI 5303302305 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 5303016830 WCI 5303016830 Contact Us For Availability
15
WCI 5303302306 WCI 5303302306 Contact Us For Availability
16
CAPILLARY TUBE, CUT TO 30`` WCI 5303209547 Contact Us For Availability
16
SEAL WCI 08017132 Contact Us For Availability
16
HARNESS WCI 5303209983 Contact Us For Availability
16
WCI 5303301777 WCI 5303301777 Contact Us For Availability
17
FRONT COMPLETE WCI 5303016904 Contact Us For Availability
17
WCI 5303301886 WCI 5303301886 Contact Us For Availability
17
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
17
SCREW - SASH LOCK WCI 3002803 Contact Us For Availability
18
DOOR WCI 3202502 Contact Us For Availability
18
SCREW WCI 5303007754 Contact Us For Availability
18
WCI 5303290357 WCI 5303290357 Contact Us For Availability
18
WCI 08012680 WCI 08012680 Contact Us For Availability
19
DIAL PLATE WCI 5303212747 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 5308016109 WCI 5308016109 Contact Us For Availability
21
WCI 5303002189 WCI 5303002189 Contact Us For Availability
21
WCI 5303303011 WCI 5303303011 Contact Us For Availability
21
SEAL - CHASSIS, BOTTOM WCI 5303212504 Contact Us For Availability
22
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
23
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
24
WCI 3002801 WCI 3002801 Contact Us For Availability
27
WCI 5300138101 WCI 5300138101 Contact Us For Availability
28
CLIP-FRONT/BASE WCI 5308010914 Contact Us For Availability
30
WCI 08016091 WCI 08016091 Contact Us For Availability
32
CLIP-LINK, (2) WCI 5303001844 Contact Us For Availability
36
STRAP - BASE WCI 5303303558 Contact Us For Availability
38
WCI 5303017979 WCI 5303017979 Contact Us For Availability
40
LINK-LOUVERS, LH WCI 5303293555 Contact Us For Availability
41
LINK-LOUVERS, RH WCI 5303293554 Contact Us For Availability
42
LOUVERS W/ LINK WCI 5303002459 Contact Us For Availability
58
HINGE - DOOR WCI 5303017980 Contact Us For Availability
61
BRACKET-FRONT WCI 5303016223 Contact Us For Availability
× ![]()
