Model Electrolux WAS183S2A2 ROOM AIR CONDITIONER – Common Parts & Diagrams

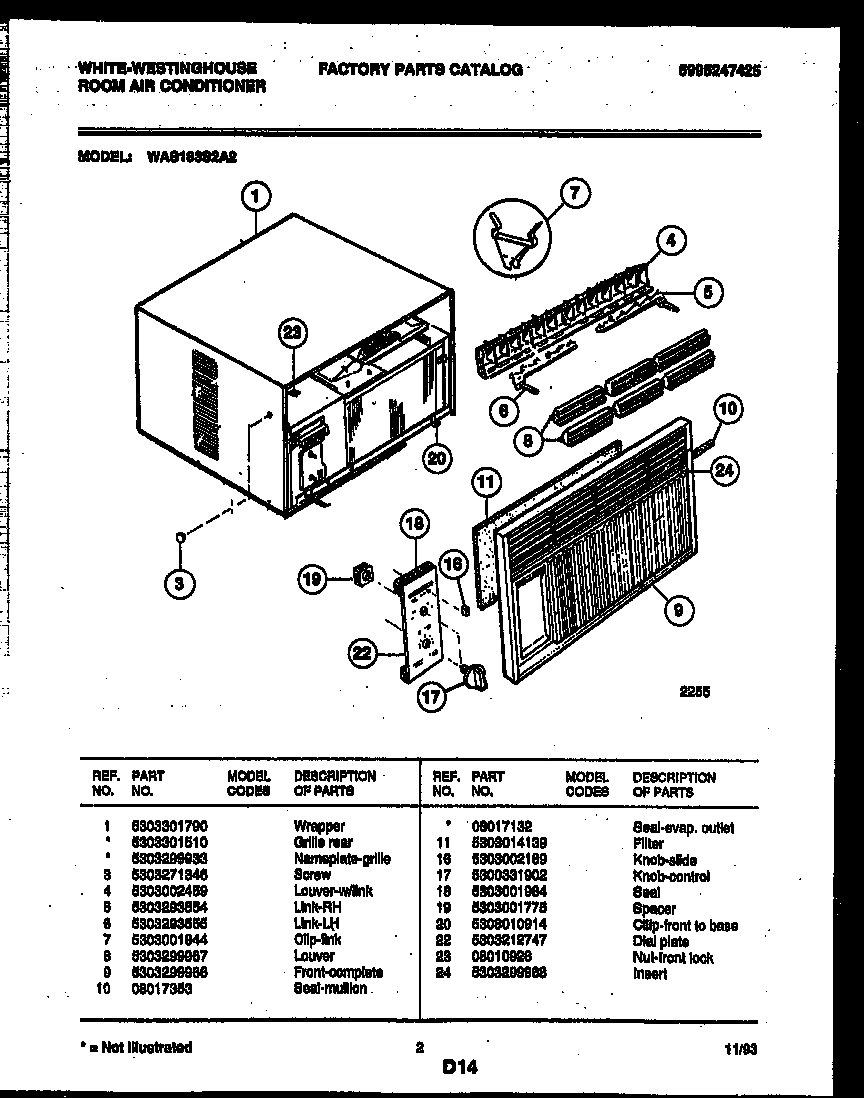

02 - CABINET PARTS

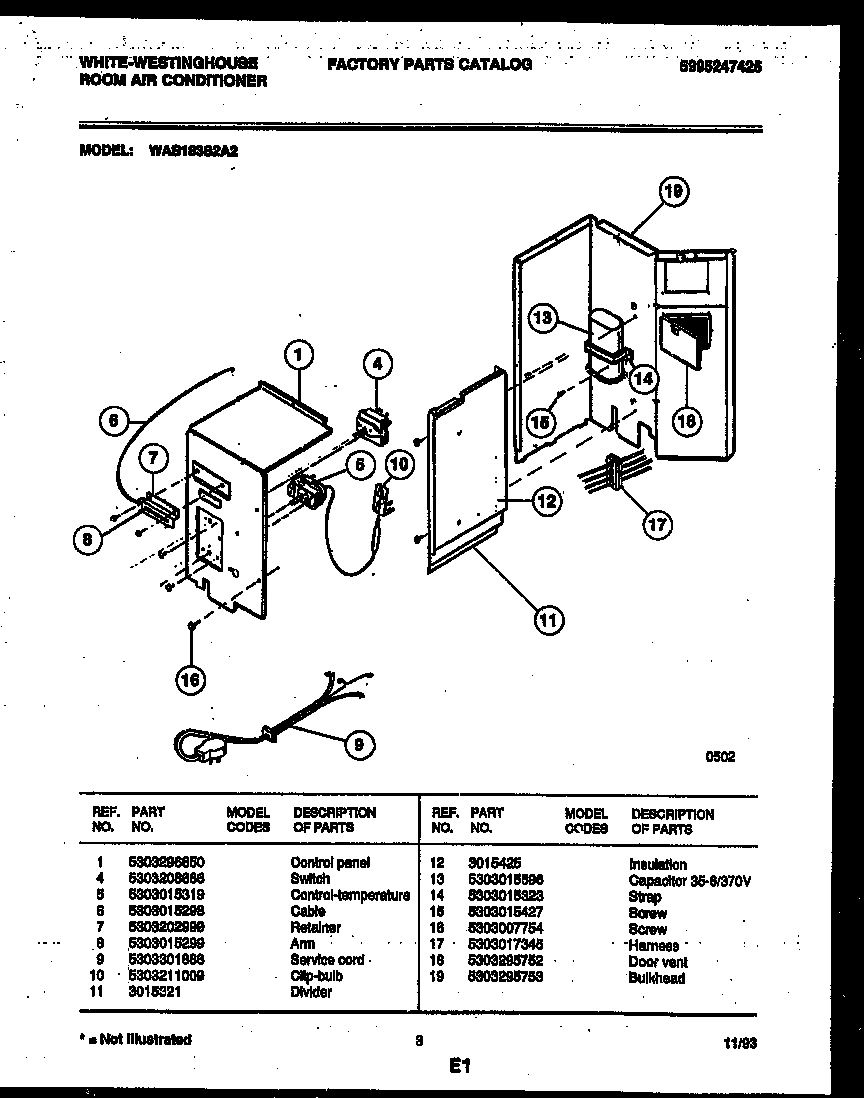

03 - ELECTRICAL PARTS

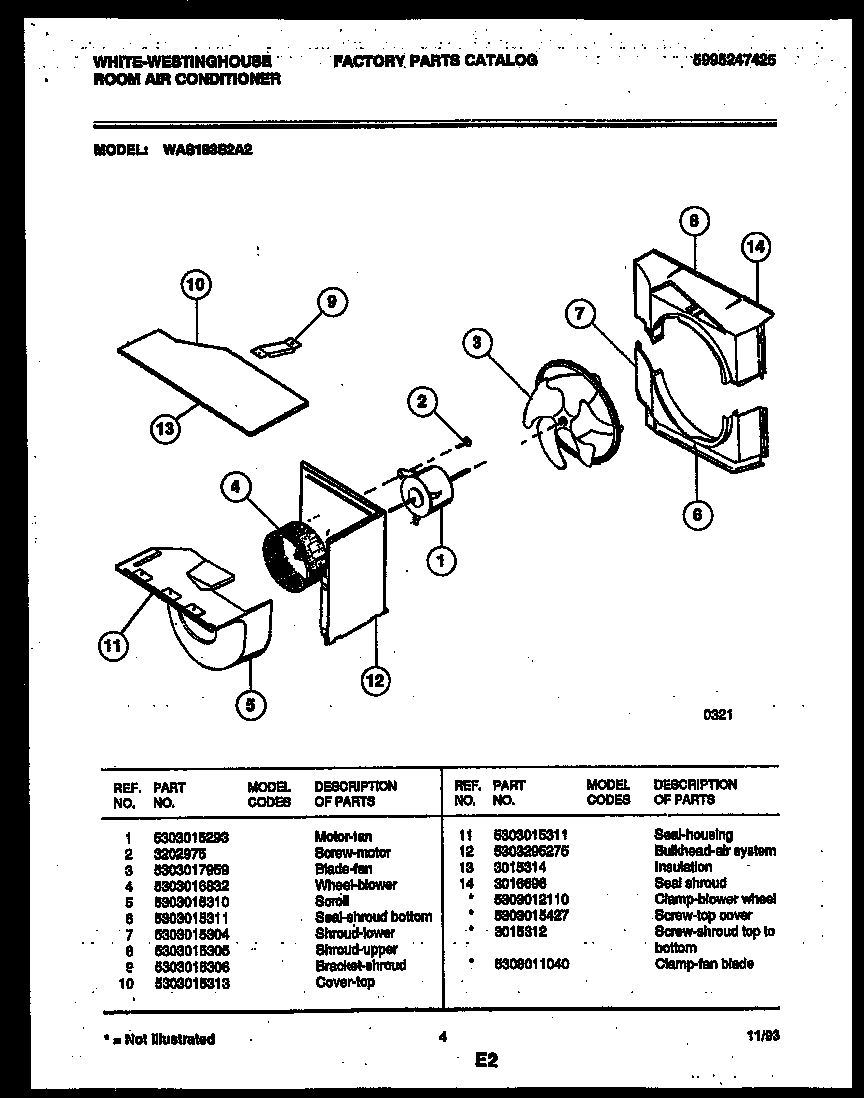

04 - AIR HANDLING PARTS

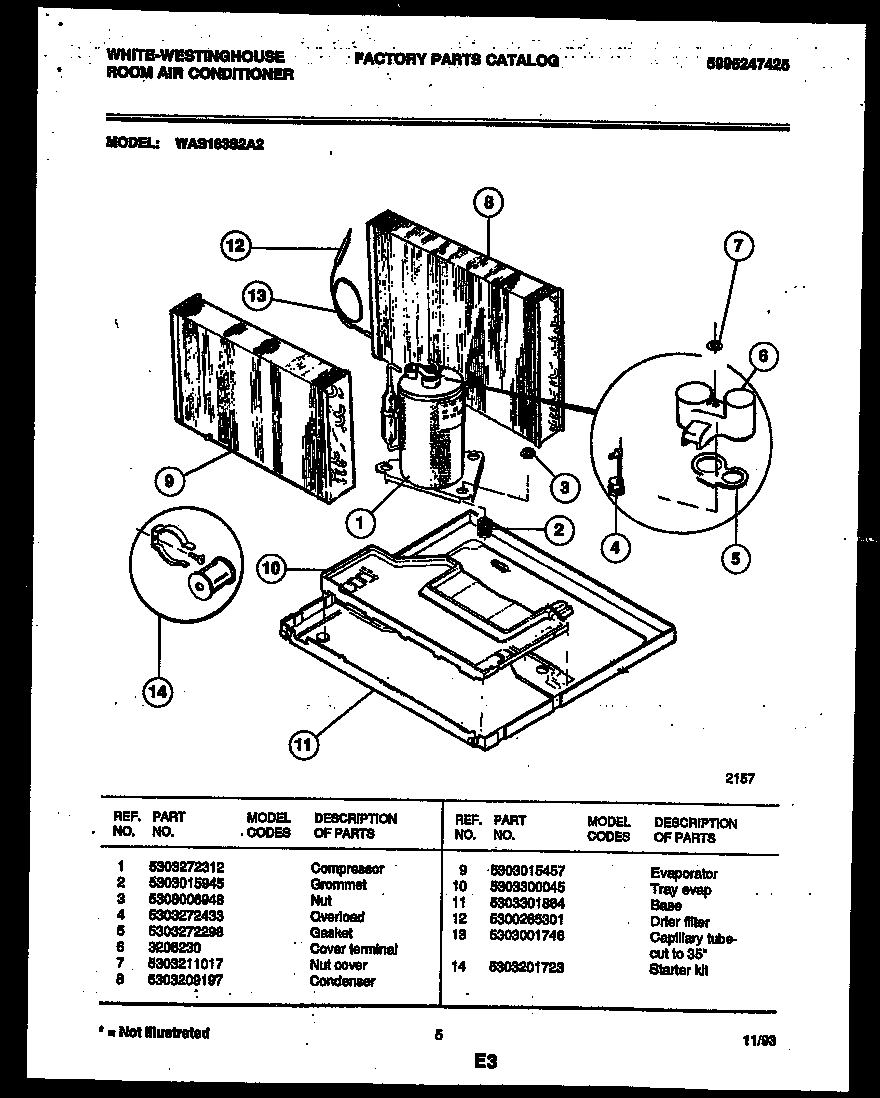

05 - SYSTEM PARTS

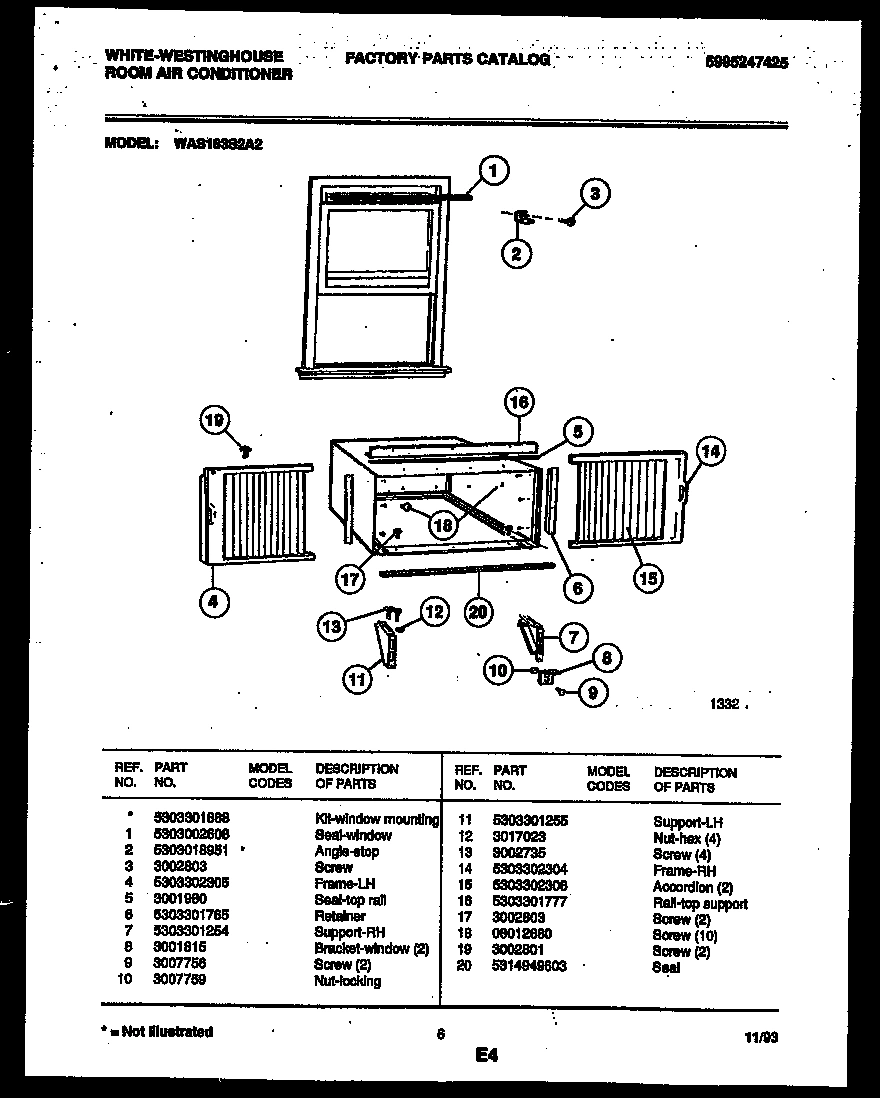

06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux WAS183S2A2 ROOM AIR CONDITIONER
*83016
WCI 5303012110 WCI 5303012110 Contact Us For Availability
*83017
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
1
WCI 5303301790 WCI 5303301790 Contact Us For Availability
1
CONTROL PANEL WCI 5303296650 Contact Us For Availability
1
WCI 5303015293 WCI 5303015293 Contact Us For Availability
1
WCI 5303272312 WCI 5303272312 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
1
KIT-WINDOW MOUNTING (NON-ILLUSTRATED) WCI 5303301888 Contact Us For Availability
1A
WCI 5303301510 WCI 5303301510 Contact Us For Availability
1B
NAMEPLATE-GRILLE (NON-ILLUSTRATED) WCI 5303299933 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
ANGLE-STOP WCI 5303018951 Contact Us For Availability
3
SCREW WCI 5303271346 Contact Us For Availability
3
WCI 5303017959 WCI 5303017959 Contact Us For Availability
3
WCI 5308006948 WCI 5308006948 Contact Us For Availability
4
WCI 5303002459 WCI 5303002459 Contact Us For Availability
4
WCI 5303208666 WCI 5303208666 Contact Us For Availability
4
WCI 5303016832 WCI 5303016832 Contact Us For Availability
4
WCI 5303272433 WCI 5303272433 Contact Us For Availability
4
FRAME-LH WCI 5303302305 Contact Us For Availability
5
WCI 5303293554 WCI 5303293554 Contact Us For Availability
5
WCI 5303015319 WCI 5303015319 Contact Us For Availability
5
WCI 5303015310 WCI 5303015310 Contact Us For Availability
5
WCI 5303272298 WCI 5303272298 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
WCI 5303293555 WCI 5303293555 Contact Us For Availability
6
WCI 5303015298 WCI 5303015298 Contact Us For Availability
6
WCI 3206230 WCI 3206230 Contact Us For Availability
6
RETAINER WCI 5303301765 Contact Us For Availability
7
WCI 5303001844 WCI 5303001844 Contact Us For Availability
7
RETAINER WCI 5303202999 Contact Us For Availability
7
WCI 5303015304 WCI 5303015304 Contact Us For Availability
7
WCI 5303211017 WCI 5303211017 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
8
LOUVER WCI 5303299967 Contact Us For Availability
8
ARM WCI 5303015299 Contact Us For Availability
8
WCI 5303015305 WCI 5303015305 Contact Us For Availability
8
WCI 5303209197 WCI 5303209197 Contact Us For Availability
8
BRACKET-WINDOW (2) WCI 3001815 Contact Us For Availability
9
WCI 5303299966 WCI 5303299966 Contact Us For Availability
9
SERVICE CORD WCI 5303301886 Contact Us For Availability
9
WCI 5303015306 WCI 5303015306 Contact Us For Availability
9
WCI 5303015457 WCI 5303015457 Contact Us For Availability
9
SCREW (2) WCI 3007756 Contact Us For Availability
10
WCI 08017353 WCI 08017353 Contact Us For Availability
10
CLIP-BULB WCI 5303211009 Contact Us For Availability
10
WCI 5303015313 WCI 5303015313 Contact Us For Availability
10
TRAY EVAP WCI 5303300045 Contact Us For Availability
10
NUT LOCKING WCI 3007759 Contact Us For Availability
10A
SEAL-EVAP OUTLET (NON-ILLUSTRATED) WCI 08017132 Contact Us For Availability
11
WCI 5303014139 WCI 5303014139 Contact Us For Availability
11
WCI 3015321 WCI 3015321 Contact Us For Availability
11
SEAL - HOUSING WCI 5303015311 Contact Us For Availability
11
WCI 5303301864 WCI 5303301864 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
WCI 3015425 WCI 3015425 Contact Us For Availability
12
BULKHEAD-AIR SYSTEM WCI 5303295275 Contact Us For Availability
13
WCI 5303015596 WCI 5303015596 Contact Us For Availability
13
WCI 3015314 WCI 3015314 Contact Us For Availability
13
CAPILLARY TUBE-CUT TO 35`` WCI 5303001746 Contact Us For Availability
13
SCREW (4) WCI 3002735 Contact Us For Availability
14
STRAP WCI 5303015323 Contact Us For Availability
14
WCI 3016696 WCI 3016696 Contact Us For Availability
14
STARTER KIT WCI 5303201723 Contact Us For Availability
14
FRAME-RH WCI 5303302304 Contact Us For Availability
15
ACCORDION (2) WCI 5303302306 Contact Us For Availability
16
WCI 5303002189 WCI 5303002189 Contact Us For Availability
16
SCREW WCI 5303007754 Contact Us For Availability
16
RAIL-TOP SUPPORT WCI 5303301777 Contact Us For Availability
17
WCI 5300331902 WCI 5300331902 Contact Us For Availability
17
WCI 5303017345 WCI 5303017345 Contact Us For Availability
17
SCREW (2) WCI 3002803 Contact Us For Availability
18
WCI 5303001984 WCI 5303001984 Contact Us For Availability
18
DOOR-VENT WCI 5303295752 Contact Us For Availability
18
SCREW (10) WCI 08012680 Contact Us For Availability
19
WCI 5303001775 WCI 5303001775 Contact Us For Availability
19
WCI 5303295753 WCI 5303295753 Contact Us For Availability
19
SCREW (2) WCI 3002801 Contact Us For Availability
20
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
20
SEAL WCI 5314949603 Contact Us For Availability
22
DIAL PLATE WCI 5303212747 Contact Us For Availability
23
NUT - FRONT LOCK WCI 08010928 Contact Us For Availability
24
WCI 5303299968 WCI 5303299968 Contact Us For Availability
× ![]()
