Model Electrolux WAS183P2K1 ROOM AIR CONDITIONER – Common Parts & Diagrams

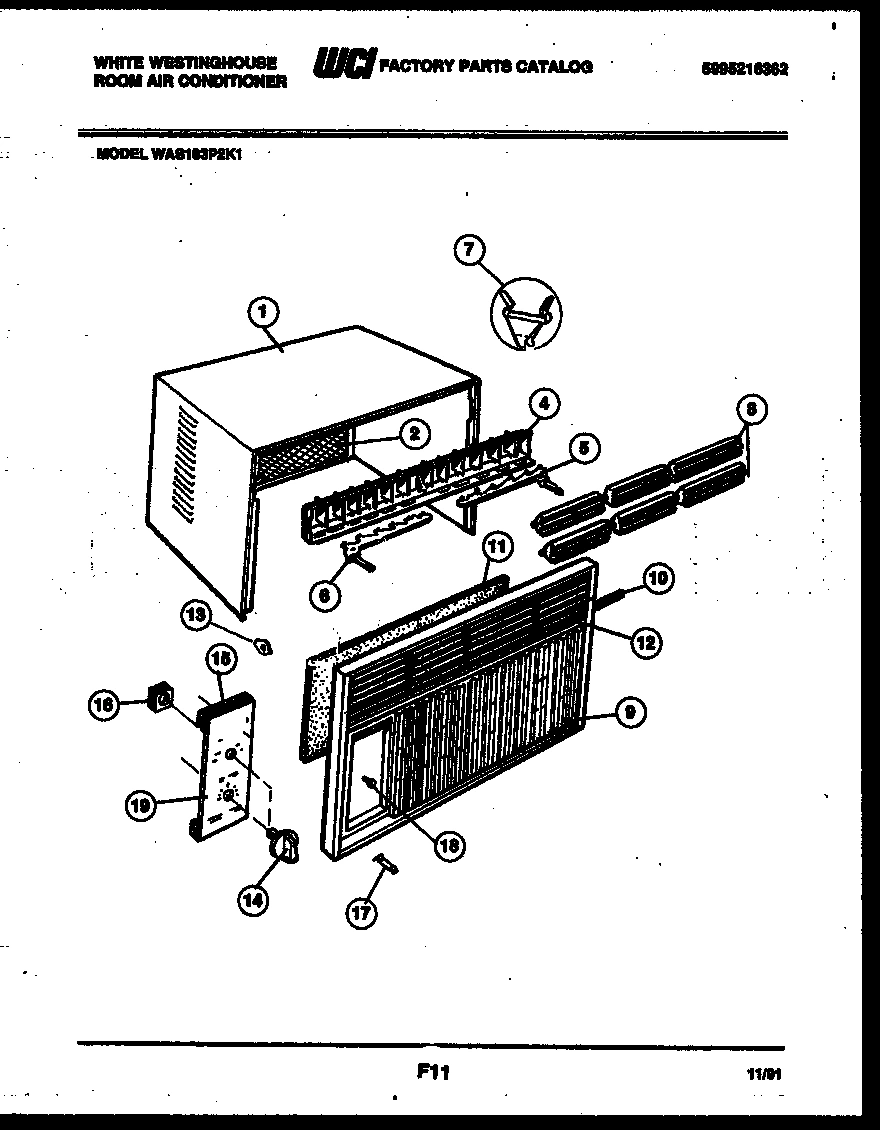

02 - CABINET PARTS

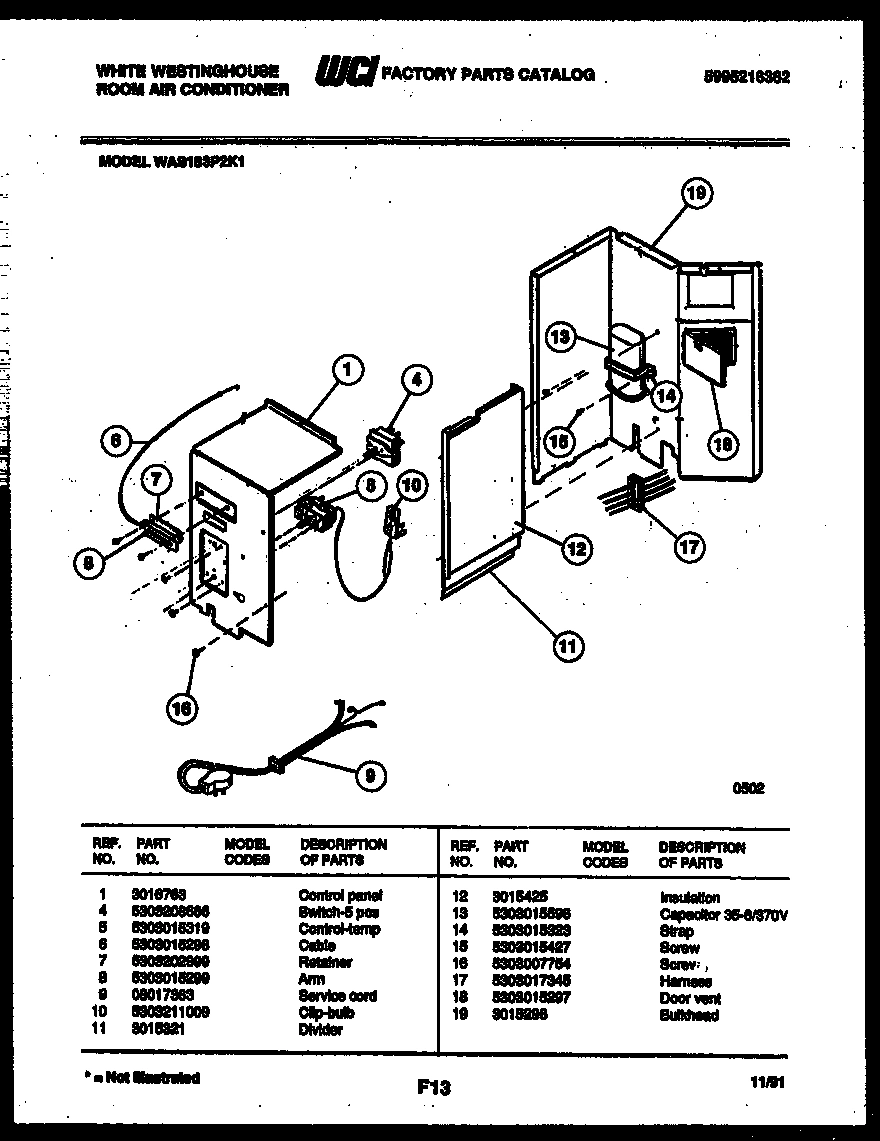

03 - ELECTRICAL PARTS
04 - AIR HANDLING PARTS
05 - SYSTEM PARTS
06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux WAS183P2K1 ROOM AIR CONDITIONER
*56816
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
*56823
SCREW-TOP ANGLE (4) WCI 08012680 Contact Us For Availability
1
WCI 5303015315 WCI 5303015315 Contact Us For Availability
1
CONTROL PANEL WCI 3016763 Contact Us For Availability
1
WCI 5303015293 WCI 5303015293 Contact Us For Availability
1
WCI 5303272312 WCI 5303272312 Contact Us For Availability
1
WCI 5303002608 WCI 5303002608 Contact Us For Availability
2
GRILLE-REAR WCI 5303210207 Contact Us For Availability
2
GROMMET WCI 5303015945 Contact Us For Availability
2
ANGLE-STOP WCI 5303018951 Contact Us For Availability
2A
NAMEPLATE-GRILLE (NON-ILLUSTRATED) WCI 5303271448 Contact Us For Availability
3
WCI 5303017959 WCI 5303017959 Contact Us For Availability
3
NUT WCI 5303015946 Contact Us For Availability
3
CLIP-PANEL WCI 5303001821 Contact Us For Availability
4
WCI 5303002459 WCI 5303002459 Contact Us For Availability
4
SWITCH-5 POS WCI 5308006811 Contact Us For Availability
4
WCI 5303015309 WCI 5303015309 Contact Us For Availability
4
WCI 5303272433 WCI 5303272433 Contact Us For Availability
4
WCI 5303001820 WCI 5303001820 Contact Us For Availability
5
WCI 5303002162 WCI 5303002162 Contact Us For Availability
5
CONTROL TEMP WCI 5303015319 Contact Us For Availability
5
WCI 5303015310 WCI 5303015310 Contact Us For Availability
5
WCI 5303272298 WCI 5303272298 Contact Us For Availability
5
WCI 3001980 WCI 3001980 Contact Us For Availability
6
WCI 5303002163 WCI 5303002163 Contact Us For Availability
6
WCI 5303015298 WCI 5303015298 Contact Us For Availability
6
WCI 3206230 WCI 3206230 Contact Us For Availability
6
SIDE - ANGLE WCI 3002059 Contact Us For Availability
7
WCI 5303001844 WCI 5303001844 Contact Us For Availability
7
RETAINER WCI 5303202999 Contact Us For Availability
7
WCI 5303015304 WCI 5303015304 Contact Us For Availability
7
WCI 5303211017 WCI 5303211017 Contact Us For Availability
7
SUPPORT-RH WCI 3016224 Contact Us For Availability
8
WCI 5308017160 WCI 5308017160 Contact Us For Availability
8
ARM WCI 5303015299 Contact Us For Availability
8
WCI 5303015305 WCI 5303015305 Contact Us For Availability
8
WCI 5303208674 WCI 5303208674 Contact Us For Availability
8
BRACKET - WINDOW WCI 3001815 Contact Us For Availability
9
WCI 5303283759 WCI 5303283759 Contact Us For Availability
9
WCI 08017363 WCI 08017363 Contact Us For Availability
9
WCI 5303015306 WCI 5303015306 Contact Us For Availability
9
WCI 5303015457 WCI 5303015457 Contact Us For Availability
9
SCREW (2) WCI 3007756 Contact Us For Availability
10
WCI 08017353 WCI 08017353 Contact Us For Availability
10
CLIP-BULB WCI 5303211009 Contact Us For Availability
10
WCI 5303015313 WCI 5303015313 Contact Us For Availability
10
TRAY-EVAP WCI 5303208665 Contact Us For Availability
10
NUT-LOCKING (2) WCI 3007759 Contact Us For Availability
10A
SEAL-EVAP OUTLET (NON-ILLUSTRATED) WCI 08017132 Contact Us For Availability
11
WCI 5303014139 WCI 5303014139 Contact Us For Availability
11
WCI 3015321 WCI 3015321 Contact Us For Availability
11
SEAL - HOUSING WCI 5303015311 Contact Us For Availability
11
WCI 3017311 WCI 3017311 Contact Us For Availability
11
SUPPORT-LH WCI 3016225 Contact Us For Availability
12
WCI 5303283760 WCI 5303283760 Contact Us For Availability
12
WCI 3015425 WCI 3015425 Contact Us For Availability
12
WCI 3015295 WCI 3015295 Contact Us For Availability
12A
SCREW-TRIM (8) (NON-ILLUSTRATED) WCI 3001802 Contact Us For Availability
13
CLIP-FILTER WCI 3203495 Contact Us For Availability
13
WCI 5303015596 WCI 5303015596 Contact Us For Availability
13
WCI 3015314 WCI 3015314 Contact Us For Availability
13
CAPILLARY TUBE-CUT TO 35`` WCI 5303001746 Contact Us For Availability
13
SCREW (4) WCI 3002735 Contact Us For Availability
14
WCI 5300331902 WCI 5300331902 Contact Us For Availability
14
STRAP WCI 5303015323 Contact Us For Availability
14
WCI 3016696 WCI 3016696 Contact Us For Availability
14
STARTER KIT WCI 5303201723 Contact Us For Availability
14
WCI 3001819 WCI 3001819 Contact Us For Availability
15
WCI 5303001984 WCI 5303001984 Contact Us For Availability
15
WCI 3001818 WCI 3001818 Contact Us For Availability
16
WCI 5303001775 WCI 5303001775 Contact Us For Availability
16
SCREW WCI 5303007754 Contact Us For Availability
16
WCI 3002058 WCI 3002058 Contact Us For Availability
17
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
17
WCI 5303017345 WCI 5303017345 Contact Us For Availability
17
WCI 3002803 WCI 3002803 Contact Us For Availability
18
SCREW-FRONT MTG (2) WCI 5303271346 Contact Us For Availability
18
WCI 5303015297 WCI 5303015297 Contact Us For Availability
19
WCI 5303283761 WCI 5303283761 Contact Us For Availability
19
WCI 3015296 WCI 3015296 Contact Us For Availability
× ![]()
