Model Electrolux WAS180K2A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT & WRAPPER

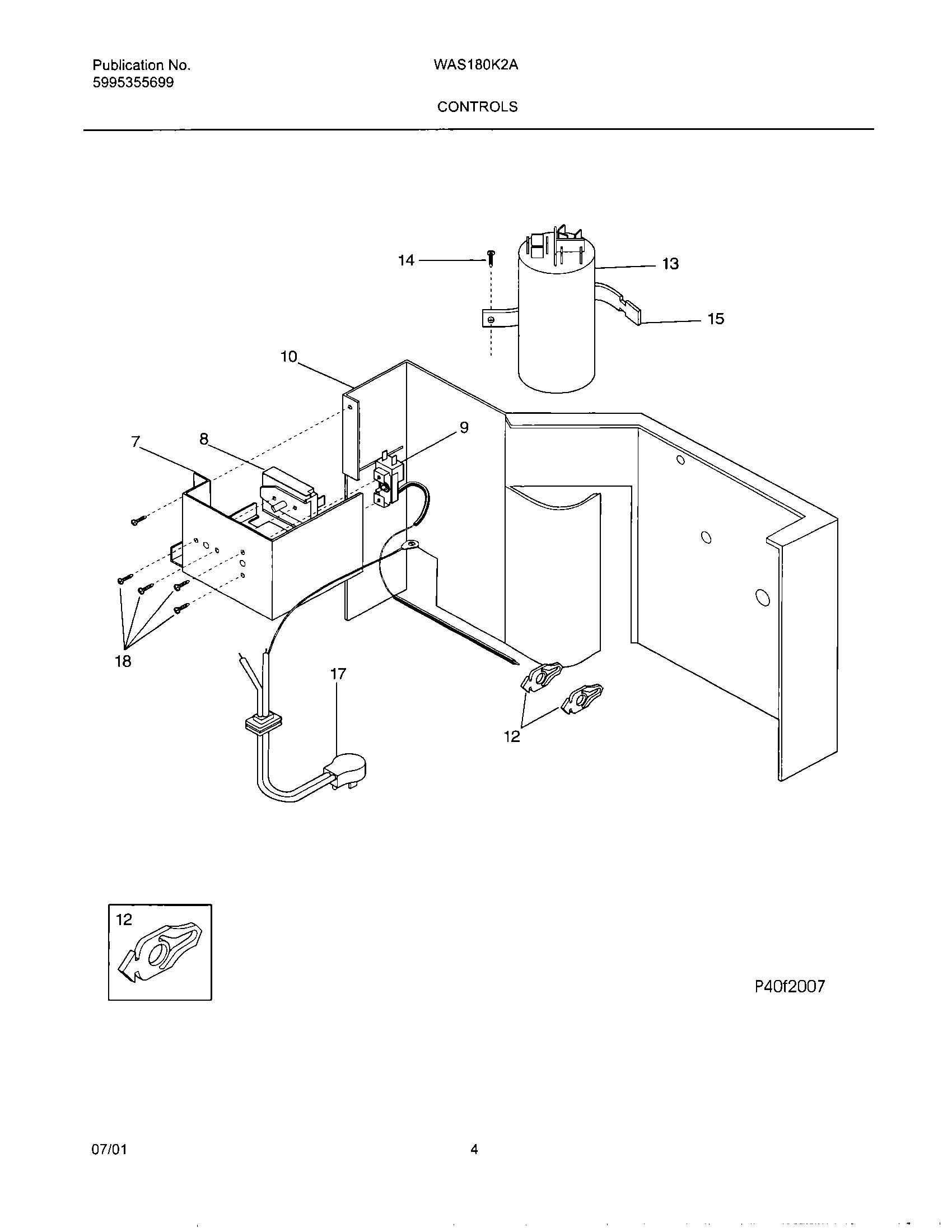

05 - CONTROLS

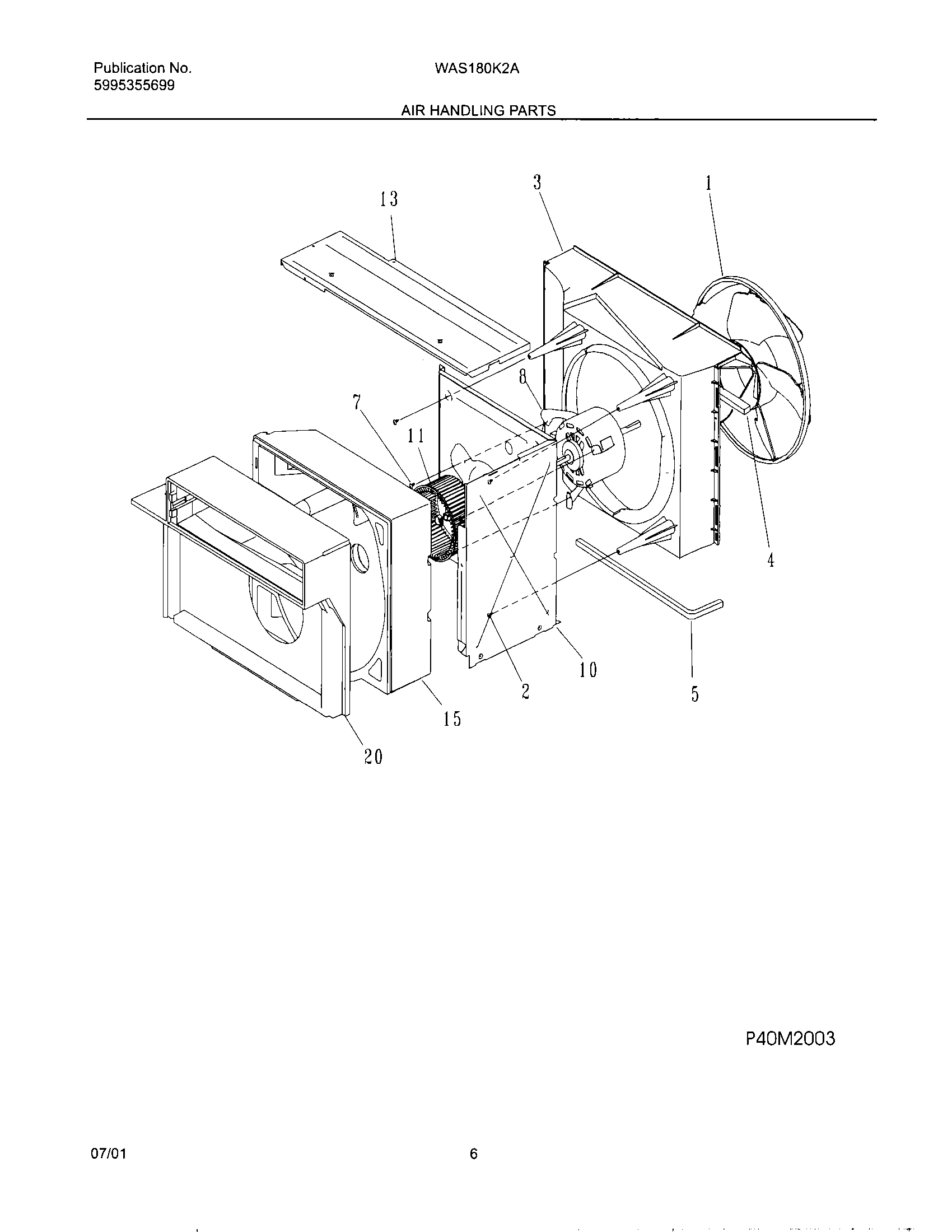

07 - AIR HANDLING PARTS

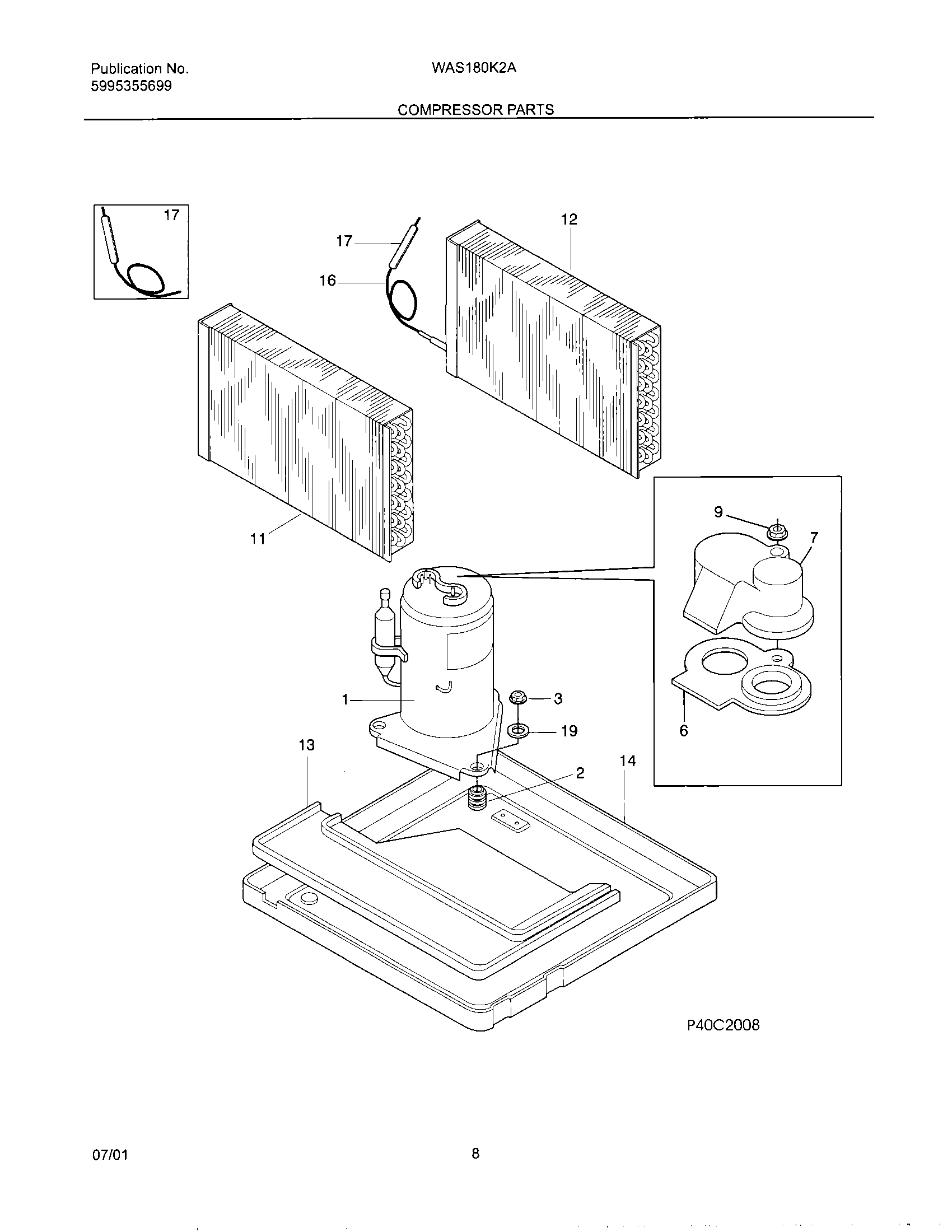

09 - COMPRESSOR PARTS

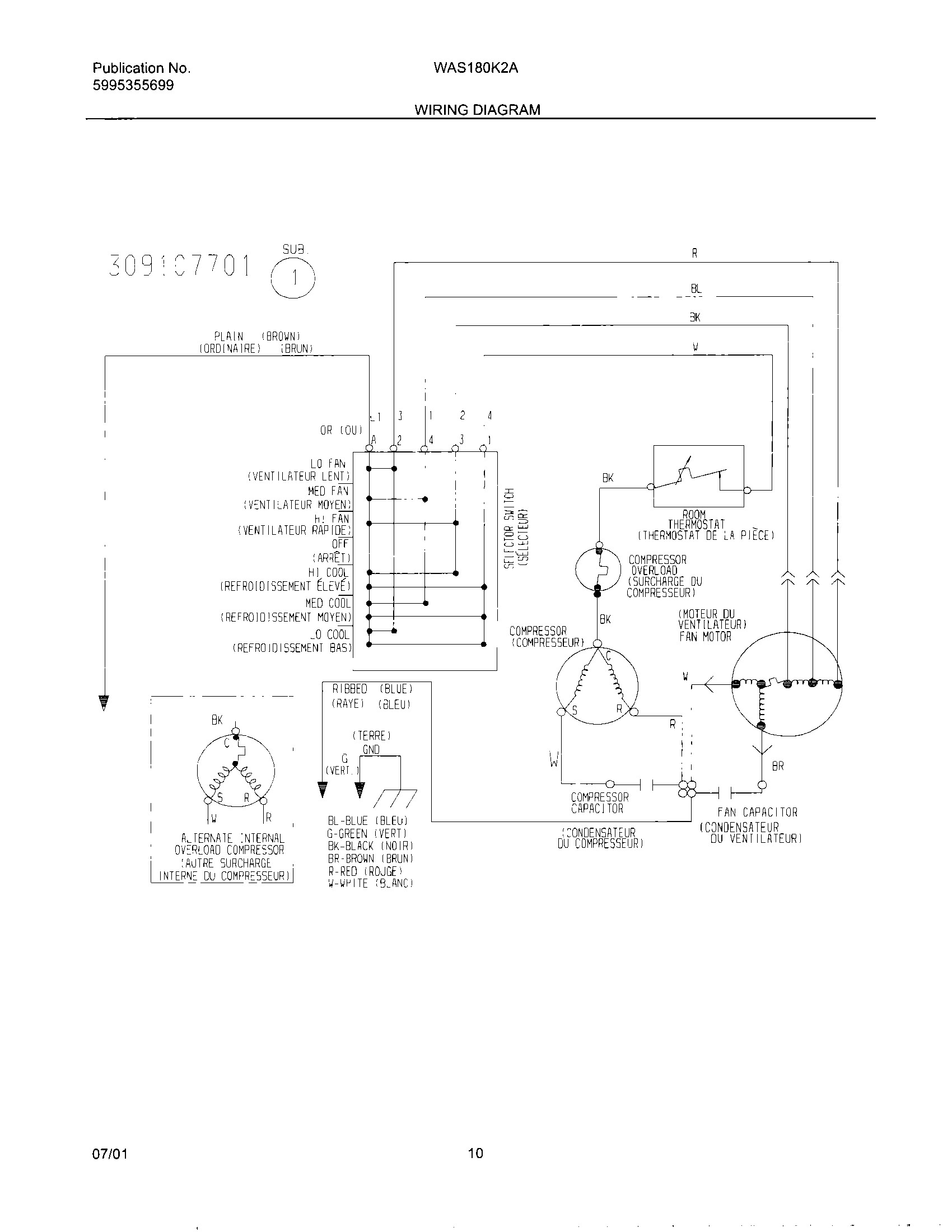

10 - WIRING DIAGRAM
Common parts from model Electrolux WAS180K2A1 ROOM AIR CONDITIONER
1
Cabinet,sleeve ,top louvers WCI 309632704 Contact Us For Availability
1
WCI 5303311048 WCI 5303311048 Contact Us For Availability
1
WCI 5304403268 WCI 5304403268 Contact Us For Availability
2
Grille,rear ,with rail WCI 309632804 Contact Us For Availability
2
WCI 5303286606 WCI 5303286606 Contact Us For Availability
3
Shroud-condenser,one piece WCI 309623201 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
5
SEAL,FAN HOUSING ,LOWER WCI 5303015311 Contact Us For Availability
6
Gasket,terminal cover WCI 5303002068 Contact Us For Availability
7
Link,vertical louver WCI 309631104 Contact Us For Availability
7
WCI 309630401 WCI 309630401 Contact Us For Availability
7
Cover,compr terminal WCI 5303002067 Contact Us For Availability
8
WCI 309630804 WCI 309630804 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303323284 Contact Us For Availability
8
WCI 309630603 WCI 309630603 Contact Us For Availability
9
WCI 309631004 WCI 309631004 Contact Us For Availability
9
WCI 5304408295 WCI 5304408295 Contact Us For Availability
10
WCI 309623601 WCI 309623601 Contact Us For Availability
10
WCI 309623401 WCI 309623401 Contact Us For Availability
11
WCI 309633001 WCI 309633001 Contact Us For Availability
11
WCI 309634101 WCI 309634101 Contact Us For Availability
12
Filter-air,molded plastic WCI 309631404 Contact Us For Availability
12
WCI 5303306719 WCI 5303306719 Contact Us For Availability
13
WCI 5303317228 WCI 5303317228 Contact Us For Availability
13
WCI 309630302 WCI 309630302 Contact Us For Availability
13
WCI 309623501 WCI 309623501 Contact Us For Availability
14
WCI 309632906 WCI 309632906 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309630101 WCI 309630101 Contact Us For Availability
16
Capillary Tube,45 inch long ,cut to length WCI 5308017120 Contact Us For Availability
17
Front-cabinet,complete assy WCI 309633205 Contact Us For Availability
17
WCI 309343112 WCI 309343112 Contact Us For Availability
17
WCI 5304416409 WCI 5304416409 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309633508 WCI 309633508 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
WCI 309307013 WCI 309307013 Contact Us For Availability
20
WCI 309630201 WCI 309630201 Contact Us For Availability
25
WCI 309321401 WCI 309321401 Contact Us For Availability
26
Detent Assy-vent,with adhesive WCI 309330206 Contact Us For Availability
26A
WCI 309330202 WCI 309330202 Contact Us For Availability
43
WCI 309633719 WCI 309633719 Contact Us For Availability
NI
WCI 309633305 WCI 309633305 Contact Us For Availability
NI
WCI 309331801 WCI 309331801 Contact Us For Availability
NI
WIRING HARNESS WCI 5304408751 Contact Us For Availability
NI
WCI 309112501 WCI 309112501 Contact Us For Availability
NI
Wire-Bale,terminal cover WCI 5303002069 Contact Us For Availability
× ![]()
