Model Electrolux WAL128K2A1 WHITE AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - CABINET FRONT AND WRAPPER

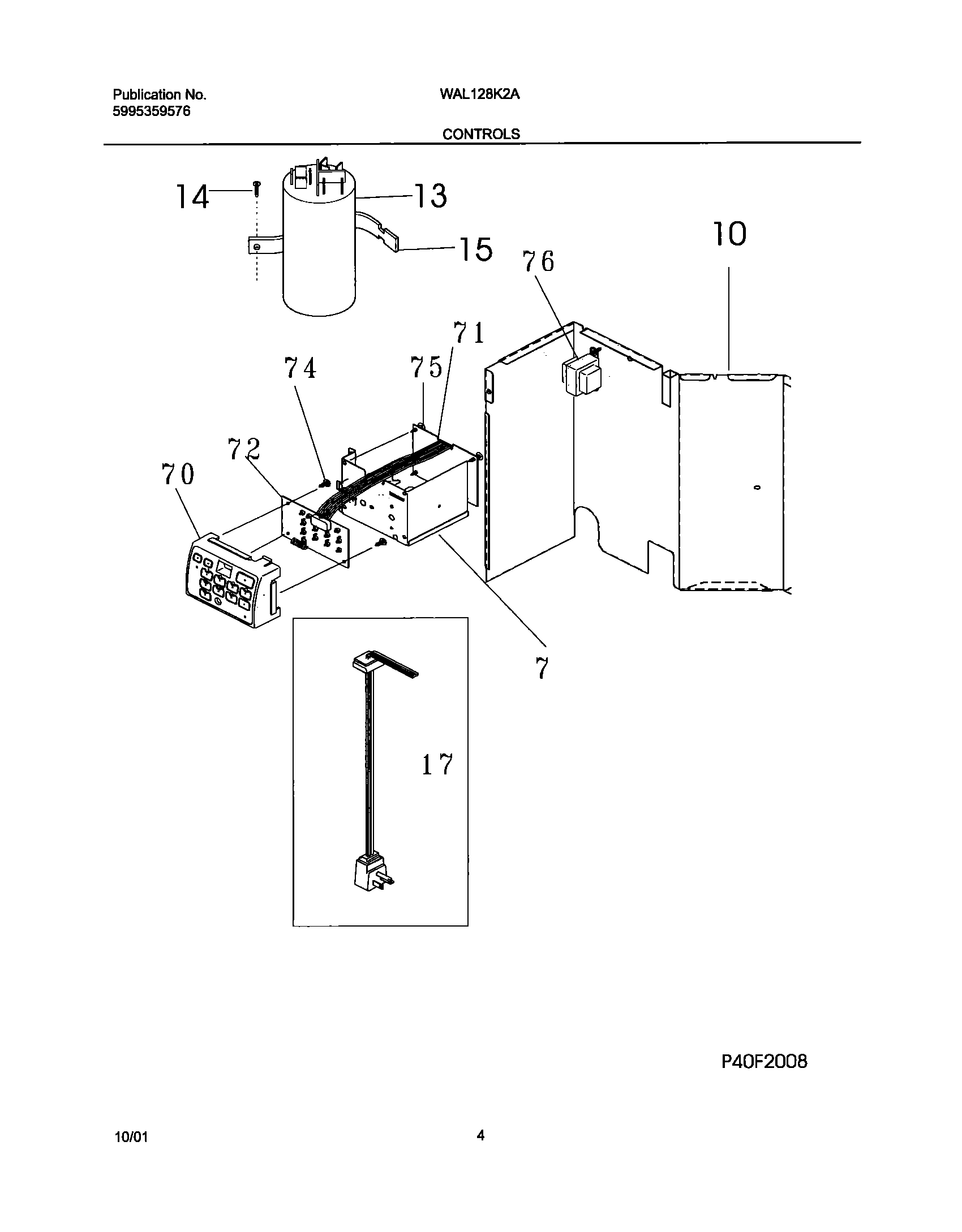

05 - CONTROLS

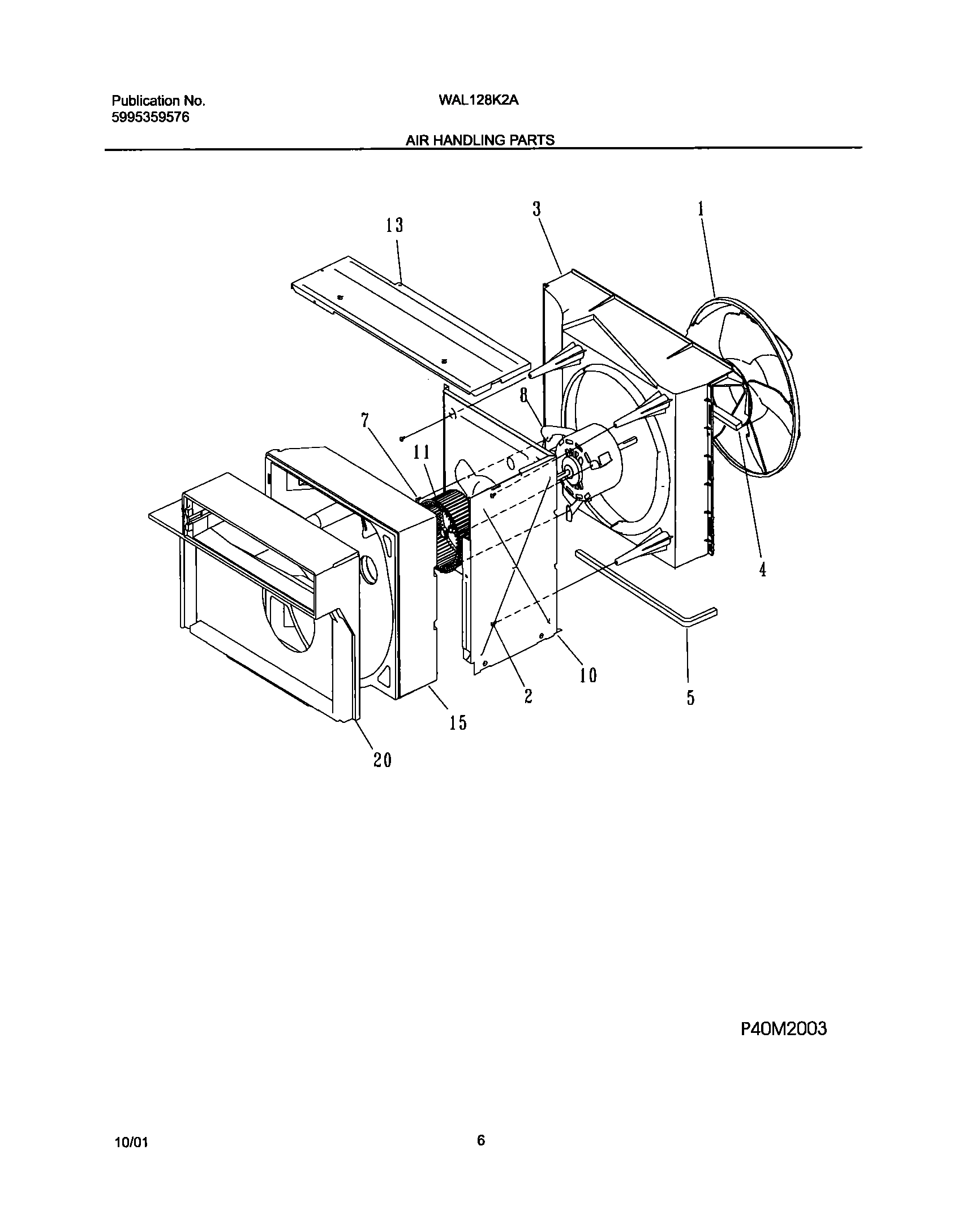

07 - AIR HANDLING

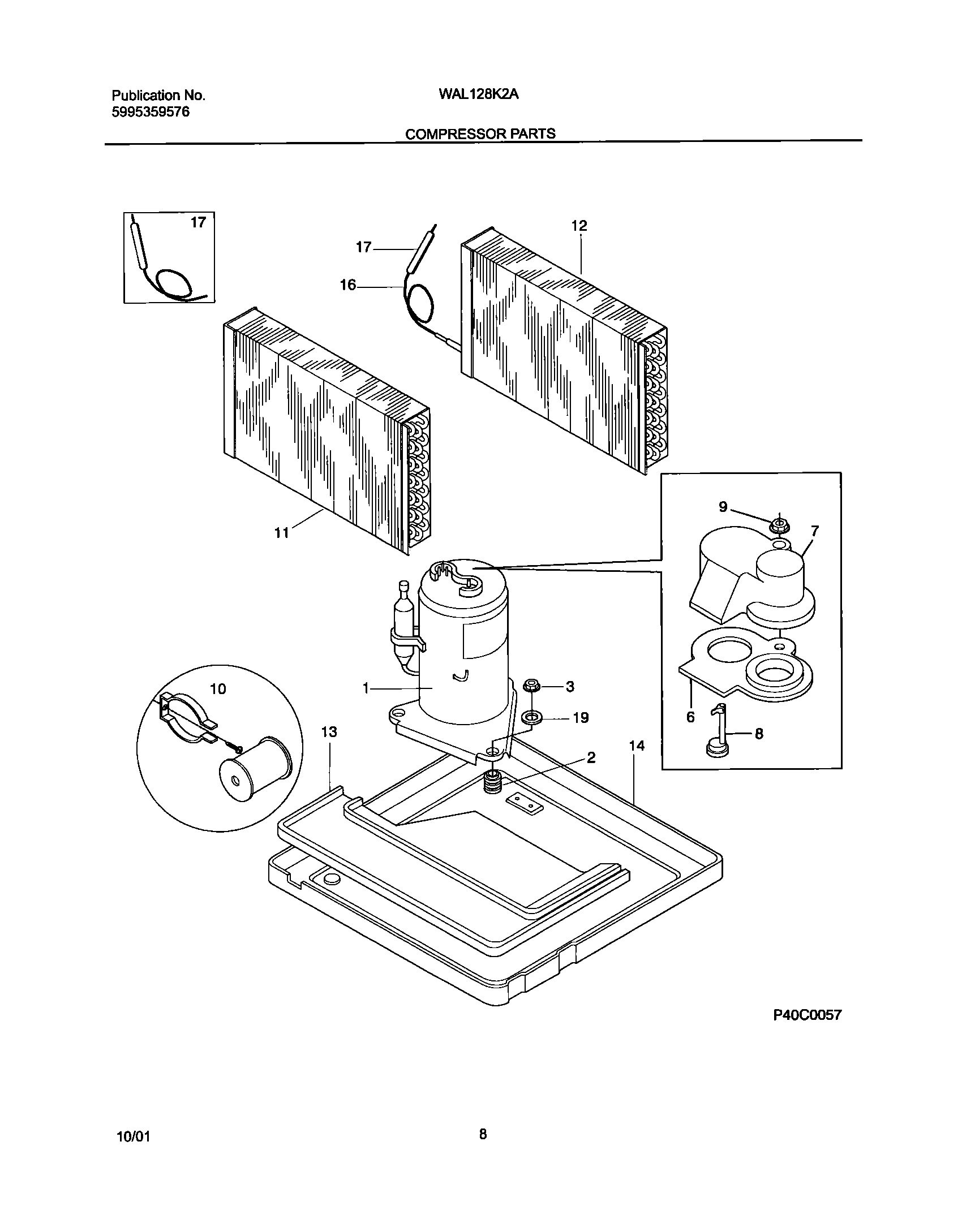

09 - COMPRESSOR PARTS

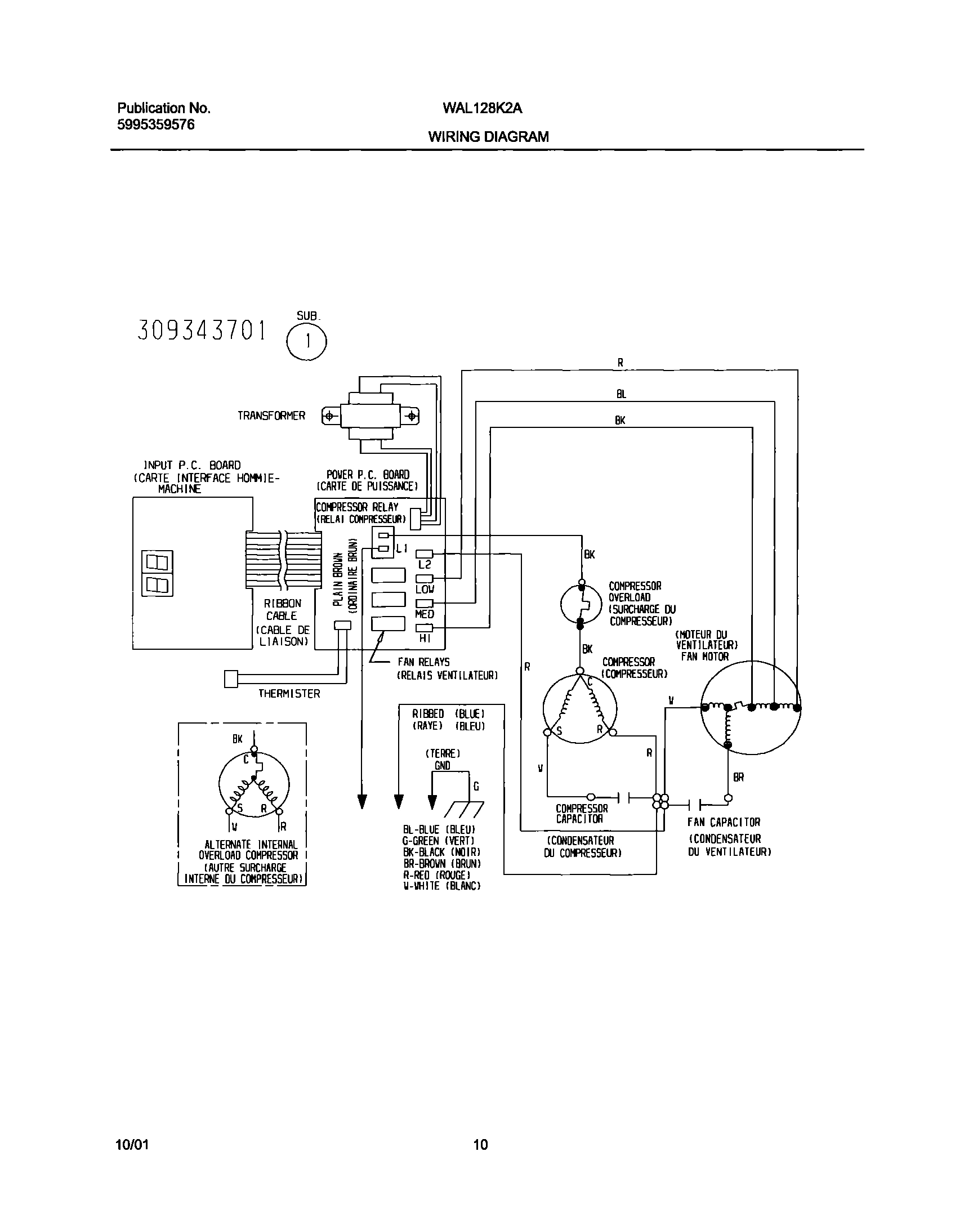

10 - WIRING DIAGRAM
Common parts from model Electrolux WAL128K2A1 WHITE AIR CONDITIONER
1
WCI 5303320769 WCI 5303320769 Contact Us For Availability
1
WCI 309603109 WCI 309603109 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
HOUSING-FAN WCI 3202950 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
SEAL-FAN HOUSING,TOP WCI 3202953 Contact Us For Availability
5
Seal-fan housing,bottom WCI 3202951 Contact Us For Availability
6
Gasket,terminal cover WCI 5303291330 Contact Us For Availability
7
WCI 309638601 WCI 309638601 Contact Us For Availability
7
Box-control WCI 309605605 Contact Us For Availability
7
Cover-terminal,compressor WCI 5304416126 Contact Us For Availability
8
WCI 309639701 WCI 309639701 Contact Us For Availability
8
Motor-fan WCI 5304417450 Contact Us For Availability
8
WCI 5304420992 WCI 5304420992 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
Nut-terminal cover WCI 5303294292 Contact Us For Availability
10
WCI 5303316617 WCI 5303316617 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
Blower Wheel,cavity 1&2 WCI 309608901 Contact Us For Availability
11
Evaporator WCI 309606105 Contact Us For Availability
12
WCI 309343502 WCI 309343502 Contact Us For Availability
12
Condenser WCI 5304407866 Contact Us For Availability
13
WCI 5303316710 WCI 5303316710 Contact Us For Availability
13
WCI 309605902 WCI 309605902 Contact Us For Availability
13
WCI 309606001 WCI 309606001 Contact Us For Availability
14
WCI 5304414417 WCI 5304414417 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309605702 WCI 309605702 Contact Us For Availability
16
Capillary Tube,45 inch long ,cut to length WCI 5308017120 Contact Us For Availability
17
Cord-service WCI 309343103 Contact Us For Availability
17
Tube-process WCI 5304417604 Contact Us For Availability
19
WCI 309340906 WCI 309340906 Contact Us For Availability
19
WCI 309112501 WCI 309112501 Contact Us For Availability
20
WCI 309605802 WCI 309605802 Contact Us For Availability
25
WCI 309328602 WCI 309328602 Contact Us For Availability
26
Handle,vent door WCI 309639401 Contact Us For Availability
26A
WCI 309330201 WCI 309330201 Contact Us For Availability
43
WCI 309640302 WCI 309640302 Contact Us For Availability
70
Enclosure,elec control mt WCI 309342301 Contact Us For Availability
71
PC Board,power,Sagem WCI 309350401 Contact Us For Availability
72
WCI 309350402 WCI 309350402 Contact Us For Availability
75
Support-pc board WCI 5304413781 Contact Us For Availability
76
Transformer,240/12 Volt WCI 309111602 Contact Us For Availability
78
WCI 309342605 WCI 309342605 Contact Us For Availability
NI
WCI 309639601 WCI 309639601 Contact Us For Availability
NI
WCI 309640402 WCI 309640402 Contact Us For Availability
NI
WCI 5304415693 WCI 5304415693 Contact Us For Availability
NI
Seal-chassis,bottom WCI 5314949603 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
Protector WCI 5304415017 Contact Us For Availability
NI
WCI 309112101 WCI 309112101 Contact Us For Availability
NI
Blower-wheel,cavity 3&4 WCI 309608902 Contact Us For Availability
NI
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
NI
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
NI
WCI 5303303558 WCI 5303303558 Contact Us For Availability
NI
Thermister WCI 5304414095 Contact Us For Availability
× ![]()
