Model Electrolux WAL123S1A3 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS

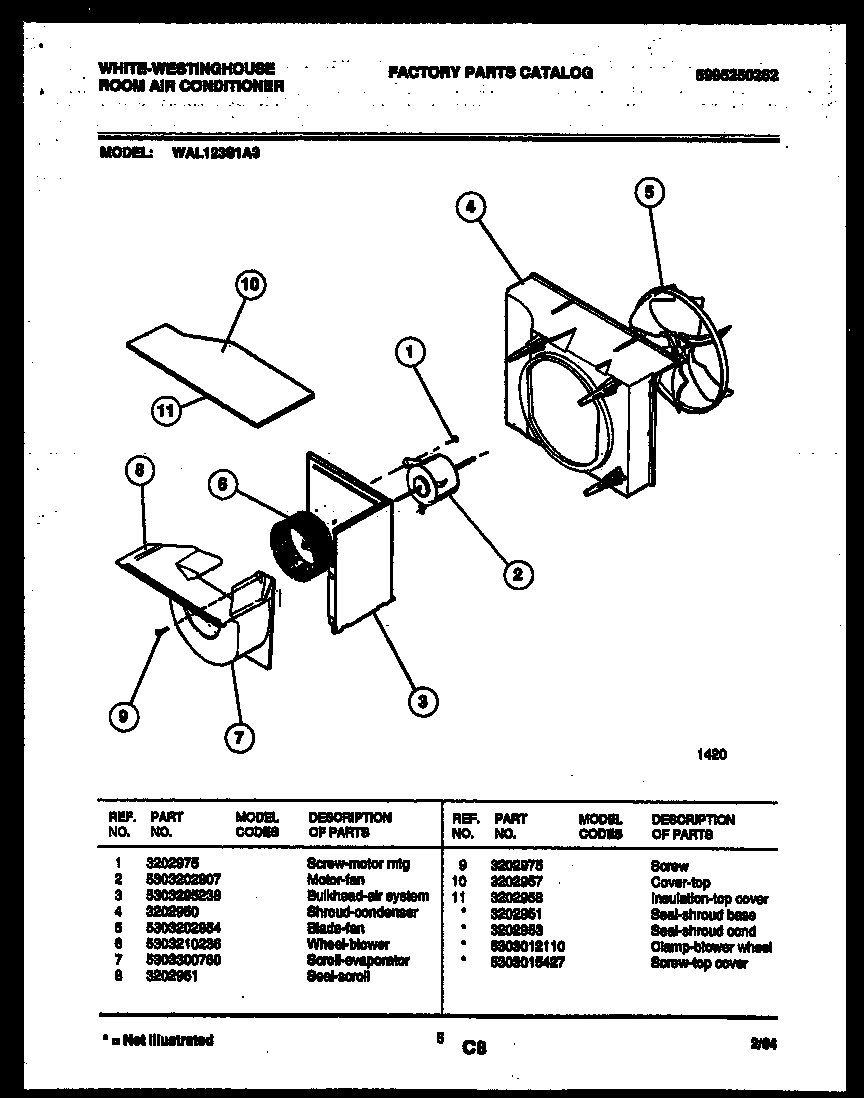

04 - AIR HANDLING PARTS

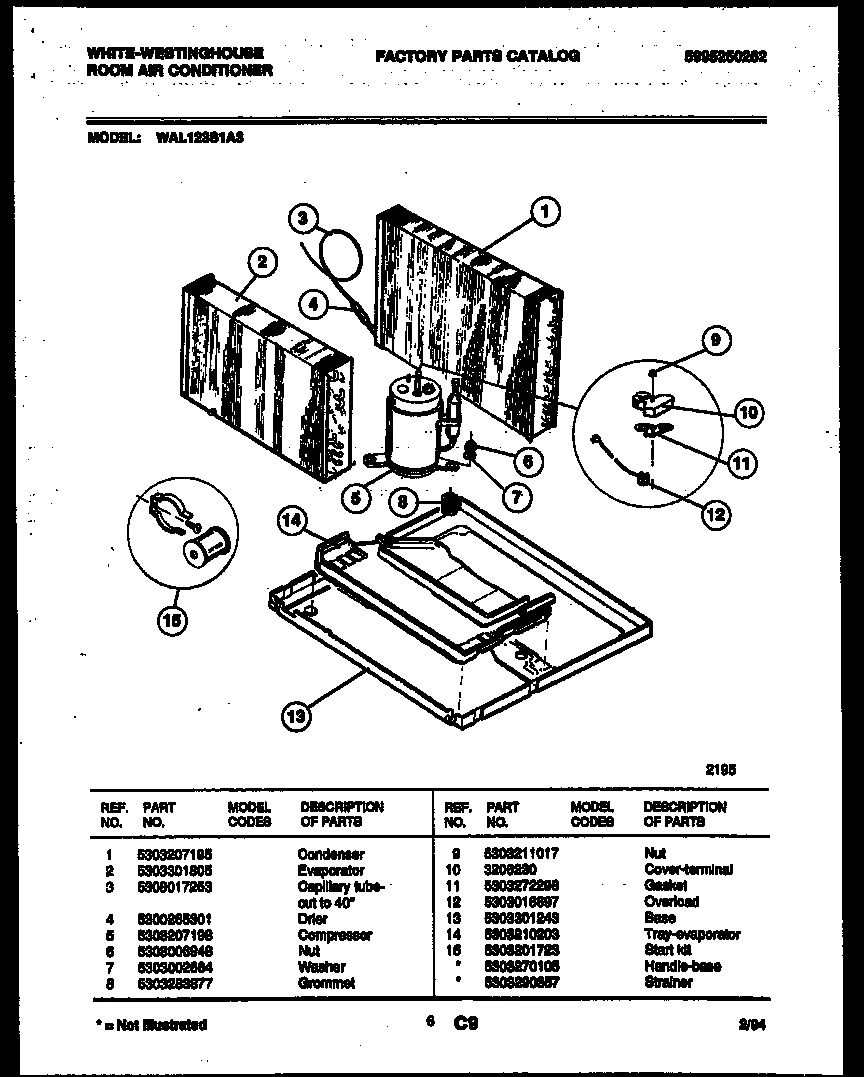

05 - SYSTEM PARTS
Common parts from model Electrolux WAL123S1A3 ROOM AIR CONDITIONER
*87034
SEAL-SHROUD COND WCI 3202953 Contact Us For Availability
*87034
WCI 5303012110 WCI 5303012110 Contact Us For Availability
*87036
HANDLE-BASE WCI 5303270105 Contact Us For Availability
*87036
WCI 5303290357 WCI 5303290357 Contact Us For Availability
1
WCI 5303293521 WCI 5303293521 Contact Us For Availability
1
WCI 5303207195 WCI 5303207195 Contact Us For Availability
2
BRACKET WCI 3018951 Contact Us For Availability
2
WCI 5303201621 WCI 5303201621 Contact Us For Availability
2
WCI 5303202807 WCI 5303202807 Contact Us For Availability
2
WCI 5303301805 WCI 5303301805 Contact Us For Availability
3
CONTROL-TEMPERATURE WCI 5303002079 Contact Us For Availability
3
WCI 3002803 WCI 3002803 Contact Us For Availability
3
WCI 5303295238 WCI 5303295238 Contact Us For Availability
3
WCI 5308017253 WCI 5308017253 Contact Us For Availability
4
WCI 3203060 WCI 3203060 Contact Us For Availability
4
SCREW WCI 5303007754 Contact Us For Availability
4
WCI 3202950 WCI 3202950 Contact Us For Availability
5
WCI 3202964 WCI 3202964 Contact Us For Availability
5
DIVIDER WCI 3202962 Contact Us For Availability
5
BLADE-FAN WCI 5303202954 Contact Us For Availability
5
WCI 5303207198 WCI 5303207198 Contact Us For Availability
6
CLOSURE-ACCORDIAN WCI 5303211382 Contact Us For Availability
6
INSULATION WCI 3202963 Contact Us For Availability
6
WCI 5303210236 WCI 5303210236 Contact Us For Availability
6
WCI 5308006948 WCI 5308006948 Contact Us For Availability
7
WCI 5303301251 WCI 5303301251 Contact Us For Availability
7
WCI 5303301023 WCI 5303301023 Contact Us For Availability
7
SCROLL-EVAPORATOR WCI 5303300760 Contact Us For Availability
7
WCI 5303002664 WCI 5303002664 Contact Us For Availability
8
CAPACITOR 35-10/370 WCI 5308017135 Contact Us For Availability
8
WCI 3202951 WCI 3202951 Contact Us For Availability
8
WCI 5303283877 WCI 5303283877 Contact Us For Availability
9
SCREW-FRAME WCI 3002801 Contact Us For Availability
9
STRAP WCI 5303015323 Contact Us For Availability
9
NUT WCI 5303211017 Contact Us For Availability
10
WCI 5303207200 WCI 5303207200 Contact Us For Availability
10
WCI 3202957 WCI 3202957 Contact Us For Availability
10
WCI 3206230 WCI 3206230 Contact Us For Availability
11
WCI 5303301250 WCI 5303301250 Contact Us For Availability
11
BULKHEAD WCI 5303210984 Contact Us For Availability
11
WCI 3202958 WCI 3202958 Contact Us For Availability
11
WCI 5303272298 WCI 5303272298 Contact Us For Availability
12
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
12
CLIP WCI 3203075 Contact Us For Availability
12
WCI 5303016697 WCI 5303016697 Contact Us For Availability
13
WCI 5303276681 WCI 5303276681 Contact Us For Availability
13
WCI 5303301243 WCI 5303301243 Contact Us For Availability
13A
WASHER-RUBBER (NON-ILLUSTRATED) WCI 08009143 Contact Us For Availability
14
WCI 08013699 WCI 08013699 Contact Us For Availability
14
VENT DOOR WCI 5303295752 Contact Us For Availability
14
WCI 5303210203 WCI 5303210203 Contact Us For Availability
15
CLIP-FILTER WCI 3203495 Contact Us For Availability
15
WCI 5303202961 WCI 5303202961 Contact Us For Availability
15
WCI 5303201723 WCI 5303201723 Contact Us For Availability
16
WCI 5303001809 WCI 5303001809 Contact Us For Availability
16
SLEEVE - CAP TUBE WCI 5303002600 Contact Us For Availability
17
WCI 5303300129 WCI 5303300129 Contact Us For Availability
17
WCI 5303015298 WCI 5303015298 Contact Us For Availability
18
WCI 5308014101 WCI 5308014101 Contact Us For Availability
18
RETAINER WCI 5303202999 Contact Us For Availability
19
INSERT-MULLION WCI 5303300130 Contact Us For Availability
19
WCI 3202941 WCI 3202941 Contact Us For Availability
20
WCI 5300331902 WCI 5300331902 Contact Us For Availability
21
WCI 5303002189 WCI 5303002189 Contact Us For Availability
21
SLEEVE-BULB WCI 5308007834 Contact Us For Availability
22
WCI 5303289079 WCI 5303289079 Contact Us For Availability
23
WCI 5303001984 WCI 5303001984 Contact Us For Availability
24
WCI 5303001775 WCI 5303001775 Contact Us For Availability
25
BRACKET-RH WCI 5303301254 Contact Us For Availability
26
BRACKET-LH WCI 5303301255 Contact Us For Availability
27
SCREW (2) WCI 3007756 Contact Us For Availability
28
WCI 3001815 WCI 3001815 Contact Us For Availability
29
LOCK NUT (2) WCI 3007759 Contact Us For Availability
31
SCREW (4) WCI 5303281649 Contact Us For Availability
32
WCI 5314949603 WCI 5314949603 Contact Us For Availability
33
WCI 5303276728 WCI 5303276728 Contact Us For Availability
34
WCI 5303301242 WCI 5303301242 Contact Us For Availability
34A
GRILLE-REAR (NON-ILLUSTRATED) WCI 5303303597 Contact Us For Availability
34B
NAMEPLATE-GRILLE (NON-ILLUSTRATED) WCI 5303299933 Contact Us For Availability
35
SCREW-FRONT MTG WCI 5303271346 Contact Us For Availability
36
WCI 08010928 WCI 08010928 Contact Us For Availability
× ![]()
