Model Electrolux WAL123H1A4 ROOM AIR CONDITIONER – Common Parts & Diagrams

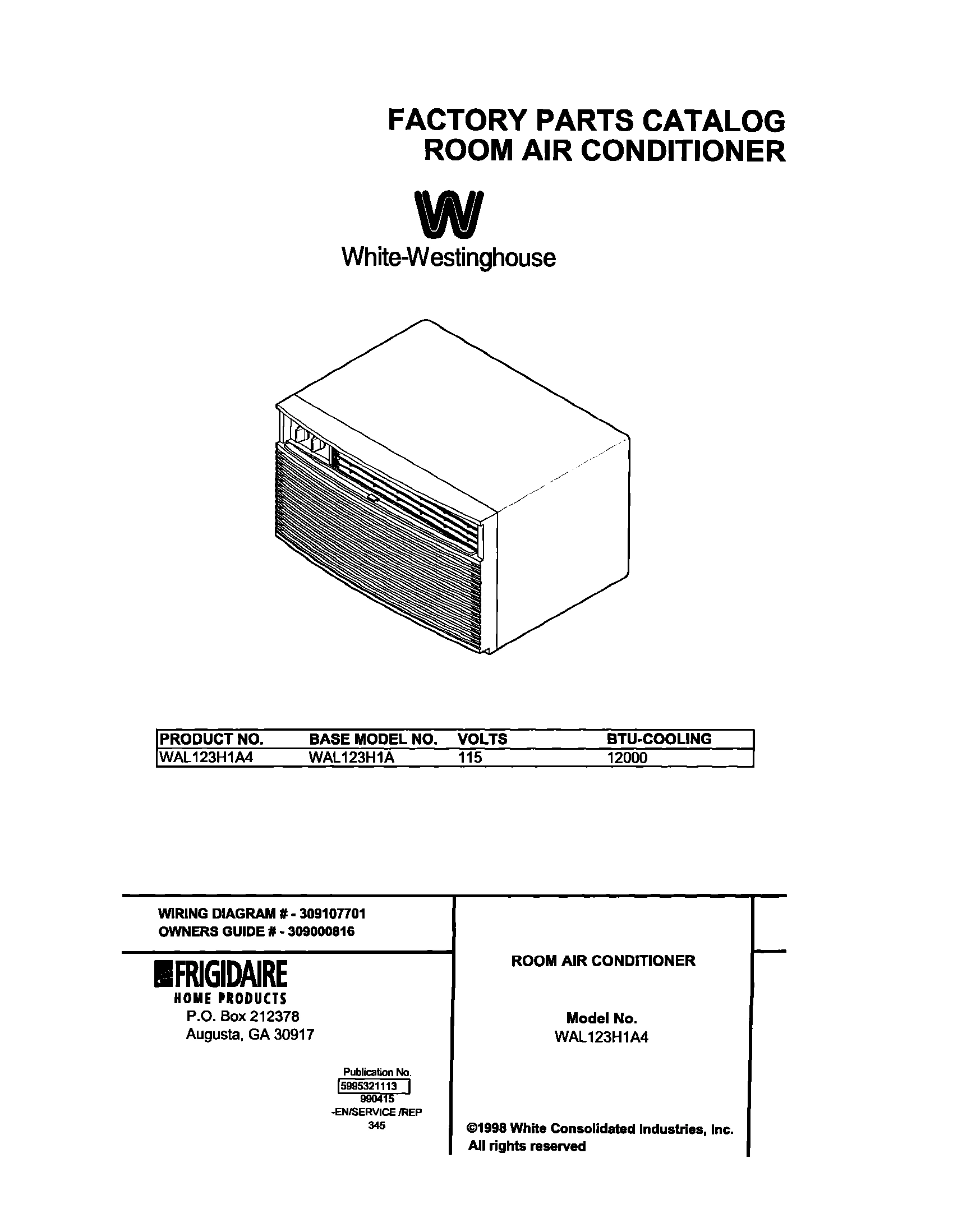

01 - COVER

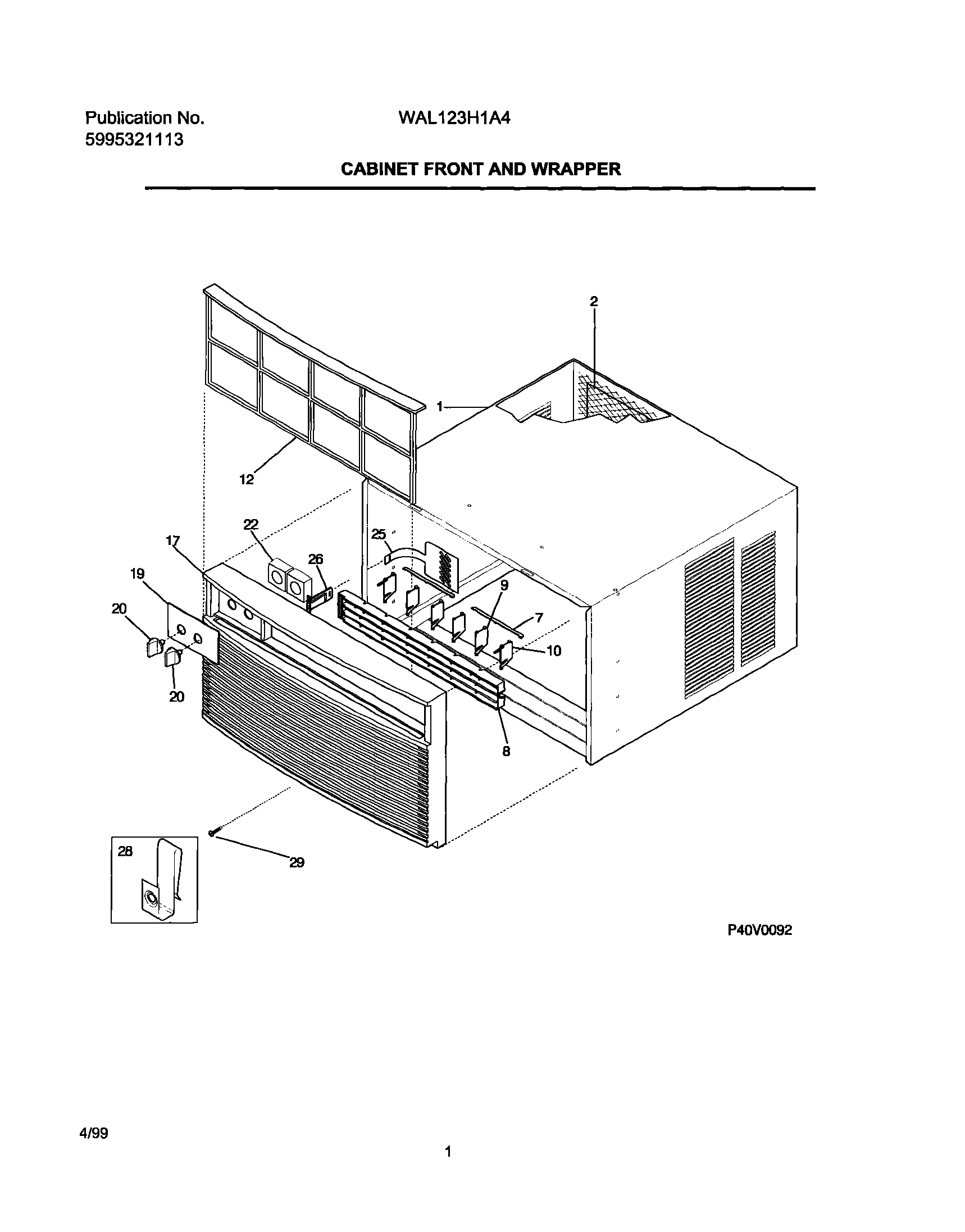

02 - CABINET FRONT AND WRAPPER

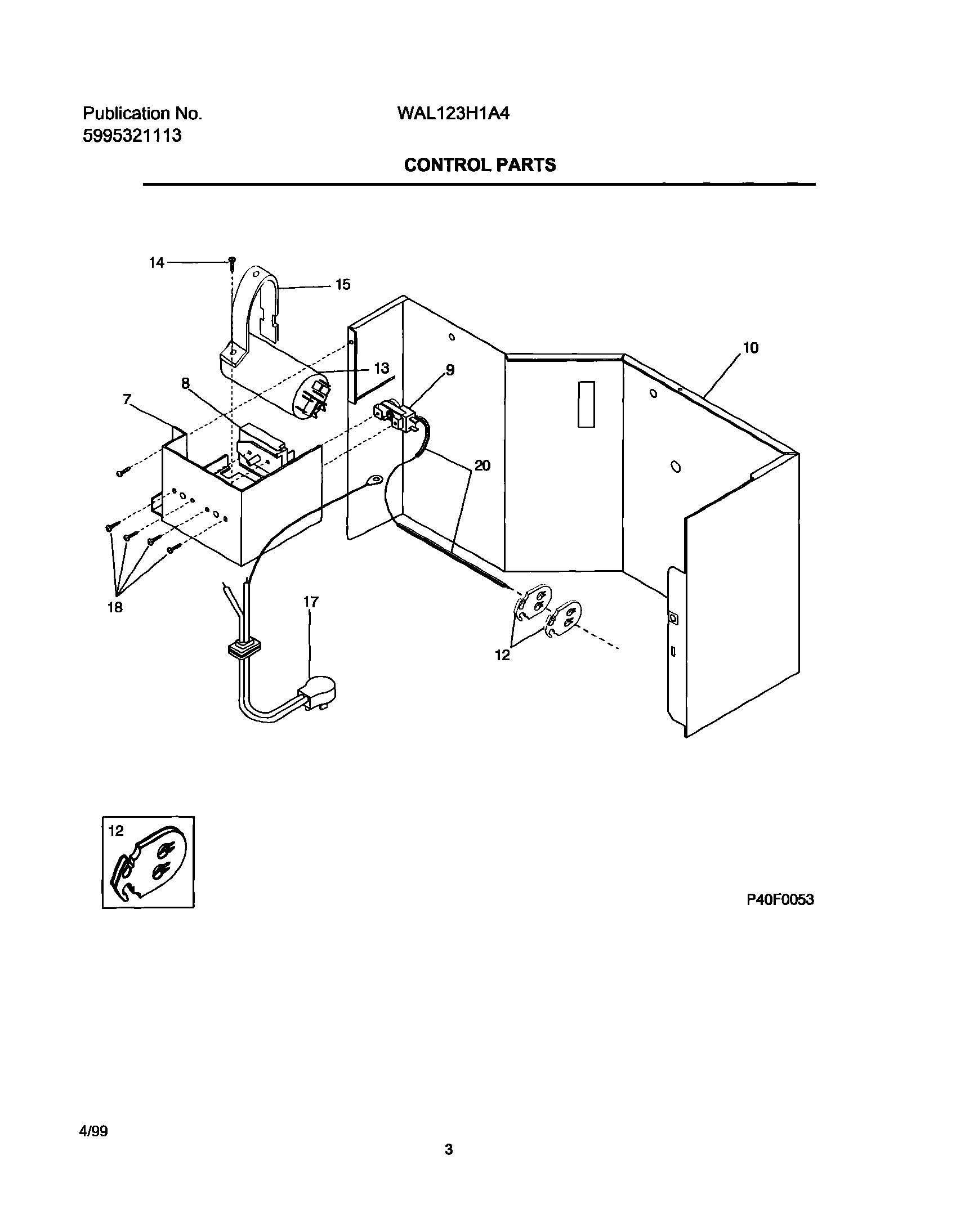

04 - CONTROLS

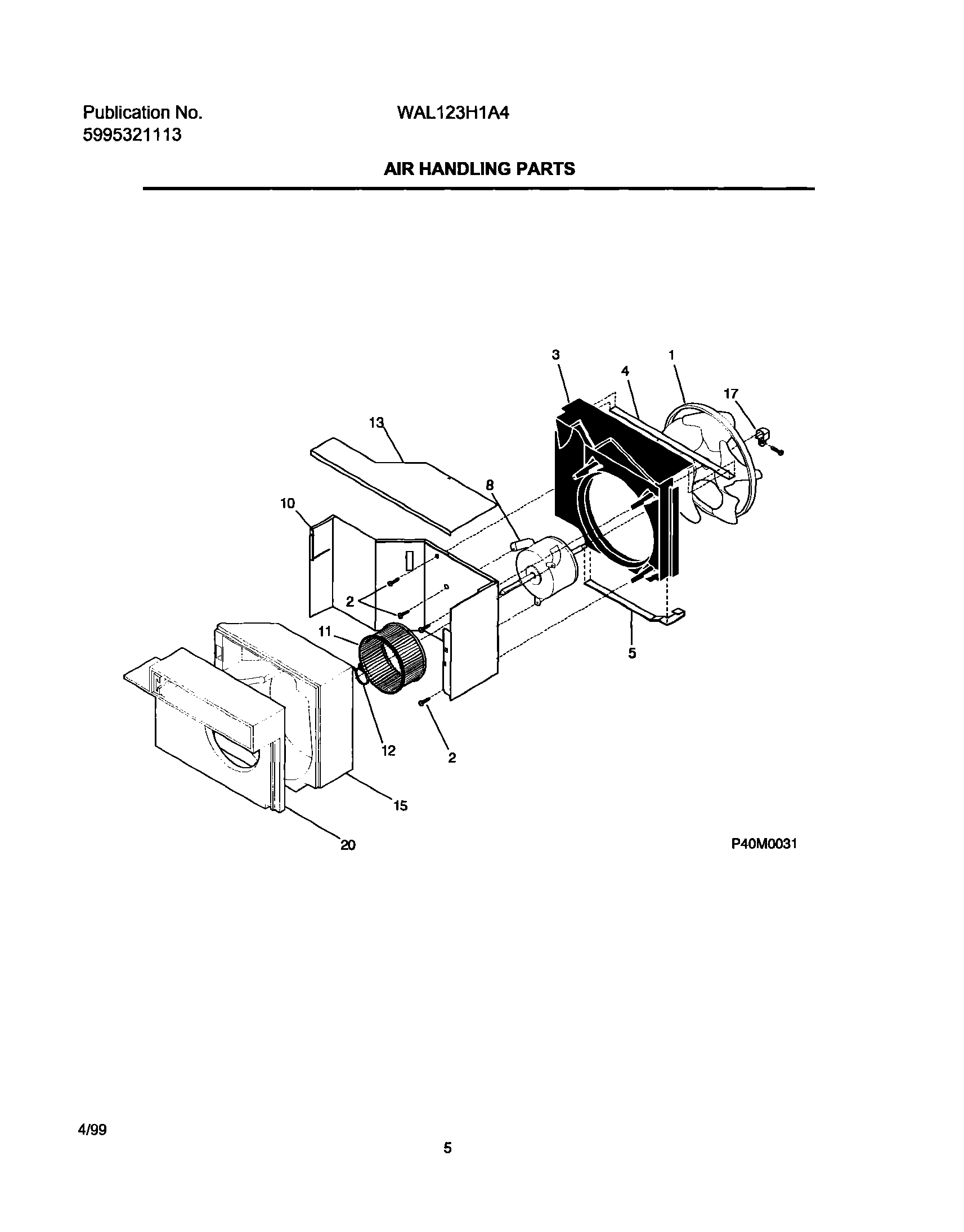

06 - AIR HANDLING PARTS

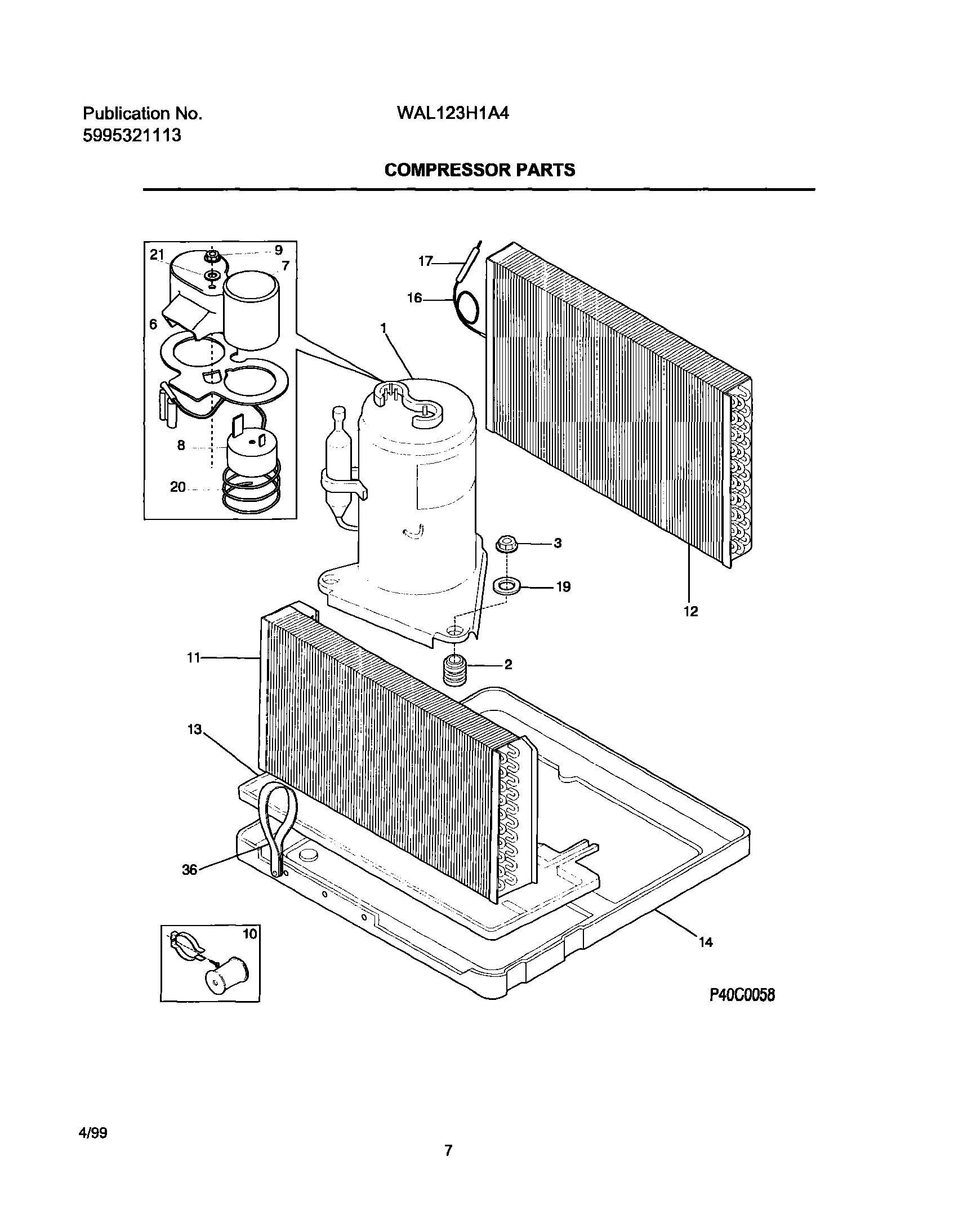

08 - COMPRESSOR

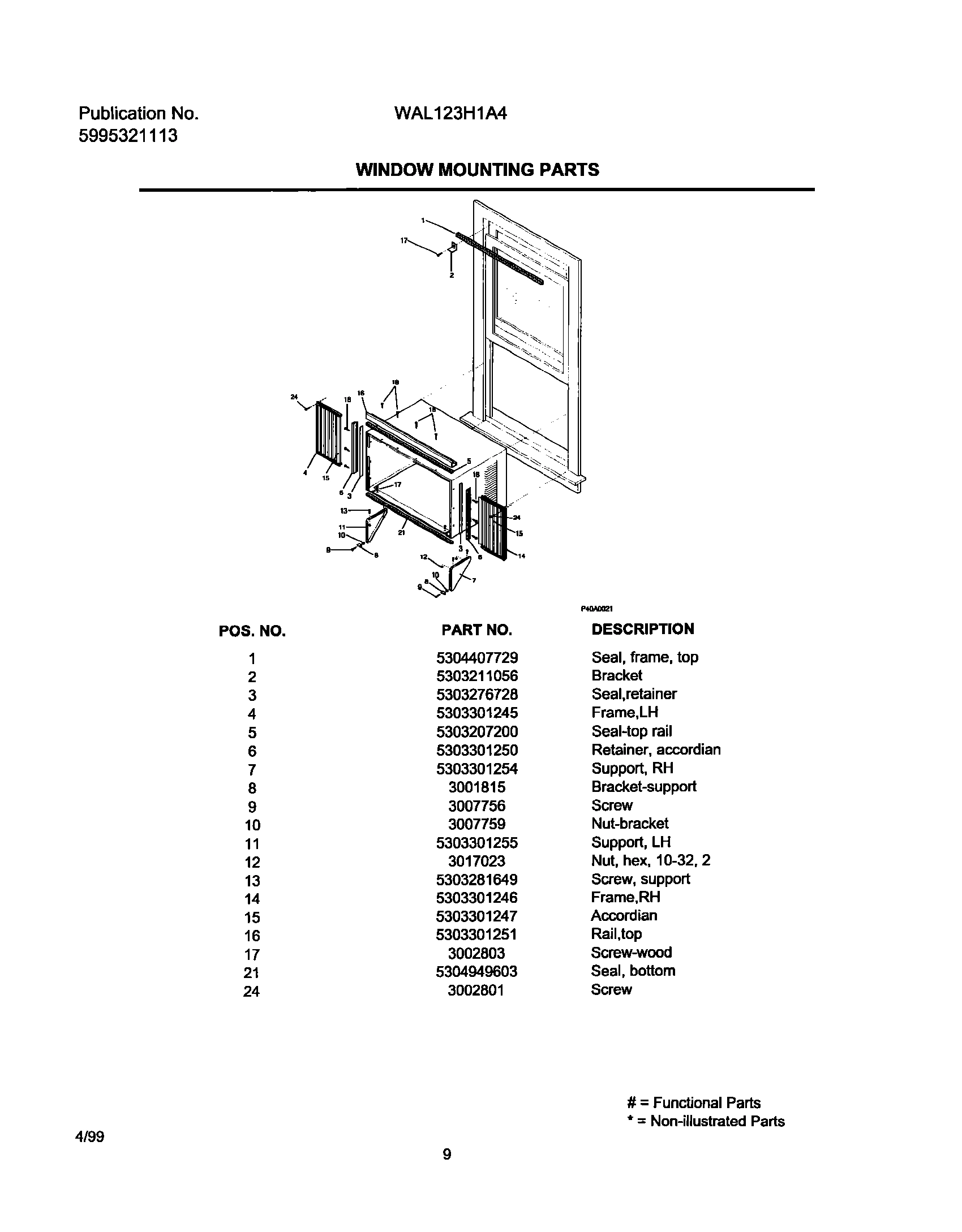

09 - WINDOW MOUNTING PARTS

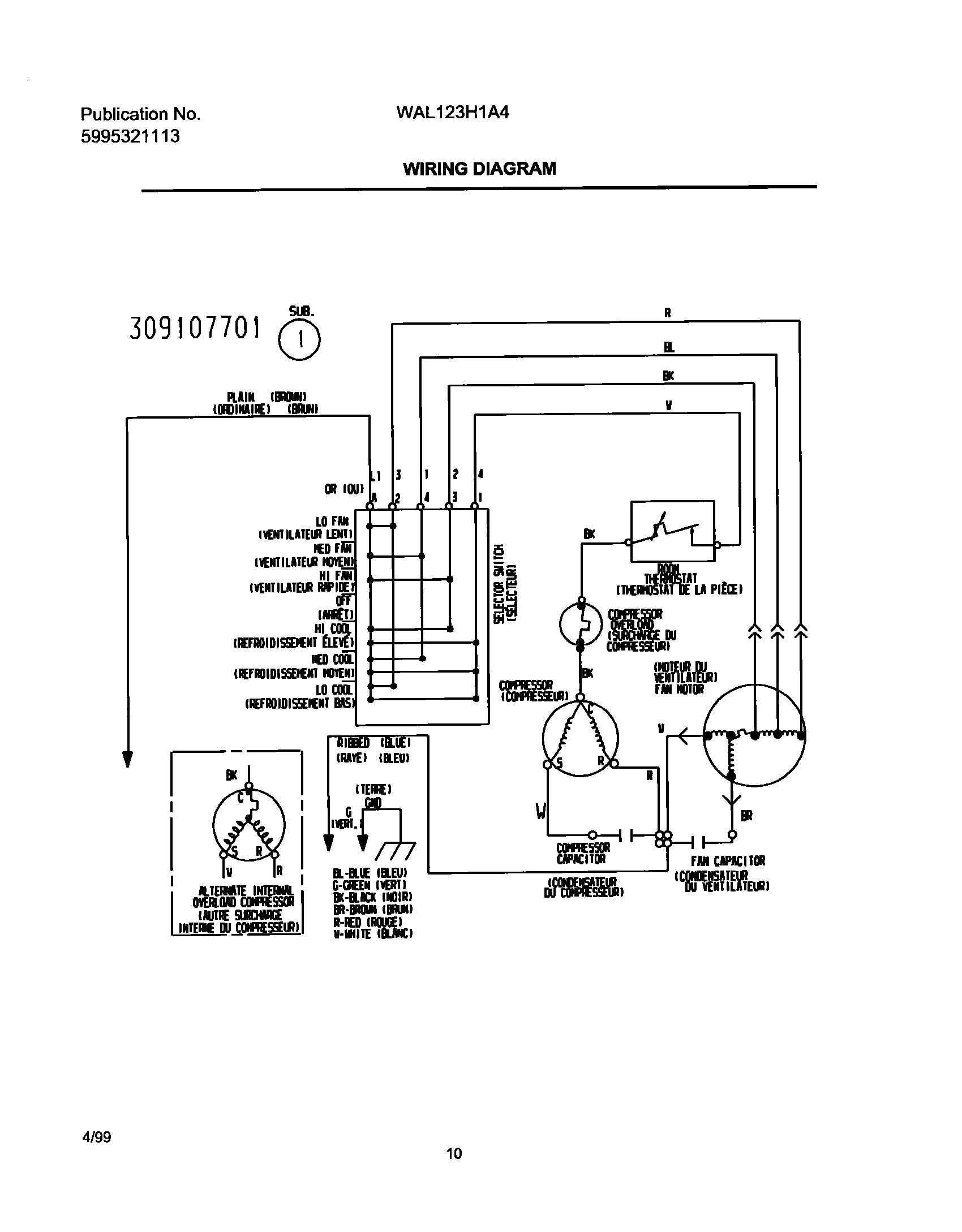

10 - WIRING DIAGRAM
Common parts from model Electrolux WAL123H1A4 ROOM AIR CONDITIONER
1
WCI 5303320769 WCI 5303320769 Contact Us For Availability
1
Compressor WCI 5304407864 Contact Us For Availability
2
BRACKET WCI 5303211056 Contact Us For Availability
2
GRILLE, REAR WCI 5303303597 Contact Us For Availability
2
GROMMET-COMPRESSOR, 3 WCI 5303283877 Contact Us For Availability
3
HOUSING-FAN WCI 3202950 Contact Us For Availability
3
NUT, COMPRESSOR, (3) WCI 5308006948 Contact Us For Availability
3
WCI 5303276728 WCI 5303276728 Contact Us For Availability
4
SEAL-FAN HOUSING,TOP WCI 3202953 Contact Us For Availability
4
FRAME, LH WCI 5303301245 Contact Us For Availability
5
SEAL,HOUSING-FAN ,BOTTOM WCI 3202951 Contact Us For Availability
5
WCI 5303207200 WCI 5303207200 Contact Us For Availability
6
GASKET-COVER WCI 5303272298 Contact Us For Availability
6
RETAINER-ACCORDIAN WCI 5303301250 Contact Us For Availability
7
LINK,LOUVER ,(2) WCI 309304101 Contact Us For Availability
7
WCI 309605603 WCI 309605603 Contact Us For Availability
7
WCI 3206230 WCI 3206230 Contact Us For Availability
7
WCI 5303301254 WCI 5303301254 Contact Us For Availability
8
WCI 309609601 WCI 309609601 Contact Us For Availability
8
WCI 5303316598 WCI 5303316598 Contact Us For Availability
8
WCI 309630602 WCI 309630602 Contact Us For Availability
8
OVERLOAD PROTECTOR WCI 5303016697 Contact Us For Availability
8
BRACKET - SUPPORT WCI 3001815 Contact Us For Availability
9
WCI 309607801 WCI 309607801 Contact Us For Availability
9
WCI 5303316597 WCI 5303316597 Contact Us For Availability
9
WCI 5303211017 WCI 5303211017 Contact Us For Availability
9
WCI 3007756 WCI 3007756 Contact Us For Availability
10
WCI 309607802 WCI 309607802 Contact Us For Availability
10
WCI 5303316617 WCI 5303316617 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
10
NUT - BRACKET WCI 3007759 Contact Us For Availability
11
WCI 309608901 WCI 309608901 Contact Us For Availability
11
Evaporator WCI 309606105 Contact Us For Availability
11
WCI 5303301255 WCI 5303301255 Contact Us For Availability
12
WCI 309607501 WCI 309607501 Contact Us For Availability
12
CLIP-CONTROL BULB WCI 5303002169 Contact Us For Availability
12
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
12
Condenser WCI 5304407866 Contact Us For Availability
13
WCI 309335304 WCI 309335304 Contact Us For Availability
13
WCI 309605902 WCI 309605902 Contact Us For Availability
13
WCI 309606001 WCI 309606001 Contact Us For Availability
13
SCREW,SUPPORT WCI 5303281649 Contact Us For Availability
14
BASE/COMPRESSOR-STUD ASSY WCI 5304407867 Contact Us For Availability
14
FRAME, RH WCI 5303301246 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
Housing,blower scroll WCI 309605702 Contact Us For Availability
15
ACCORDIAN WCI 5303301247 Contact Us For Availability
16
CAPILLARY TUBE WCI 5308017120 Contact Us For Availability
16
WCI 5303301251 WCI 5303301251 Contact Us For Availability
17
WCI 309607601 WCI 309607601 Contact Us For Availability
17
WCI 5303316618 WCI 5303316618 Contact Us For Availability
17
SCREW-WOOD WCI 3002803 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309614614 WCI 309614614 Contact Us For Availability
19
WASHER - COMPRESSOR WCI 5303002664 Contact Us For Availability
20
WCI 309306906 WCI 309306906 Contact Us For Availability
20
SLEEVE, CONTROL WCI 5303002600 Contact Us For Availability
20
Plate,scroll cover WCI 309605802 Contact Us For Availability
21
WCI 5304949603 WCI 5304949603 Contact Us For Availability
22
SPACER, PLATE WCI 5303001775 Contact Us For Availability
24
WCI 3002801 WCI 3002801 Contact Us For Availability
25
WCI 309328602 WCI 309328602 Contact Us For Availability
26
WCI 309328702 WCI 309328702 Contact Us For Availability
26A
WCI 309330201 WCI 309330201 Contact Us For Availability
28
WCI 309100401 WCI 309100401 Contact Us For Availability
36
WCI 5303303558 WCI 5303303558 Contact Us For Availability
× ![]()
