Model Electrolux WAL117P1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
02 - CABINET PARTS
03 - ELECTRICAL PARTS

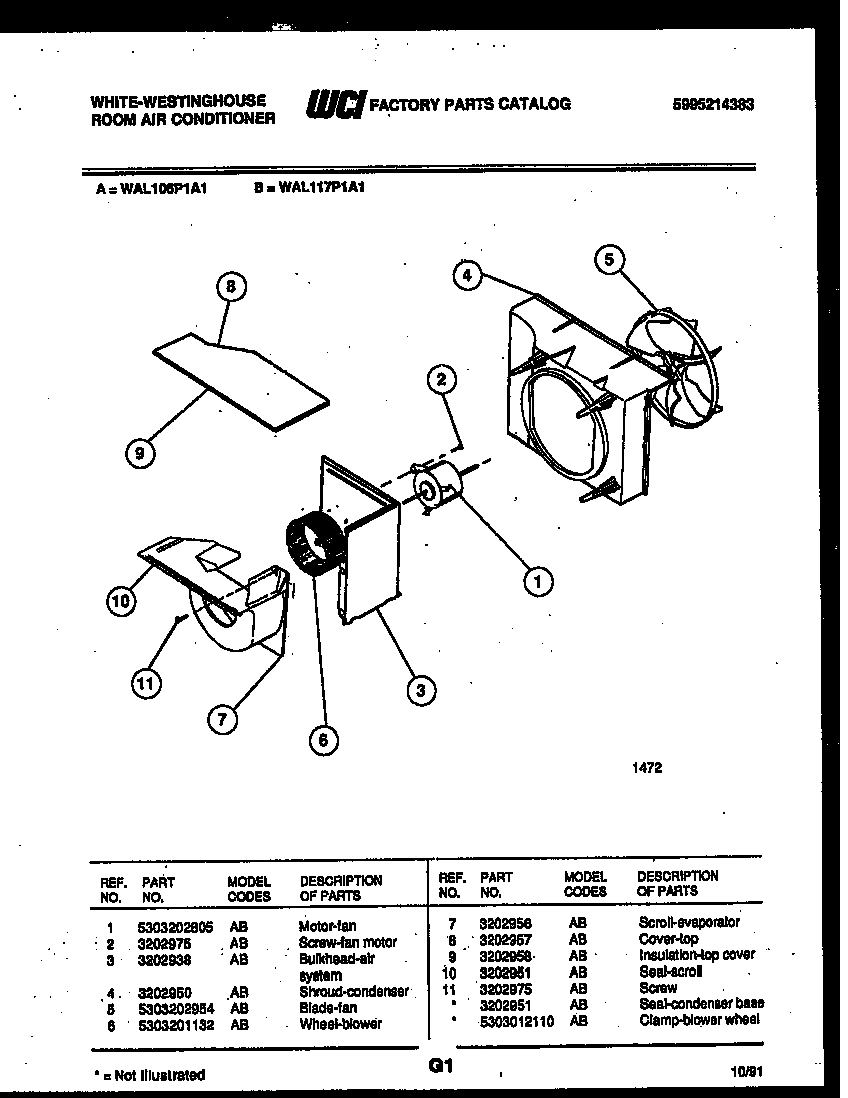

04 - AIR HANDLING PARTS

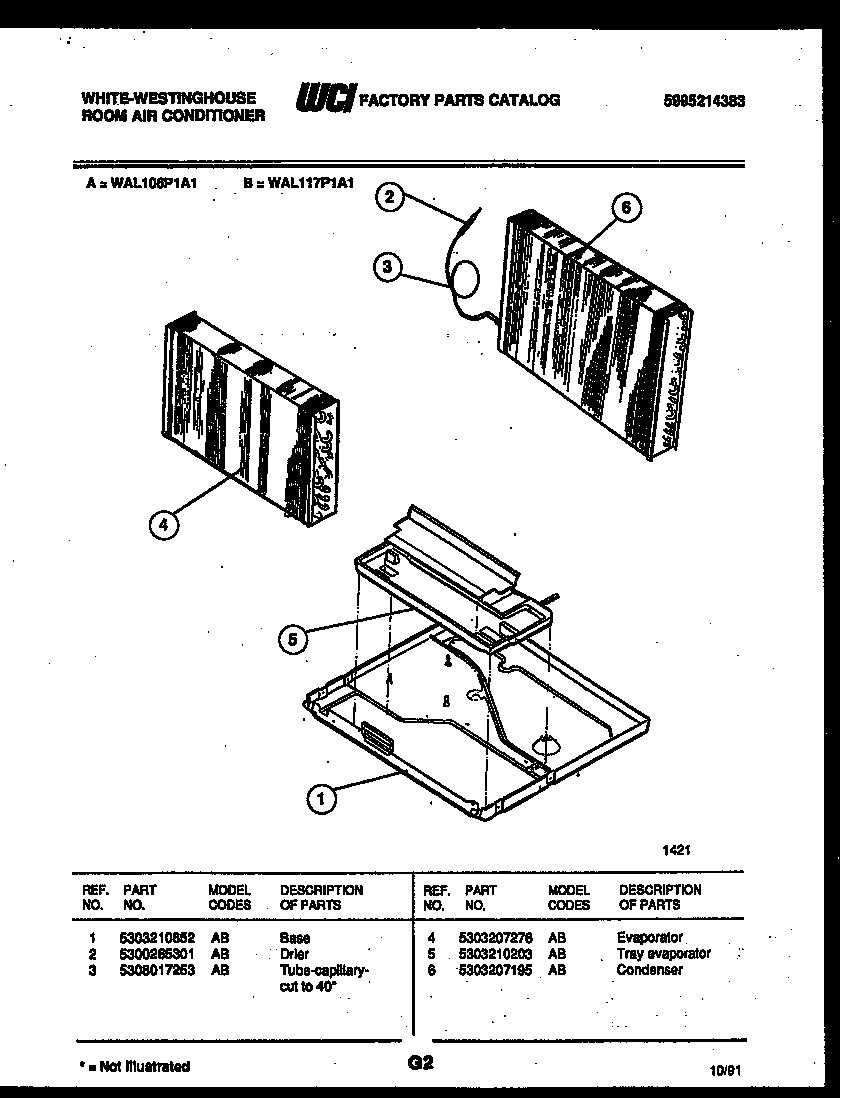

05 - UNIT PARTS
06 - COMPRESSOR PARTS

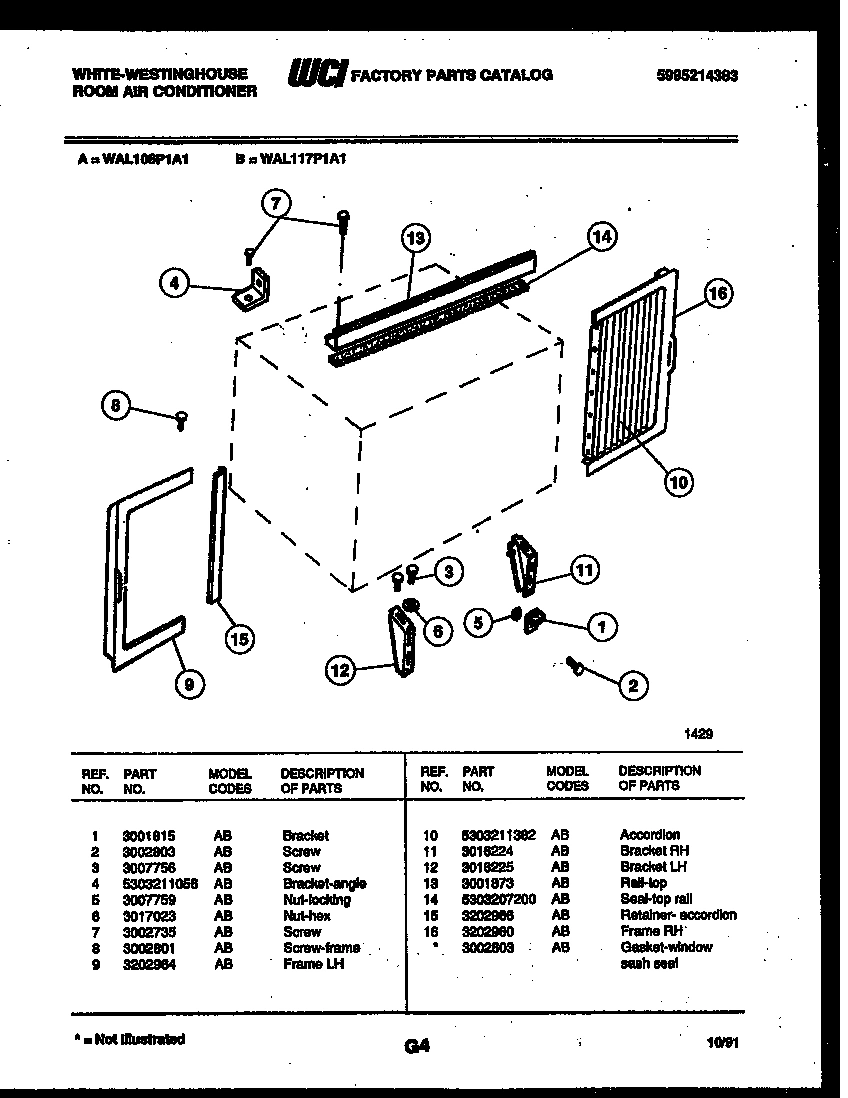

07 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux WAL117P1A1 ROOM AIR CONDITIONER
*53038
WCI 5303012110 WCI 5303012110 Contact Us For Availability
1
WCI 3202959 WCI 3202959 Contact Us For Availability
1
WCI 5303202805 WCI 5303202805 Contact Us For Availability
1
WCI 5303210852 WCI 5303210852 Contact Us For Availability
1
WCI 5303210848 WCI 5303210848 Contact Us For Availability
1
WCI 3001815 WCI 3001815 Contact Us For Availability
2
WCI 5303201621 WCI 5303201621 Contact Us For Availability
2
GROMMET-COMPR. MTG. WCI 5303015945 Contact Us For Availability
2
WCI 3002803 WCI 3002803 Contact Us For Availability
3
WCI 5303002079 WCI 5303002079 Contact Us For Availability
3
SPACER - DIAL PLATE WCI 5303001775 Contact Us For Availability
3
BULKHEAD-AIR SYSTEM WCI 3202938 Contact Us For Availability
3
TUBE - CAPILLARY (CUT TO 40``) WCI 5308017253 Contact Us For Availability
3
WCI 5303015946 WCI 5303015946 Contact Us For Availability
3
WCI 3007756 WCI 3007756 Contact Us For Availability
4
BRACKET-ANGLE WCI 5303211056 Contact Us For Availability
4
SEAL - DIAL PLATE WCI 5303001984 Contact Us For Availability
4
WCI 5303007754 WCI 5303007754 Contact Us For Availability
4
WCI 3202950 WCI 3202950 Contact Us For Availability
4
WCI 5303207276 WCI 5303207276 Contact Us For Availability
4
WCI 5303210849 WCI 5303210849 Contact Us For Availability
5
WCI 5303281286 WCI 5303281286 Contact Us For Availability
5
DIVIDER WCI 3202962 Contact Us For Availability
5
BLADE-FAN WCI 5303202954 Contact Us For Availability
5
WCI 5303210203 WCI 5303210203 Contact Us For Availability
5
WCI 3201669 WCI 3201669 Contact Us For Availability
5
NUT LOCKING WCI 3007759 Contact Us For Availability
6
WCI 5303002189 WCI 5303002189 Contact Us For Availability
6
WCI 3202963 WCI 3202963 Contact Us For Availability
6
WCI 5303201132 WCI 5303201132 Contact Us For Availability
6
WCI 5303207195 WCI 5303207195 Contact Us For Availability
6
WCI 3201668 WCI 3201668 Contact Us For Availability
7
WCI 5300331902 WCI 5300331902 Contact Us For Availability
7
CORD-SERVICE WCI 5308017362 Contact Us For Availability
7
WCI 3202956 WCI 3202956 Contact Us For Availability
7
WCI 3201670 WCI 3201670 Contact Us For Availability
7
WCI 3002735 WCI 3002735 Contact Us For Availability
8
SCREW-FRONT MTG. WCI 5308008175 Contact Us For Availability
8
CAPACITOR 10-25/370 WCI 5308007201 Contact Us For Availability
8
WCI 3202957 WCI 3202957 Contact Us For Availability
8
WCI 5303201723 WCI 5303201723 Contact Us For Availability
8
SCREW-FRAME WCI 3002801 Contact Us For Availability
9
CAPACITOR (STRAP) WCI 5303015323 Contact Us For Availability
9
WCI 3202958 WCI 3202958 Contact Us For Availability
9
WCI 3202964 WCI 3202964 Contact Us For Availability
10
WCI 3202951 WCI 3202951 Contact Us For Availability
10
WCI 5303211382 WCI 5303211382 Contact Us For Availability
11
LOUVER-VERT & LINK ASSY WCI 5303002458 Contact Us For Availability
11
WCI 5303210984 WCI 5303210984 Contact Us For Availability
11
WCI 3016224 WCI 3016224 Contact Us For Availability
12
LINK VERTICAL LOUVER RH WCI 5303002164 Contact Us For Availability
12
WCI 3202075 WCI 3202075 Contact Us For Availability
12
WCI 3016225 WCI 3016225 Contact Us For Availability
13
LINK VERTICAL LOUVER LH WCI 5303002165 Contact Us For Availability
13
WCI 3001873 WCI 3001873 Contact Us For Availability
14
SPRING CLIP-LINK DETENT WCI 5303001844 Contact Us For Availability
14
WCI 3204944 WCI 3204944 Contact Us For Availability
14
WCI 5303207200 WCI 5303207200 Contact Us For Availability
15
WCI 5300301157 WCI 5300301157 Contact Us For Availability
15
CABLE - VENT DOOR WCI 5303015298 Contact Us For Availability
15
RETAINER, ACCORDION WCI 3202966 Contact Us For Availability
16
RETAINER - ACTUATOR WCI 5303202999 Contact Us For Availability
16
FRAME RH WCI 3202960 Contact Us For Availability
17
WCI 3203595 WCI 3203595 Contact Us For Availability
17
ACTUATOR-ARM WCI 3202941 Contact Us For Availability
18
WCI 5303210352 WCI 5303210352 Contact Us For Availability
18
WCI 5303202961 WCI 5303202961 Contact Us For Availability
19
WCI 5303201748 WCI 5303201748 Contact Us For Availability
20
WCI 5308017294 WCI 5308017294 Contact Us For Availability
21
FILTER WCI 5303016859 Contact Us For Availability
22
WCI 5300138101 WCI 5300138101 Contact Us For Availability
23
WCI 5303208912 WCI 5303208912 Contact Us For Availability
23A
NAMEPLATE-GRILLE (NON-ILLUSTRATED) WCI 5303271448 Contact Us For Availability
24
WCI 5303017980 WCI 5303017980 Contact Us For Availability
25
PLUG BTN WCI 5303271902 Contact Us For Availability
× ![]()
