Model Electrolux WAL100K1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams
01 - COVER
03 - WRAPPER

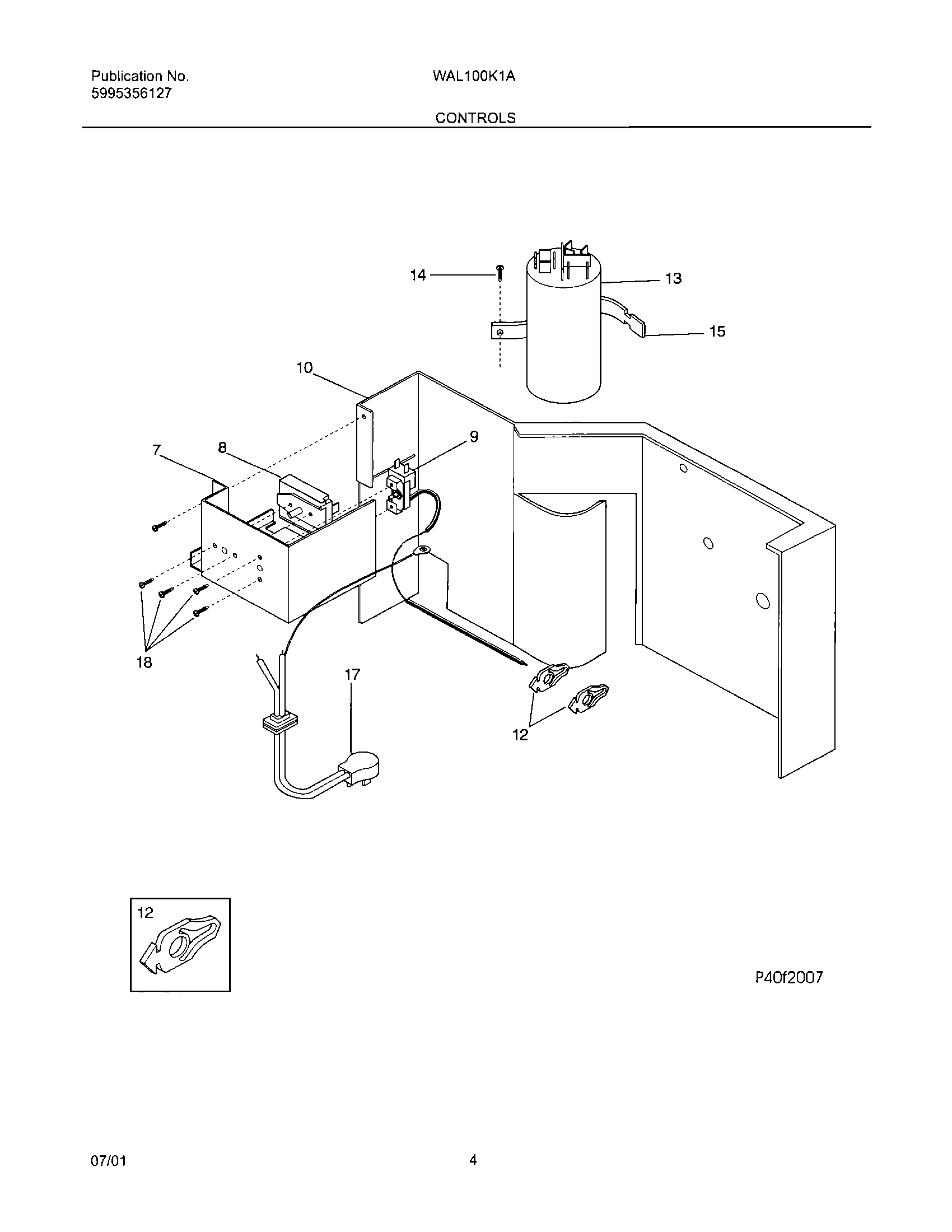

05 - CONTROLS

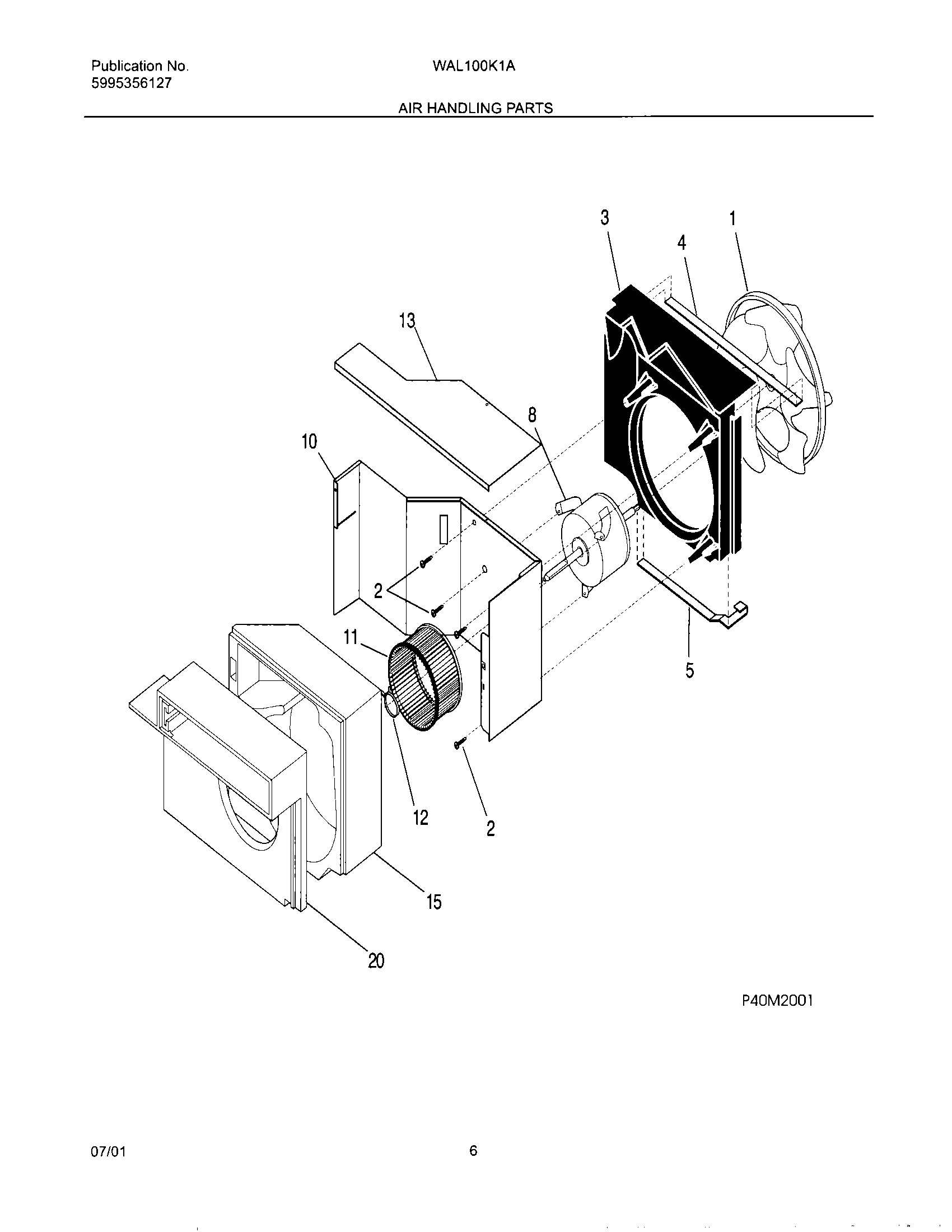

07 - AIR HANDLING

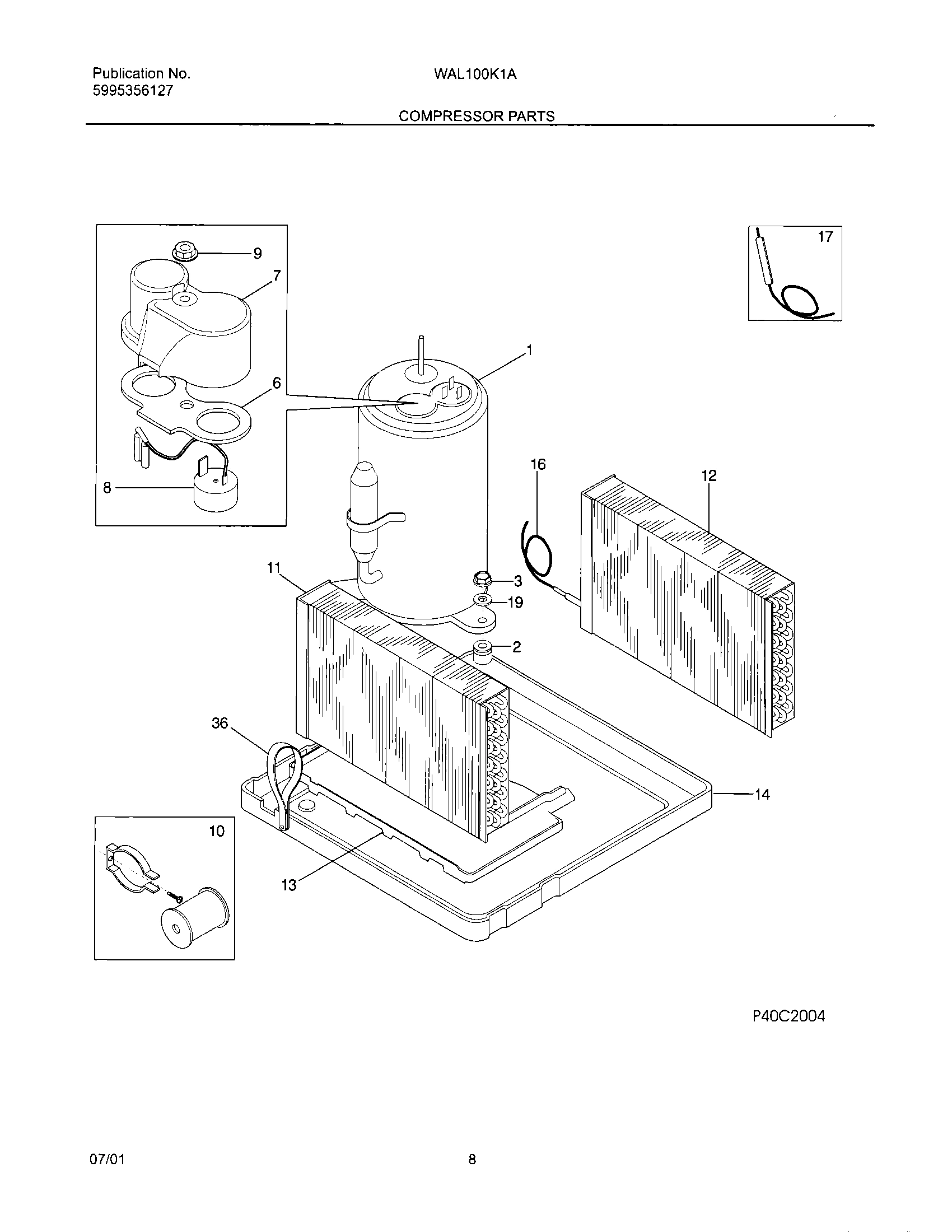

09 - SYSTEM

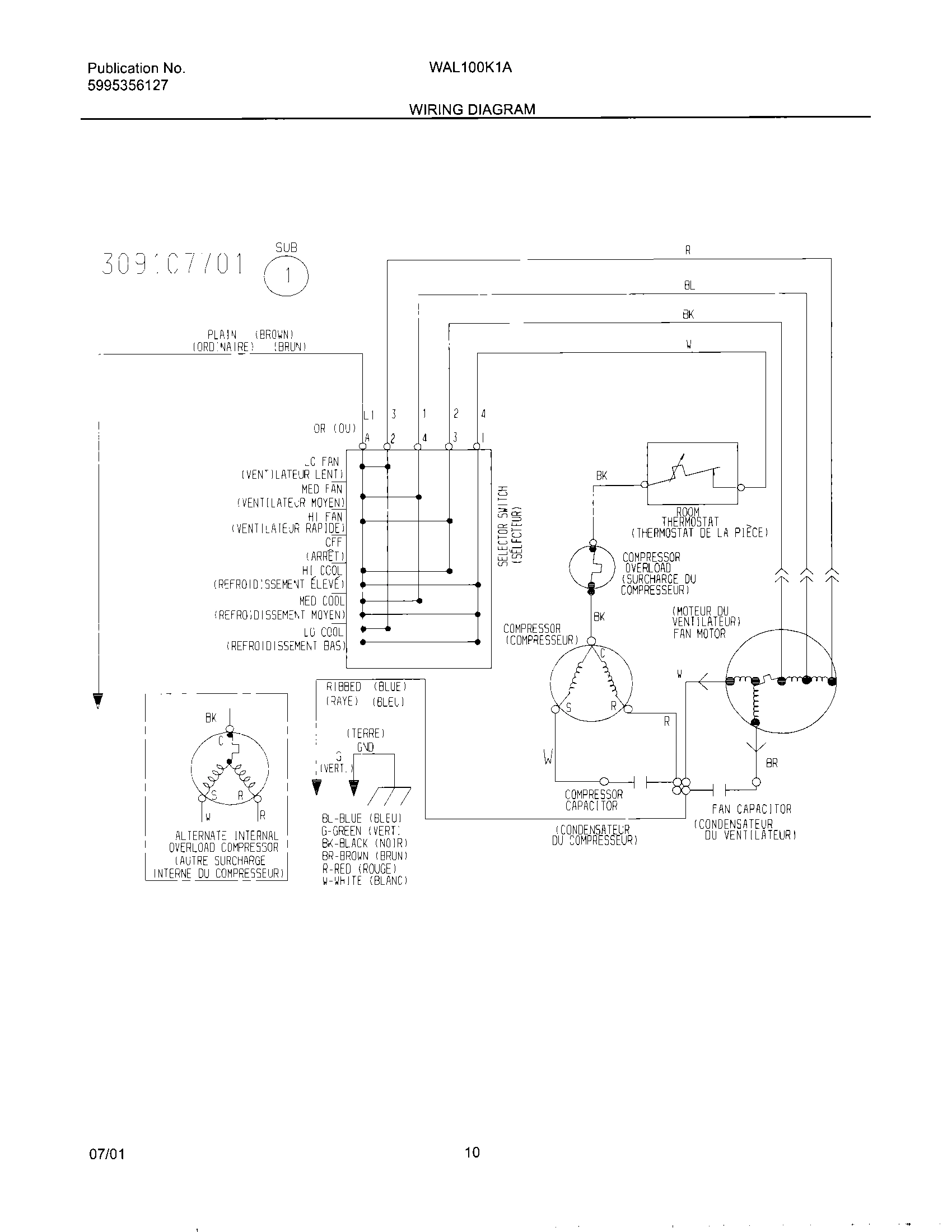

10 - WIRING DIAGRAM
Common parts from model Electrolux WAL100K1A1 ROOM AIR CONDITIONER
1
WCI 309609210 WCI 309609210 Contact Us For Availability
1
WCI 5303320769 WCI 5303320769 Contact Us For Availability
1
WCI 5304419112 WCI 5304419112 Contact Us For Availability
2
WCI 309632805 WCI 309632805 Contact Us For Availability
2
GROMMET,COMPRESSOR MTG ,(3) WCI 5303283877 Contact Us For Availability
3
HOUSING-FAN WCI 3202950 Contact Us For Availability
3
NUT,COMPRESSOR MTG ,(3) WCI 5308006948 Contact Us For Availability
4
SEAL-FAN HOUSING,TOP WCI 3202953 Contact Us For Availability
5
Seal-fan housing,bottom WCI 3202951 Contact Us For Availability
6
GASKET-COVER WCI 3200282 Contact Us For Availability
7
WCI 309638601 WCI 309638601 Contact Us For Availability
7
WCI 309605603 WCI 309605603 Contact Us For Availability
7
COVER-TERMINAL WCI 3200281 Contact Us For Availability
8
WCI 309639701 WCI 309639701 Contact Us For Availability
8
WCI 5304417447 WCI 5304417447 Contact Us For Availability
8
WCI 309630602 WCI 309630602 Contact Us For Availability
8
WCI 5303295567 WCI 5303295567 Contact Us For Availability
9
WCI 309342001 WCI 309342001 Contact Us For Availability
9
WCI 5303316597 WCI 5303316597 Contact Us For Availability
9
Nut,terminal cover WCI 5303211017 Contact Us For Availability
10
WCI 5303316617 WCI 5303316617 Contact Us For Availability
10
WCI 5303317601 WCI 5303317601 Contact Us For Availability
11
Blower Wheel,cavity 1&2 WCI 309608901 Contact Us For Availability
11
WCI 309606101 WCI 309606101 Contact Us For Availability
12
WCI 309343502 WCI 309343502 Contact Us For Availability
12
CLIP-CONTROL BULB WCI 5303002169 Contact Us For Availability
12
WCI 309112101 WCI 309112101 Contact Us For Availability
12
WCI 5304419796 WCI 5304419796 Contact Us For Availability
13
WCI 5303318963 WCI 5303318963 Contact Us For Availability
13
WCI 309605902 WCI 309605902 Contact Us For Availability
13
WCI 309606001 WCI 309606001 Contact Us For Availability
14
WCI 5304419798 WCI 5304419798 Contact Us For Availability
15
STRAP - CAPACITOR WCI 5303303077 Contact Us For Availability
15
WCI 309605702 WCI 309605702 Contact Us For Availability
16
Capillary Tube,45 inch long ,cut to length WCI 5308017120 Contact Us For Availability
17
Cord-service WCI 309343104 Contact Us For Availability
17
Tube-process WCI 5304417604 Contact Us For Availability
18
SCREW,6-32 X 0.188 WCI 5303007754 Contact Us For Availability
19
WCI 309344502 WCI 309344502 Contact Us For Availability
19
WASHER,COMPRESSOR MTG WCI 5303002664 Contact Us For Availability
20
WCI 309307013 WCI 309307013 Contact Us For Availability
20
WCI 309605802 WCI 309605802 Contact Us For Availability
25
WCI 309328602 WCI 309328602 Contact Us For Availability
26
Handle,vent door WCI 309639401 Contact Us For Availability
26A
WCI 309330201 WCI 309330201 Contact Us For Availability
36
WCI 5303303558 WCI 5303303558 Contact Us For Availability
43
WCI 309640302 WCI 309640302 Contact Us For Availability
NI
WCI 309639501 WCI 309639501 Contact Us For Availability
NI
WCI 309640402 WCI 309640402 Contact Us For Availability
NI
SPACER, PLATE WCI 5303001775 Contact Us For Availability
NI
WCI 5304415693 WCI 5304415693 Contact Us For Availability
NI
Seal-chassis,bottom WCI 5314949603 Contact Us For Availability
NI
WCI 309111201 WCI 309111201 Contact Us For Availability
NI
SLEEVE, CONTROL WCI 5303002600 Contact Us For Availability
NI
Blower-wheel,cavity 3&4 WCI 309608902 Contact Us For Availability
NI
CLAMP-BLOWER WCI 5303012110 Contact Us For Availability
NI
WCI 309112501 WCI 309112501 Contact Us For Availability
× ![]()
