Model Electrolux WAL087S1A1 ROOM AIR CONDITIONER – Common Parts & Diagrams

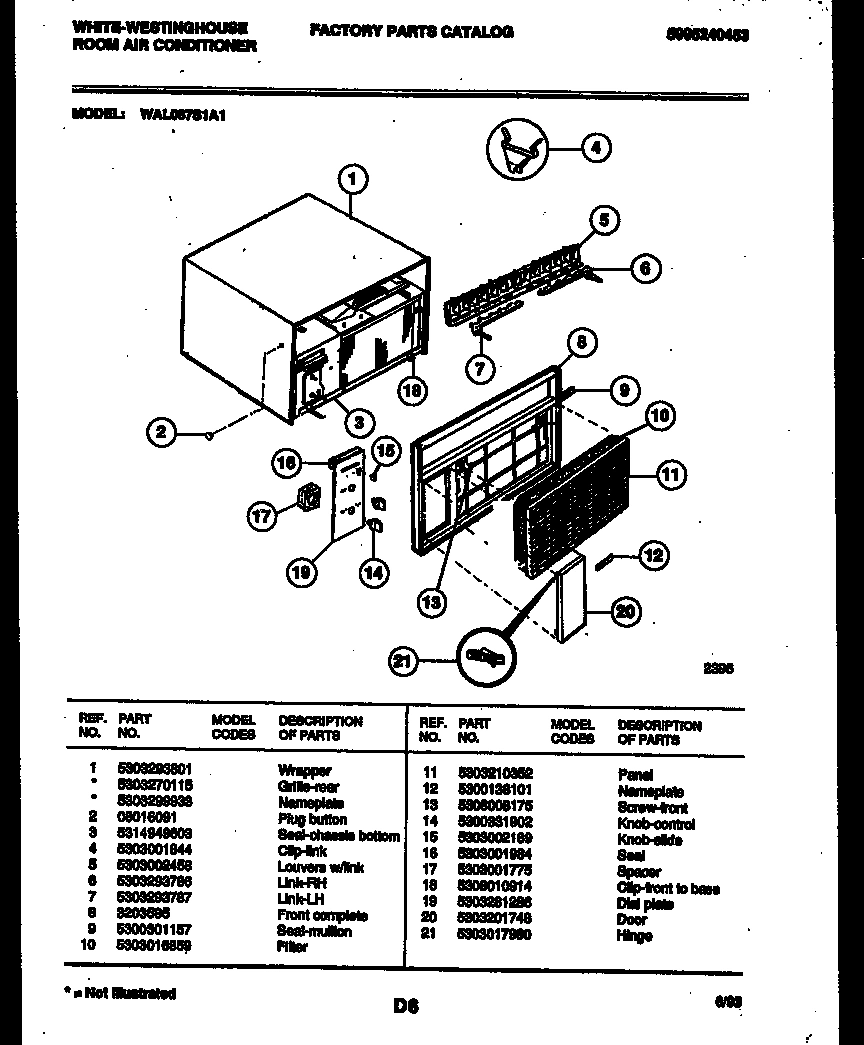

02 - CABINET PARTS

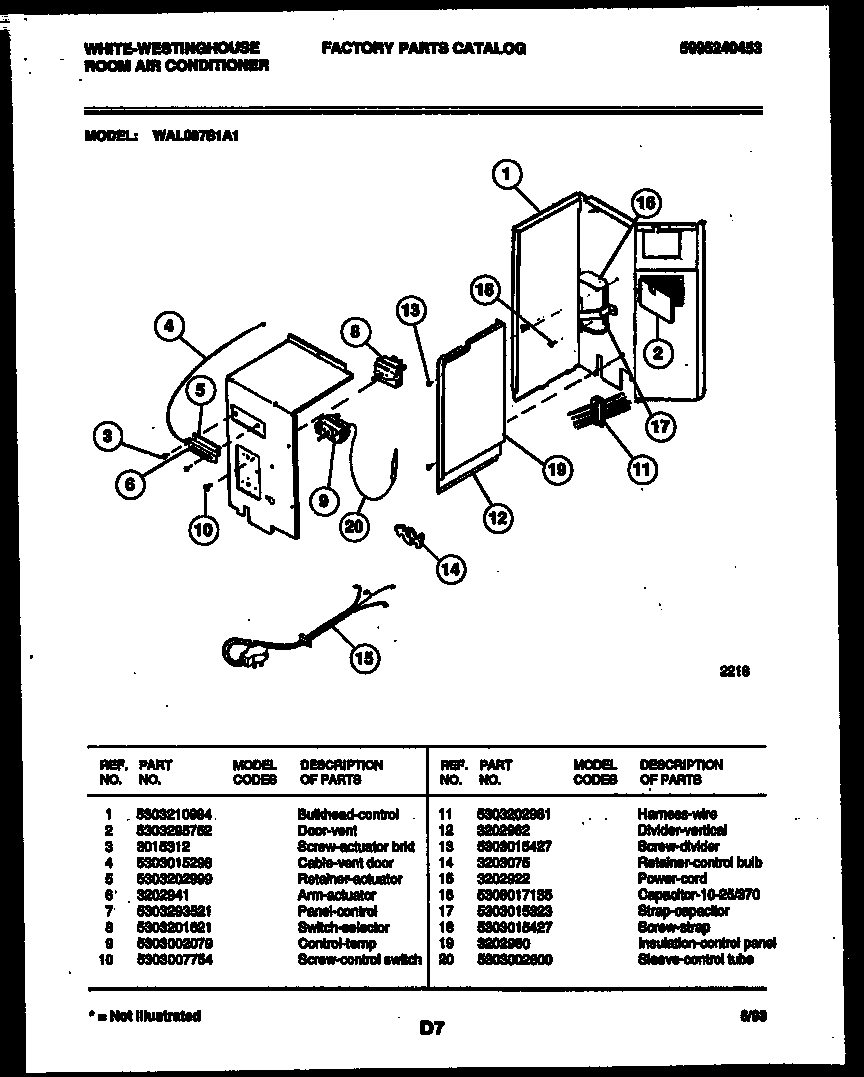

03 - ELECTRICAL PARTS
04 - AIR HANDLING PARTS
05 - UNIT PARTS
06 - CABINET AND INSTALLATION PARTS
Common parts from model Electrolux WAL087S1A1 ROOM AIR CONDITIONER
*76410
KIT-WINDOW MOUNTING WCI 5303925121 Contact Us For Availability
1
WCI 5303210984 WCI 5303210984 Contact Us For Availability
1
WCI 5303300200 WCI 5303300200 Contact Us For Availability
1B
NAMEPLATE (NON-ILLUSTRATED) WCI 5303299933 Contact Us For Availability
2
WCI 5303211056 WCI 5303211056 Contact Us For Availability
2
PLUG BUTTON WCI 08016091 Contact Us For Availability
2
DOOR-VENT WCI 5303295752 Contact Us For Availability
2
WCI 5303202805 WCI 5303202805 Contact Us For Availability
2
WCI 5303283877 WCI 5303283877 Contact Us For Availability
3
BULKHEAD-AIR WCI 5303295238 Contact Us For Availability
3
WCI 5308006948 WCI 5308006948 Contact Us For Availability
4
WCI 5303001844 WCI 5303001844 Contact Us For Availability
4
CABLE - VENT DOOR WCI 5303015298 Contact Us For Availability
4
WCI 3202950 WCI 3202950 Contact Us For Availability
4
WCI 5303002664 WCI 5303002664 Contact Us For Availability
4
WCI 3202964 WCI 3202964 Contact Us For Availability
5
LOUVERS W/ LINK WCI 5303002458 Contact Us For Availability
5
RETAINER - ACTUATOR WCI 5303202999 Contact Us For Availability
5
WCI 5303207279 WCI 5303207279 Contact Us For Availability
5
WCI 5303211026 WCI 5303211026 Contact Us For Availability
5
WCI 5303207200 WCI 5303207200 Contact Us For Availability
6
WCI 5303293786 WCI 5303293786 Contact Us For Availability
6
ARM-ACTUATOR WCI 3202941 Contact Us For Availability
6
WCI 5303201132 WCI 5303201132 Contact Us For Availability
6
SPRING-OVERLOAD WCI 5303002036 Contact Us For Availability
6
WCI 3202966 WCI 3202966 Contact Us For Availability
6A
CLAMP BLOWER WHEEL (NON-ILLUSTRATED) WCI 5303012110 Contact Us For Availability
6A
SEAL-RETAINER (NON-ILLUSTRATED) WCI 5303276728 Contact Us For Availability
7
WCI 5303293787 WCI 5303293787 Contact Us For Availability
7
WCI 5303293521 WCI 5303293521 Contact Us For Availability
7
WCI 5303211844 WCI 5303211844 Contact Us For Availability
7
GASKET WCI 5303002037 Contact Us For Availability
7
SUPPORT-RH WCI 5303284689 Contact Us For Availability
8
WCI 3203595 WCI 3203595 Contact Us For Availability
8
SWITCH-SELECTOR WCI 5303201621 Contact Us For Availability
8
WCI 3202951 WCI 3202951 Contact Us For Availability
8
WCI 5303002038 WCI 5303002038 Contact Us For Availability
8
BRACKET-WINDOW (2) WCI 3001815 Contact Us For Availability
9
WCI 5303002079 WCI 5303002079 Contact Us For Availability
9
WCI 5300301157 WCI 5300301157 Contact Us For Availability
9
WCI 5303002035 WCI 5303002035 Contact Us For Availability
9
SCREW (2) WCI 3007756 Contact Us For Availability
10
FILTER WCI 5303016859 Contact Us For Availability
10
SCREW-CONTROL SWITCH WCI 5303007754 Contact Us For Availability
10
WCI 3202957 WCI 3202957 Contact Us For Availability
10
COVER-TERMINAL WCI 3002034 Contact Us For Availability
10
NUT LOCKING WCI 3007759 Contact Us For Availability
11
PANEL WCI 5303210352 Contact Us For Availability
11
HARNESS-WIRE WCI 5303202961 Contact Us For Availability
11
WCI 3202958 WCI 3202958 Contact Us For Availability
11
WCI 5303284621 WCI 5303284621 Contact Us For Availability
11
SUPPORT-LH WCI 5303284690 Contact Us For Availability
12
WCI 5300138101 WCI 5300138101 Contact Us For Availability
12
WCI 3202962 WCI 3202962 Contact Us For Availability
12
BAFFLE WCI 5303270122 Contact Us For Availability
12
WCI 5303210203 WCI 5303210203 Contact Us For Availability
13
SCREW-FRONT WCI 5308008175 Contact Us For Availability
13
CLAMP - FAN BLADE WCI 5308011040 Contact Us For Availability
13
KIT-START WCI 5303201723 Contact Us For Availability
13
SCREW (4) WCI 5303281649 Contact Us For Availability
14
WCI 5300331902 WCI 5300331902 Contact Us For Availability
14
RETAINER-CONTROL BULB WCI 3203075 Contact Us For Availability
14
WCI 5303295568 WCI 5303295568 Contact Us For Availability
14
WCI 3203060 WCI 3203060 Contact Us For Availability
15
WCI 5303002189 WCI 5303002189 Contact Us For Availability
15
POWER CORD WCI 3202922 Contact Us For Availability
15
WCI 5303210176 WCI 5303210176 Contact Us For Availability
15
ACCORDION (2) WCI 5303211382 Contact Us For Availability
16
WCI 5303001984 WCI 5303001984 Contact Us For Availability
16
CAPACITOR-10-25/370 WCI 5308017135 Contact Us For Availability
16
CAPILLARY TUBE (CUT TO 30``) WCI 5303001746 Contact Us For Availability
16
RAIL-TOP SUPPORT WCI 3001873 Contact Us For Availability
17
WCI 5303001775 WCI 5303001775 Contact Us For Availability
17
WCI 5303015323 WCI 5303015323 Contact Us For Availability
17
SCREW (2) WCI 3002803 Contact Us For Availability
18
CLIP-FRONT TO BASE WCI 5308010914 Contact Us For Availability
19
WCI 5303281286 WCI 5303281286 Contact Us For Availability
19
INSULATION - CONTROL PANEL WCI 3202960 Contact Us For Availability
19
SCREW (2) WCI 3002801 Contact Us For Availability
20
SEAL WCI 5314949603 Contact Us For Availability
20
DOOR WCI 5303201748 Contact Us For Availability
20
SLEEVE-CONTROL TUBE WCI 5303002600 Contact Us For Availability
21
WCI 5303017980 WCI 5303017980 Contact Us For Availability
× ![]()
